Presentation Transcript


Rsa encryption

RSA Encryption

William Lu


Rsa background

RSA Background

  • Basic technique first discovered in 1973 by Clifford Cocks of CESG (part of British GCHQ)

  • Invented in 1977 by Ron Rivest, Adi Shamir and Len Adleman


Rsa uses

RSA Uses

  • Public key encryption

  • Digital signatures


Rsa algorithm

RSA Algorithm

  • Generate two large random primes, p and q, of approximately the same size

    • e.g. for 1024 bit encryption, p and q should be about 512 bits each

  • Compute n = pq and φ = (p-1)(q-1)

  • Choose e where 1<e<φ such that gcd(e,φ) = 1

  • Compute d where 1<d<φ such that ed = 1 mod φ

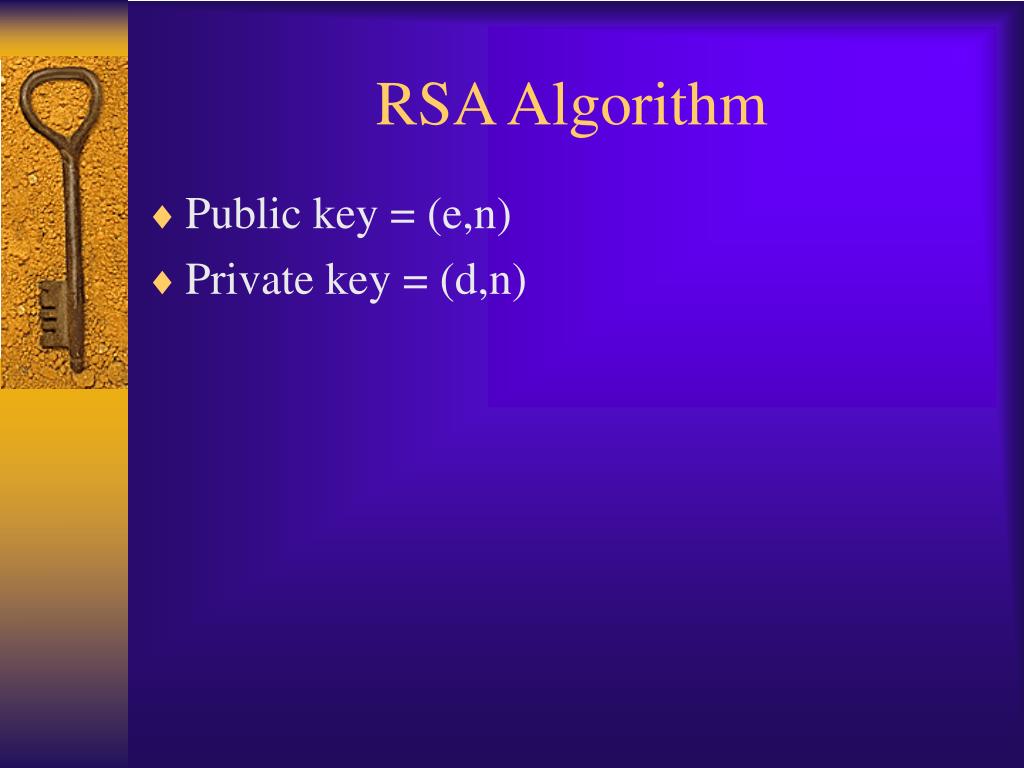

Rsa algorithm1

RSA Algorithm

  • Public key = (e,n)

  • Private key = (d,n)


Generate primes

Generate Primes

  • Get a pseudo random number

  • Use Fermat’s Little Theorem to test for prime

    • For prime n and any a, an mod n = a

    • For composite n and any a, an mod n ≠ a

  • BUT

  • If an mod n = a, n could be a composite


Generate primes1

Generate Primes

  • Does Fermat’s Little Theorem guarantee primes?

    • NO!

  • What is it for?

    • With enough rounds, n is probably prime

    • Much faster then testing with all primes < n


Generate exponents e and d

Generate Exponents e and d

  • For public exponent, e, pick any prime

    • Common choices are 3, 17 and 65537 (216 + 1)

  • For secret exponent, d, compute the modular inverse of e mod φ

    • Use Extended Euclidean Algorithm


Extended euclidean algorithm

Extended Euclidean Algorithm

  • To find inverse of e mod n:

    • Find quotient and remainder of n/e at each step

    • Also carry an auxiliary number ui = ui-2 – ui-1qi-2 mod n

    • Initialize u0 = 0 and u1 = 1

    • For each step use the previous e as the current n and the previous remainder as the current e

    • Repeat until e = 0 and the auxiliary number is the inverse of e mod n


Extended euclidean algorithm1

Extended Euclidean Algorithm

Inverse of 5 mod 72


Encryption decryption

Encryption/Decryption

  • To encrypt message m

    • Public key = (e,n)

    • c = me mod n

  • To decrypt cipher c

    • Private key = (d,n)

    • m = cd mod n

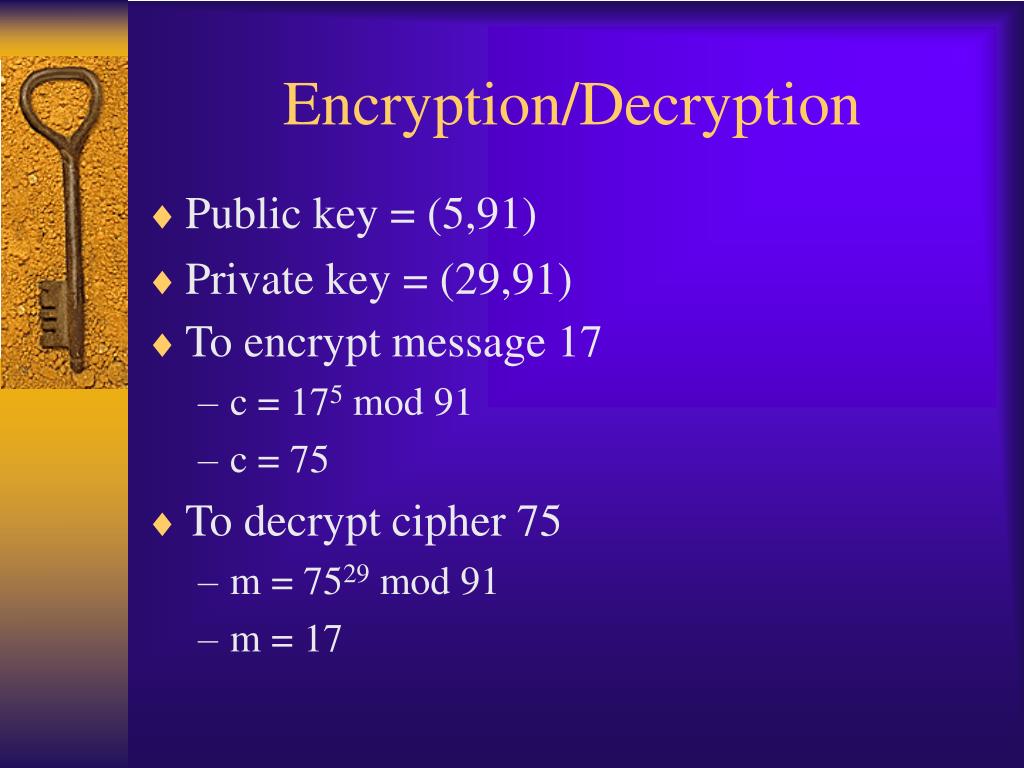

Encryption decryption1

Encryption/Decryption

  • Public key = (5,91)

  • Private key = (29,91)

  • To encrypt message 17

    • c = 175 mod 91

    • c = 75

  • To decrypt cipher 75

    • m = 7529 mod 91

    • m = 17


Signature

Signature

  • To sign message m

    • Private key = (d,n)

    • [m] = md mod n

  • To verify signature

    • Public key = (e,n)

    • {m} = me mod n


References

References

  • RSA Algorithm

    • DI Management Services

  • Fermat’s Little Theorem

    • Mathworld

  • Extended Euclidean Algorithm

    • Wolfgang Stöcher at Profactor Research

    • Bill Cherowitzo’s references at the University of Colorado at Denver

      • Ph. D (1983) in mathematics at Columbia University
