4. 钢筋配料计算实例

4. 钢筋配料计算实例. 图 5-25 某建筑物简支梁配筋图. 【 例 5.2】 某建筑物简支梁配筋如图 5-25 所示，试计算钢筋下料长度。钢筋保护层取 25mm 。 ( 梁编号为 L1 共 10 根 ). 解题过程. 表 5 － 15 　钢筋配料单. 【 解 】1. 绘出各种钢筋简图 ( 见表 5 － 15) 。. 2. 计算钢筋下料长度. ① 号钢筋下料长度 (6240+2×200-2×25)-2×2×25+2×6.25×25=6802(mm) ② 号钢筋下料长度 6240-2×25+2×6.25×12=6340(mm)

adelle
Download Presentation

4. 钢筋配料计算实例

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

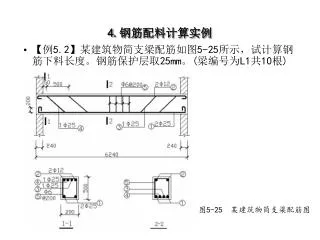

  1. 4.钢筋配料计算实例 图5-25某建筑物简支梁配筋图 【例5.2】某建筑物简支梁配筋如图5-25所示，试计算钢筋下料长度。钢筋保护层取25mm。(梁编号为L1共10根)

  2. 解题过程 表5－15　钢筋配料单 【解】1.绘出各种钢筋简图(见表5－15)。

  3. 2.计算钢筋下料长度 ①号钢筋下料长度(6240+2×200-2×25)-2×2×25+2×6.25×25=6802(mm) ②号钢筋下料长度6240-2×25+2×6.25×12=6340(mm) ③号弯起钢筋下料长度上直段钢筋长度240+50+500-25=765(mm)斜段钢筋长度(500-2×25)×1.414=636(mm) 中间直段长度6240-2×(240+50+500+450)=3760(mm) 下料长度(765+636)×2+3760-4×0.5×25+2×6.25×25=6824(mm) ④号钢筋下料长度计算为6824mm。 ⑤号箍筋下料长度宽度200-2×25+2×6=162(mm)高度500-2×25+2×6=462(mm)下料长度为(162+462)×2+50=1298(mm)
