Stats 330: Lecture 21

1. Stats 330: Lecture 21 More on Logistic Regression

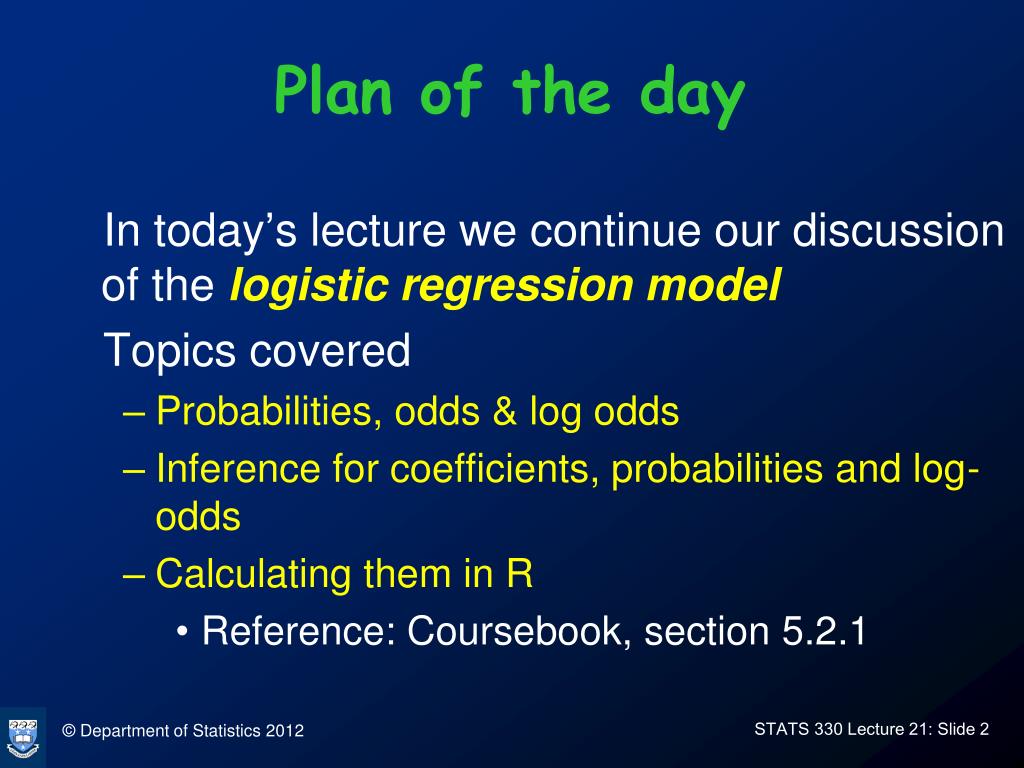

2. Plan of the day In today’s lecture we continue our discussion of the logistic regression model Topics covered • Probabilities, odds & log odds • Inference for coefficients, probabilities and log-odds • Calculating them in R • Reference: Coursebook, section 5.2.1

3. Probabilities, Odds and Log Odds • If E is an event, the probability that E occurs is written P(E). • The odds on E occuring is the ratio P(E)/(1-P(E)) • The log-odds is the logarithm of the odds

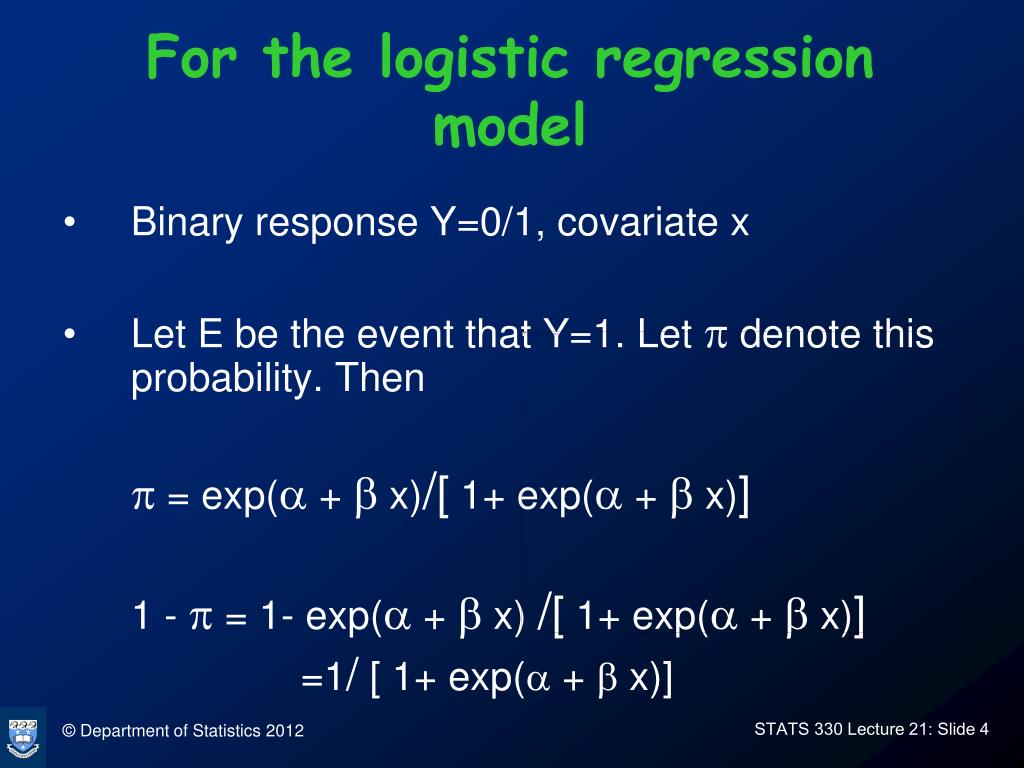

4. For the logistic regression model • Binary response Y=0/1, covariate x • Let E be the event that Y=1. Let p denote this probability. Then p = exp(a + b x)/[ 1+ exp(a + b x)] 1 - p = 1- exp(a + b x) /[ 1+ exp(a + b x)] =1/ [ 1+ exp(a + b x)]

5. Odds & log-odds Odds Log – odds (logits)

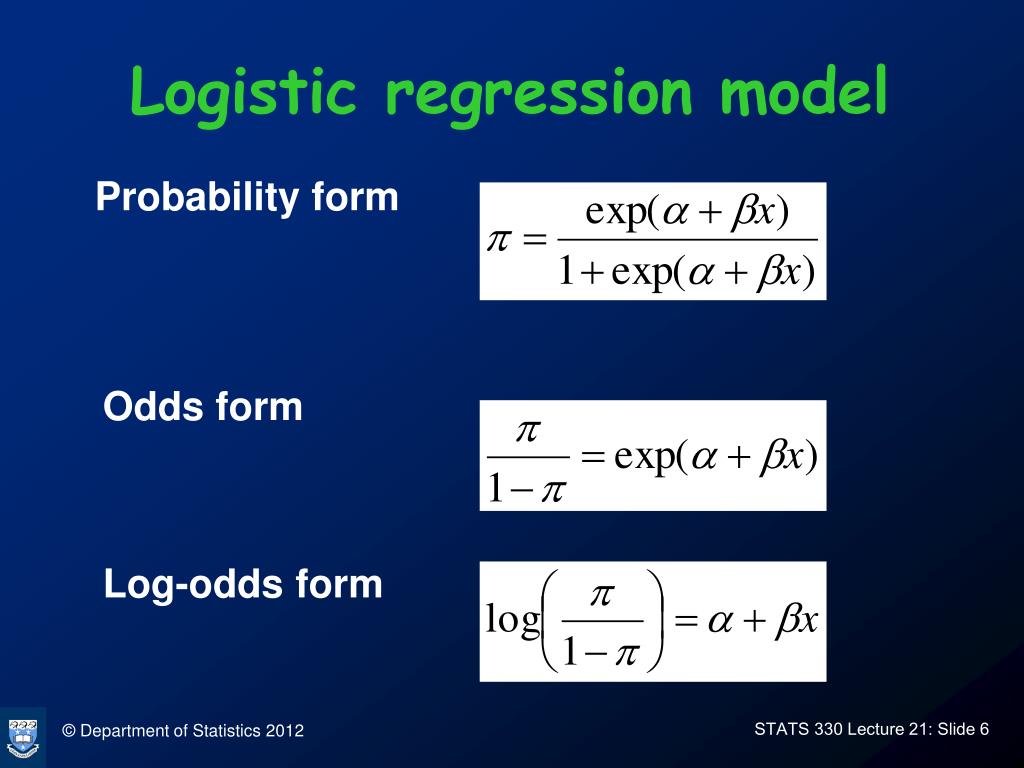

6. Logistic regression model Probability form Odds form Log-odds form

7. Interpretation of b • If x is increased by 1, odds become exp(a + b(x+1)) = exp(a + bx) ´ exp(b) = old odds ´ exp(b) • measures effect of unit increase in x on odds (multiplies by exp(b)) • If x is increased by 1, log odds become • + b(x+1) = a + bx + b = old log-odds + b • measures effect of unit increase in x on log-odds (adds b)

8. Estimating probabilities and log-odds • Given a fitted model, and a value of x, how can we estimate the probability p? • In practical terms, how can we estimate the probability a person of a given age has CHD? • Example: If age is 45, what is p =P(CHD)? • Use estimates for a and b: estimate of a is -5.2784, estimate of b is 0.1103

9. Hand Calculations • Estimated probability is exp(-5.2784 + 0.1103 ´ 45)/ (1+ exp(-5.2784 + 0.1103 ´ 45 )) = 0.4221 • Estimated odds is 0.4221/(1-0.4221) =0.7304 • Log-odds (logit) is log(0.7304)=-0.3142

10. Calculations using R > predict(chd.glm,data.frame(age=45), type="response") [1] 0.4221367 > predict(chd.glm,data.frame(age=45)) [1] -0.314008 Calculates probability Calculates log-odds

11. Plotting estimated probability: grouped approach grouped.chd.df<-data.frame(g.age=sort(unique(chd.df$age)), r=as.vector(tapply(chd.df$chd, chd.df$age,sum)), n=as.vector(tapply(chd.df$chd, chd.df$age,length))) attach(grouped.chd.df) plot(g.age, r/n, xlab= "age", ylab= "r/n") grouped.chd.glm<-glm(cbind(r, n-r)~g.age, family=binomial, data=grouped.chd.df) est.prob<-predict(grouped.chd.glm, grouped.chd.df, type="response") lines(g.age,est.prob,lwd=2,col="blue")

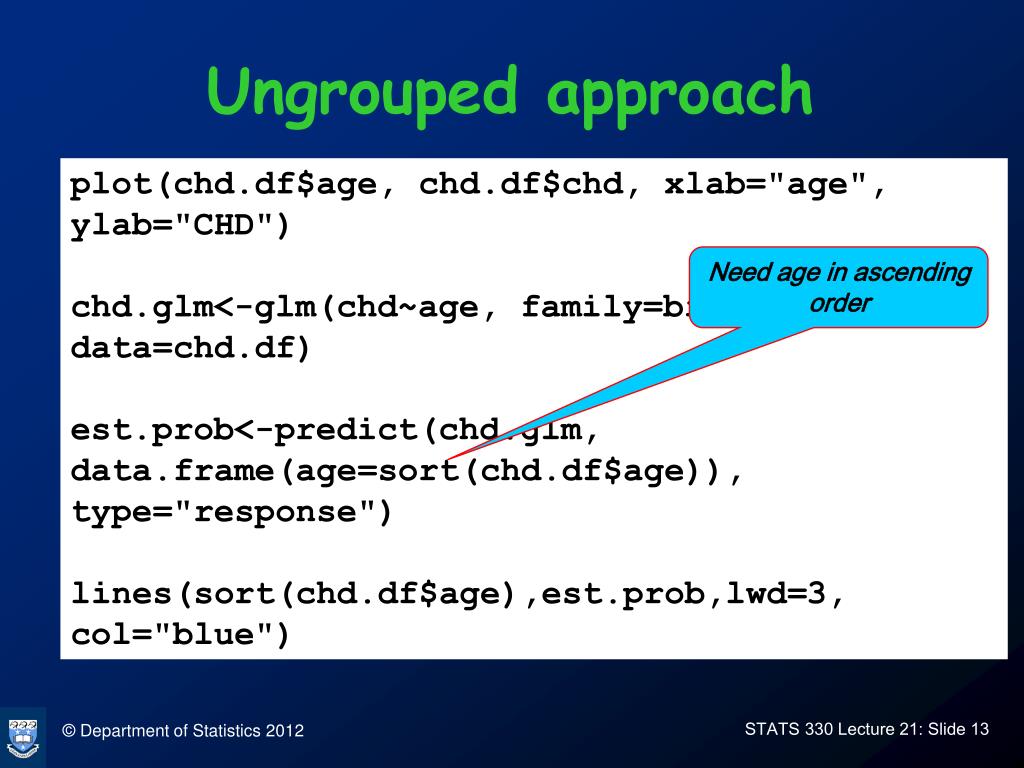

13. Ungrouped approach plot(chd.df$age, chd.df$chd, xlab="age", ylab="CHD") chd.glm<-glm(chd~age, family=binomial, data=chd.df) est.prob<-predict(chd.glm, data.frame(age=sort(chd.df$age)), type="response") lines(sort(chd.df$age),est.prob,lwd=3, col="blue") Need age in ascending order

15. Inference for coefficients and probabilities • Provided we have sufficient data, the estimated coefficients are approximately normal, similar to linear regression. • (in linear regression, exactly normal under the model assumptions) • The Maximum likelihood method gives us a way of computing standard errors for the coefficients and the estimated probabilities - we skip the (complicated) mathematical details

16. Testing for a zero coefficient • To test if a coefficient is zero we use the t-statistic and p-value just as in linear regression – tests are interpreted the same way • (in the case of a single covariate, this is testing that there is no relationship between covariate and response)

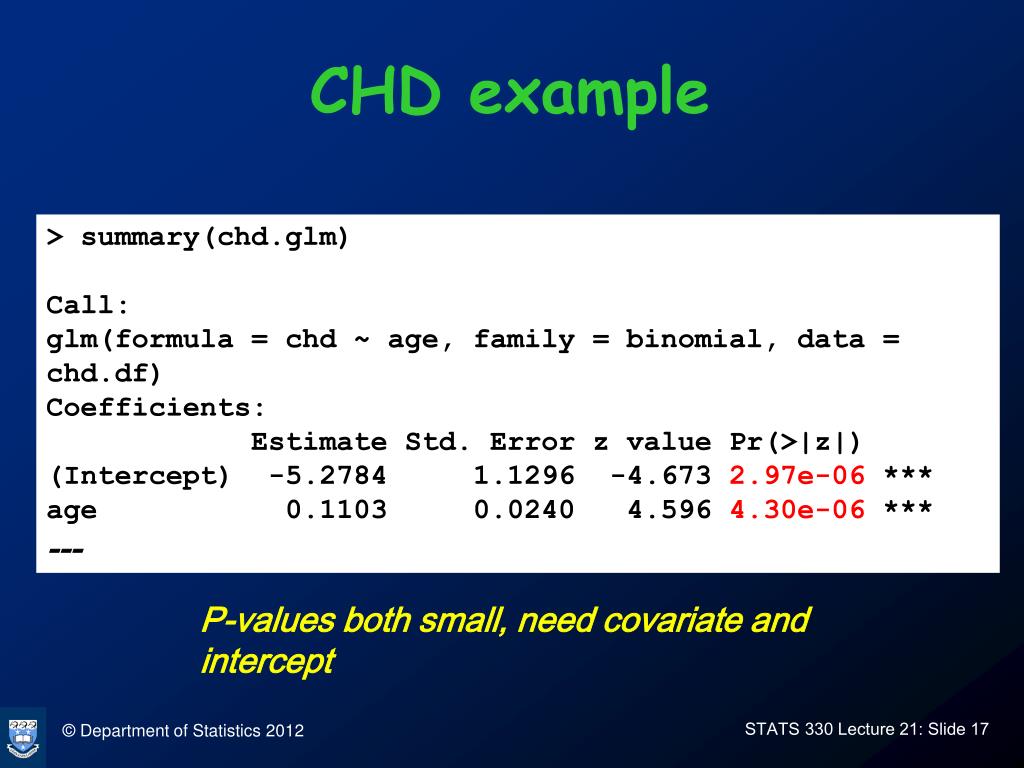

17. CHD example > summary(chd.glm) Call: glm(formula = chd ~ age, family = binomial, data = chd.df) Coefficients: Estimate Std. Error z value Pr(>|z|) (Intercept) -5.2784 1.1296 -4.673 2.97e-06 *** age 0.11030.0240 4.596 4.30e-06 *** --- P-values both small, need covariate and intercept

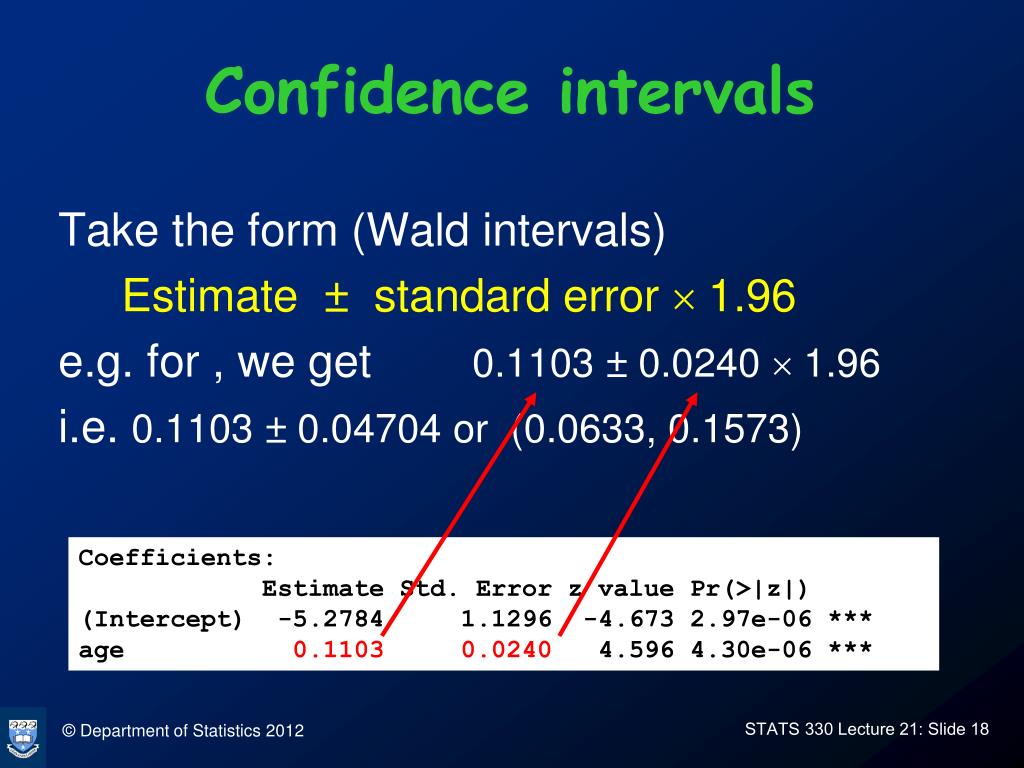

18. Confidence intervals Take the form (Wald intervals) Estimate ± standard error ´ 1.96 e.g. for , we get 0.1103 ± 0.0240 ´ 1.96 i.e. 0.1103 ± 0.04704 or (0.0633, 0.1573) Coefficients: Estimate Std. Error z value Pr(>|z|) (Intercept) -5.2784 1.1296 -4.673 2.97e-06 *** age 0.1103 0.0240 4.596 4.30e-06***

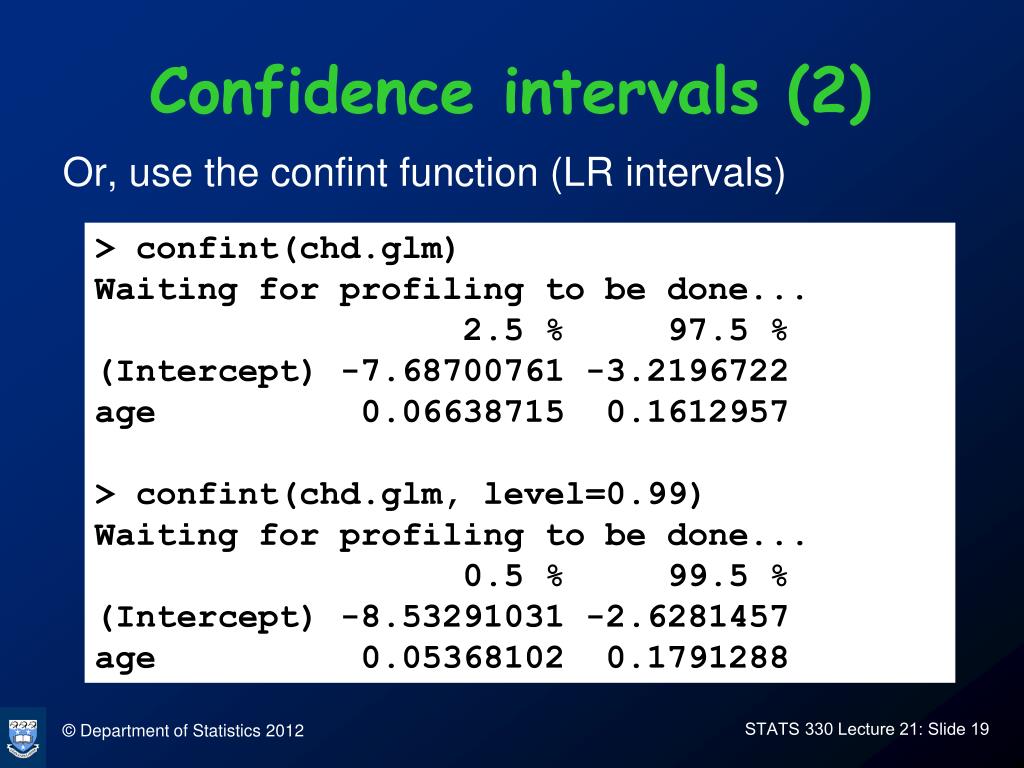

19. Confidence intervals (2) Or, use the confint function (LR intervals) > confint(chd.glm) Waiting for profiling to be done... 2.5 % 97.5 % (Intercept) -7.68700761 -3.2196722 age 0.06638715 0.1612957 > confint(chd.glm, level=0.99) Waiting for profiling to be done... 0.5 % 99.5 % (Intercept) -8.53291031 -2.6281457 age 0.05368102 0.1791288

20. Confidence intervals for probabilities Calculated with predict function (Like prediction intervals in linear regression) Form is Estimate ± standard error ´ 1.96 Example: 0.4221 ± 0.0578´ 1.96 i.e. 0.4221 ± 0.11328 > predict(chd.glm,data.frame(age=45),type="response",se=T) $fit [1] 0.4221367 $se.fit [1] 0.05780285 $residual.scale [1] 1

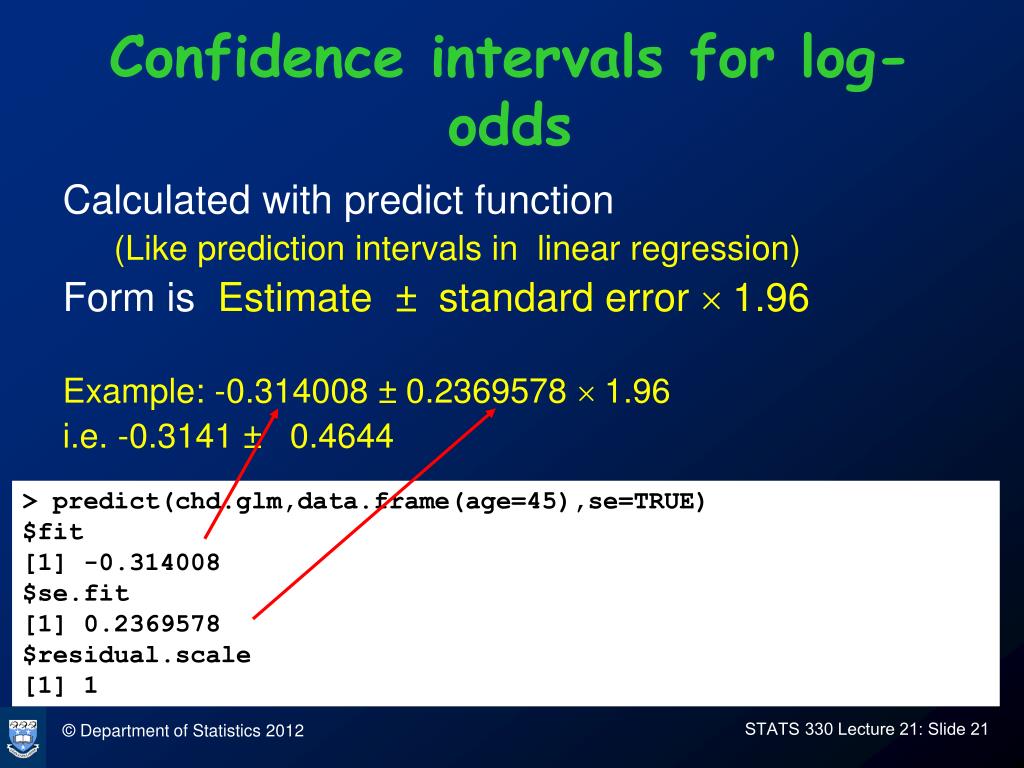

21. Confidence intervals for log-odds Calculated with predict function (Like prediction intervals in linear regression) Form is Estimate ± standard error ´ 1.96 Example: -0.314008± 0.2369578 ´ 1.96 i.e. -0.3141± 0.4644 > predict(chd.glm,data.frame(age=45),se=TRUE) $fit [1] -0.314008 $se.fit [1] 0.2369578 $residual.scale [1] 1

22. Confidence intervals for log-odds Calculated with predict function (Like prediction intervals in linear regression) Form is Estimate ± standard error ´ 1.96 Example: -0.314008± 0.2369578 ´ 1.96 i.e. -0.3141± 0.4644 > predict(chd.glm,data.frame(age=45),se=T) $fit [1] -0.314008 $se.fit [1] 0.2369578 $residual.scale [1] 1
