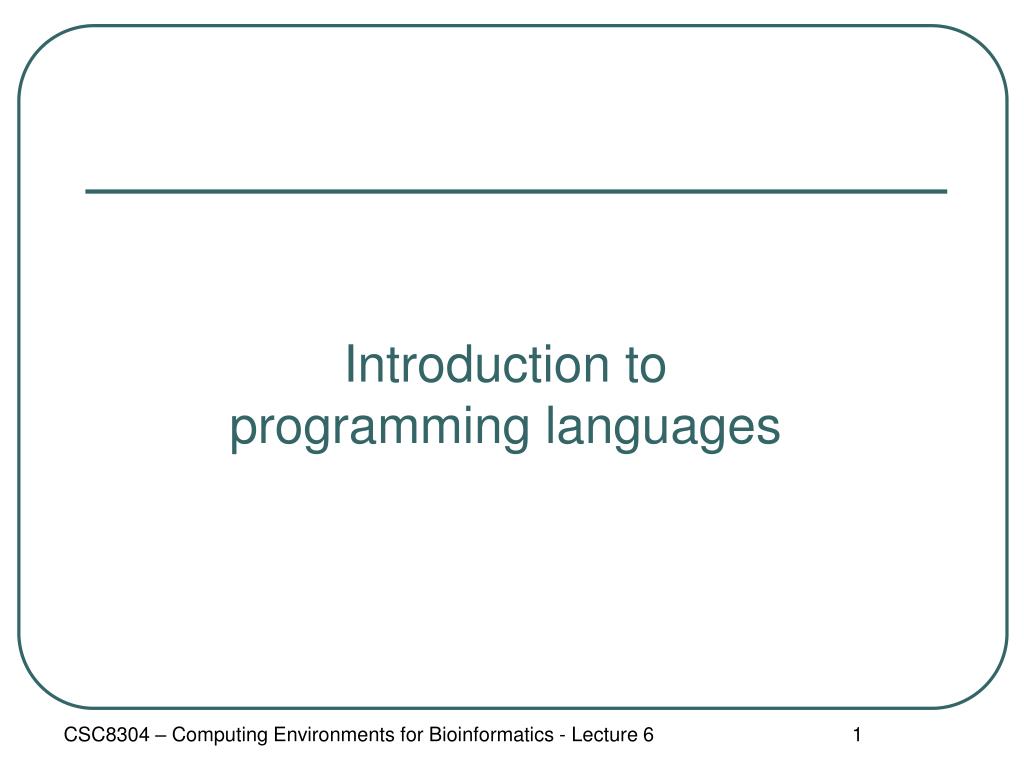

  1. Introduction toprogramming languages CSC8304 – Computing Environments for Bioinformatics - Lecture 6

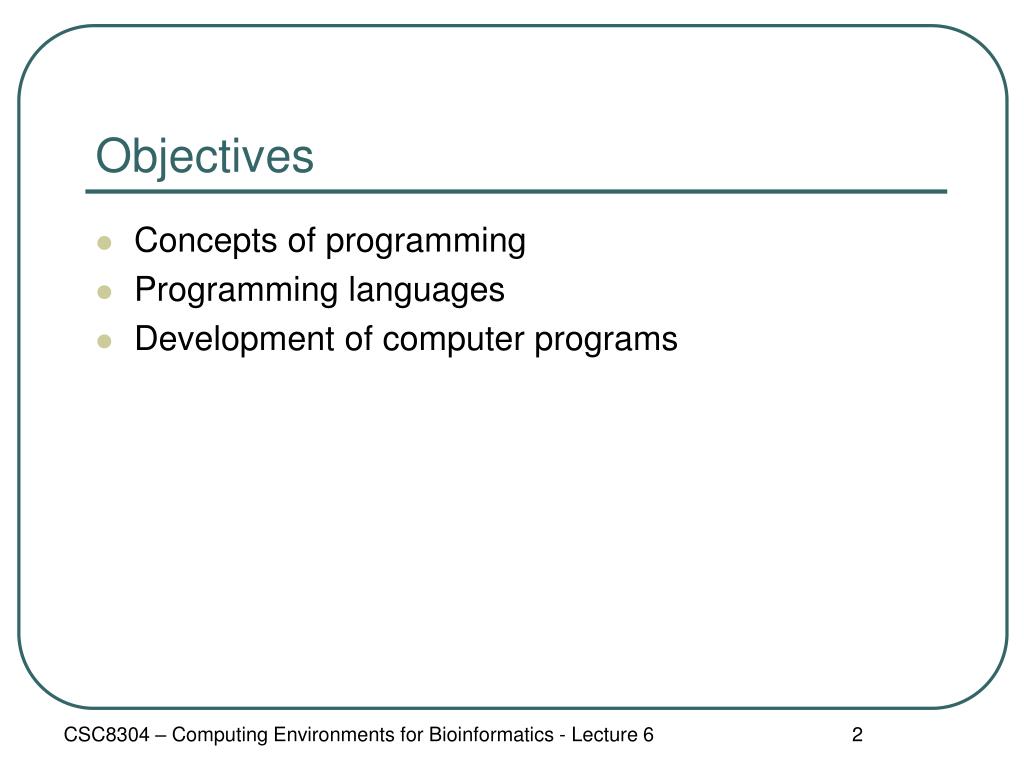

  2. Objectives • Concepts of programming • Programming languages • Development of computer programs CSC8304 – Computing Environments for Bioinformatics - Lecture 6

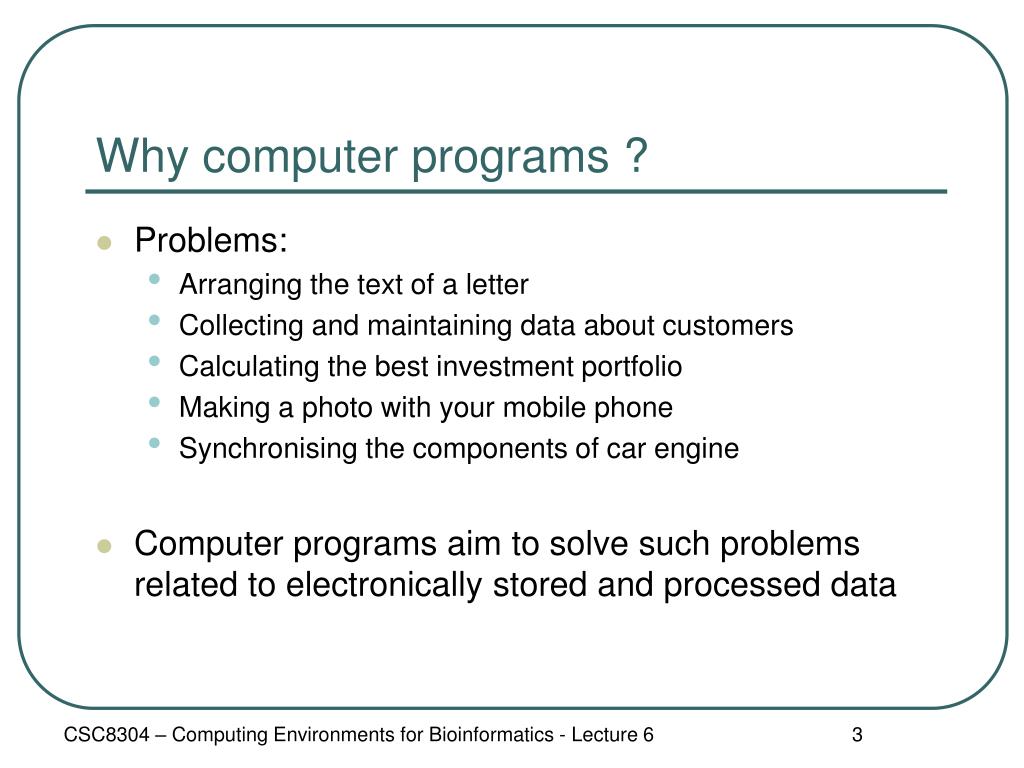

  3. Why computer programs ? • Problems: • Arranging the text of a letter • Collecting and maintaining data about customers • Calculating the best investment portfolio • Making a photo with your mobile phone • Synchronising the components of car engine • Computer programs aim to solve such problems related to electronically stored and processed data CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  4. Solving problems • Problem description • Data collections • Problem analysis (including data analysis) • Designing a solution • Implementing the solution CSC8304 – Computing Environments for Bioinformatics - Lecture 6

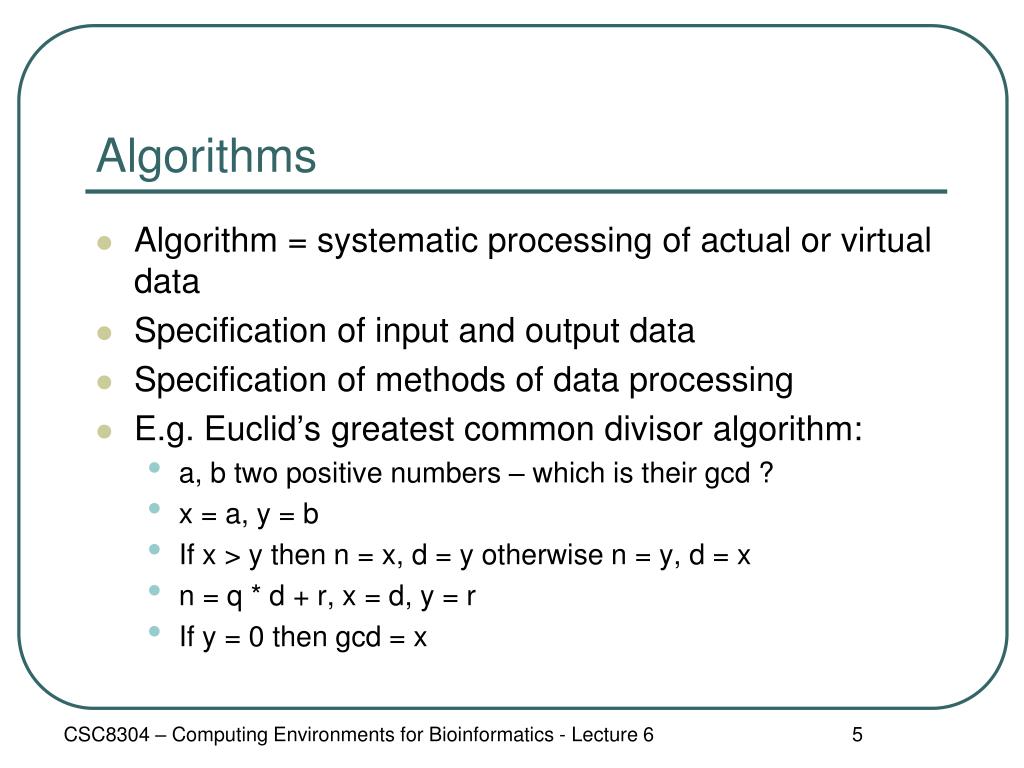

  5. Algorithms • Algorithm = systematic processing of actual or virtual data • Specification of input and output data • Specification of methods of data processing • E.g. Euclid’s greatest common divisor algorithm: • a, b two positive numbers – which is their gcd ? • x = a, y = b • If x > y then n = x, d = y otherwise n = y, d = x • n = q * d + r, x = d, y = r • If y = 0 then gcd = x CSC8304 – Computing Environments for Bioinformatics - Lecture 6

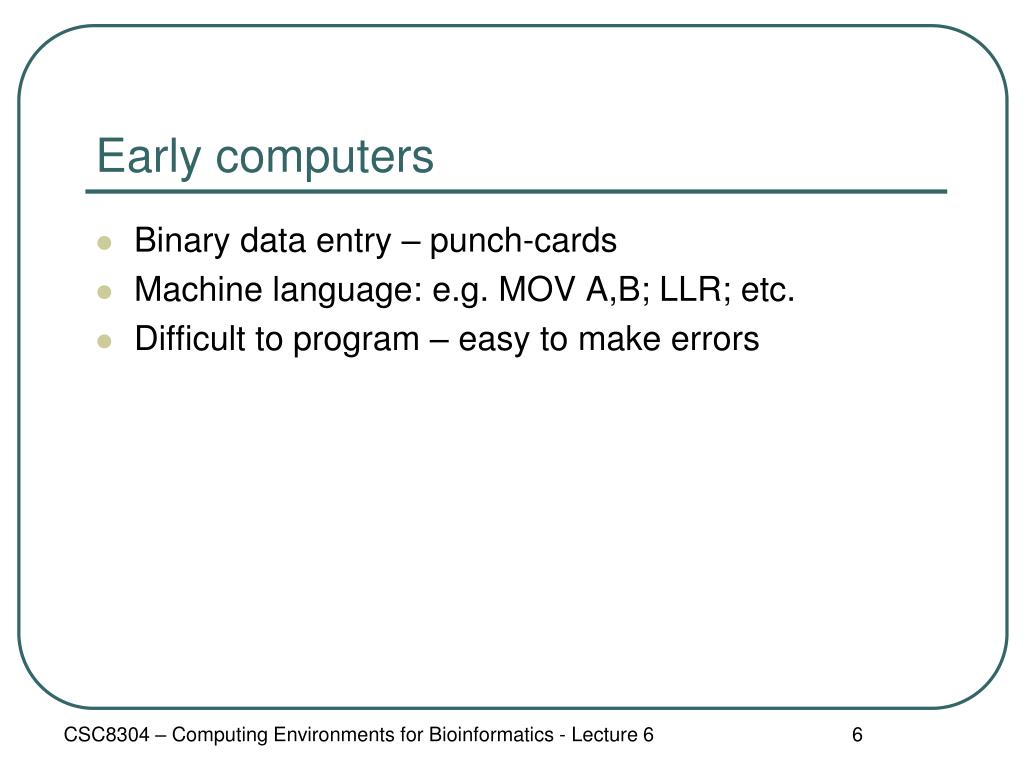

  6. Early computers • Binary data entry – punch-cards • Machine language: e.g. MOV A,B; LLR; etc. • Difficult to program – easy to make errors CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  7. Constants and variables • Constant: a fixed value, e.g. 5 • Constant: a fixed value with a name, e.g. a=5 • Variable x – a place holder for a value (e.g. number, text) • ‘:=‘ assignation of a value to a variable = the contents of the variable with a given name takes a certain specified value • Makes sense: x := x +1 • x := 5, x := x+1, now the value of x is 6 • Other variables: s := ‘Hello!’, y := (2, ‘apples’, ‘table’) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  8. Data types • Data is stored in variables with names • Variable: name + type + contents • Type determines what kind of contents the variable may have: e.g. integer, floating point real, string, combination of other data types • E.g. • int x, x := 5 is allowed, x := 5.1 is not allowed • string s, s := ‘hello kids’ is allowed, s := 3 is not allowed • Type definition for combined types: • addr = record (int nr, string st, string ct, string pc) • addr a, a := (5, ‘Hyde’, ‘York’, ‘YO2 4RH’) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

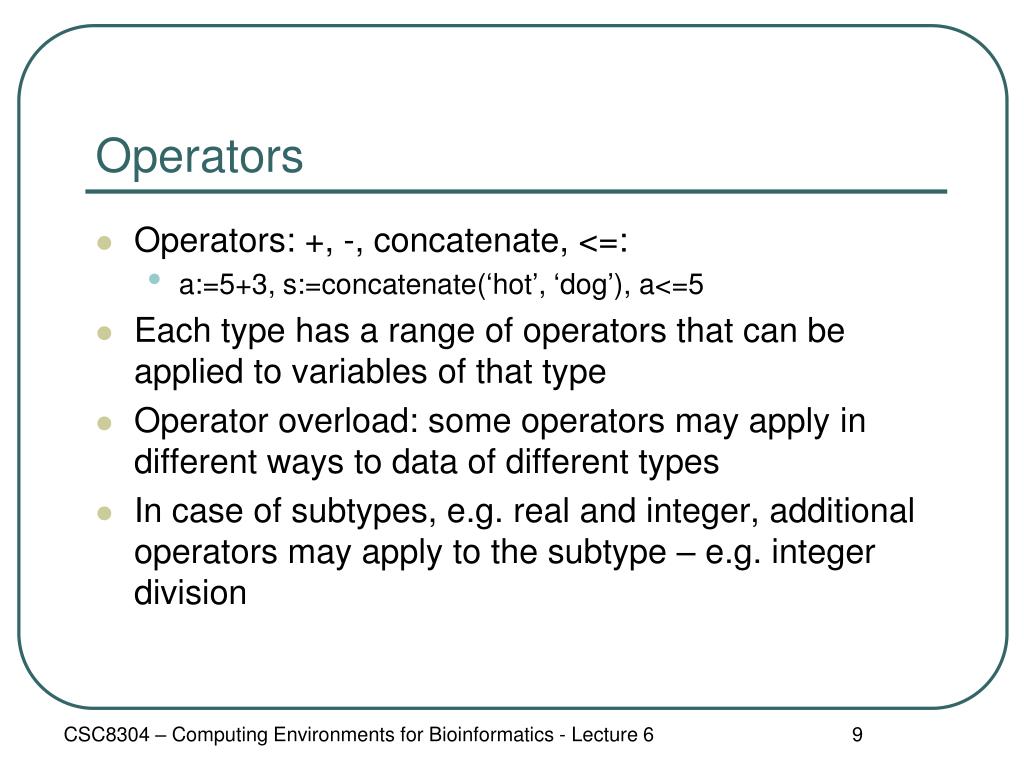

  9. Operators • Operators: +, -, concatenate, <=: • a:=5+3, s:=concatenate(‘hot’, ‘dog’), a<=5 • Each type has a range of operators that can be applied to variables of that type • Operator overload: some operators may apply in different ways to data of different types • In case of subtypes, e.g. real and integer, additional operators may apply to the subtype – e.g. integer division CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  10. Early programming languages • Fortran, Cobol • Better than machine code • Introduce flow control CSC8304 – Computing Environments for Bioinformatics - Lecture 6

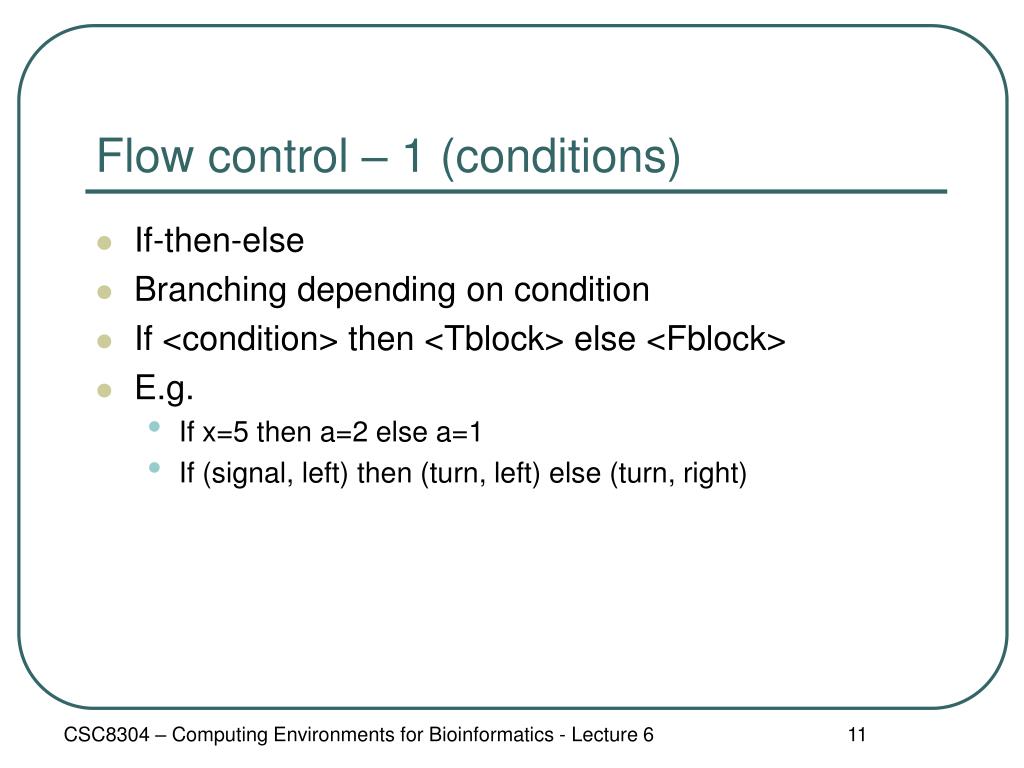

  11. Flow control – 1 (conditions) • If-then-else • Branching depending on condition • If <condition> then <Tblock> else <Fblock> • E.g. • If x=5 then a=2 else a=1 • If (signal, left) then (turn, left) else (turn, right) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  12. Flow control – 2 (loops) • for – fixed length cycling • for <init statement>, <increment statement>, <condition statement>, <execution statement> • E.g. • for {i:=1,a:=1}, i:=i+1, i<=100, do a:=a*i; • while, repeat – variable length cycling • while <condition statement>, <execution statement> • repeat < execution statement>, <condition statement> • E.g. • while i<100, do a:=a*i, i:=i+1 • repeat a:=a*i, i:=i+1, until i=100 CSC8304 – Computing Environments for Bioinformatics - Lecture 6

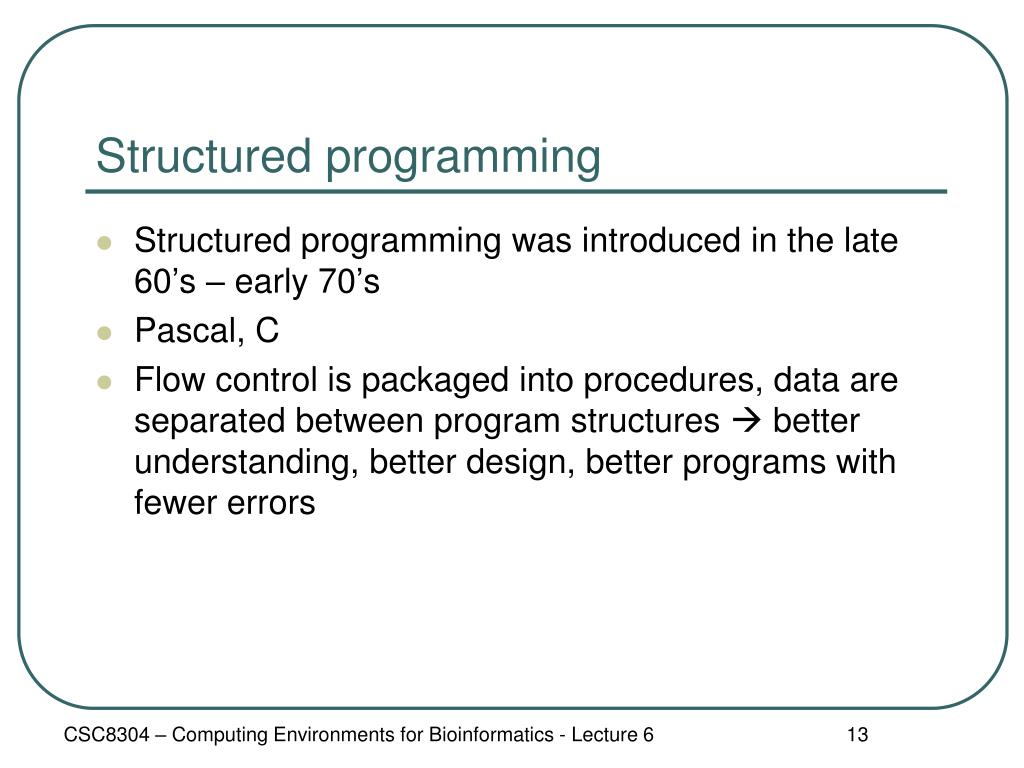

  13. Structured programming • Structured programming was introduced in the late 60’s – early 70’s • Pascal, C • Flow control is packaged into procedures, data are separated between program structures  better understanding, better design, better programs with fewer errors CSC8304 – Computing Environments for Bioinformatics - Lecture 6

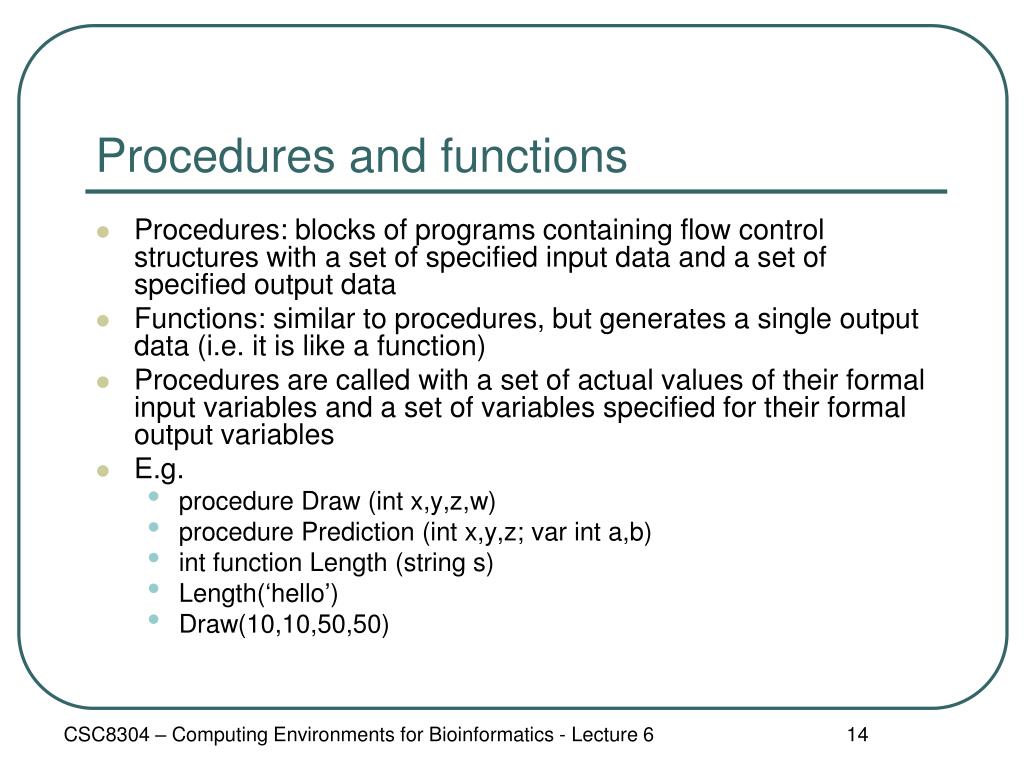

  14. Procedures and functions • Procedures: blocks of programs containing flow control structures with a set of specified input data and a set of specified output data • Functions: similar to procedures, but generates a single output data (i.e. it is like a function) • Procedures are called with a set of actual values of their formal input variables and a set of variables specified for their formal output variables • E.g. • procedure Draw (int x,y,z,w) • procedure Prediction (int x,y,z; var int a,b) • int function Length (string s) • Length(‘hello’) • Draw(10,10,50,50) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

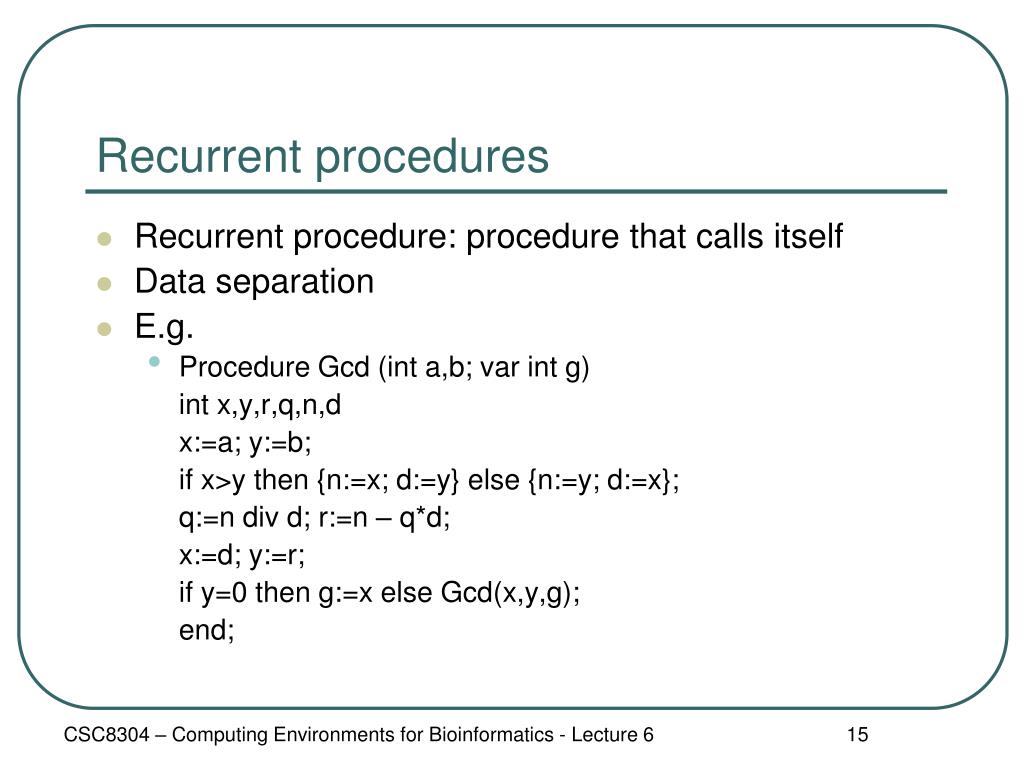

  15. Recurrent procedures • Recurrent procedure: procedure that calls itself • Data separation • E.g. • Procedure Gcd (int a,b; var int g) int x,y,r,q,n,d x:=a; y:=b; if x>y then {n:=x; d:=y} else {n:=y; d:=x}; q:=n div d; r:=n – q*d; x:=d; y:=r; if y=0 then g:=x else Gcd(x,y,g); end; CSC8304 – Computing Environments for Bioinformatics - Lecture 6

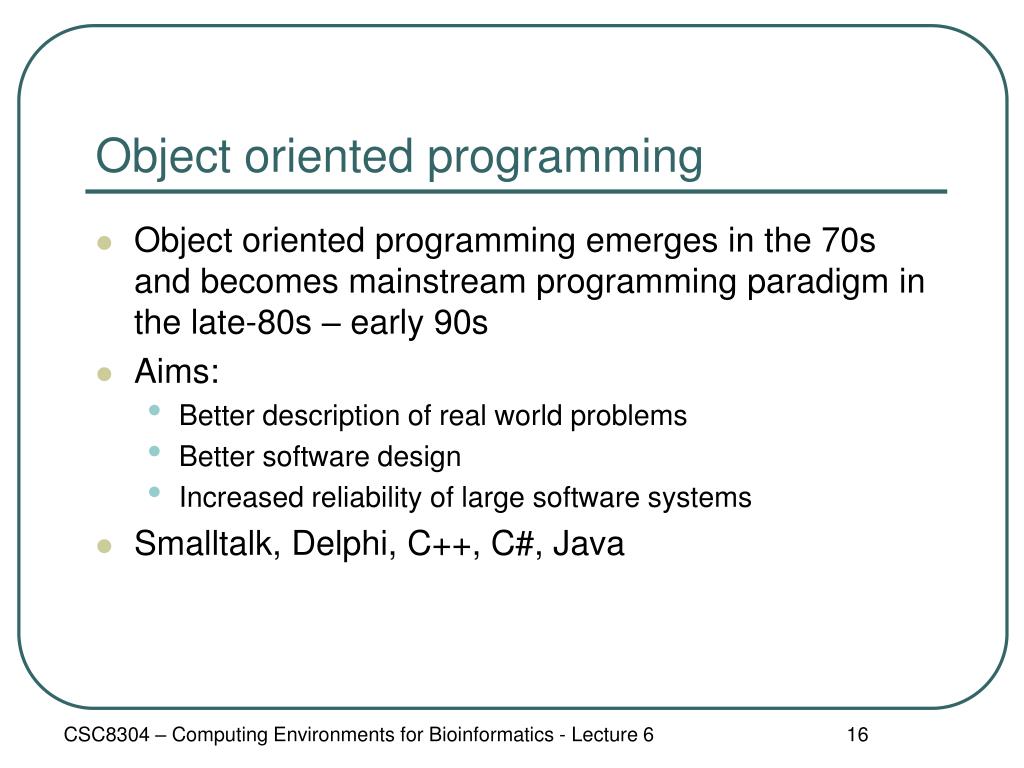

  16. Object oriented programming • Object oriented programming emerges in the 70s and becomes mainstream programming paradigm in the late-80s – early 90s • Aims: • Better description of real world problems • Better software design • Increased reliability of large software systems • Smalltalk, Delphi, C++, C#, Java CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  17. Classes and objects – 1 • Class: encapsulation of data and data manipulation, such that interference with outside is the minimal necessary • Class: attributes and methods – some visible from the outside, most visible only inside • E.g. • Class Square int llx,lly,dx,color Create Destroy Draw FillDraw • Square S , S.Create – an object is an instance of a class CSC8304 – Computing Environments for Bioinformatics - Lecture 6

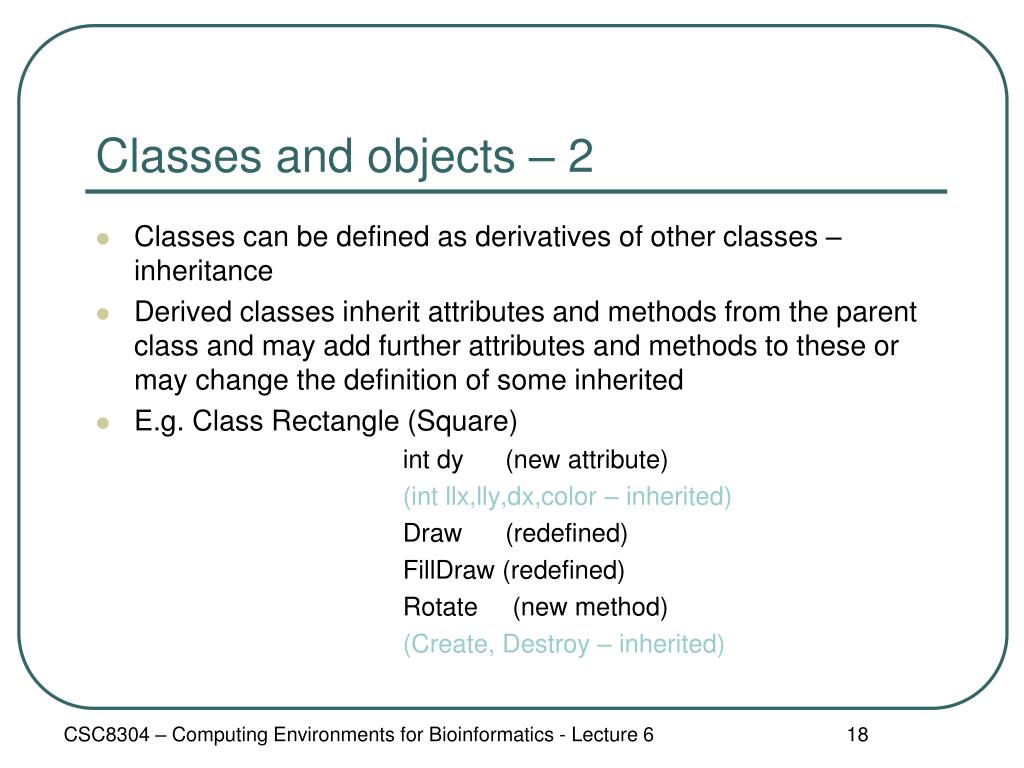

  18. Classes and objects – 2 • Classes can be defined as derivatives of other classes – inheritance • Derived classes inherit attributes and methods from the parent class and may add further attributes and methods to these or may change the definition of some inherited • E.g. Class Rectangle (Square) int dy (new attribute) (int llx,lly,dx,color – inherited) Draw (redefined) FillDraw (redefined) Rotate (new method) (Create, Destroy – inherited) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

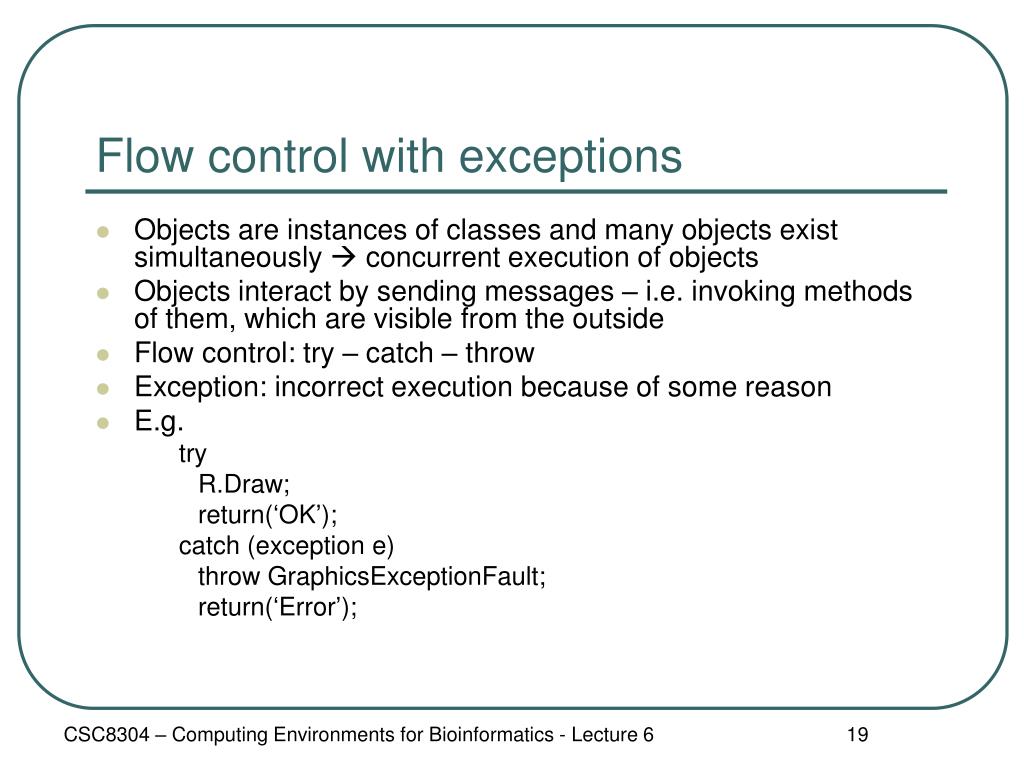

  19. Flow control with exceptions • Objects are instances of classes and many objects exist simultaneously  concurrent execution of objects • Objects interact by sending messages – i.e. invoking methods of them, which are visible from the outside • Flow control: try – catch – throw • Exception: incorrect execution because of some reason • E.g. try R.Draw; return(‘OK’); catch (exception e) throw GraphicsExceptionFault; return(‘Error’); CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  20. Functional programming • Everything is written as a function, the program is a combination of functions • LISP • Applied in AI (Artificial Intelligence) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

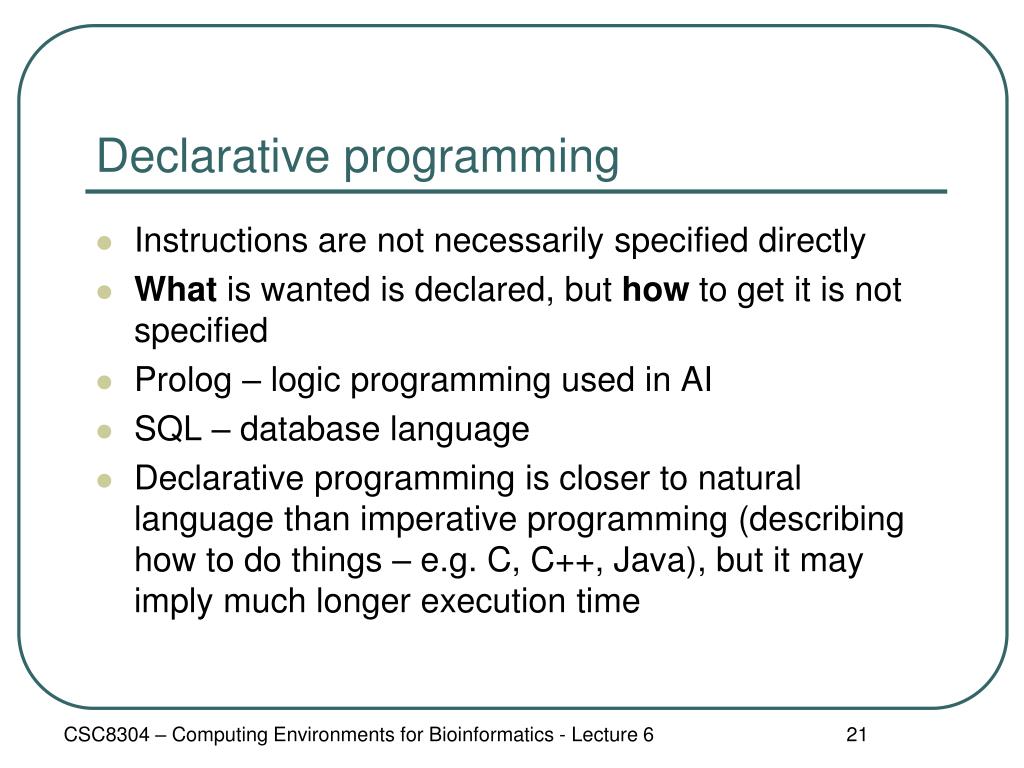

  21. Declarative programming • Instructions are not necessarily specified directly • What is wanted is declared, but how to get it is not specified • Prolog – logic programming used in AI • SQL – database language • Declarative programming is closer to natural language than imperative programming (describing how to do things – e.g. C, C++, Java), but it may imply much longer execution time CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  22. Compilation vs. interpretation • Compilation: the program is translated into a sequence of machine codes that can be executed directly by the processor – the whole program is translated (compiled) at once, when it is finished, the compiled program is executed  compilers • Interpretation: the program is interpreted by taking instructions/declarations one-by-one, each interpretation leads to a brief machine code translation that is executed, then the next instruction/declaration is interpreted – the program is translated (interpreted) as it is executed, and at any time only a small part is translated into machine code  interpretors • Compilers usually generate faster running programs, while interpretors leave more space for interactive use of programs CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  23. Interpreted or compiled? • BASIC • C/C++ • Java • R • Matlab • Perl CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  24. Reusable software • Developing software takes long time – it is desirable to re-use existing software to solve partial problems of new problems • Re-use is facilitated by documentation – description of what is written in the program and why • Early programming languages did not support very much re-use • Object oriented programming languages provide very much support for re-use CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  25. Component-based programming • Component-based programming is the current major trend in software development • New software is built by combining existing components in novel ways – relies very much on re-use of existing software • E.g. classes or objects can be purchased or used as service providers, most of the software does not have to written from scratch – for example handling of a printer or reading standard file formats (like XML) CSC8304 – Computing Environments for Bioinformatics - Lecture 6

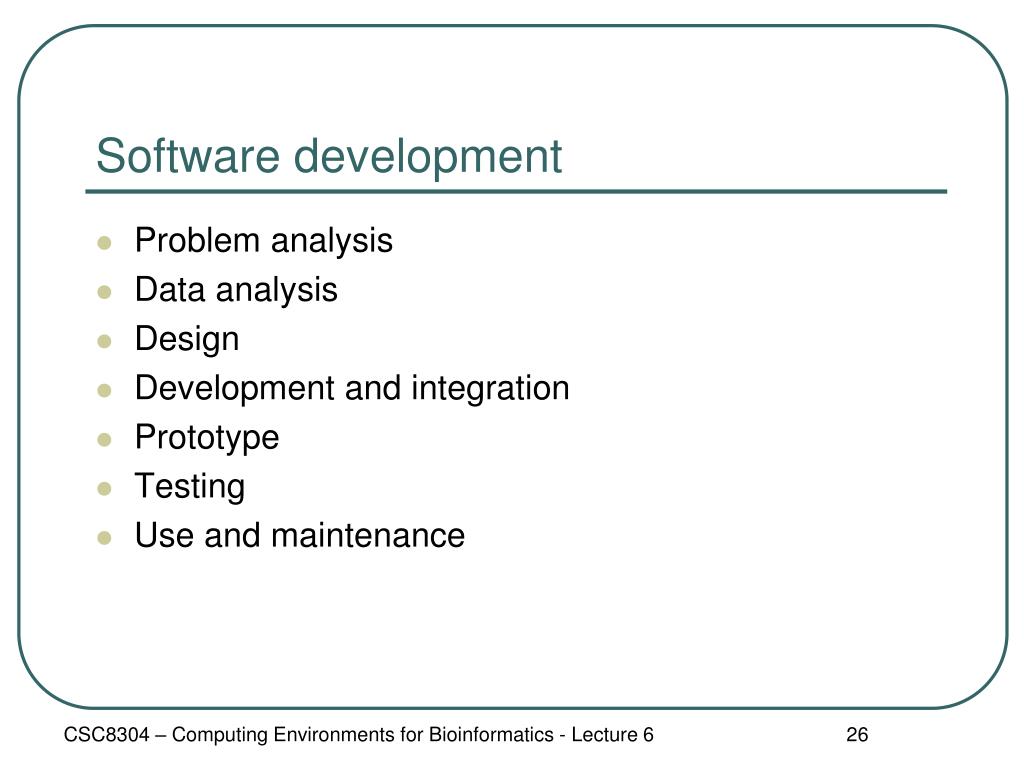

  26. Software development • Problem analysis • Data analysis • Design • Development and integration • Prototype • Testing • Use and maintenance CSC8304 – Computing Environments for Bioinformatics - Lecture 6

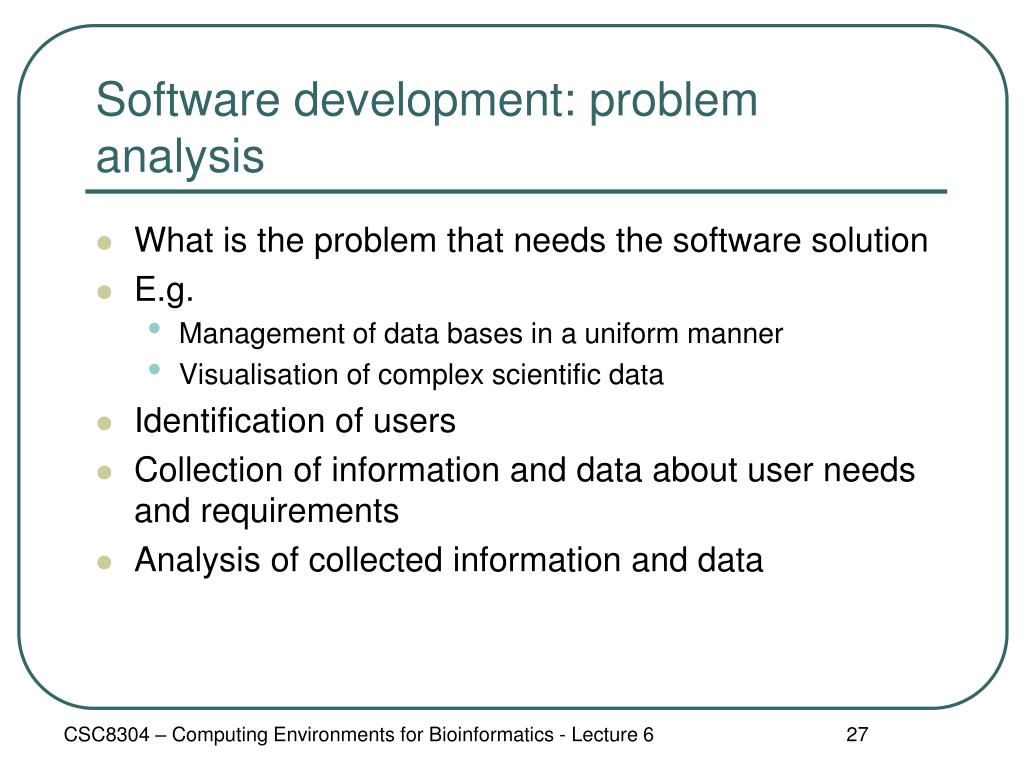

  27. Software development: problem analysis • What is the problem that needs the software solution • E.g. • Management of data bases in a uniform manner • Visualisation of complex scientific data • Identification of users • Collection of information and data about user needs and requirements • Analysis of collected information and data CSC8304 – Computing Environments for Bioinformatics - Lecture 6

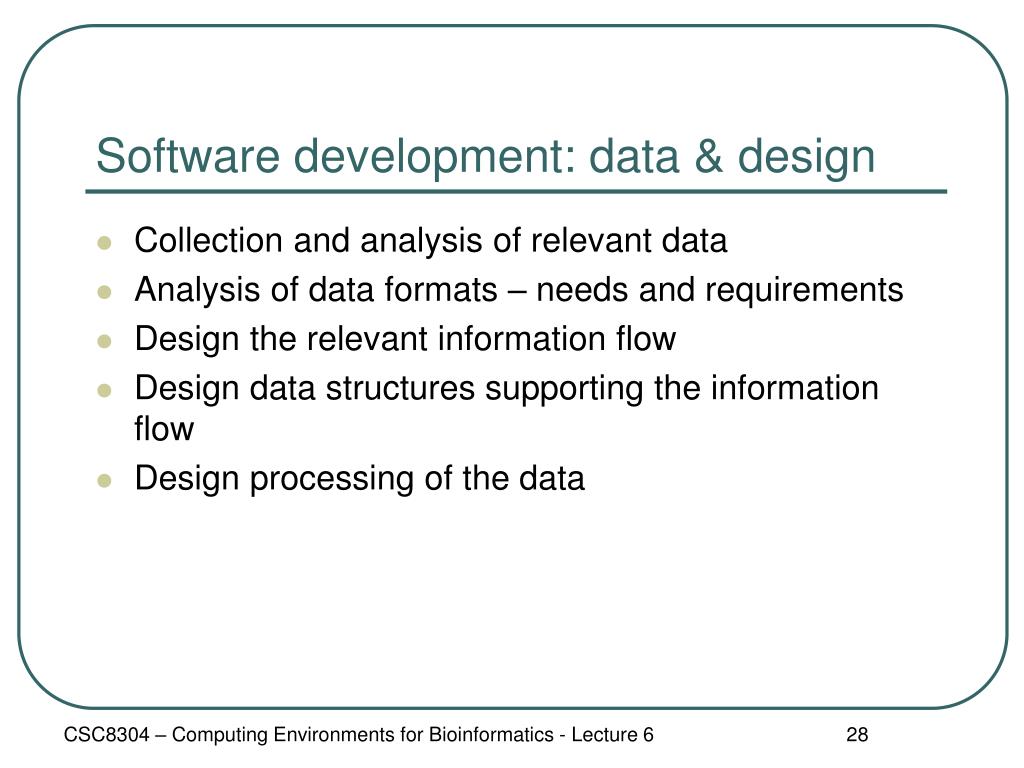

  28. Software development: data & design • Collection and analysis of relevant data • Analysis of data formats – needs and requirements • Design the relevant information flow • Design data structures supporting the information flow • Design processing of the data CSC8304 – Computing Environments for Bioinformatics - Lecture 6

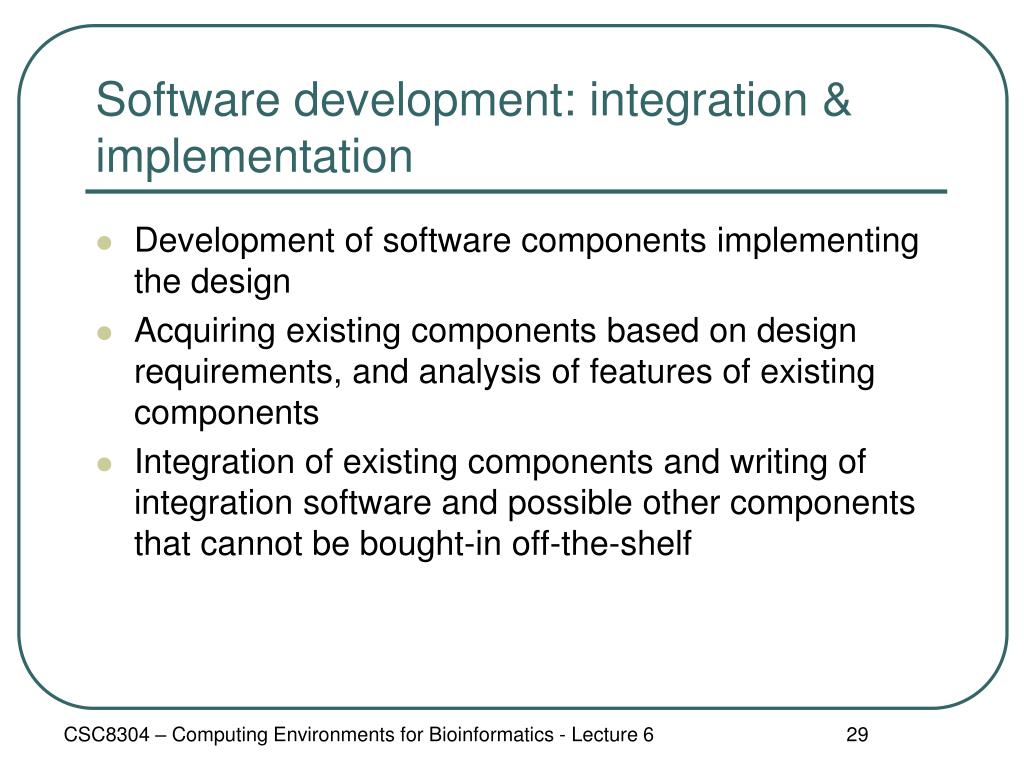

  29. Software development: integration & implementation • Development of software components implementing the design • Acquiring existing components based on design requirements, and analysis of features of existing components • Integration of existing components and writing of integration software and possible other components that cannot be bought-in off-the-shelf CSC8304 – Computing Environments for Bioinformatics - Lecture 6

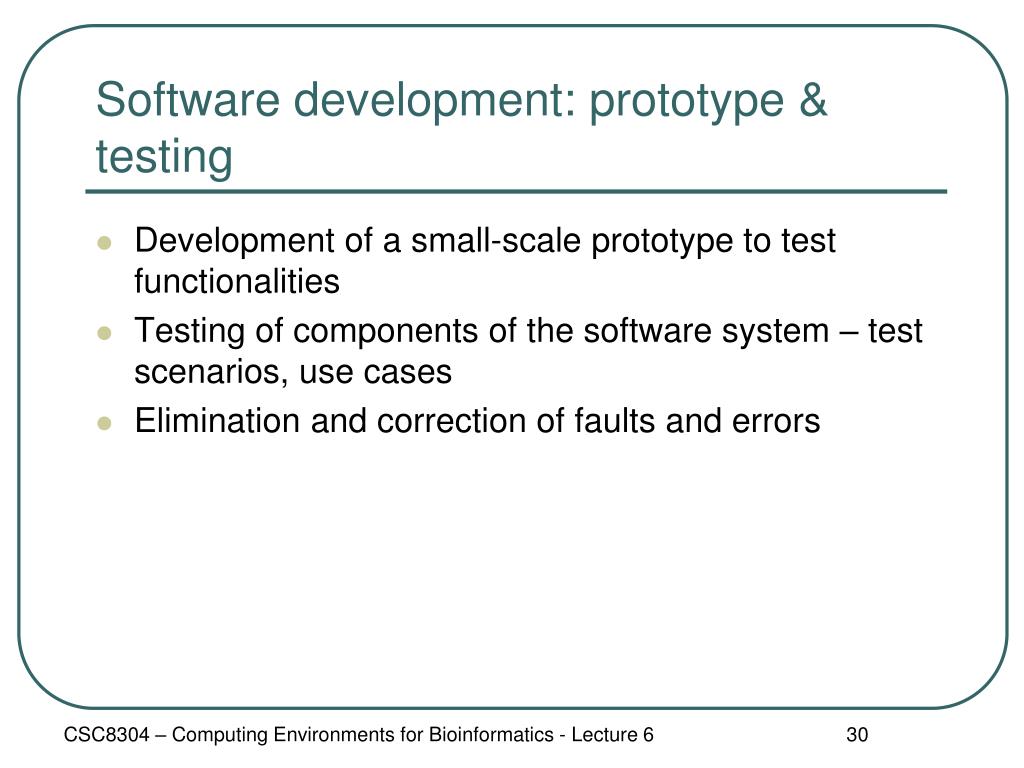

  30. Software development: prototype & testing • Development of a small-scale prototype to test functionalities • Testing of components of the software system – test scenarios, use cases • Elimination and correction of faults and errors CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  31. Software development: use and maintenance • Installation and training of users • Deployment of the software • Maintenance • Updates and patches CSC8304 – Computing Environments for Bioinformatics - Lecture 6

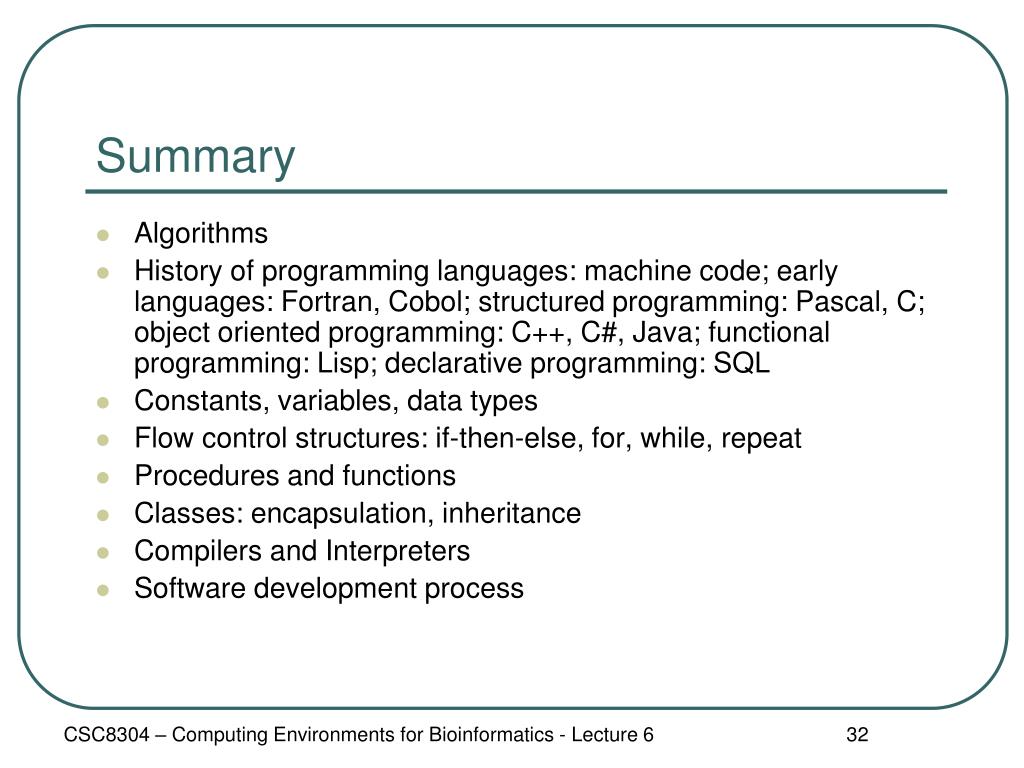

  32. Summary • Algorithms • History of programming languages: machine code; early languages: Fortran, Cobol; structured programming: Pascal, C; object oriented programming: C++, C#, Java; functional programming: Lisp; declarative programming: SQL • Constants, variables, data types • Flow control structures: if-then-else, for, while, repeat • Procedures and functions • Classes: encapsulation, inheritance • Compilers and Interpreters • Software development process CSC8304 – Computing Environments for Bioinformatics - Lecture 6

  33. Q & A • Is it true that Java is a declarative language ? • Is it true that only variables of the same type can be compared by comparison operators ? • Can we use the ‘for’ flow control mechanism to execute the same set of operations for 10 or 20 times depending on the value of some processed data ? • Is it true that a class is an instance of an object ? • Can we use the try-catch-throw flow control in concurrent environments, with many objects executed at the same time ? • Can we develop a prototype of a software before meeting the users to collect user requirements ? CSC8304 – Computing Environments for Bioinformatics - Lecture 6
