Barrel MDT Chambers in H8

G.Ciapetti H8 workshop 2/3 April 2001. Barrel MDT Chambers in H8. 2001 - Aim : setting up and first tests of the facility --> test stand for 1 chamber available --> sector rail system installed --> 1 tracker for II coordinate operational Chambers:

adara
Download Presentation

Barrel MDT Chambers in H8

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

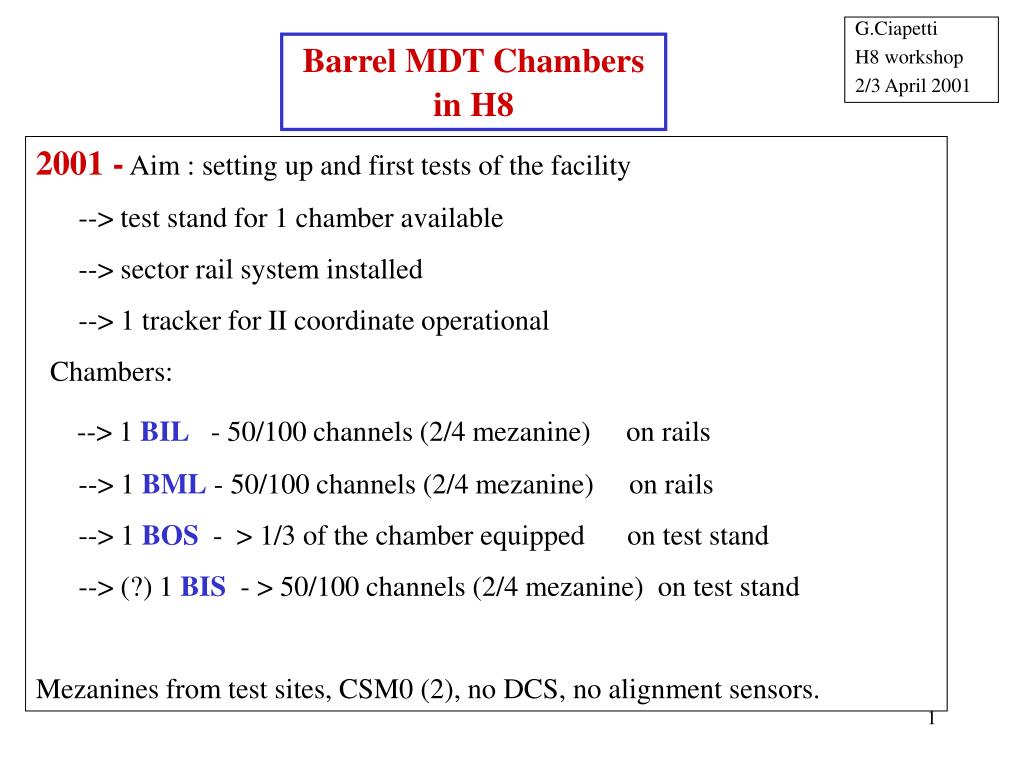

  1. G.Ciapetti H8 workshop 2/3 April 2001 Barrel MDT Chambers in H8 2001 - Aim : setting up and first tests of the facility --> test stand for 1 chamber available --> sector rail system installed --> 1 tracker for II coordinate operational Chambers: --> 1 BIL - 50/100 channels (2/4 mezanine) on rails --> 1 BML - 50/100 channels (2/4 mezanine) on rails --> 1 BOS - > 1/3 of the chamber equipped on test stand --> (?) 1 BIS - > 50/100 channels (2/4 mezanine) on test stand Mezanines from test sites, CSM0 (2), no DCS, no alignment sensors.

  2. G.Ciapetti H8 workshop 2/3 April 2001 From Gregor document on chamber handling

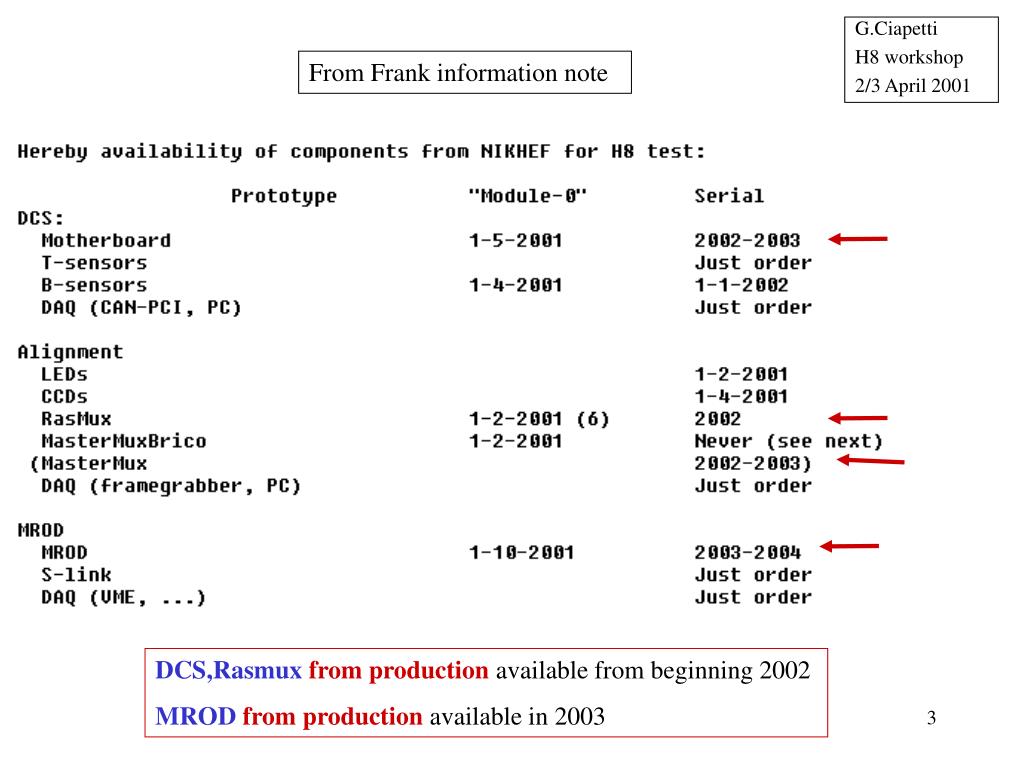

  3. G.Ciapetti H8 workshop 2/3 April 2001 From Frank information note DCS,Rasmuxfrom production available from beginning 2002 MRODfrom production available in 2003

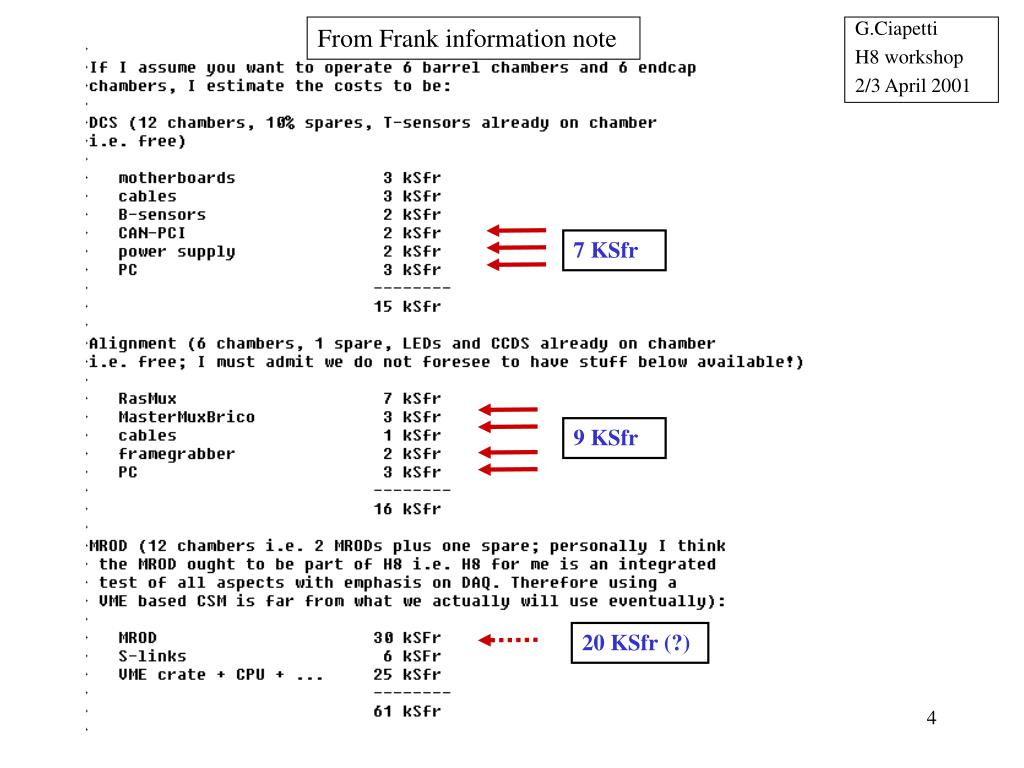

  4. From Frank information note G.Ciapetti H8 workshop 2/3 April 2001 7 KSfr 9 KSfr 20 KSfr (?)

  5. G.Ciapetti H8 workshop 2/3 April 2001 2002 (March-July no beam)- Aim : setting up of the alignment system Chambers: --> 2 BIL - (BIL1A01-BIL2A01) on rails --> 2 BML - (BML1A01-BML2A01) + RPC on rails (common support) --> 2 BOL - (BOL1A01-BOL2A01) + RPC on rails (common support) Praxial + Projective sensors installed. Rasmux+MaserMux+DCS(?) on board. 2002 (July-Sept beam)- Aim : test alignment with tracks. Preliminary system tests. Chambers: --> 2 BIL - (BIL1A01-BIL2A01) on rails --> 2 BML - (BML1A01-BML2A01) + RPC on rails (common support) --> 2 BOL - (BOL1A01-BOL2A01) + RPC on rails (common support) Chambers with limited n of mezanine. Still use CSM0. --> 1BMS / 1 BIS in test stand 5

  6. G.Ciapetti H8 workshop 2/3 April 2001 2003- Aim : final system test. Trigger Lvl 1 and Level 2 tests. Final DAQ (?) Chambers: --> 2BIL - (BIL1A01-BIL2A01) on rails --> 2 BML - (BML1A01-BML2A01) + RPC on rails (common support) --> 2 BOL - (BOL1A01-BOL2A01) + RPC on rails (common support) Chambers fully equipped with final electronics including final CSM/MROD and DCS. RPC with trigger modules on board and final read-out .
