Brakes 1

Brakes - 1

Mr. Lombardi


Brakes

Brakes

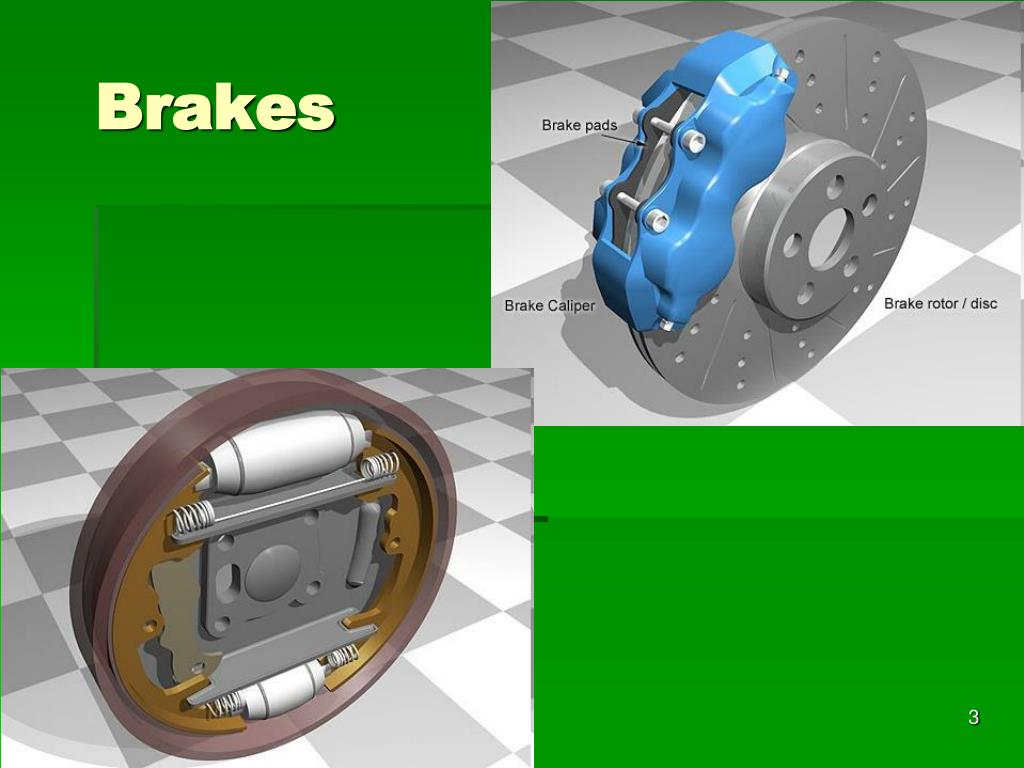

  • Modern automotive brake systems use hydraulic force to create friction

    • Convert motion to heat energy

  • 2 brake types

    • Disc Brakes

    • Drum Brakes


Brakes1

Brakes


Disc brakes

Disc Brakes

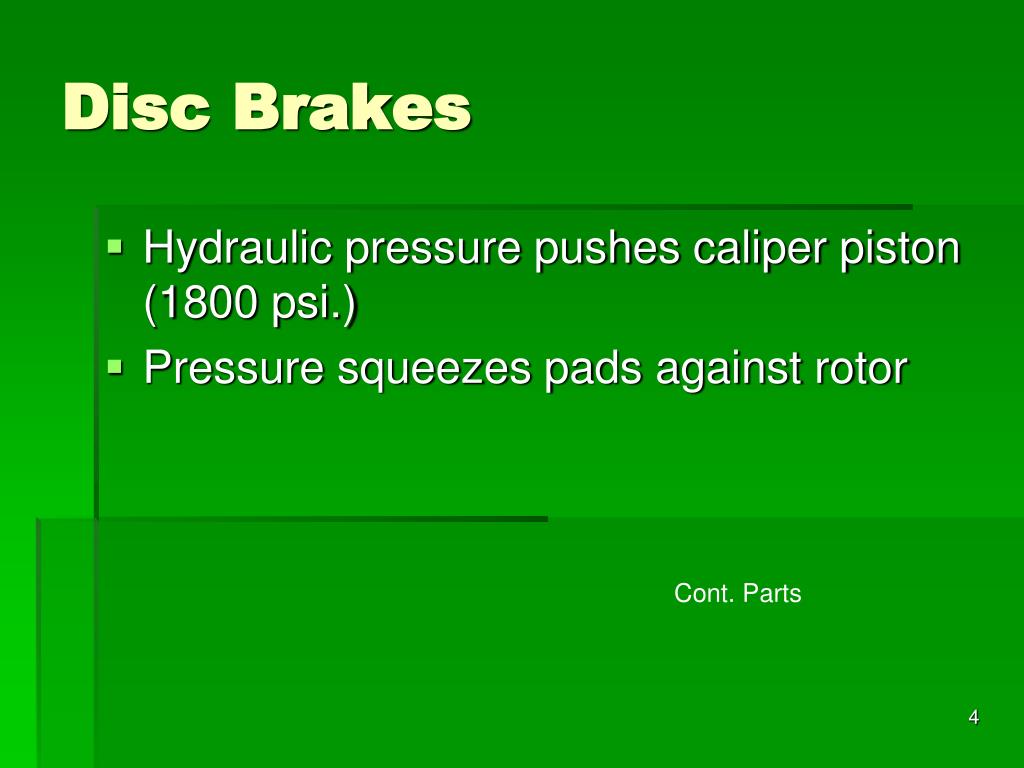

  • Hydraulic pressure pushes caliper piston (1800 psi.)

  • Pressure squeezes pads against rotor

Cont. Parts


Disc brakes1

Disc Brakes

  • Disc brakes

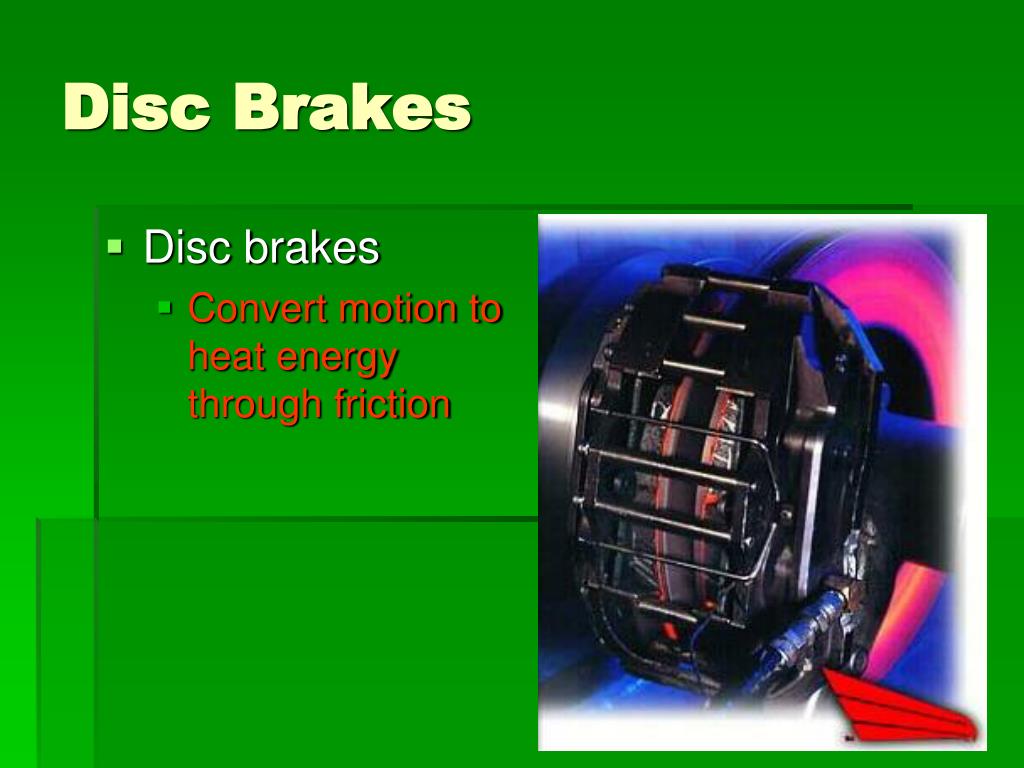

    • Convert motion to heat energy through friction


Disc brake parts

Disc Brake Parts

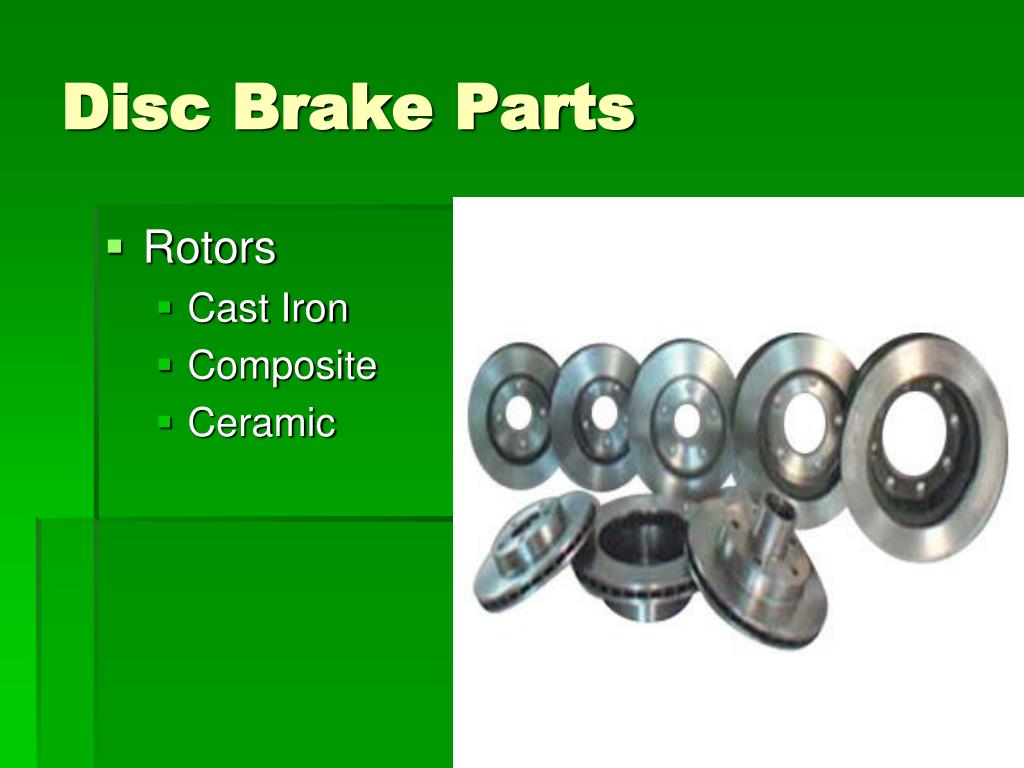

  • Rotors

    • Cast Iron

    • Composite

    • Ceramic


Disc brake parts1

Disc Brake Parts

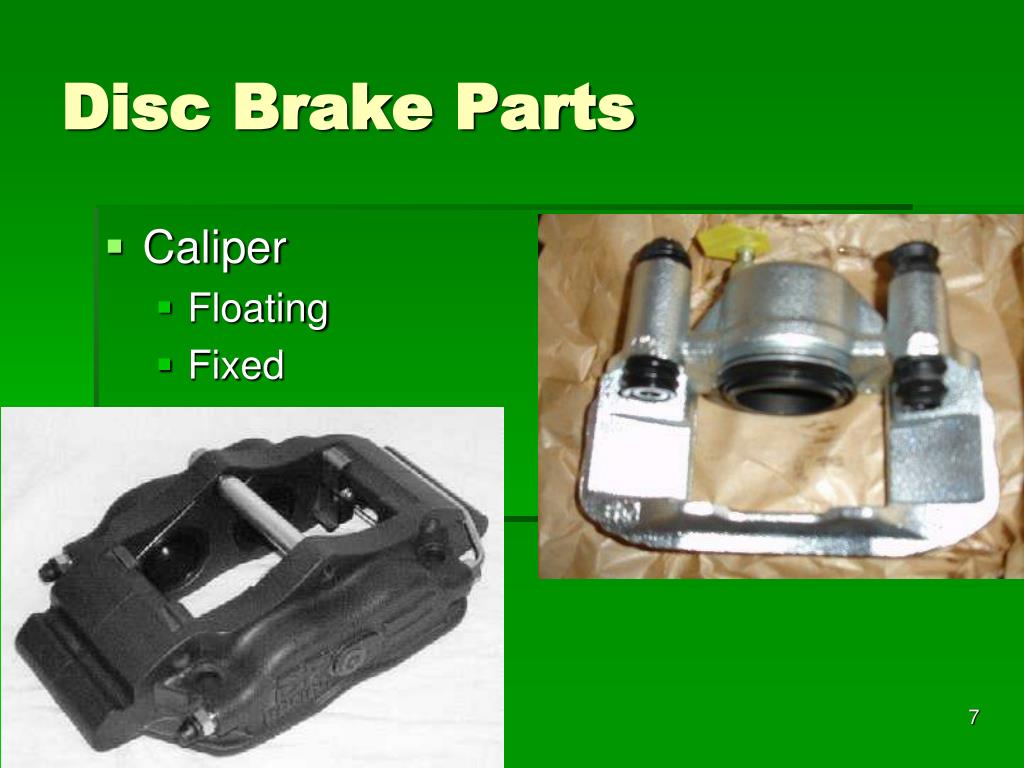

  • Caliper

    • Floating

    • Fixed


Disc brake parts2

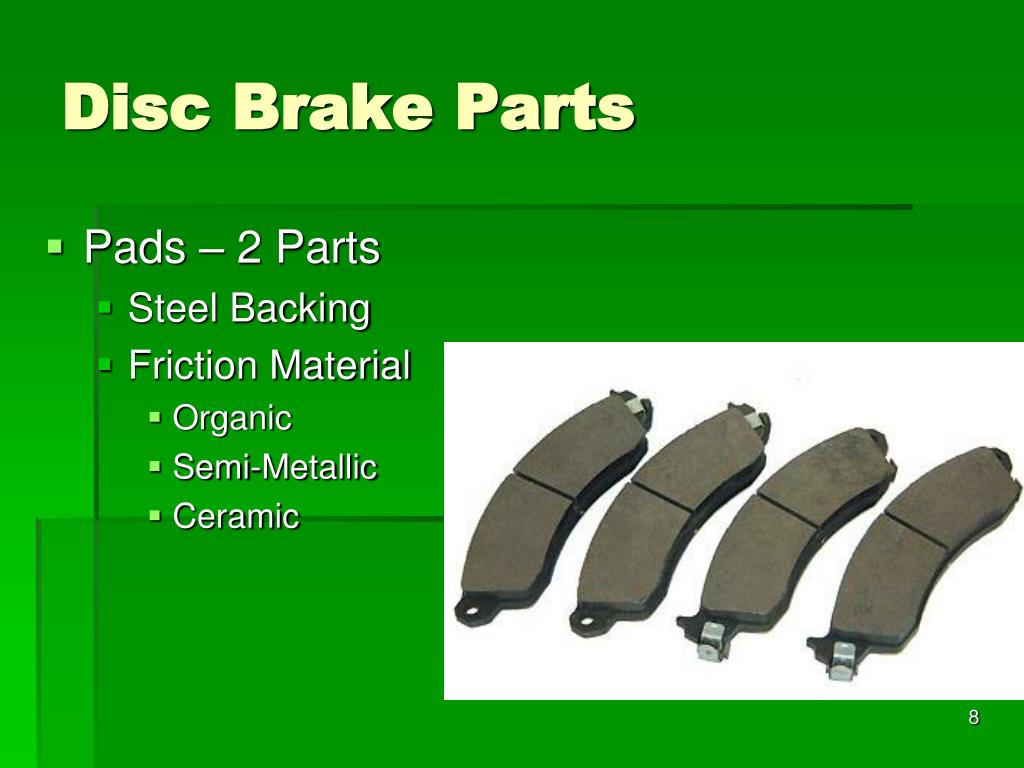

Disc Brake Parts

  • Pads – 2 Parts

    • Steel Backing

    • Friction Material

      • Organic

      • Semi-Metallic

      • Ceramic


Disc brake parts3

Disc Brake Parts

  • Hoses

    • Teflon Coated Rubber

    • Steel Braided


Disc brakes2

Disc Brakes

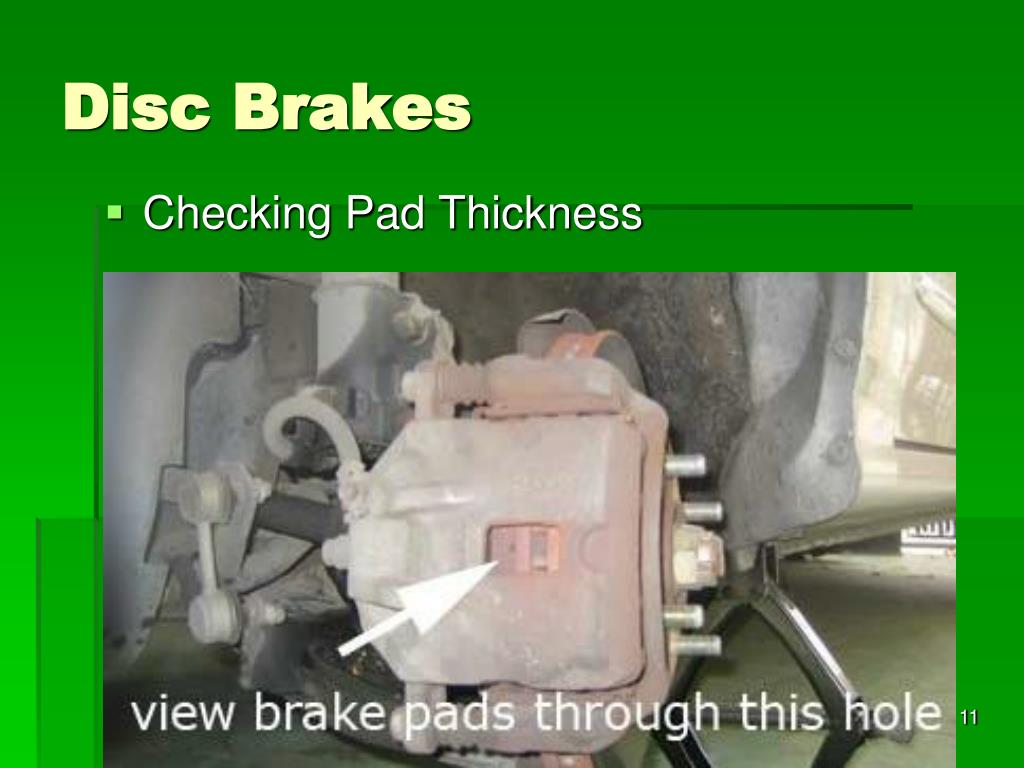

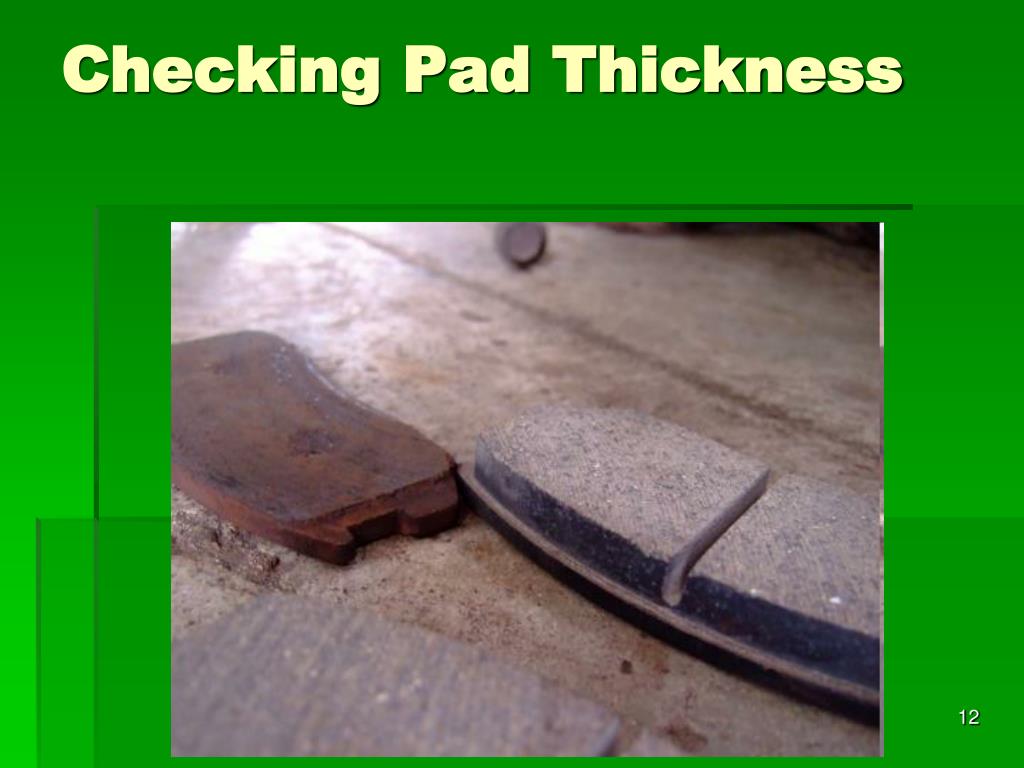

  • Checking Pad Thickness


Checking pad thickness

Checking Pad Thickness


Disc brakes3

Disc Brakes

  • Remove Caliper

    • 1 or 2 caliper slide bolts


Disc brakes4

Disc Brakes

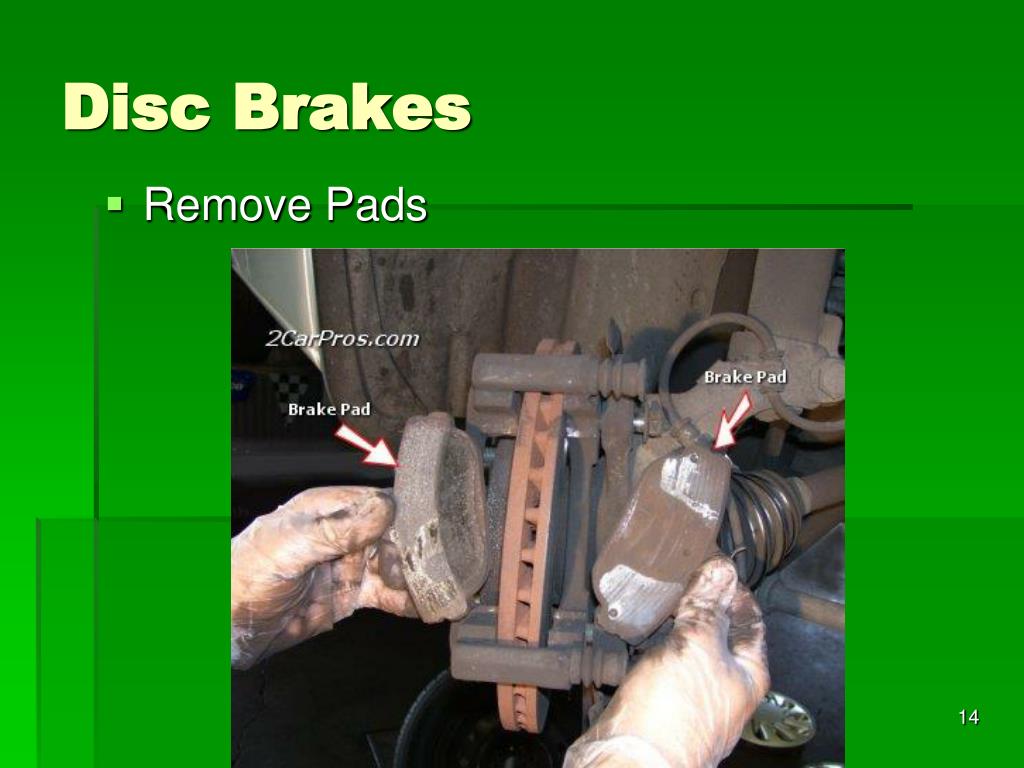

  • Remove Pads


Disc brakes5

Disc Brakes

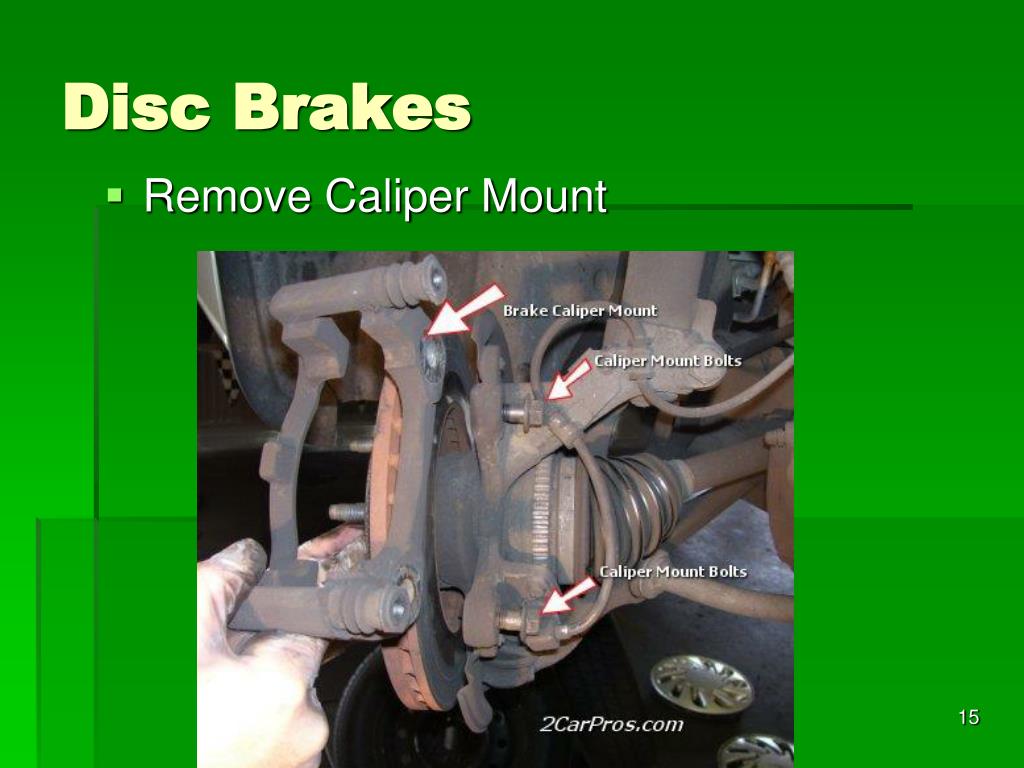

  • Remove Caliper Mount


Disc brakes6

Disc Brakes

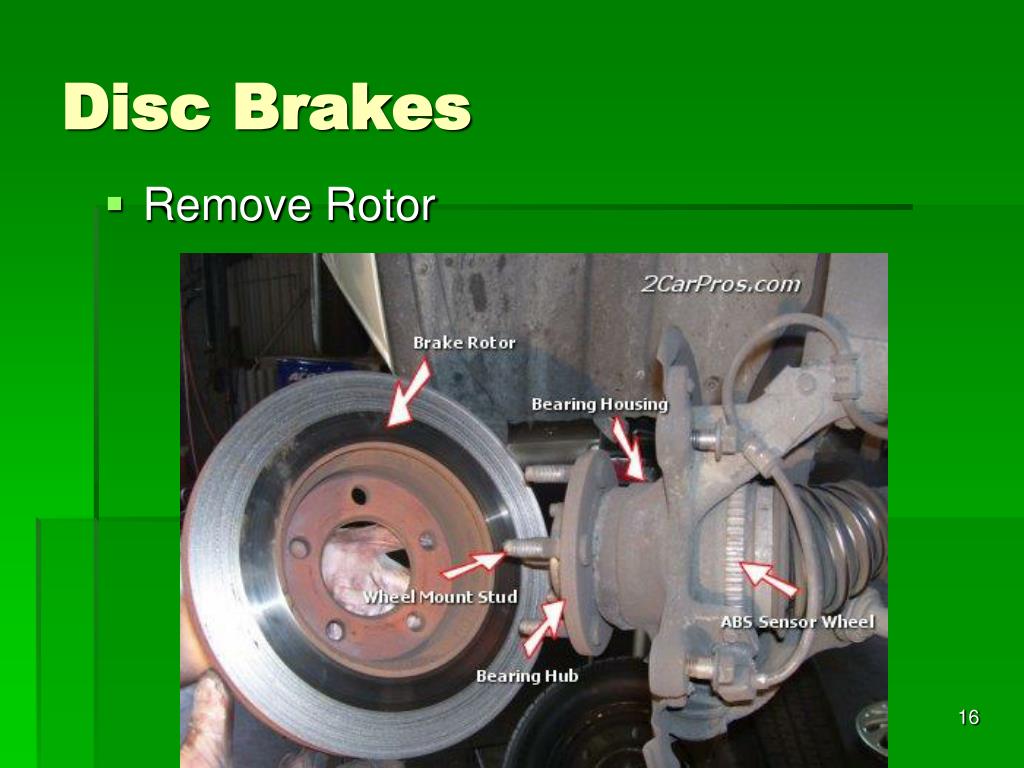

  • Remove Rotor


Disc brakes7

Disc Brakes

  • Compress Caliper


Disc brakes8

Disc Brakes

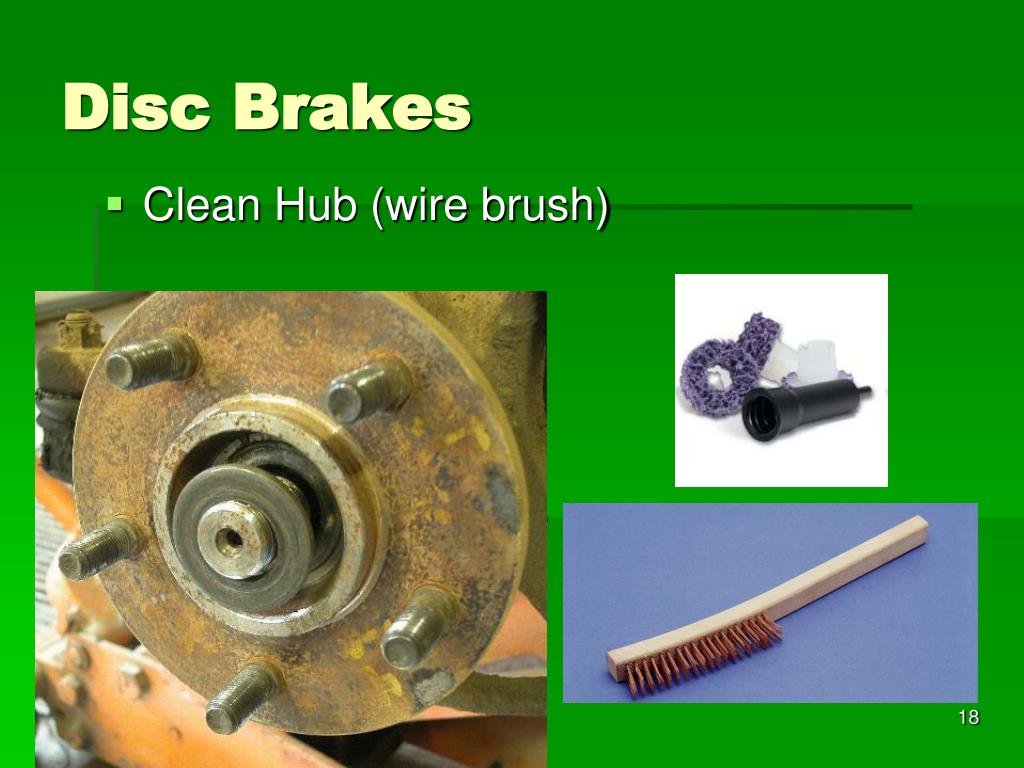

  • Clean Hub (wire brush)


Disc brakes9

Disc Brakes

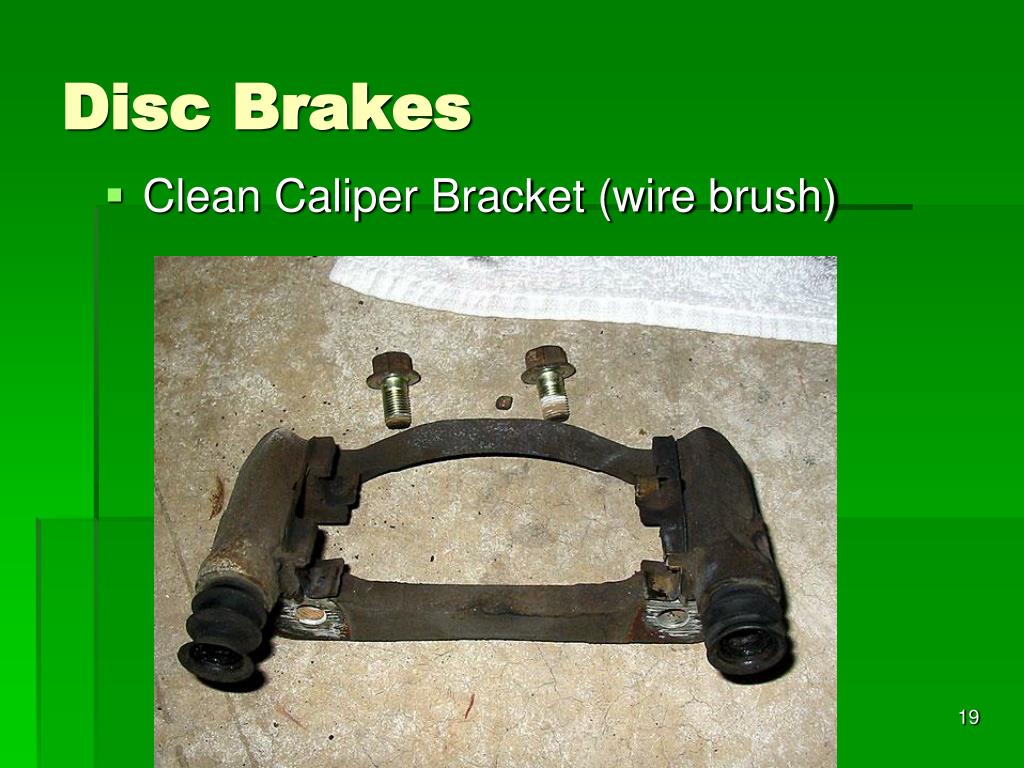

  • Clean Caliper Bracket (wire brush)


Disc brakes10

Disc Brakes

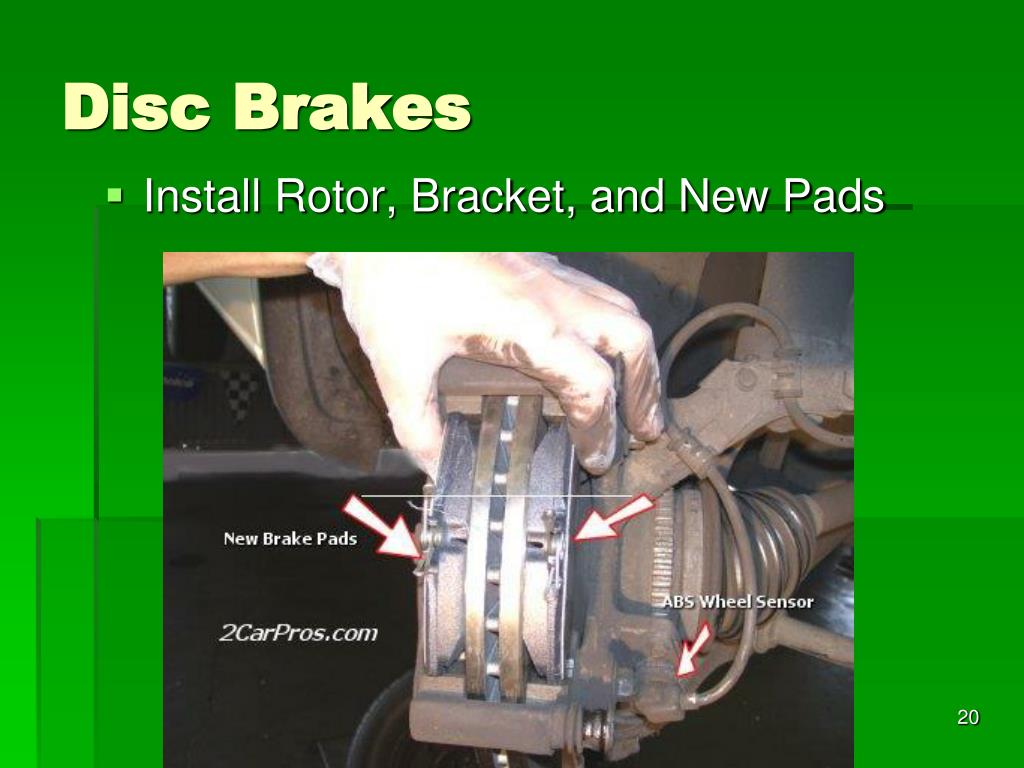

  • Install Rotor, Bracket, and New Pads


Disc brakes11

Disc Brakes

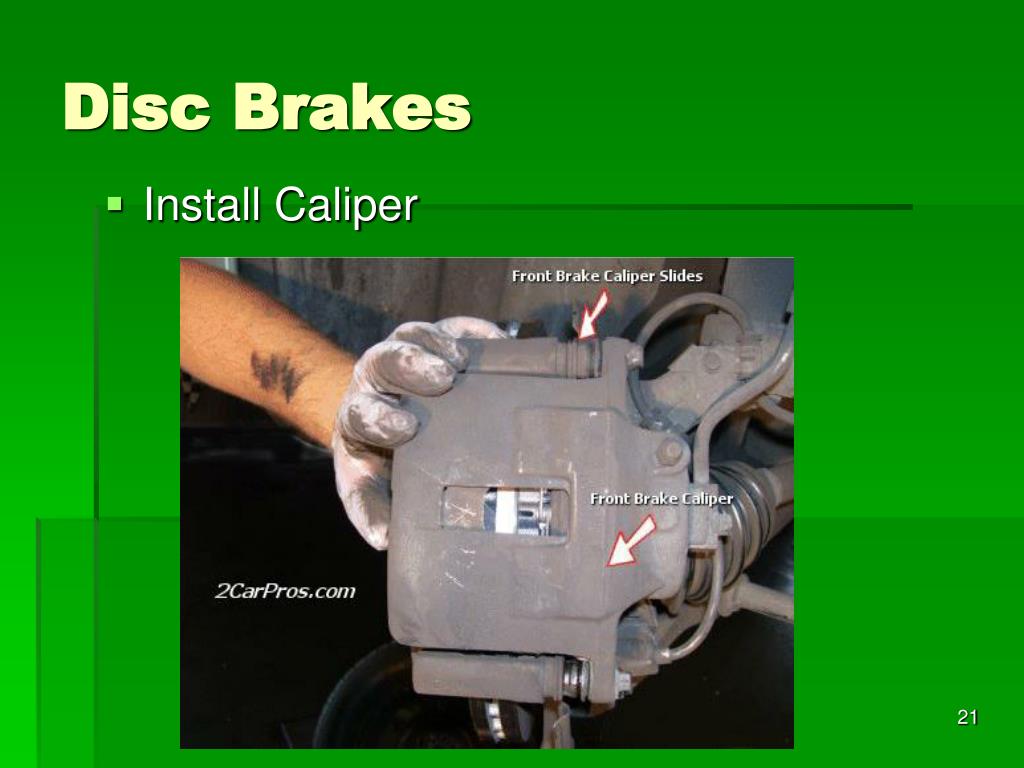

  • Install Caliper


Disc brakes12

Disc Brakes

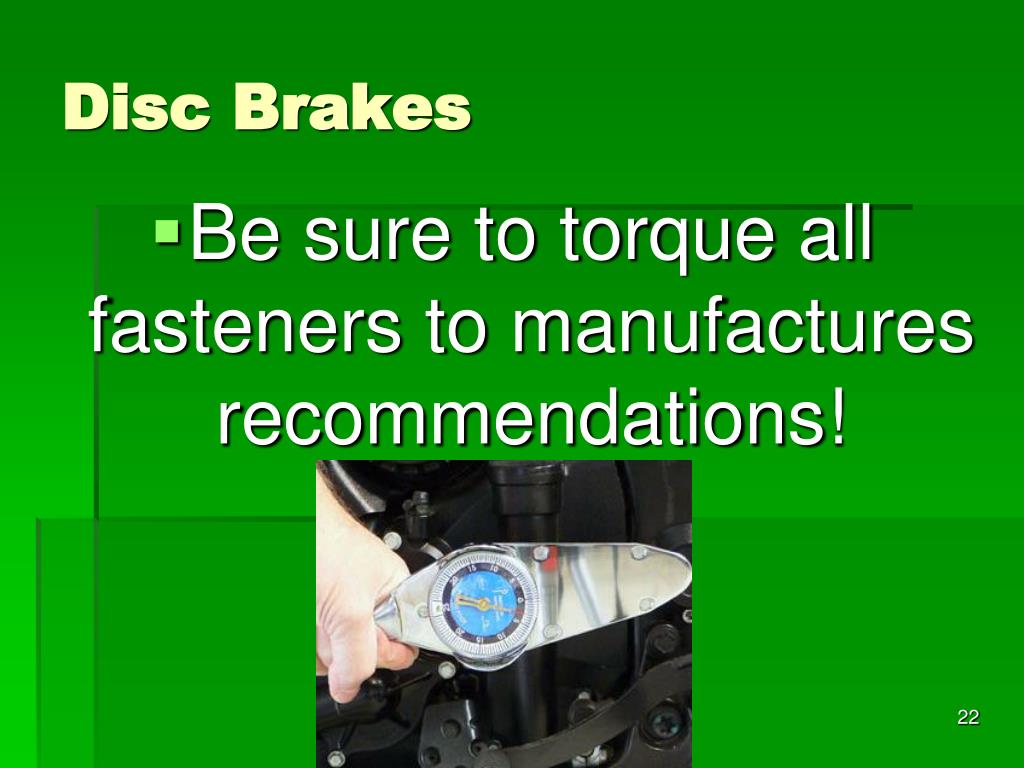

  • Be sure to torque all fasteners to manufactures recommendations!


Disc brakes13

Disc Brakes

  • Pump brake pedal several times to seat pads

  • Top off master cylinder as necessary


Brakes 1

The End
