  1. A New Online BIST Method for NoC Interconnects Elnaz Koopahi Zainalabedin Navabi School of Electrical and Computer Engineering University of Tehran, Tehran, Iran {koopahi, navabi}@cad.ut.ac.ir Elnaz Koopahi University of Tehran

  2. Outline • Introduction • Online Testing • NoC Platform • NoC Architecture • Verilog HDL Test Platform • The Proposed Test Method • Using Spare Times • BIST Hardware • Test Mode Operation • Test Pattern Generation • Experimental Results • Conclusions Elnaz Koopahi University of Tehran

  3. Introduction • NoC as a new design paradigm to replace traditional SoC • A typical NoC: Switches, Links, Cores, Network Interfaces • Providing appropriate test mechanisms to ensure the demanded reliability • Consider the circuit properties to implement an acceptable test method Elnaz Koopahi University of Tehran

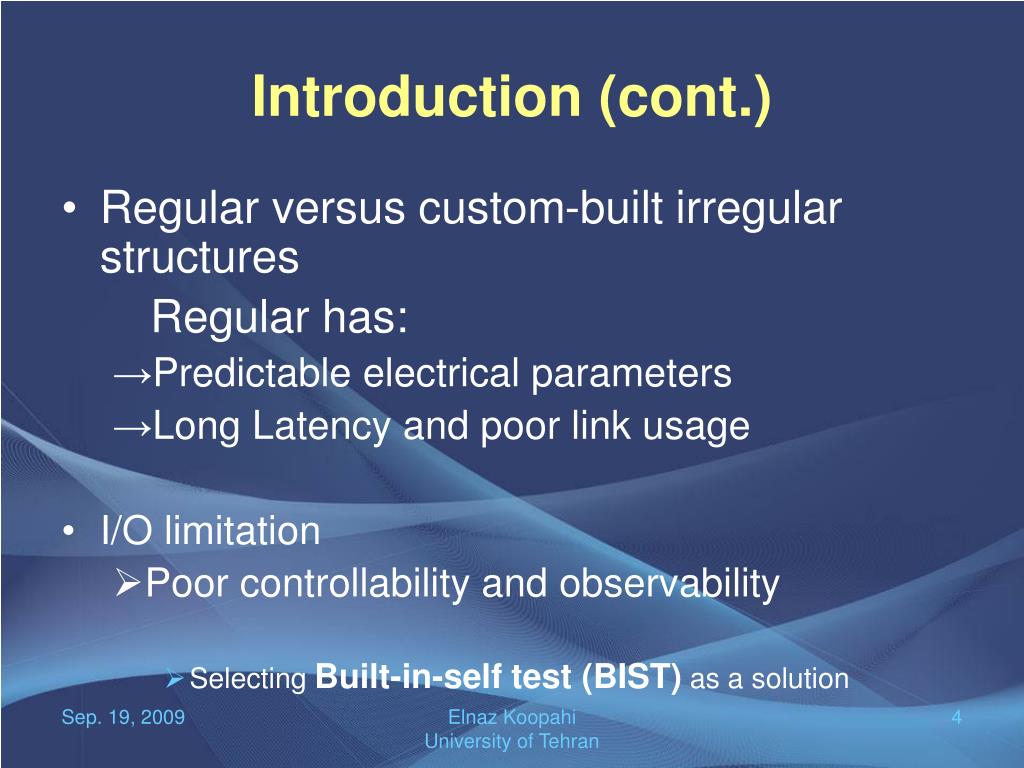

  4. Introduction (cont.) • Regular versus custom-built irregular structures Regular has: • Predictable electrical parameters • Long Latency and poor link usage • I/O limitation • Poor controllability and observability • Selecting Built-in-self test (BIST) as a solution Elnaz Koopahi University of Tehran

  5. Online Testing • Faults: • Permanent • Intermittent • Transient • Important parameters: • Error coverage • Error latency • Space redundancy • Time redundancy • Not Concurrent (does not use actual data), but Online simultaneous with normal operation of NoC Elnaz Koopahi University of Tehran

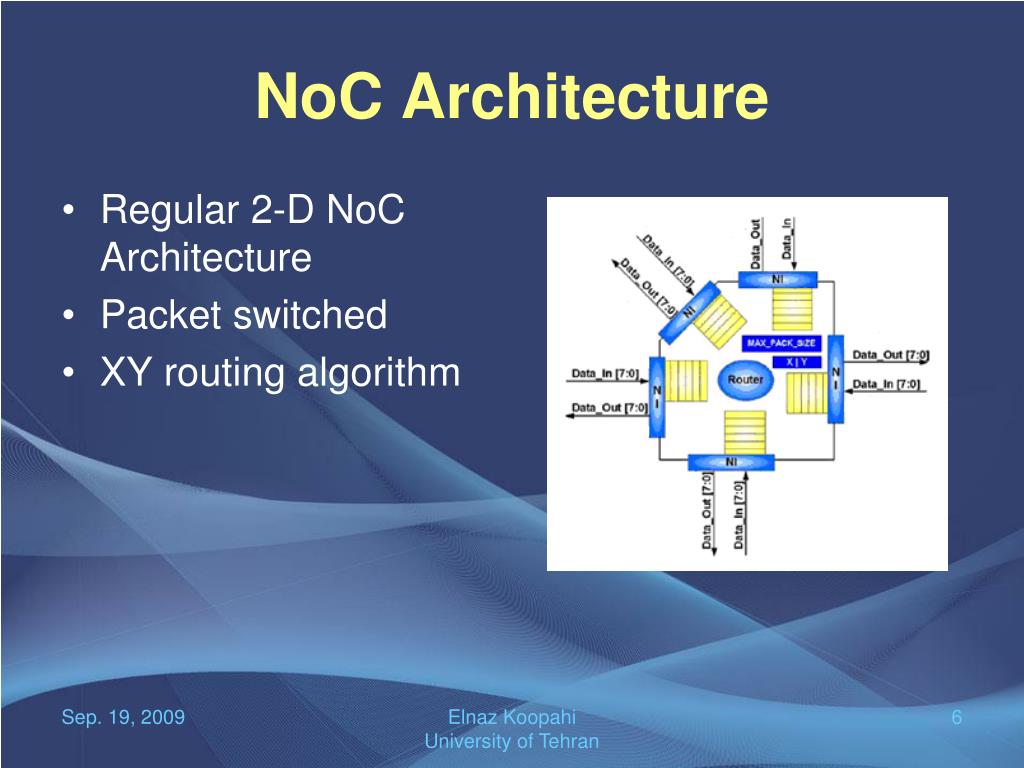

  6. NoC Architecture • Regular 2-D NoC Architecture • Packet switched • XY routing algorithm Elnaz Koopahi University of Tehran

  7. Verilog HDL Test Platform • Verilog-based test platform features • Fault injection • Fault simulation • Support for the test method • Add the BIST hardware Elnaz Koopahi University of Tehran

  8. Using Spare Times • Regular NoC: Long Latency and poor link usage • Sending test packets in spare times Elnaz Koopahi University of Tehran

  9. Using Spare Times (cont.) • Calculating the test time • Providing the required spare time during the design and application mapping • Interlacing the test process • multiple test sessions Elnaz Koopahi University of Tehran

  10. BIST Hardware • Using PUT signal for detecting incoming packet • Test Hardware for test data generation • Test Hardware for response analyses Elnaz Koopahi University of Tehran

  11. Test Mode Operation //In every clock cycle //State machine for receiving the packet from router and sending the flits to output port CASE (cur_out_state) IS GetPacket: if(~Put) Data_out<= Test Data; Else //do normal tasks ... END CASE; //State machine for receiving the packet from adjacent switch CASE (cur_in_state) IS GetStartByte: if (Data_In == FAULT_DETECTED) out_port is faulty else if ( (Data_In != SB) && (Data_In != Testdata)) in_port is faulty Elnaz Koopahi University of Tehran

  12. Test Pattern Generation All Faults Stuck-at Faults • Stuck-at fault models • Wired-OR and wired-AND fault models • Delay faults • Inverted true/complement algorithm, ITCC Elnaz Koopahi University of Tehran

  13. Experimental Results • No need for extra time for performing online testing • NI Hardware overhead: • Approximately 3.05% for stuck-at faults • Approximately 3.2% for stuck-at and bridging faults • Requires: 2 free clock cycles to detect stuck-at faults • Requires: 2*LogN free clock cycle for supporting delay and bridging faults Elnaz Koopahi University of Tehran

  14. Using Spare Times, Switch Testing • Switch testing • BIST gets involved when switch is not routing Test while not routing Elnaz Koopahi University of Tehran

  15. Conclusions • Verilog HDL NoC platform • Online BIST method: • Full fault coverage for interconnect faults • No time redundancy • Negligible hardware overhead added to switches • A new constraint in design and application mapping • Can be expanded to test router and FIFOs Elnaz Koopahi University of Tehran

  16. Thanks Elnaz Koopahi University of Tehran
