Presentation Transcript


Simple rules for the interpretation of arterial blood gases l.jpg

Simple Rules for the Interpretation of Arterial Blood Gases

Nicholas Sadovnikoff, MD, FCCM

Assistant Professor, Harvard Medical School

Co-Director, Surgical Intensive Care Units

Brigham and Women’s Hospital

Boston, MA

Kuwait City, Kuwait

November 24, 2011


Mantra l.jpg

“Mantra”

1 for 1

10 for 7

1

4

2

5


Mantra3 l.jpg

Mantra

Metabolic Acidosis: 1HCO3 => 1PCO2

Metabolic Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3


Examples l.jpg

Examples

pH = 7.33, PCO2=30, HCO3=15

diagnosis


Examples5 l.jpg

Examples

pH = 7.33, PCO2=30, HCO3=15

Diagnosis:

metabolic acidosis or

Metabolic acidosis with respiratory compensation

or

metabolic acidosis with compensatory respiratory alkalosis


Suggestion l.jpg

Suggestion:

Delete the word compensation from your acid base vocabulary.


Mantra7 l.jpg

Mantra

Metabolic Acidosis: 1HCO3 => 1PCO2

Metabolic Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3


Definition l.jpg

Definition

Acidemia

Acidosis


Definition9 l.jpg

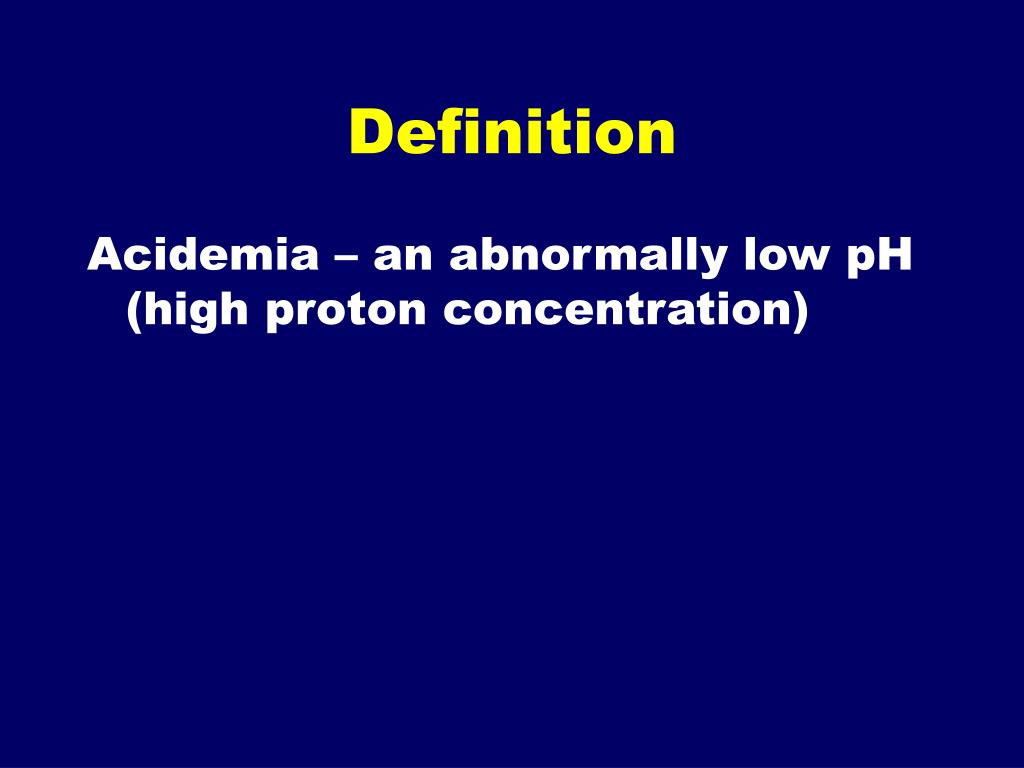

Definition

Acidemia – an abnormally low pH (high proton concentration)


Definition10 l.jpg

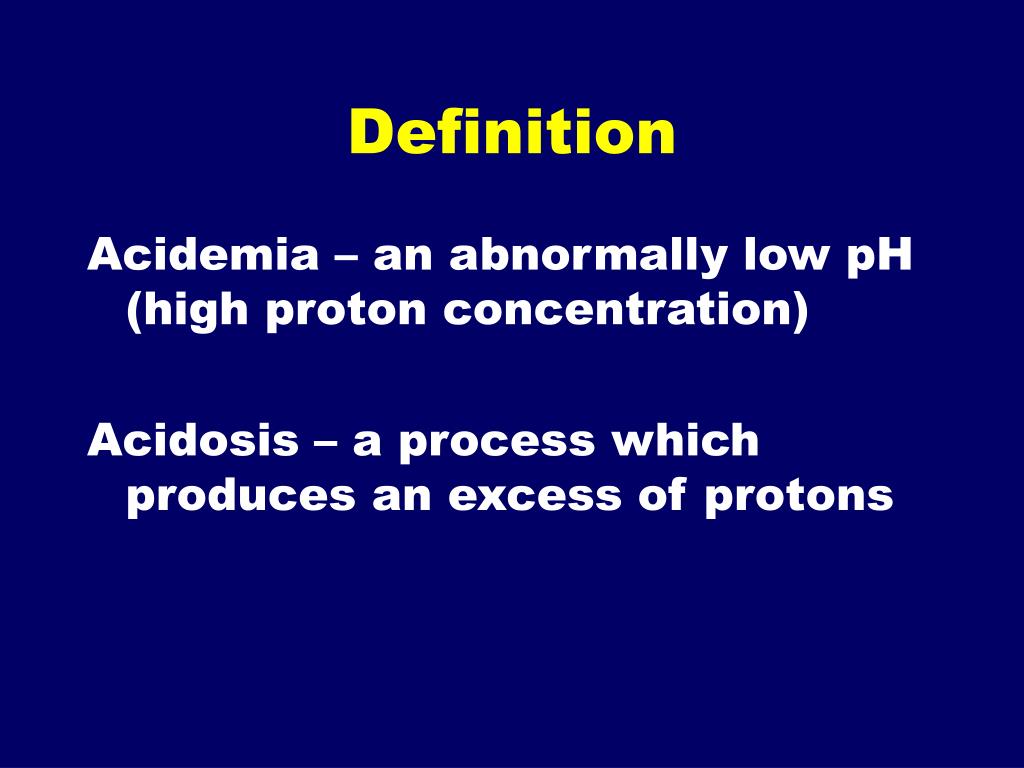

Definition

Acidemia – an abnormally low pH (high proton concentration)

Acidosis – a process which produces an excess of protons


Example l.jpg

Example

  • pH=7.22, PCO2=38, HCO3=15

  • diagnosis


Example12 l.jpg

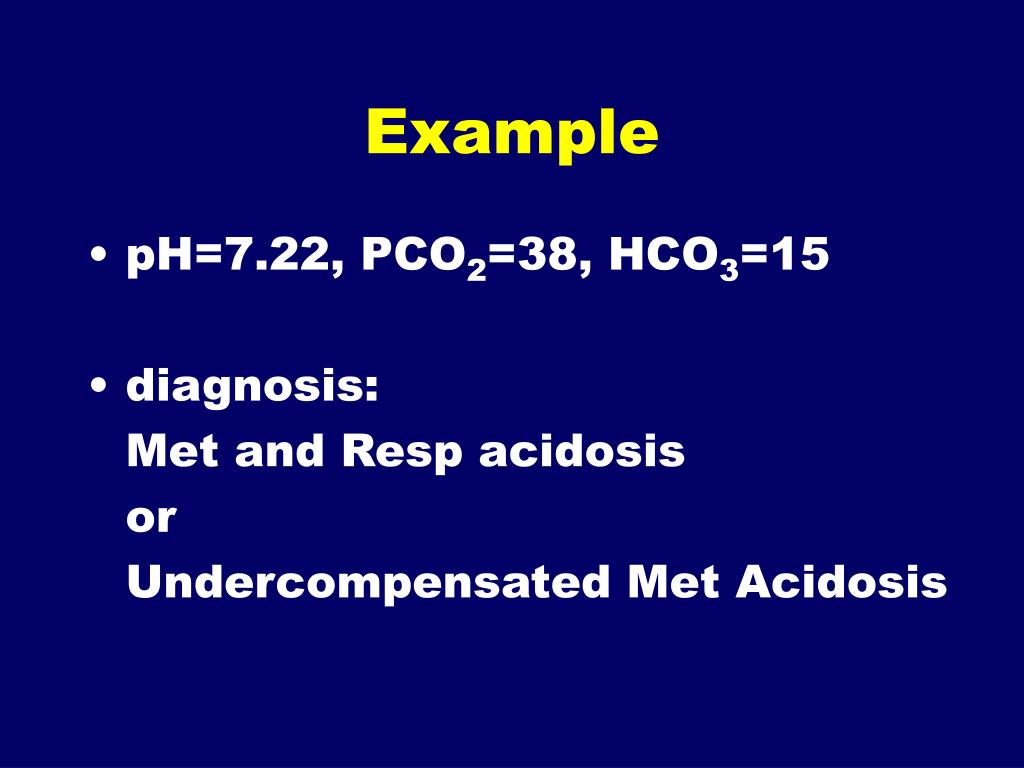

Example

  • pH=7.22, PCO2=38, HCO3=15

  • diagnosis:

    Met and Resp acidosis

    or

    Undercompensated Met Acidosis


Example13 l.jpg

Example

  • pH=7.38, PCO2=28, HCO3=16

  • diagnosis


Example14 l.jpg

Example

  • pH=7.38, PCO2=28, HCO3=16

  • diagnosis:Met Acid with Resp AlkorOvercompensated Met Acid


Example15 l.jpg

Example

  • pH=7.47, PCO2=47, HCO3=34

  • diagnosis


Example16 l.jpg

Example

  • pH=7.47, PCO2=47, HCO3=34

  • diagnosismetabolic alkalosis


Mantra17 l.jpg

Mantra

Metabolic Acidosis: 1HCO3 => 1PCO2

Metabolic Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3

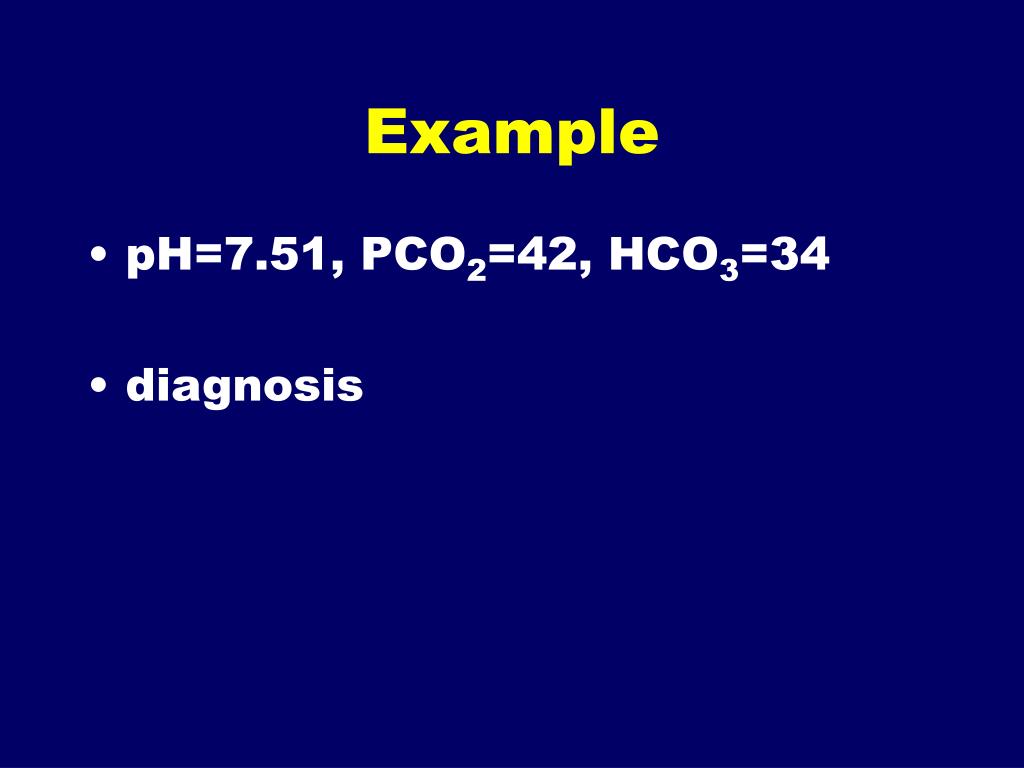

Example18 l.jpg

Example

  • pH=7.51, PCO2=42, HCO3=34

  • diagnosis


Example19 l.jpg

Example

  • pH=7.51, PCO2=42, HCO3=34

  • diagnosisMet and Resp alkalosis


Example20 l.jpg

Example

  • pH=7.42, PCO2=52, HCO3=34

  • diagnosis


Example21 l.jpg

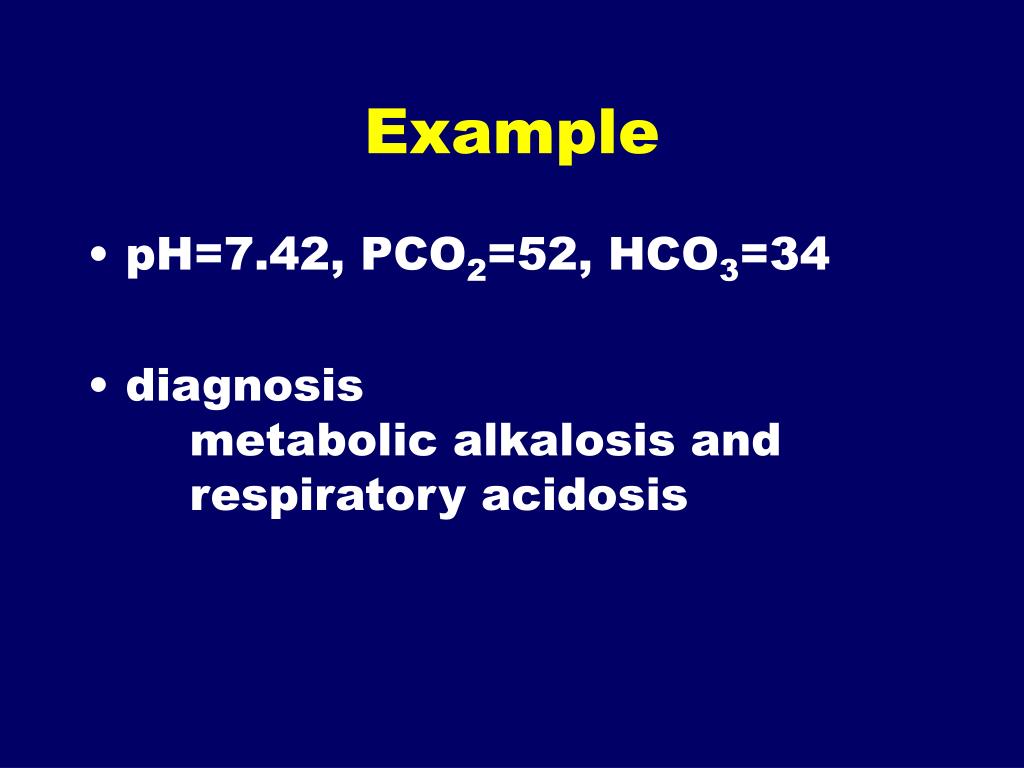

Example

  • pH=7.42, PCO2=52, HCO3=34

  • diagnosismetabolic alkalosis andrespiratory acidosis


Example22 l.jpg

Example

pH=7.35, PCO2=60, HCO3=32

diagnosis

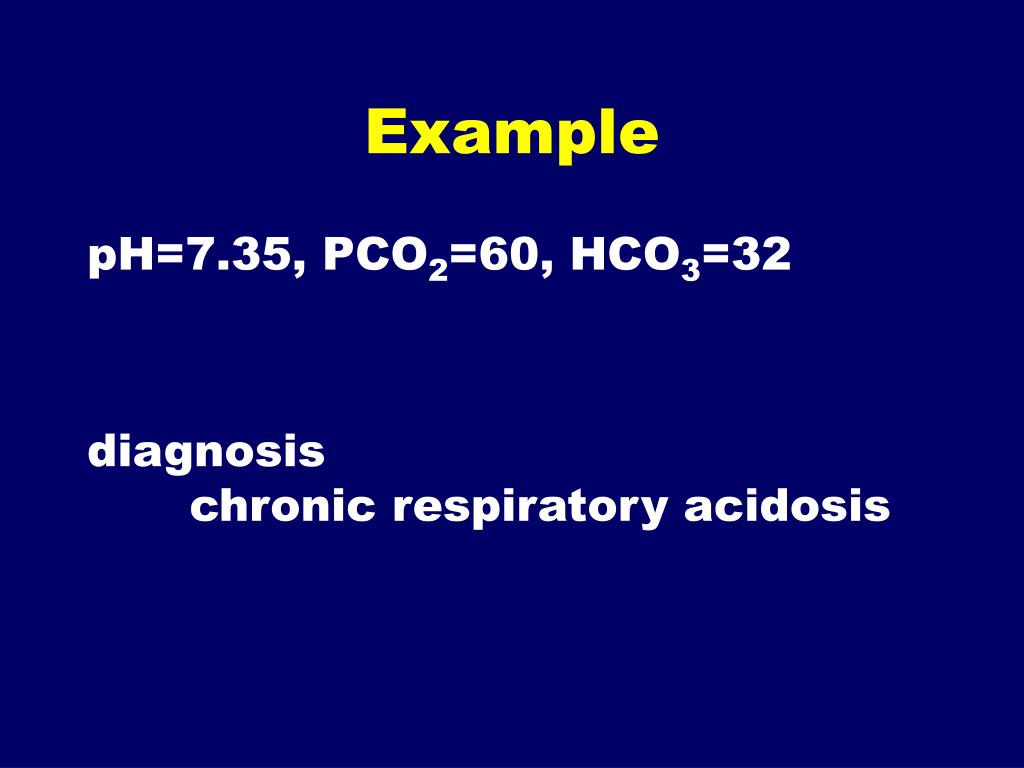

Example23 l.jpg

Example

pH=7.35, PCO2=60, HCO3=32

diagnosischronic respiratory acidosis


Example24 l.jpg

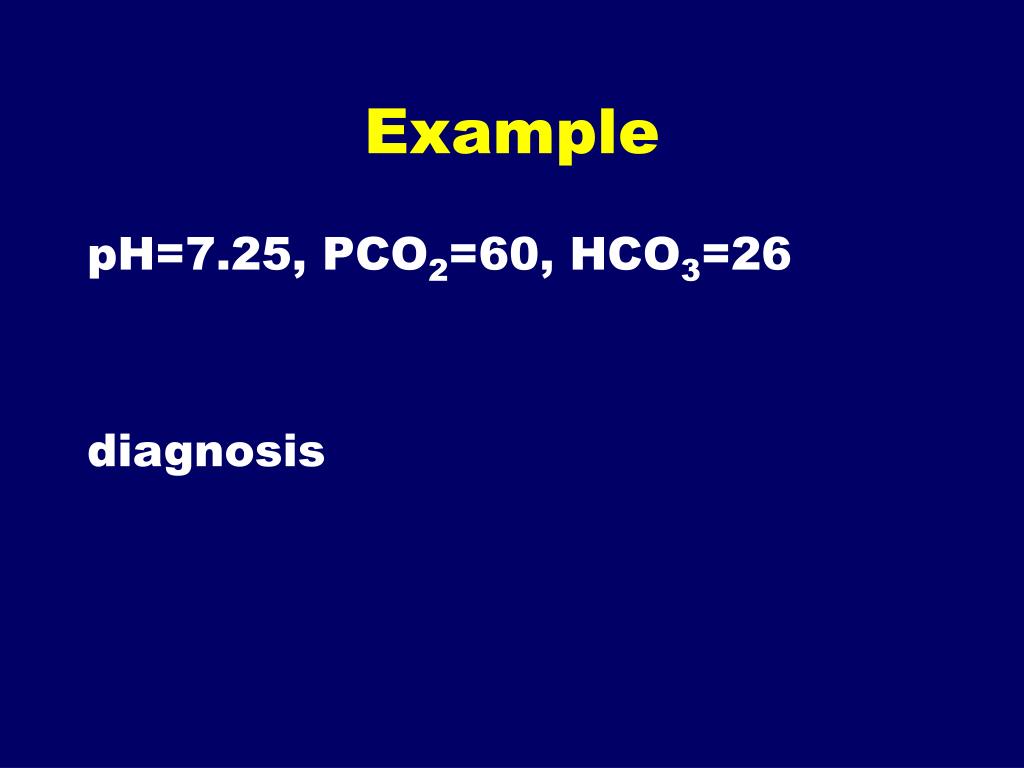

Example

pH=7.25, PCO2=60, HCO3=26

diagnosis


Example25 l.jpg

Example

pH=7.25, PCO2=60, HCO3=26

diagnosisacute respiratory acidosis


Example26 l.jpg

Example

pH=7.30, PCO2=60, HCO3=29

diagnosis

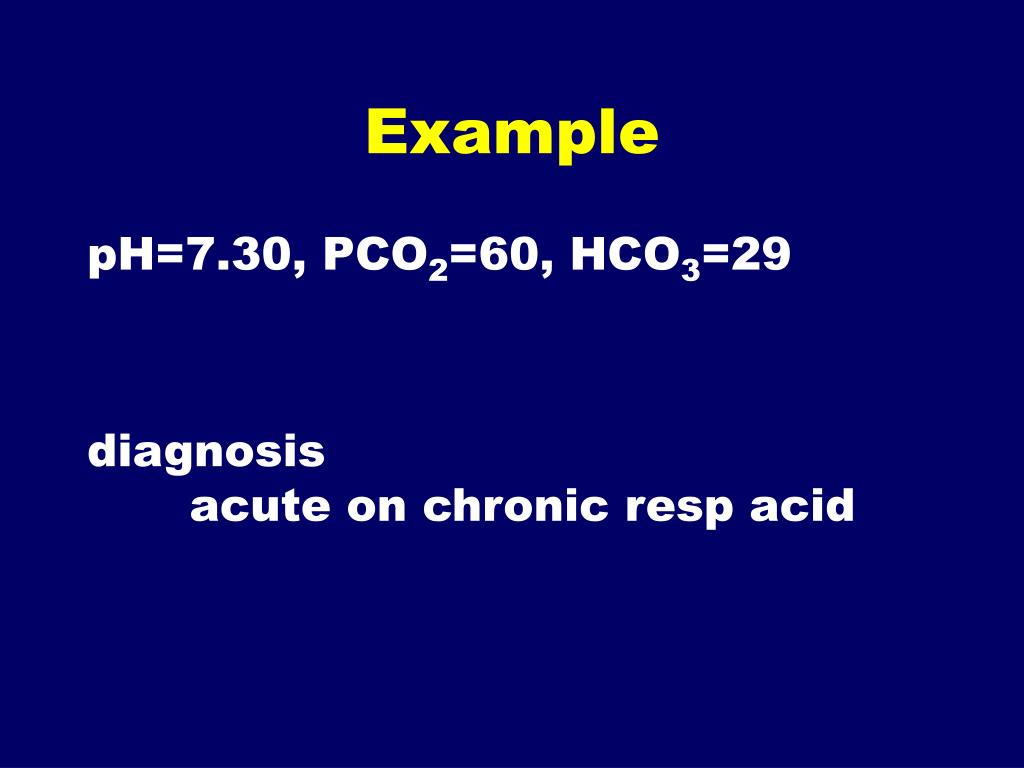

Example27 l.jpg

Example

pH=7.30, PCO2=60, HCO3=29

diagnosisacute on chronic resp acid


Example28 l.jpg

Example

pH=7.45, PCO2=25, HCO3=17

diagnosis


Example29 l.jpg

Example

pH=7.45, PCO2=25, HCO3=17

diagnosischronic respiratory alkalosis


Mantra30 l.jpg

Mantra

Metabolic Acidosis: 1HCO3 => 1PCO2

Metabolic Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3


Example31 l.jpg

Example

pH=7.33, PCO2=30, HCO3=15

Na= 147, Cl=110

diagnosis


What is an anion gap l.jpg

What is an Anion Gap?

  • Qualitative

  • Quantitative

  • Why not include H+ ? K+ ?


What is an anion gap33 l.jpg

What is an Anion Gap?

  • Qualitative – unmeasured anions

  • Quantitative - Na+ - Cl– - HCO3–

  • Why not include H+ - too small K+ - always ~ 4


Ddx of ag met acid l.jpg

DDx of AG Met Acid

  • Ketones

  • Uremia

  • Salicylates

  • Methanol

  • Alcohols

  • Lactate

  • Ethylene Glycol

  • What are the unmeasured anions?


Additional rule l.jpg

Additional Rule

The HCO3 normally falls 1 for every 1 increase in anion gap, with the exception of sepsis.


The anions of sepsis l.jpg

The Anions of Sepsis

  • HPLC studies have failed to identify the anions responsible for the  AG in sepsis.

  • Lactate accounts for a portion.

  • H+ is likely from ATP hydrolysis which drives the fall in bicarbonate and is not coupled to lactate production.


What lowers anion gap l.jpg

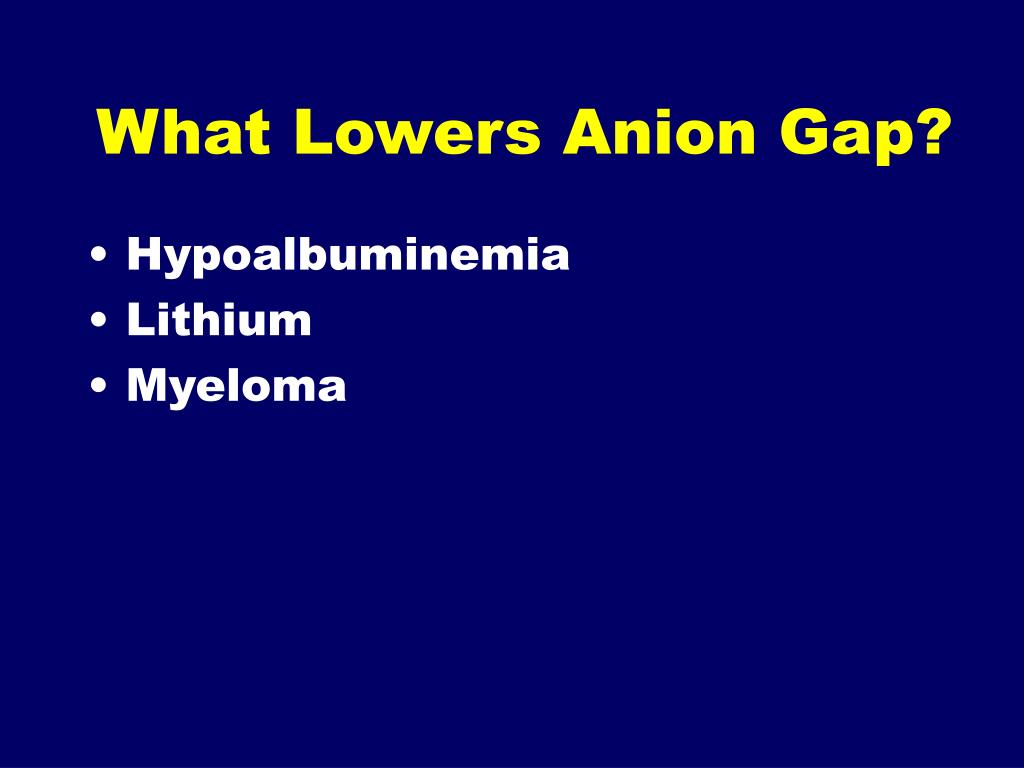

What Lowers Anion Gap?

  • Hypoalbuminemia

  • Lithium

  • Myeloma


Example38 l.jpg

Example

  • pH = 7.20, HCO3=10, PCO2=25

  • Na=140, Cl=110

  • diagnosis


Example39 l.jpg

Example

  • pH = 7.20, HCO3=10, PCO2=25

  • Na=140, Cl=110

  • diagnosisAG Met acid andNon-AG met acid


Ddx of nonag met acid used cars l.jpg

DDx of NonAG Met AcidUSED CARS

  • Ureterosigmoidostomy / Fistulae

  • Saline

  • Early Renal Failure

  • Diarrhea

  • CAI

  • AAs

  • RTA

  • Supplements


Urine anion gap l.jpg

Urine Anion Gap

  • UAG = Na+ + K+ - Cl-

  • largely reflects NH4+ and therefore is usually negative due to renal ammoniagenesis

  • In non-AG metabolic acidosis, a negative UAG implies extra-renal cause of the disorder.

  • If positive, renal ammoniagenesis is likely impaired.


Example42 l.jpg

Example

  • pH = 7.35, HCO3=19, PCO2=35

  • Na=140, Cl=100


Example43 l.jpg

Example

  • pH = 7.35, HCO3=19, PCO2=35

  • Na=140, Cl=100

  • diagnosisAG metabolic acidosis andmetabolic alkalosis


Example44 l.jpg

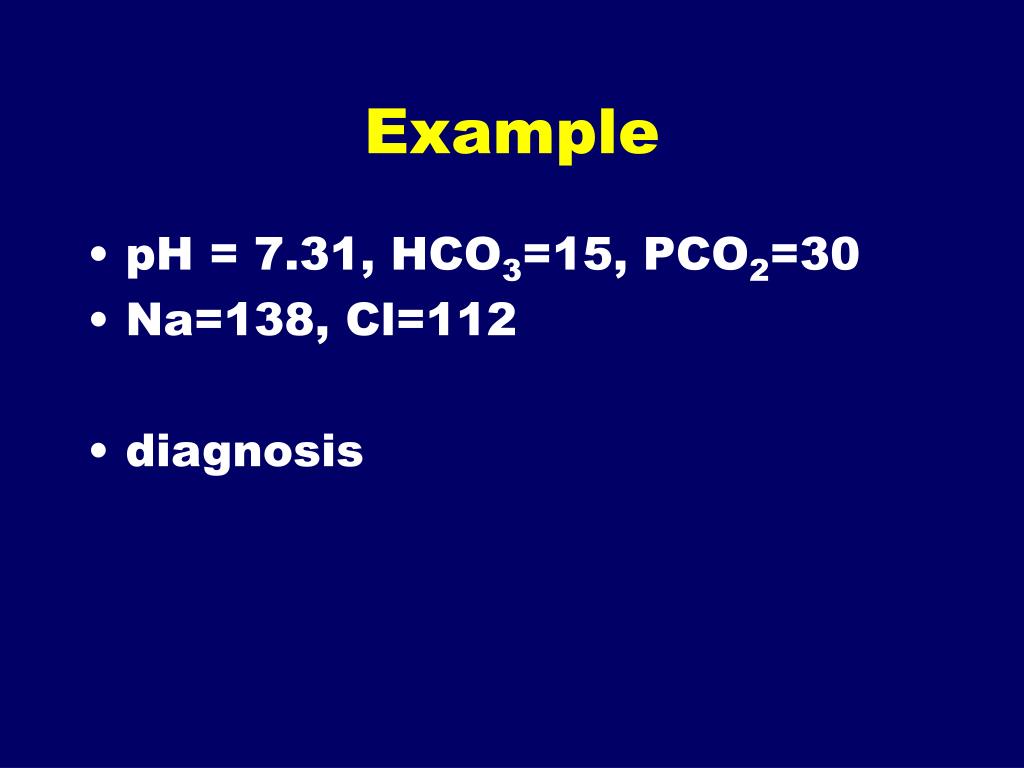

Example

  • pH = 7.31, HCO3=15, PCO2=30

  • Na=138, Cl=112

  • diagnosis


Example45 l.jpg

Example

  • pH = 7.31, HCO3=15, PCO2=30

  • Na=138, Cl=112

  • diagnosisnon AG metabolic acidosis


Example46 l.jpg

Example

  • pH = 7.12, HCO3=10, PCO2=33

  • Na=138, Cl=95

  • diagnosis


Example47 l.jpg

Example

  • pH = 7.12, HCO3=10, PCO2=33

  • Na=138, Cl=95

  • diagnosisAG metabolic acidosis andmetabolic alkalosis andrespiratory acidosis


Example48 l.jpg

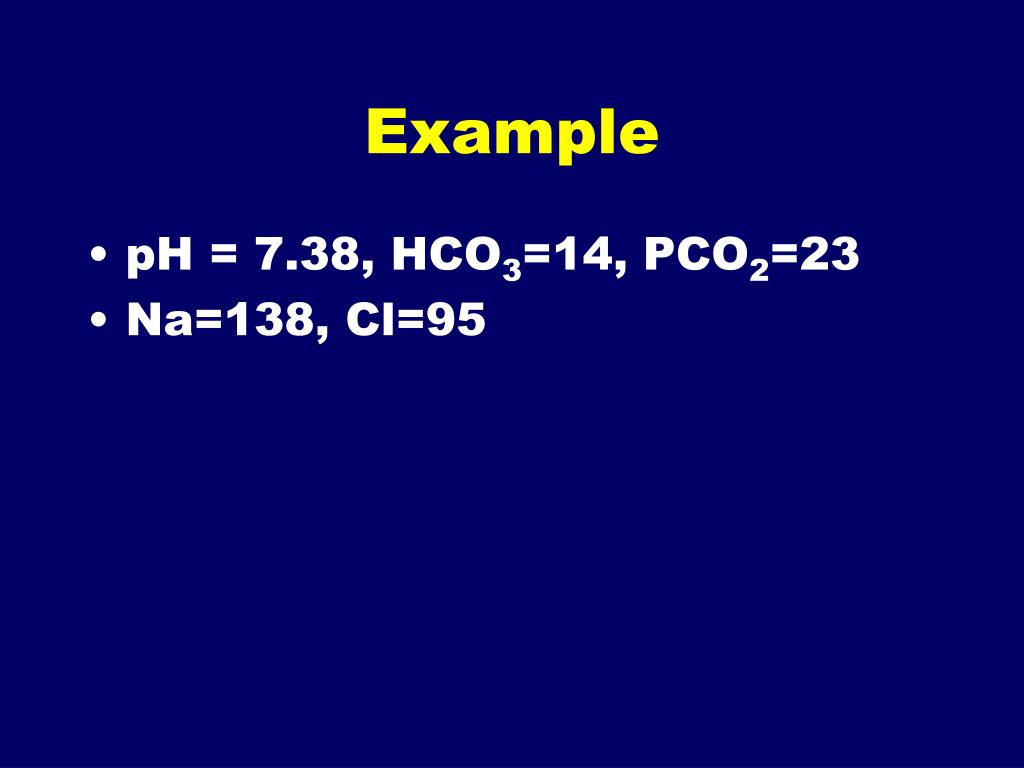

Example

  • pH = 7.38, HCO3=14, PCO2=23

  • Na=138, Cl=95


Example49 l.jpg

Example

  • pH = 7.38, HCO3=14, PCO2=23

  • Na=138, Cl=95

  • diagnosisAG metabolic acidosis andmetabolic alkalosis andrespiratory alkalosis


Example50 l.jpg

Example

  • pH = 7.40, HCO3=24, PCO2=40

  • Na=140, Cl=96

  • diagnosis


Example51 l.jpg

Example

  • pH = 7.40, HCO3=24, PCO2=40

  • Na=140, Cl=96

  • diagnosisAG metabolic acidosis and Metabolic alkalosis


Example52 l.jpg

Example

  • pH = 7.40, HCO3=24, PCO2=40

  • Na=140, Cl=104


Example53 l.jpg

Example

  • pH = 7.40, HCO3=24, PCO2=40

  • Na=140, Cl=104, albumin=1.1


Last rule l.jpg

Last rule!

  • For every 1.0 g/dl that the serum albumin is below 4.0, the upper limit of the anion gap is decreased by 2.5

  • Normal upper limit = 12

  • Alb 3.0 upper limit = 9.5

  • Alb 2.0 upper limit = 7.0

  • Alb 1.9 upper limit = 4.5


Example55 l.jpg

Example

  • pH = 7.40, HCO3=24, PCO2=40

  • Na=140, Cl=104, albumin=1.1


Example56 l.jpg

Example

  • pH = 7.40, HCO3=24, PCO2=40

  • Na=140, Cl=104, albumin=1.1

  • Diagnosis:Anion Gap Metabolic AcidosisMetabolic Alkalosis


Dogmatic statement l.jpg

Dogmatic Statement

  • You cannot interpret arterial blood gases without looking at the electrolytes.


Dogmatic statement58 l.jpg

Dogmatic Statement

  • You cannot interpret arterial blood gases without looking at the electrolytes.

  • Be sure to check the albumin as well.


Summary l.jpg

Summary

Metabolic Acidosis: 1HCO3 => 1PCO2

Metabolic Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3


Summary60 l.jpg

Summary

Metabolic Acidosis: 1HCO3 => 1PCO2

Metabolic Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3

But don’t forget to check the anion gap and the serum albumin!


Thank you for your attention l.jpg

Thank you for your attention

Metabolic Acidosis: 1HCO3 => 1PCO2

Metaboli Alkalosis: 10  HCO3 => 7 PCO2

Acute Resp Acid: 10  PCO2 = 1  HCO3

Chronic Resp Acid: 10  PCO2 = 4  HCO3

Acute Resp Alk: 10  PCO2 => 2  HCO3

Chronic Resp Alk: 10  PCO2 => 5  HCO3

But don’t forget to check the anion gap and the serum albumin!


Thank you for your attention62 l.jpg

Thank you for your attention
