Presentation Transcript
Solar energy research at ioc r d centre faridabad l.jpg
SOLAR ENERGY RESEARCH atIOC-R&D Centre, Faridabad

Dr. D.K. Tuli

General Manager (Alternate Energy)


Coverage l.jpg
Coverage

  • Solar Energy Research Plan of IOC-R&D

    • Approach

    • Line of action (strategy)

    • Basic research

  • Solar Power Generation Plans of IOC

    • Solar Lanterns & other products

    • Solar hydrogen dispensing station

    • Large scale solar farms


Three pronged approach l.jpg
Three-Pronged Approach

  • Infrastructure & Expertise Creation

  • Product Development & Technology Evaluation

  • Basic Research Projects


R d strategy infrastructure expertise creation l.jpg
R&D Strategy - Infrastructure & Expertise Creation

  • Set-up laboratory facility for testing of lanterns and other solar energy driven products

  • Testing facility for solar panels

  • Up-gradation of laboratory facility

    • To certification level

      • Discussions with TUV, Germany and Fraunhaufer, Germany

    • For Solar Cell Research

    • For Solar Thermal Research


Targeted areas of expertise solar pv l.jpg
Targeted Areas of ExpertiseSolar PV

  • Testing of Modules & Components of PV Systems – Mechanical, Electrical, Environment & Other Related Tests

  • Energy yield assessments – Study of local irradiation data & system details and long term yield forecasts compilation using simulations

  • Site Condition Evaluation – Actual energy yield at the site including shadowing/seasoning and type of plant (off or on grid, pump systems etc)

  • Technology advisory services – Based on global technology evaluation and relevant standards/regulations

  • Plant monitoring, output energy yields checks and evaluation – Data logging and analysis capabilities

  • Damage & fault assessment – Determination and analysis of damages & malfunctions of the systems including required repairs


Necessity for comprehensive testing l.jpg
Necessity for Comprehensive Testing

Why?

  • Prolonged exposure to weather and extreme temperature conditions

  • Sturdiness of insulating materials

  • Performance of wires

  • Extent of current leakages

  • Fire and health hazards

    For Whom ?

  • Grid tied systems

  • Government rebates and tax incentives

  • House insurance

  • Off-grid systems

    • Current leakages

    • Durability


Benefits of comprehensive testing facilities l.jpg
Benefits of Comprehensive Testing Facilities

  • Setting up of complete laboratory facility

    • Can be utilized for all R&D purposes as well as for certification purpose

      • Sole Indian party status and second Asian certification country after Japan

      • If utilized for certification, can earn extra revenue

  • All collaborative basic research efforts shall be helped by leveraging the lab facility successfully and the pace of development will be enhanced by aggressive institution/industrial collaborations


Slide8 l.jpg

Targeted Areas of ExpertiseSolar Thermal

  • Basic research areas:

  • Advanced coatings

  • Improved reflectors

  • Advanced thermal collectors

    • High temperature resistant thermic fluids

  • Applied research areas:

  • Hydrogen generation through solar thermal route

  • Advanced solar systems for

    • refinery steam pre-heating

    • solar assisted biomass gasifiers

    • air heating & drying etc.



Slide10 l.jpg

R&D StrategyProduct Development & Technology Evaluation

  • Technology / product tie-ups

    • for LED lanterns & other appliances development

    • for panels

    • for solar thermal products

    • IITs & CSIR labs such as CMERI, CEERI, CAZRI etc

  • Existing technology evaluation and data generation

    • Actual field evaluation exercise on controlled basis on a 10 KWp size plant complete with data management facilities

      • Power generation & data logging to evaluate all possible commercial PV technologies amongst following :

        • Mono and/or multi c-Si

        • a-Si

        • CPV

        • CIGS

        • CdTe

      • Activity can be extended further for all remaining cell technologies under incubation


  • R d strategy basic research l.jpg
    R&D Strategy – Basic Research

    • Focus on 3rd & 4th Generation PV Cells

    • Solar thermal systems leading up-to hydrogen generation

    Basic researchfor Improved Solar Systems

    Outsourcing

    &

    Collaboration


    Solar lanterns from indianoil l.jpg

    Solar Lanterns from IndianOil

    Made for poor, adored by rich…….a viable solar power generation for India


    Kerosene use market surveys l.jpg
    Kerosene use - Market Surveys

    Puri & Bhubaneswar


    The hows whys of solar lights l.jpg
    The hows & whys of solar lights

    Solar light brighter, healthier&cheaper than kerosene lamps

    • Brighter than kerosene lights

      • 15-20 times better quality light

        • 150-200 lumens vs. 10-20 lumens (kerosene ‘dibri’)

    • No smoke

      • Virtual elimination of soot-related health hazard

    • Cheaper than kerosene lights

    • No moving parts, very little maintenance

    • Near-zero heat

      • Can sit very close to lamp: boon to villagers & shopkeepers

    • Above all, endless source of energy


    Solar lighting options for the poor middle class l.jpg
    Solar lighting options for the poor & middle class

    3 options

    1. Central charging station with lanterns on rental for low-income villagers

    • Regular income for the rural entrepreneur

    • Micro-financing by MFI/RRB/CB for purchase of lanterns by the poor

      2. Solar lights with small panels for relatively well-off villagers

    • Direct purchase & use

      3. Village adoption

    • Options 1 & 2 practical for both urban & semi-urban customers

      • Low-income areas

      • Shops/mandis (marketplace)

      • Emergency lights


    Solar charging station scs l.jpg

    D(PBD) inaugurating SCS, Sathla KSK

    Rooftop solar panels, Sathla KSK

    Solar Charging Station (SCS)

    The Concept

    • Solar charging stations

      • At RO/KSK/LPGD or Any central location

    • Direct charging during the day

      • Batteries inside the lanterns


    Solar charging station scs17 l.jpg
    Solar Charging Station (SCS)

    The Concept

    • Customers pay rent for lantern & a fee for charging lantern on a daily/monthly basis

      • Every evening, Customers bring the discharged lantern and take a charged lantern with them

      • Alternatively, the charging station owner arranges for delivery & collection of lanterns




    Indianoil s solar lantern in use l.jpg
    IndianOil’s Solar Lantern in use

    Ujhari village, Gajraula, Bareily DO

    Sweet shops using IndianOil’s solar lanterns

    A chemist shop using IndianOil’s solar lanterns



    Indian oil s solar lanterns proposed target specifications l.jpg
    INDIANOIL’s Solar Lanterns (Proposed Target Specifications )


    Ioc r d plan targets 2011 2013 l.jpg
    IOC-R&D Plan & Targets (2011-2013)

    • New product development

      • Rural usage

        • Lanterns

        • Solar powered fans

        • Pump sets

        • Street lights

      • Urban usage

        • Home lighting systems

        • Fans

        • Garden lights

        • Mobile chargers

        • Street lights

        • Inverters

        • Captive power generating sets

      • Miscellaneous (Industrial including commercial buildings) usage

        • Cookers

        • Power generating units

    • Demo Projects

      • Installation of solar powered systems within R&D

      • Extending support to install solar systems in sister divisions

      • Setting up some proven technological units in the country as demo units to leap-frog the technical know-how

    2011

    2012-13

    ~ 50+ MW (12000 ROs x 6 W/d x 200 days x 4 years)

    Solar Mission target = 200 MWfor of-grid by 2013


    Slide24 l.jpg

    Project Objectives

    • To gain experience with onsite Solar Hydrogen Production infrastructure and Hydrogen HCNG utilization in automotive vehicles

    • To study performance, emission, reliability and safety aspects of hydrogen powered vehicles

    • To demonstrate Hydrogen / HCNG powered vehicles for public awareness and acceptance during Commonwealth Games


    Slide25 l.jpg

    Work Plan during Commonwealth Games

    Work Plan

    • IOC will set up on-site Solar Photovoltaic / Electrolyser based hydrogen dispensing station.

    • The station will comprise the following

      • Solar photovoltaic panels

      • Electrolyser

      • Hydrogen compressor

      • Hydrogen Storage

      • Blender & Dispenser


    Slide26 l.jpg

    Infrastructure Required during Commonwealth Games


    Slide27 l.jpg

    Future Fuels during Commonwealth Games

    A progressive & profitable energy centre of repute having

    international level research facilities,

    development expertise and certification accreditations


    Slide29 l.jpg

    Basic Research on New Generation PV Cells during Commonwealth Games

    • Possibilities:

    • Multi junction devices

      • Stacks of single junction cells in descending order of band-gap

      • Top cell captures high-energy photons and passes rest on to lower band-gap cells

    • New materials / material technologies

      • Nano PV cells

      • Dye sensitized cells

      • Polymer cells

    • Concentrator PV

      • Concentrates and utilizes maximum sun power

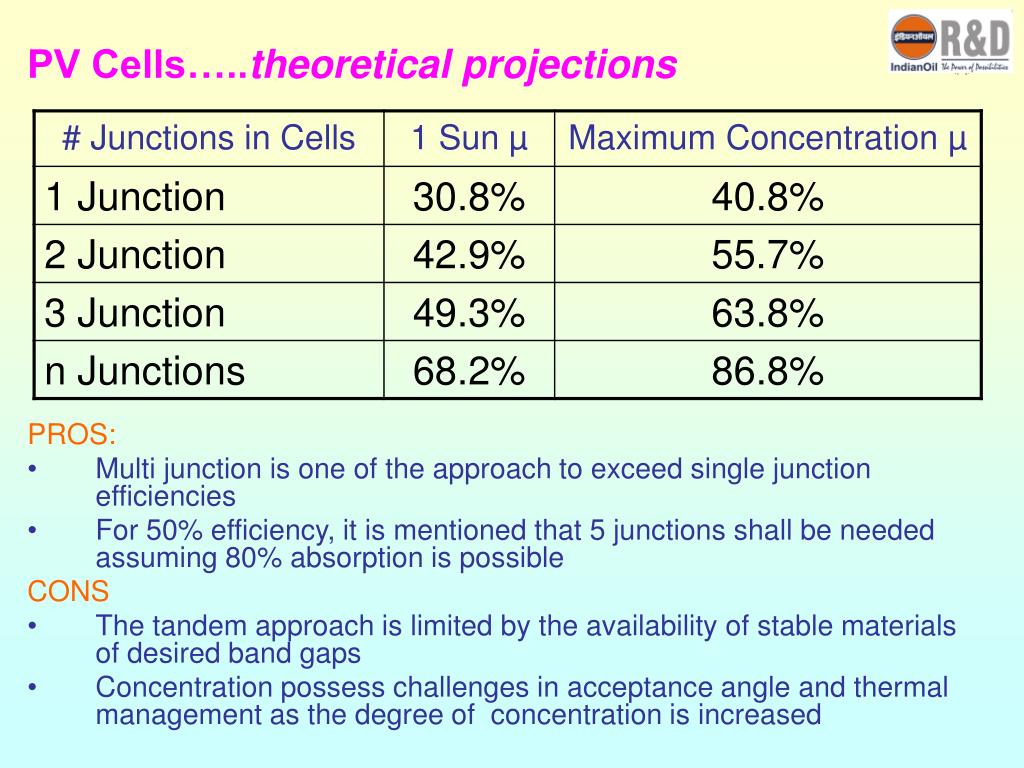

    Slide30 l.jpg

    PV Cells….. during Commonwealth Gamestheoretical projections

    • PROS:

    • Multi junction is one of the approach to exceed single junction efficiencies

    • For 50% efficiency, it is mentioned that 5 junctions shall be needed assuming 80% absorption is possible

    • CONS

    • The tandem approach is limited by the availability of stable materials of desired band gaps

    • Concentration possess challenges in acceptance angle and thermal management as the degree of concentration is increased


    Slide31 l.jpg

    Solar Energy during Commonwealth Games

    Some Interdisciplinary Areas of R&D

    • Hydrogen generation through Solar Energy

      • Comparative study of PV & Thermal route

    • Building Integrated PhotoVoltaic

      • Emerging & promising area

    • Polymeric Materials and chemicals used in solar panels

      • Polymeric films

      • Adhesives

    • Hybrid Systems

      • Fuel cells

      • Combustion engineering


    Slide32 l.jpg

    Type Testing – SOLAR PV during Commonwealth Games

    MECHANICAL TESTS

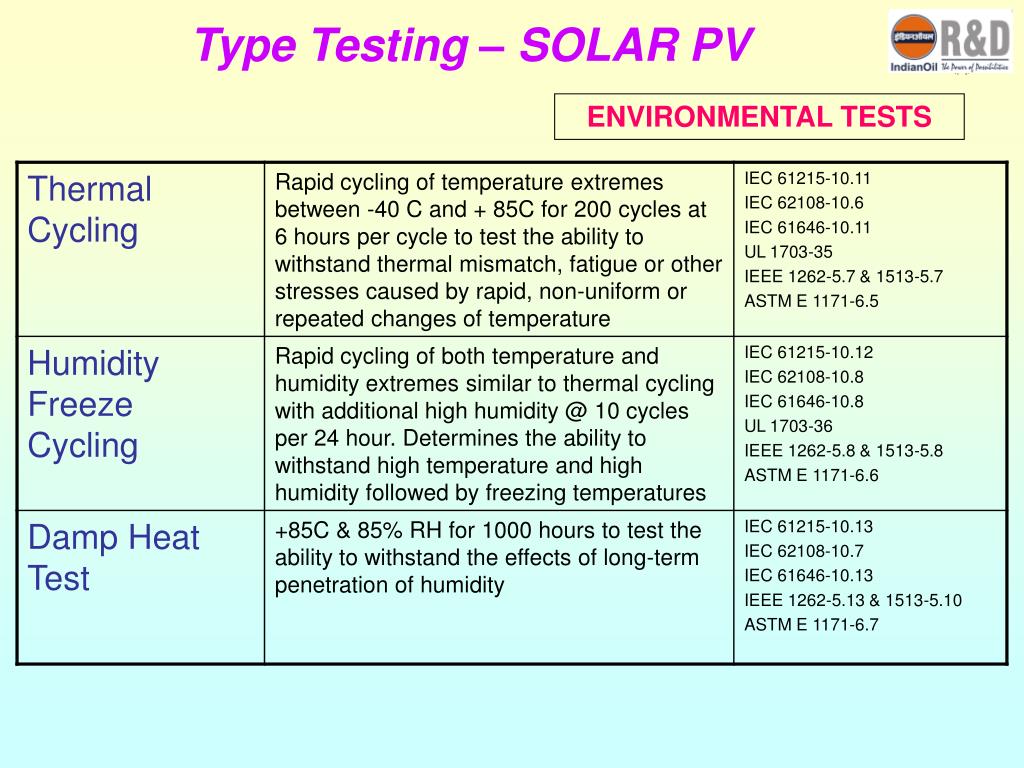

    Slide33 l.jpg

    Type Testing – SOLAR PV during Commonwealth Games

    ENVIRONMENTAL TESTS


    Slide34 l.jpg

    Type Testing – SOLAR PV during Commonwealth Games

    ELECTRICAL TESTS


    Slide35 l.jpg

    Type Testing – SOLAR PV during Commonwealth Games

    OTHER TESTS


    Learning from the workshop l.jpg
    Learning from the Workshop during Commonwealth Games

    • Solar PV and Solar Thermal are two distinct and separate areas of solar energy research

    • Traditionally, solar thermal was more in use quantitatively, while solar PV is now spreading far & wide

    • Total installed solar thermal capacity in world ~ 500 MW

    • Total installed solar PV capacity in world ~ 15 GW

    • At present, installing solar thermal plant is relatively cheaper than solar PV plant of equivalent capacity


    Slide37 l.jpg

    Solar Thermal – Some Areas Under R&D during Commonwealth Games

    • Basic research areas:

    • Advanced power cycles

    • Advanced coatings

    • Improved reflectors

    • Advanced thermal collectors

      • High temperature resistant thermic fluids

    • Applied research areas:

    • Development of organic Rankine cycle system

    • Solar dish engines such as Stirling/steam/micro-turbines for decentralized power

    • Development of suitable receiver systems

    • Solar energy storage devise – Solargas, Fuel Cells, Molten salts with low freezing temperatures and options for low & medium temperature applications

    • Development of heliostats with automatic tracking controls

    • Advanced solar systems for

      • cooling

      • green buildings

      • cooking

      • air heating & drying etc.


    Slide38 l.jpg

    Solar PhotoVoltaic – Some Areas Under R&D during Commonwealth Games

    • Areas of basic research:

      • Crystalline silicon based solar technology

        • Modeling & simulation of novel structures

        • Reduction in optical losses

        • Reduction in wafer thickness

        • Indigenous development of transparent conducting light trapping oxides (TCLO)

        • Development of silver paste etc

      • Non-crystalline based solar technology

        • Development of CIGS (Copper indium gallium di-selenide) based solar modules

        • Amorphous silicon based modules

        • Nano-silicon & dye sensitized modules

    • Areas of applied research

      • Improvement of module life

      • Module making processes

      • Low weight modules etc.


    Resources needed cumulatively l.jpg
    RESOURCES NEEDED….. during Commonwealth Gamescumulatively

    *

    Landmarks

    2010 – Initiation & lantern project

    2011 – Data generation & research project initiation

    2012 – Building & lab upgradation + demo projects onstream

    2013Projects fructifications

    In case of certification/accreditation lab

    *


    List of activities l.jpg
    LIST OF ACTIVITIES during Commonwealth Games

    2010

    2011 - 2012

    2013 +


    ad
