Cs101 introduction to computing lecture 39 cyber crime

CS101 Introduction to ComputingLecture 39Cyber Crime

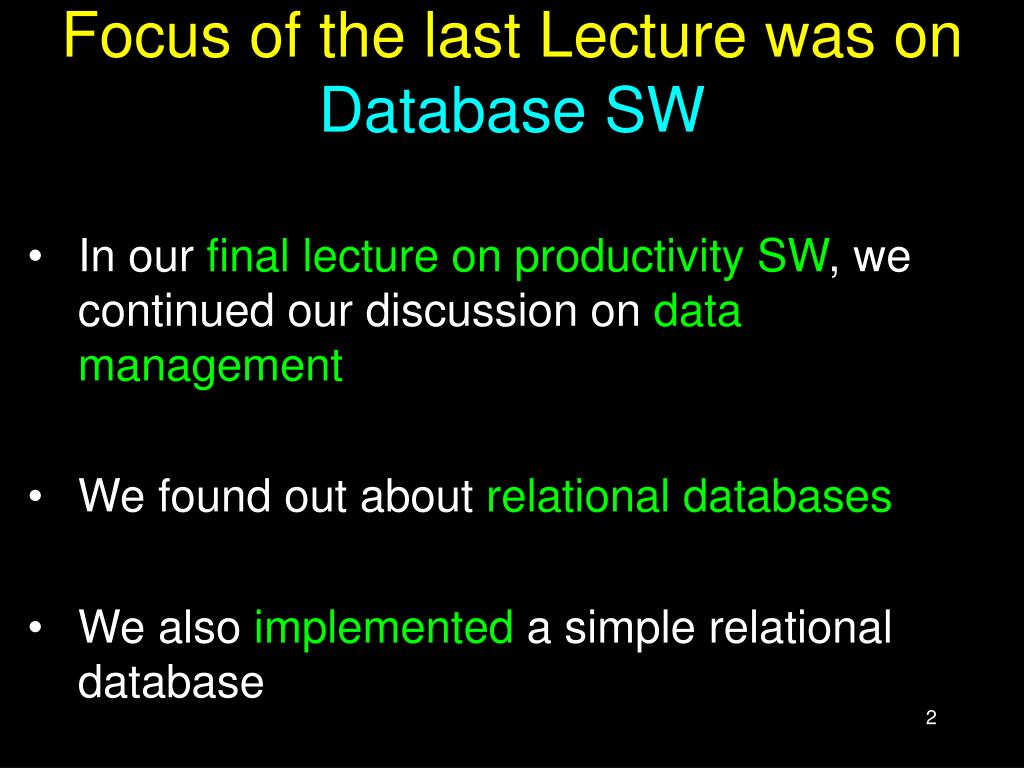

Focus of the last lecture was on database sw

Focus of the last Lecture was on Database SW

  • In our final lecture on productivity SW, we continued our discussion on data management

  • We found out about relational databases

  • We also implemented a simple relational database


Relational databases 1

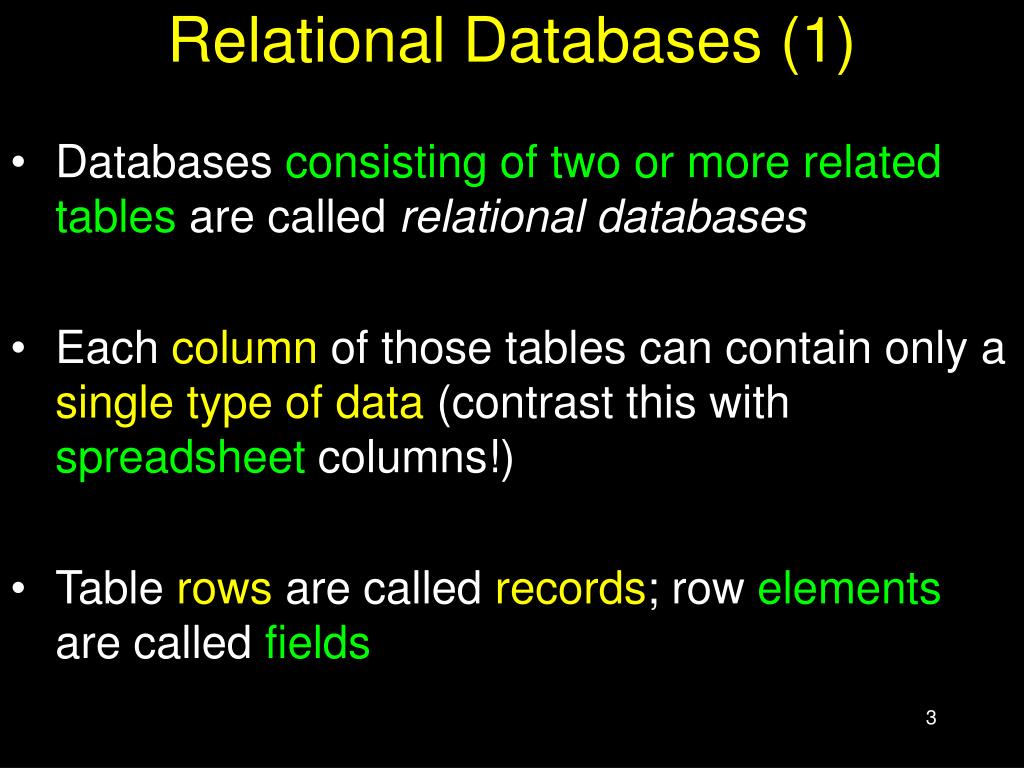

Relational Databases (1)

  • Databases consisting of two or more related tables are called relational databases

  • Each column of those tables can contain only a single type of data (contrast this with spreadsheet columns!)

  • Table rows are called records; row elements are called fields


Relational databases 2

Relational Databases (2)

  • A relational database stores all its data inside tables, and nowhere else

  • All operations on data are done on those tables or those that are generated by table operations

  • Tables, tables, and nothing but tables!


Rdbms

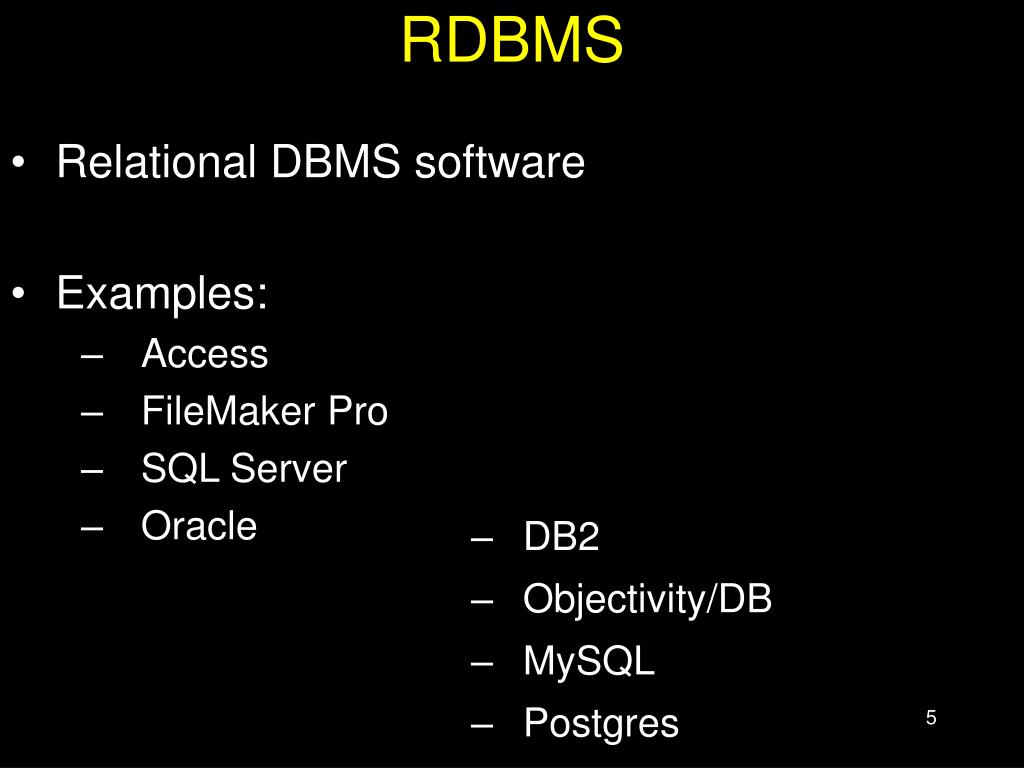

RDBMS

  • Relational DBMS software

  • Examples:

    • Access

    • FileMaker Pro

    • SQL Server

    • Oracle

  • DB2

  • Objectivity/DB

  • MySQL

  • Postgres

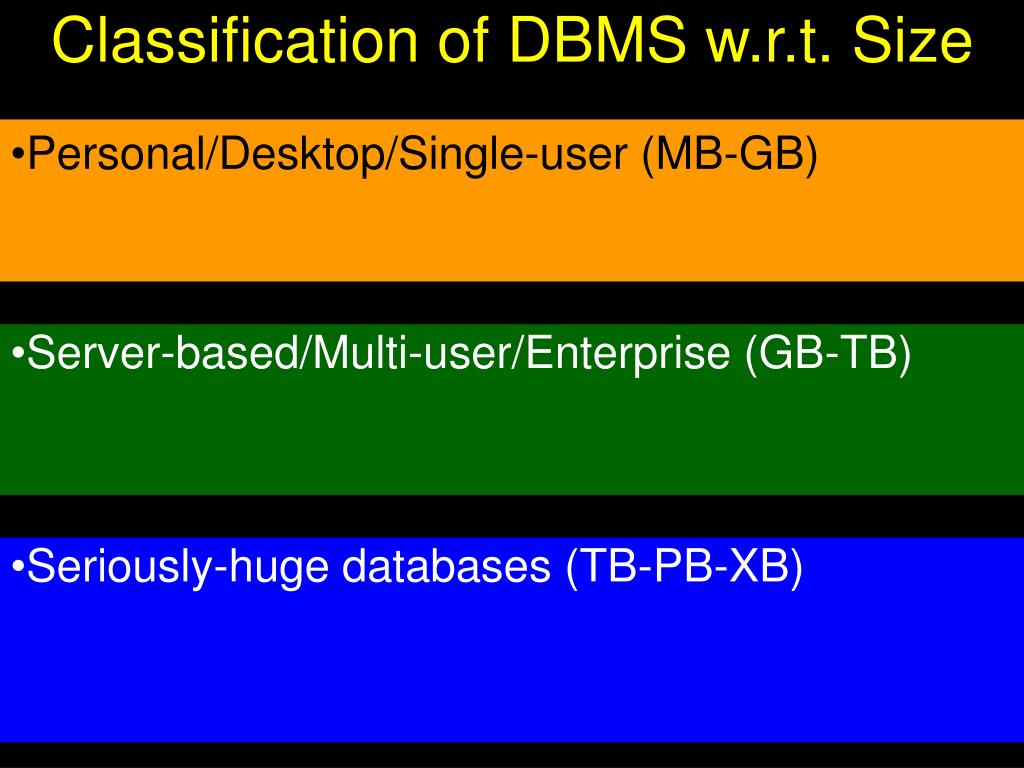

Classification of dbms w r t size

Classification of DBMS w.r.t. Size

  • Personal/Desktop/Single-user (MB-GB)

  • Server-based/Multi-user/Enterprise (GB-TB)

  • Seriously-huge databases (TB-PB-XB)


The trouble with relational dbs 1

The Trouble with Relational DBs (1)

  • Much of current SW development is done using the object-oriented methodology

  • When we want to store the object-oriented data into an RDBMS, it needs to be translated into a form suitable for RDBMS


The trouble with relational dbs 2

The Trouble with Relational DBs (2)

  • Then when we need to read the data back from the RDBMS, the data needs to be translated back into an object-oriented form before use

  • These two processing delays, the associated processing, and time spent in writing and maintaining the translation code are the key disadvantages of the current RDBMSes


Some terminology 1

Some Terminology (1)

  • Primary Key is a field that uniquely identifies each record stored in a table

  • Queriesare used to view, change, and analyze data. They can be used to:

    • Combine data from different tables, efficiently

    • Extract the exact data that is desired

  • Forms can be used for entering, editing, or viewing data, one record at a time


Some terminology 2

Some Terminology (2)

  • Reports are an effective, user-friendly way of presenting data. All DBMSes provide tools for producing custom reports

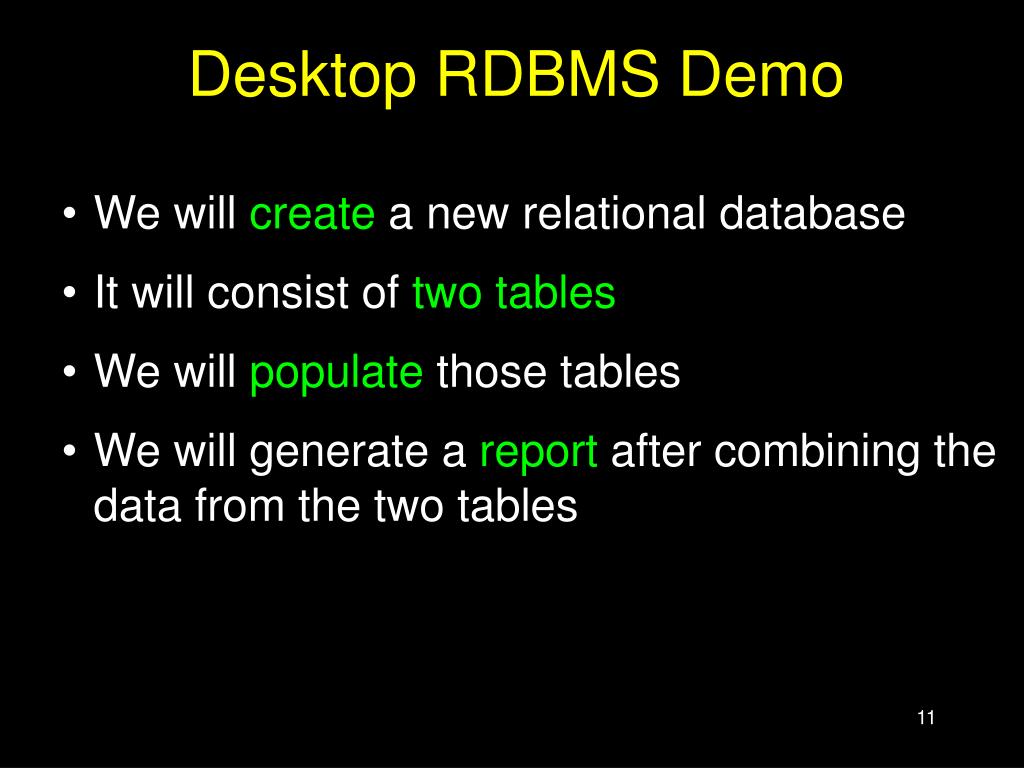

Desktop rdbms demo

Desktop RDBMS Demo

  • We will create a new relational database

  • It will consist of two tables

  • We will populate those tables

  • We will generate a report after combining the data from the two tables


Today s lecture cyber crime

Today’s Lecture:Cyber Crime

  • To find out about several types of crimes that occur over cyber space (i.e. the Internet)

  • To familiarize ourselves with with several methods that can be used to minimize the ill effects of those crimes


07 february 2000

07 February 2000

  • Users trying to get on to the Web sites of Yahoo, couldn’t!

  • Reason: Their servers were extremely busy!

  • They were experiencing a huge number of hits

  • The hit-rate was superior to the case when a grave incident (e.g. 9/11) occurs, and people are trying to get info about what has happened

  • The only problem was that nothing of note had taken place!


What was going on

What was going on?

  • A coordinated, distributed DoS (Denial of Service) attack was taking place

  • Traffic reached 1 GB/s; many times of normal!

  • In the weeks leading to the attack, there was a noticeable rise in the number of scans that Internet servers were receiving

  • Many of these scans appeared to originate from IP addresses that traced back to Korea, Indonesia, Taiwan, Australia

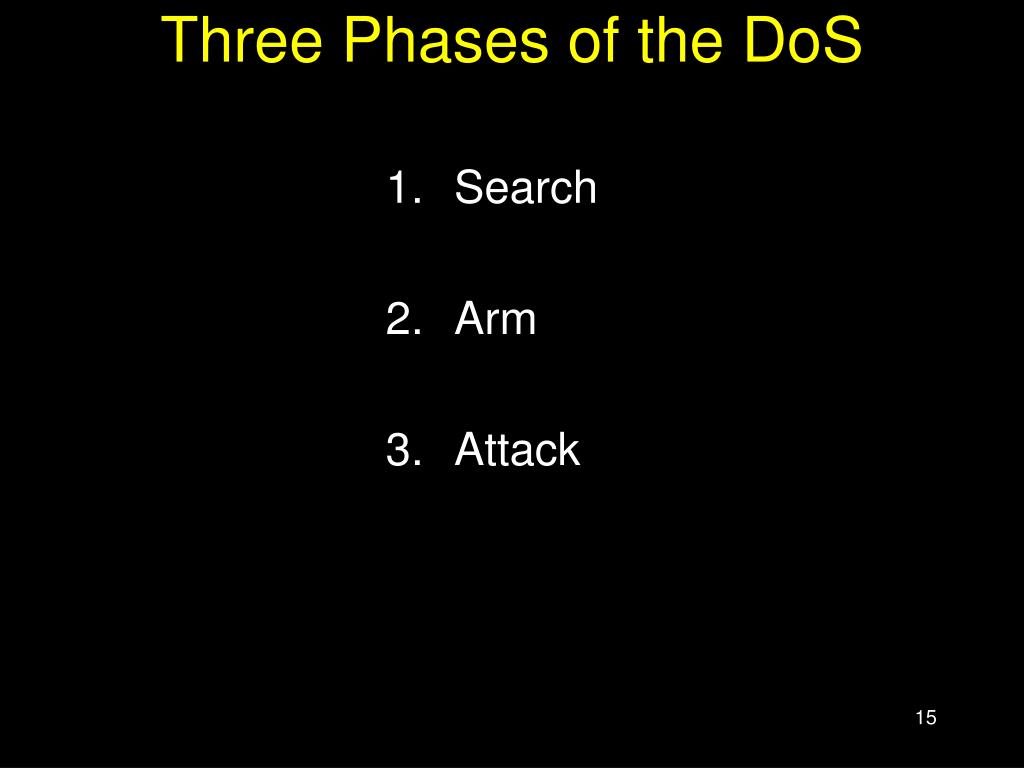

Three phases of the dos

Three Phases of the DoS

  • Search

  • Arm

  • Attack


1 search for drones

1. Search for Drones

  • The attackers set about acquiring the control over the computers to be used in the attack …

  • by scanning – using e.g. Sscan SW – a large numbers of computers attached to the Internet

  • Once a computer with a weak security scheme is identified, the attackers try a break-in

  • Once conquered, that computer – called a drone – will be used to scan others


2 arming the drones

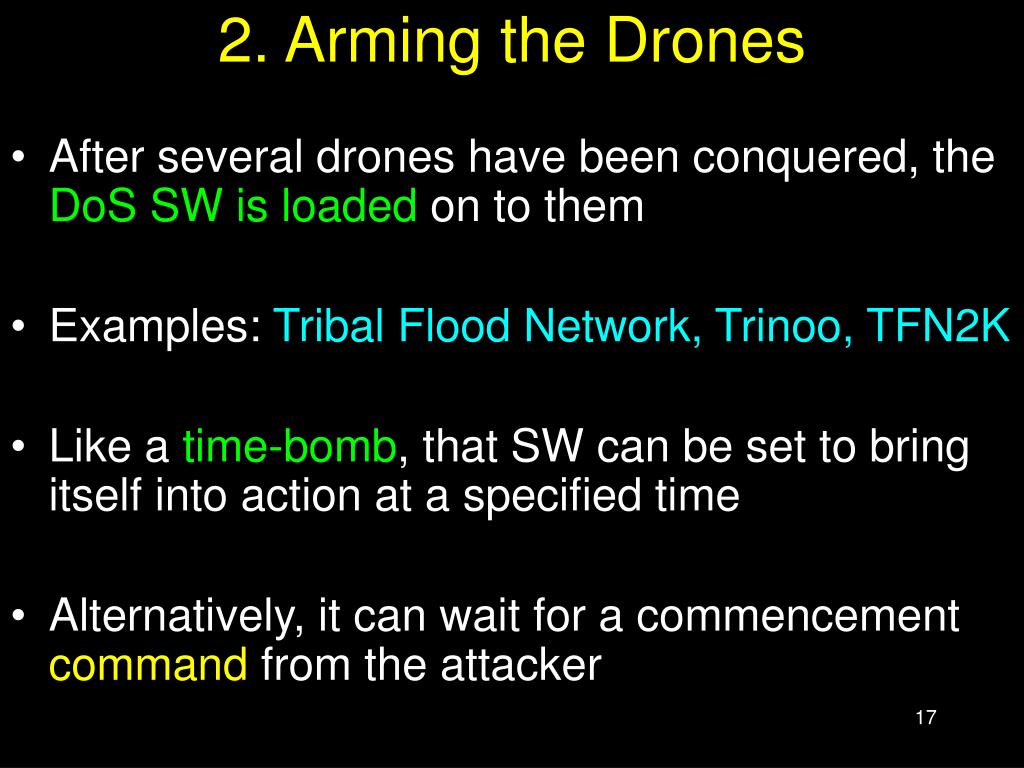

2. Arming the Drones

  • After several drones have been conquered, the DoS SW is loaded on to them

  • Examples: Tribal Flood Network, Trinoo, TFN2K

  • Like a time-bomb, that SW can be set to bring itself into action at a specified time

  • Alternatively, it can wait for a commencement command from the attacker

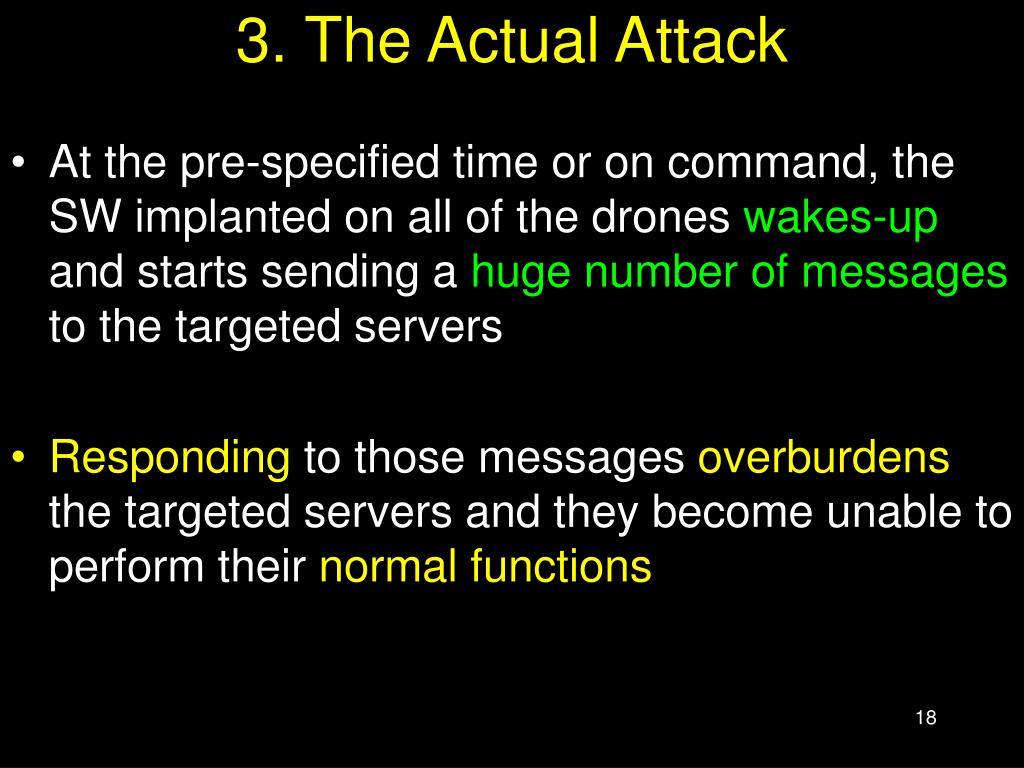

3 the actual attack

3. The Actual Attack

  • At the pre-specified time or on command, the SW implanted on all of the drones wakes-up and starts sending a huge number of messages to the targeted servers

  • Responding to those messages overburdens the targeted servers and they become unable to perform their normal functions


Neutralizing the attack

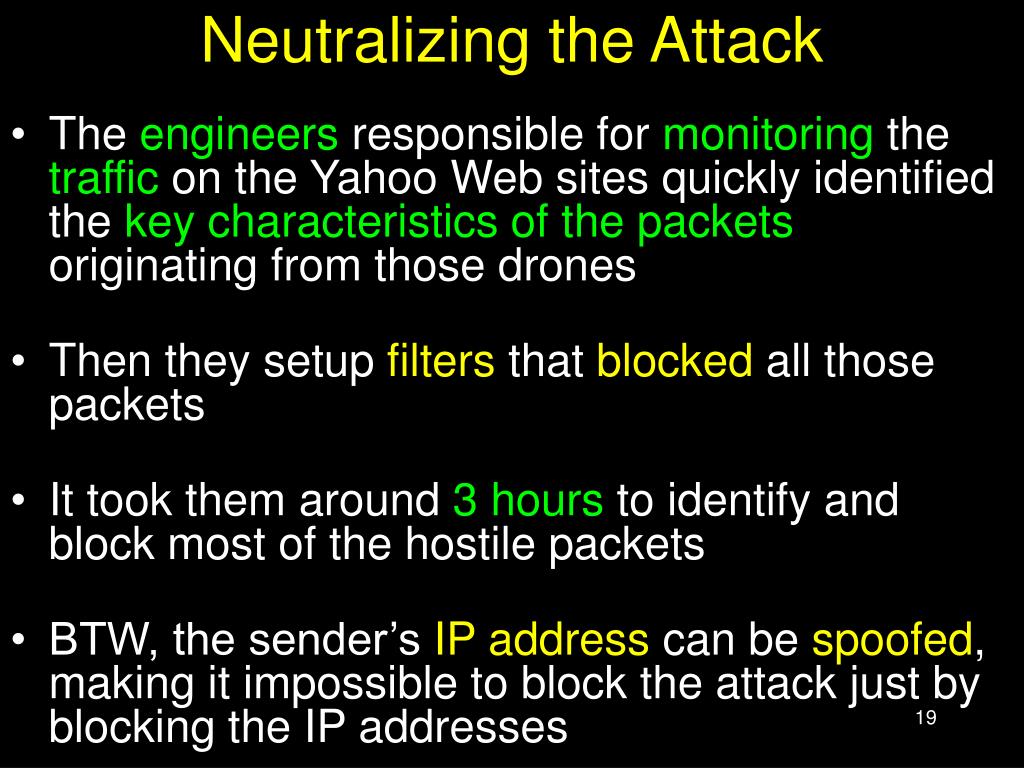

Neutralizing the Attack

  • The engineers responsible for monitoring the traffic on the Yahoo Web sites quickly identified the key characteristics of the packets originating from those drones

  • Then they setup filters that blocked all those packets

  • It took them around 3 hours to identify and block most of the hostile packets

  • BTW, the sender’s IP address can be spoofed, making it impossible to block the attack just by blocking the IP addresses


The aftermath

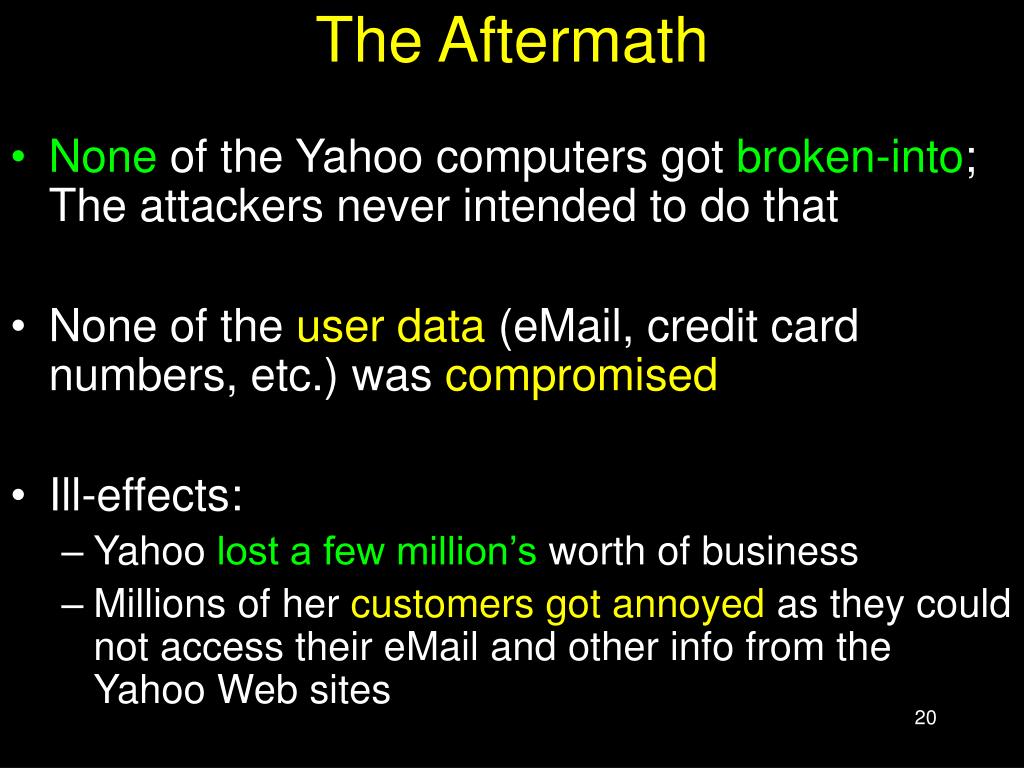

The Aftermath

  • None of the Yahoo computers got broken-into; The attackers never intended to do that

  • None of the user data (eMail, credit card numbers, etc.) was compromised

  • Ill-effects:

    • Yahoo lost a few million’s worth of business

    • Millions of her customers got annoyed as they could not access their eMail and other info from the Yahoo Web sites


Who done it

Who Done It?

  • The DoS SW is not custom SW, and can be downloaded from the Internet. Therefore, it is difficult to track the person who launched the attack by analyzing that SW

  • After installing the DoS SW on the drones, setting the target computer and time, the attackers carefully wipe away any info on the drone that can be used to track them down

  • End result: Almost impossible to track and punish clever attackers


How to stop dos attacks from taking place

How to stop DoS attacks from taking place?

  • Design SW that monitors incoming packets, and on noticing a sudden increase in the number of similar packets, blocks them

  • Convince system administrators all over the world to secure their servers in such a way that they cannot be used as drones

  • BTW, the same type of attack brought down the CNN, Buy, eBay, Amazon Web sites the very next day of the Yahoo attack


Dos attack a cyber crime

DoS Attack: A Cyber Crime

  • DoS is a crime, but of a new type - made possible by the existence of the Internet

  • A new type of policing and legal system is required to tackle such crimes and their perpetrators

  • Internet does not know any geographical boundaries, therefore jurisdiction is a key issue when prosecuting the cyber-criminal


Cyber crime can be used to

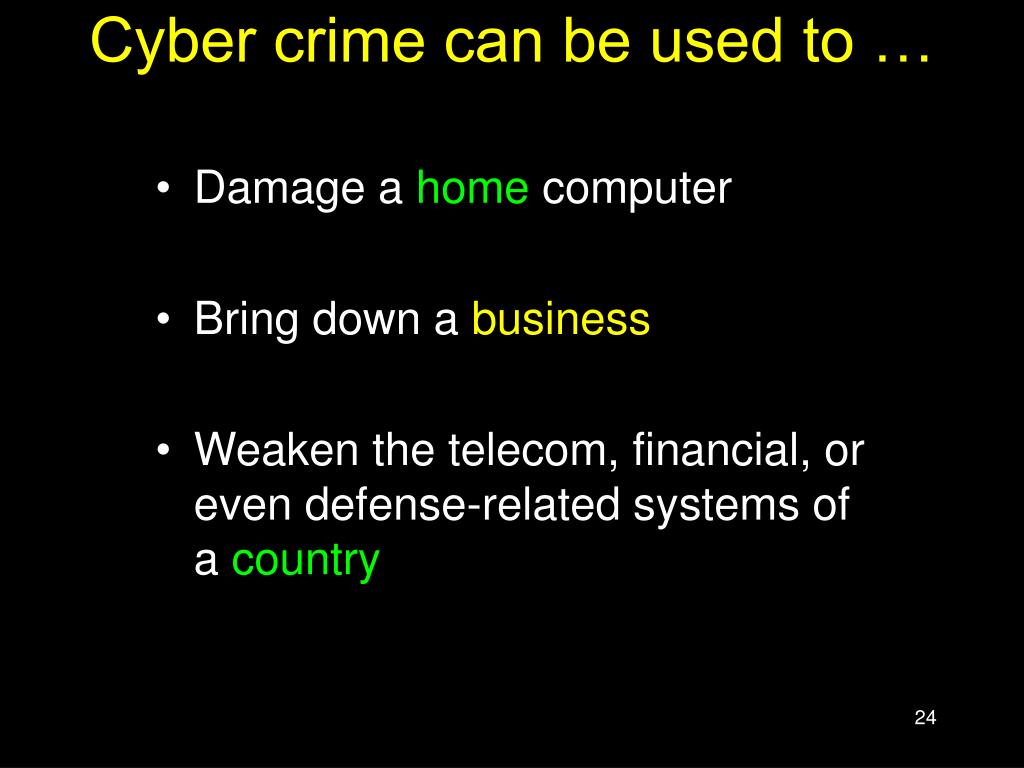

Cyber crime can be used to …

  • Damage a home computer

  • Bring down a business

  • Weaken the telecom, financial, or even defense-related systems of a country

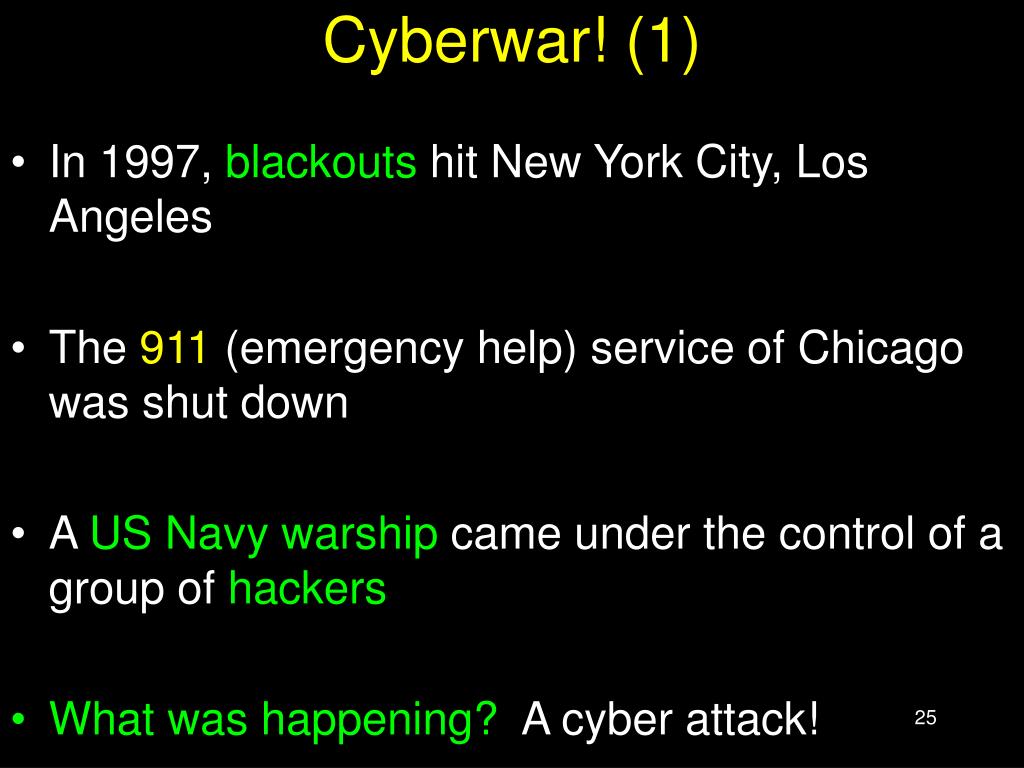

Cyberwar 1

Cyberwar! (1)

  • In 1997, blackouts hit New York City, Los Angeles

  • The 911 (emergency help) service of Chicago was shut down

  • A US Navy warship came under the control of a group of hackers

  • What was happening? A cyber attack!


Cyberwar 2

Cyberwar! (2)

  • All of the above did not happen in reality, but in a realistic simulation

  • The US National Security Agency hired 35 hackers to attack the DoD’s 40,000 computer networks

  • By the end of the exercise, the hackers had gained root-level (the highest-level!) access to at least 3 dozen among those networks


Cyberwarfare a clear and present threat as well opportunity for all of the world s armed force

Cyberwarfare:A clear and present threat as well opportunity for all of the world’s armed force!


Cyber warfare cyber crime

?

CyberwarfareCybercrime


More cybercrimes

More cybercrimes …


Mail bombing

Mail Bombing

  • Similar in some ways to a DoS attack

  • A stream of large-sized eMails are sent to an address, overloading the destination account

  • This can potentially shut-down a poorly-designed eMail system or tie up the telecom channel for long periods

  • Defense: eMail filtering


Break ins

Break-Ins

  • Hackers are always trying to break-in into Internet-connected computers to steal info or plant malicious programs

  • Defense: Intrusion detectors


Credit card fraud 1

Credit Card Fraud (1)

  • A thief somehow breaks into an eCommerce server and gets hold of credit numbers and related info

  • The thief then uses that info to order stuff on the Internet


Credit card fraud 2

Credit Card Fraud (2)

  • Alternatively, the thief may auction the credit card info on certain Web sites setup just for that purpose

  • Defense: Use single-use credit card numbers for your Internet transactions

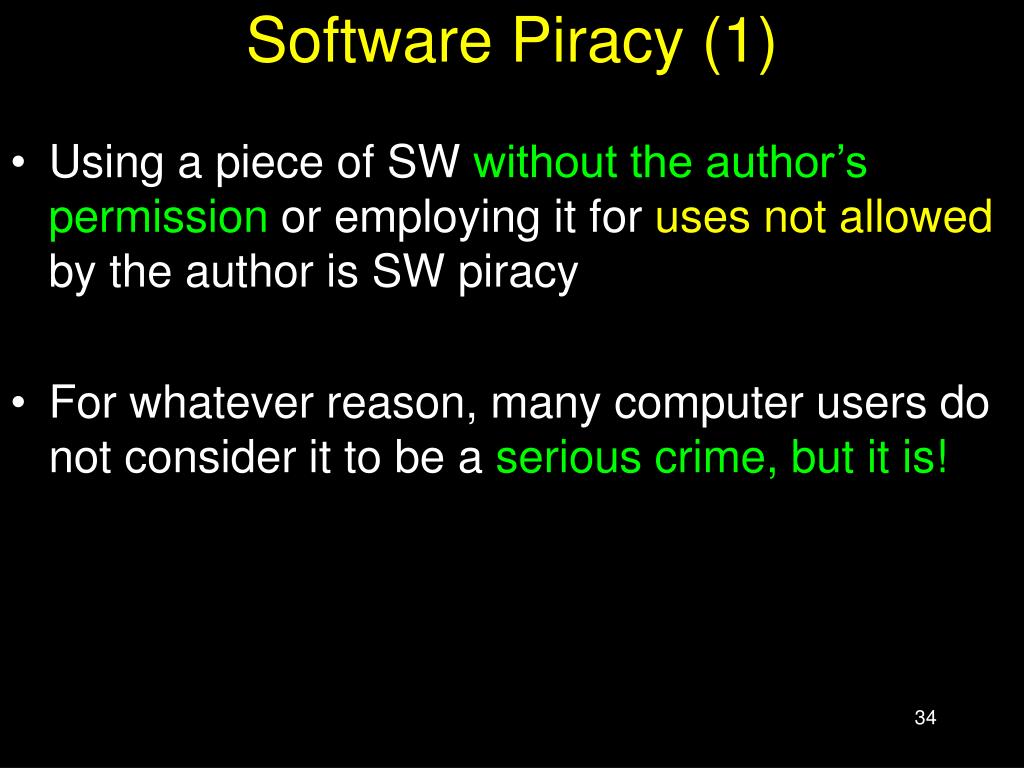

Software piracy 1

Software Piracy (1)

  • Using a piece of SW without the author’s permission or employing it for uses not allowed by the author is SW piracy

  • For whatever reason, many computer users do not consider it to be a serious crime, but it is!


Software piracy 2

Software Piracy (2)

  • Only the large rings of illegal SW distributors are ever caught and brought to justice

  • Defense: Various authentication schemes. They, however, are seldom used as they generally annoy the genuine users


Industrial espionage

Industrial Espionage

  • Spies of one business monitoring the network traffic of their competitors

  • They are generally looking for info on future products, marketing strategies, and even financial info

  • Defense: Private networks, encryption, network sniffers


Web store spoofing

Web Store Spoofing

  • A fake Web store (e.g. an online bookstore) is built

  • Customers somehow find that Web site and place their orders, giving away their credit card info in the process

  • The collected credit card info is either auctioned on the Web or used to buy goods and services on the Web


Viruses 1

Viruses (1)

  • Self-replicating SW that eludes detection and is designed to attach itself to other files

  • Infects files on a computers through:

    • Floppy disks, CD-ROMs, or other storage media

    • The Internet or other networks

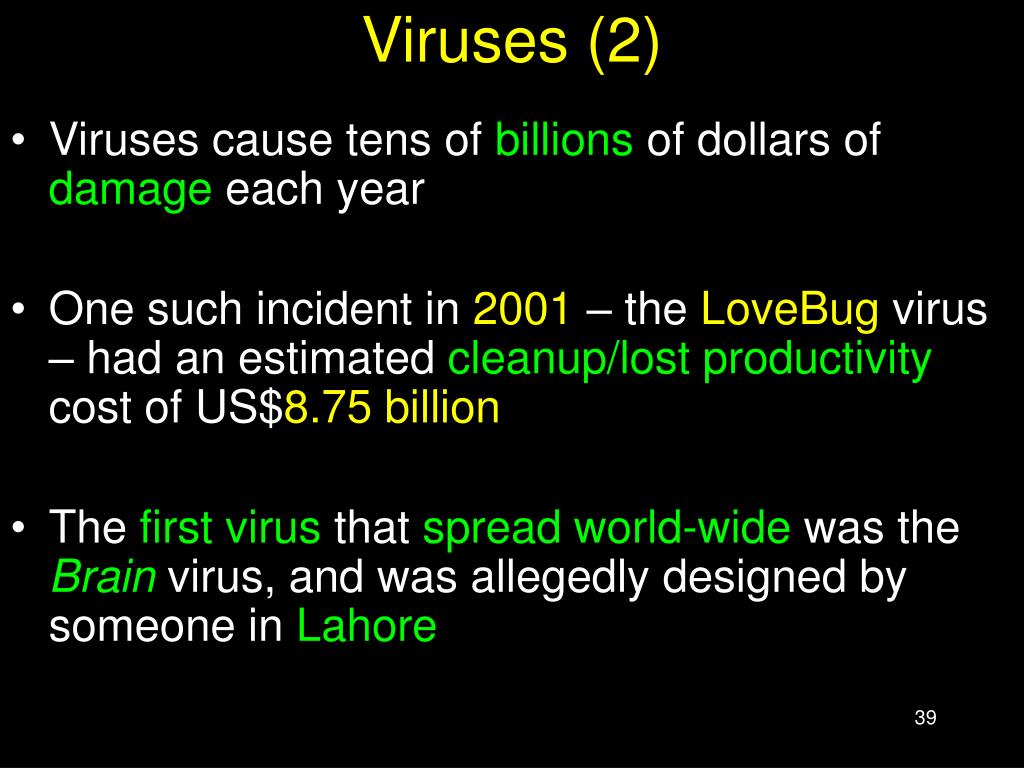

Viruses 2

Viruses (2)

  • Viruses cause tens of billions of dollars of damage each year

  • One such incident in 2001 – the LoveBug virus – had an estimated cleanup/lost productivity cost of US$8.75 billion

  • The first virus that spread world-wide was the Brain virus, and was allegedly designed by someone in Lahore

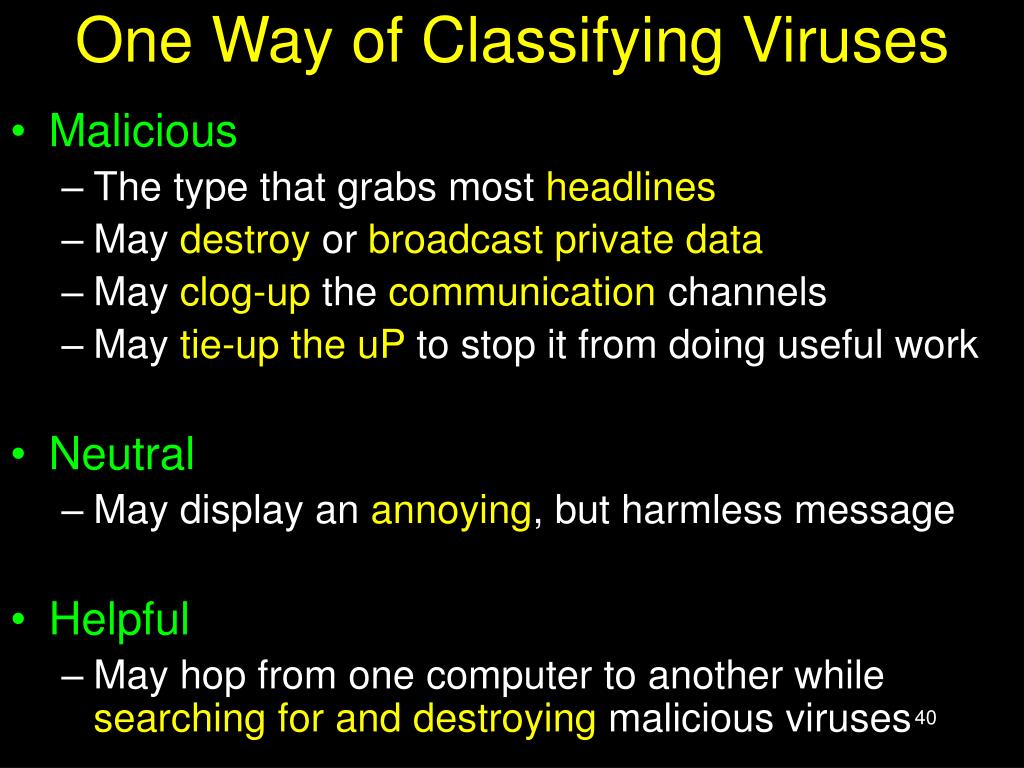

One way of classifying viruses

One Way of Classifying Viruses

  • Malicious

    • The type that grabs most headlines

    • May destroy or broadcastprivate data

    • May clog-up the communication channels

    • May tie-up the uP to stop it from doing useful work

  • Neutral

    • May display an annoying, but harmless message

  • Helpful

    • May hop from one computer to another while searching for and destroying malicious viruses


Anatomy of a virus

Anatomy of a Virus

A virus consists of 2 parts:

  • Transmission mechanism

  • Payload


Transmission mechanism

Transmission Mechanism

  • Viruses attach themselves to other computer programs or data files (termed as hosts)

  • They move from one computer to another with the hosts and spring into action when the host is executed or opened


Payload

Payload

  • The part of the virus that generally consists of malicious computer instructions

  • The part generally has two further components:

    • Infection propagation component:

      • This component transfers the virus to other files residing on the computer

    • Actual destructive component:

      • This component destroys data or performs or other harmful operations


Commonsense guidelines 1

Commonsense Guidelines (1)

  • Download SW from trusted sites only

  • Do not open attachments of unsolicited eMails

  • Use floppy disks and CDROMs that have been used in trusted computers only

  • When transferring files from your computer to another, use the write-protection notches


Commonsense guidelines 2

Commonsense Guidelines (2)

  • Stay away from pirated SW

  • Regularly back your data up

  • Install Antivirus SW; keep it and its virus definitions updated

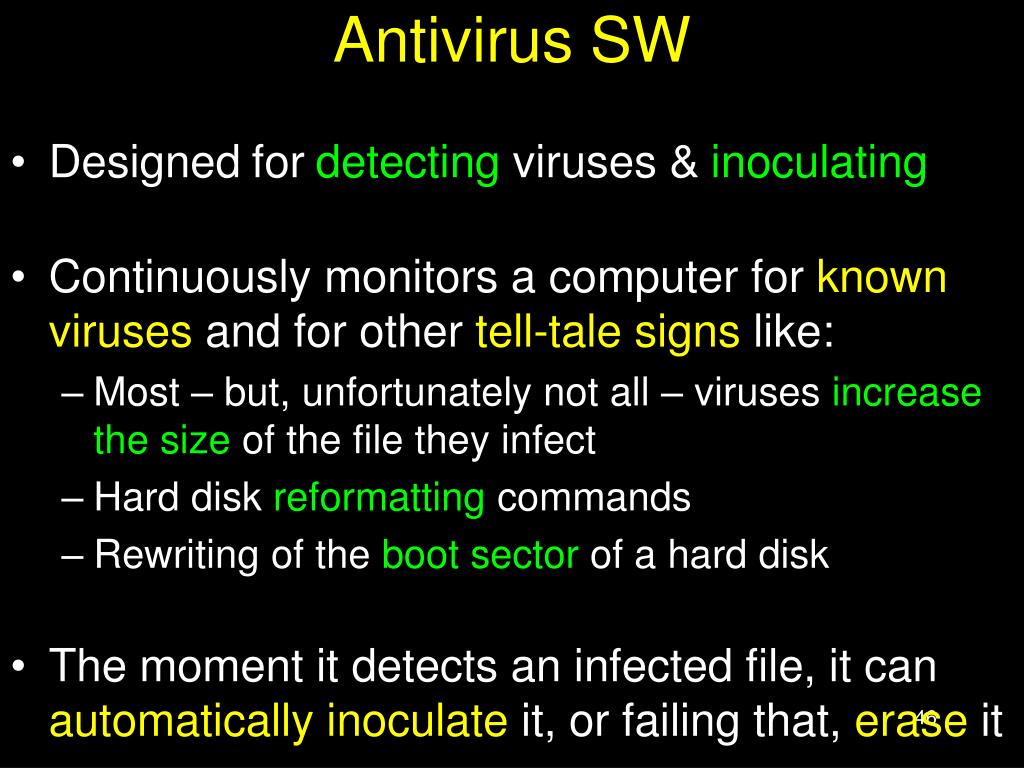

Antivirus sw

Antivirus SW

  • Designedfordetecting viruses &inoculating

  • Continuously monitors a computer for known viruses and for other tell-tale signs like:

    • Most – but, unfortunately not all – viruses increase the size of the file they infect

    • Hard disk reformatting commands

    • Rewriting of the boot sector of a hard disk

  • The moment it detects an infected file, it can automatically inoculate it, or failing that, erase it


Other virus like programs

Other Virus-Like Programs

  • There are other computer programs that are similar to viruses in some ways but different in some others

  • Three types:

    • Trojan horses

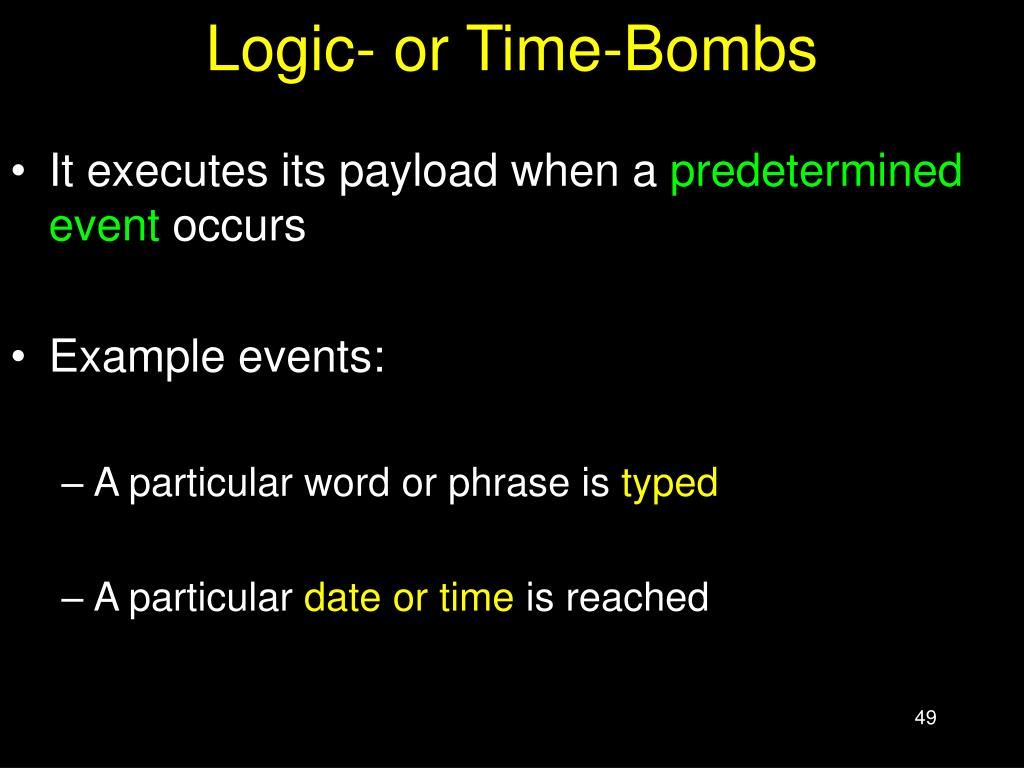

    • Logic- or time-bombs

    • Worms


Trojan horses

Trojan Horses

  • Unlike viruses, they are stand-alone programs

  • The look like what they are not

  • They appear to be something interesting and harmless (e.g. a game) but when they are executed, destruction results


Logic or time bombs

Logic- or Time-Bombs

  • It executes its payload when a predetermined event occurs

  • Example events:

    • A particular word or phrase is typed

    • A particular date or time is reached


Worms

Worms

  • Harmless in the sense that they only make copies of themselves on the infected computer

  • Harmful in the sense that it can use up available computer resources (i.e. memory, storage, processing), making it slow or even completely useless


Cyber crime

Designing, writing, or propagating malicious codeorparticipating in any of the fore-mentioned activitiescan result incriminal prosecution, which in turn, may lead to jail terms and fines!


Today s lecture

Today’s Lecture:

  • We found out about several types of computer crimes that occur over cyber space

  • We familiarized ourselves with with several methods that can be used to minimize the ill effects of these crimes


Next lecture goals social implications of computing

Next Lecture’ Goals(Social Implications of Computing)

We will explore the impact of computing on:

  • Business

  • Work

  • Living

  • Health

  • Education


  • Login
