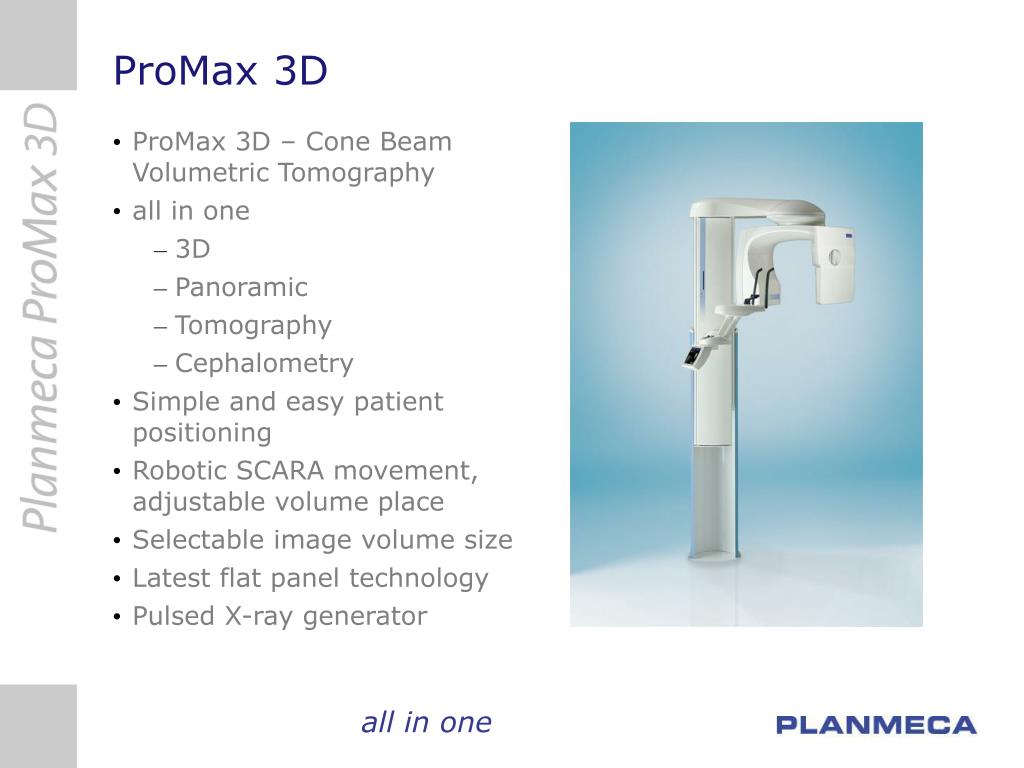

  1. ProMax 3D • ProMax 3D – Cone Beam Volumetric Tomography • all in one • 3D • Panoramic • Tomography • Cephalometry • Simple and easy patient positioning • Robotic SCARA movement, adjustable volume place • Selectable image volume size • Latest flat panel technology • Pulsed X-ray generator all in one

  2. Upgradeable to all Planmeca ProMax units New diagnostic possibilities – in dental office

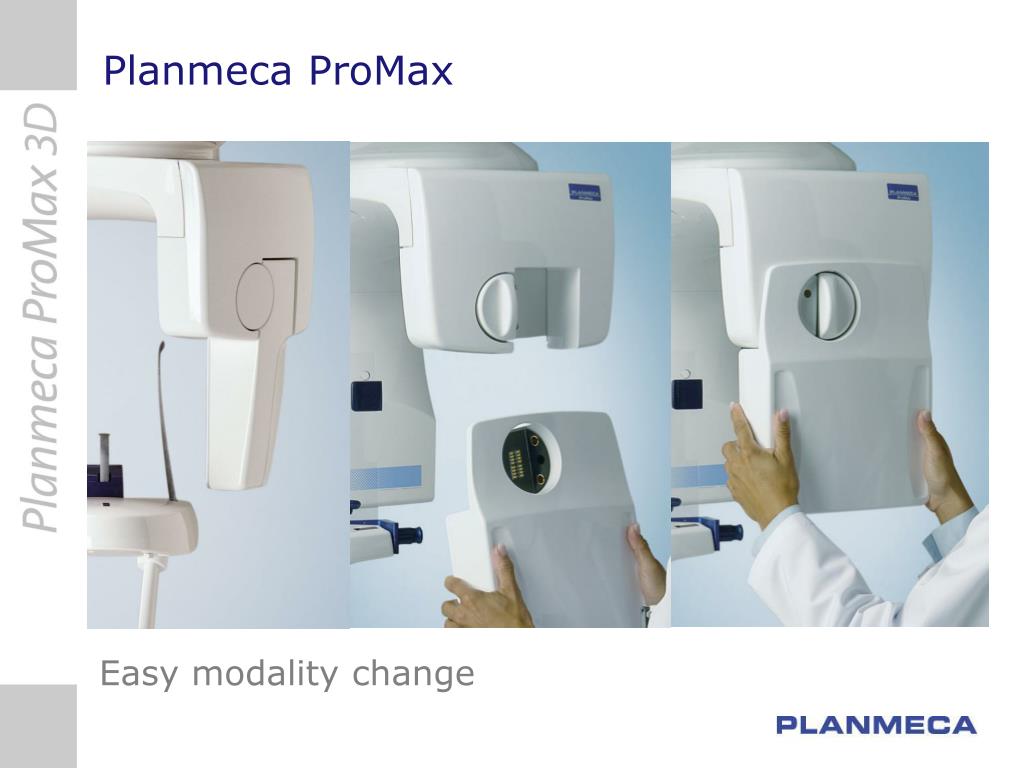

  3. Planmeca ProMax Easy modality change

  4. Simple and easy patient positioning • New patient support for 3D imaging • Patient standing or sitting • kV/mA automatically selected according to patient size (possibility to overdrive)‏

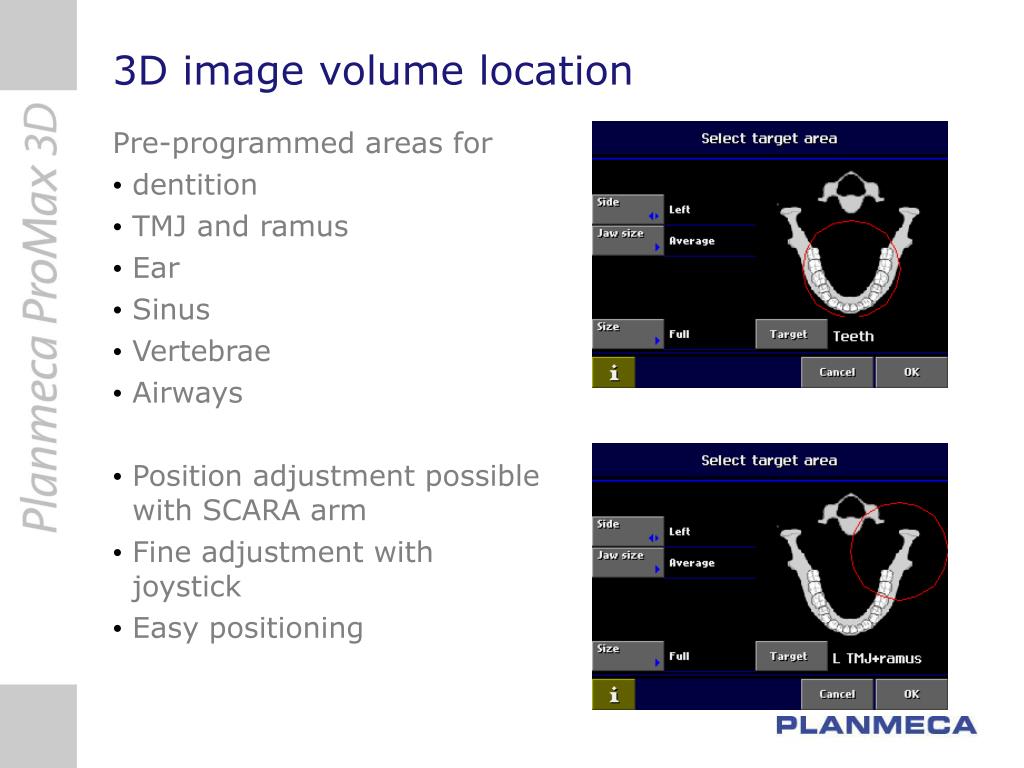

  5. 3D image volume location Pre-programmed areas for • dentition • TMJ and ramus • Ear • Sinus • Vertebrae • Airways • Position adjustment possible with SCARA arm • Fine adjustment with joystick • Easy positioning

  6. 3D image volume sizes (dia mm x height mm)‏ • Full Size 80 x 80 • Maxilla 80 x 50 • Mandible 80 x 50 • Molar Maxilla 40 x 50 • Molar Mandible 40 x 50 • Programs to match diagnostic task • Minimize radiated volume

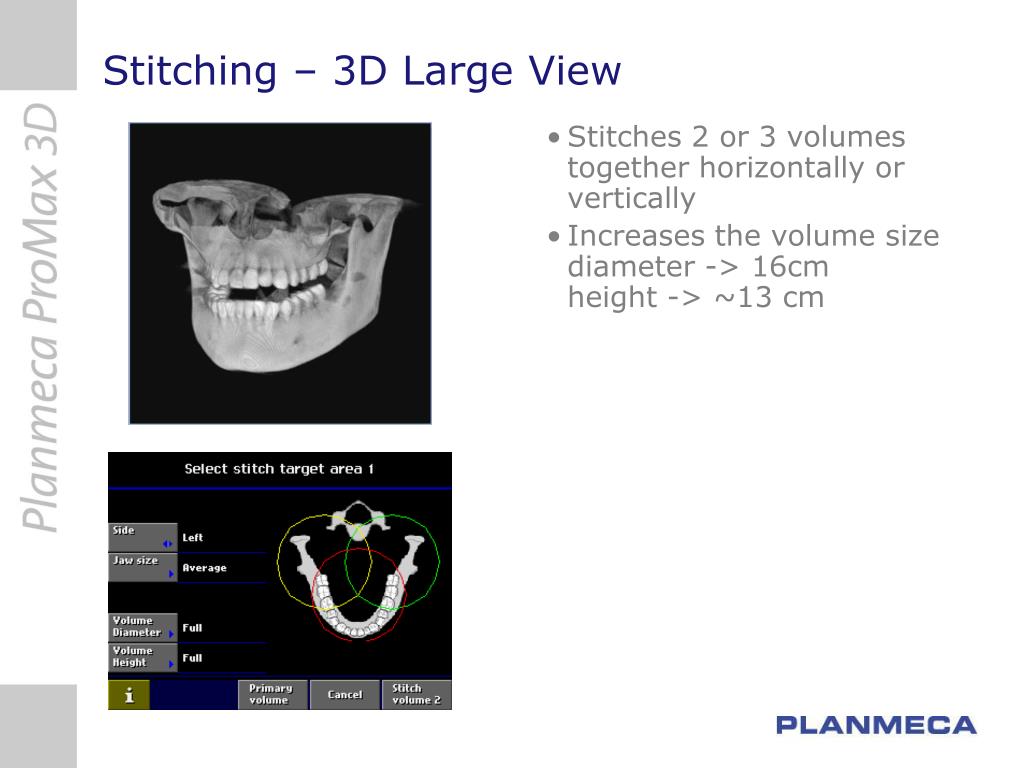

  7. Stitching – 3D Large View • Stitches 2 or 3 volumes together horizontally or vertically • Increases the volume sizediameter -> 16cmheight -> ~13 cm

  8. Stitching examples Stitching – 3D Large View

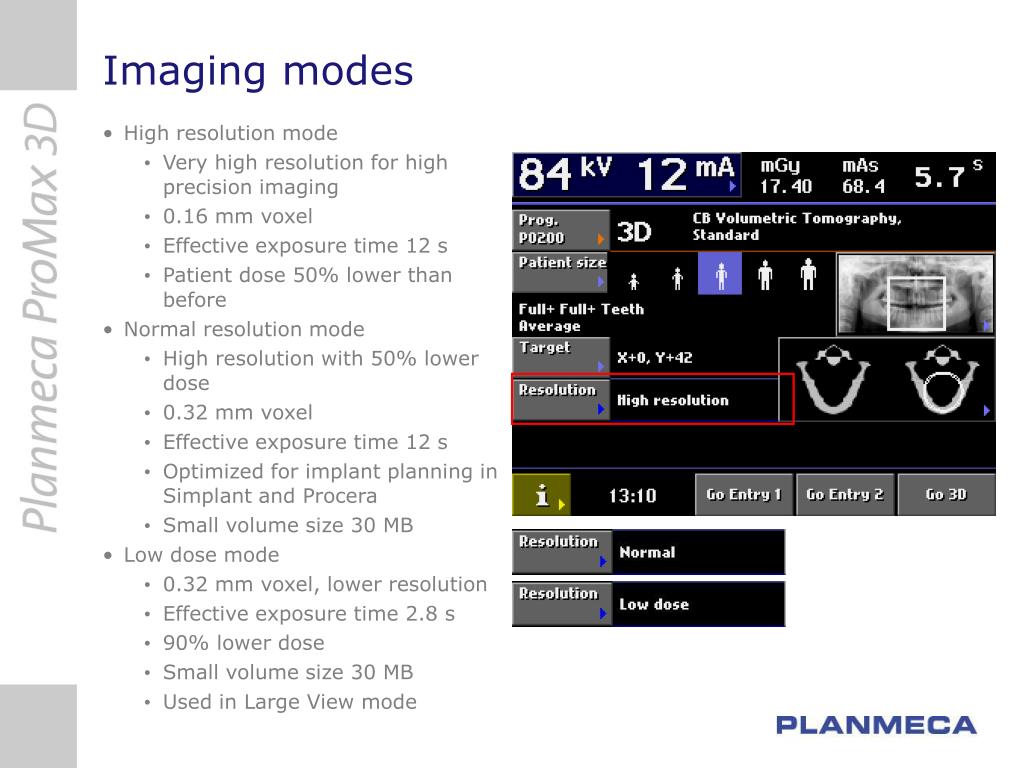

  9. Imaging modes • High resolution mode • Very high resolution for high precision imaging • 0.16 mm voxel • Effective exposure time 12 s • Patient dose 50% lower than before • Normal resolution mode • High resolution with 50% lower dose • 0.32 mm voxel • Effective exposure time 12 s • Optimized for implant planning in Simplant and Procera • Small volume size 30 MB • Low dose mode • 0.32 mm voxel, lower resolution • Effective exposure time 2.8 s • 90% lower dose • Small volume size 30 MB • Used in Large View mode

  10. Planmeca Romexis Planmeca Romexis software modules for 3D imaging • 3D Explorer • 3D panoramic view • Implant planning • 3D Viewer • DICOM Comprehensive viewing tools

  11. Planmeca Romexis 3D Explorer • 3D volume viewing: • Image acquisition • sagittal, coronal and axial views • real time adjustable viewing angles • contrast & brightness • measurements • export as DICOM • Quick Launch • Fast and convenienat multi-planar projection viewing

  12. Planmeca Romexis 3D Panoramic module • Focal through path defined by user on axial view • Layer thickness selectable and constant • No redundant shadows or artefacts • Constant magnification • Free selectable panoramic layer

  13. Planmeca Romexis 3D panoramic No redundant shadows conventional pan 3D panoramic view

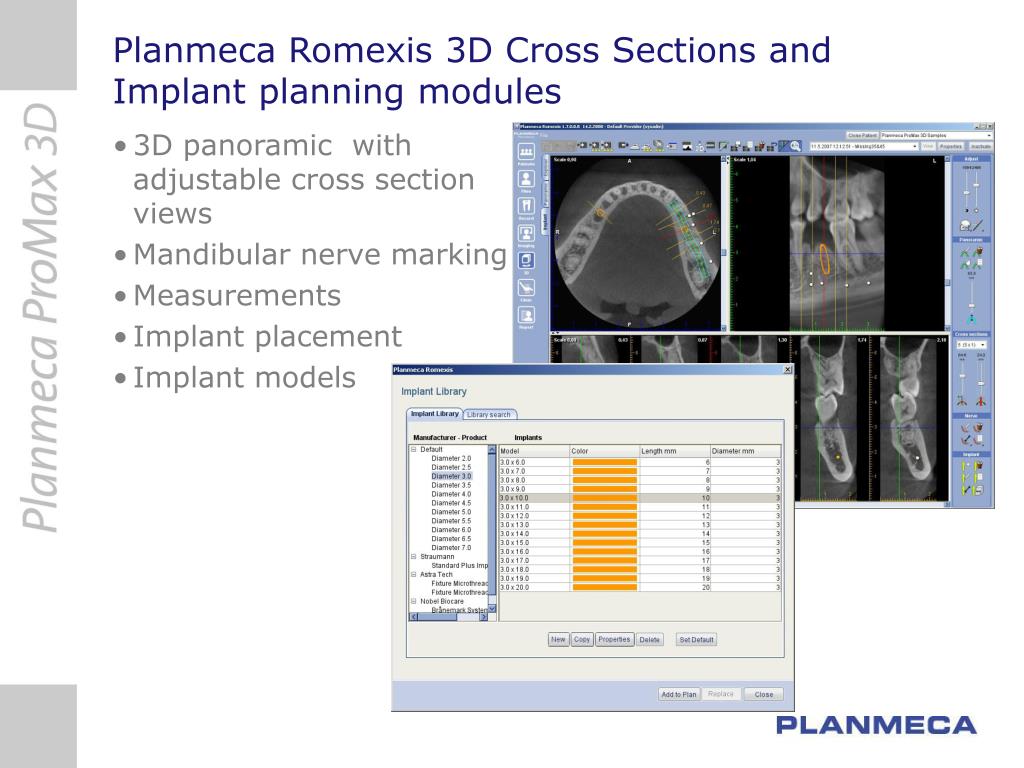

  14. Planmeca Romexis 3D Cross Sections and Implant planning modules • 3D panoramic with adjustable cross section views • Mandibular nerve marking • Measurements • Implant placement • Implant models

  15. Planmeca Romexis 3D Viewer • Included in CD with 3D studies • Basic viewing and measurements • Includes Explorer, Panoramic and Cross Section views depending on master licence • Requires Java • Enables 3D study viewing remotely

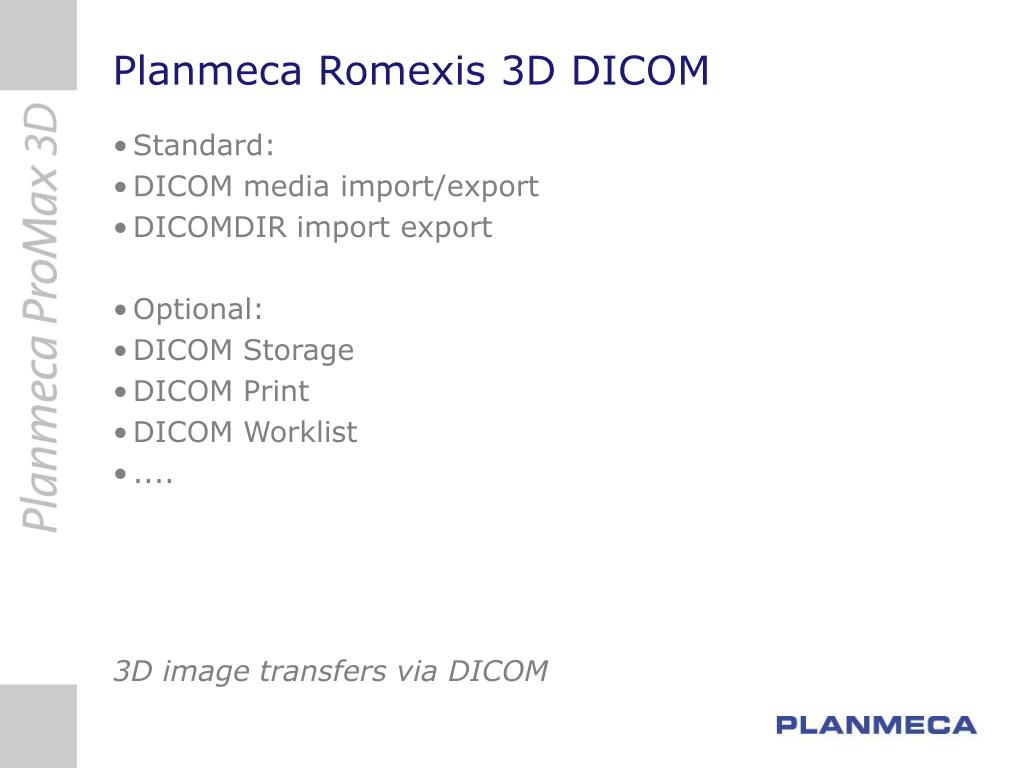

  16. Planmeca Romexis 3D DICOM • Standard: • DICOM media import/export • DICOMDIR import export • Optional: • DICOM Storage • DICOM Print • DICOM Worklist • .... 3D image transfers via DICOM

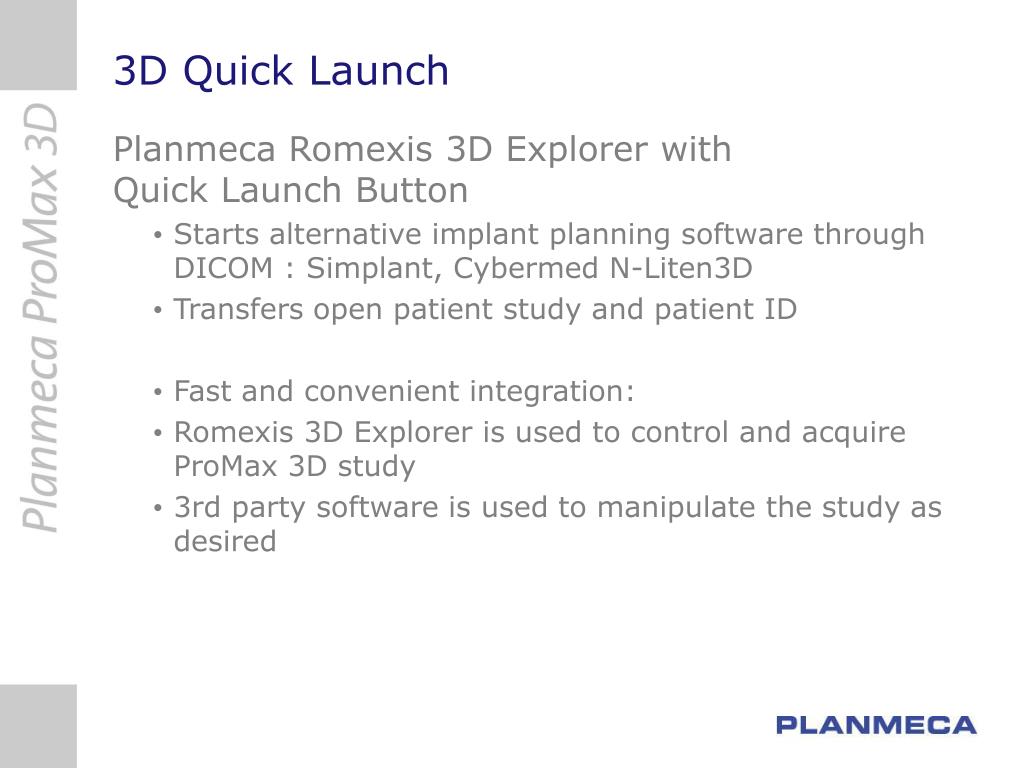

  17. 3D Quick Launch Planmeca Romexis 3D Explorer with Quick Launch Button • Starts alternative implant planning software through DICOM : Simplant, Cybermed N-Liten3D • Transfers open patient study and patient ID • Fast and convenient integration: • Romexis 3D Explorer is used to control and acquire ProMax 3D study • 3rd party software is used to manipulate the study as desired

  18. Planmeca ProMax 3D and Cephalometry • Digital Ceph ideal for cephalometry • all information for orthodontic planning • lower radiation dose • faster procedure • 3D to be used for detailed e.g. occlusion views, inpacted teeth etc.if needed • Same Promax unit for both studies • Optimum for orthodontic imaging

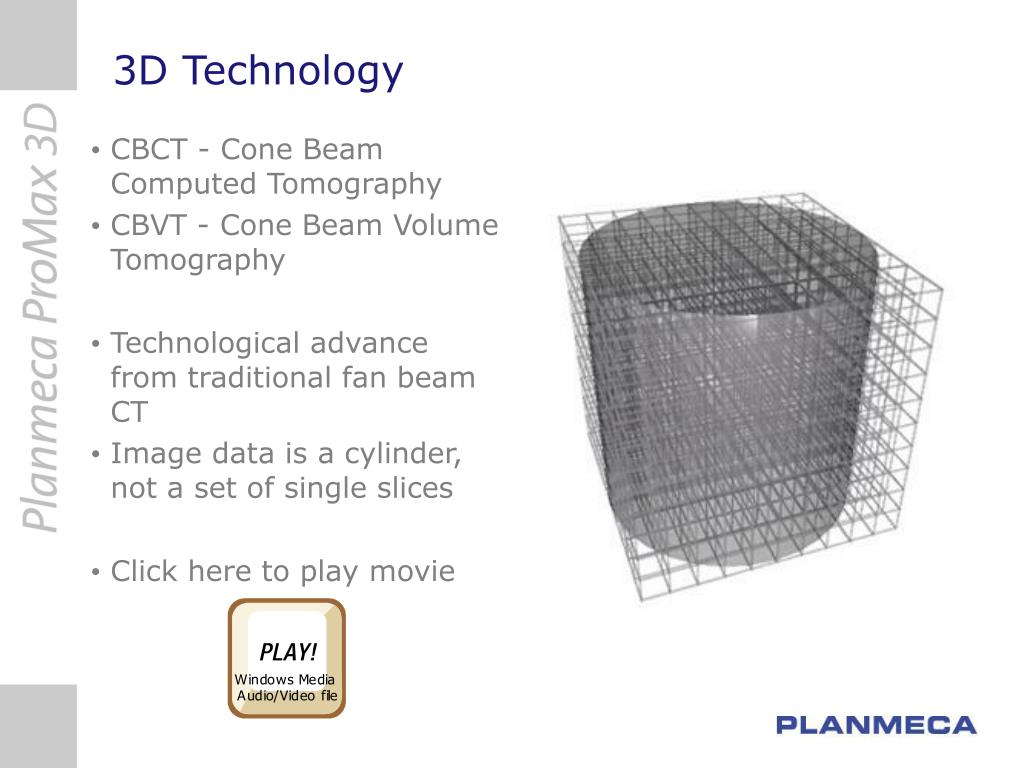

  19. 3D Technology • CBCT - Cone Beam Computed Tomography • CBVT - Cone Beam Volume Tomography • Technological advance from traditional fan beam CT • Image data is a cylinder, not a set of single slices • Click here to play movie

  20. 3D Technology • One 18 second scan • 194 degrees scan angle • 300 snap shot images taken with synchronized X-ray pulses • Stroboscopic effect for maximum clarity of the images • Accumulated X-ray exposure time is 2.8 – 8.3seconds – reduced dose

  21. 3D Technology Pulsed X-ray produces sharp images with less dose.

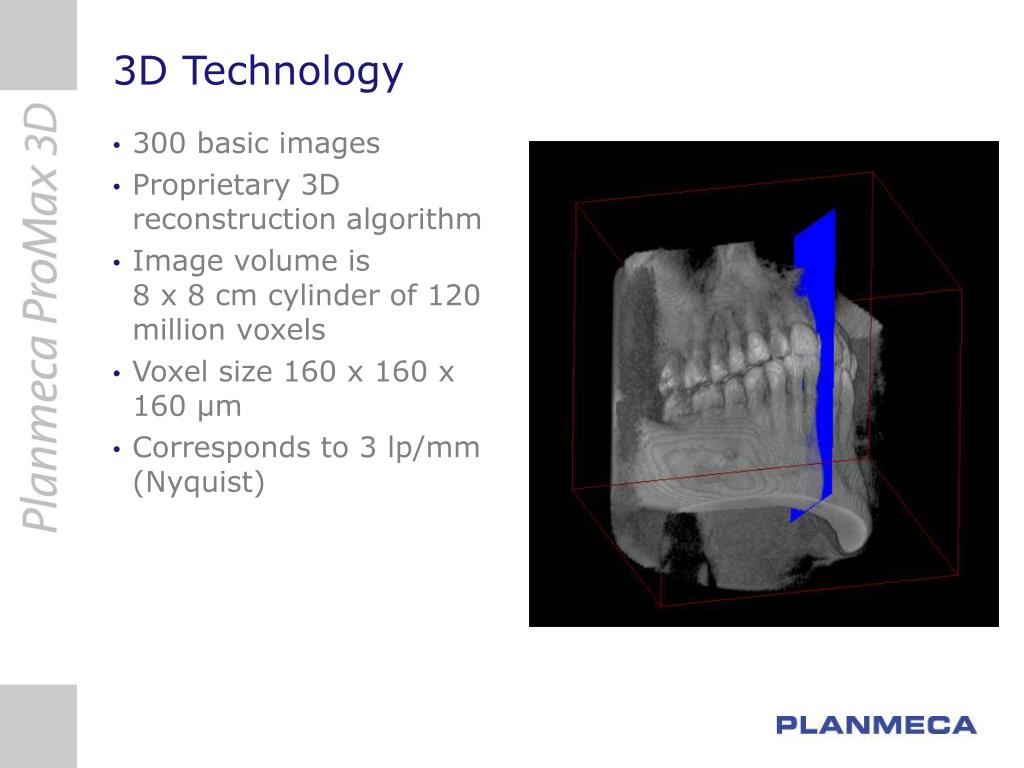

  22. 3D Technology • 300 basic images • Proprietary 3D reconstruction algorithm • Image volume is 8 x 8 cm cylinder of 120 million voxels • Voxel size 160 x 160 x 160 µm • Corresponds to 3 lp/mm (Nyquist)‏

  23. Conventional imaging chainwith Image Intensifier 3D Technology – Flat Panel Planmeca ProMax 3D flat panel imaging chain X-ray Tube – Patient – Flat Panel- Digital Image X-ray Tube – Patient – Image Intensifier – TV Camera – Digital Image Modern Flat Panel Technology for maximum performance

  24. 3D Technology – Flat Panel • Image intensifier has both distortion and brightness non-uniformity which is absent from the flat panel detector • Image intensifier needs periodical maintenance. It has limited life span 3-6 years. • It is sensitive to magnetic or electrical fields. • It is over 60 years old technology.

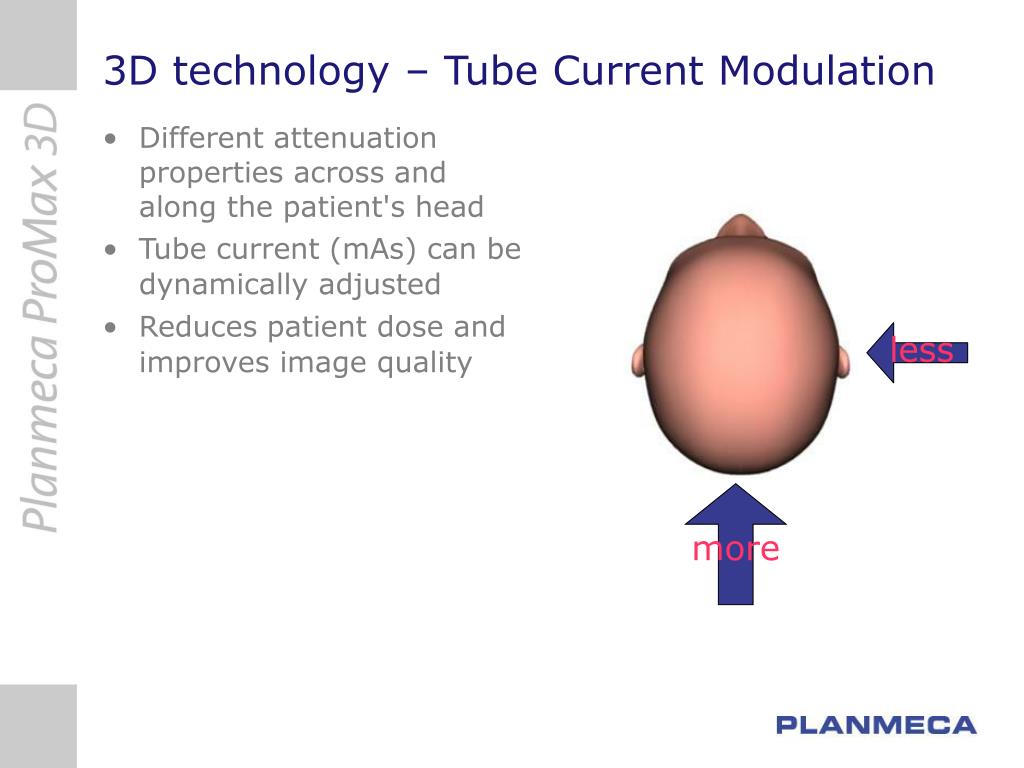

  25. 3D technology – Tube Current Modulation • Different attenuation properties across and along the patient's head • Tube current (mAs) can be dynamically adjusted • Reduces patient dose and improves image quality less more

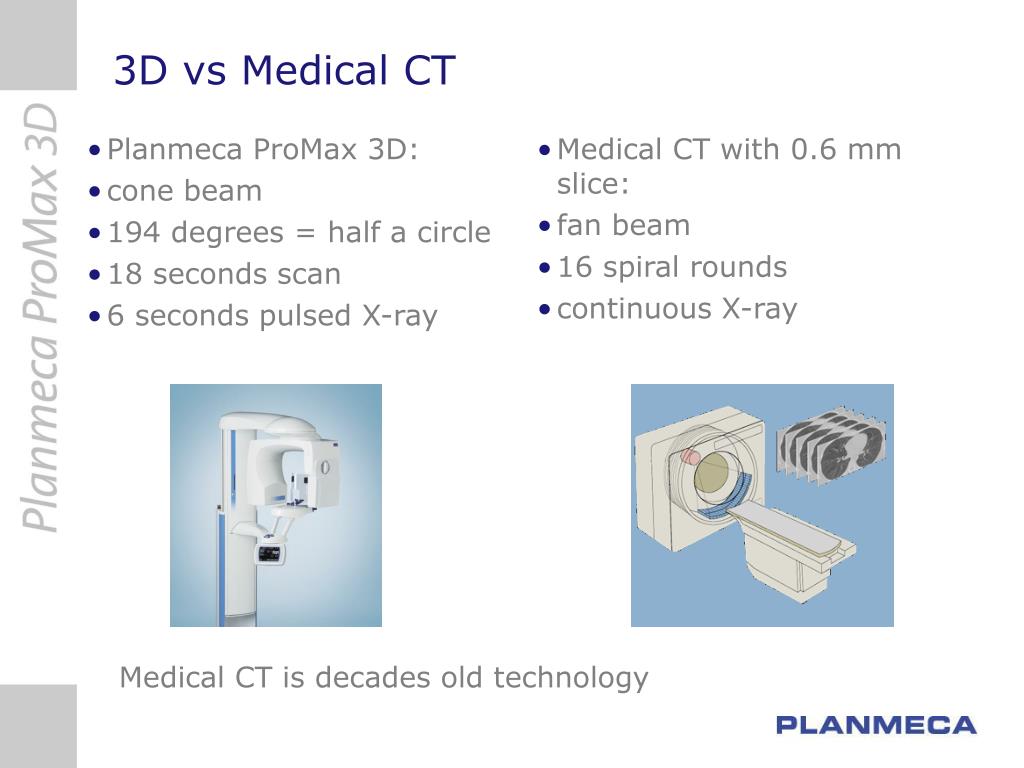

  26. Medical CT with 0.6 mm slice: fan beam 16 spiral rounds continuous X-ray 3D vs Medical CT • Planmeca ProMax 3D: • cone beam • 194 degrees = half a circle • 18 seconds scan • 6 seconds pulsed X-ray Medical CT is decades old technology

  27. Planmeca Promax 3D and N-Liten Planmeca ProMax 3D works with N-Liten

  28. Planmeca ProMax 3D and Simplant Planmeca ProMax 3D works with Simplant

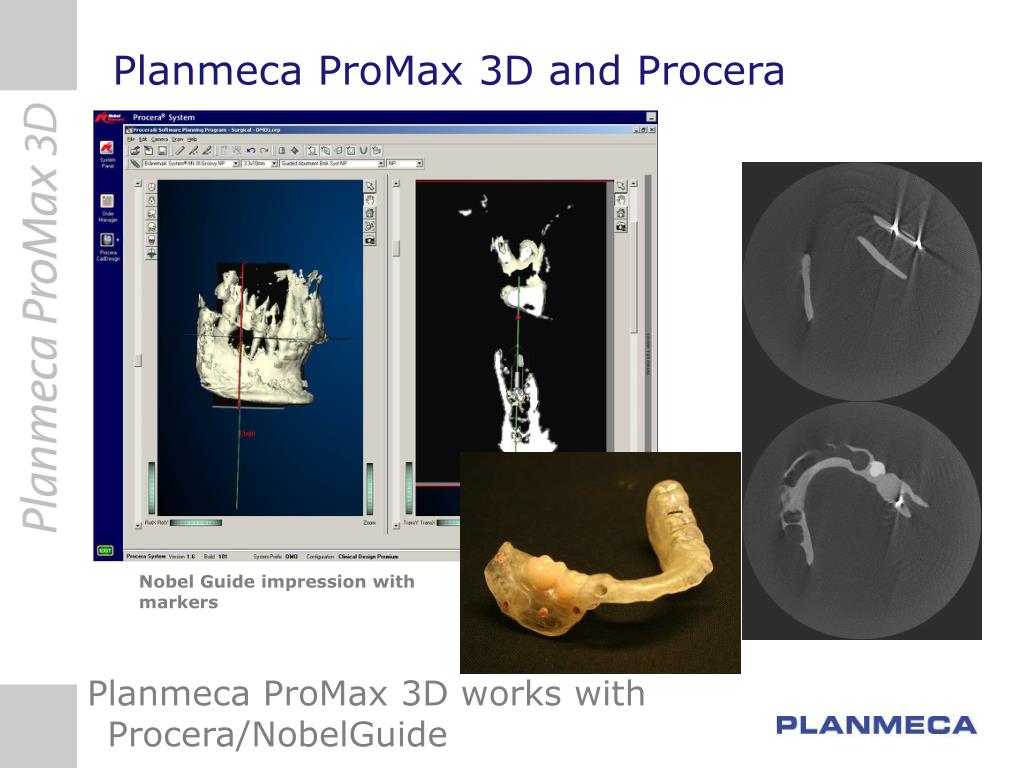

  29. Planmeca ProMax 3D and Procera Planmeca ProMax 3D works with Procera/NobelGuide Nobel Guide impression with markers

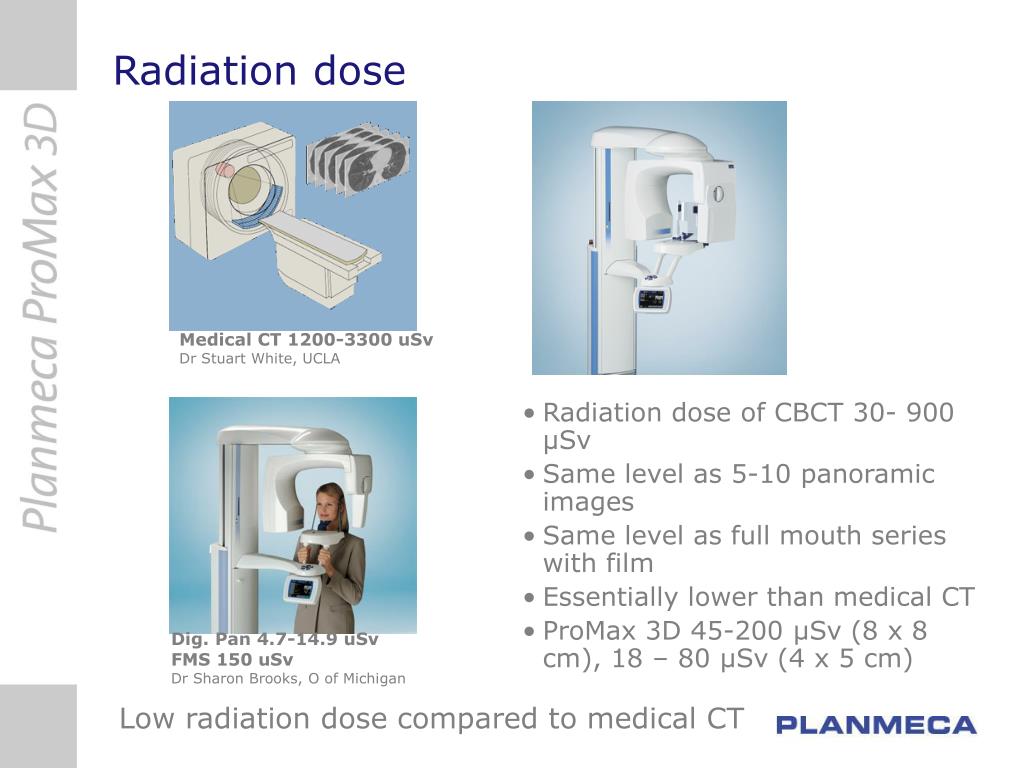

  30. Radiation dose • Radiation dose of CBCT 30- 900 µSv • Same level as 5-10 panoramic images • Same level as full mouth series with film • Essentially lower than medical CT • ProMax 3D 45-200 µSv (8 x 8 cm), 18 – 80 µSv (4 x 5 cm) Medical CT 1200-3300 uSv Dr Stuart White, UCLA Dig. Pan 4.7-14.9 uSv FMS 150 uSv Dr Sharon Brooks, O of Michigan Low radiation dose compared to medical CT

  31. Planmeca ProMax 3D vs Sirona Galileos

  32. Planmeca ProMax 3D vs Sirona Galileos

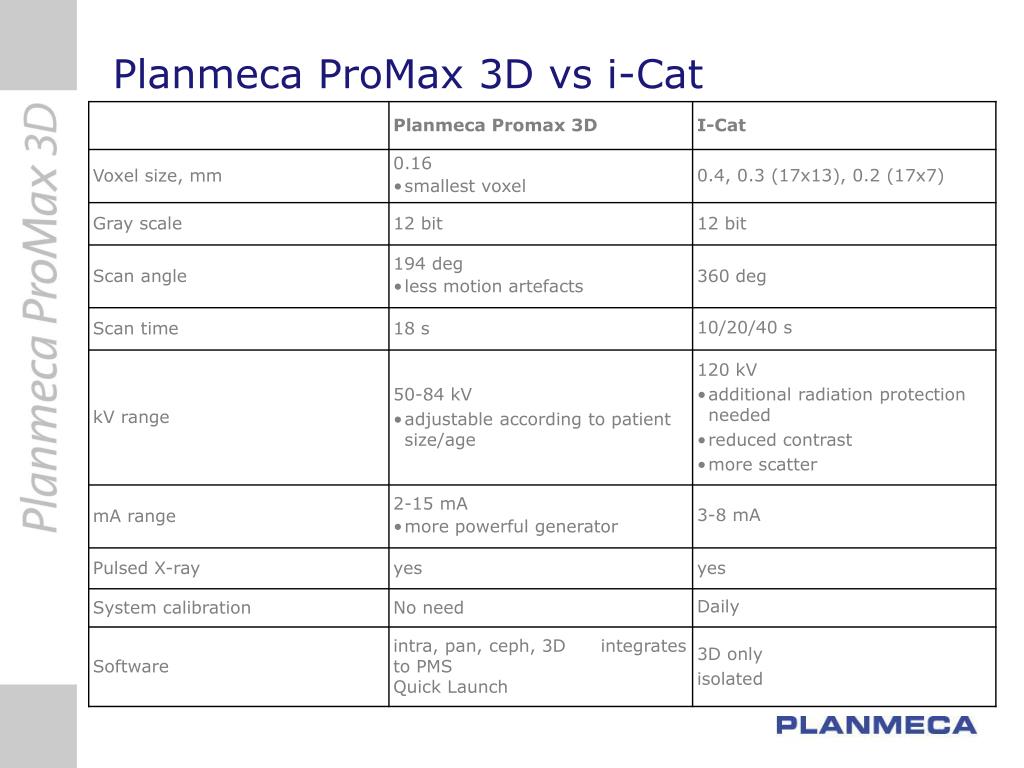

  33. Planmeca ProMax 3D vs i-Cat

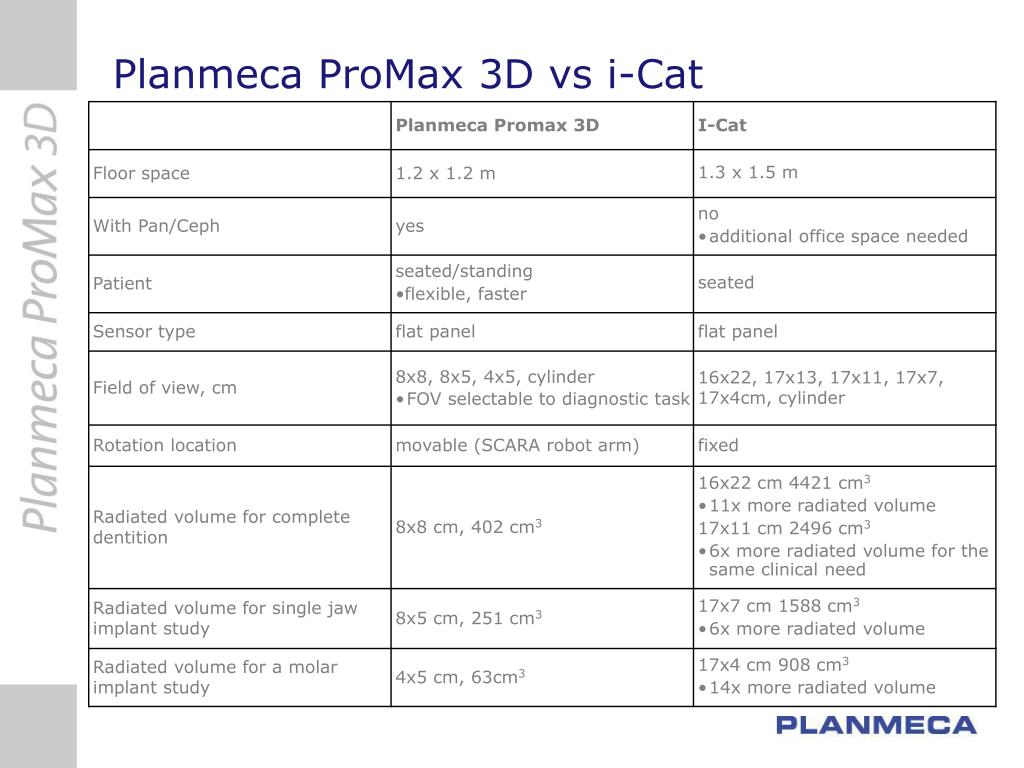

  34. Planmeca ProMax 3D vs i-Cat

  35. More information: Osku Sundqvist Product Manager, Software tel: +358 20 7795 793 osku.sundqvist@planmeca.com The End More information: Erkki Hiltunen Product Manager, X-rays tel: +358 20 7795 456 erkki.hiltunen@planmeca.com
