Presentation Transcript


Plate tectonics

Plate Tectonics

Spectra of Science

Amole

2013


Continental drift

Continental Drift

  • Proposed by Alfred Wegener in 1915.

  • Supercontinent Pangaea started to break up

    about 200 million

    years ago.

  • Continents "drifted" to their present positions.


Evidence

Evidence

  • Some continents coastlines seem to “fit” together

  • Fossils match across oceans

  • Rock types and structures match across oceans

  • Ancient glacial features


Evidence1

Evidence


Evidence2

Evidence


Plate tectonics1

Plate Tectonics

  • In 1965, J. Wilson

  • Earth’s lithosphere is broken into sections called plates.

  • Plates are always shifting and moving.

  • Movement is driven by convection currents in the mantle.


Earth s layers

Earth’s Layers


The plates

The Plates


Types of plate boundaries

Types of Plate Boundaries

  • Convergent

    • Push together

  • Divergent

    • Pull apart

  • Transform

    • Slide past one

      another


Convergent boundaries

Convergent Boundaries

  • Oceanic- Continental

    • Oceanic is denser and sinks below continental

    • Creates a subduction zone

    • Creates trenches, volcanic mountain arc


Mt st helens washington

Mt. St. Helens, Washington


Convergent boundaries1

Convergent Boundaries

  • Oceanic- Oceanic

    • Oceanic being of equal densities both “sink”

    • Creates a subduction zone

    • Creates trenches, island arc


Japanese islands island arc

Japanese Islands- Island Arc


Convergent boundaries2

Convergent Boundaries

  • Continental- Continental

    • Continentals being of equal densities both “push up”

    • Creates folded mountains


Himalayas asia

Himalayas, Asia


Divergent boundaries

Divergent Boundaries

  • Plates move away from each other

  • Create gaps that new magma rises through making new crust

  • Cause of sea-floor spreading

  • Creates rift valleys and the Mid-Oceanic Ridge

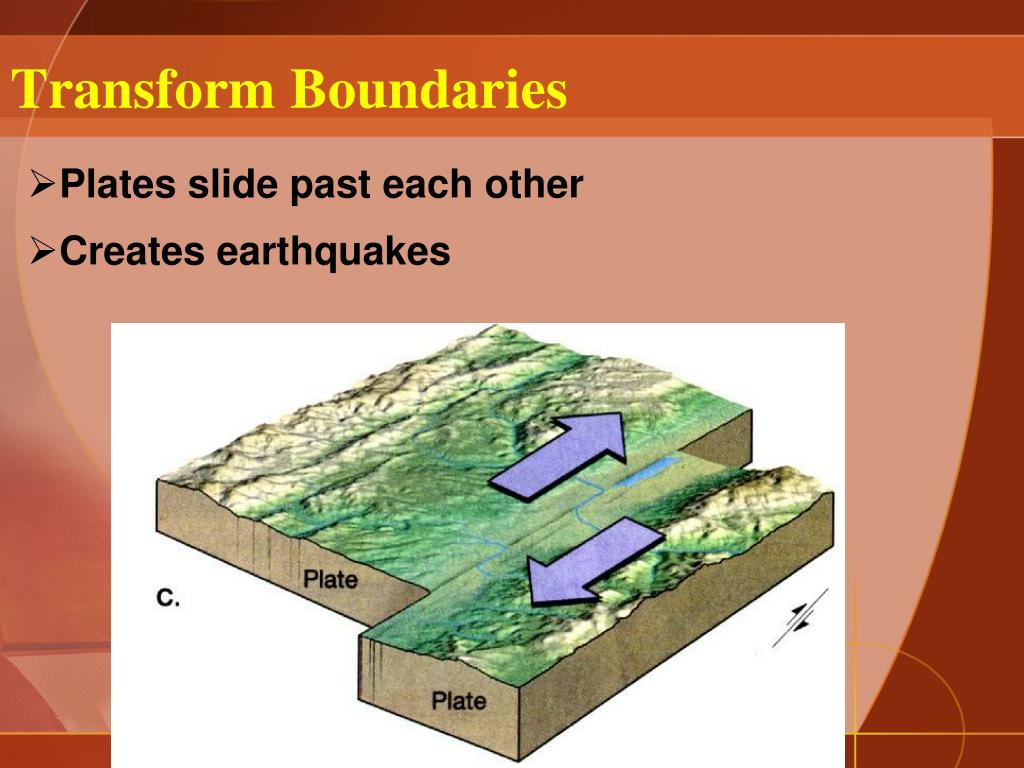

Transform boundaries

Transform Boundaries

  • Plates slide past each other

  • Creates earthquakes


San andres fault ca

San Andres Fault, CA

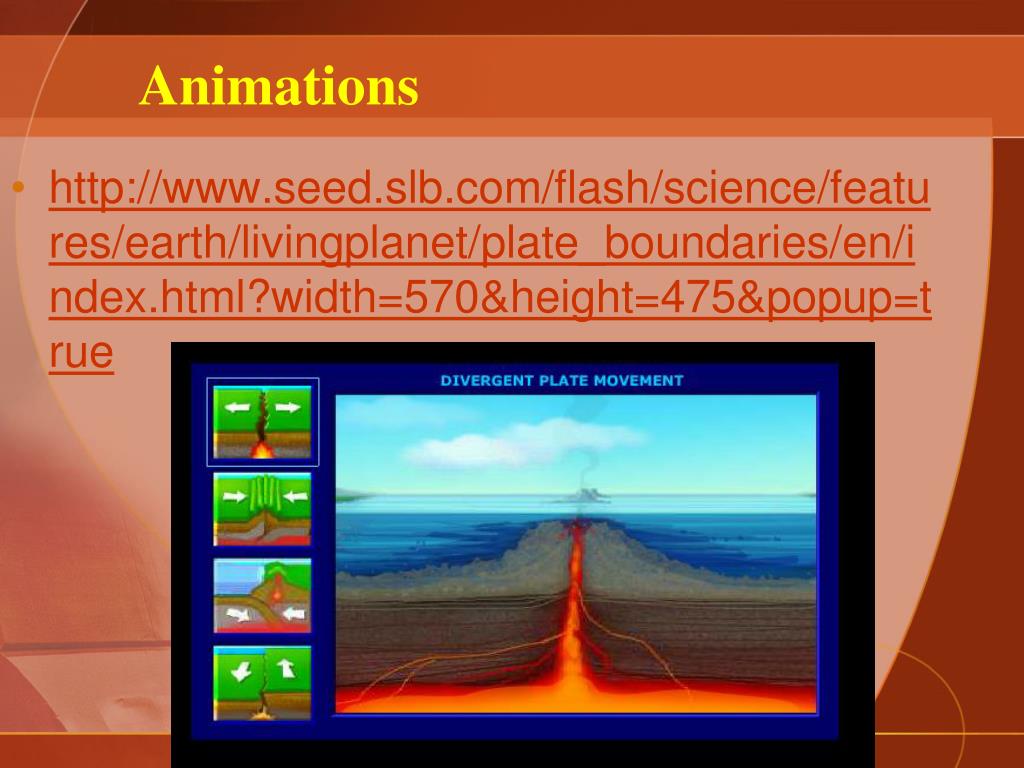

Animations

Animations

  • http://www.seed.slb.com/flash/science/features/earth/livingplanet/plate_boundaries/en/index.html?width=570&height=475&popup=true
