  1. Subroutines and Control Abstraction Aaron Bloomfield CS 415 Fall 2005

  2. Definitions • Function: subroutine that returns a value • Procedure: subroutine that does not return a value

  3. Review of Stack Layout • Storage consumed by parameters and local variables can be allocated on a stack • Activation record contains arguments and/or return values, bookkeeping info, local variables, and/or temporaries • On return, stack frame is popped from stack

  4. Review of Stack Layout (cont’d) • Stack pointer: contains address of the first unused location at the top of the stack • Frame pointer: contains address within frame • Displacement addressing • Objects with unknown size placed in variable-size area at top of frame

  5. Review of Stack Layout (cont’d) Static chain - Each stack frame contains a reference to the lexically surrounding subroutine

  6. Review of Stack Layout (cont’d) Display - used to reduce memory accesses to an object k levels out

  7. Calling Sequences • Calling sequence: code executed by the caller immediately before and after a subroutine call • Prologue • Epilogue

  8. Calling Sequences (cont’d) • Tasks on the way in (prologue) • Passing parameters, saving return address, changing program counter, changing stack pointer, saving registers, changing frame pointer • Tasks on the way out (epilogue) • Passing return parameters, executing finalization code, deallocating stack frame, restoring saved registers and pc

  9. Case Study 1: C on the MIPS (example of RISC)

  10. Case Study 2: Pascal on the 680x0 (example of CISC)

  11. In-Line Expansion • Allows certain subroutines to be expanded in-line at the point of call • Avoids several overheads (space allocation, branch delays, maintaining static chain or display, saving and restoring registers)

  12. Implementations of In-line Expansion • C++ uses keyword inline: inline int max( … ) { … } • Ada: pragma inline (function_name); • Pragmas make suggestions to the compiler. Compiler can ignore suggestion.

  13. in-line expansion Semantically preferable Disadvantages? macros Semantic problems Syntactic problems In-line Expansion versus Macros • increasing code size • Generally not an option for recursive subroutines

  14. Parameter Passing Parameter Modes Special-Purpose Parameters Function Returns

  15. Parameter Passing Basics • Parameters - arguments that control certain aspects of a subroutine’s behavior or specify the data on which they are to operate • Global Variables are other alternative • Parameters increase the level of abstraction

  16. More Basics • Formal Parameters - parameter name in the subroutine declaration • Actual Parameters – values passed to a subroutine in a particular call Pascal – to prevent from assigning an out of range value

  17. Parameter Modes • Some languages define a single set of rules which apply to all parameters • C, Fortran, Lisp • Some languages provide two or more sets of rules, which apply to different parameter modes • Algol, Pascal, Ada, Modula • We will discuss Ada Parameter Modes in more detail

  18. Call by Value • For P(X), two options are possible: Call by Value and Call by Reference • Call by Value - provides P with a copy of X’s value • Actual parameter is assigned to the corresponding formal parameter when subroutine is called, and the two are independent from then on • Like creating a local or temporary variable

  19. Call by Reference • Call by Reference – provide P with the address of X • The formal parameter refers to the same object as the actual parameter, so that changes made by one can be seen by the other

  20. Language Specific Variations • Pascal: Call by Value is the default, the keyword VAR denotes Call by Reference • Fortran: all parameters passed by Reference • Smalltalk, Lisp: Actual Parameter is already a reference to the object • C: always passed by Value

  21. Value vs. Reference • +safe • - Copying may be time consuming • Pass by Value • Called routine cannot modify the Actual Parameter • Pass by Reference • Called routine can modify Actual Parameter • +Only have to pass an address, efficient • -Requires an extra level of indirection

  22. Call by name • Pretty much only in Algol • Re-evaluates the actual parameter on every use • For actual parameters that are simple variables, it’s the same as call by reference • For actual parameters that are expressions, the expression is re-evaluated on each access • No other language ever used call by name…

  23. Safety and Efficiency • Without language support, working with large objects that are not to be modified can be tricky • Call by Value: • Call by Reference: • Examples of Language Support • Modula: READONLY parameter mode • C/C++: const keyword time consuming potential bugs in code const keyword

  24. Ada Parameter Modes Three parameter passing modes • In • Passes information from the caller to the callee, can read but not write • Call by Value • Out • Passes information from the callee to the caller, can write but not read • Call by Result (formal parameter is copied to actual parameter when subroutine exits) • Inout - passes information both directions

  25. C++ Parameter Modes C passes pointers as addresses, must be explicitly dereferenced when used C++ has notion of references: • Parameter passing: void swap (int &a, int &b) • Variable References: int &j = i; • Function Returns: for objects that don’t support copy operations, i.e. file buffers

  26. Review: references to functions • When are scope rules applied? • When the function is called? • Shallow binding • When the reference is created? • Deep binding

  27. int max_score; float scale_score (int raw_score) { return (float) raw_score / (float) max_score; } float highest_score (int[] scores, function_ptr scaling_function) { float max_score = 0; foreach score in scores { float percent = scaling_function (score); if ( percent > max_score ) max_score = percent; } return max_score; } main() { max_score = 50; int[] scores = ... print highest_score (scores, scale_score); } function is called reference is created

  28. Deep Binding • Generally the default in lexically (statically) scoped languages • Dynamically scoped languages tend to use shallow binding

  29. Closures • Implementation of Deep Binding for a Subroutine • Create an explicit representation of the current referencing environment and its bindings • Bundle this representation with a reference to the subroutine • This bundle is called a Closure

  30. Closures: a reference to a subroutine and its referencing environment Closures can be passed as a parameter Pascal, C, C++, Modula, Scheme void apply_to_A (int (*f) (int), int A[], int A_size) { int i; for (i = 0; i < A_size; i++) A[i] = f (A[i]); } Closures as Parameters

  31. Special-Purpose Parameters • Named Parameters - parameters that are not positional, also called keyword parameters. An Ada example: funcB (argA => 21, argB => 35); funcB (argB => 35, argA => 21); • Some languages allow subroutines with a variable number of arguments: C, Lisp, etc. int printf (char *format, …) {… • Standard Macros in function body to access extra variables

  32. Function Returns • Some languages restrict Return types • Algol 60, Fortran: scalars only • Pascal, Modula: scalars or pointers only • Most imperative languages are flexible • Return statements specify a value and also cause the immediate termination of the subroutine

  33. Generic Subroutines and Modules Generic Subroutines Generic Modules

  34. Generic Subroutines • Large Programs often use the same data structures for different object types • Characteristics of the queue data structure independent of the characteristics of the items in the queue • Polymorphic subroutines • Argument types are incompletely specified • Can cause slower compilation • Sacrifice compile-time type checking

  35. Generic Modules • Similar subroutines are created from a single piece of source code • Ada, Clu, Modula-3 • C++ templates • Similar to macros, but are actually integrated into the rest of the language • Follow scope, naming, and type rules

  36. Exception Handling

  37. Exceptions • Exceptions are an unexpected or unusual condition that arises during program execution. • Most common are various sorts of run-time errors (ex. encountering the end of a file before reading a requested value)

  38. Handling Exceptions • Exception handling was pioneered by PL/I • Utilized an executable statement of the following form: ON condition statement • Handler is nested inside and is not executed on the ON statement but is remembered for future reference. • Executes exception when exception condition is encountered

  39. Handling Exceptions • Recent languages provide exception-handling facilities where handlers are lexically bound to blocks of code. • General rule is if an exception isn’t handled in the current subroutine, then the subroutine returns and exception is raised at the point of call. • Keeps propagating up dynamic chain until exception is handled. • If not handled a predefined outermost handler is invoked which will terminate the program.

  40. 3 Main Handler Uses • 1) Perform some operation that allows the program to recover from the exception and continue executing. • 2)If recovery isn’t possible, handler can print helpful message before termination • 3)When exception occurs in block of code but can’t be handled locally, it is important to declare local handler to clean up resources and then re-raise the exception to propagate back up.

  41. Defining Exceptions • Ada declare empty_queue : exception; • Modula-3 EXCEPTION empty_queue; • C++ and Java class empty_queue{};

  42. Exception Propagation try{ ... //protected block of code ... }catch(end_of_file) { ... }catch(io_error e) { //handler for any io_error other than end_of_file ... }catch(…) { //handler for any exception not previously named //… is a valid token in the case in C++, doesn’t //mean code has been left out. }

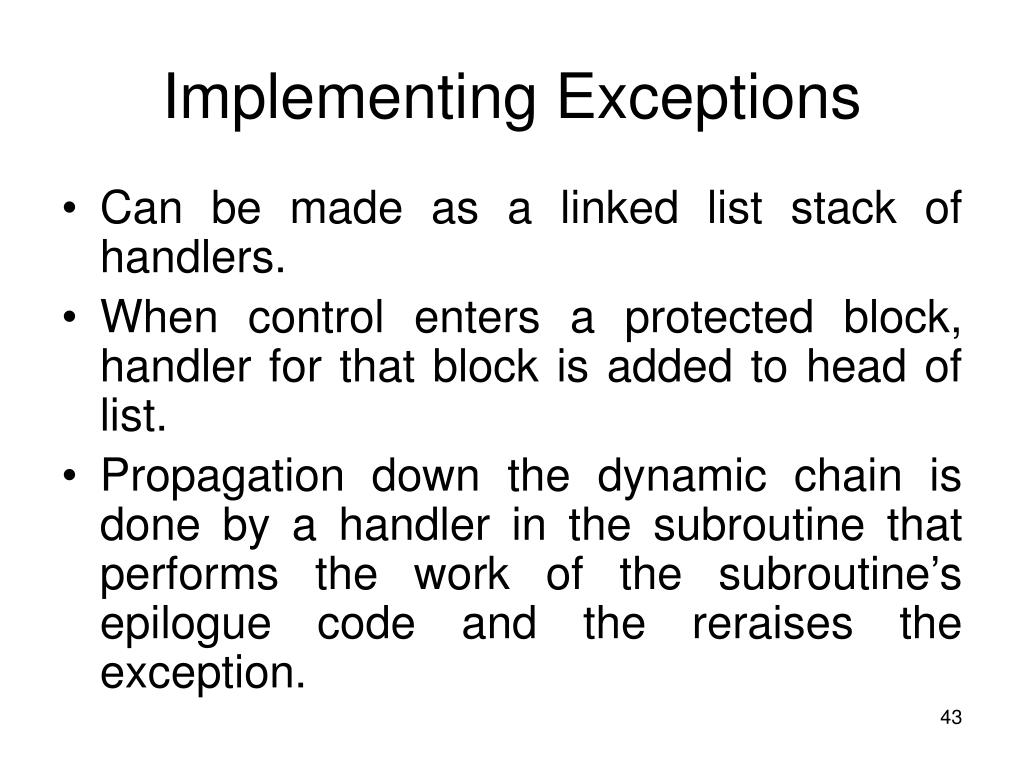

  43. Implementing Exceptions • Can be made as a linked list stack of handlers. • When control enters a protected block, handler for that block is added to head of list. • Propagation down the dynamic chain is done by a handler in the subroutine that performs the work of the subroutine’s epilogue code and the reraises the exception.

  44. Problems With This Implementation • Incurs run-time overhead in the common case • Every protected block and every subroutine begins with code to push a handler onto the handler list, and ends with code to pop it off the list.

  45. A Better Implementation • Since blocks of code in machines can translate to continuous blocks of machine instructions, a table can be generated at compile time that captures the correspondence between blocks and handlers

  46. Implementing Exceptions • Table is sorted by the first field of the table • When an exception occurs the system performs a search of the table to find the handler for the current block. • If handler re-raises the exception, the process repeats.

  47. Coroutines

  48. Coroutines • Coroutines are execution contexts that exist concurrently, but execute one at a time, and transfer control to each other explicitly, by name. • They can implement iterators and threads.

  49. Stack Allocation • Since they are concurrent they can’t share a single stack because subroutine calls and returns aren’t LIFO • Instead the run-time system uses a cactus stack to allow sharing.

  50. Transfer • To go from one coroutine to another the run-time system must change the PC, stack, and register contents. This is handled in the transfer operation.
