Presentation Transcript
Morning report l.jpg

Morning Report

Steven Hart, MD

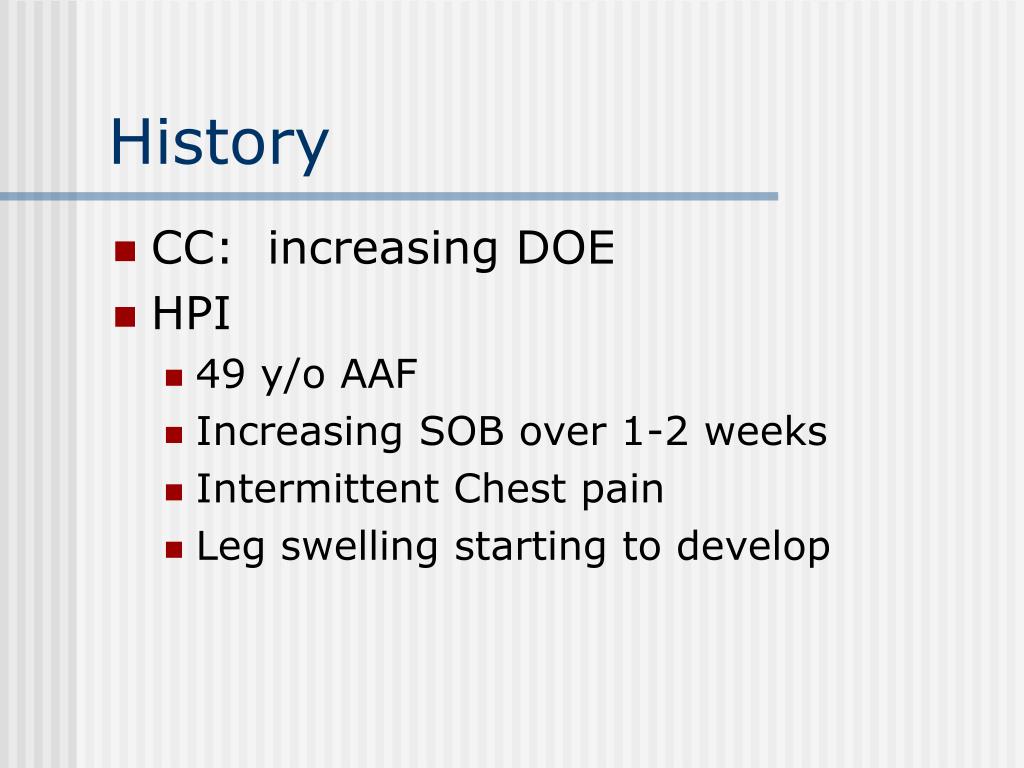

History l.jpg

  • CC: increasing DOE

  • HPI

    • 49 y/o AAF

    • Increasing SOB over 1-2 weeks

    • Intermittent Chest pain

    • Leg swelling starting to develop

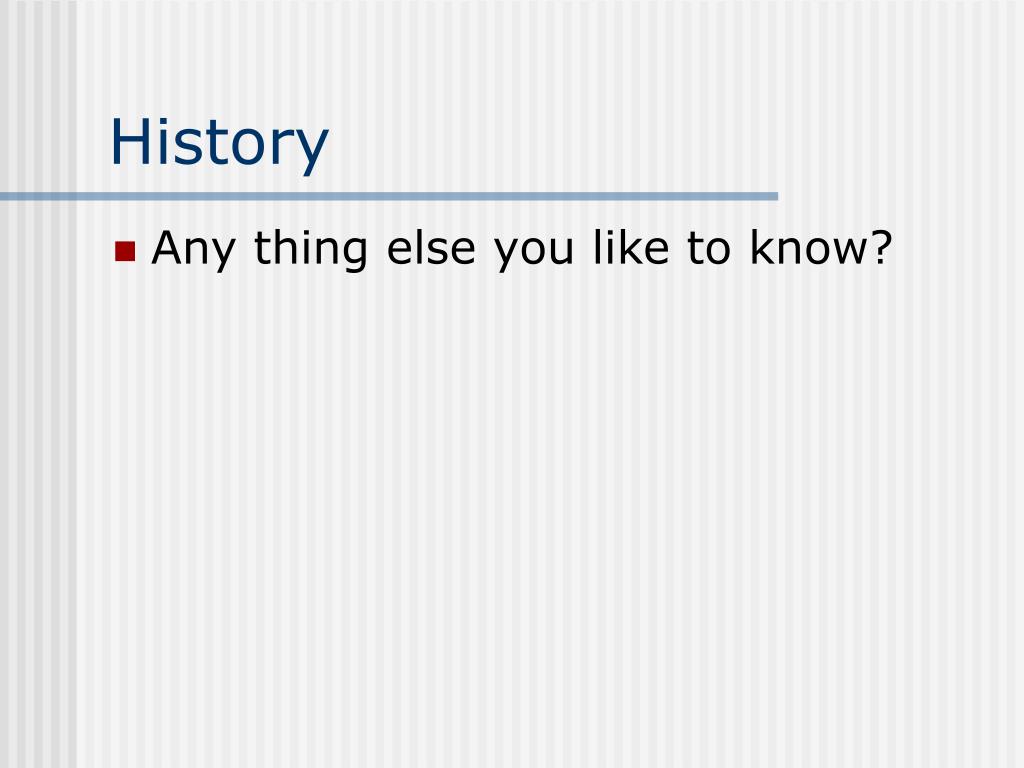

History3 l.jpg

  • Any thing else you like to know?

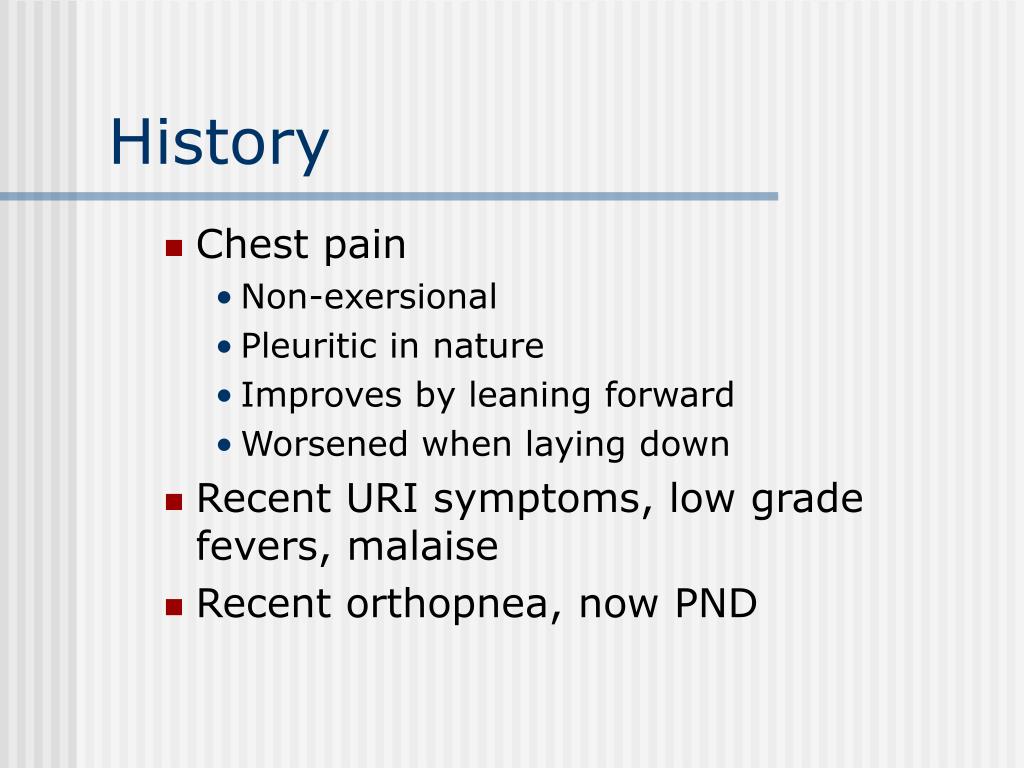

History4 l.jpg

  • Chest pain

    • Non-exersional

    • Pleuritic in nature

    • Improves by leaning forward

    • Worsened when laying down

  • Recent URI symptoms, low grade fevers, malaise

  • Recent orthopnea, now PND

History5 l.jpg

  • PMHx

    • HTN

    • Hyperlipidemia

  • Social

    • Non-smoker

    • Works as secretary

    • Social ETOH (1-2 times per month)

Physical exam l.jpg
Physical Exam

What things might you look for?

Physical exam7 l.jpg
Physical Exam

  • VS T 99.1 P 108 R 22 BP 102/64

  • + JVD

  • CV

    • Tachy, distant heart sounds

    • Rub heard intermittently by examiners

    • Lower extremity edema

  • Resp

    • sits up to breath

    • Crackles at bases

    • Mildly increased effort

    • able to speak full sentences sitting up

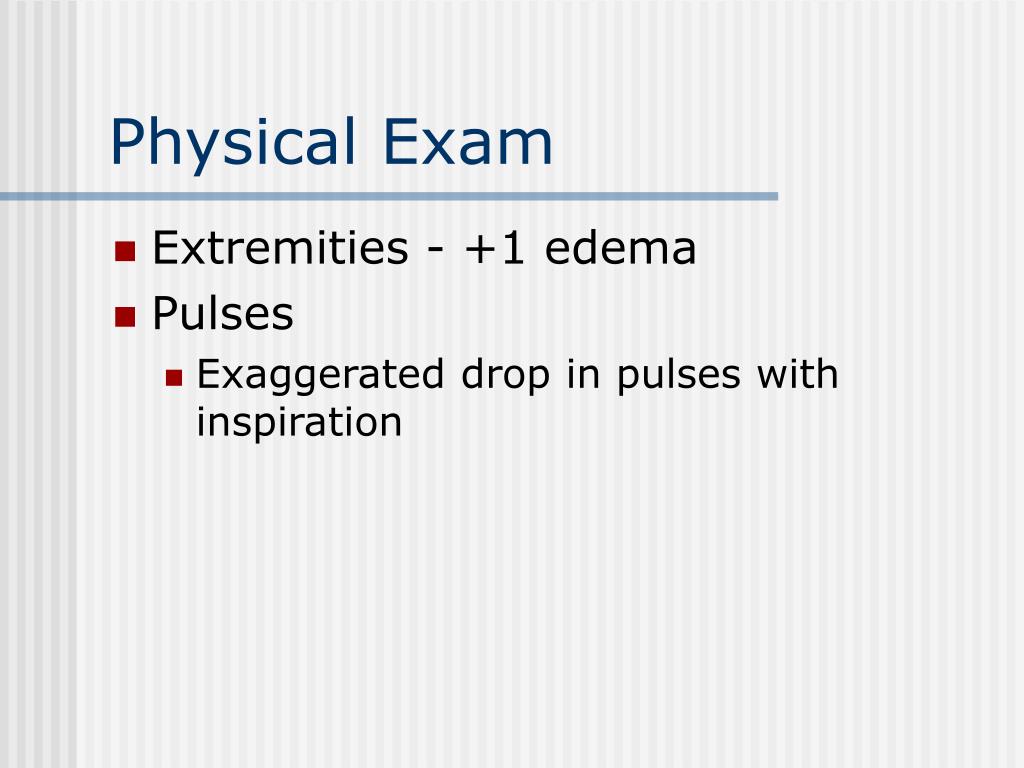

Physical exam8 l.jpg
Physical Exam

  • Extremities - +1 edema

  • Pulses

    • Exaggerated drop in pulses with inspiration

Slide9 l.jpg

  • Cardiac enzymes slightly elevated

  • WBC 12

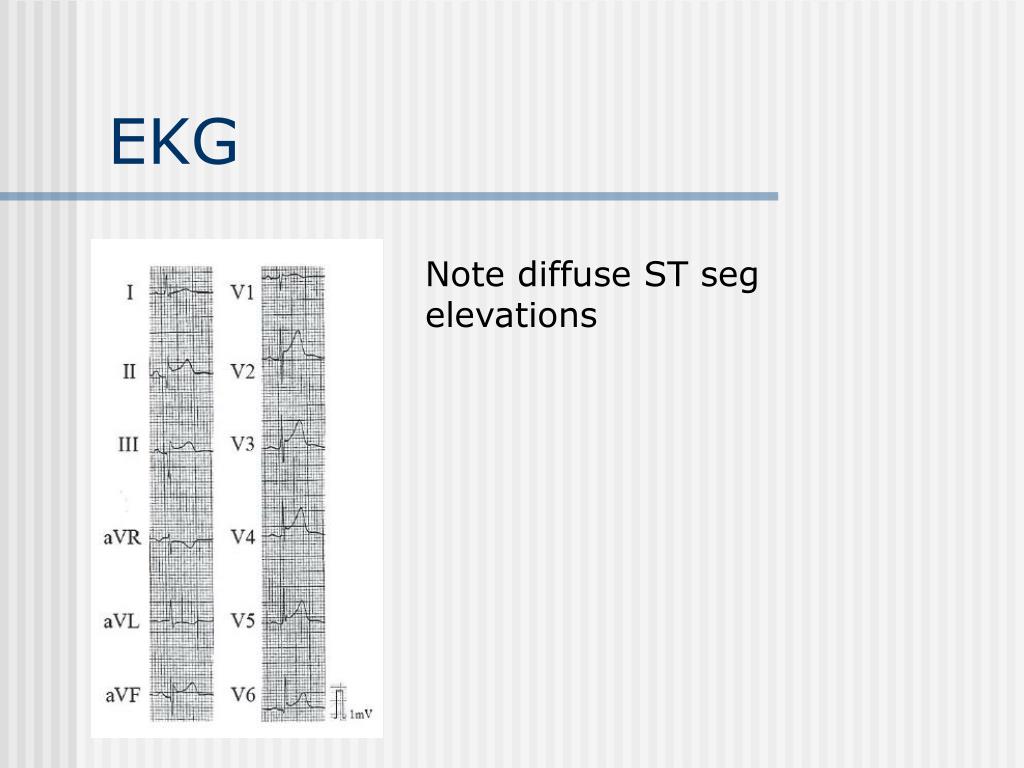

Slide10 l.jpg

Note diffuse ST seg elevations

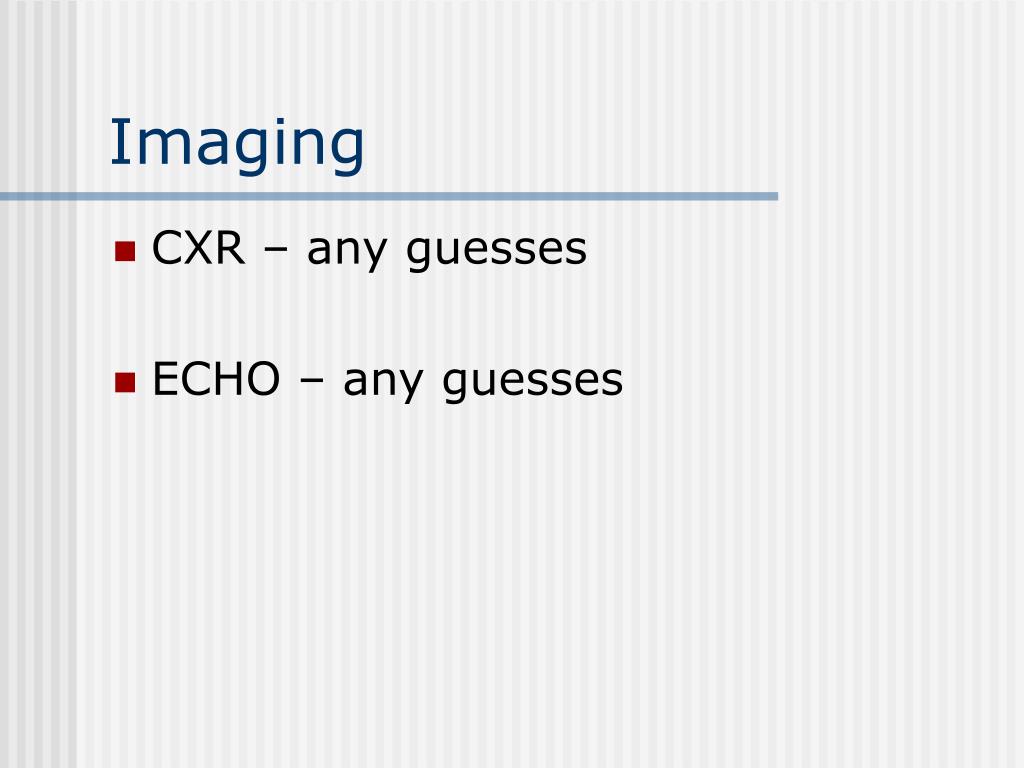

Imaging l.jpg

  • CXR – any guesses

  • ECHO – any guesses

Introduction l.jpg

  • The Pericardium is a fibroelastic tissue made up of parietal and visceral layers

  • These two layers are separated by the pericardial cavity

  • Pericardial cavity usually contains 15-50 ml of plasma ultrafiltrate in healthy individuals

Diseases of the pericardium l.jpg
Diseases of the Pericardium

  • Acute Fibrinous Pericarditis

  • Pericardial Effusion without major hemodynamic compromise

  • Cardiac Tamponade

  • Constrictive Pericarditis

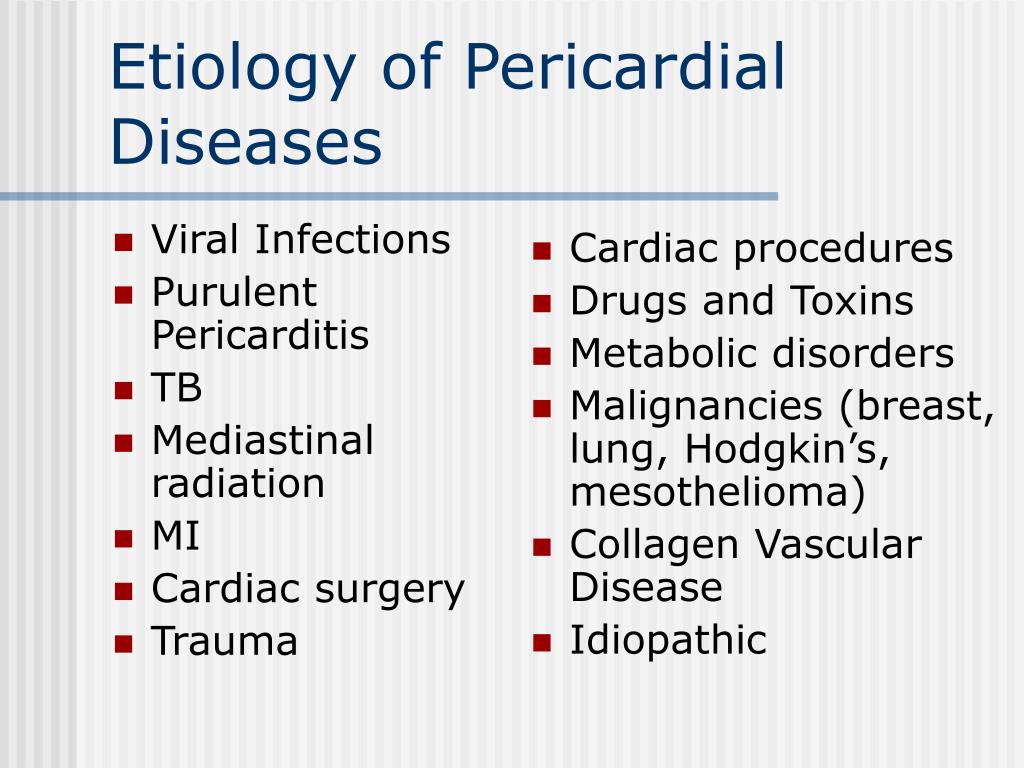

Etiology of pericardial diseases l.jpg

Viral Infections

Purulent Pericarditis


Mediastinal radiation


Cardiac surgery


Cardiac procedures

Drugs and Toxins

Metabolic disorders

Malignancies (breast, lung, Hodgkin’s, mesothelioma)

Collagen Vascular Disease


Etiology of Pericardial Diseases

Etiologies of pericarditis l.jpg
Etiologies of Pericarditis

  • Neoplastic-35%

  • Immune Mediated- 23%

  • Viral- 21%

  • Bacterial-6%

  • Uremia-6%

  • TB- 4%

  • Idiopathic-4%

Viral pericarditis l.jpg
Viral Pericarditis

  • Common bugs

    • Cocksackie A and B

    • Echovirus

    • Adenovirus

  • Viral infections uncommon in patients presenting with pericardial effusion w/o pericarditis

    • Exception is HIV- frequently presents with significant effusion w/o pericaritis

    • seen in 7 % of patients hospitalized with effusions

Bacterial pericarditis l.jpg
Bacterial Pericarditis

  • Staphylococcus

  • Pneumococccus

  • Streptococcus(rheumatic pancarditis)

  • Haemophilus

  • M.Tuberculosis

  • Can occur as systemic spread or direct extension

  • Frequently purulent

Fungal pericarditis l.jpg
Fungal Pericarditis

  • Histoplasma- most common fungus in immunocompetent patients

    • Especially the Ohio River Valley

  • In immunocompromised

    • Aspergillus

    • Candida

    • Coccidoides

  • Frequently purulent

Other infectious etiologies l.jpg
Other Infectious Etiologies

  • Rickettsia Ricketsii

  • Chlamydia Psittaci

  • Borrelia burgdorferi

  • Treponema Pallidum

  • Actinomycosis

  • Mycoplasma Pneumonia

  • Nocardia

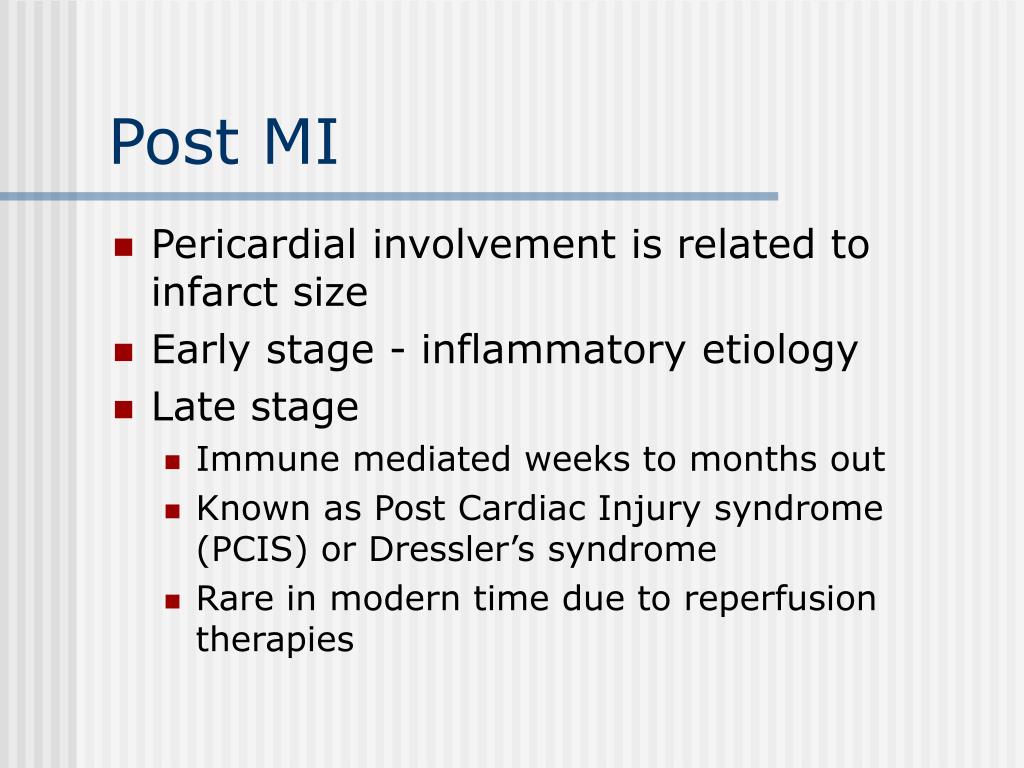

Post mi l.jpg
Post MI

  • Pericardial involvement is related to infarct size

  • Early stage - inflammatory etiology

  • Late stage

    • Immune mediated weeks to months out

    • Known as Post Cardiac Injury syndrome (PCIS) or Dressler’s syndrome

    • Rare in modern time due to reperfusion therapies

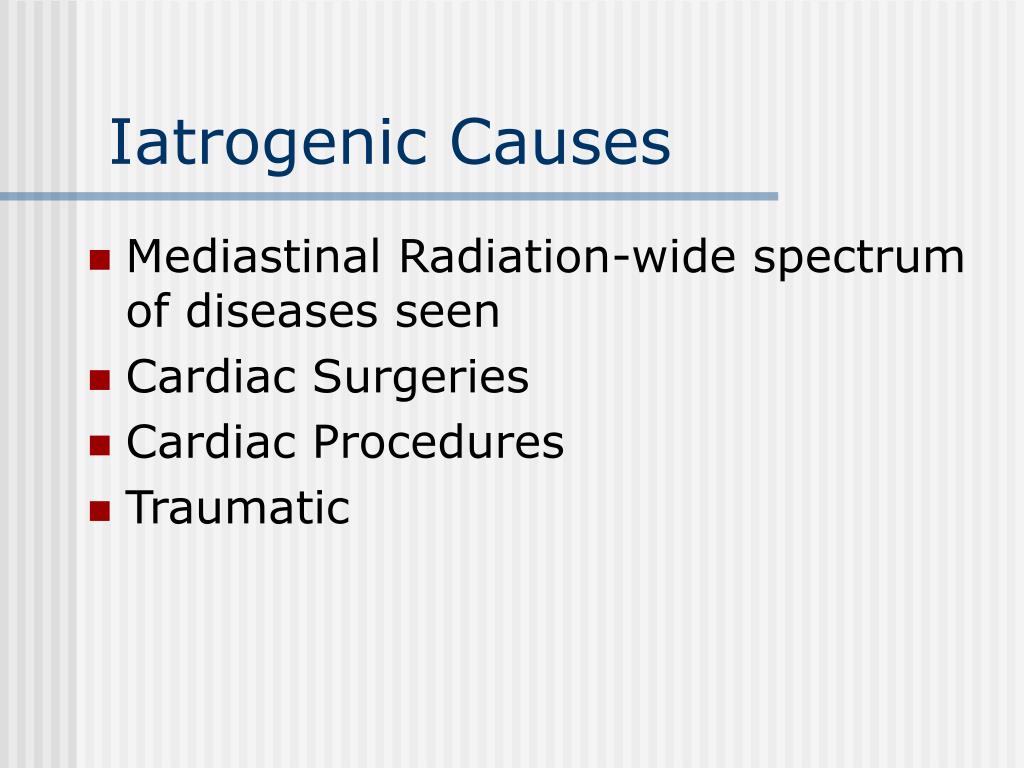

Iatrogenic causes l.jpg
Iatrogenic Causes

  • Mediastinal Radiation-wide spectrum of diseases seen

  • Cardiac Surgeries

  • Cardiac Procedures

  • Traumatic

Drugs l.jpg

  • Lupus like sydromes

    • Procainamide

    • Hydralazine

    • Phenytoin

    • INH

  • Penicillins- Hypersensitivity Pericarditis

  • Chemotherapy

    • Doxorubicin/Daunorubicin-cardiomyopathy/pericardiopathy

  • Bleomycin - sclerosing agent

Toxins l.jpg

  • Asbestosis can cause pericardial lesions

  • Scorpion fish venom can cause pericarditis

Metabolic disorders l.jpg
Metabolic Disorders

  • Uremia-

    • Most common metabolic cause

    • 6-10 % of ESRD patients not on HD can have Pericarditis

    • Dialysis related Pericardial Effusions (seen in 13% of patients)

  • Severe Hypothyroidism

    • effusion – usually not significant

    • rarely pericarditis

  • Ovarian hyperstimulation syndrome

    • complication of gonadotropin therapy

    • Due to fluid shifts

Malignancy l.jpg

  • Responsible for 6% of acute pericardial disease (pericarditis and tamponade)

  • Accounts for 15-20% of moderate to large pleural effusions

  • Mets - Lung, Breast, Hodgkin’s metastases

  • Primary - Mesotheliomas and lipomas

Collagen vascular disease l.jpg
Collagen Vascular Disease

  • SLE- pericardial involvement in up to 50%

  • Rheumatoid Arthritis

  • Progressive Systemic Sclerosis

  • MCTD

  • Polyarteritis

  • Giant Cell Arteritis

  • Inflammatory Bowel Disease

Idiopathic l.jpg

  • In two large series (331 patients), only 16 % had an identifiable cause of pericarditis

  • Many of these cases are presumed viral

  • Only 7-29% of patients have idiopathic pericardial effusions

Clinical presentation of pericarditis l.jpg
Clinical Presentation of Pericarditis

  • Chest Pain-

    • sudden onset over anterior chest

    • sharp and pleuritic

    • Improves by leaning forward

    • Radiates commonly to trapezius ridges

  • Pericardial Friction Rub

  • EKG – findings depend on stage

  • 2 of 3 needed to make diagnosis +/- effusion.

Diagnostic evaluation l.jpg



Search for systemic disorders



ANA in selected cases



BCx if febrile

No routine viral cultures

Workup for malignancy if history suggests

Echo-Class Ia

Diagnostic evaluation

Pericardial friction rub l.jpg
Pericardial Friction Rub

  • Auscutation

    • Scratchy or squeaky sound

    • LLSB most frequent site

    • Use the diaphragm

    • suspended respiration

  • Highly specific for pericarditis (up to 85%).

  • Intermittent – sensitivity can vary.

  • Heard better in patients without effusion.

  • Result of friction from 2 inflamed layers of pericardium

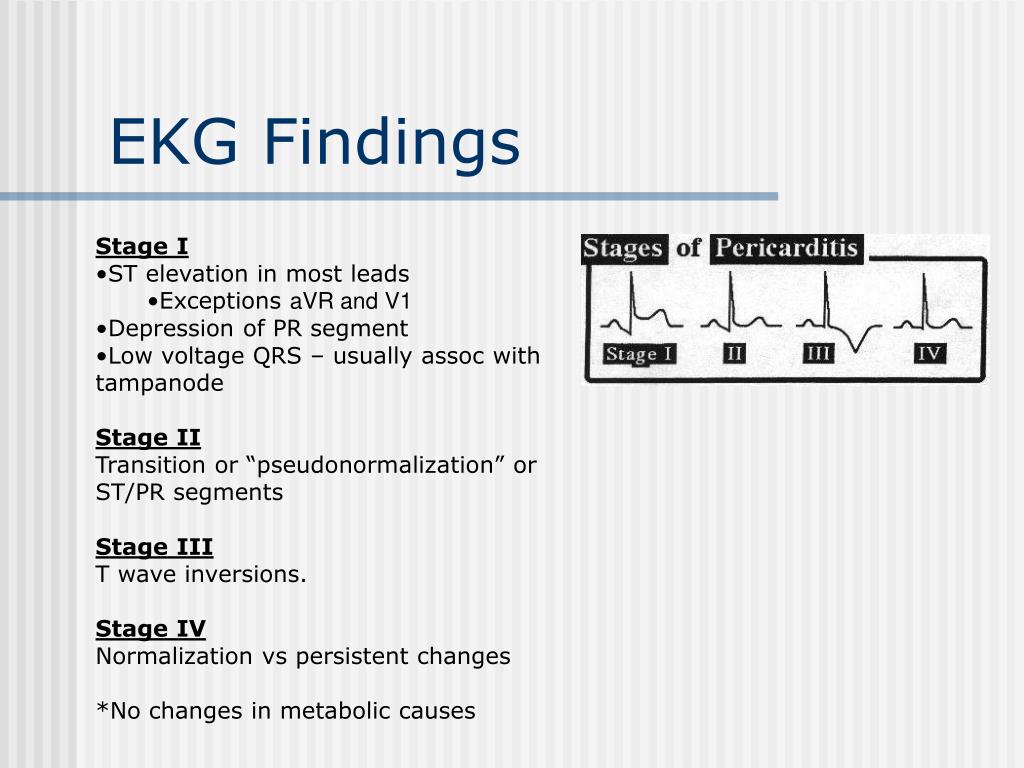

Ekg findings l.jpg
EKG Findings

  • Stage I

  • ST elevation in most leads

    • Exceptions aVR and V1

  • Depression of PR segment

  • Low voltage QRS – usually assoc with tampanode

  • Stage IITransition or “pseudonormalization” or ST/PR segments

  • Stage IIIT wave inversions.

  • Stage IVNormalization vs persistent changes

  • *No changes in metabolic causes

Ekg changes l.jpg
EKG changes

  • Arrhythmias uncommon. Arryhthmias suggest myocarditis or ischemia

Distinction from ami l.jpg
Distinction From AMI

  • ST elevations in pericarditis: begin at J point, rarely exceed 5 mm, and retain normal concavity

  • ST elevations / T wave changes are more generalized

  • No reciprocal lead changes

  • ST elevations and T wave inversions do not occur at the same time

  • PR segment changes common

  • Q waves/QT prolongation/Hyperacute T waves uncommon

Cardiac biomarkers l.jpg
Cardiac Biomarkers

  • Can see elevation in CK, MB, TpnI

  • 22% of patients with Acute Pericarditis in one trial were above TpnI threshold

  • Transient rise, resolving within the first 7 days

  • Patients with higher TpnI did not have higher complication rates

Cxr findings l.jpg
CXR findings

  • Typically normal in Pericarditis

  • 200ml of pericardial fluid needed to accumulate before enlargement of the cardiac silhouette seen

  • Calcification in chronic cases may be appreciated

Slide37 l.jpg

Lateral CXR of a person with chronic calcified pericarditis due to TB

A – cystic mass

B – calcified pericardium

Echocardiogram l.jpg
Echocardiogram due to TB

  • Should be done in all cases

  • Often normal in patients with pericarditis, unless associated with pericardial effusion

  • Presence of pericardial effusion helps support diagnosis, while absence does not exclude it

Diagnostic evaluation40 l.jpg
Diagnostic evaluation due to TB

  • Not needed in all patients- Viral and idiopathic usually follow a benign course after treatment

  • It is important to rule out significant effusion and tamponade in patients

Management l.jpg
Management due to TB

  • Simple, uncomplicated pericarditis

    • No high risk features

    • Medical management

    • outpatient if proper F/U is established

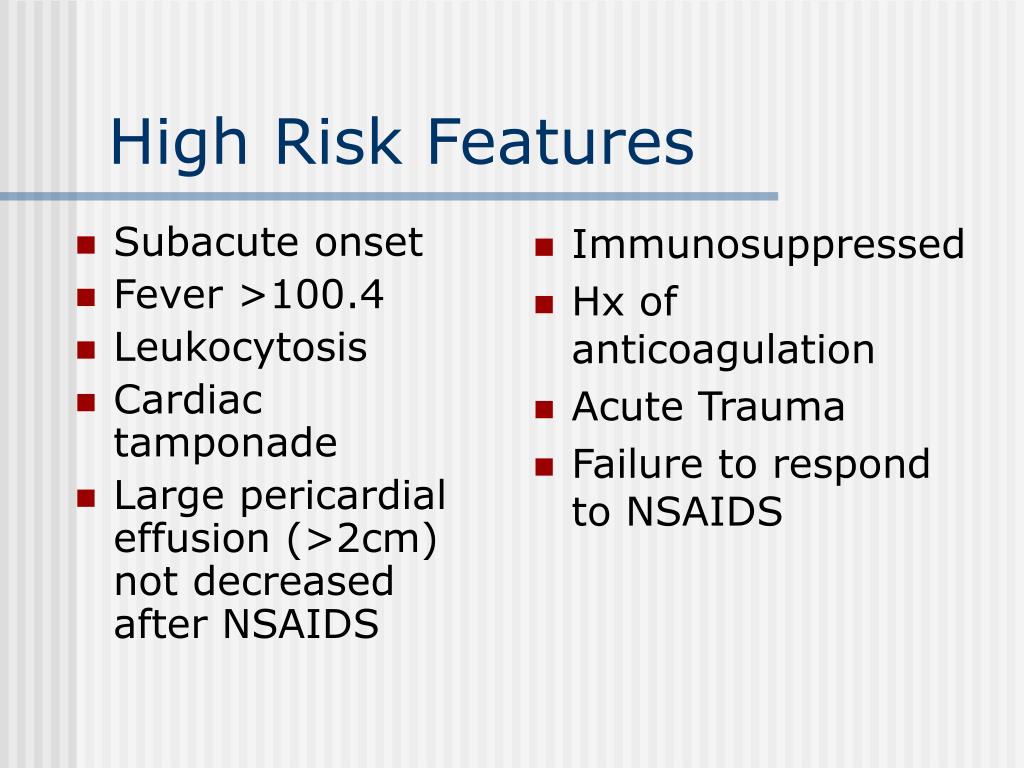

High risk features l.jpg

Subacute onset due to TB

Fever >100.4


Cardiac tamponade

Large pericardial effusion (>2cm) not decreased after NSAIDS


Hx of anticoagulation

Acute Trauma

Failure to respond to NSAIDS

High Risk Features

Treatments l.jpg

ASA-Class I (2-6g/day) or (800mg q6h tapered by 800mg /week for 3-4 weeks)

ASA resistance at 1 week should prompt further investigation

NSAIDS- ClassI (Ibuprofen 300-800mg q6h)

GI prophylaxis

Colchicine- Class IIa

Intrpericardial Steroids –Class IIa

Corticosteroids if refractory to NSAIDS


Pericardiocentesis l.jpg
Pericardiocentesis for 3-4 weeks)

  • If moderate to severe tamponade is present –Class IA recommendation

  • If purulent, TB, or neoplastic pericarditis is suspected- Class II a recommendation

  • Persistent symptomatic pericardial effusion

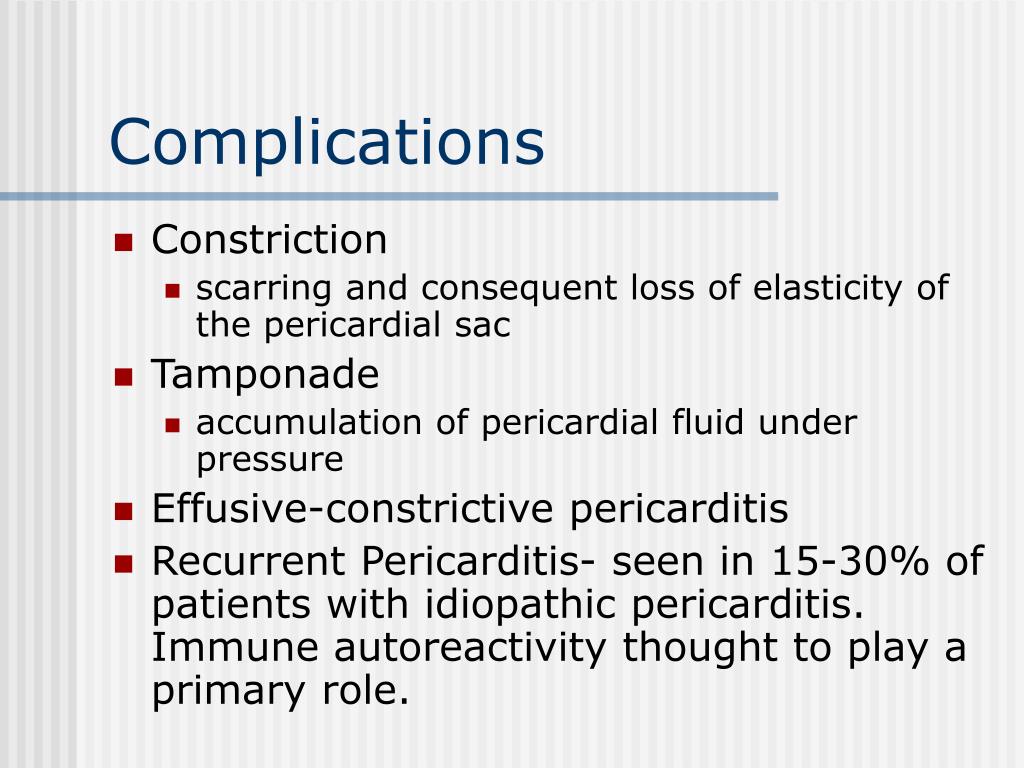

Complications l.jpg
Complications for 3-4 weeks)

  • Constriction

    • scarring and consequent loss of elasticity of the pericardial sac

  • Tamponade

    • accumulation of pericardial fluid under pressure

  • Effusive-constrictive pericarditis

  • Recurrent Pericarditis- seen in 15-30% of patients with idiopathic pericarditis. Immune autoreactivity thought to play a primary role.

Pericardial tamponade l.jpg
Pericardial Tamponade for 3-4 weeks)

  • Increased Pericardial Pressures leading to compression of all cardiac chambers

  • Pericardial elasticity maybe limited (Acute vs Chronic)

  • Cardiac chambers become small and chamber diastolic compliance is reduced

  • Decreased cardiac filling

Physiologic significance l.jpg
Physiologic significance for 3-4 weeks)

  • Early diastolic filling decreases, leading to the majority of venous return occuring during ventricular systole

  • When tamponade is severe, total venous return falls and cardiac chambers shrink

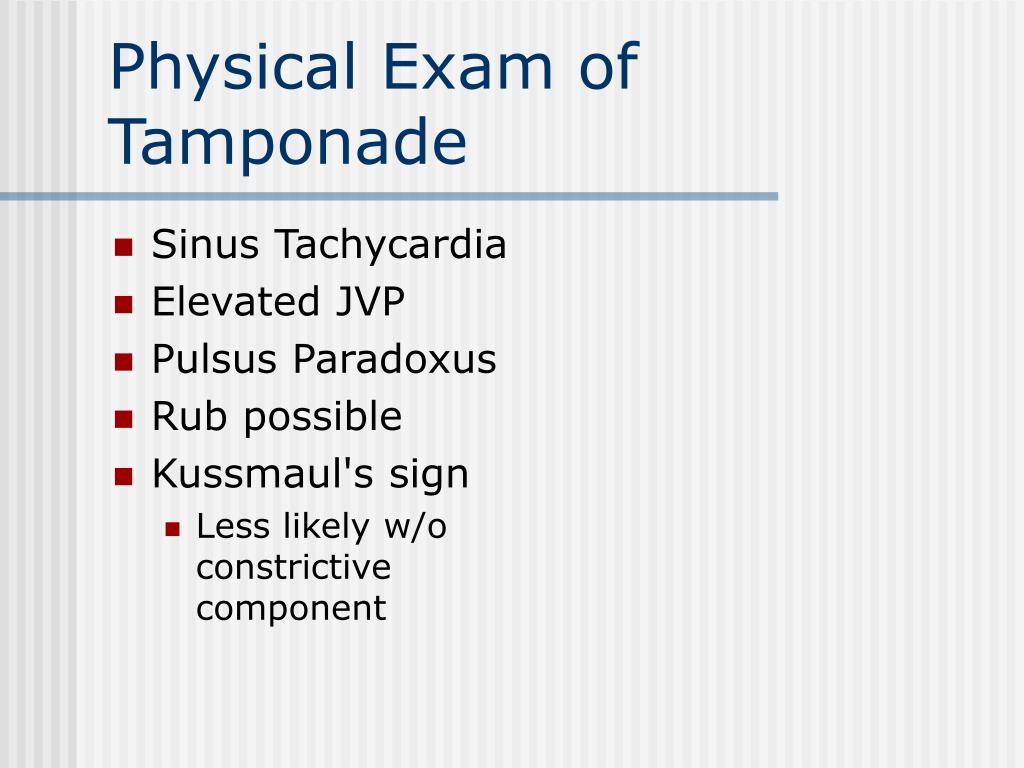

Physical exam of tamponade l.jpg

Sinus Tachycardia for 3-4 weeks)

Elevated JVP

Pulsus Paradoxus

Rub possible

Kussmaul's sign

Less likely w/o constrictive component

Physical Exam of Tamponade

Pulsus paradoxus l.jpg
Pulsus Paradoxus for 3-4 weeks)

  • An exaggerated fall in systemic blood pressure during inspiration

  • Inspiratory decline in thoracic pressure is transmitted through the pericardium to the right side of the heart

  • Systemic Venous return increases with inspiration

  • In tamponade, the rigid pericardium prevents the RV free wall from expanding during diastole causing the pressure transmission to the septal wall and decreased LV filling during inspiration

Acute vs chronic accumulation l.jpg
Acute vs chronic accumulation for 3-4 weeks)

  • As little as 20-50 ml acutely can cause tamponade acutely

  • As much as 2 liters can accumulate chronically prior to causing tamponade

Conclusion l.jpg

Pericarditis has many causes for 3-4 weeks)

A good history and physical will often lead to diagnosis

ECHO, EKG, HIV, CXR and PPD should be done

Outpatient management may be reasonable

Anti-inflammatories key for medical management
