  1. Chapter #9 - Models of Chemical Bonding 9.1) Atomic Properties and Chemical Bonds 9.2) The Ionic Bonding Model 9.3) The Covalent Bonding Model 9.4) Between the Extremes: Electronegativity and Bond Polarity 9.5) An Introduction to Metallic Bonding

  2. Fig. 9.1

  3. The Periodic Table of the Elements H He Li Be B C N O F Ne Na Mg Al Si P S Cl Ar K Ca Sc Ti V Cr Mn Fe Co Ni Cu Zn Ga Ge As Se Br Kr Rb Sr Y Zr Nb Mo Tc Ru Rh Pd Ag Cd In Sn Sb Te I Xe Cs Ba La Hf Ta W Re Os Ir Pt Au Hg Tl Pb Bi Po At Rn Fr Ra Ac Rf Ha Sg Bo Ha Me Ce Pr Nd Pm Sm Eu Gd Tb Dy Ho Er Tm Yb Lu Th Pa U Np Pu Am Cm Bk Cf Es Fm Md No Lr Metals Semi - metals Metalloids Non Metals

  4. Fig. 9.2

  5. Lewis Electron-Dot Symbols for Elements in Periods 2 & 3 Fig. 9.3

  6. Three Ways of Showing the Formation ofLi+ and F - through Electron Transfer Fig. 9.4

  7. Depicting Ion Formation with Orbital Diagrams and Electron Dot Symbols - I Problem: Use orbital diagrams and Lewis structures to show the formation of magnesium and chloride ions from the atoms, and determine the formula of the compound. Plan: Draw the orbital diagrams for Mg and Cl. To reach filled outer levels Mg loses 2 electrons, and Cl will gain 1 electron. Therefore we need two Cl atoms for every Mg atom. Solution: Mg + Mg+2 + 2 Cl- .. 2 Cl . .. .. .. . Cl Cl . .. .. .. .. Mg + Mg+2 + 2 Cl . .. ..

  8. Depicting Ion Formation from Orbital Diagrams and Electron Dot Symbols - II Problem: Use Lewis structures and orbital diagrams to show the formation of potassium and sulfide ions from the atoms, and determine the formula of the compound. Plan: Draw orbital diagrams for K and S. To reach filled outer orbitals, sulfur must gain two electrons, and potassium must lose one electron. Solution: 2 K + 2 K+ + S - 2 S . .. . 2 - . .. .. .. .. .. K . + S 2 K+ + S K

  9. The Reaction between Na and Br to Form NaBr The Elements The Reaction! Fig. 9.5

  10. Fig. 9.8

  11. Melting and Boiling Points of Some Ionic Compounds Compound mp( oC) bp( oC) CsBr 636 1300 NaI 661 1304 MgCl2 714 1412 KBr 734 1435 CaCl2 782 >1600 NaCl 801 1413 LiF 845 1676 KF 858 1505 MgO 2852 3600 Table 9.1 (p. 340)

  12. Electrical Conductance of Ionic Compounds Fig. 9.9

  13. Vaporizing an Ionic Compound Fig. 9.10

  14. Covalent Bonding in Hydrogen, H2 Fig. 9.11

  15. Fig. 9.12

  16. Bond Lengths and Covalent Radius Fig. 9.13

  17. The Relation of Bond Order,Bond Length and Bond Energy Bond Bond Order Average Bond Average Bond Length (pm) Energy (kJ/mol) C O 1 143 358 C O 2 123 745 C O 3 113 1070 C C 1 154 347 C C 2 134 614 C C 3 121 839 N N 1 146 160 N N 2 122 418 N N 3 110 945 Table 9.4 (p. 344)

  18. Fig. 9.14

  19. Fig. 9.15

  20. Some Motions of Molecules Fig. 9.A

  21. An Infrared Spectrum of Acrylonitrile Fig. 9.B

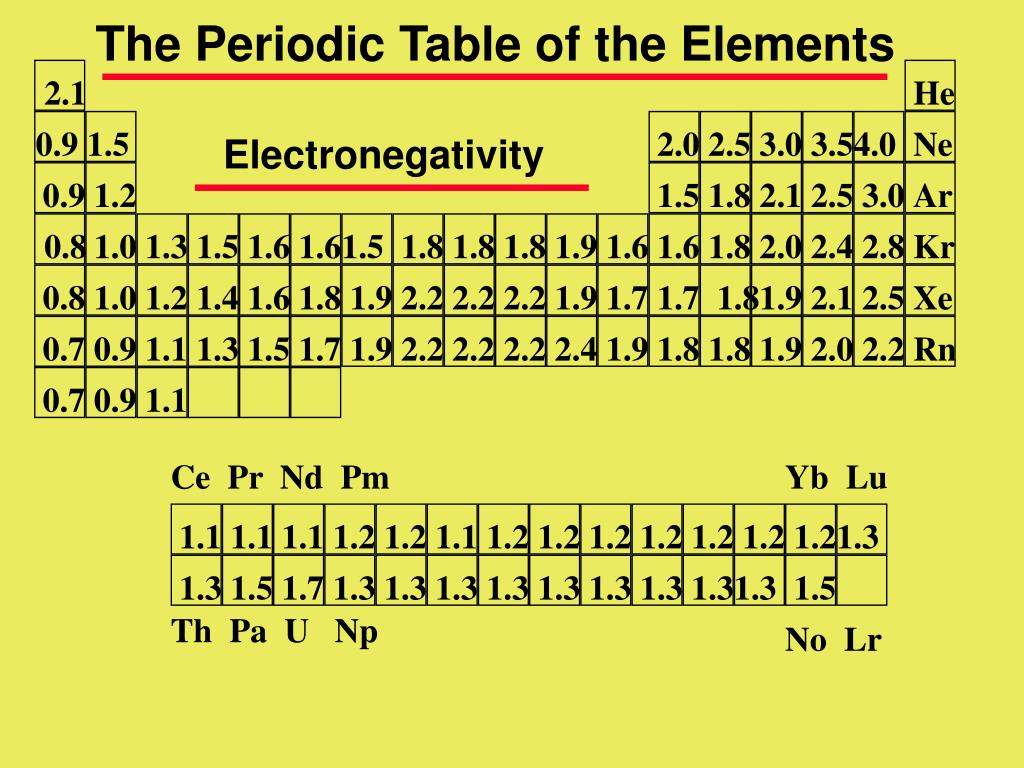

  22. The Periodic Table of the Elements 2.1 He 0.9 1.5 2.0 2.5 3.0 3.5 4.0 Ne Electronegativity 0.9 1.2 1.5 1.8 2.1 2.5 3.0 Ar 0.8 1.0 1.3 1.5 1.6 1.6 1.5 1.8 1.8 1.8 1.9 1.6 1.6 1.8 2.0 2.4 2.8 Kr 0.8 1.0 1.2 1.4 1.6 1.8 1.9 2.2 2.2 2.2 1.9 1.7 1.7 1.8 1.9 2.1 2.5 Xe 0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.2 2.2 2.2 2.4 1.9 1.8 1.8 1.9 2.0 2.2 Rn 0.7 0.9 1.1 Ce Pr Nd Pm Yb Lu 1.1 1.1 1.1 1.2 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.3 1.5 1.7 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.5 Th Pa U Np No Lr

  23. Fig. 9.16

  24. Fig. 9.17

  25. Determining Bond Polarity from Electronegativity Values Problem: (a)Indicate the polarity of the following bonds with a polarity arrow: O - H, O - Cl, C - N, P - N, N - S, C - Br, As - S (b) rank those bonds in order of increasing polarity. Plan: (a) We use Fig. 9.16 to find the EN values, and point the arrow toward the negative end. (b) Use the EN values. Solution: a) the EN of O = 3.5 and of H = 2.1: O - H the EN of O = 3.5 and of Cl = 3.0: O - Cl the EN of C = 2.5 and of P = 2.1: C - P the EN of P = 2.1 and of N = 3.0: P - N the EN of N = 3.0 and of S = 2.1: N - S the EN of C = 2.5 and of Br = 2.8: C - Br the EN of As = 2.0 and of O = 3.5: As - O b) C - Br < C - P < O - Cl < P - N < N - S < O - H < As - O 0.3 < 0.4 < 0.5 < 0.9 < 0.9 < 1.4 < 1.5

  26. Fig. 9.18

  27. Percent Ionic Character as a Function ofElectronegativity Difference (En) Fig. 9.19

  28. The Charge Density of LiF Fig. 9.20

  29. Properties of the Period 3 Chlorides Fig. 9.21

  30. Melting and Boiling Points of Some Metals Element mp (°C) bp (°C) Lithium (Li) 180 1347 Tin (Sn) 232 2623 Aluminum (Al) 660 2467 Barium (Ba) 727 1850 Silver (Ag) 961 2155 Copper (Cu) 1083 2570 Uranium (U) 1130 3930 Table 9.5 (p. 353)

  31. The Unusually Low Melting Point of Gallium Fig. 9.22

  32. Melting Points of the Group1A and 2A Elements Fig. 9.23

  33. Fig. 9.24
