Presentation Transcript


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

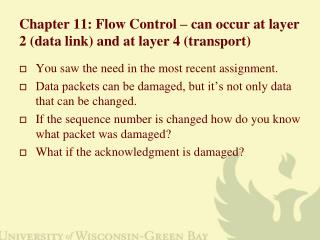

Chapter 11: Flow Control – can occur at layer 2 (data link) and at layer 4 (transport)

  • You saw the need in the most recent assignment.

  • Data packets can be damaged, but it’s not only data that can be changed.

  • If the sequence number is changed how do you know what packet was damaged?

  • What if the acknowledgment is damaged?


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • What if a data packet is lost?

  • What if an acknowledgment is lost?

  • How many data packets can we acknowledge with one acknowledgment packet?

  • Book does some calculation of bit rates; you can skip that stuff. We’ll focus on the protocols.

  • Main thing is that the download speed is a function of not only the raw bit rate, but the flow control protocol used.


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • Recall the layering of protocols

    • Frame – layer 2 unit of transmission

    • Packet – layer 3 unit of transmission

    • Text uses layer 2 context for flow control, but it does occur at layer 4 (TCP) as well


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 2.4 An exchange using the OSI model


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • Byte oriented

    • Frame interpreted as a sequence of bytes

    • Each byte means something

    • Old protocol typical of transferring text files

    • Flags (e.g. 01111110) delimit start and end of frame


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • What if flag was part of the data (non-text files)?


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • Bit oriented

    • More typical of streaming, binary files, graphics, etc

    • Frame interpreted as a bit stream

    • Start and end of frame marked with a flag=01111110


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • Again, what if flag is part of the data?

  • Stuff a bogus 0 after 5 consecutive 1s.


Flow control

Flow control

Flow control refers to a set of procedures used to restrict the amount of data

that the sender can send before

waiting for acknowledgment.


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.5 Taxonomy of protocols discussed in this chapter


Acronyms

Acronyms

  • ARQ – Automatic Repeat reQuest

  • ACK – acknowledgment

  • NAK – negative acknowledgment (indicates a problem with a frame – damaged or never arrived)


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.6 The design of the simplest protocol with no flow or error control

  • Has similarities to a streaming protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Algorithm 11.1Sender-site algorithm for the simplest protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Algorithm 11.2Receiver-site algorithm for the simplest protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.7 Flow diagram for Example 11.1


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • No mechanism for error control or acknowledgments


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.8 Design of Stop-and-Wait Protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Algorithm 11.3Sender-site algorithm for Stop-and-Wait Protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Algorithm 11.4Receiver-site algorithm for Stop-and-Wait Protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.9 Flow diagram for Example 11.2


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • Assumes no errors in frames

  • Assumes frames are not lost

  • Assumes Acks are not lost


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • Each frame has a sequence number

  • Sequence nos range from 0 to 2m-1, where m is the number of bits used to represent the sequence number

  • If m=3, sequence nos are as follows

    0,….7, 0,….7, 0,….7, etc


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • ARQ: adds simple error control

  • Distinguish Ack frames from NAK frames

  • Implement a timer if neither of the above does not arrive in timely fashion


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.10 Design of the Stop-and-Wait ARQ Protocol


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Algorithm 11.5Sender-site algorithm for Stop-and-Wait ARQ

(continued)


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

(continued)

Algorithm 11.5Sender-site algorithm for Stop-and-Wait ARQ

  • Option: If a NAK frame arrives, proceed as in the timeout


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Algorithm 11.6Receiver-site algorithm for Stop-and-Wait ARQ Protocol

  • Option: Doan error check and send either an Ack or NAK frame


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

Figure 11.11 Flow diagram for Example 11.3


Chapter 11 flow control can occur at layer 2 data link and at layer 4 transport

  • What if an ack is not lost but just delayed past when the timer expires?
