  1. Yoursecurity in safehands Comunicator JR lite-2gp BUSINESS INDUSTRY HOME

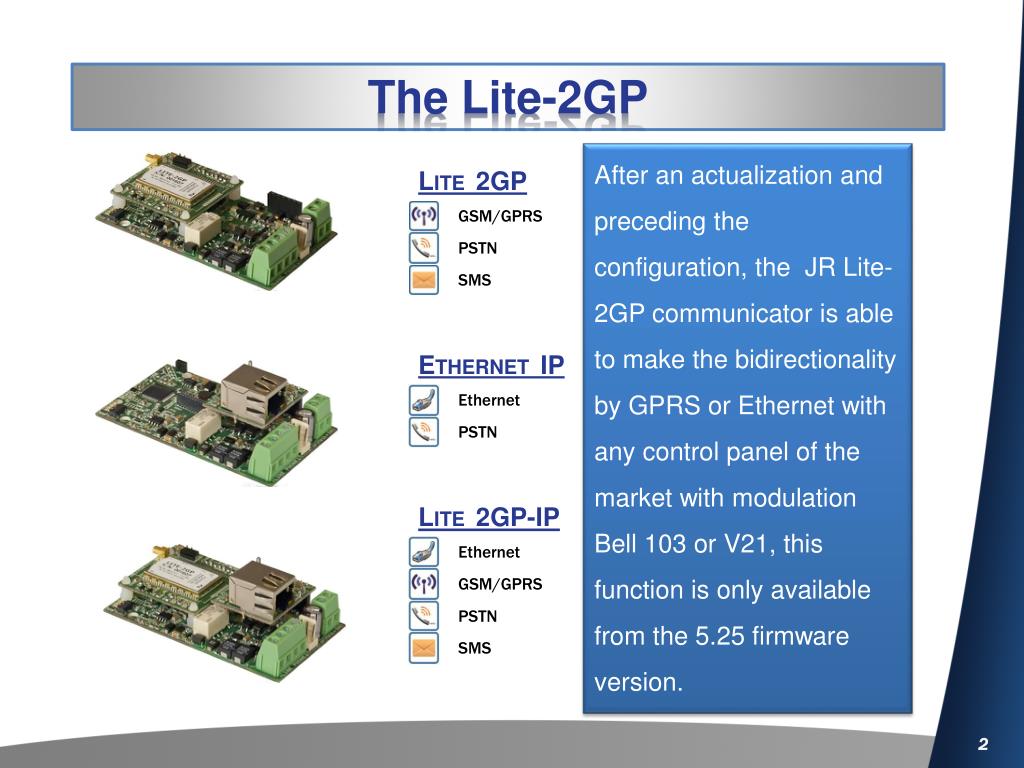

  2. The Lite-2GP After an actualization and preceding the configuration, the JR Lite-2GP communicator is able to make the bidirectionality by GPRS or Ethernet with any control panel of the market with modulation Bell 103 or V21, this function is only available from the 5.25 firmware version. LITE 2GP GSM/GPRS PSTN SMS ETHERNET IP Ethernet PSTN LITE 2GP-IP Ethernet GSM/GPRS PSTN SMS

  3. Features Phonecommunicatorforalarm panel Programmingthroughthe JR E-light software 2 zones + 2 outputs SMS remote control Bidirectionalitywithanyother control panel on the market if you have the V21 or Bell 103. (DSC, Ademco,Honeywell, Paradox,Bosch, Risco, Network NX-8/NX-4, Bentel, Texecom, Aritech,Pyronix or Napco). The Lite-2GP range of ATS enable to users to substitute a traditionalalarmsystems with PSTN communication by an IP base and/or by a wireless network, without have to improve or change the alarm system. The system ATS LITE2-G is the only eauipment which, quickly and cost-effectively, offer an access to any alarm system to the alternatif network, such as GSM, GPRS et Ethernet.

  4. Rules The equipment was made to comply with all safety rules in accordance with the European directives :

  5. Tecnicals features Environmental class Class II Operating Temperature de -10 à +40 C ̊ Operating Humidity 0…75% without condensation Power card 9...15VDC - 500mA Dimensions Length 5 cm Width 11 cm Depth 5 cmweight(approximate) 200 g Antenna Performance 2.15dBi Frequency 900/1800Mhz Averageconsumption PCB 45mA GSM Module 15mA Ethernet Plug-in 40mA With activated GSM calls 300mA With input GSM calls + ringer 500mA Zone RFL Normal 2K2Ω Tamper 820 Ω Sorties (Collecteur ouvert) O1 Negative / 100mA O2 Negative / 100mA

  6. Working mode for control panel 1 2 3 4 Control panel bidirectionality software:Makes a bidirectional connection request to the phone number of the control panel. Com0com:forwardthisrequest to the Com2log Vmodem Server by itsvirtual ports COM. Com2log Vmodem Server:receive the request. Com2log Vmodem Server:communicate via the local network with the JR-Log-MCP to ask a connexion with the control panel which have thisnumber.

  7. 5 6 7 8 9 JR-Log-MCP :Receive the requestfrom the Com2log Vmodem Server. JR-Log-MCP :Check in its data base the subscriber number corresponding to the telephone numberrequired. When you will find the subscribernumber, ask that the CS-LT-2G / CS-4Gestablish a direct bidirectional connexion with the software Com2log Vmodem server. CS-LT-2G / CS-4G :Receive the requestfrom the JR-Log-MCP. CS-LT-2G / CS-4G :establish a bidirectional communication from the alarm central to the établit Com2log Vmodem Server. Com2log Vmodem Server :receive the connexion from the CS-LT-2G / CS-4G. Fromthere, the bidirectionalconnection is establishedbetween the alarm central of the user and the bidirectional software of the brand of the control panel.

  8. Working mode for installers

  9. 1 • Control panel bidirectionality software :Makes a bidirectional connection request to the phone number of the control panel. • Com0com:Forward thisrequest to the Com2log Vmodem Server by itsvirtual ports COM. • Com2log Vmodem Server:receive the request. • Com2log Vmodem Server:communicatethrough internet with the JR-Log-MCP (situated in the control panel which make the maintenance of itsfacilities) to ask a connexion with the control panel which have thisnumber. • Agent:Observes the window with the SMS request on the computer where the Com2log Vmodem Server is installed. • Agent:Sendsthe SMS requestedtothephonenumber of theCS-LT-2G / CS-4G. • CS-LT-2G / CS-4G:Receive the requestfrom the JR-Log-MCP. • CS-LT-2G / CS-4G:establish a bidirectional communication from the alarm central to the établit Com2log Vmodem Server. • Com2log Vmodem Server:receive the connexion from the CS-LT-2G / CS-4G. Fromthere, the bidirectionalconnection is establishedbetween the alarm central of the user and the bidirectional software of the brand of the control panel. 2 3 4 5 6 7 8 9

  10. C/ Rosselló 52-54 E-08029 Barcelona, España Telf. +34 934948440 Fax. +34 934102221 jrsecurity@jrsecurity.com www.jrsecurity.com
