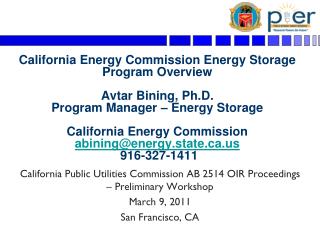

California Energy Commission Energy Storage Program Overview Avtar Bining, Ph.D.Program Manager – Energy StorageCalifornia Energy [email protected] 916-327-1411

California Public Utilities Commission AB 2514 OIR Proceedings – Preliminary Workshop

March 9, 2011

San Francisco, CA


Purpose l.jpg

  • Public Interest Energy Research Program Overview

  • Energy Storage Program Overview

  • Energy Storage Research Projects and Activities

    • American Recovery and Reinvestment Act (ARRA) Projects

    • CIEE – Strategic Analysis of Energy Storage

  • 2011 Integrated Energy Policy Report Committee Workshop

  • Questions

Purpose


Public interest energy research l.jpg

  • Established through AB 1890 in 1996 and began in 1998

  • ~$62.5 Million / Year (Electricity); ~$24 Million / Year (Natural Gas) since 2005-2006

  • Mission - To support public interest energy research and development that helps improve the quality of life in California by bringing environmentally safe, reliable, and affordable energy services and products to the marketplace.

  • Six (6) PIER Program Research Areas (Efficiency {Buildings and Industry/Agriculture/Water}, Renewables, Environment, Transportation, Energy Systems (Transmission and Distribution {Smart Grid}, Cyber Security, and Energy Storage)

Public Interest Energy Research


Pier involvement in energy storage technologies l.jpg

PIER Involvement in Energy StorageTechnologies


Slide5 l.jpg

PIER Program has been Evaluating Various Energy Storage Technologies and Their Applications


Slide6 l.jpg

Energy Storage Technologies Technologies and Their Applications

  • Pumped Hydro

  • Compressed Air Energy Storage (CAES)

  • Flywheels

  • Batteries

  • Super-Capacitors (SuperCaps)

  • Superconducting Magnetics

  • Thermal Storage (Molten Salt and Ice)

  • Hydrogen Storage


Energy storage l.jpg
Energy Storage Technologies and Their Applications

  • Has existed for long – Battery, Pumped Hydro

  • Recent Policy Changes

    • AB 2514 – Energy Storage Systems (2010)

    • Renewable Portfolio Standard (33% by 2020)

    • AB 32 (Reducing GHG to 1990 Level by 2020)

  • New System Needs and Opportunities

    • Smart Grid and Energy Storage Symbiotic Connection

  • Recent Advances

    • Internet, Material Sciences, Electronics, Sensors, and Controls


Energy storage contd l.jpg
Energy Storage (Contd…) Technologies and Their Applications

  • Various Forms – Mechanical (Pumped Hydro, Compressed Air, Flywheel), Chemical (Hydrogen), Thermal (Molten Salt, Ice), Electrical (Battery, Capacitors, Superconducting Magnetic Energy Storage)

  • Applications – Intermittency, Variability, Shifting Time of Use, Demand and Supply Response, Frequency Regulation, Resiliency, Reliability, Efficiency, (Economics)


Slide9 l.jpg

Electric Energy Storage Applications Technologies and Their Applications

(All Boundaries Of Regions Displayed Are Approximate)

1000

  • Load Leveling

  • Ramping

  • Energy Arbitrage

  • Spinning Reserve

  • Grid System

  • Stability

  • VAR

  • Support

100

Renewables

- Wind

- Solar

  • Frequency

  • Regulation

10

  • Peak

  • Shaving

  • and T&D

  • Deferral Transmission

  • Conjunction Management

Power Quality

Temporary

Power Interruptions

  • Peak Shaving

  • T&D Deferral

Black

Start needs

1 to 10 MW’s

For a 1 to 2 Hr. Duration

1.0

  • Remote Island Applications

  • Village Power Applications

0.1

0.1 Cycle

15 Second

1 Hour

15 Minutes

5 Hour

10 Cycle


Slide10 l.jpg

ARRA Smart Grid Projects Technologies and Their Applications

18 California Based Projects Totaling ~$1.25 Billion

  • Why PIER Provided Cost-Share For ARRA

  • Without PIER funding DOE would not award (DOE recognizes CA’s leadership in Smart Grid)

  • Early call To Identify How Smart Grid Is Developing

  • Ensure Consistency Among California Projects

  • One Smart Grid for California (Energy Commission Is The Common Participant For All Projects)

  • Smart Meters

  • Grid Security

  • Communication

  • Phasors

  • Storage

  • PHEV

  • Consumer Behavior

  • Demand Response

  • Standards

  • HAN


Arra smart grid in california l.jpg
ARRA Smart Grid in California Technologies and Their Applications

  • Total Project Value to CA - $1.3 Billion

  • City of Glendale Water & Power

  • Modesto Irrigation District

  • Burbank Water & Power

  • City of Anaheim

  • Electric Power Group (WECC sub-contractor)

  • Pacific Gas & Electric (WECC sub-contractor – Not with CEC)

  • Sacramento Municipal Utility District

  • San Diego Gas & Electric

  • Los Angeles Department of Water & Power

  • Southern California Edison with Boeing - Headquarters in MO, work being done in Sunnyvale and Huntington Beach, CA

  • Southern California Edison with Waukesha Electric Systems - Headquarters in WI, work being done with SCE in Irvine, CA) (Fault Current Limiting Transformer)

  • Primus Power (Metal Electrodes for Flow Battery)

  • SEEO Inc. (Li-Polymer)

  • Southern California Edison (Tehachapi Wind Energy Storage (CAES)

  • Pacific Gas & Electric (CAES)

  • Amber Kinetics (Flywheel)

  • EnerVault with Ktech Corp. - Headquarters in NM, work being done in Sunnyvale , CA (Fe/Cr Flow Battery)

  • Sacramento Municipal Utility District - sub-contractor to Premium Power, Headquarters in MA (Zn/Br Battery)

  • - California State University, Sacramento (Smart Grid Study)

Premium Power

Boeing

Ktech Corp.

Waukesha Electric Systems

Honeywell International, Inc


Ciee energy storage research project l.jpg

  • Goal Technologies and Their Applications - Develop a 2020 Energy Storage Vision for California

  • California Institute for Energy and Environment (CIEE) - Prime Contractor and supported by UC (Berkeley, Los Angeles, and San Diego)

  • Project Advisory Committee includes – IOUs, CAISO, POUs, CESA/ESA, National Labs, EPRI, Energy Storage Industry/Providers, CPUC, etc.

  • Duration ~6 Months (Began on January 24, 2011)

  • Help determine the role of energy storage in California

    • Look at various energy storage technologies and applications

    • Support CPUC with AB 2514 OIR Proceedings

    • Input to 2011 IEPR Committee Workshop on Energy Storage (April 28, 2011)

CIEE Energy Storage Research Project


Slide13 l.jpg

Questions? Technologies and Their Applications

Avtar Bining

Program Manager – Energy Storage

California Energy Commission

[email protected]

916-327-1411
