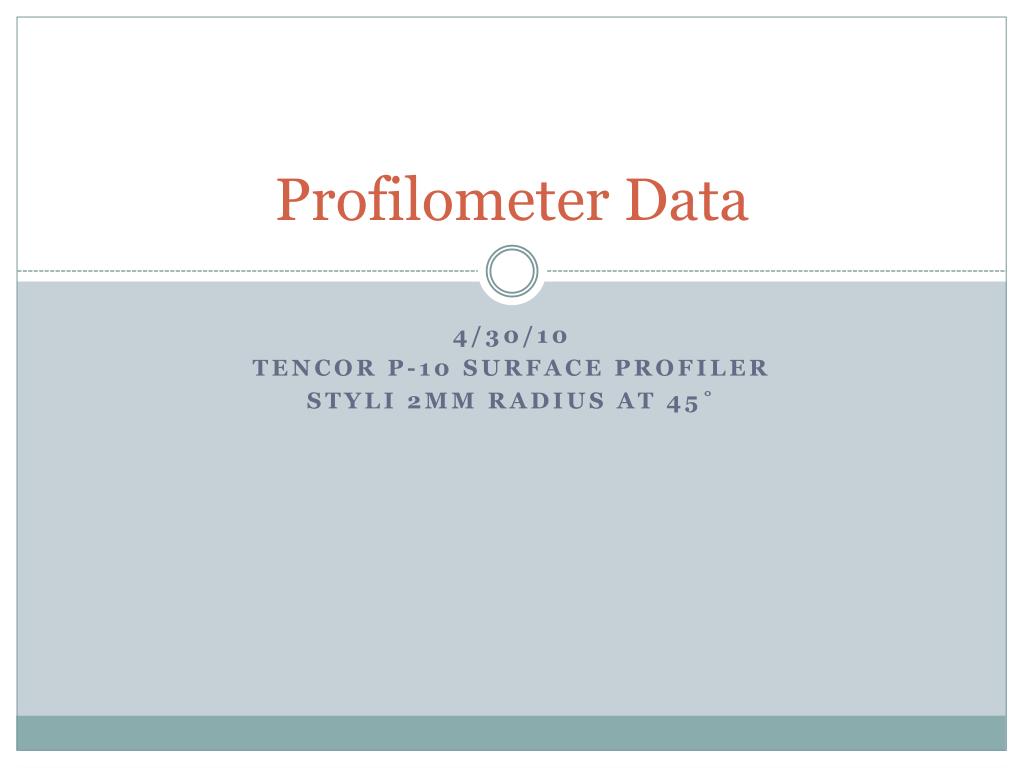

  1. Profilometer Data 4/30/10 Tencor P-10 Surface Profiler Styli 2μm radius at 45˚

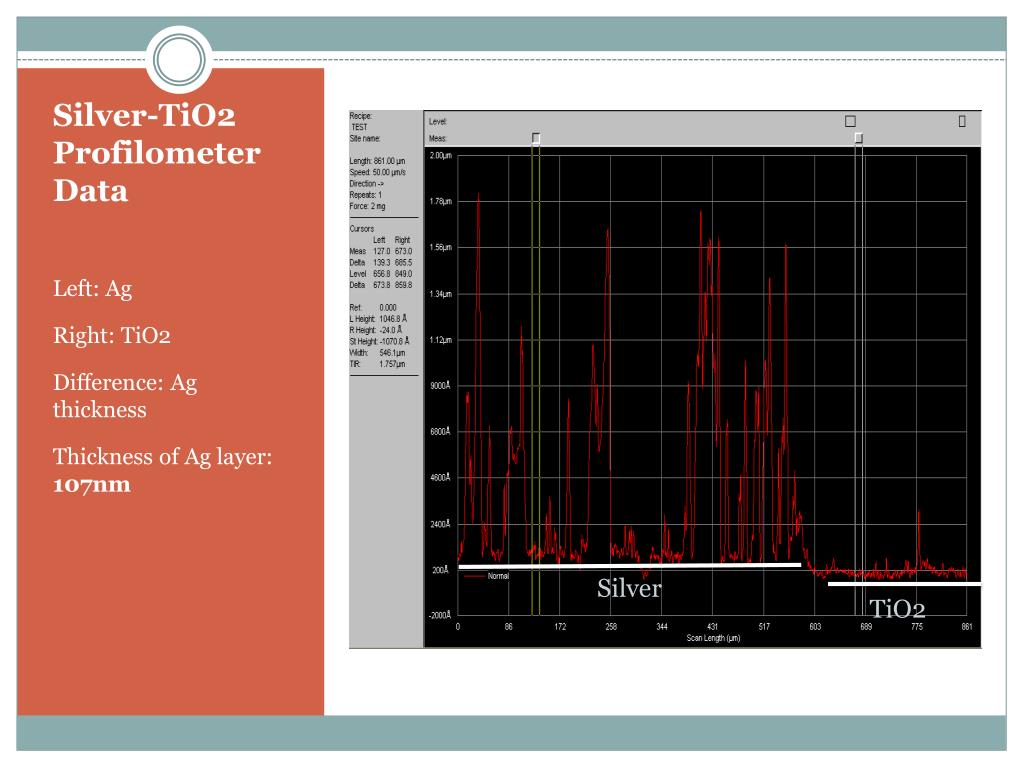

  2. Silver-TiO2Profilometer Data Left: Ag Right: TiO2 Difference: Ag thickness Thickness of Ag layer: 107nm Silver TiO2

  3. Silver-TiO2 Border Image Silver TiO2

  4. Scratched Silver Surface

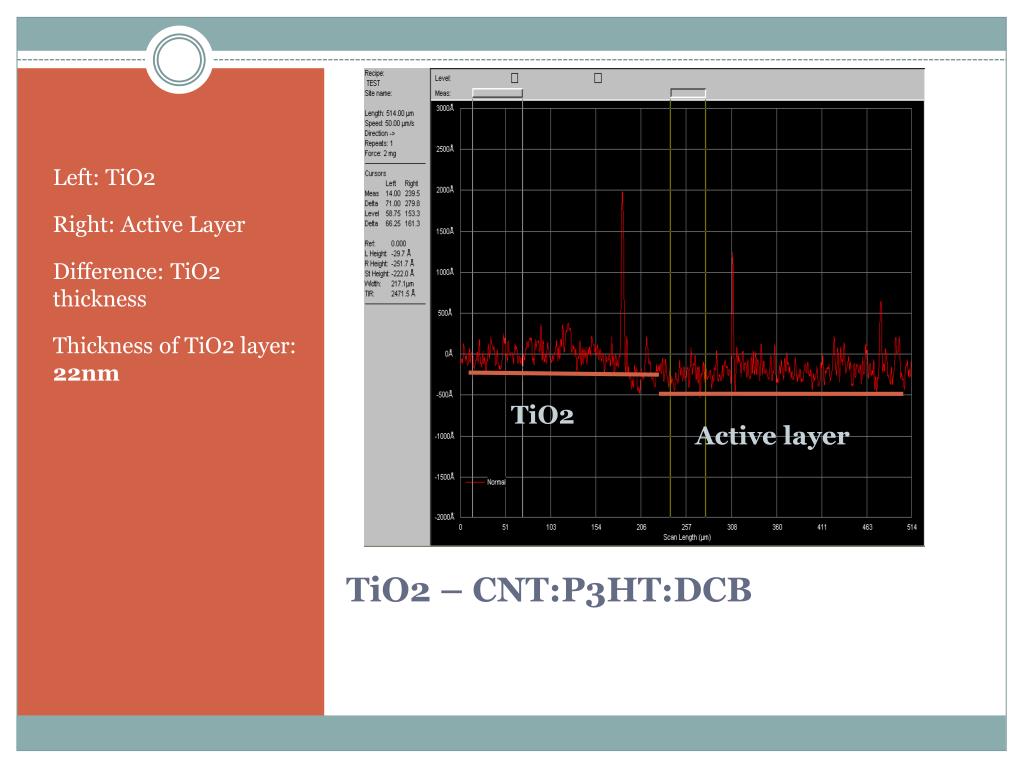

  5. Left: TiO2 Right: Active Layer Difference: TiO2 thickness Thickness of TiO2 layer:22nm TiO2 Active layer TiO2 – CNT:P3HT:DCB

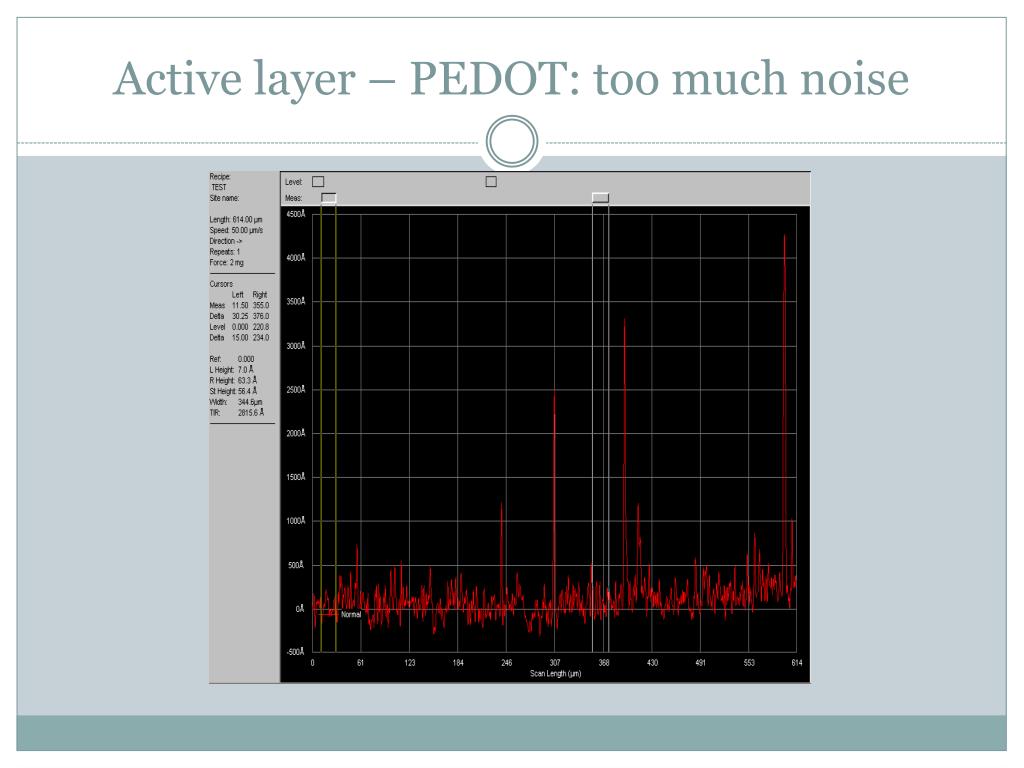

  6. Active layer – PEDOT: too much noise

  7. Active Layer – PEDOT: Image ACTIVE LAYER PEDOT

  8. PEDOT – FTO: noise Thickness: -51nm Possible explanation: liftoff from taping Solutions: Wax Crayons Vacuum Tape

  9. PEDOT-FTO Image PEDOT FTO

  10. 107nm 22nm -6nm -50nm
