  1. The Organization and Expression of Ig Genes Justin Walter Immunology, Fall 2008

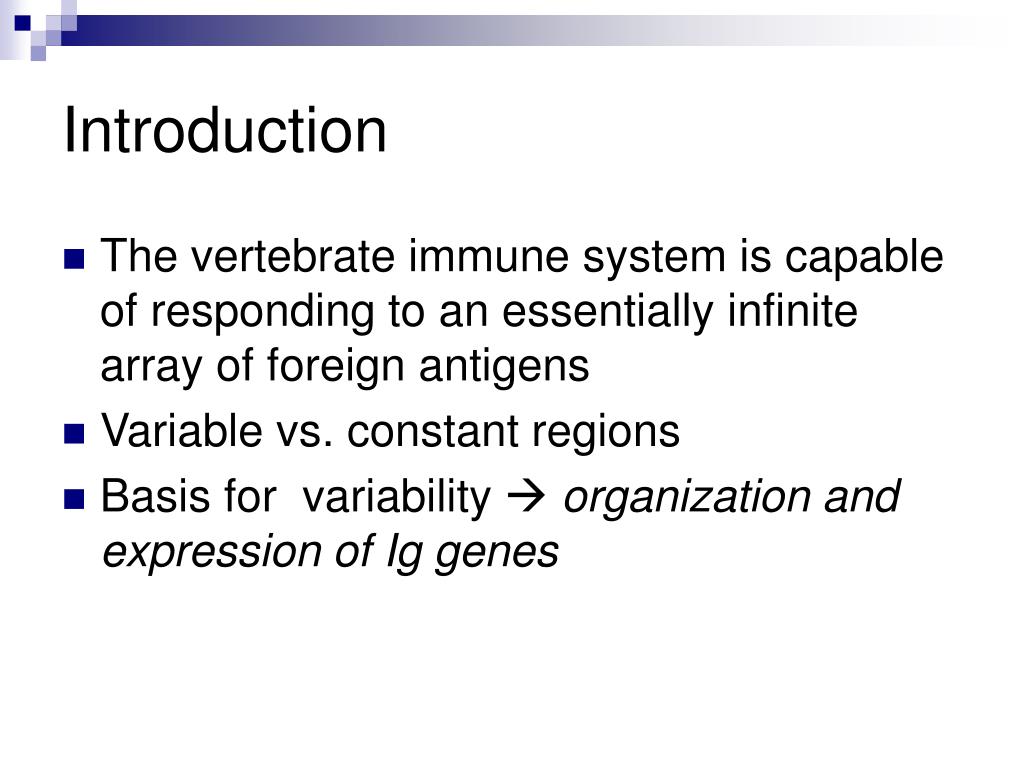

  2. Introduction • The vertebrate immune system is capable of responding to an essentially infinite array of foreign antigens • Variable vs. constant regions • Basis for variability  organization and expression of Ig genes

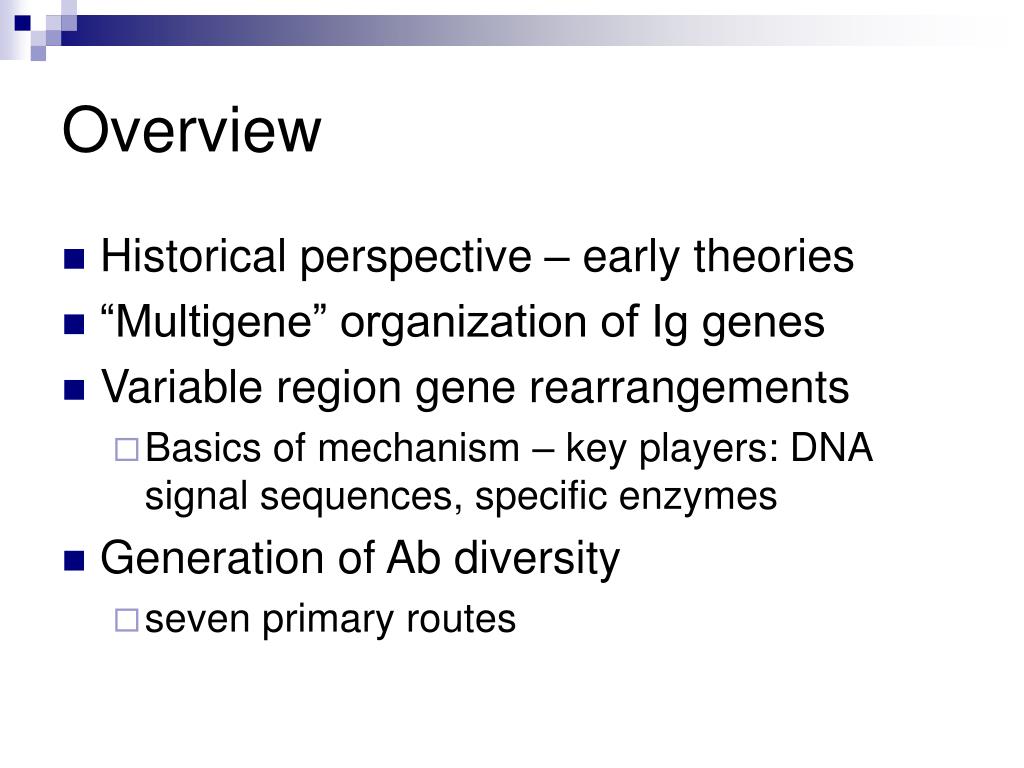

  3. Overview • Historical perspective – early theories • “Multigene” organization of Ig genes • Variable region gene rearrangements • Basics of mechanism – key players: DNA signal sequences, specific enzymes • Generation of Ab diversity • seven primary routes

  4. Historical perspective • Ig sequence analysis revealed many dilemmas • Extreme diversity of Ab specificity • Variable regions vs constant regions • Isotypes with similar Ag specificity but differing heavy-chain constant regions

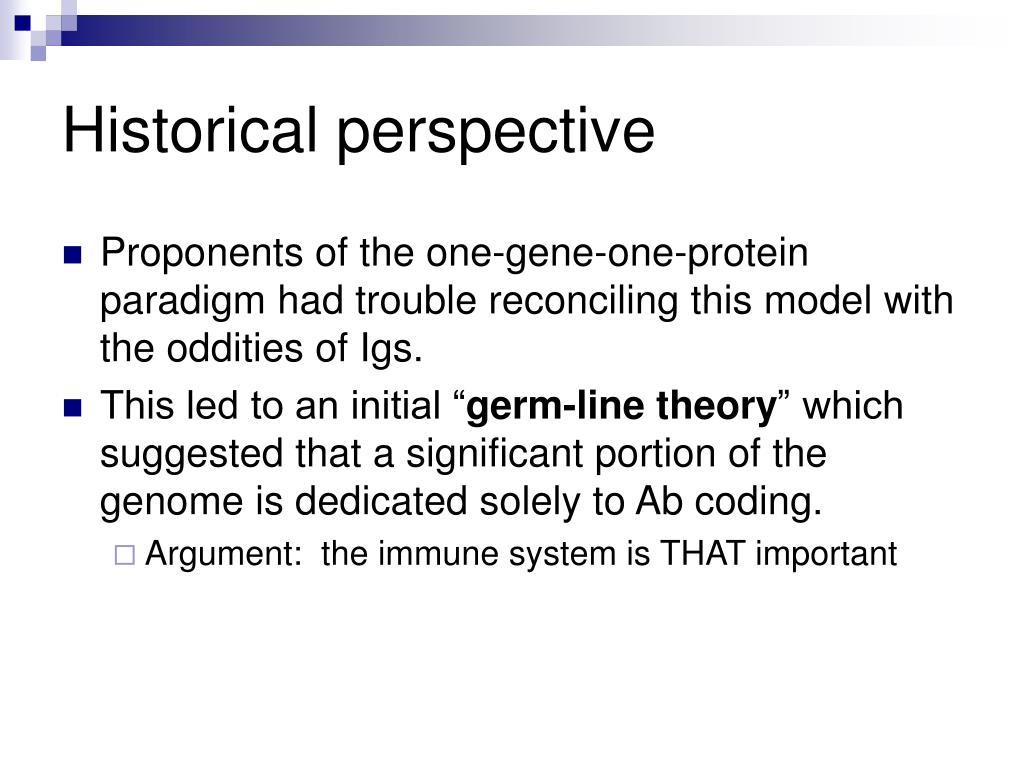

  5. Historical perspective • Proponents of the one-gene-one-protein paradigm had trouble reconciling this model with the oddities of Igs. • This led to an initial “germ-line theory” which suggested that a significant portion of the genome is dedicated solely to Ab coding. • Argument: the immune system is THAT important

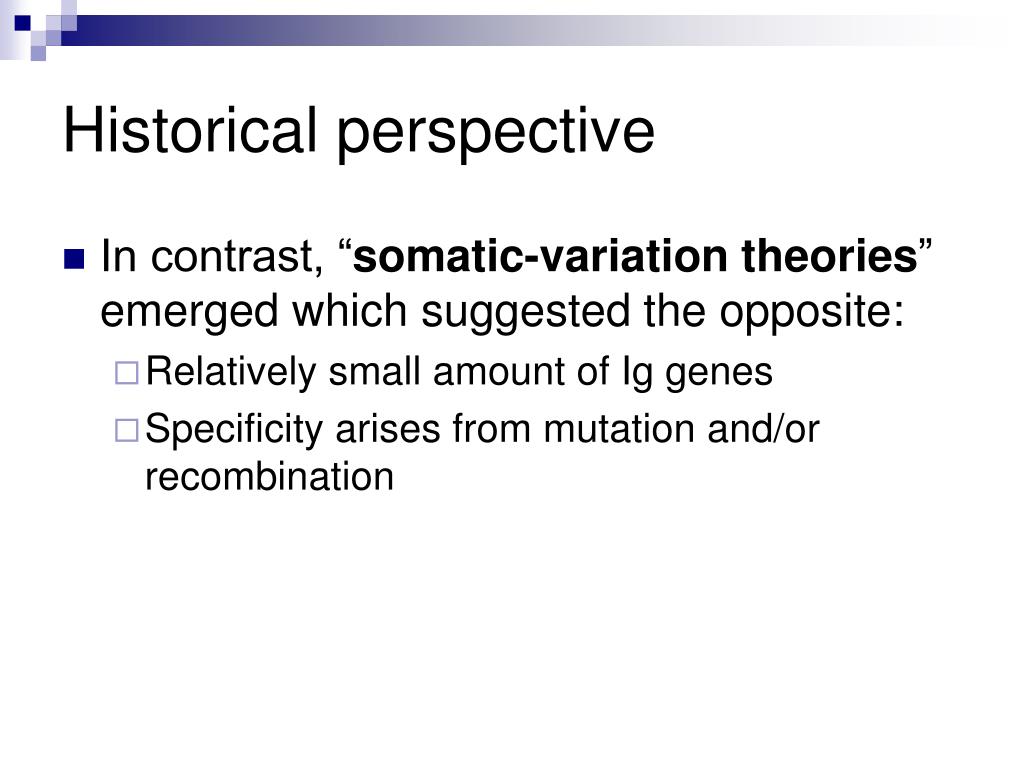

  6. Historical perspective • In contrast, “somatic-variation theories” emerged which suggested the opposite: • Relatively small amount of Ig genes • Specificity arises from mutation and/or recombination

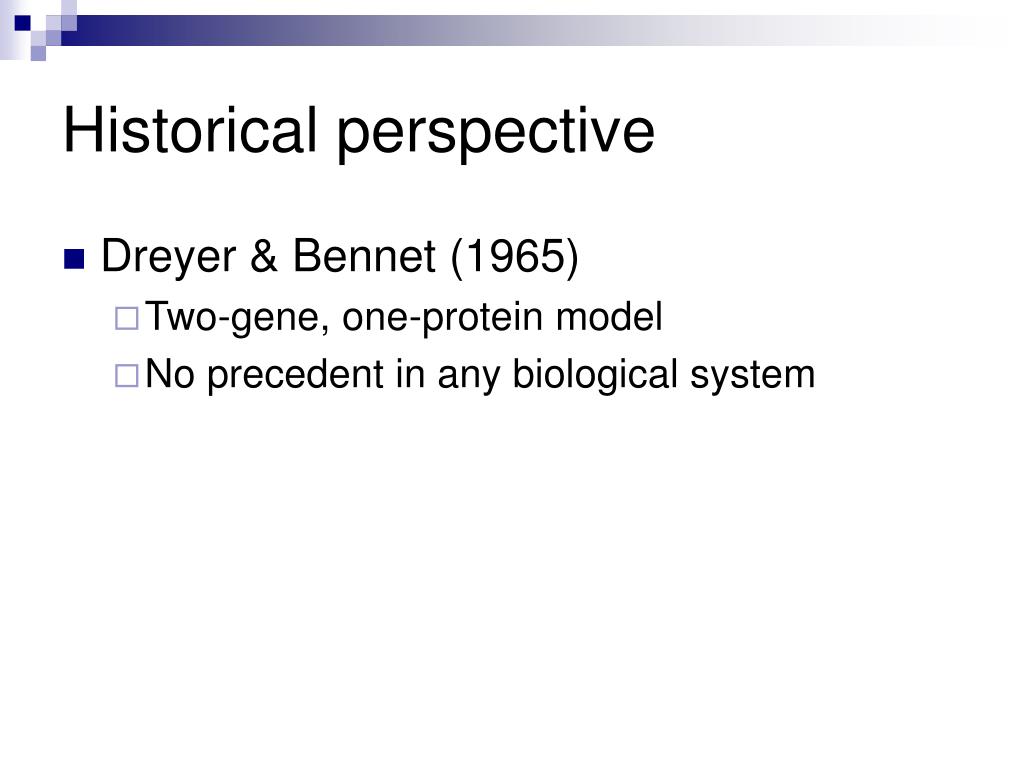

  7. Historical perspective • Dreyer & Bennet (1965) • Two-gene, one-protein model • No precedent in any biological system

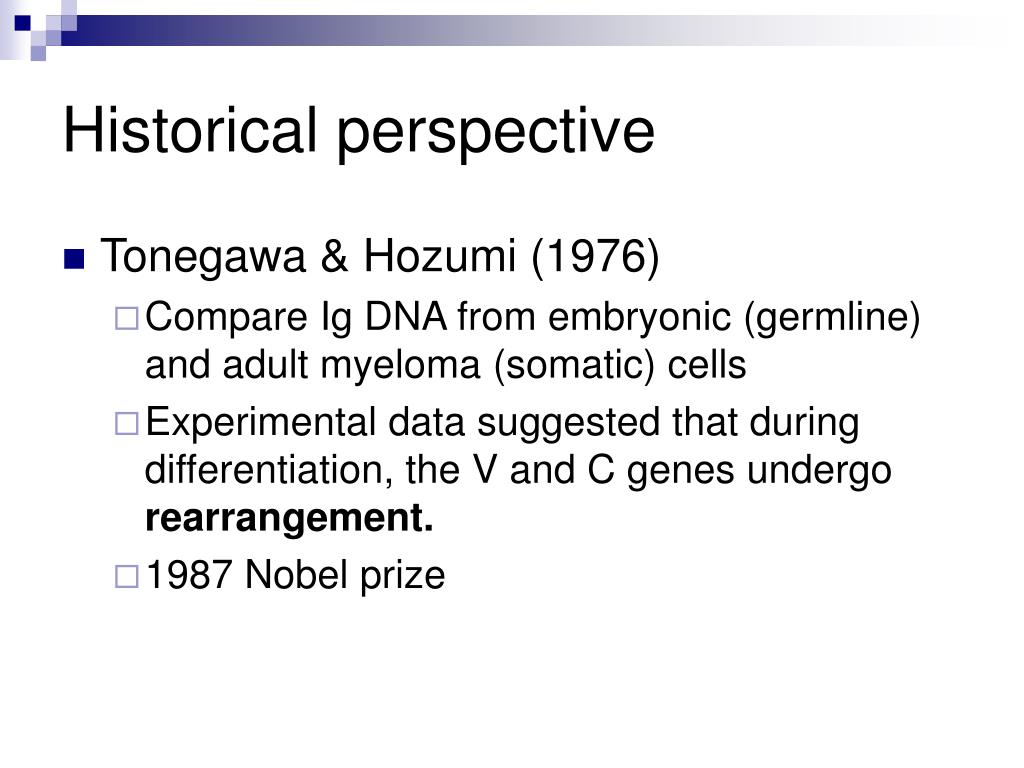

  8. Historical perspective • Tonegawa & Hozumi (1976) • Compare Ig DNA from embryonic (germline) and adult myeloma (somatic) cells • Experimental data suggested that during differentiation, the V and C genes undergo rearrangement. • 1987 Nobel prize

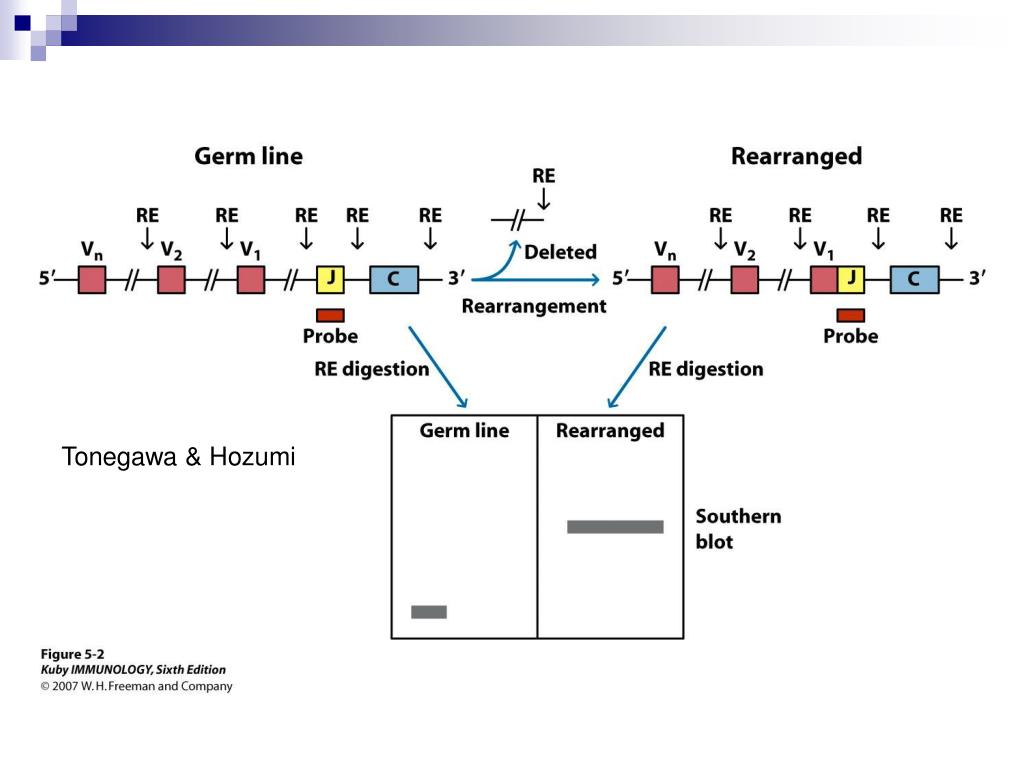

  9. Tonegawa & Hozumi

  10. Multigene Organization of Ig genes • Each “class” of Ig components (kappa, lambda, heavy) encoded by separate multigene families on different chromosomes • Each family contains several coding sequences, or gene segments

  11. Multigene Organization of Ig genes

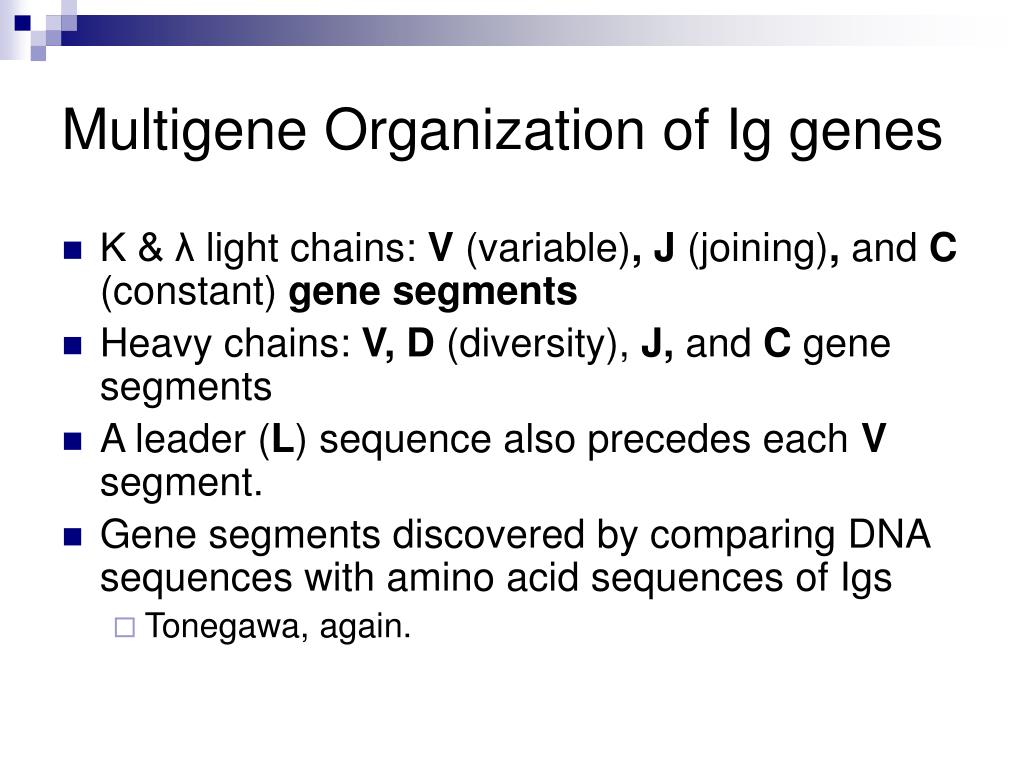

  12. Multigene Organization of Ig genes • Κ & λlight chains: V (variable), J (joining), and C (constant) gene segments • Heavy chains: V, D (diversity), J, and C gene segments • A leader (L) sequence also precedes each V segment. • Gene segments discovered by comparing DNA sequences with amino acid sequences of Igs • Tonegawa, again.

  13. Organization of Ig germ-line gene segments (mouse) Pre-rearrangement!

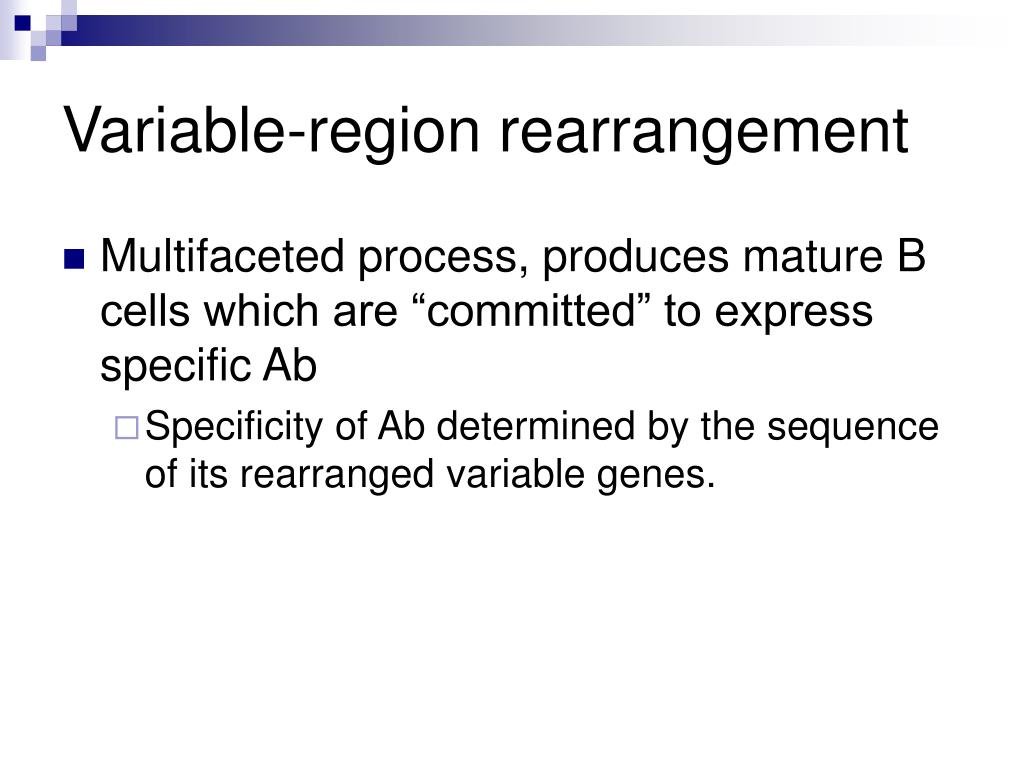

  14. Variable-region rearrangement • Multifaceted process, produces mature B cells which are “committed” to express specific Ab • Specificity of Ab determined by the sequence of its rearranged variable genes.

  15. Light-chain rearrangements • V-J rearrangements • Specific “allowed” rearrangements differ from species to species, but a “big-picture” view can suffice • Rearrangement occurs in ordered steps but can be considered as random events which result in the random determination of Ab specificity

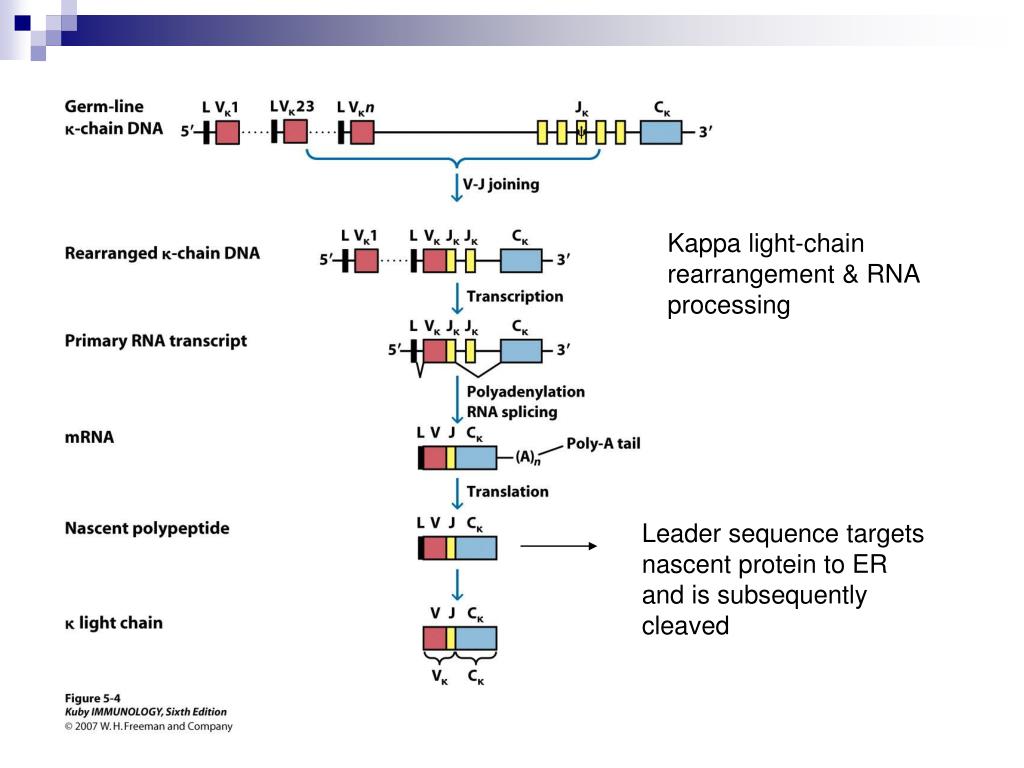

  16. Kappa light-chain rearrangement & RNA processing Leader sequence targets nascent protein to ER and is subsequently cleaved

  17. Heavy-chain rearrangements • Requires two separate rearrangement events • D-J joining • V-DJ joining • Differential polyadenylation & RNA splicing can result in mRNA with either Cu or Cδ • heavy chain genes • B cells can express BOTH IgM and IgD with identical Ag specificity on its surface

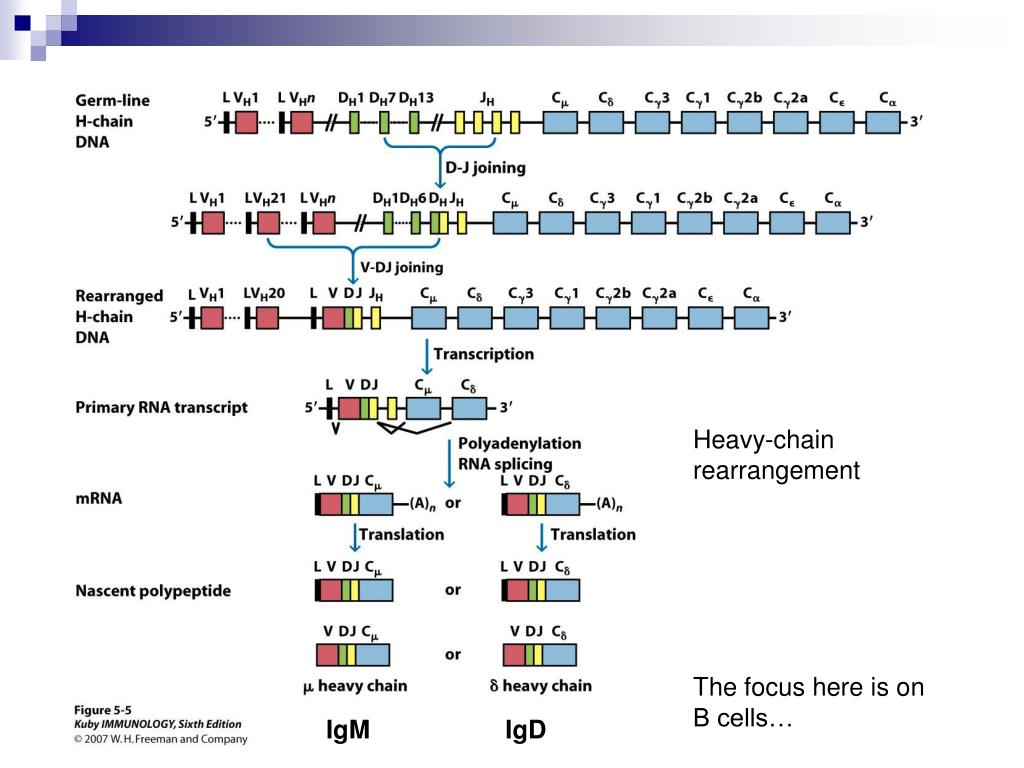

  18. Heavy-chain rearrangement The focus here is on B cells… IgM IgD

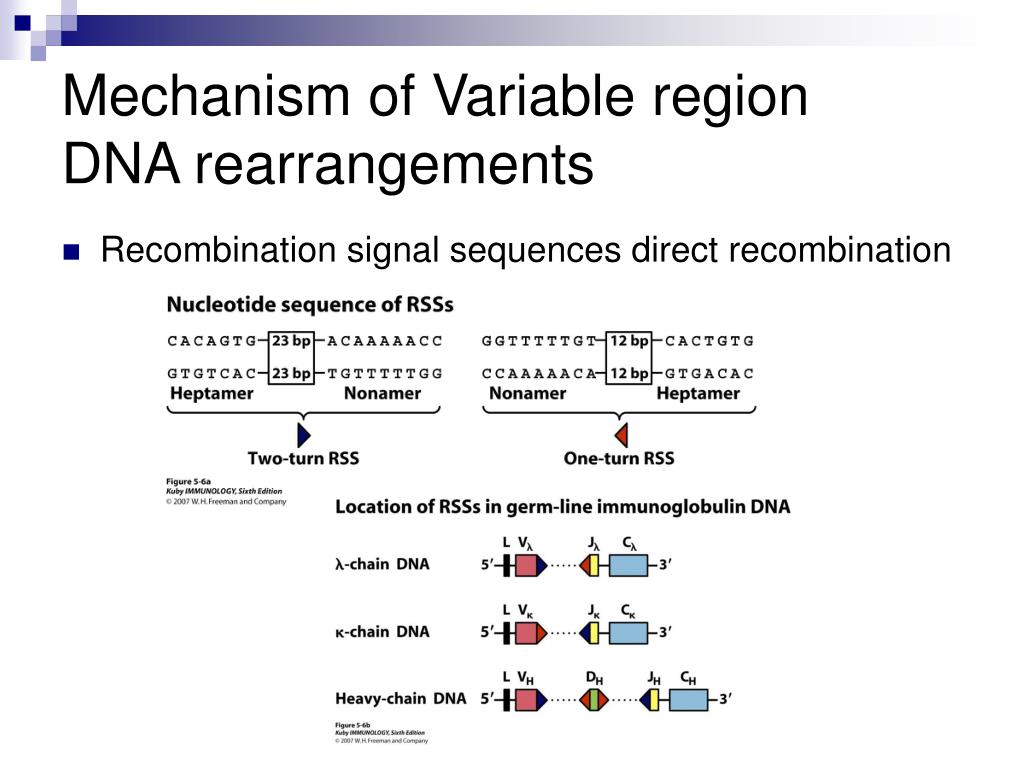

  19. Mechanism of Variable region DNA rearrangements • Recombination signal sequences direct recombination

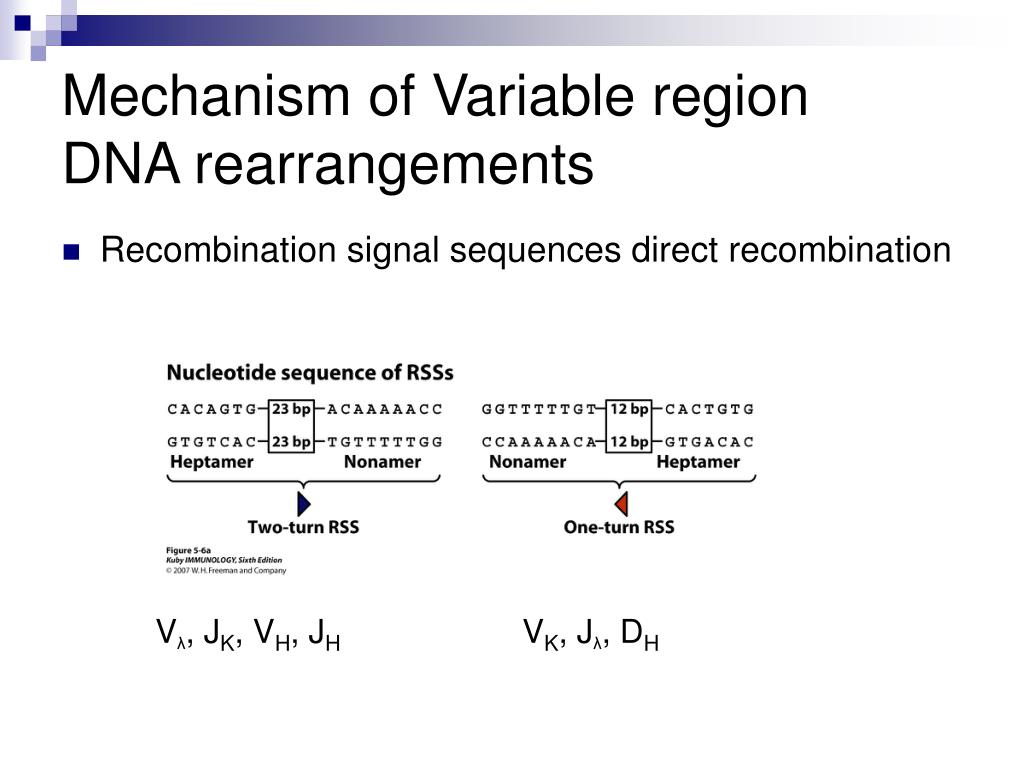

  20. Mechanism of Variable region DNA rearrangements • Recombination signal sequences direct recombination Vλ, JK, VH, JH VK, Jλ, DH

  21. Mechanism of Variable region DNA rearrangements • A one-turn RSS can only join with a two-turn RSS • Why might this be?

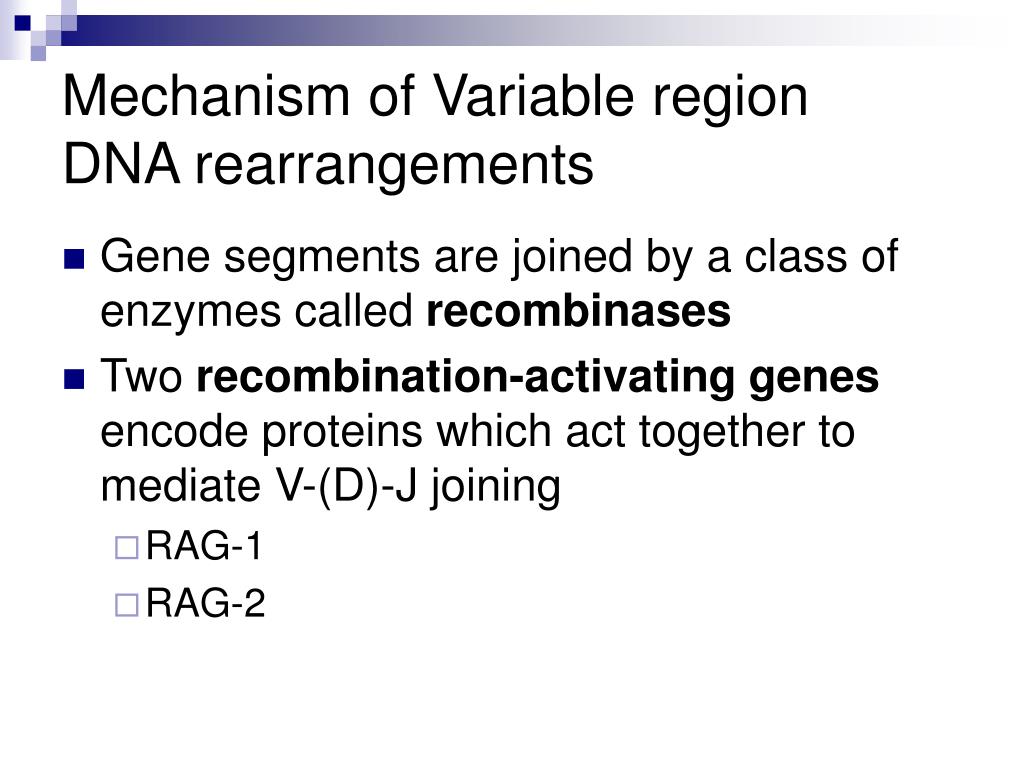

  22. Mechanism of Variable region DNA rearrangements • Gene segments are joined by a class of enzymes called recombinases • Two recombination-activating genes encode proteins which act together to mediate V-(D)-J joining • RAG-1 • RAG-2

  23. Same transcriptional orientation • (most common) b. opposite transcriptional orientation Addn. of P-nucleotides accomplished with repair enzymes

  24. ?

  25. Mechanism of Variable region DNA rearrangements • Rearrangements may be productive or nonproductive.

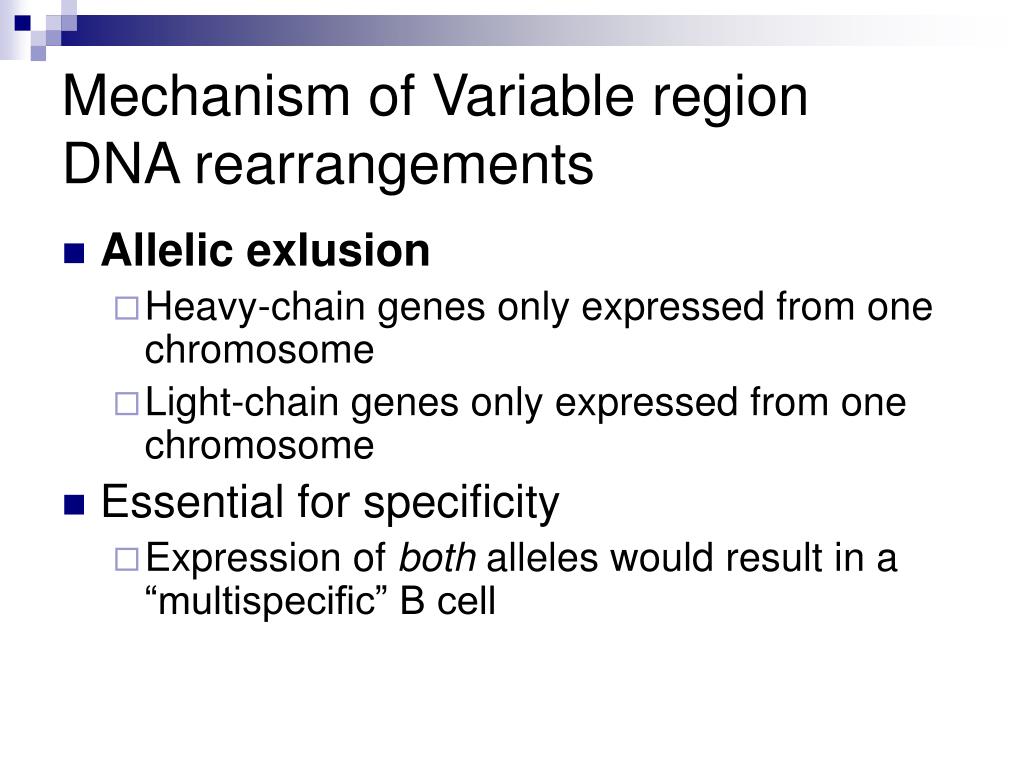

  26. Mechanism of Variable region DNA rearrangements • Allelic exlusion • Heavy-chain genes only expressed from one chromosome • Light-chain genes only expressed from one chromosome • Essential for specificity • Expression of both alleles would result in a “multispecific” B cell

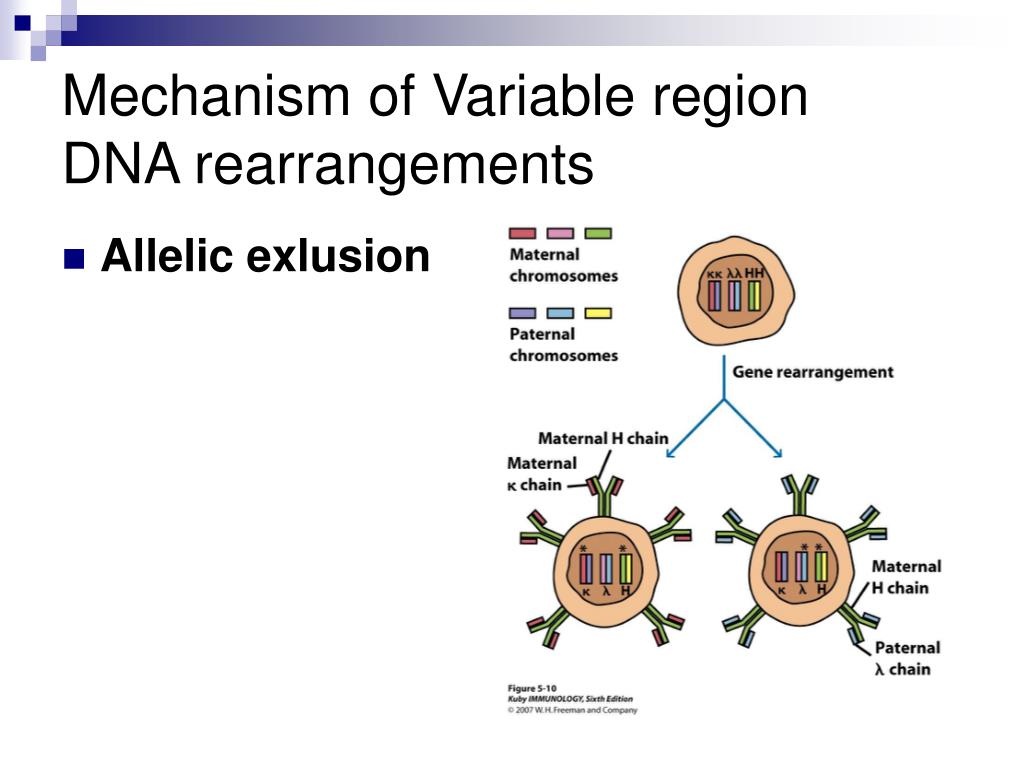

  27. Mechanism of Variable region DNA rearrangements • Allelic exlusion

  28. Generation of Ab diversity • Multiple germ-line gene segments • Combinatorial V-(D)-J joining • Junctional flexibility • P-region nucleotide addition • N-region nucleotide addition • Somatic hypermutation • Combinatorial association of light and heavy chains

  29. Possibly as high as 1010!

  30. Junctional flexibility

  31. P/N-addition

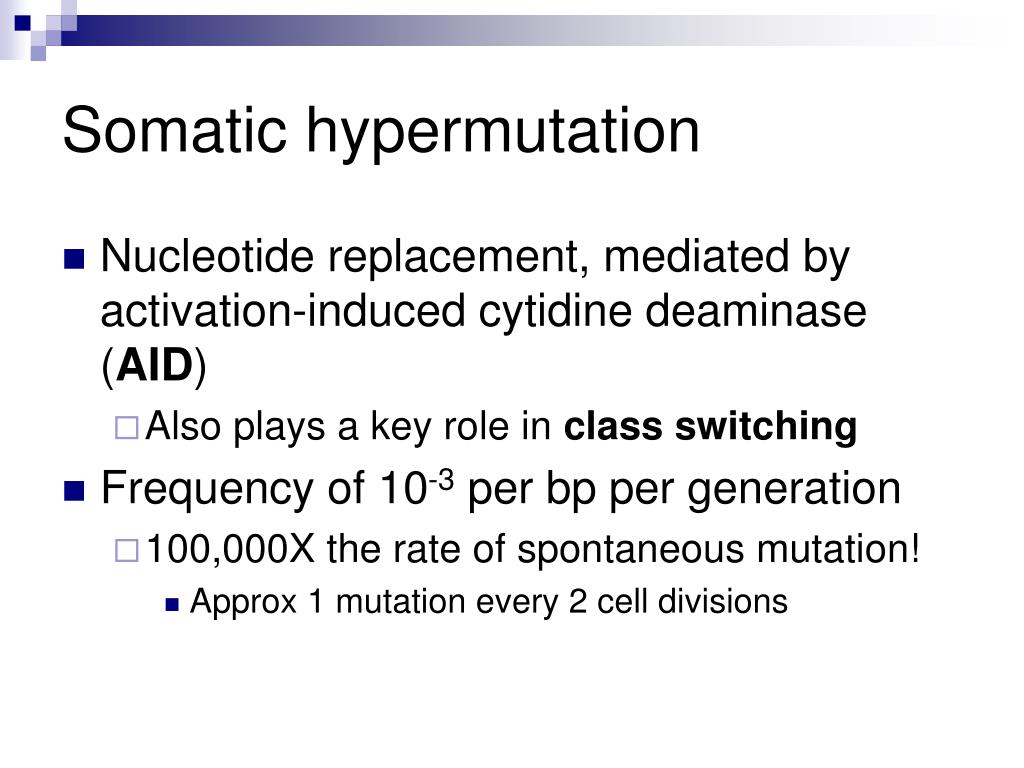

  32. Somatic hypermutation • Nucleotide replacement, mediated by activation-induced cytidine deaminase (AID) • Also plays a key role in class switching • Frequency of 10-3 per bp per generation • 100,000X the rate of spontaneous mutation! • Approx 1 mutation every 2 cell divisions

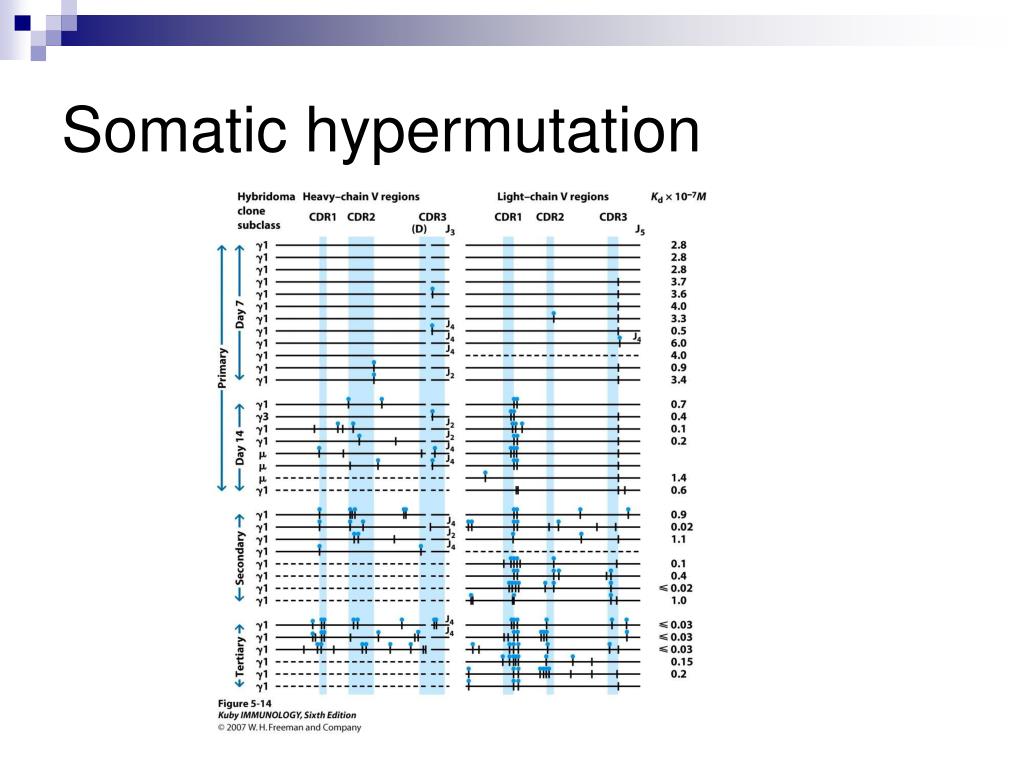

  33. Somatic hypermutation
