Advanced metallic materials

Advanced metallic materials

Prof. Priit Kulu

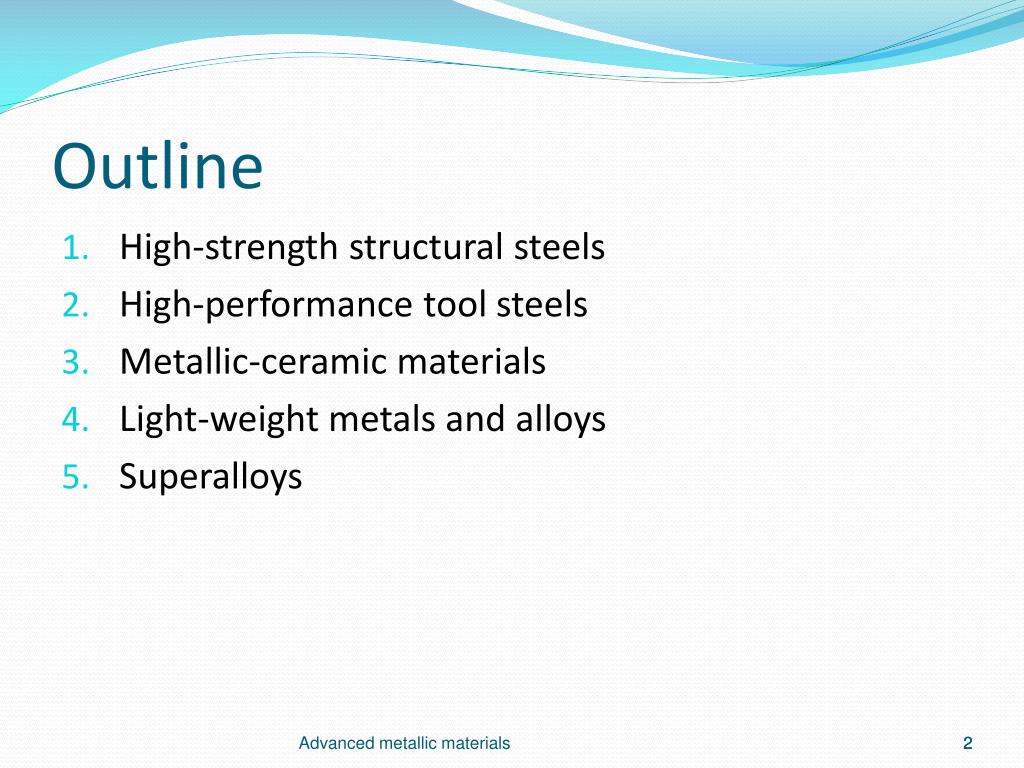

Outline

Outline

  • High-strength structural steels

  • High-performance tool steels

  • Metallic-ceramicmaterials

  • Light-weight metals and alloys

  • Superalloys

Advanced metallic materials

2


Advanced metallic materials1

Metallic materials with superior properties

Structuralalloys

Mg- and Al-alloys with superior properties, Al-metaglass, foams

Superconductive NbTi, Nb3Sn, Nb3Ge

Ti-alloys with thermomechanical properties, superalloys, maragingsteels, intermetallides, high-density alloys, shape-memory alloys

Neodymium rare-earth magnets (alloysofNd, Fe and B) are strongestknownpermanentmagnets. Sm-Comagnets

Amorphousalloyswithchemical and thermalproperties, Ni- and Fe aluminates

Biocompatible Ti-alloys

Advanced metallic materials

Advanced metallic materials

3


Strength groups of materials

Strength groups of materials

Classification based on tensilestrength (Rm) of materials

  • Low-strength (<250 N/mm2)

  • Mid-strength (250...750 N/mm2)

  • High-strength (750...1500 N/mm2)

  • Ultrahigh-strength (<1500 N/mm2)

Advanced metallic materials

4

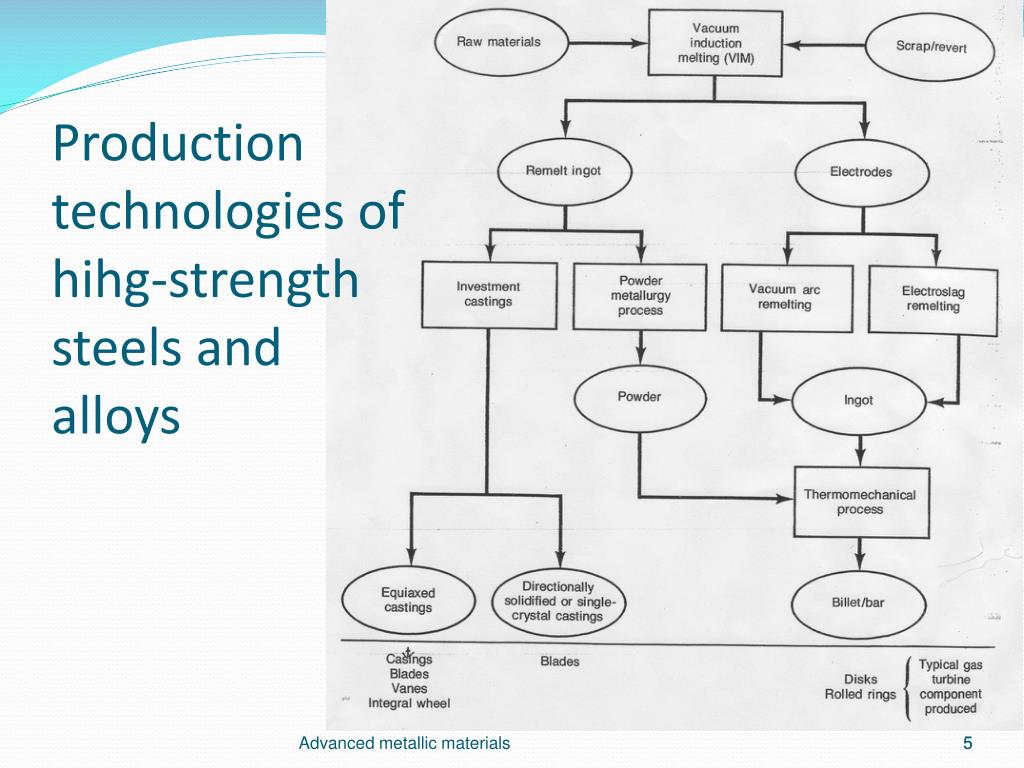

Production technologies of hihg strength steels and alloys

Production technologies of hihg-strength steels and alloys

Advanced metallic materials

5


Advanced metallic materials

  • High-strength structural steels

  • High-performance tool steels

  • Metallic-ceramicmaterials

  • Light-weight metals and alloys

  • Superalloys

Advanced metallic materials

6

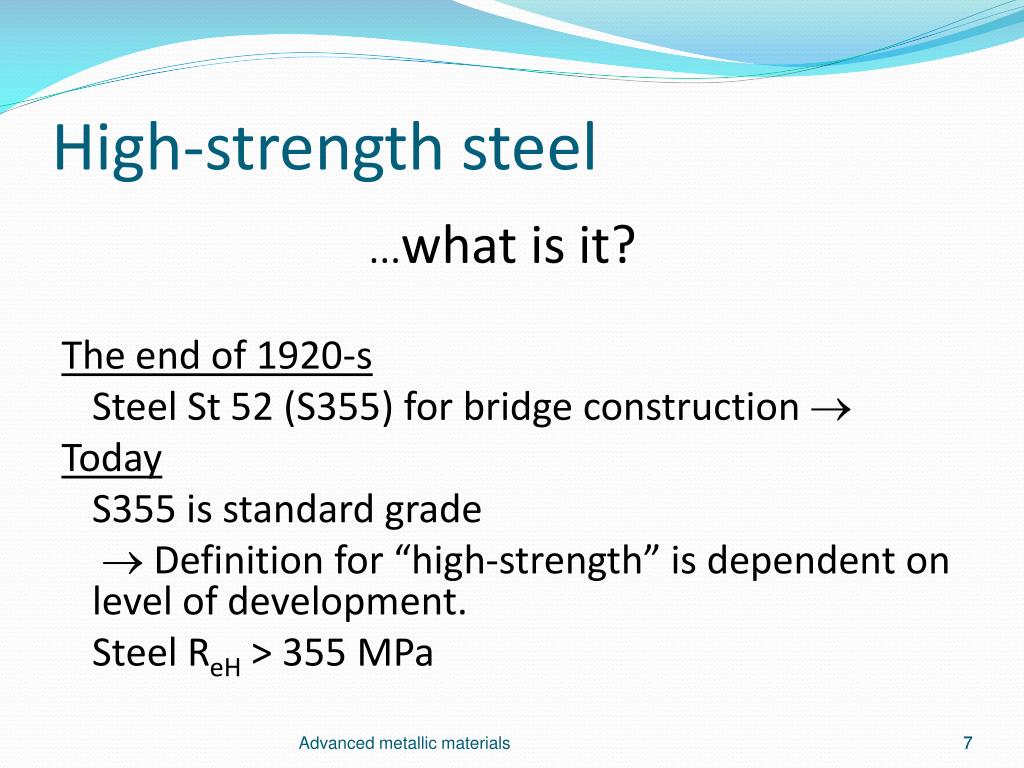

High strength steel

High-strength steel

...what is it?

The end of 1920-s

Steel St 52 (S355) for bridge construction 

Today

S355 is standard grade

 Definition for “high-strength” isdependent on level of development.

Steel ReH > 355 MPa

Advanced metallic materials

7


Methods for increasing strength

Alloying of ferrite

Hardening

Ageing

Ageing time, t

Alloying elements, %

Methods for increasing strength

  • structure refinement

  • alloying – B; microalloying elements – Nb, Ti, V and N

  • low carbon steels  transgranular fracture

  • two- and multi-phase structures – F+M; F+M+B

  • dispersion strengthening – micro- and nanosteels

  • deformation hardening:

    - low- & high-temperature

    - isothermal

    - marforming

Advanced metallic materials


Heat treatable boron steels

Heat treatable boron-steels

≈ 0,003% of B  increased through-hardenability  0,002...0,003% of B in solid solution has the same effect on hardenability than 0,7% Cr; 0,5% Mo or 1% Ni

Through-hardenability  diameter up to 200 mm

C24CR Rp0,21000; Rm1500; A 7%

Advanced metallic materials

9


Low alloy high strength steels

Low-alloy high-strength steels

Also known as HSLA steels

  • C = 0,2..0,3% ; alloying el: Mn, Si

  • Micro alloying with Nb, Ti and/or V – dispersion strengthening + grain refinementHX340LADHX460LAD

  • Rp0,2560; Rm640 N/mm2; A – min 15%

Advanced metallic materials

10


Two and multi phased steels

Two- and multi-phased steels

Also known as duplex (DP) and complex (CP) steels

Ultra-High-strength (UHS) ductile steels

  • Two-phase LITEC DP Rp0,2750 N/mm2; Rm980 N/mm2; A – min 10%

Advanced metallic materials

11


Multi phase litec cp r p0 2 900 r m 980 n mm 2 a 7

- Multi-phase LITEC CP Rp0,2900; Rm980 N/mm2; A – 7%

DP-steel

CP-steel

→good formability and high strength

→ability of high energy absorption

→high strain-hardening rate

→good fatigue strength

Advanced metallic materials

12


Maraging martensite ageing steels 1

Maraging (martensite-ageing) steels (1)

Martensitic steels ( C%)

  • low ductility and toughness in case of high Rm

  • M decomposition, formation of carbide phase  brittleness

    Maraging steels in 1980

  • low C-content (0,03%)  transgranular fraction

  • alloying el. – Ni (17...25%), Mo + Ti, Al, Ta etc.

    Quenching  C-free martensite,

    Ageing  intermetallides (4 – 5) nm, (NiTi, Ni3Ti, NiAl, Ni3Mo etc.)

    Rm  2000 N/mm2, Rp0,2  1500 N/mm2, A = 10 - 12%

Advanced metallic materials

13

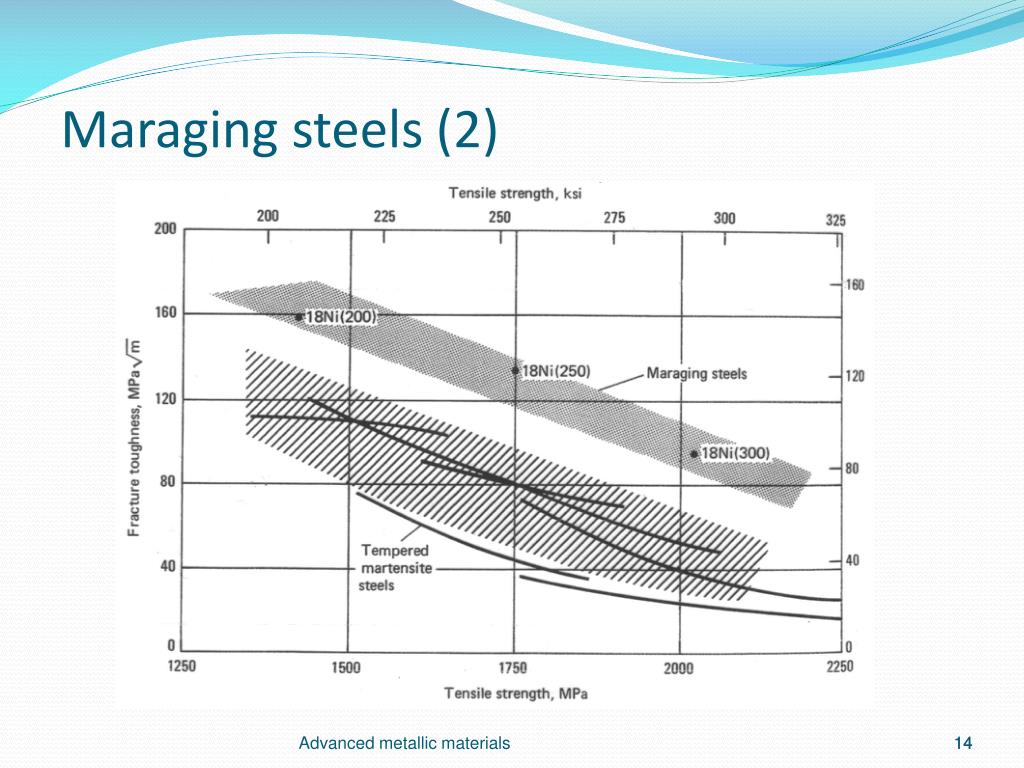

Maraging steels 2

Maraging steels (2)

Advanced metallic materials

14


Termomechanically processed deformation hardened

Termomechanically processed / deformation hardened

high temperature

low temperature

isothermal

marforming

Advanced metallic materials

15


Thermomechnical rolling

Thermomechnical rolling


Trip steels transformation induced plasticity

TRIP-steels (Transformation Induced Plasticity)

  • Low alloy steels (car industry)

    0,2 – 0,3 % C; 1,5 – 2,0 % Mn, Si + Al

  • High alloy Ni-Cr steeks

    0,2 – 0,3 % C; 8 – 32 % Ni; 8 – 14 % Cr+Mn (0,5 – 2,5%), Mo, Si

    Quenching (985 – 1200 °C) → F, B, A

    Deformation (< Trecr = 250 – 550 °C), A → M

    Rm →1700, Rp0,2 → 1550, A =50 – 60 %, ↑KIC, σ-1


Strength plasticity of high strength steels

Rp0,2 N/mm2

KTMT

TMT + def. ageing

2000

Maraging steels (high-alloy)

1000

Low-alloy steels

20

40

60

60

A%

Strength-plasticity of high-strength steels

TRIP-steels

TMT + def. ageing


Advanced metallic materials

  • High-strength structural steels

  • High-performance tool steels

  • Metallic-ceramicmaterials

  • Light-weight metals and alloys

  • Superalloys

Advanced metallic materials

19


Advanced tool steels 1

Advanced tool steels (1)

I generation of high-speed steels (HSS)

  • carbide temper hardness steels 500 - 650 0C, e.g. HS 6 – 5 – 2 – 5W-Mo -V –Co

  • Intermetallic temper hardness steels650 - 750 0C, Co7W6, (CoFe)7W6 etc.(11 – 20%)W; 7% Mo; (1-3%)V; (20 – 25%)Co

    Structure (cast and rolled)

Advanced metallic materials

20


Advanced tool steels 2

Advanced tool steels (2)

II generation of high-speed steels – PM steels (PM/HIP)

Uddeholmi steels Vanadis 4, 6, 10, 23, 30, 60 (Super Clean) (1,3 - 2,9%) C; → 6,5 W; (1,5 - 7%) Mo; (3,1 - 9,8%) V; → 10,5% Co

Structure (PM / HIPed)

Advanced metallic materials

21


Advanced tool steels 3

Advanced tool steels (3)

III generation of high-speed steels – Sprayformed,

SF + HIP PM steels,

Vanadis 4 EXTRA

WEARTEC

2,8 C; 8,9 V; 7,0 Cr; 2,3 Mo; Si; Mn

ROLTEC

1,4C; 4,6Cr; 3,7 V; 3,2 Mo; Si; Mn

TOUGHTEC

1,6C; 7,2V; 5,0 Cr; 2,3 Mo; Si; Mn

Advanced metallic materials

22


Sf hip

SF /HIP

Similar to PM/HIP, slab formation by spraying methods

High-Tech Materials & Technologies

23


Strength of high speed steels

TRZ, GPa

Diameter of carbide particles, m

Strength of high-speed steels

Advanced metallic materials

24


Advanced metallic materials

  • High-strength structural steels

  • High-performance tool steels

  • Metallic-ceramicmaterials

  • Light-weight metals and alloys

  • Superalloys

Advanced metallic materials

25


Classification of wear resistant materials depending on volumetric content of hard phase

Classification of wear resistant materials depending on volumetric content of hard phase

Advanced metallic materials

26


Metallic ceramic composites

Metallic-ceramic composites

Carbide steels and alloys

  • Ferro-TiC

    Steel (50 - 70)% -TiC

  • Double-reinforced MMC

    (Cr-steel + 20%VC) + 20%WC

  • Self-fluxing alloys

    NiCrSiB +  50% (WC-Co)

    Ceramic/metallic

  • TiC-NiMo – (50 - 60)% (NiMo)(2:1) 920 – 1620 HV10

  • Cr3C2-NiCr – (50 - 60)% NiCr

Advanced metallic materials

27


Advanced metallic materials

  • High-strength structural steels

  • High-performance tool steels

  • Metallic-ceramicmaterials

  • Light-weight metals and alloys

  • Superalloys

Advanced metallic materials

28


Light weight materials mg alloys

Light-weight materials – Mg alloys

Mg-alloys (Mg:  = 1740 kg/m3, Ts – 649 0C)

Alloying elements: Al (3 - 10%); Zn, up to (5 – 6%); Mn; Zr

Rm 300 N/mm2 (deformable alloys)Rm/  20

220 N/mm2 (cast alloy)

Advanced metallic materials

29


Light weight materials al alloys

Light-weight materials – Al alloys

Al-alloys

  • Al-Li alloys (Li is only dopant, which  Rm, E, however  = 2500 kg/m3) 2Li, 4Mg,  Rm = 220 – 350; Rp0,2 = 135 – 210 N/mm2

  • Powder-aluminum-alloys

    • dispersion strengthened Al-alloys (SAP-Al2O315%, Al-C-alloys – Al4C3 20 volume%), allowed working temperature up to 550 0C

  • Foam-aluminum ( ~ 200 kg/m3)

Advanced metallic materials

30


Advanced metallic materials

  • High-strength structural steels

  • High-performance tool steels

  • Metallic-ceramicmaterials

  • Light-weight metals and alloys

  • Superalloys

Advanced metallic materials

31


Superalloys

Superalloys

…alloys capable of service at high temperatures, usually above 1000 °C

→ heat-resistant high-temperature strength alloys

  • Ni-alloys

  • Co-alloys

    heat resistance (oxidation resistance > 600°C)

    refractory steels = heat res. + high temp. strength

Advanced metallic materials

32


Ni alloys

Ni-alloys

Ni uses: ca 60% – stainless steels

12% – Ni-alloys

10% – coatings

10% – alloy steels

Heat resistant alloys (superalloys)

  • wrought (Inconel Ni – 20-23 Cr; Hastelloy Ni- 7-22 Cr-Co)

  • cast ( polycrystalline, directionally solidified, single crystal)

  • PM (HIP-ed, IN 100, Rene 95→ gasturbine disk)

    718 (cast) Ni – (4,75 – 5,5%) Nb → aerospace, nuclear structural

    applications (-250 – +700 °C).

    MA 754 PM/HIP Ni – 1% Y2O3

Advanced metallic materials

33


Co alloys

Co-alloys

Co uses: ca46% – superalloys

15% – steels

10% – cemented carbides

Wear resistant alloys

  • Stellite – Co (10 –30%); Cr (1,5 –22) Ni; up to 15% W; 1 Mo

    Heat resistant alloys

  • wrought Co + (20 –30%) Cr; (14 –15%) W

  • cast Co +(23 –29%) Cr; (1 –10 %) Ni; 7 W

    Corrosion resistant alloys

    Ultimet Co + 26Cr; 9Ni; 5Mo; 2W

Advanced metallic materials

34


General stress rupture behaviour of superalloys

General stress-rupture behaviour of superalloys


Thank you for your attention

Thank you for your attention!
