Chest trauma


Victor Politi,M.D., FACP

Medical Director, SVCMC Physician Assistant Program



  • Each year there are nearly 150,000 accidental deaths in the United States

  • 25% of these deaths are a direct result of thoracic trauma

  • An additional 25% of traumatic deaths have chest injury as a contributing factor



  • Chest injuries are the second leading cause of trauma deaths each year.

  • Most thoracic injuries (90% of blunt trauma and 70% to 85% of penetrating trauma) can be managed without surgery.

Chest trauma


Causes of thoracic trauma


  • Falls

  • 3 times the height of the patient

  • Blast Injuries

  • overpressure, plasma forced into alveoli

  • Blunt Trauma

  • Penetrating trauma

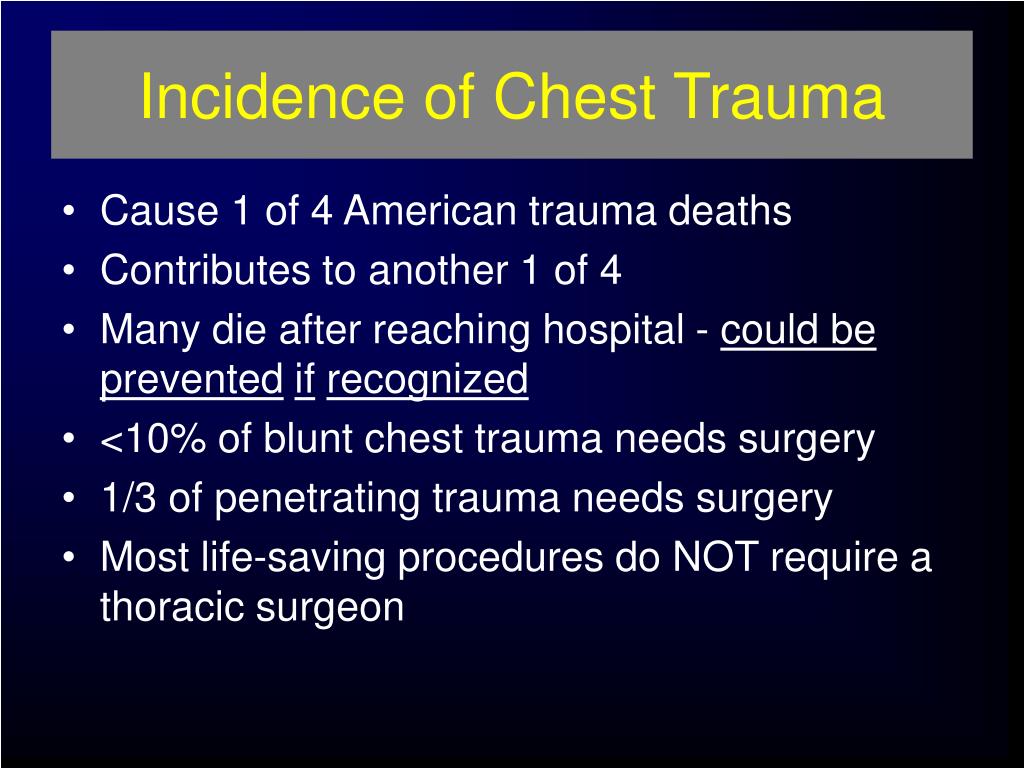

Incidence of chest trauma

Incidence of Chest Trauma

  • Cause 1 of 4 American trauma deaths

  • Contributes to another 1 of 4

  • Many die after reaching hospital - could bepreventedifrecognized

  • <10% of blunt chest trauma needs surgery

  • 1/3 of penetrating trauma needs surgery

  • Most life-saving procedures do NOT require a thoracic surgeon

Classifications of chest injuries

Classifications of Chest Injuries

  • Skeletal injury

  • Pulmonary injury

  • Heart and great vessel injury

  • Diaphragmatic injury

Classification mechanism of injury

ClassificationMechanism of Injury

  • Blunt thoracic injuries

  • Forces distributed over a large area

    • Deceleration

    • Compression

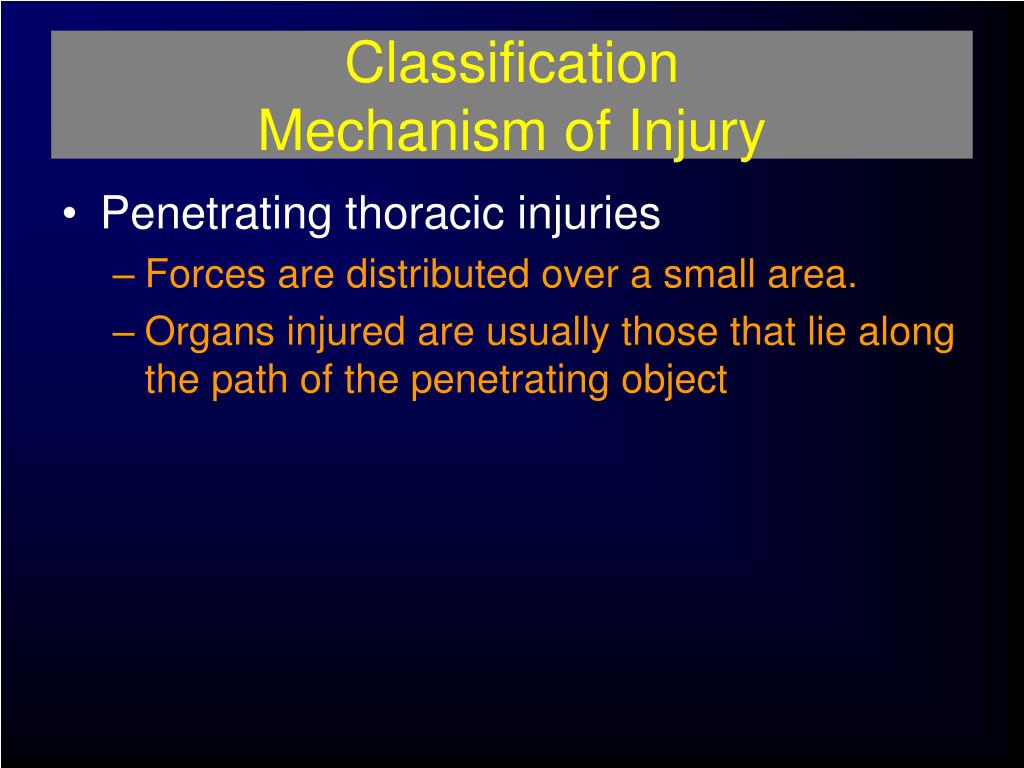

Classification mechanism of injury1

ClassificationMechanism of Injury

  • Penetrating thoracic injuries

    • Forces are distributed over a small area.

    • Organs injured are usually those that lie along the path of the penetrating object

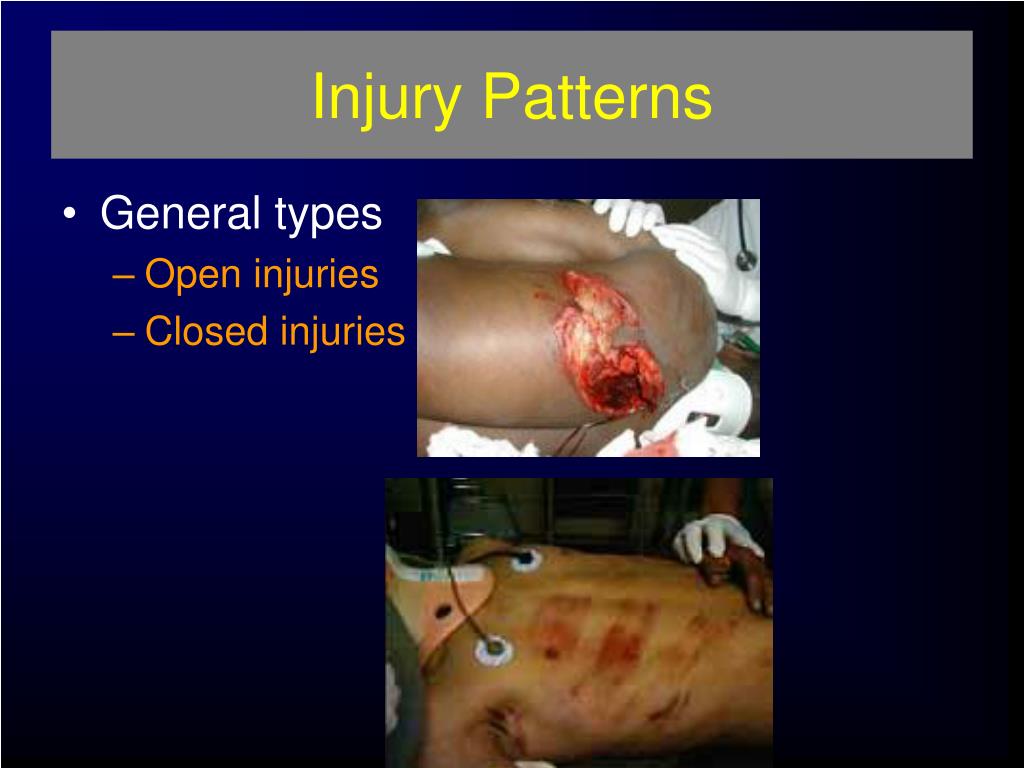

Injury patterns

Injury Patterns

  • General types

    • Open injuries

    • Closed injuries

Injury patterns1

Injury Patterns

  • Cardiovascular

  • Pleural and pulmonary

  • Mediastinal

  • Diaphragmatic

  • Esophageal

  • Penetrating cardiac trauma

  • Blast injury

  • Confined spaces

  • Shock wave

  • Thoracic cage



  • Skin

  • Bones

    • Thoracic cage

    • Sternum

    • Thoracic spine

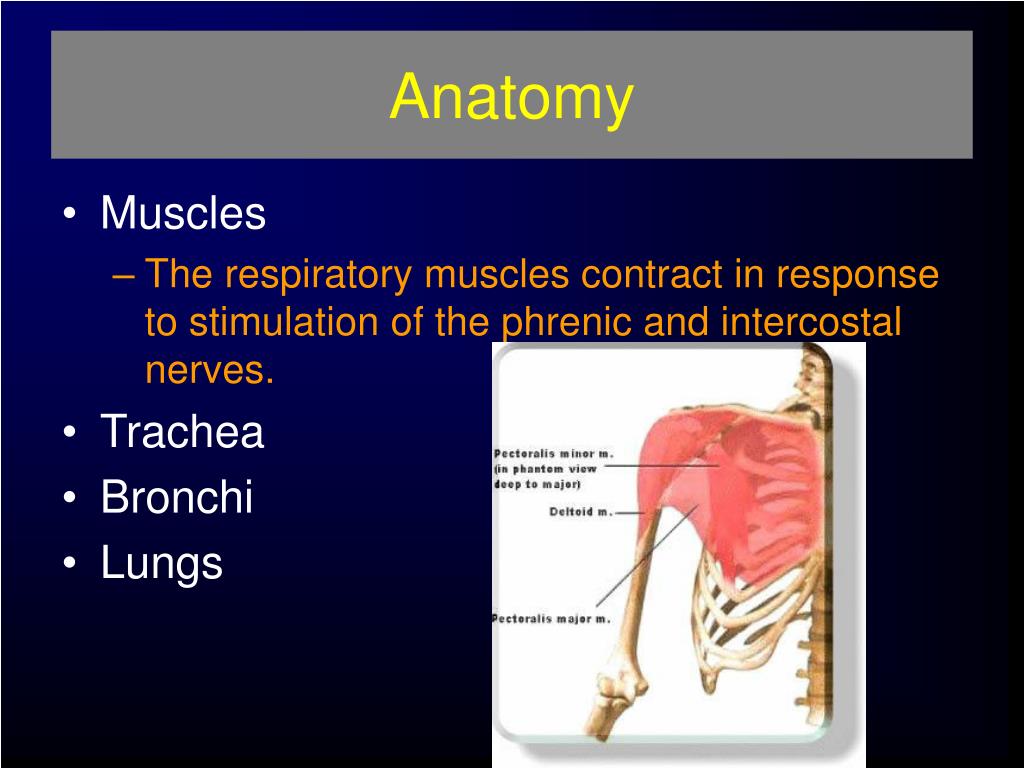

  • Muscles

    • The respiratory muscles contract in response to stimulation of the phrenic and intercostal nerves.

  • Trachea

  • Bronchi

  • Lungs

Vascular anatomy

Vascular Anatomy

  • Arteries

    • Aorta

    • Carotid

    • Subclavian

    • Intercostal

Vascular anatomy1

Vascular Anatomy

  • Veins

    • Superior vena cava

    • Inferior vena cava

    • Subclavian

    • Internal jugular

Vascular anatomy2

Vascular Anatomy

  • Pulmonary

    • Arteries

    • Veins

Vascular anatomy3

Vascular Anatomy

  • Heart

    • Ventricles

    • Atria

    • Valves

    • Pericardium

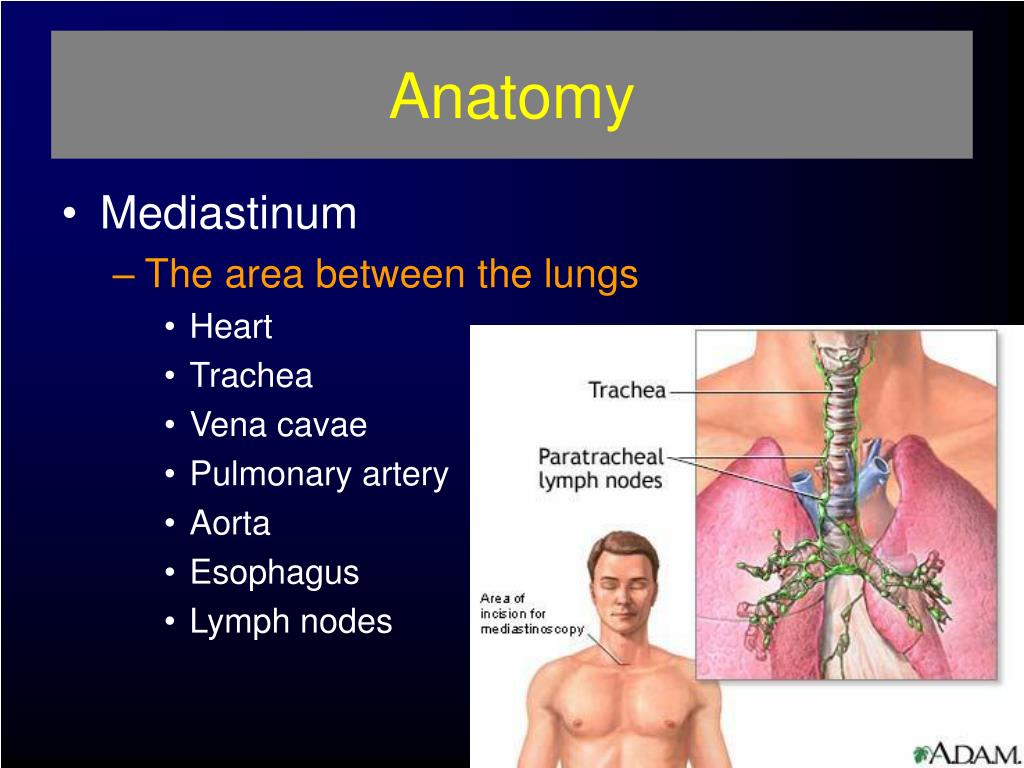

  • Mediastinum

    • The area between the lungs

      • Heart

      • Trachea

      • Vena cavae

      • Pulmonary artery

      • Aorta

      • Esophagus

      • Lymph nodes

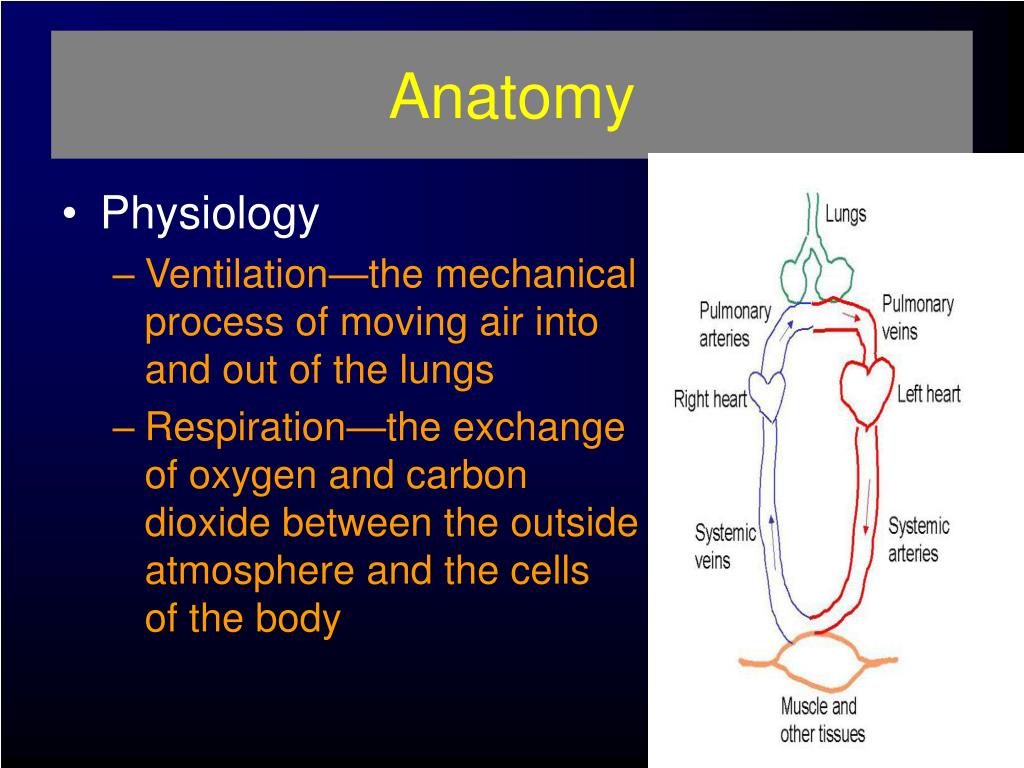

  • Physiology

    • Ventilation—the mechanical process of moving air into and out of the lungs

    • Respiration—the exchange of oxygen and carbon dioxide between the outside atmosphere and the cells of the body



  • Impairments in cardiac output

    • Blood loss

    • Increased intrapleural pressures

    • Blood in the pericardial sac

    • Myocardial valve damage

    • Vascular disruption



  • Impairments in cardiac output

    • Blood loss

    • Increased intrapleural pressures

    • Blood in the pericardial sac

    • Myocardial valve damage

    • Vascular disruption



  • Impairments in gas exchange

    • Atelectasis

    • Contused lung tissue

    • Disruption of the respiratory tract Impairments in gas exchange

    • Atelectasis

    • Contused lung tissue

    • Disruption of the respiratory tract

Chest trauma initial evaluation

Chest TraumaInitial Evaluation

  • Hypoxia and hypoventilation are the primary killers of acute trauma patients.

  • Assessment of ventilation is therefore given high priority in the primary survey - as the second 'B' or Breathing stage.

Pathophysiology of chest trauma

Pathophysiology of Chest Trauma





Inadequate oxygen

delivery to tissues

changes in






Pathophysiology of chest trauma1

Pathophysiology of Chest Trauma

  • Tissue hypoxia

  • Hypercarbia

  • Respiratory acidosis - inadequate ventilation

  • Metabolic acidosis - tissue hypoperfusion (e.g., shock)

Chest trauma initial evaluation1

Chest TraumaInitial Evaluation

  • Life-threatening injuries should be identified and treated immediately.

  • Injuries may develop over time, and become life-threatening during the course of a resuscitation.

  • Re-assessment and evaluation is therefore extremely important, especially if the patient's condition deteriorates.

Chest trauma initial evaluation mechanism of injury

Chest Trauma - Initial EvaluationMechanism of Injury

  • Mechanism of injury is important in so far as blunt and penetrating injuries have different pathophysiologies and clinical courses.

  • Most blunt injuries are managed non-operatively or with simple interventions like intubation and ventilation and chest tube insertion.

Chest trauma initial evaluation mechanism of injury1

Chest Trauma - Initial EvaluationMechanism of Injury

  • Diagnosis of blunt injuries may be more difficult and require additional investigations such as CT scanning.

  • Patients with penetrating trauma may deteriorate rapidly, and recover much faster than patients with blunt injury.

Initial assessment and management

Initial assessment and management

  • Primary survey

  • Resuscitation of vital functions

  • Detailed secondary survey

  • Definitive care

Initial assessment and management1

Initial assessment and management

  • Hypoxia is most serious problem - early interventions aimed at reversing

  • Immediate life-threatening injuries treated quickly and simply - usually with a tube or a needle

  • Secondary survey guided by high suspicion for specific injuries

6 immediate life threats

6 Immediate Life Threats

  • Airway obstruction

  • Tension pneumothorax

  • Open pneumothorax

    “sucking chest wound”

  • Massive hemothorax

  • Flail chest

  • Cardiac tamponade

6 potential life threats

6 Potential Life Threats

  • Pulmonary contusion

  • Myocardial contusion

  • Traumatic aortic rupture

  • Traumatic diaphragmatic


  • Tracheobronchial tree

    injury - larynx, trachea,


  • Esophageal trauma

6 other frequent injuries

6 Other Frequent Injuries

  • Subcutaneous emphysema

  • Traumatic asphyxia

  • Simple pneumothorax

  • Hemothorax

  • Scapula fracture

  • Rib fractures

Chest trauma initial evaluation primary survey

Chest Trauma – Initial EvaluationPrimary Survey

  • Monitoring

    • Oxygen Saturation

    • End-tidal CO2 (if intubated)

  • Diagnostic Studies

    • Chest X-ray

    • FAST ultrasound

    • Arterial Blood Gas

  • Interventions

    • Chest drain

    • ED Thoracotomy

Chest trauma initial evaluation secondary survey

Chest Trauma – Initial EvaluationSecondary Survey

  • The secondary survey is a more detailed and complete examination, aimed at identifying all injuries and planning further investigation and treatment.

  • Chest injuries identified on secondary survey and its adjuncts are:

    • Rib fractures and flail chest

    • Pulmonary contusion

    • Simple pneumothorax

    • Simple haemothorax

    • Blunt aortic injury

    • Blunt myocardial injury

Primary survey

Primary Survey

  • Airway

  • Breathing

  • Circulation

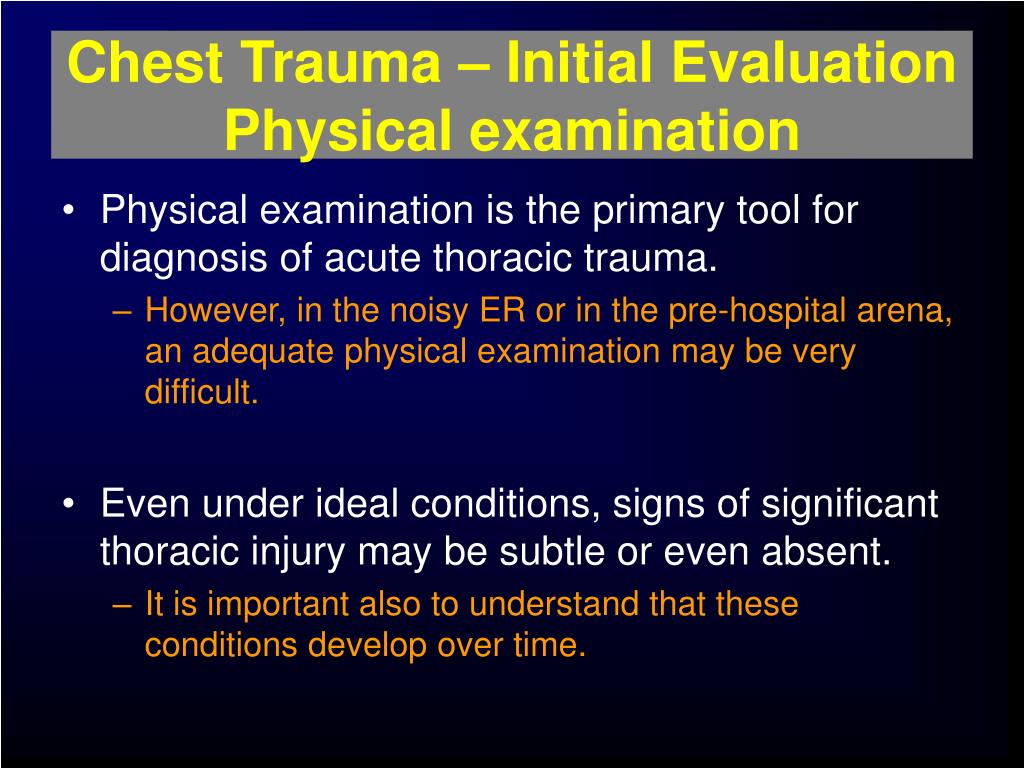

Chest trauma initial evaluation physical examination

Chest Trauma – Initial EvaluationPhysical examination

  • Physical examination is the primary tool for diagnosis of acute thoracic trauma.

    • However, in the noisy ER or in the pre-hospital arena, an adequate physical examination may be very difficult.

  • Even under ideal conditions, signs of significant thoracic injury may be subtle or even absent.

    • It is important also to understand that these conditions develop over time.

Chest trauma initial evaluation physical examination1

Chest Trauma – Initial EvaluationPhysical examination

  • With the advantages of rapid prehospital transport many of these conditions will not have fully developed by the time the patient reaches the emergency department.

  • While the initial primary survey may identify some of these conditions, an initial normal examination does not exclude any of them, and serial examinations and use of diagnostic adjuncts is important.

Chest trauma initial evaluation physical examination2

Chest Trauma – Initial EvaluationPhysical examination

  • Look

    • Determine the respiratory rate and depthLook for chest wall asymmetry. Paradoxical chest wall motion Look for bruising, seat belt or steering wheel marks, penetrating wounds

  • Feel

    • Feel for the trachea for deviationAssess whether there is adequate and equal chest wall movementFeel for chest wall tenderness or rib 'crunching' indicating rib fracturesFeel for subcutaneous emphysema

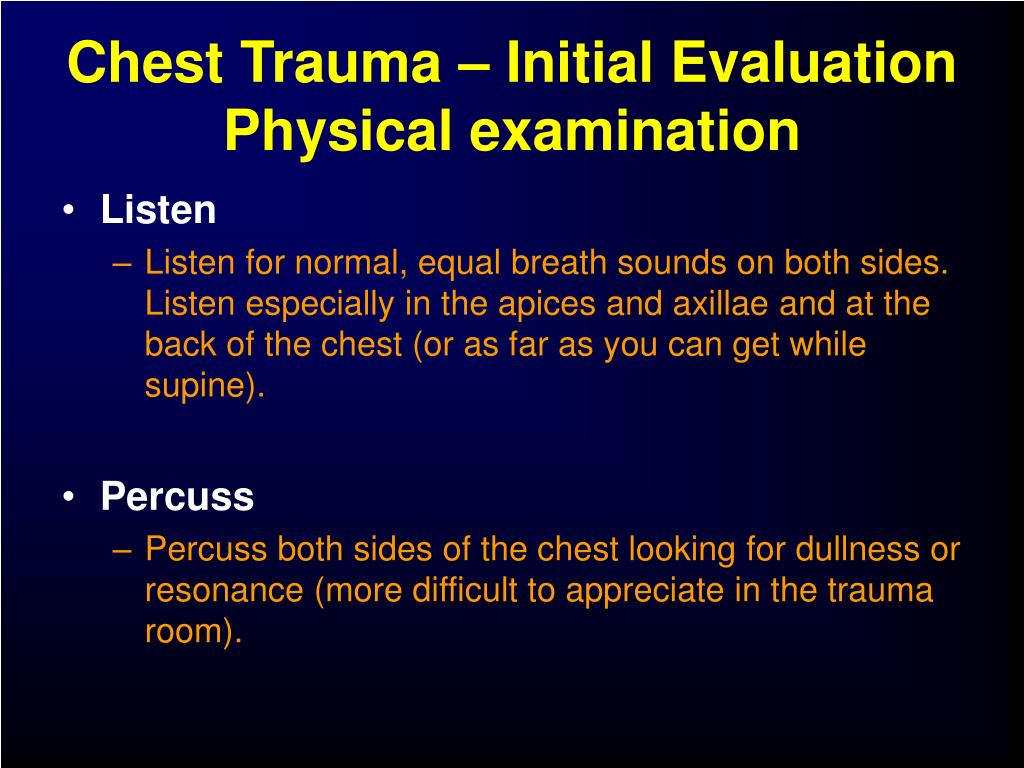

Chest trauma initial evaluation physical examination3

Chest Trauma – Initial EvaluationPhysical examination

  • Listen

    • Listen for normal, equal breath sounds on both sides.Listen especially in the apices and axillae and at the back of the chest (or as far as you can get while supine).

  • Percuss

    • Percuss both sides of the chest looking for dullness or resonance (more difficult to appreciate in the trauma room).

Chest trauma initial evaluation classic pe findings

Chest Trauma – Initial Evaluation Classic PE findings

  • The size of the injury, and position of the patient will affect the clinical findings.

    • For example, a small hemothorax may have no clinical signs at all.

    • A moderate hemothorax will be dull to percussion with absent breath sounds at the bases in the erect patient, whereas signs will be posterior in the supine patient. This is also reflected in chest X-ray findings.

Chest trauma initial evaluation classic pe findings1

Chest Trauma – Initial Evaluation Classic PE findings

Chest trauma initial evaluation2

Chest Trauma – Initial Evaluation

  • Note- a collapsed lung on one side can mimic a tension pneumothorax on the other side.

    • This is a common error, usually occurring when a tracheal tube has been incorrectly placed in the right main bronchus, obstructing the right upper lobe bronchus.

    • This leads to collapse of the right upper lobe and shift of the trachea to the right.

    • The left chest appears hype-resonant compared to the left, and breath sounds may be difficult to determine.

    • The patient may end up with an unnecessary chest drain.

Chest trauma initial evaluation3

Chest Trauma – Initial Evaluation

  • Oxygen saturation

    • Pulse oximetry allows continuous, non-invasive assessment of arterial hemoglobin oxygen saturation.

    • Continuous oxygen saturation monitoring should be used during the resuscitation of all trauma patients.

Chest trauma initial evaluation4

Chest Trauma – Initial Evaluation

  • End-tidal carbon dioxide

    • End-tidal carbon dioxide monitoring (ETCO2) should be used in all intubated trauma patients.

    • ETCO2 is the only definitive method of confirming placement of a tracheal tube.

    • Other methods, such as watching for chest wall movement and listening to breath sounds or for air in the stomach are inaccurate, especially in the setting of the trauma resuscitation room.

    • ETCO2 also allows for the estimation of the arterial PaCO2 level, and for its continuous montioring.

    • This is important for all mechanically ventilated patients and vital for patients with traumatic brain injury.

Chest trauma initial evaluation5

Chest Trauma – Initial Evaluation

  • Chest X-ray

    • The plain antero-posterior chest radiograph remains the standard initial evaluation for the evaluation of chest trauma.

    • Although the indications and techniques are slightly different for blunt and penetrating trauma.

Chest trauma initial evaluation6

Chest Trauma – Initial Evaluation

  • Blunt trauma

    • All blunt trauma patients should have a portable chest X-ray performed in the trauma resuscitation room.

    • The chest X-ray is a rapid screening examination that will identify significant thoracic problems requiring intervention.

Chest trauma initial evaluation7

Chest Trauma – Initial Evaluation

  • Blunt trauma

    • Chest radiographs in blunt trauma patients are taken in the supine position, as unstable spinal fractures have not been ruled out at this stage.

    • Chest films should be slightly over-penetrated to allow better visualization of the thoracic spine, paraspinal lines and aortic outline.

Chest trauma initial evaluation8

Chest Trauma – Initial Evaluation

  • Penetrating trauma

    • Patients with a stab wound that may have violated the thoracic cavity or mediastinum should have a chest X-ray.

    • In practice, this means all patients with stab wounds between the neck and the umbilicus (front or back!).

Chest trauma initial evaluation9

Chest Trauma – Initial Evaluation

  • Penetrating trauma

    • For gunshot wounds, all patients with wounds between the neck and the pelvis/buttock area should have a chest film.

    • This is especially true if the bullet track is unclear, there is a missing bullet or an odd number of entry/exit wounds.

Chest trauma initial evaluation10

Chest Trauma – Initial Evaluation

  • Penetrating trauma

    • The chest-X-ray in penetrating trauma should be taken with the patient sitting upright if possible.

    • This will increase the sensitivity for detecting a small hemothorax, pneumothorax or diaphragm injury.

Chest trauma initial evaluation11

Chest Trauma – Initial Evaluation

  • FAST examination

    • Focused abdominal sonography for trauma (FAST) is a rapid ultrasound examination performed in the trauma resuscitation room looking specifically from blood - in the peritoneum, pericardium, or hemithorax.

    • Currently, FAST is indicated for all hemodynamically unstable blunt trauma patients. It may also have a role in some patients with penetrating trauma.

Chest trauma initial evaluation12

Chest Trauma – Initial Evaluation

  • Arterial Blood Gas analysis

    • Arterial blood gas analyses should be drawn on all intubated and ventilated trauma patients, and any patient with significant chest trauma or evidence of hemodynamic instability.

Chest trauma initial evaluation13

Chest Trauma – Initial Evaluation

  • As part of the secondary survey the chest is fully examined, front and back.

  • Special attention is paid to identifying any missed injuries or progression of previously identified injuries.

  • The examination is also directed by findings on the chest X-ray or by information from monitoring adjuncts.

Chest trauma initial evaluation14

Chest Trauma – Initial Evaluation

  • Further investigations may include:

    • CT scan

    • Angiography

    • Oesophagoscopy / oesophagram

    • Bronchoscopy

  • Definitive care may include:

    • Chest drain

    • Thoracotomy

    • Transfer to ICU area for ventilation / observation

Assessment findings

Assessment Findings

  • Pulse

    • Deficit

    • Tachycardia

    • Bradycardia

  • Blood pressure

    • Narrowed pulse pressure

    • Hypertension

    • Hypotension

    • Pulsus paradoxus

Assessment findings1

Assessment Findings

  • Respiratory rate and effort

    • Tachypnea

    • Bradypnea

    • Labored

    • Retractions

    • Other evidence of respiratory distress

Assessment findings2

Assessment Findings

  • Skin

    • Diaphoresis

    • Pallor

    • Cyanosis

    • Open wounds

    • Ecchymosis

    • Other evidence of trauma

Assessment neck

Assessment (Neck)

  • Position of trachea

  • Subcutaneous emphysema

  • Jugular venous distention

  • Penetrating wounds

Assessment chest

Assessment (Chest)

  • Contusions

  • Tenderness

  • Asymmetry

  • Lung sounds

    • Absent or decreased

    • Unilateral

    • Bilateral

    • Location

    • Bowel sounds in hemothorax

Abnormal percussion finding

Abnormal Percussion Finding

  • Hyperresonance–Air

  • Hyporesonance–Fluid

Assessment ecg

Assessment ECG

  • ST/T wave elevation or depression

    • Conduction disturbances

    • Rhythm disturbances



  • Dyspnea

  • Chest pain

  • Associated symptoms

    • Other areas of pain or discomfort

    • Symptoms before incident

  • Past history of cardiorespiratory disease

  • Use of restraint in motor vehicle crash



  • Airway and ventilation

    • High-concentration oxygen

    • Pleural decompression

    • Endotracheal intubation

    • Needle cricothyrotomy

    • Surgical cricothyrotomy

    • Positive-pressure ventilation

    • Occlude open wounds

    • Stabilize chest wall



  • Manage cardiac dysrhythmias

  • Intravenous access



  • Analgesics

  • Antidysrhythmics



  • Needle thoracostomy

  • Tube thoracostomy—in hospital management

  • Pericardiocentesis—in hospital

Skeletal injury

Skeletal Injury

  • Clavicular fractures

    • Clavicle the most commonly fractured bone

    • Isolated fracture of the clavicle seldom a significant injury

  • Common causes

    • Children who fall on their shoulders or outstretched arms

    • Athletes involved in contact sports

Skeletal injury1

Skeletal Injury

  • Treatment

    • Usually accomplished with a sling and swathe or a clavicular strap that immobilizes the affected shoulder and arm

    • Usually heals well within 4 to 6 weeks

  • Signs and symptoms

    • Pain

    • Point tenderness

    • Evident deformity

Skeletal injury2

Skeletal Injury

  • Complications

    • Injury to the subclavian vein or artery from bony fragment penetration, producing a hematoma or venous thrombosis (rare)

Rib fractures

Rib Fractures

  • Incidence

    • Infrequent until adult life

    • Significant force required

    • Most often elderly patients

Rib fractures morbidity mortality

Rib FracturesMorbidity/Mortality

  • Can lead to serious consequences.

  • Older ribs are more brittle and rigid.

  • There may be associated underlying pulmonary or cardiovascular injury.

Rib fractures pathophysiology

Rib FracturesPathophysiology

  • Most often caused by blunt trauma—bowing effect with midshaft fracture

  • Ribs 3 to 8 are fractured most often (they are thin and poorly protected)

  • Respiratory restriction as a result of pain and splinting

Rib fractures pathophysiology1

Rib FracturesPathophysiology

  • Intercostal vessel injury

  • Associated complications

    • First and second ribs are injured by severe trauma

    • Rupture of the aorta

    • Tracheobronchial tree injury

    • Vascular injury

Multiple rib fractures

Multiple Rib Fractures

  • Atelectasis

  • Hypoventilation

  • Inadequate cough

  • Pneumonia

Multiple rib fractures1

Multiple Rib Fractures

  • Assessment findings

    • Localized pain

    • Pain that worsens with movement, deep breathing, coughing

    • Point tenderness

  • Most patients can localize the fracture by pointing to the area (confirmed by palpation).

    • Crepitus or audible crunch

    • Splinting on respiration

Multiple rib fractures complications

Multiple Rib Fractures Complications

  • Splinting, which leads to atelectasis and ventilation-perfusion mismatch (ventilated alveoli that are not perfused or perfused alveoli that are not ventilated)

Rib fractures management

Rib FracturesManagement

  • Airway and ventilation

    • High-concentration oxygen

    • Positive-pressure ventilation

    • Encourage coughing and deep breathing

  • Pharmacological

    • Analgesics

  • Nonpharmacological

    • Non-circumferential splinting

Flail chest

Flail Chest

  • Incidence

    • Most common cause: vehicular crash

    • Falls from heights

    • Industrial accidents

    • Assault

    • Birth trauma

Flail chest morbidity mortality

Flail ChestMorbidity/Mortality

  • Significant chest trauma

  • Mortality rates 20% to 40% due to associated injuries

  • Mortality increased with

    • Advanced age

    • Seven or more rib fractures

    • Three or more associated injuries

    • Shock

    • Head injuries

Flail chest pathophysiology

Flail ChestPathophysiology

  • Two or more adjacent ribs fractured in two or more places producing a free-floating segment of chest wall

Flail chest usually results from direct impact.

Flail chest pathophysiology1

Flail ChestPathophysiology

  • Respiratory failure due to:

    • Underlying pulmonary contusion

  • The blunt force of the injury typically produces an underlying pulmonary contusion.

    • Associated intrathoracic injury

    • Inadequate bellows action of the chest

Flail chest assessment findings

Flail ChestAssessment Findings

  • Chest wall contusion

  • Respiratory distress

  • Paradoxical chest wall movement

  • Pleuritic chest pain

  • Crepitus

  • Pain and splinting of affected side

  • Tachypnea

  • Tachycardia

  • Possible bundle branch block on ECG

Flail chest management

Flail ChestManagement

  • Airway and ventilation

    • High-concentration oxygen.

    • Positive-pressure ventilation may be needed.

      • Reverses the mechanism of paradoxical chest wall movement

      • Restores the tidal volume

      • Reduces the pain of chest wall movement

      • Assess for the development of a pneumothorax

    • Evaluate the need for endotracheal intubation.

    • Stabilize the flail segment (controversial).

Sternal fractures

Sternal Fractures

  • Incidence

    • Occurs in 5% to 8% of all patients with blunt chest trauma

    • A deceleration compression injury

    • Steering wheel

    • Dashboard

    • A blow to the chest; massive crush injury

    • Severe hyperflexion of the thoracic cage

Sternal fractures morbidity mortality

Sternal FracturesMorbidity/Mortality

  • 25% to 45% mortality rate

  • High association with myocardial or lung injury

    • Myocardial contusion

    • Myocardial rupture

    • Cardiac tamponade

    • Pulmonary contusion

Sternal fractures pathophysiology

Sternal FracturesPathophysiology

  • Associated injuries cause morbidity and mortality.

    • Pulmonary and myocardial contusion

    • Flail chest

  • Seriously displaced sternal fractures may produce a flail chest.

    • Vascular disruption of thoracic vessels

    • Intra-abdominal injuries

    • Head injuries

Sternal fractures management

Sternal FracturesManagement

  • Airway and ventilation

    • High-concentration oxygen

  • Circulation—restrict fluids if pulmonary contusion suspected

  • Pharmacological—analgesics

  • Non-pharmacological—allow chest wall self-splinting

  • Psychological support/communication strategies

Pulmonary injury

Pulmonary Injury

  • Closed (simple) pneumothorax

    • Incidence

      • 10% to 30% in blunt chest trauma

      • Almost 100% with penetrating chest trauma

    • Morbidity/mortality

      • Extent of atelectasis

      • Associated injuries

    • Pathophysiology

      • Caused by the presence of air in the pleural space

      • A common cause of pneumothorax is a fractured rib that penetrates the underlying lung.

Closed simple pneumothorax

Closed (Simple) Pneumothorax

  • May occur in the absence of rib fractures from:

    • A sudden increase in intrathoracic pressure generated when the chest wall is compressed against a closed glottis (the paper-bag effect)

      • Results in an increase in airway pressure and ruptured alveoli, which lead to a pneumothorax

  • Small tears self-seal; larger ones may progress.

  • The trachea may tug toward the affected side.

  • Ventilation/perfusion mismatch.

Closed pneumothorax assessment findings

Closed PneumothoraxAssessment Findings

  • Tachypnea

  • Tachycardia

  • Respiratory distress

  • Absent or decreased breath sounds on the affected side

  • Hyperresonance

  • Decreased chest wall movement

  • Dyspnea

  • Chest pain referred to the shoulder or arm on the affected side

  • Slight pleuritic chest pain

Closed pneumothorax management

Closed PneumothoraxManagement

  • Airway and ventilation

    • High-concentration oxygen.

    • Positive-pressure ventilation if necessary.

    • If respiration rate is <12 or >28 per minute, ventilatory assistance with a bag-valve mask may be indicated.

Closed pneumothorax management1

Closed PneumothoraxManagement

  • Nonpharmacological

    • Needle thoracostomy

  • Transport considerations

    • Position of comfort (usually partially sitting) unless contraindicated by possible spine injury

Open pneumothorax

Open pneumothorax

  • Develops when penetration injury to the chest allows the pleural space to be exposed to atmospheric pressure - "Sucking Chest Wound"

Open pneumothorax1

Open Pneumothorax

  • Incidence

    • Usually the result of penetrating trauma

      • Gunshot wounds

      • Knife wounds

      • Impaled objects

      • Motor vehicle collisions

      • Falls

Open pneumothorax2

Open Pneumothorax

Open pneumothorax3

Open pneumothorax


    • Examples Include:GSW, Stab Wounds, Impaled Objects, Etc...


    • Severity is directly proportional to the size of the wound

  • Atmospheric pressure forces air through the wound upon inspiration

Open pneumothorax morbidity mortality

Open PneumothoraxMorbidity/Mortality

  • Severity is directly proportional to the size of the wound.

    • Profound hypoventilation can result.

    • Death is related to delayed management.

Open pneumothorax pathophysiology

Open PneumothoraxPathophysiology

  • An open defect in the chest wall (>3 cm)

    • If the chest wound opening is greater than two-thirds the diameter of the trachea, air follows the path of least resistance through the chest wall with each inspiration.

    • As the air accumulates in the pleural space, the lung on the injured side collapses and begins to shift toward the uninjured side.

Open pneumothorax4

Open pneumothorax

  • Signs & Symptoms

    • Shortness of Breath (SOB)

    • Pain

    • Sucking or gurgling sound as air moves in and out of the pleural space through the wound

Open pneumothorax assessment findings

Open PneumothoraxAssessment Findings

  • To-and-fro air motion out of the defect

  • A defect in the chest wall

  • A penetrating injury to the chest that does not seal itself

  • A sucking sound on inhalation

  • Tachycardia

  • Tachypnea

  • Respiratory distress

  • Subcutaneous emphysema

  • Decreased breath sounds on the affected side

Open pneumothorax5

Open Pneumothorax

  • Breathing is rapid, shallow and laboured. There is reduced expansion of the hemithorax, accompanied by reduced breath sounds and an increased percussion note.

  • One or all of these signs may not be appreciated in a noisy ER.

Open pneumothorax management

Open PneumothoraxManagement

  • Airway and ventilation:

    • High-concentration oxygen.

    • Positive-pressure ventilation if necessary.

    • Assist ventilations with a bag-valve device and intubation as necessary.

    • Monitor for the development of a tension pneumothorax.

  • Circulation—treat for shock with crystalloid infusion.

Open pneumothorax6

Open pneumothorax

  • Initial treatment - seal defect and secure on three sides (total occlusion may lead to tension pneumothorax

  • Definitive repair of defect in O.R.

Tension pneumothorax

Tension pneumothorax

  • Air within thoracic cavity that cannot exit the pleural space

  • Fatal if not immediately identified, treated, and reassessed for effective management

Tension pneumothorax1

Tension pneumothorax

Tension pneumothorax2

Tension Pneumothorax

  • Associated Injuries

    • A penetrating injury to the chest

    • Blunt trauma

    • Penetration by a rib fracture

    • Many other mechanisms of injury

Tension pneumothorax morbidity mortality

Tension PneumothoraxMorbidity/Mortality

  • Profound hypoventilation can result.

  • Death is related to delayed management.

  • An immediate, life-threatening chest injury.

Tension pneumothorax pathophysiology

Tension Pneumothorax Pathophysiology

  • Air leaks through lung or chest wall

  • “One-way” valve with lung collapse

  • Mediastinum shifts to opposite side

  • Inferior vena cava “kinks” on diaphragm, leading to decreased venous return and cardiovascular collapse

Early signs tension pneumothorax

Early Signs – Tension Pneumothorax

  • Extreme anxiety

  • Cyanosis

  • Increasing dyspnea

  • Difficult ventilations while being assisted

  • Tracheal deviation (a late sign)

  • Hypotension

Identification is the most difficult aspect of field care in a tension pneumothorax.

Tension pneumothorax assessment findings

Tension Pneumothorax Assessment Findings

  • Bulging of the intercostal muscles

  • Subcutaneous emphysema

  • Jugular venous distention (unless hypovolemic)

  • Unequal expansion of the chest (tension does not fall with respiration)

  • Hyperresonnace to percussion

Late s s of tension pneumothorax


  • Jugular Venous Distension (JVD)

  • Tracheal Deviation

  • Narrowing pulse pressure

  • Signs of decompensating shock

Management of tension pneumothorax


  • Emergency care is directed at reducing the pressure in the pleural space.

  • Airway and ventilation:

    • High-concentration oxygen

    • Positive pressure ventilation if necessary

  • Circulation—relieve the tension pneumothorax to improve cardiac output.

Tension pneumothorax management

Tension Pneumothorax Management

  • Nonpharmacological

    • Occlude open wound

    • Needle thoracostomy

    • Tube thoracostomy—in-hospital management

Pleural decompression should only be employed if the patient demonstrates significant dyspnea and distinct signs and symptoms of tension pneumothorax.

Tension pneumothorax management1

Tension Pneumothorax Management

  • Tension pneumothorax associated with penetrating trauma

    • May occur when an open pneumothorax has been sealed with an occlusive dressing.

    • Pressure may be relieved by momentarily removing the dressing (air escapes with an audible release of air).

After the pressure is released, the wound should be resealed.

Tension pneumothorax management2

Tension Pneumothorax Management

  • Tension pneumothorax associated with closed trauma

    • If the patient demonstrates significant dyspnea and distinct signs and symptoms of tension pneumothorax:

      • Provide thoracic decompression with either a large-bore needle or commercially available thoracic decompression kit.

      • Insert a 2-inch 14- or 16-gauge hollow needle or catheter into the affected pleural space.

        • Usually the second intercostal space in the midclavicular line

Insert the needle just above the third rib to avoid the nerve, artery, and vein that lie just beneath each rib.

Tension pneumothorax3

Tension pneumothorax

  • Tension pneumothorax is not an x-ray diagnosis - it MUST be recognized clinically

  • Treatment is decompression

    - needle into 2nd intercostal

    space of mid-clavicular line -

    followed by thoracotomy


Tension pneumothorax4

Tension pneumothorax

  • The classic signs of a tension pneumothorax are deviation of the trachea away from the side with the tension, a hyper-expanded chest, an increased percussion note and a hyper-expanded chest that moves little with respiration.

  • The central venous pressure is usually raised, but will be normal or low in hypovolemic states.

Chest trauma

Inferior vena cava



  • If this condition is associated with pneumothorax, it is called a hemopneumothorax.



  • Incidence

    • Associated with pneumothorax.

    • Blunt or penetrating trauma.

    • Rib fractures are frequent cause.

Hemothorax morbidity mortality


  • A life-threatening injury that frequently requires urgent chest tube placement and/or surgery

  • Associated with great vessel or cardiac injury

    • 50% of these patients will die immediately.

    • 25% of these patients live 5 to 10 minutes.

    • 25% of these patients may live 30 minutes or longer.

Massive hemothorax

Massive hemothorax

  • Rapid accumulation of >1500 cc blood in chest cavity

  • Hypovolemia & hypoxemia

  • Neck veins may be:

    • flat - from hypovolemia

    • distended - intrathoracic blood

  • Absent breath sounds, DULL to percussion

Hemothorax assessment findings

HemothoraxAssessment Findings

  • Tachypnea

  • Dyspnea

  • Cyanosis

    • Often not evident in hemorrhagic shock

  • Diminished or decreased breath sounds on the affected side

Hemothorax assessment findings1

HemothoraxAssessment Findings

  • Hyporesonance (dullness on percussion) on the affected side

  • Hypotension

  • Narrowed pulse pressure

  • Tracheal deviation to the unaffected side (rare)

  • Pale, cool, moist skin

Hemothorax management


  • Airway and ventilation

    • High-concentration oxygen

    • Positive-pressure ventilation if necessary

    • Ventilatory support with bag-valve mask, intubation, or both

Hemothorax management1


  • Circulation

    • Administer volume-expanding fluids to correct hypovolemia

    • Nonpharmacological—tube thoracostomy



  • Pathophysiology—pneumothorax with bleeding in the pleural space

    • Assessment—findings and management are the same as for hemothorax.

    • Management—management is the same as for hemothorax.

Pulmonary contusion

Pulmonary Contusion

  • A pulmonary contusion is the most common potentially lethal chest injury.

    • Incidence

      • Blunt trauma to the chest

        • The most common injury from blunt thoracic trauma.

        • 30% to 75% of patients with blunt trauma have pulmonary contusion.

      • Commonly associated with rib fracture

      • High-energy shock waves from explosion

      • High-velocity missile wounds

      • Rapid deceleration

      • A high incidence of extrathoracic injuries

      • Low velocity—ice pick

Pulmonary contusion morbidity mortality

Pulmonary ContusionMorbidity/Mortality

  • May be missed due to the high incidence of other associated injuries

Mortality—between 14% and 20%

Pulmonary contusion assessment findings

Pulmonary Contusion Assessment Findings

  • Tachypnea

  • Tachycardia

  • Cough

  • Hemoptysis

  • Apprehension

  • Respiratory distress

  • Dyspnea

  • Evidence of blunt chest trauma

  • Cyanosis

Pulmonary contusion management

Pulmonary ContusionManagement

  • Airway and ventilation:

    • High-concentration oxygen

    • Positive-pressure ventilation if necessary

  • Circulation—restrict IV fluids (use caution restricting fluids in hypovolemic patients).

Traumatic asphyxia

Traumatic Asphyxia

  • Incidence

    • A severe crushing injury to the chest and abdomen

      • Steering wheel injury

      • Conveyor belt injury

      • Compression of the chest under a heavy object

Traumatic asphyxia pathophysiology

Traumatic Asphyxia Pathophysiology

  • A sudden compressional force squeezes the chest.

  • An increase in intrathoracic pressure forces blood from the right side of the heart into the veins of the upper thorax, neck, and face.

  • Jugular veins engorge and capillaries rupture.

Traumatic asphyxia assessment

Traumatic AsphyxiaAssessment

  • Reddish-purple discoloration of the face and neck (the skin below the face and neck remains pink).

  • Jugular vein distention.

  • Swelling of the lips and tongue.

Traumatic asphyxia assessment1

Traumatic AsphyxiaAssessment

  • Swelling of the head and neck.

  • Swelling or hemorrhage of the conjunctiva (subconjunctival petechiae may appear).

  • Hypotension results once the pressure is released.

Traumatic asphyxia management

Traumatic AsphyxiaManagement

  • Airway and ventilation

    • Ensure an open airway.

    • Provide adequate ventilation.

  • Circulation

    • IV access.

    • Expect hypotension and shock once the compression is released.

Heart and great vessel injury

Heart and Great Vessel Injury

  • Myocardial contusion (blunt myocardial injury)

    • Incidence

      • The most common cardiac injury after a blunt trauma to the chest

      • Occurs in 16% to 76% of blunt chest traumas

      • Usually results from motor vehicle collisions as the chest wall strikes the dashboard or steering column

      • Sternal and multiple rib fractures common

Heart and great vessel injury morbidity mortality

Heart and Great Vessel Injury Morbidity/Mortality

  • A significant cause of morbidity and mortality in the blunt trauma patient

    • Clinical findings are subtle and frequently missed due to:

      • Multiple injuries that direct attention elsewhere

      • Little evidence of thoracic injury

      • Lack of signs of cardiac injury on initial examination

Heart and great vessel injury assessment findings

Heart and Great Vessel Injury Assessment Findings

  • Retrosternal chest pain

  • ECG changes

    • Persistent tachycardia

    • ST elevation, T wave inversion

    • Right bundle branch block

    • Atrial flutter, fibrillation

    • Premature ventricular contractions

    • Premature atrial contractions

Heart and great vessel injury assessment findings1

Heart and Great Vessel Injury Assessment Findings

  • New cardiac murmur

  • Pericardial friction rub (late)

  • Hypotension

  • Chest wall contusion and ecchymosis

Heart and great vessel injury management

Heart and Great Vessel Injury Management

  • Airway and ventilation—high-concentration oxygen

  • Circulation—IV access

  • Pharmacological

    • Antidysrhythmics

    • Vasopressors

Pericardial tamponade

Pericardial Tamponade

  • Incidence

    • Rare in blunt trauma

    • Penetrating trauma

    • Occurs in less than 2% of all chest traumas

Pericardial tamponade morbidity mortality

Pericardial Tamponade Morbidity/Mortality

  • Gunshot wounds carry higher mortality than stab wounds.

  • Lower mortality rate if isolated tamponade is present.

Pericardial tamponade anatomy and physiology

Pericardial TamponadeAnatomy and Physiology

  • Pericardium

    • A tough fibrous sac that encloses heart

    • Attaches to the great vessels at the base of the heart

    • Two layers:

      • The visceral layer forms the epicardium.

      • The parietal layer is regarded as the sac itself.

Pericardial tamponade pathophysiology

Pericardial Tamponade Pathophysiology

  • A blunt or penetrating trauma may cause tears in the heart chamber walls, allowing blood to leak from the heart.

    • If the pericardium has been torn sufficiently, blood leaks into the thoracic cavity.

  • If 150 to 200 mL of blood enters the pericardial space acutely, pericardial tamponade develops.

Pericardial tamponade pathophysiology1

Pericardial Tamponade Pathophysiology

  • Increased intrapericardial pressure:

    • Does not allow the heart to expand and refill with blood

    • Results in a decrease in stroke volume and cardiac output

  • Myocardial perfusion decreases due to pressure effects on the walls of the heart and decreased diastolic pressures.

  • Ischemic dysfunction may result in infarction.

  • Removal of as little as 20 mL of blood may drastically improve cardiac output.

Pericardial tamponade assessment findings

Pericardial Tamponade Assessment Findings

  • Tachycardia

  • Respiratory distress

  • Narrowed pulse pressure

  • Cyanosis of the head, neck, and upper extremities

Pericardial tamponade assessment findings1

Pericardial Tamponade Assessment Findings

  • Beck’s triad

    • Narrowing pulse pressure

    • Neck vein distention

    • Muffled heart sounds

Pericardial tamponade assessment findings2

Pericardial Tamponade Assessment Findings

  • Kussmaul’s sign—a rise in venous pressure with inspiration when spontaneously breathing

  • ECG changes

Pericardial tamponade management

Pericardial Tamponade Management

  • Airway and ventilation

  • Circulation—IV fluid challenge

  • Nonpharmacological pericardiocentesis

Traumatic aortic rupture

Traumatic Aortic Rupture

  • Incidence

    • Blunt trauma

      • Rapid deceleration in high-speed motor vehicle crashes

      • Falls from great heights

      • Crushing injuries

  • 15% of all blunt trauma deaths

Traumatic aortic rupture morbidity mortality

Traumatic Aortic Rupture Morbidity/Mortality

  • 80% to 90% of these patients die at the scene as a result of massive hemorrhage.

    • About 10% to 20% of these patients survive the first hour.

      • Bleeding is tamponaded by surrounding adventitia of the aorta and intact visceral pleura.

      • Of these, 30% have rupture within 6 hours.

Traumatic aortic rupture pathophysiology

Traumatic Aortic Rupture Pathophysiology

  • Patients who are normotensive should have limited replacement fluids to prevent an increase in pressure in the remaining aortic wall tissue.

Traumatic aortic rupture assessment findings

Traumatic Aortic Rupture Assessment Findings

  • Upper-extremity hypertension with absent or decreased amplitude of femoral pulses

    • Thought to result from compression of the aorta by the expanding hematoma

  • Generalized hypertension

    • Secondary to increased sympathetic discharge

  • Retrosternal or interscapular pain

Traumatic aortic rupture assessment findings1

Traumatic Aortic Rupture Assessment Findings

  • About 25% have a harsh systolic murmur over the pericardium or interscapular region

  • Paraplegia with a normal cervical and thoracic spine (rare)

Traumatic aortic rupture assessment findings2

Traumatic Aortic Rupture Assessment Findings

  • Dyspnea

  • Dysphagia

  • Ischemic pain of the extremities

  • Chest wall contusion

Aortic injury suspicion

Aortic Injury : Suspicion

  • Mechanism

    • Falls> 3m

    • Major decelaration/acceleration

    • SIGNS

    • Neck hematoma

    • Assymetic pulse or BP

    • Radiofemoral delay

    • Severe searing pain

Aortic injury cxr signs

Aortic Injury: CXR Signs

  • Mediastinum > 8cm

  • Abnormal Aortic contour

  • Opaque artopulmonary window

  • Apical cap

  • Mediastinal displacement

  • Fracture of first rib or scapula

Traumatic aortic rupture management

Traumatic Aortic Rupture Management

  • Airway and ventilation:

    • High-concentration oxygen

    • Ventilatory support with spinal precautions

  • Circulation—do not over-hydrate.

Diaphragmatic rupture

Diaphragmatic Rupture

  • Incidence

  • Penetrating trauma

    • Blunt trauma

    • Injuries to the diaphragm account for 1% to 8% of all blunt injuries.

      • 90% of injuries to the diaphragm are associated with high-speed motor vehicle crashes.

Diaphragmatic rupture anatomy review

Diaphragmatic RuptureAnatomy Review

  • The diaphragm is a voluntary muscle that separates the abdominal cavity from the thoracic cavity.

    • The anterior portion attaches to the inferior portion of the sternum and the costal margin.

    • Attaches to the 11th and 12th ribs posteriorly.

    • The central portion is attached to the pericardium.

    • Innervated via the phrenic nerve.

Diaphragmatic rupture1

Diaphragmatic Rupture

  • Rupture can allow intra-abdominal organs to enter the thoracic cavity, which may cause the following:

    • Compression of the lung with reduced ventilation

    • Decreased venous return

    • Decreased cardiac output

    • Shock

Diaphragmatic rupture pathophysiology

Diaphragmatic Rupture Pathophysiology

  • Can produce very subtle signs and symptoms

  • Bowel obstruction and strangulation

  • Restriction of lung expansion

    • Hypoventilation

    • Hypoxia

  • Mediastinal shift

    • Cardiac compromise

    • Respiratory compromise

Diaphragmatic rupture management

Diaphragmatic Rupture Management

  • Airway and ventilation

    • High-concentration oxygen

    • Positive-pressure ventilation if necessary

    • Caution: positive-pressure may worsen the injury

  • Circulation—IV access

  • Nonpharmacological—do not place patient in Trendelenburg position

Diaphragmatic rupture assessment findings

Diaphragmatic Rupture Assessment Findings

  • Tachypnea

  • Tachycardia

  • Respiratory distress

  • Dullness to percussion

  • Scaphoid abdomen (hollow or empty appearance)

    • If a large quantity of the abdominal contents are displaced into the chest

  • Bowel sounds in the affected hemithorax

  • Decreased breath sounds on the affected side

  • Possible chest or abdominal pain

Who gets admitted

Who gets admitted?

  • Sternal fractures, mediastinal injury

  • Any 1st, 2nd, 3rd rib fractures

  • > 1 rib fracture in any region

  • Pulmonary contusion

  • Subcutaneous emphysema

  • Traumatic asphyxia

  • Flail segment

  • Arrhythmia or myocardial injury

In closing

In Closing

  • Back to basics:ABCDE

  • If you suspect a major chest injury act swiftly

  • Ask for assistance early

  • Practice damage control when necessary

  • Problems with drains? Read the manual or call your friendly trauma tream

Chest trauma


  • Login
