Modeling vapor attenuation workshop

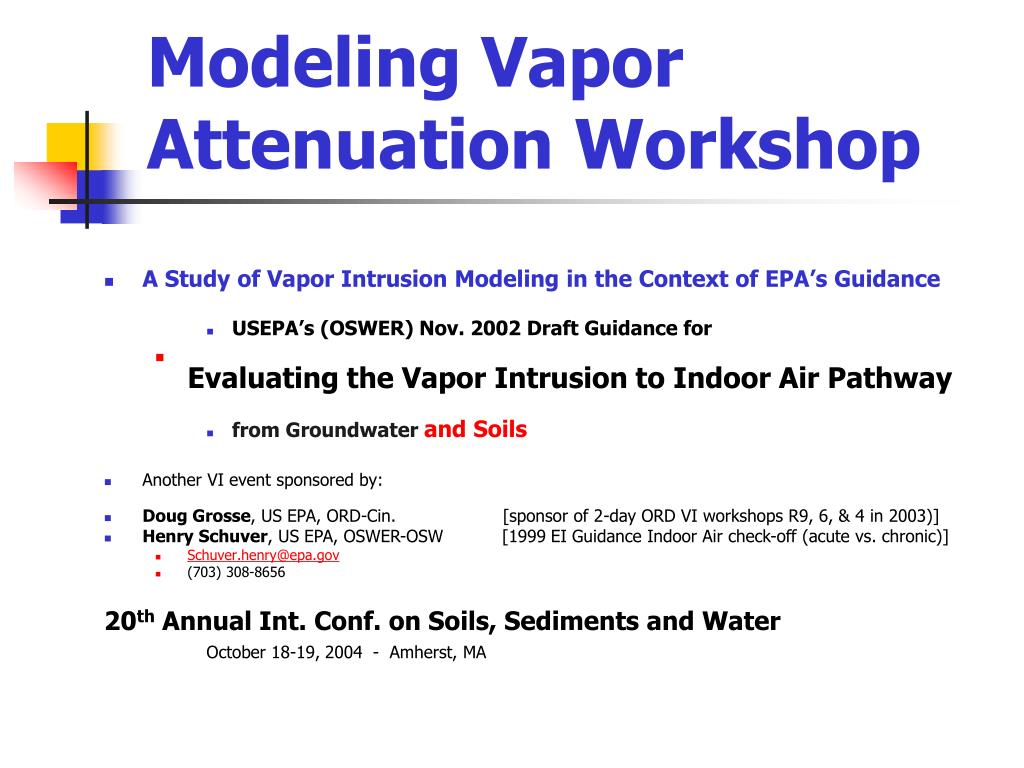

Modeling Vapor Attenuation Workshop

  • A Study of Vapor Intrusion Modeling in the Context of EPA’s Guidance

    • USEPA’s (OSWER) Nov. 2002 Draft Guidance for

  • Evaluating the Vapor Intrusion to Indoor Air Pathway

    • from Groundwater and Soils

  • Another VI event sponsored by:

  • Doug Grosse, US EPA, ORD-Cin. [sponsor of 2-day ORD VI workshops R9, 6, & 4 in 2003)]

  • Henry Schuver, US EPA, OSWER-OSW [1999 EI Guidance Indoor Air check-off (acute vs. chronic)]

    • [email protected]

    • (703) 308-8656

      20th Annual Int. Conf. on Soils, Sediments and Water

      October 18-19, 2004 - Amherst, MA


  • My agenda

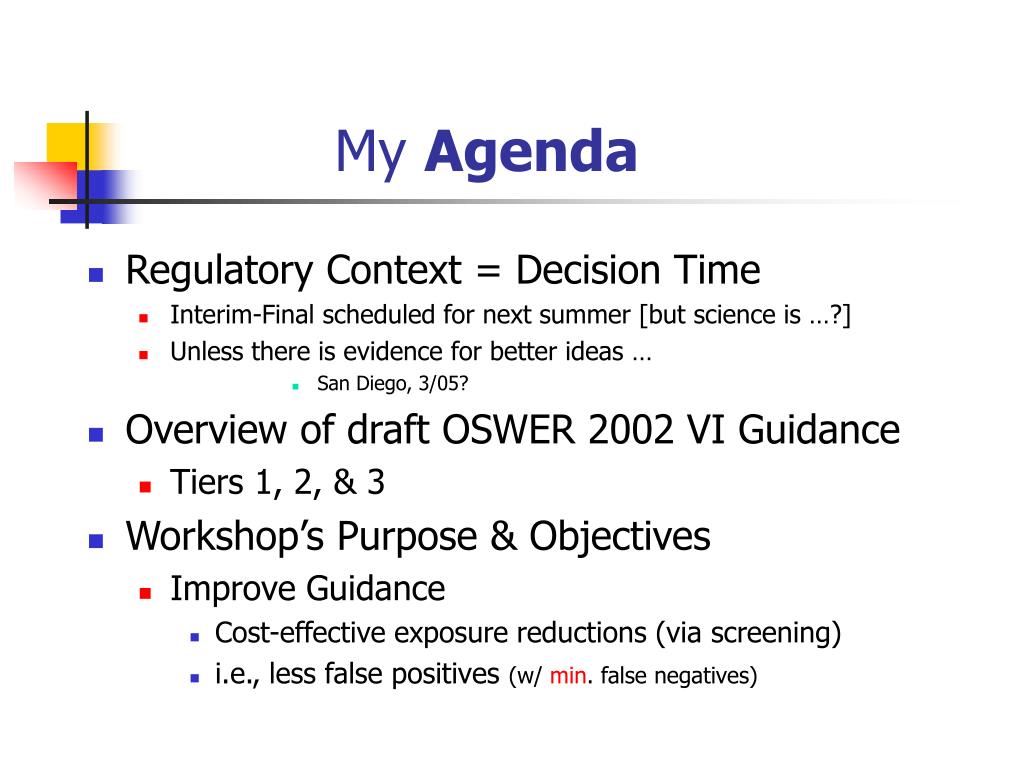

    My Agenda

    • Regulatory Context = Decision Time

      • Interim-Final scheduled for next summer [but science is …?]

      • Unless there is evidence for better ideas …

        • San Diego, 3/05?

  • Overview of draft OSWER 2002 VI Guidance

    • Tiers 1, 2, & 3

  • Workshop’s Purpose & Objectives

    • Improve Guidance

      • Cost-effective exposure reductions (via screening)

      • i.e., less false positives (w/ min. false negatives)


  • Modeling vapor attenuation workshop

    1) VI is Real

    2) Worst cases are easiest to detect

    3) Health impacts are possible

    Rumchev, et al., Thorax, 2004; 59:746 [Assoc. …VOCs w/ asthma]

    Photo from:

    Dave Webb,

    Ill. DPH

    Hartford, Ill. case


    Introduction and or reminder of epa s vi guidance history

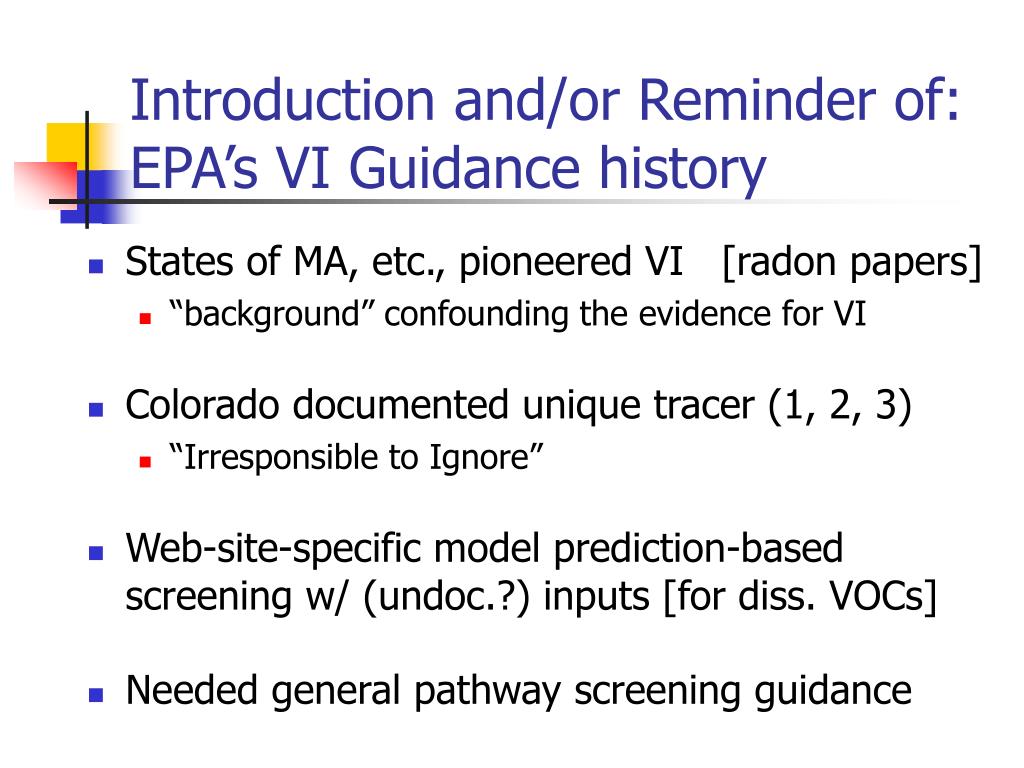

    Introduction and/or Reminder of: EPA’s VI Guidance history

    • States of MA, etc., pioneered VI [radon papers]

      • “background” confounding the evidence for VI

    • Colorado documented unique tracer (1, 2, 3)

      • “Irresponsible to Ignore”

    • Web-site-specific model prediction-based screening w/ (undoc.?) inputs [for diss. VOCs]

    • Needed general pathway screening guidance


    Status of oswer s 11 02 draft vapor intrusion guidance

    Status of OSWER’s (11/02) draft Vapor Intrusion Guidance

    • Signed Nov. 22, 2002 (for use)

      • By OSWER Assist. Admin. (AA) Marianne Horinko

    • Intent of Guidance:

      • “a tool to help … conduct a screening evaluation”

    • Guidance, Comments, & Training available at:

      • http://www.epa.gov/correctiveaction/eis/vapor.htm

      • http://www.epa.gov/edocketRCRA-2002-033

      • http://www.clu-in.org/conf/tio/vapor_021203/

      • http://iavi.rti.org (Indoor Air Vapor Intrusion database)

      • Revisions due out next summer


    Tier 1 primary screening oswer s draft subsurface vapor intrusion guidance

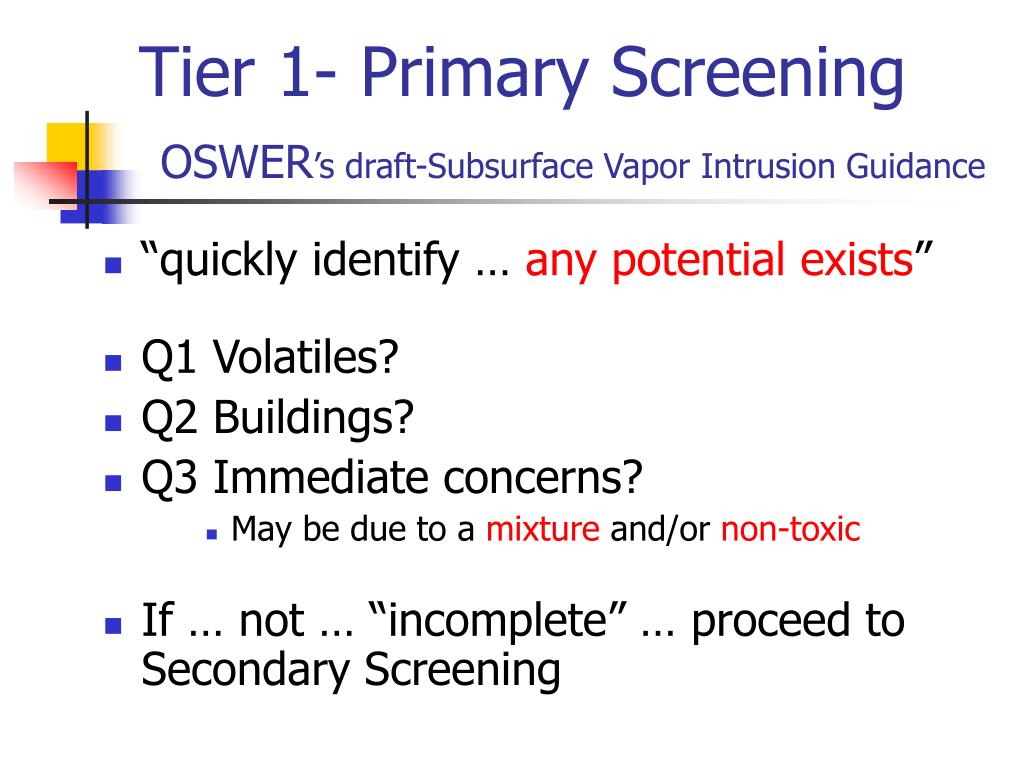

    Tier 1- Primary ScreeningOSWER’s draft-Subsurface Vapor Intrusion Guidance

    • “quickly identify … any potential exists”

    • Q1 Volatiles?

    • Q2 Buildings?

    • Q3 Immediate concerns?

      • May be due to a mixture and/or non-toxic

  • If … not … “incomplete” … proceed to Secondary Screening


  • Before secondary screening gw q4 q5 oswer vapor intrusion guidance

    Before Secondary Screening-GW(Q4 & Q5) OSWER Vapor Intrusion Guidance

    Not usable for screening out if ‘Precluding Factors’

    - Sources of vapors above the water table, or

    - Shallow sources (< 5ft below bldg foundation), or

    - Relatively shallow groundwater sources (<15 ft) and:

    - Crawlspace homes (w/o liners*) [*= keyed into foundation]

    - Very permeable geology

    - Significant preferential pathways

    - Sources in unsaturated zone (above the water table fringe?)

    - Mobile gas plumes (Landfill gas, ‘vapor clouds’)

    - Very low air exchange rates or v. high (neg.) pressure differential

    If so, Proceed to Tier 3 (Q6 Site-Specific Pathway)

    • Q4 Debatable, but Violations of Q5 model assumptions


    Calculation of soil gas and groundwater generic q4 empirical target screening levels dawson db

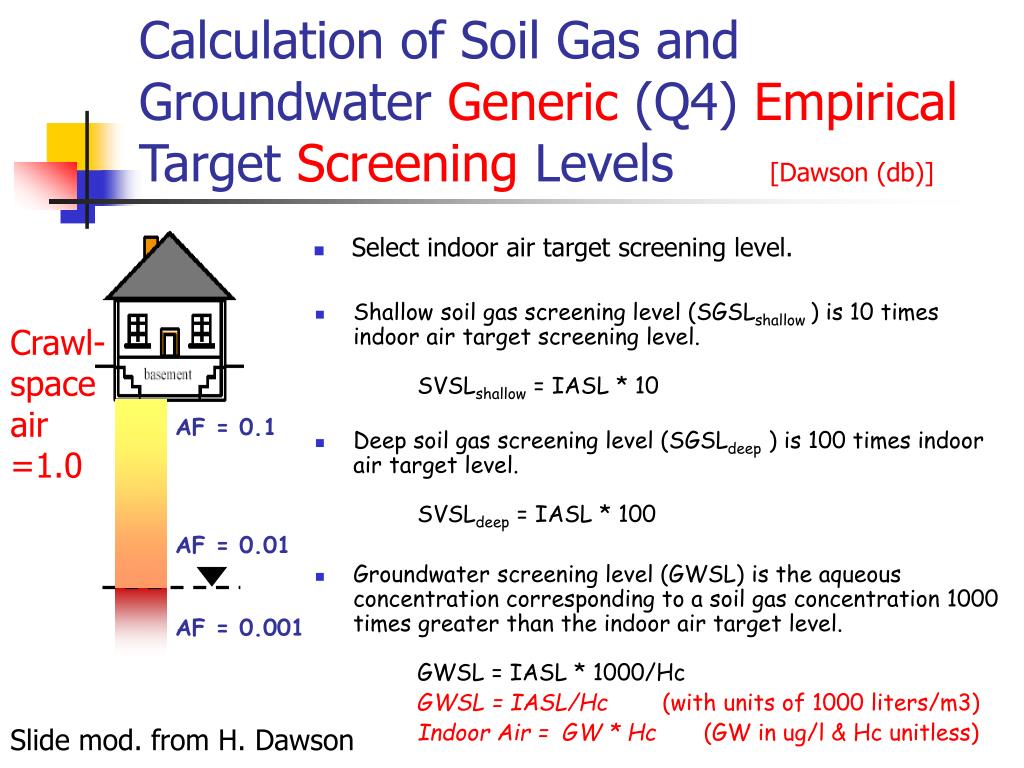

    Calculation of Soil Gas and Groundwater Generic (Q4) EmpiricalTarget Screening Levels [Dawson (db)]

    • Select indoor air target screening level.

    • Shallow soil gas screening level (SGSLshallow ) is 10 times indoor air target screening level. SVSLshallow = IASL * 10

    • Deep soil gas screening level (SGSLdeep ) is 100 times indoor air target level. SVSLdeep = IASL * 100

    • Groundwater screening level (GWSL) is the aqueous concentration corresponding to a soil gas concentration 1000 times greater than the indoor air target level.GWSL = IASL * 1000/Hc

      GWSL = IASL/Hc(with units of 1000 liters/m3)

      Indoor Air = GW * Hc (GW in ug/l & Hc unitless)

    Crawl-space air =1.0

    AF = 0.1

    AF = 0.01

    AF = 0.001

    Slide mod. from H. Dawson


    Semi site specific screening q5 epa johnson ettinger spreadsheet model based

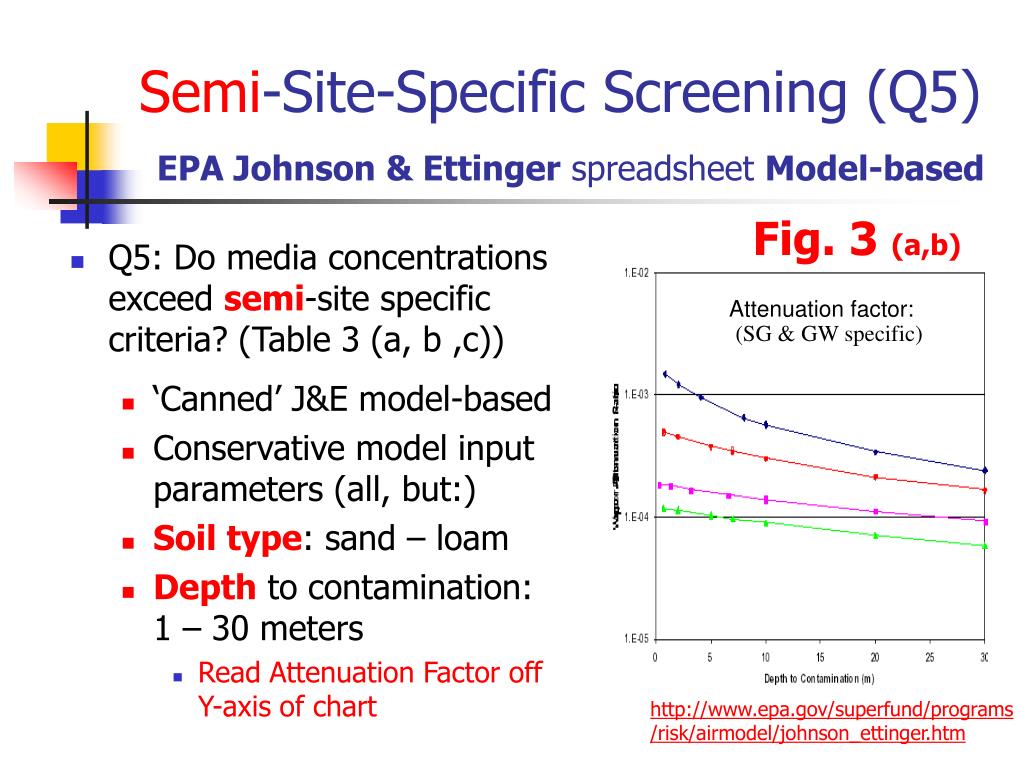

    Semi-Site-Specific Screening (Q5)EPA Johnson & Ettinger spreadsheet Model-based

    Fig. 3 (a,b)

    • Q5: Do media concentrations exceed semi-site specific criteria? (Table 3 (a, b ,c))

      • ‘Canned’ J&E model-based

      • Conservative model input parameters (all, but:)

      • Soil type: sand – loam

      • Depth to contamination:1 – 30 meters

        • Read Attenuation Factor off Y-axis of chart

    • Attenuation factor: (SG & GW specific)

    http://www.epa.gov/superfund/programs/risk/airmodel/johnson_ettinger.htm


    Tier 3 site specific assess sample measurement based approach

    Tier 3 – Site-Specific Assess.= Sample-Measurement Based Approach

    • 1-Modeling (site-specific) e.g., [via Superfund web-site]

      • Onlyto identify‘most-likely-to-be-impacted’ bldgs:

      • For identifying sampling locations

        • Combines complex factors, e.g., soil, depth, & building factors

      • If no problem predicted there – (by approp. site-specific model)

        • Interim (EI) determinations don’t need samples; = not a priority

    • 2-Measurement(confirmation, even if no problem expect)

      • Building-specificsamples, foundation &/or indoor air from:

        • Subset of potentially affected buildings

      • Before a Final decision for vapor intrusion

        • If using indoor air – need more than one + “background”


    Some objectives for modeling vapor attenuation wksp

    Some Objectives for Modeling Vapor Attenuation Wksp

    • Does the new (& existing) evidence suggest:

      • we’re using the best Approaches & Methods?

        • e.g., use of Empirical db, Models & Measurements for screening

        • Time-composite (air, adsorbent) vs. Real-time tech.

      • semi-site-specific Fig. 3 curves could be improved?

        • Why do the data plot above or below?

        • Do we need all Precluding Factors? Or more?, or Modifying?

        • Should we adjust Fig. 3 curves and/or limit conditions?

      • site-specificmodel predictions could improve screening?


    Workshop agenda

    Workshop Agenda

    • Review of Pre-Existing Data (Hers, Dawson, Truesdale)

    • New - Attenuation at Residential Sites (Goldman, Lund)

    • New - Attenuation at Non-Residential Attenuation Sites

      • (Berry-Spark, Lawless, Sharma, Goldberg-Day)

    • Real-time Tech. (Mickunas) and Discussions

  • Day 2 - Focus Groups & Posters

    • Approaches and Methods Influencing Observation Data, McAlary

    • Fig. 3 Predictions & Observational Data, Hers

    • Site-Specific Modeling and Observation Data, Johnson

    • Expert Panel - Charge Questions & Discussions

  • Evening Concluding Session

    • Public Perspectives (Siegal)

    • Summary of Recommendations for Guidance
