Presentation Transcript


Building cutting edge web solutions with visual studio 2005 and asp net 2 0 l.jpg

Building Cutting-Edge Web Solutions with Visual Studio 2005 and ASP.NET 2.0

Name

Title

Microsoft Corporation


New asp net 2 0 features l.jpg

New ASP.NET 2.0 Features

Data

Controls

Login

Controls

Web Parts

Other New

Controls

Controls

Master Pages

Themes

and Skins

Improved

Client Scripting

Compilation

& Localization

Page

Framework

Membership

Role

Management

Profiles

Configuration

Services

and APIs

Site

Maps

Health

Monitoring

Other New

Services


Master pages l.jpg

Master Pages

  • Content by inheritance

Master Page

Content Page


How master pages work l.jpg

How Master Pages Work

  • Master pages define common content and content placeholders

  • Content pages reference masters and fill placeholders with content

Site.master

default.aspx

http://.../default.aspx

Content-PlaceHolder

Content


Page master l.jpg

Page.Master

  • New property of System.Web.UI.Page

  • Provides content pages with programmatic access to master pages

    • Determine whether page has a master

    • Access controls defined in master

    • Access public methods and properties defined in master

  • Code-level integration of master pages and content pages


Master pages7 l.jpg

Master Pages

NameTitle

Company


Data source controls l.jpg

Data Source Controls

  • Declarative ("no-code") data binding

Sql-

DataSource

Object-

DataSource

Access-

DataSource

Xml-

DataSource

SiteMap-

DataSource

Data

Component

Site Map

Provider

SQL

Databases

Any

Data

Access

Databases

XML

Data

Site Maps


Data controls l.jpg

Data Controls

  • New data-bound controls

  • Built-in support for selecting, editing, paging, sorting, and more

GridView

DetailsView

FormView


2 way data binding l.jpg

2-Way Data Binding

  • Data controls supply editing UIs

    • AutoGenerateXxxButton properties

    • Insert/EditRowStyle properties

    • Inserting/ed, Updating/ed, Deleting/ed events

  • Data source controls supply logic

    • Insert/Update/DeleteCommand properties

    • Insert/Update/DeleteParameters properties

    • Inserting/ed, Updating/ed, Deleting/ed events

  • Visual Studio supplies the glue


Caching l.jpg

Caching

  • Many data source controls provide built-in caching support

    • EnableCaching - Enables/disables caching

    • CacheDuration - Length of time (seconds)

    • CacheExpirationPolicy - Sliding or absolute

    • CacheKeyDependency/SqlCacheDepedency - Cache dependencies

  • No-code data caching!


Cachesync l.jpg

CacheSync

  • SQL cache dependencies

    • Couple cached items to database entities

    • Change to underlying data evicts corresponding item(s) from cache

  • Works with SQL Server 7, SQL Server 2000, and SQL Server 2005

    • Requires database prep for SQL Server 7 and SQL Server 2000 (Aspnet_regsql.exe)

    • "Just works" with SQL Server 2005

  • Much-requested feature of ASP.NET


Data access l.jpg

Data Access

NameTitle

Company


Membership service l.jpg

Membership Service

  • Manages users and credentials

    • Declarative access via Web Site Admin Tool

    • Programmatic access via Membership API

  • Vastly simplifies forms authentication

    • Provides logic for validating user names and passwords, creating accounts, and more

    • Provides data store for storing credentials, e-mail addresses, and other membership data

  • Provider-based for flexible data storage


Membership schema l.jpg

Membership Schema

Controls

Login

LoginStatus

LoginView

Other

Membership API

Membership

MembershipUser

Membership Providers

SqlMembershipProvider

ActiveDirectory-MembershipProvider

Other Providers

Membership

Data

SQL Server

Active

Directory

Other

Data Stores


Role manager l.jpg

Role Manager

  • Role-based security in a box

    • Declarative access via Web Site Admin Tool

    • Programmatic access via Roles API

  • Simplifies adding role-based security to sites that employ forms authentication

    • Maps users to roles on each request

    • Provides data store for role information

  • Provider-based for flexible data storage


Role management schema l.jpg

Role Management Schema

Controls

Login

LoginStatus

LoginView

Other

Role API

Roles

Role Providers

SqlRole-Provider

AuthorizationStore-RoleProvider

WindowsToken-RoleProvider

Other Providers

Role Data

SQL Server

Authorization

Manager

("AzMan")

Other

Data Stores


Login controls l.jpg

Login Controls

  • UI and logic for security-related tasks

Login

LoginName

LoginStatus

Membership &

Role Management

LoginView

CreateUser-

Wizard

Change-

Password

Password-

Recovery


Loginview l.jpg

LoginView

<asp:LoginView ID="LoginView1" Runat="server">

<AnonymousTemplate>

<!-- Content seen by unauthenticated users -->

</AnonymousTemplate>

<LoggedInTemplate>

<!-- Content seen by authenticated users -->

</LoggedInTemplate>

<RoleGroups>

<asp:RoleGroup Roles="Administrators">

<ContentTemplate>

<!-- Content seen by administrators -->

</ContentTemplate>

</asp:RoleGroup>

...

</RoleGroups>

</asp:LoginView>


Membership and roles l.jpg

Membership and Roles

NameTitle

Company

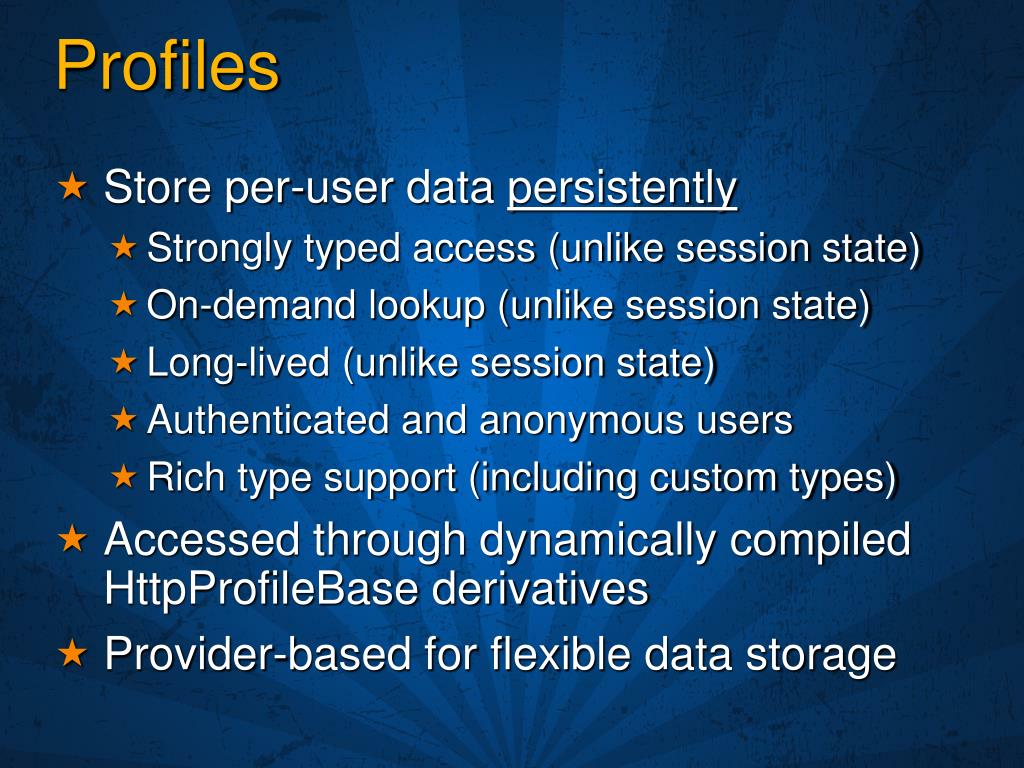

Profiles l.jpg

Profiles

  • Store per-user data persistently

    • Strongly typed access (unlike session state)

    • On-demand lookup (unlike session state)

    • Long-lived (unlike session state)

    • Authenticated and anonymous users

    • Rich type support (including custom types)

  • Accessed through dynamically compiled HttpProfileBase derivatives

  • Provider-based for flexible data storage


Profile definition l.jpg

Profile Definition

<profile>

<properties>

<!-- String property -->

<add name="MyName" />

<!-- Int32 property with default value -->

<add name="MyFavoriteNumber" type="System.Int32"

defaultValue="0" />

<!-- DateTime property -->

<add name="MyBirthday" type="System.DateTime" />

<!-- Custom type; auth. and anon. users -->

<add name="MyItems" type="ShoppingCart"

serializeAs="binary" allowAnonymous="true" />

</properties>

</profile>


Profiles23 l.jpg

Profiles

NameTitle

Company


Data driven site navigation l.jpg

Data-Driven Site Navigation

  • Navigation UIs are tedious to implement

    • Especially if they rely on client-side script

  • New controls simplify site navigation

    • TreeView and Menu - Navigation UI

    • SiteMapDataSource - XML site maps

    • SiteMapPath - "Bread crumb" controls

  • Public site map API provides foundation

  • Provider-based for flexibility


Site navigation schema l.jpg

Site Navigation Schema

Controls

Menu

TreeView

SiteMap-

DataSource

SiteMapPath

Site Map API

SiteMap

SiteMapNode

SiteMapNode

SiteMapNode

Providers

XmlSiteMapProvider

Other Site Map

Providers

Site Maps

Web.sitemap

Other

Data Stores


Xml site map l.jpg

XML Site Map

<?xml version="1.0" encoding="utf-8" ?>

<siteMap>

<siteMapNode>

<siteMapNode title="Home" url="~/Default.aspx" />

<siteMapNode title="Tickets" url="~/Tickets.aspx" />

<siteMapNode title="Concert Gear" url="~/Gear.aspx" />

<siteMapNode title="Backstage"

url="~/MembersOnly/Backstage.aspx" />

<siteMapNode title="Preferences"

url="~/MembersOnly/Preferences.aspx" />

</siteMapNode>

</siteMap>


Security trimming l.jpg

Security Trimming

  • Feature of site map providers

  • Varies navigation UI based on roles

<?xml version="1.0" encoding="utf-8" ?>

<siteMap>

<siteMapNode roles="*">

<siteMapNode title="Home" url="~/Default.aspx" />

<siteMapNode title="Tickets" url="~/Tickets.aspx" />

<siteMapNode title="Concert Gear" url="~/Gear.aspx" />

<siteMapNode title="Backstage" roles="Members"

url="~/MembersOnly/Backstage.aspx" />

<siteMapNode title="Preferences" roles="Members"

url="~/MembersOnly/Preferences.aspx" />

</siteMapNode>

</siteMap>


Site navigation l.jpg

Site Navigation

NameTitle

Company


Vsip partners l.jpg

VSIP Partners


Slide30 l.jpg

© 2005 Microsoft Corporation. All rights reserved.

This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.
