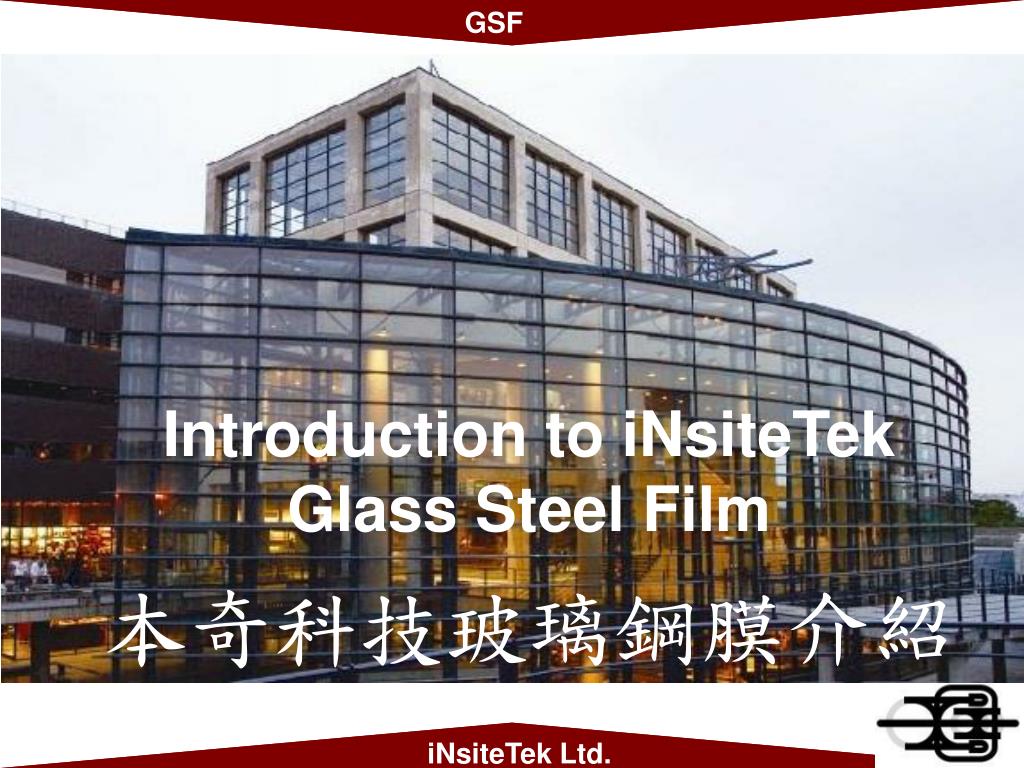

  1. 本奇技特種玻璃介紹 Introduction to iNsiteTek Glass Steel Film 本奇科技玻璃鋼膜介紹 BULLETPROOF GLASS

  2. iNsiteTek all-win solution Currently, most of Intrusion prevention methods are acted by electronic devices for the invasion and destruction detection, it belong to passive defense, and always too late once alarmed. Current security service does not provide active intrusion prevention which can reduce user's damage loss and get the best protection. - iNsiteTek feedback to our partners in every industries by offering several times lower than the market price. - End users win:Effectively protect the safety of life and property: anti-intrusion, gas explosion protection, anti-typhoon, earthquake, nature disasters…etc. - Distributors win: Can secondarily develop a new protections business effectively to your existing customers.

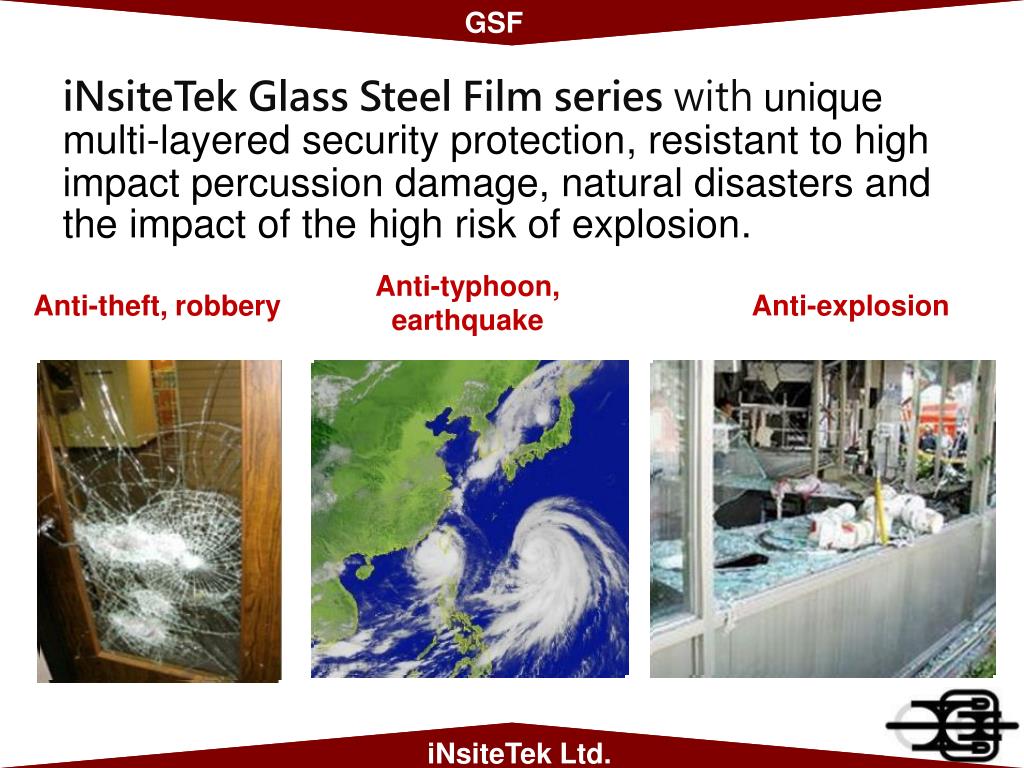

  3. iNsiteTek Glass Steel Film series with unique multi-layered security protection, resistant to high impact percussion damage, natural disasters and the impact of the high risk of explosion. Anti-typhoon, earthquake Anti-theft, robbery Anti-explosion

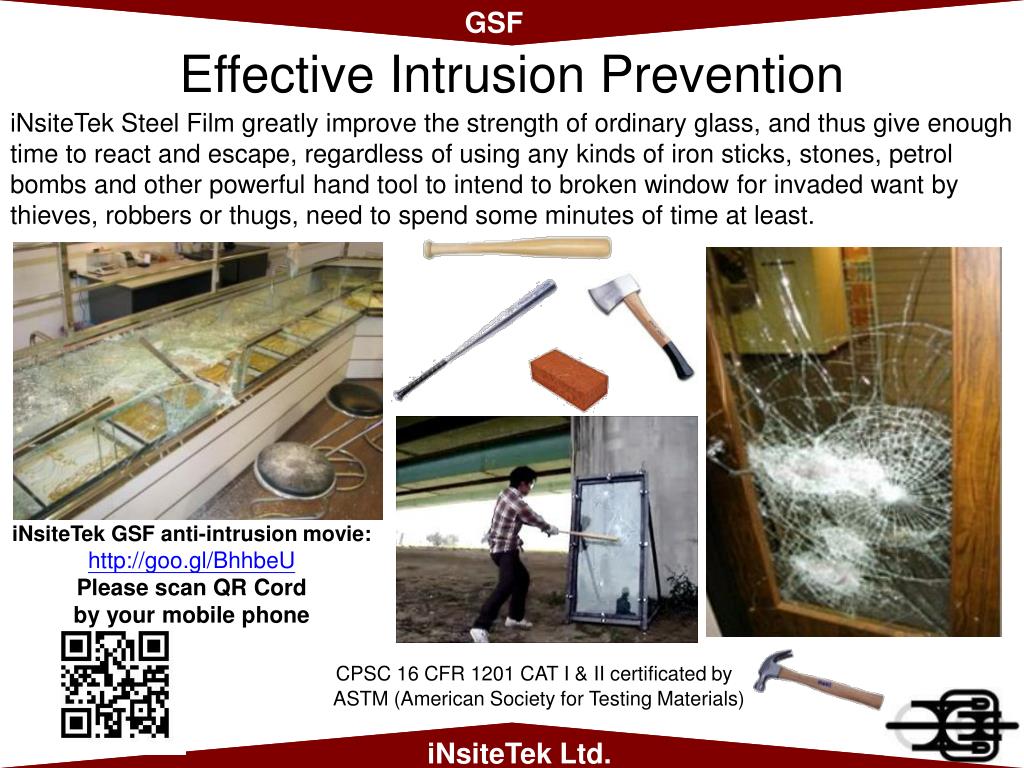

  4. Effective Intrusion Prevention iNsiteTek Steel Film greatly improve the strength of ordinary glass, and thus give enough time to react and escape, regardless of using any kinds of iron sticks, stones, petrol bombs and other powerful hand tool to intend to broken window for invaded want by thieves, robbers or thugs, need to spend some minutes of time at least. iNsiteTek GSF anti-intrusion movie: http://goo.gl/BhhbeU Please scan QRCord by your mobile phone CPSC 16 CFR 1201 CAT I & II certificated by ASTM (American Society for Testing Materials)

  5. Effective defense of natural disasters iNsiteTek Glass Steel Film can effectively secure against pressure brought on by Typhoon, brings to defend strike by blown signs and tree branches. Even if broken glass still can maintain wind & rain penetration proof. Can effectively release squeezed forces by earthquake, avoid injured by falling glass or cutting incidence. iNsiteTek GSF anti-typhoon movie: http://goo.gl/a5czTL Please scan QRCord by your mobile phone ASTM large C-class & small hurricane impact test standard by the U.S. Hurricane Center in Miami.

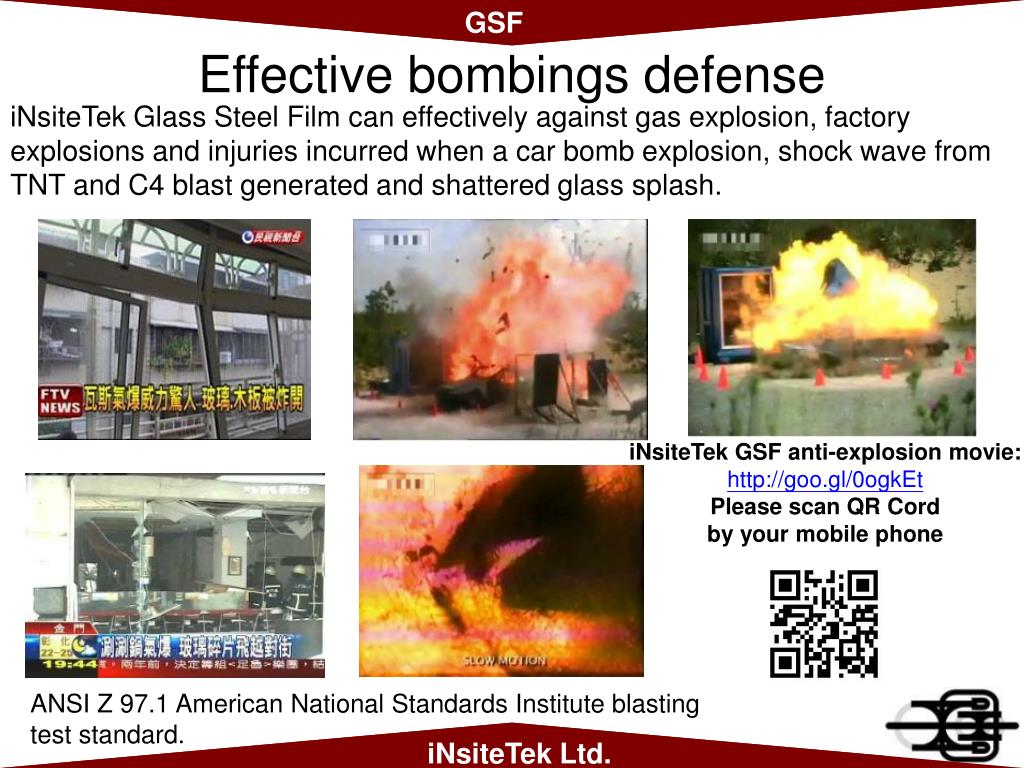

  6. Effective bombings defense iNsiteTek Glass Steel Film can effectively against gas explosion, factory explosions and injuries incurred when a car bomb explosion, shock wave from TNT and C4 blast generated and shattered glass splash. iNsiteTek GSF anti-explosion movie: http://goo.gl/0ogkEt Please scan QRCord by your mobile phone ANSI Z 97.1 American National Standards Institute blasting test standard.

  7. iNsiteTek Glass Steel Film features • Be reinforced installation (after construction) on the existing glass, Just select a suitable thickness of our Glass Steel Films in accordance with the existing glass thickness.(For more information of installation, please contact our local dealers) • 7, 14 (curved surfaces dedicated) and16, 21 mil thickness multiple choice. • Unidirectional defense technology; can fight back but does not affect escaping. • 28,000~34,900psi high tensile strength, effective shock absorbing. • No distortion, no birefringence effect, no stress, no defect and black spots. • Protect the skin, eyes and furniture from UV damage (99% isolation rate). • Anti-explosion ANSI Z 97.1 American National Standards Institute blasting test standard. • Reduce the thickness, weight reduction, and the least cost-effective • installation downtime. • Excellent optical properties; more than 90% of transparency and clarity, • ultra-low haze and yellowing rate. • The effects of energy saving, carbon and noise reduction, heat Insulation • summer time, warm preservation in winter time, no peculiar smell, no toxic. • No more need to install anti-theft, anti-intrusion bars, does not affect the structure integrity of the building and maintain the perfect exterior appearance. • UL 972 Forced Entry Requirements, U.S. security glass safety standards. • Can withstand NIJ 0108.01 NIJ-3A 9mmx19bullet shooting • (Glass takes up to 12mm thickness). 14mil car, curved surface dedicated GSF movie: http://goo.gl/jE8cnw Please scan QRCord by your mobile phone

  8. iNsiteTek GSF SPECIFICATIONS

  9. iNsiteTek Glass Steel Film series makes ordinary glass become extraordinary... It comes with the characteristics of high tensile strength and filling the pores of ordinary glass structure, makes ordinary glass into a incredible high-intensity one-way defense shield. Existing glass iNsiteTek Glass Steel Film Security defense High-strength polyester fiber film Special thermoplastic polyurethane Glass

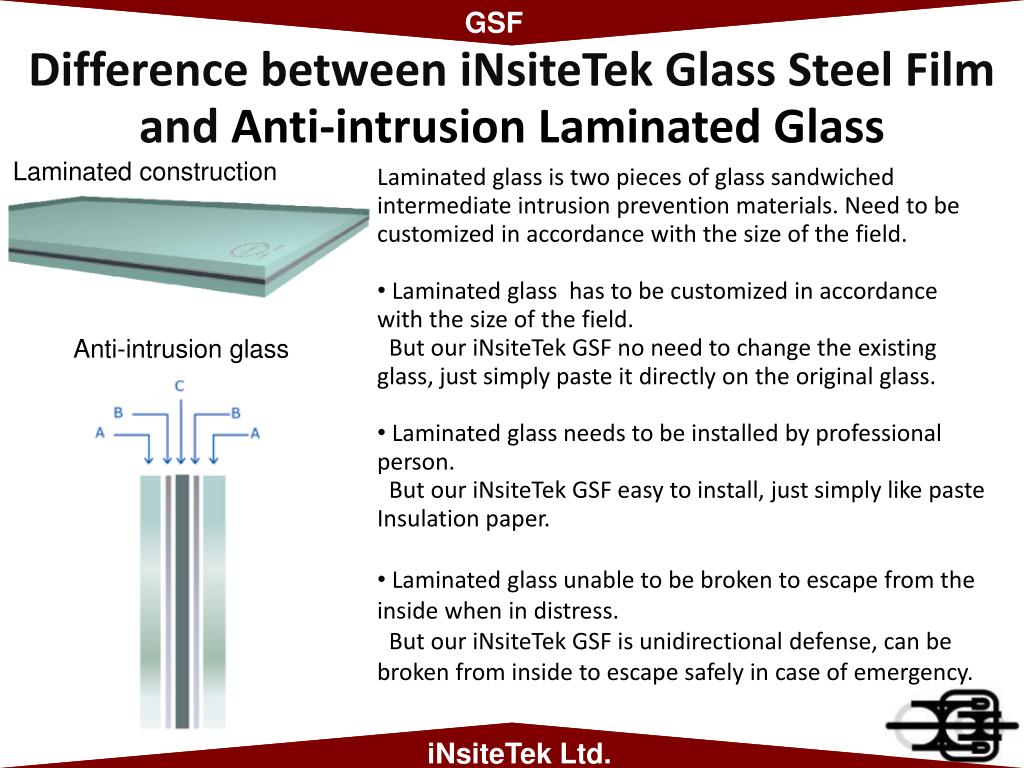

  10. Difference between iNsiteTek Glass Steel Film and Anti-intrusion Laminated Glass Laminated construction • Laminated glass is two pieces of glass sandwiched intermediate intrusion prevention materials. Need to be customized in accordance with the size of the field. • Laminated glass has to be customized in accordance with the size of the field. • But our iNsiteTek GSF no need to change the existing glass, just simply paste it directly on the original glass. • Laminated glass needs to be installed by professional person. • But our iNsiteTek GSF easy to install, just simply like paste Insulation paper. • Laminated glass unable to be broken to escape from the inside when in distress. • But our iNsiteTek GSF is unidirectional defense, can be broken from inside to escape safely in case of emergency. Anti-intrusion glass

  11. iNsiteTek GSF Applications Windward side windows of the building, the upper floors of buildings, coastal buildings, glass houses, villas, luxury, financial institutions, office buildings, hotels, gas stations, gas stations, factories, laboratories, mining mask, canopy, government agencies, hospitals, schools, police agencies, embassies, guardhouse, the control room, military units, airports, museums, Showroom, fine jewelry display cabinets, marine, automotive, armored truck, chemical trucks, rail transportation .....

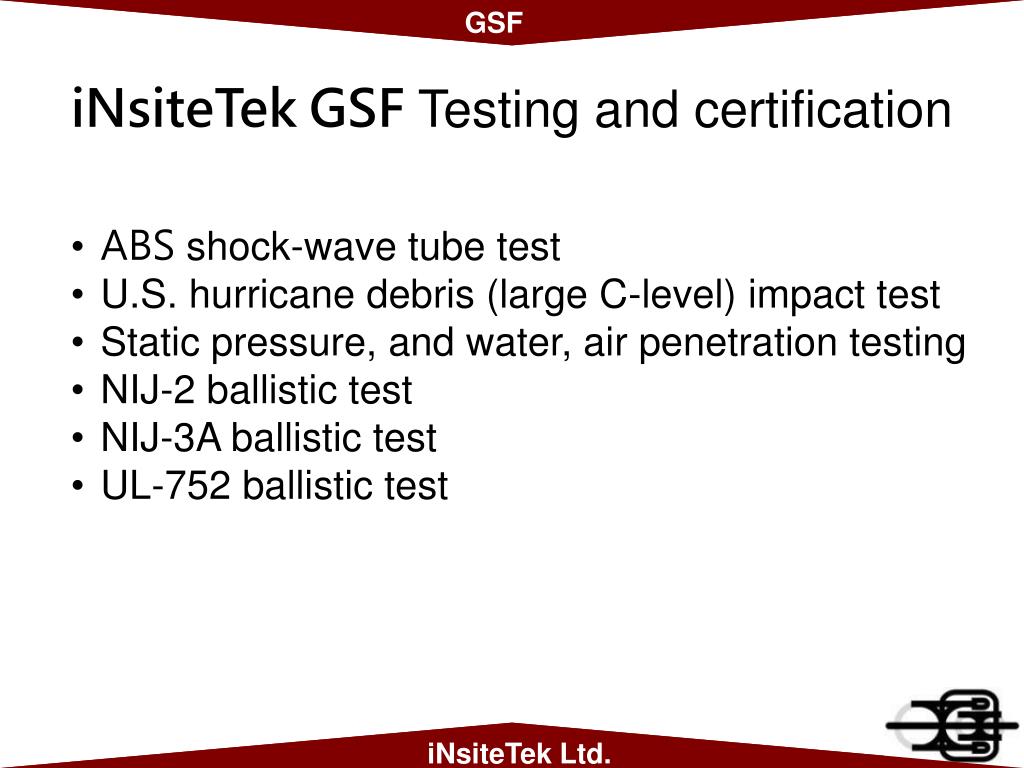

  12. iNsiteTek GSF Testing and certification • ABS shock-wave tube test • U.S. hurricane debris (large C-level) impact test • Static pressure, and water, air penetration testing • NIJ-2 ballistic test • NIJ-3Aballistic test • UL-752 ballistic test

  13. ABS shock-wave tube test ---6mm+7mil

  14. ABS shock-wave tube test ---6mm+8mil

  15. U.S. hurricane debris (large C-level) impact test ---10mm+11mil

  16. Static pressure, and water, air penetration testing ---10mm+11mil

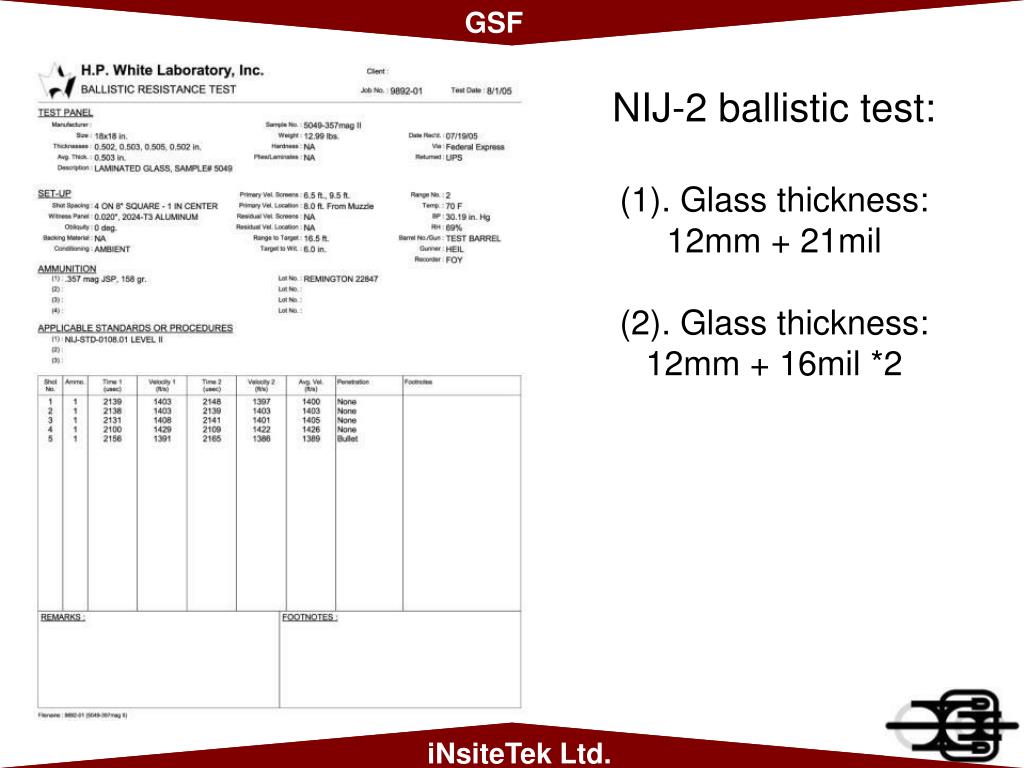

  17. NIJ-2 ballistic test: (1). Glass thickness: 12mm+ 21mil (2). Glass thickness: 12mm+ 16mil *2

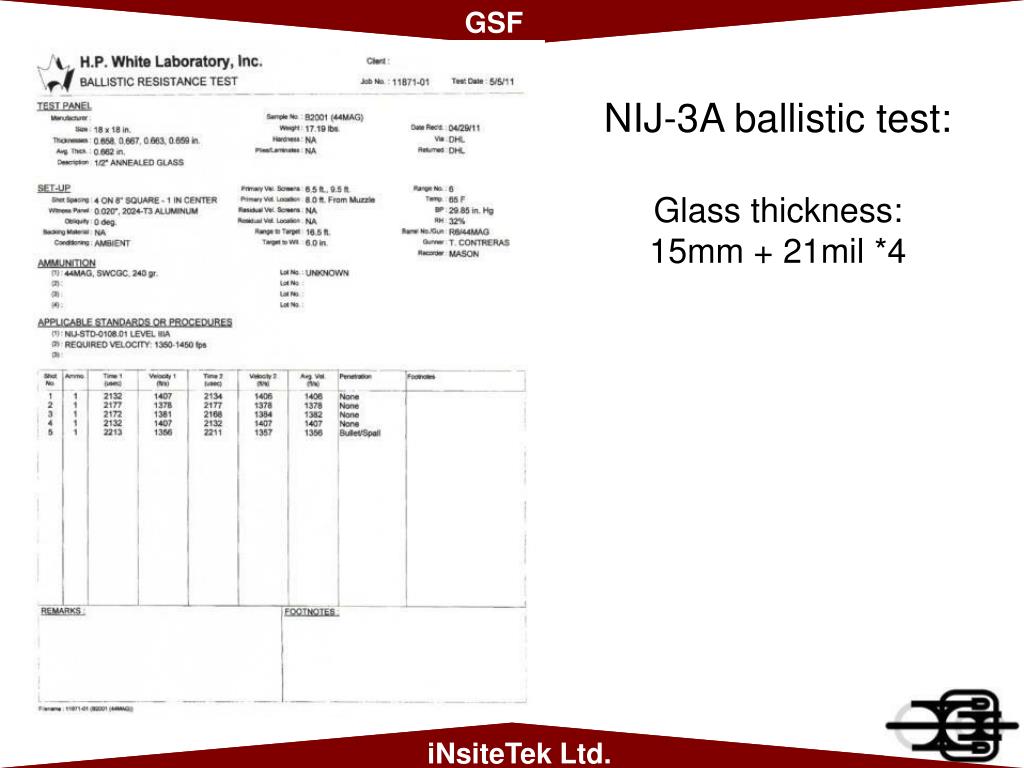

  18. NIJ-3A ballistic test: Glass thickness: 15mm+ 21mil *4

  19. UL-752 ballistic test: Glass thickness: 12mm+ 14mil

  20. UL-752 ballistic test: Glass thickness: 12mm+ 14mil

  21. UL-752 ballistic test: Glass thickness: 12mm+ 14mil

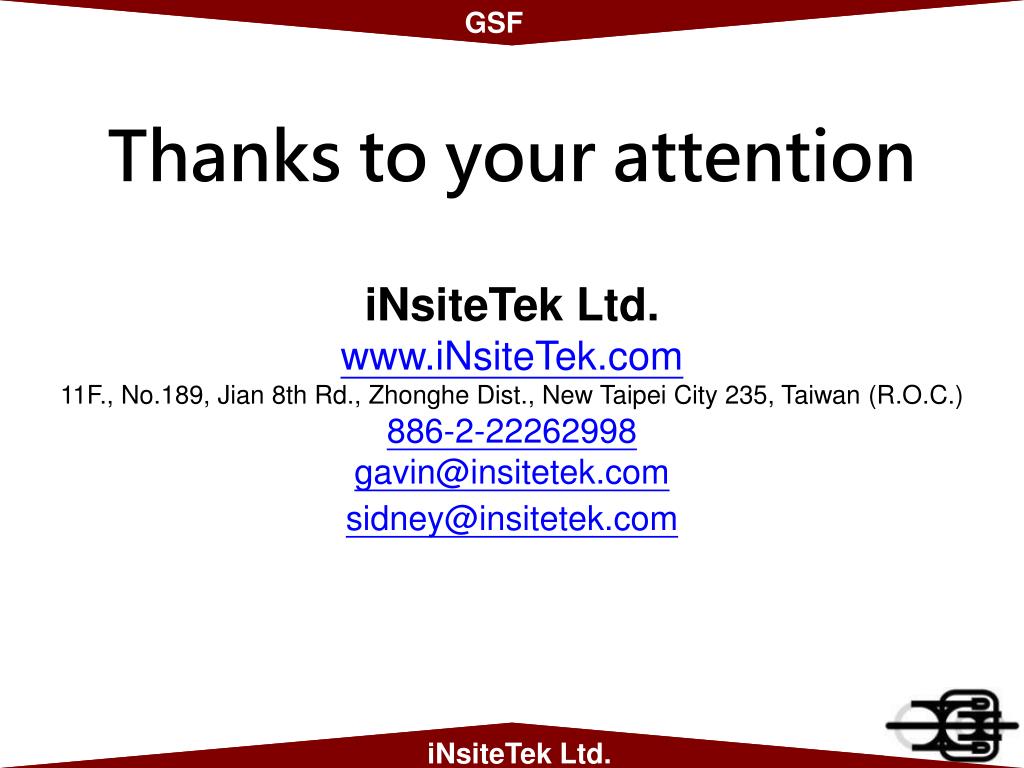

  22. Thanks to your attention iNsiteTekLtd. www.iNsiteTek.com 11F., No.189, Jian 8th Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) 886-2-22262998 gavin@insitetek.com sidney@insitetek.com
