Advanced celestial mechanics questions

Advanced Celestial Mechanics. Questions

Question 1

Explain in main outline how statistical distributions of binary energy and eccentricity are derived in the three-body problem.

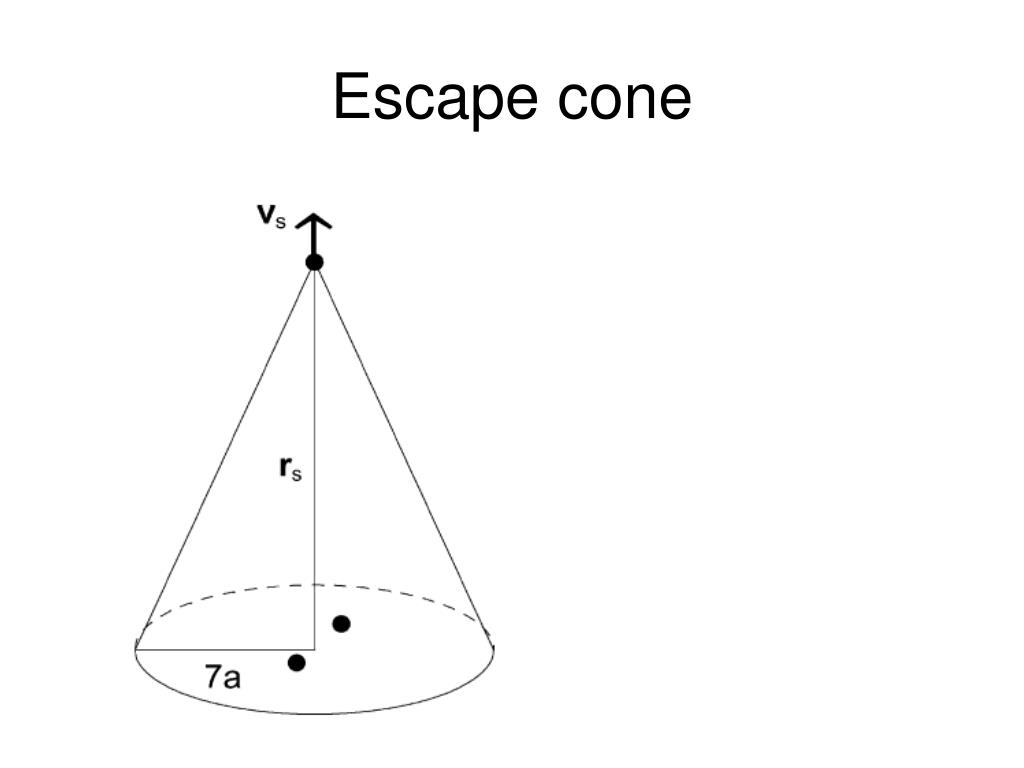

Escape cone

Escape cone


Density of escape states

Density of escape states


Question 2

Question 2

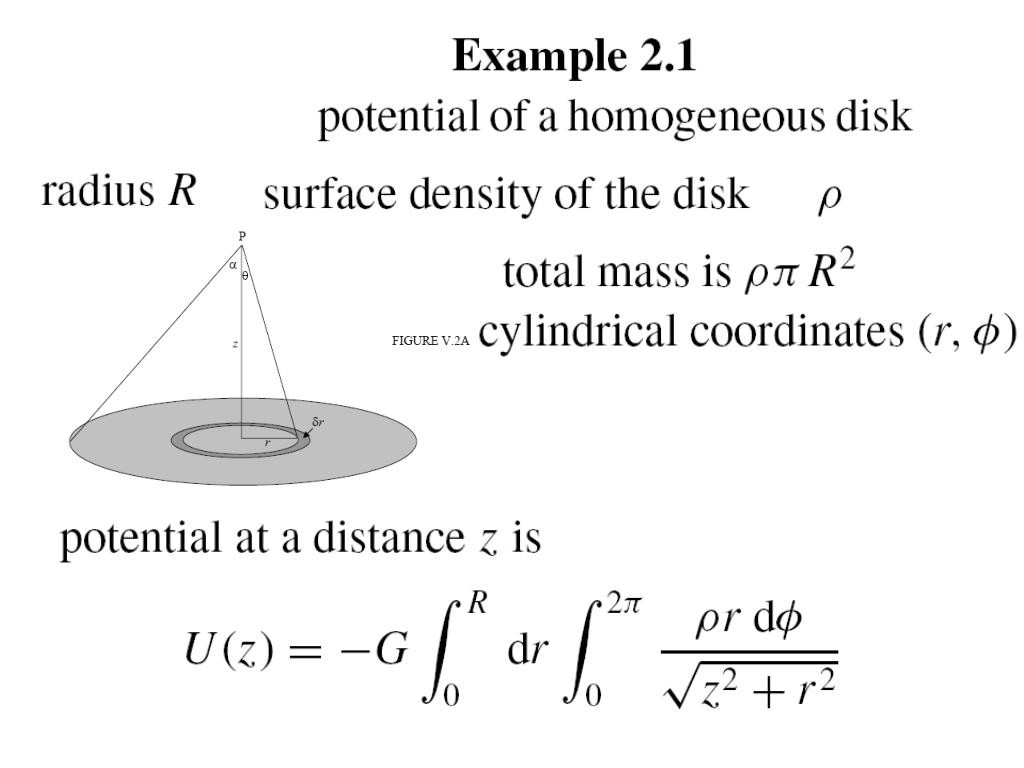

Calculate the potential above an infinite plane.


Advanced celestial mechanics questions

.

  • .


Advanced celestial mechanics questions

.

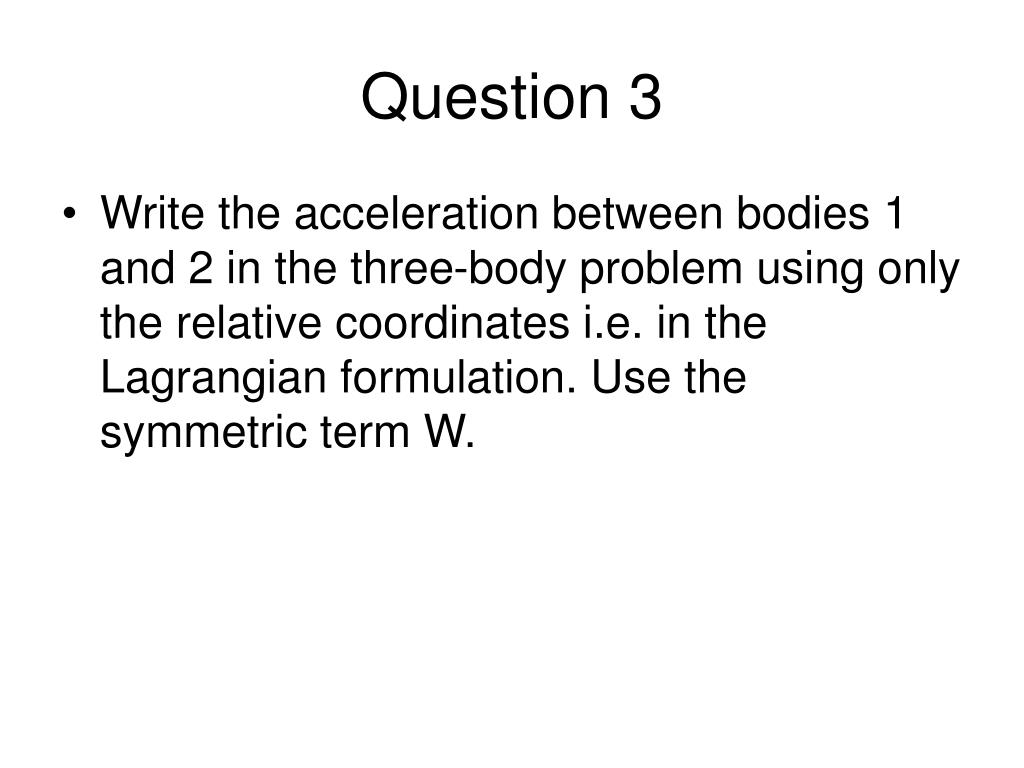

Question 3

Question 3

  • Write the acceleration between bodies 1 and 2 in the three-body problem using only the relative coordinates i.e. in the Lagrangian formulation. Use the symmetric term W.


Advanced celestial mechanics questions

.


Question 4

Question 4

  • Show that in the two-body problem the motion takes place in a plane. Derive the constant e-vector, and derive its relation to the k-vector. Draw an illustration of these two vectors in relation to the orbit.


Advanced celestial mechanics questions

.


Question 5

Question 5

  • Define true anomaly and eccentic anomaly in the two-body problem. Derive the transformation formula between these two anomalies. Define also the mean anomaly M.


Advanced celestial mechanics questions

.

  • .


Question 6

Question 6

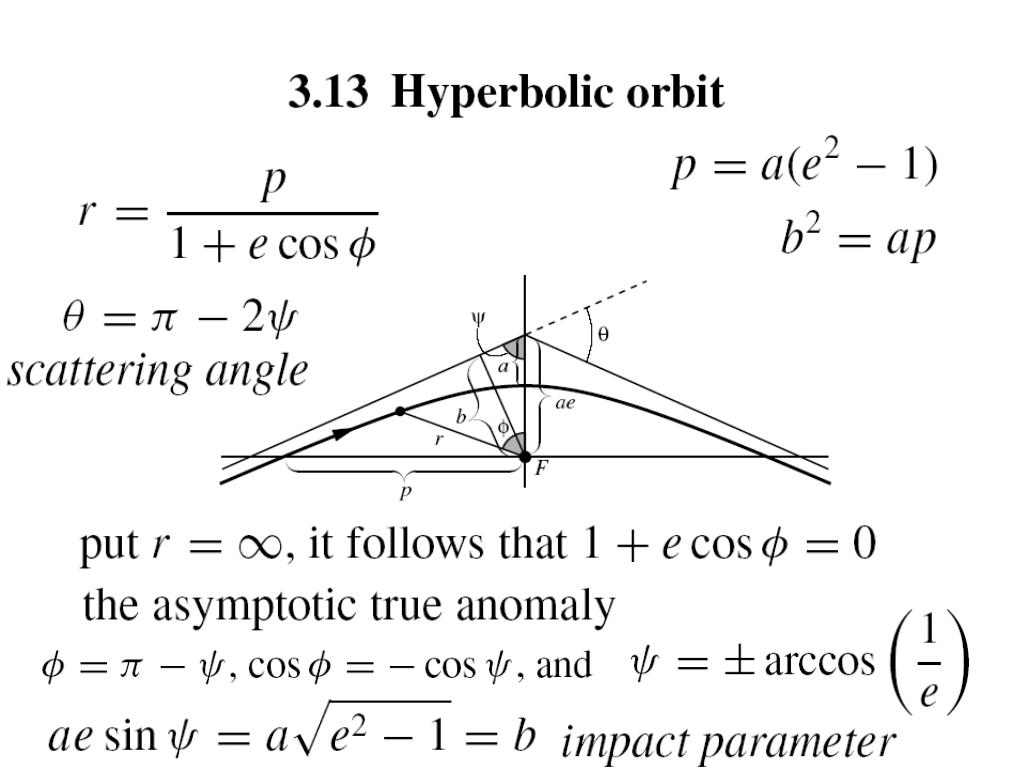

  • Define the scattering angle in the hyperbolic two-body problem, and derive its value using the eccentricity. Derive the expression of the impact parameter b as a function of the scattering angle.


Advanced celestial mechanics questions

  • .


Question 7

Question 7

  • Derive the potential at point P, arising from a source at point Q, a distance r’ from the origin. Define Legendre polynomials and write the first three polynomials.

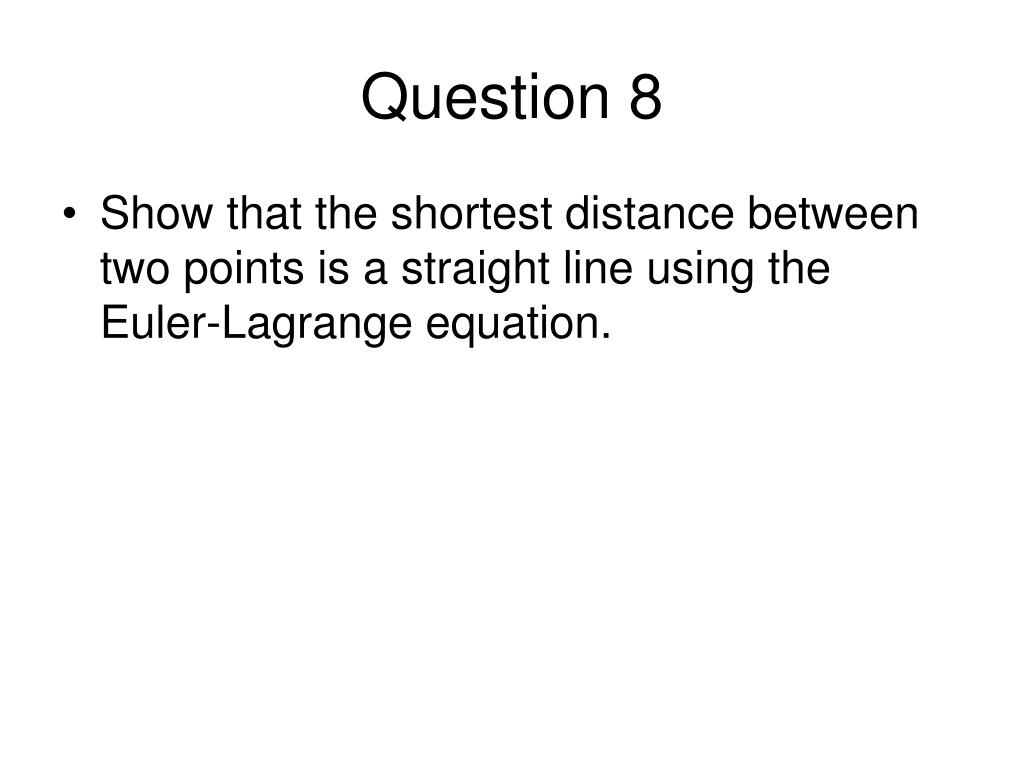

Question 8

Question 8

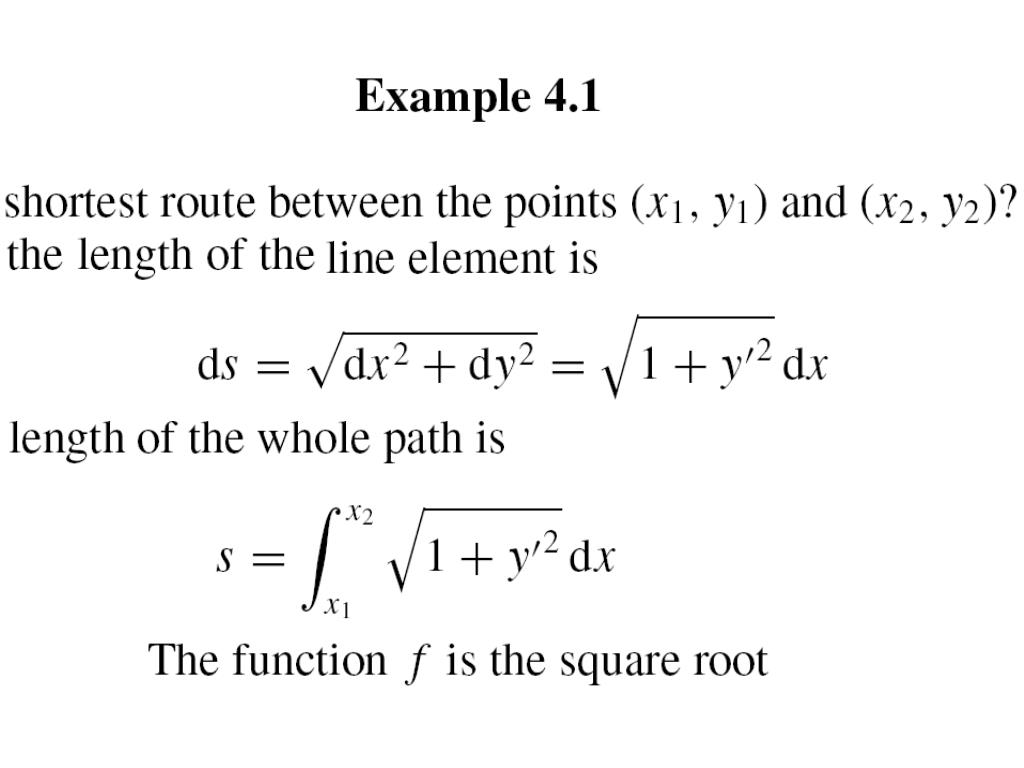

  • Show that the shortest distance between two points is a straight line using the Euler-Lagrange equation.


Advanced celestial mechanics questions

.


Advanced celestial mechanics questions

.

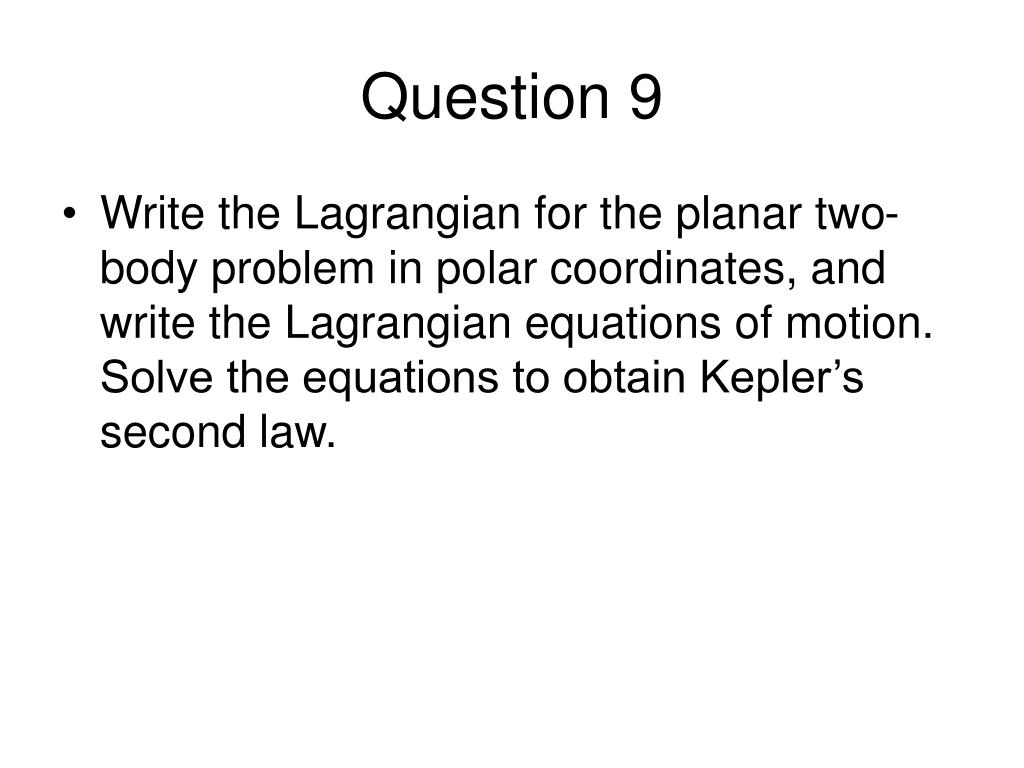

Question 9

Question 9

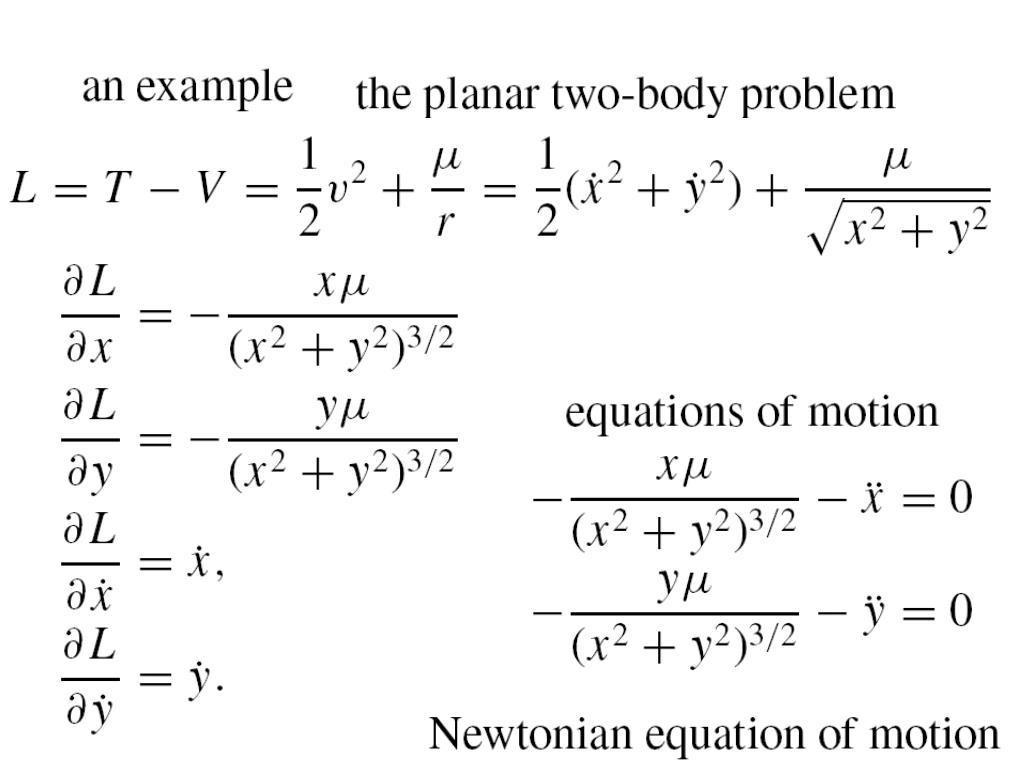

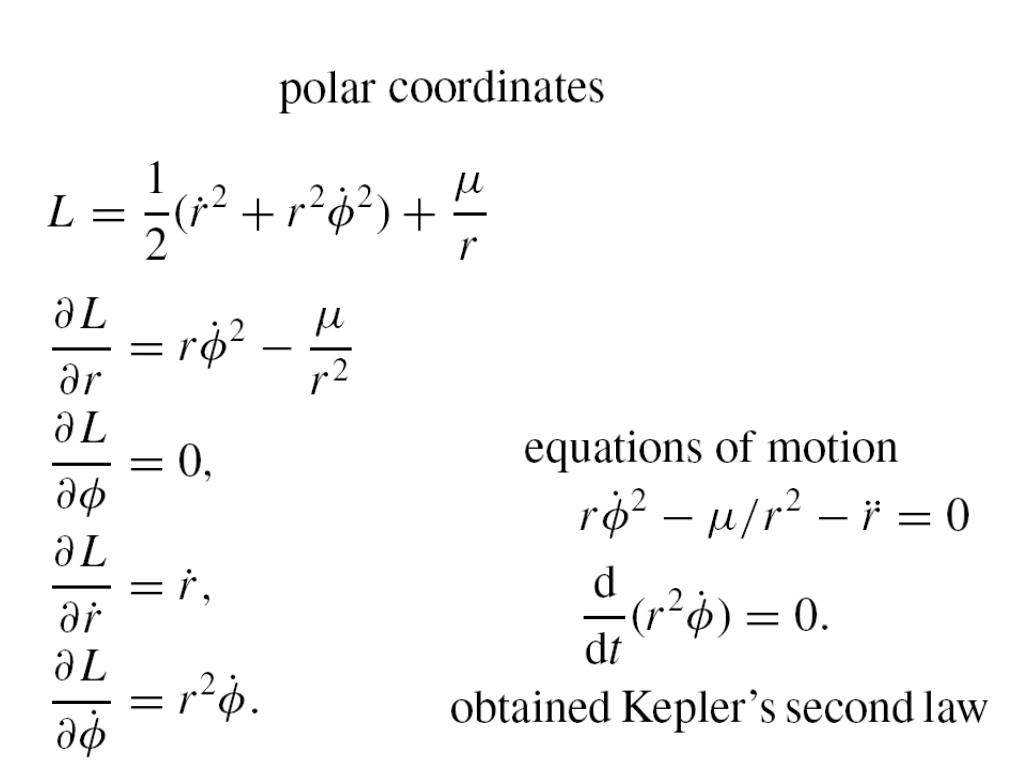

  • Write the Lagrangian for the planar two-body problem in polar coordinates, and write the Lagrangian equations of motion. Solve the equations to obtain Kepler’s second law.


Advanced celestial mechanics questions

.


Advanced celestial mechanics questions

.


Question 10

Question 10

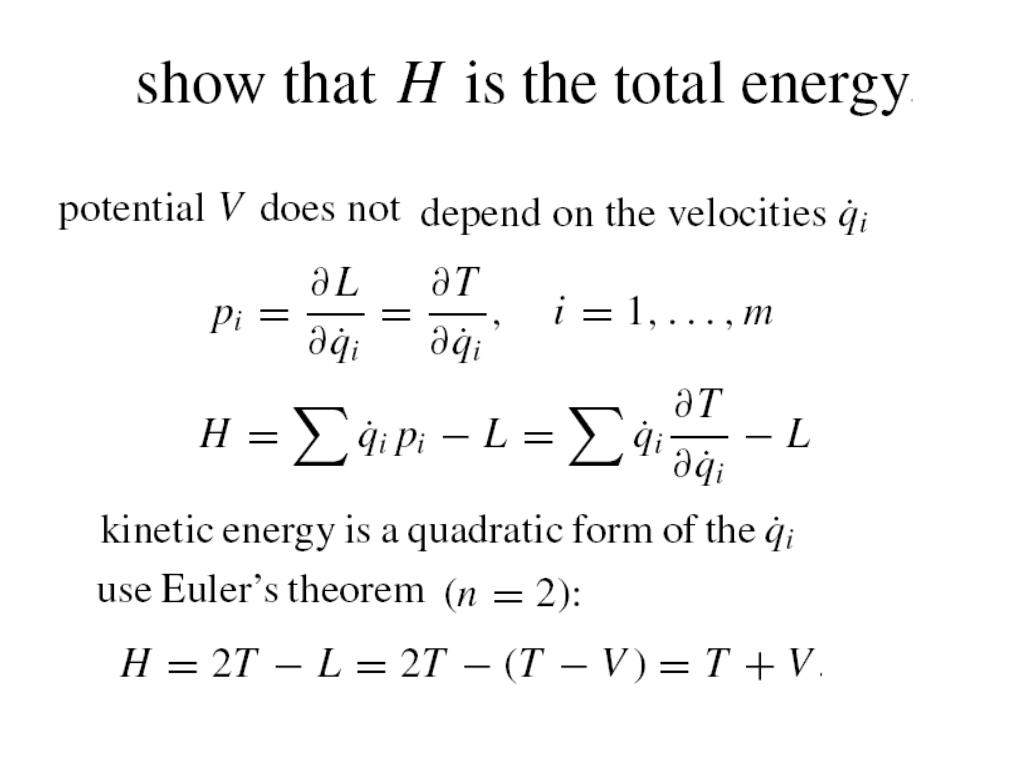

  • If the potential does not depend on generalized velocities, show that the Hamiltonian equals the total energy. Use Euler’s theorem with n=2.


Advanced celestial mechanics questions

  • .


Question 11

Question 11

  • Write the Hamiltonian in the planar two-body problem in polar coordinates. Show that the is a constant.


Advanced celestial mechanics questions

.

  • .


Advanced celestial mechanics questions

  • .


Question 12

Question 12

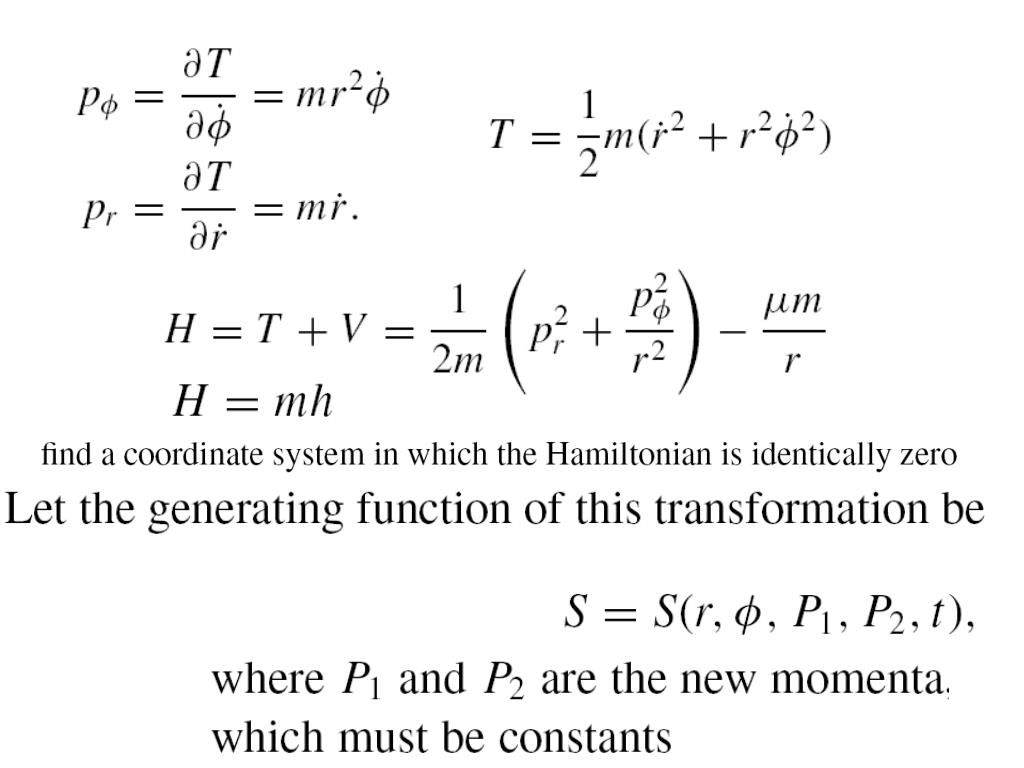

The canonical coordinates in the two-body problem are

Use the generating function

To derive Delaunay’s elements.


Advanced celestial mechanics questions

  • .


Advanced celestial mechanics questions

  • .


Question 13

Question 13

  • Show that the Hamiltonian in the three-body problem is

  • Write the Hamiltonian equations of motion for the three-body problem


Advanced celestial mechanics questions

.

  • .


Advanced celestial mechanics questions

.


Question 14

Question 14

Show that in the hierarchical three-body problem

Make use of the canonical coordinates and the Hamiltonian


Advanced celestial mechanics questions

.


Advanced celestial mechanics questions

.
