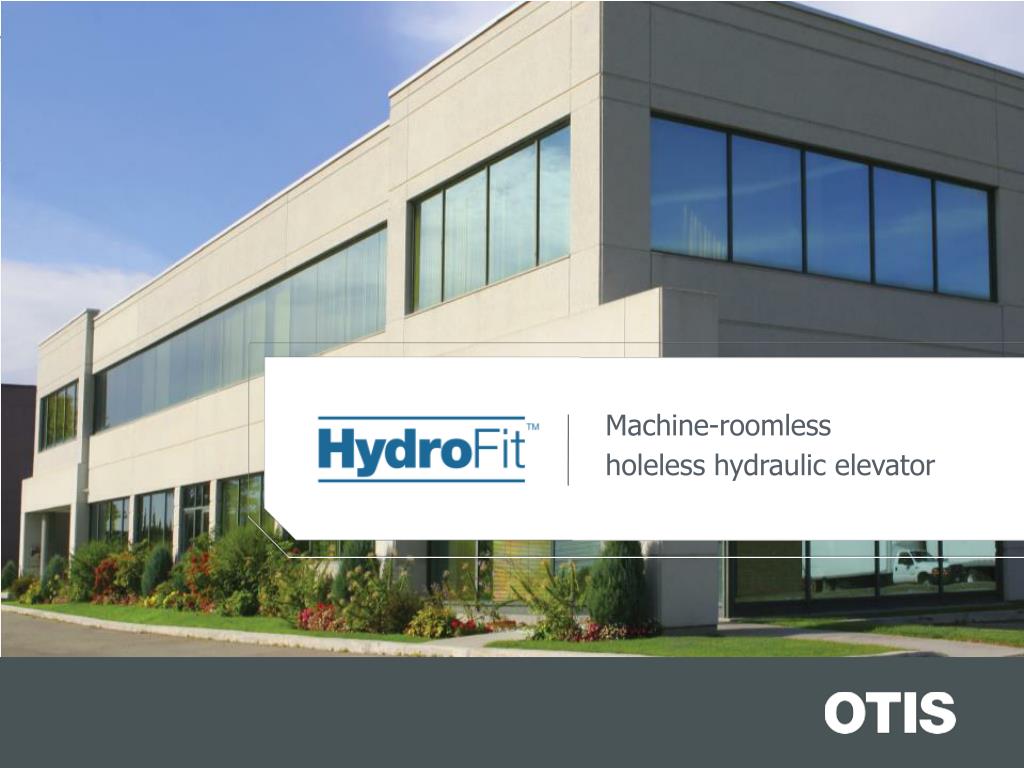

  1. Machine-roomless holeless hydraulic elevator

  2. Design freedom comes to low-rise buildings. Introducing the HydroFit system: a machine-roomless holeless hydraulic elevator.

  3. Design freedom comes to low-rise buildings. Otis HydroFit delivers: DESIGN FREEDOM MINIMAL JOBSITE COORDINATION ENERGY EFFICIENCY PROVEN RELIABILITY

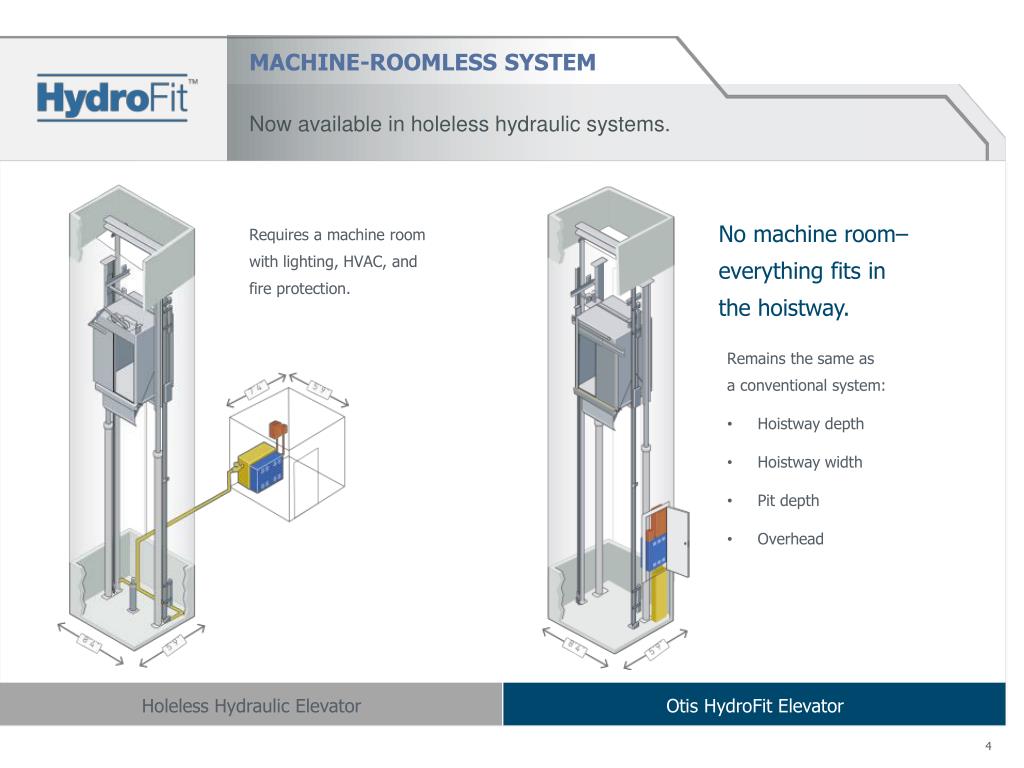

  4. MACHINE-ROOMLESS SYSTEM Now available in holeless hydraulic systems. No machine room– everything fits in the hoistway. Requires a machine room with lighting, HVAC, andfire protection. • Remains the same as a conventional system: • Hoistway depth • Hoistway width • Pit depth • Overhead Holeless Hydraulic Elevator Otis HydroFit Elevator

  5. MACHINE-ROOMLESS SYSTEM Now available in holeless hydraulic systems. Conventional System: Requires dedicated space for the elevator machine room. HydroFit System: Machine-roomless means more usable space for your building. Holeless Hydraulic Elevator Otis HydroFit Elevator

  6. DESIGN FREEDOM Experience more design freedom with Otis HydroFit. • More design freedom: • Create spaces that meet your design vision and needs. • Increase your income with more rentable space.

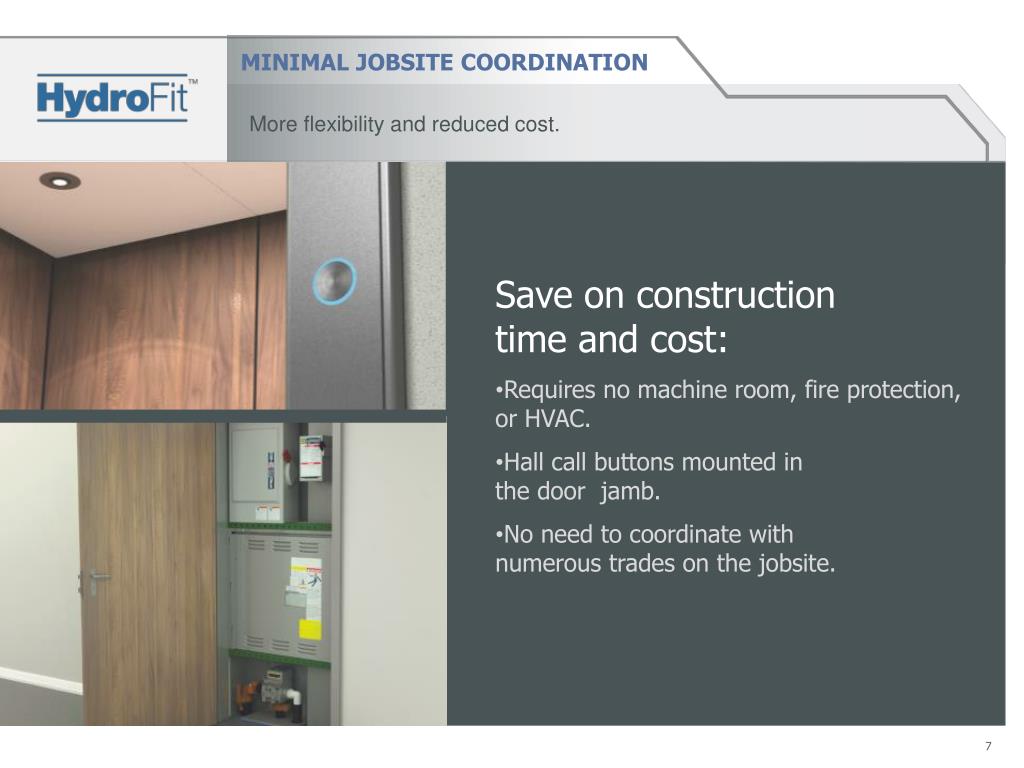

  7. MINIMAL JOBSITE COORDINATION More flexibility and reduced cost. • Save on constructiontime and cost: • Requires no machine room, fire protection, or HVAC. • Hall call buttons mounted in the door jamb. • No need to coordinate with numerous trades on the jobsite.

  8. MINIMAL JOBSITE COORDINATION More flexibility and reduced cost. The industry’s shortest lead time.

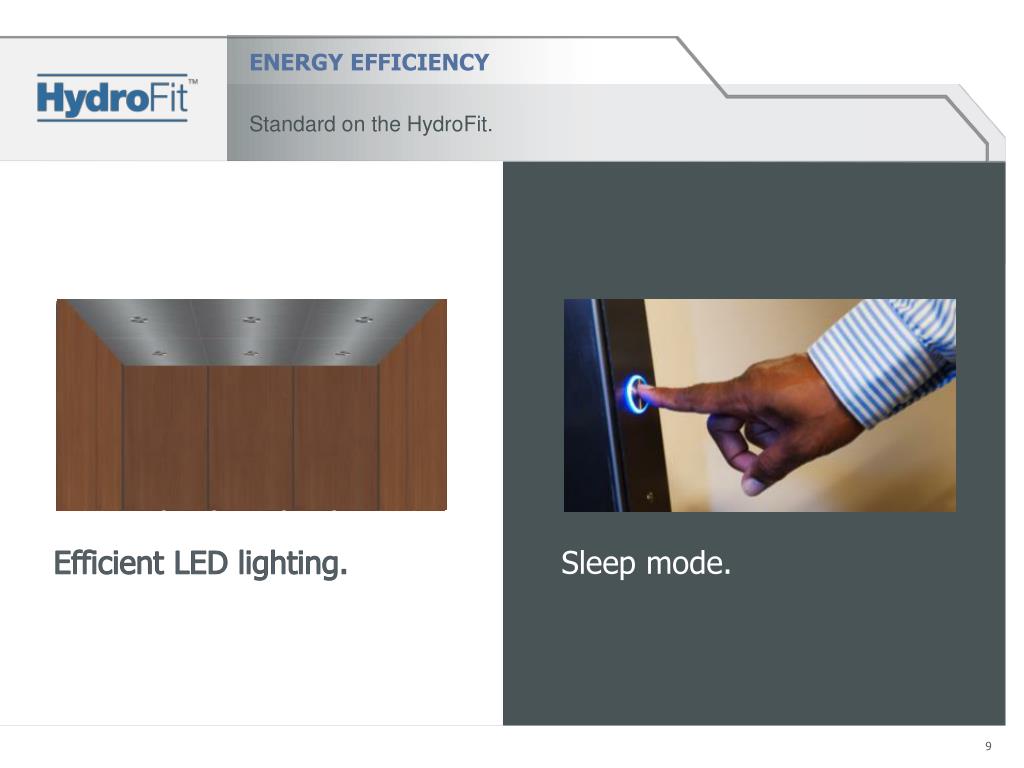

  9. ENERGY EFFICIENCY Standard on the HydroFit. Efficient LED lighting. Sleep mode.

  10. ENERGY EFFICIENCY Standard on the HydroFit. Maximized efficiency.

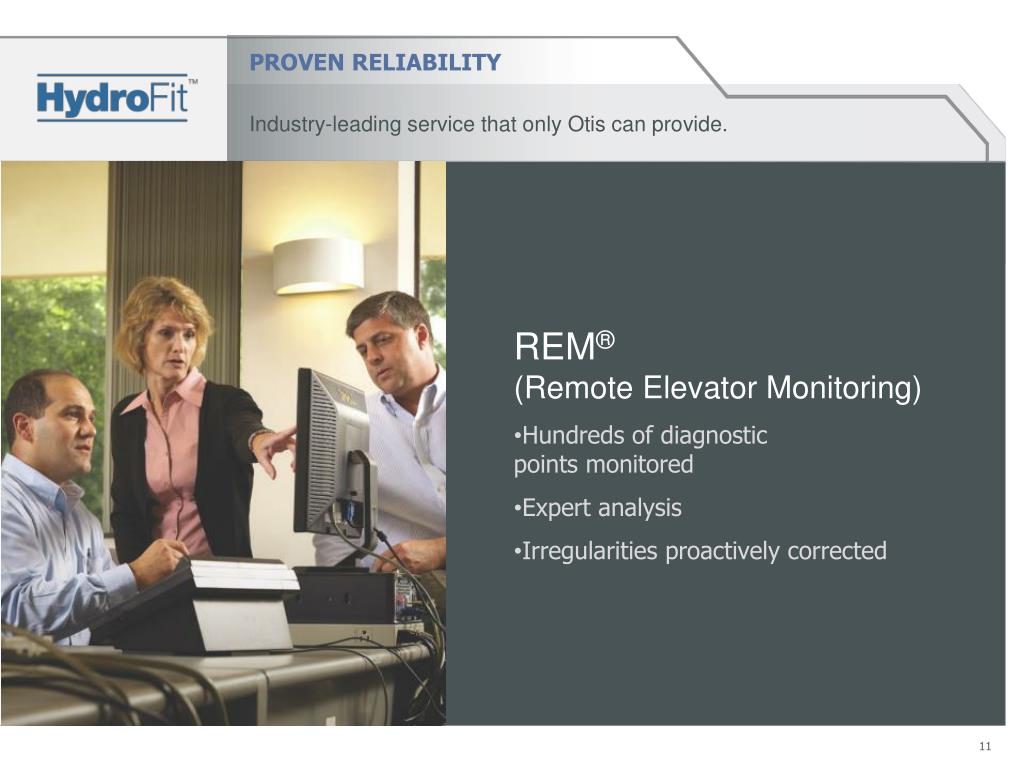

  11. PROVEN RELIABILITY Industry-leading service that only Otis can provide. • REM® (Remote Elevator Monitoring) • Hundreds of diagnostic points monitored • Expert analysis • Irregularities proactively corrected The Pulse system provides safety and peace of mind with 24/7 monitoring of the Gen2’s flat coated-steel belts. It provides advance notice of belt wear by detecting the slightest weakness.

  12. PROVEN RELIABILITY Industry-leading service that only Otis can provide. • OMMS® (Otis Maintenance Management System) • Predictive and preventative system • Fewer service calls • Industry-leading uptime The Pulse system provides safety and peace of mind with 24/7 monitoring of the Gen2’s flat coated-steel belts. It provides advance notice of belt wear by detecting the slightest weakness.

  13. PROVEN RELIABILITY Industry-leading service that only Otis can provide. • Otis Elite℠ • Experts dedicated to your elevator • Remote access • Real-time status updates • Guaranteed 15-minute response time The Pulse system provides safety and peace of mind with 24/7 monitoring of the Gen2’s flat coated-steel belts. It provides advance notice of belt wear by detecting the slightest weakness.

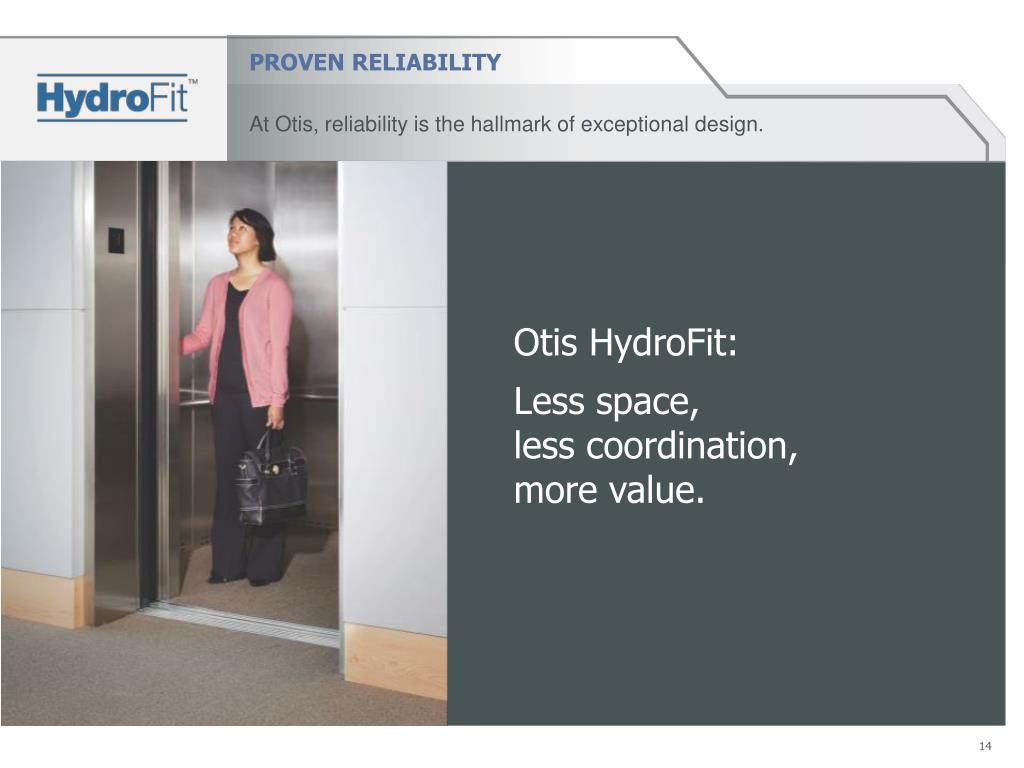

  14. PROVEN RELIABILITY At Otis, reliability is the hallmark of exceptional design. Otis HydroFit: Less space, less coordination,more value.
