JUNIOR ROTARY MICROTOME EMT-1070A

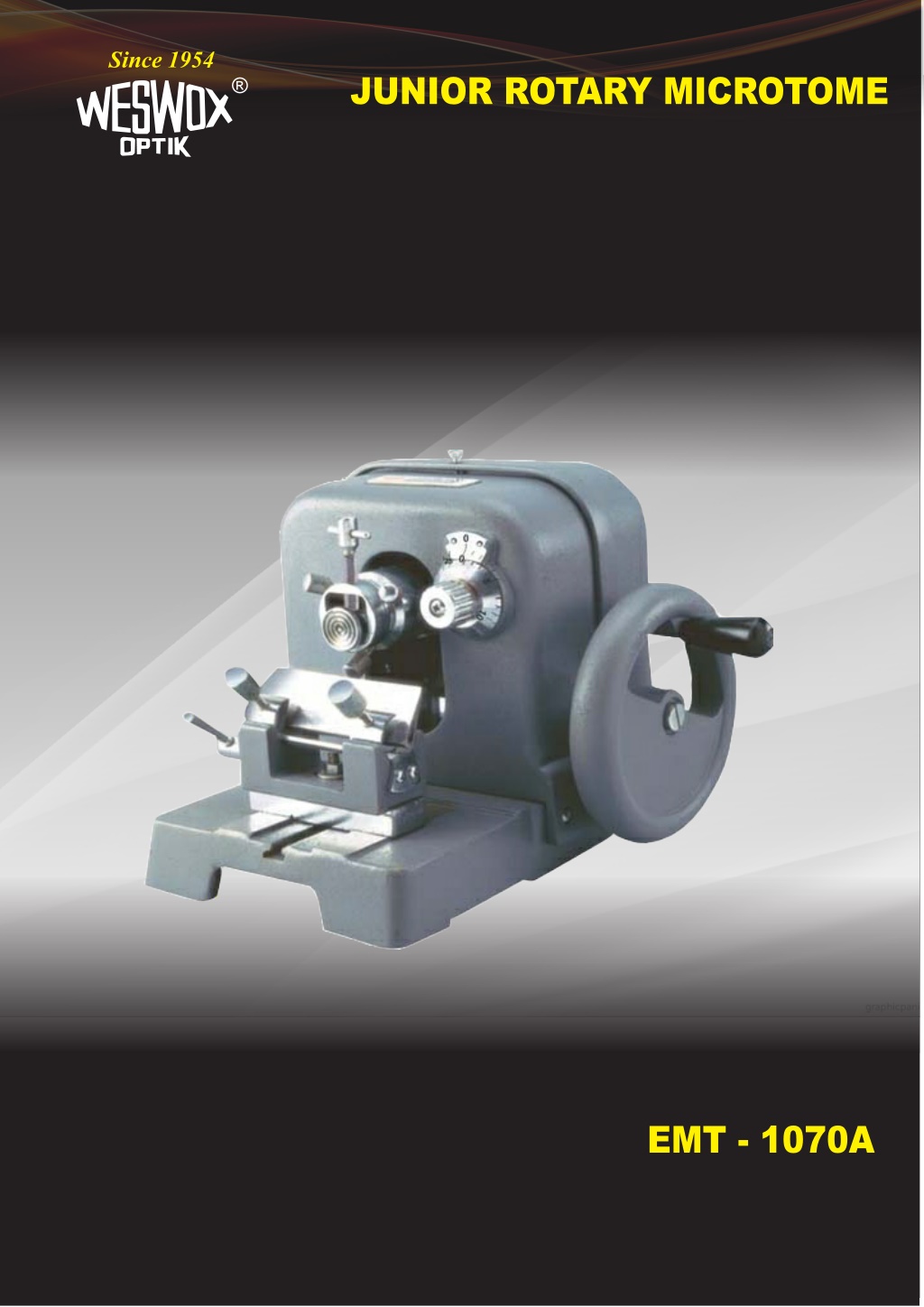

1. Since 1954 JUNIOR ROTARY MICROTOME ® EMT - 1070A

2. JUNIOR ROTARY MICROTOME EMT - 1090A Feature :-  Weswox Erma Type Microtome is a highly versatile sectioning device suitable for Medical Institutions, Research & Pathological Laboratories.  The entire mechanism stands on a heavy cast iron base ensuring stability and rigidity.  Cutting sections are obtained in different thickness by mechanically operated crank through a knurled knob in front of the instrument.  Smooth & accurate specimen movement is achieved with the time proven operating principles of the feed mechanism.  This microtome has special application for cutting thin sections of histo-pathological specimens and also caters to the demands of industries such as Plastic, Leather, Textiles, and Rubber & Fertilizer.  It has forward and backward movements to ensure contact of specimen with the knife and lateral movement to get maximum use of knife edge.  All parts are fabricated from selected alloys and the Microtome knife is manufactured from fine grain steel tested to maintain optimum sharpness strength. ures: Technical specification :- Accessories :-  Feed adjustment : 1-25 um.  Minimum thickness : 1um.  Toatl feed excursions : 28 mm.  Overall dimensions : 30x33x28 cms.  Net weight : 25 kgs. approx.  Gross weight : 35 kgs approx.  Object holders (3nos) : 1set.  Knife 120mm in a box.  Honing stone.  Lubricant bottle oil.  Dust cover.  Operating manual. Optional Accessories :-  Razor attachments,  Microtome razor/knives.  L-moulds.  Object holder.  Honing stones.  Leather straps.  Micro abrasives,  Razor/knife Sharpeners and ribbon conveyer etc. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Weswoxindia.com Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
