  1. KLAY INSTRUMENTS B.V. ALL STAINLESS PRESSURE AND LEVEL TRANSMITTERS

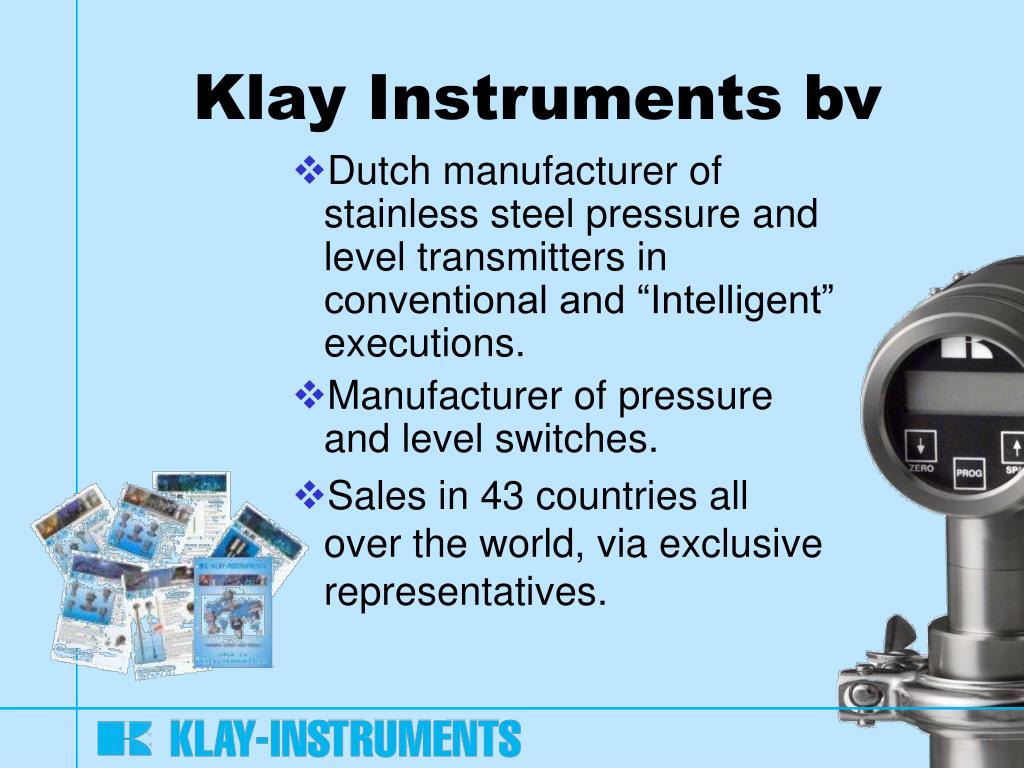

  2. Klay Instruments bv • Dutch manufacturer of stainless steel pressure and level transmitters in conventional and “Intelligent” executions. • Manufacturer of pressure and level switches. • Sales in 43 countries all over the world, via exclusive representatives.

  3. Turnover related to industry

  4. Production Factory of Klay Instruments, at Dwingeloo – The Netherlands

  5. Production(2) Laser welding of diaphragms

  6. Production(3) Production of stainless steel housing

  7. Production(4) Active temperature compensation of all transmitters

  8. Products • Peramic® • 8000 – SAN • HYDROBAR • SERIES 2000 • Certificates: • HART® • Profibus® • ATEX G or D • Marine and Shipbuilding • 3-A

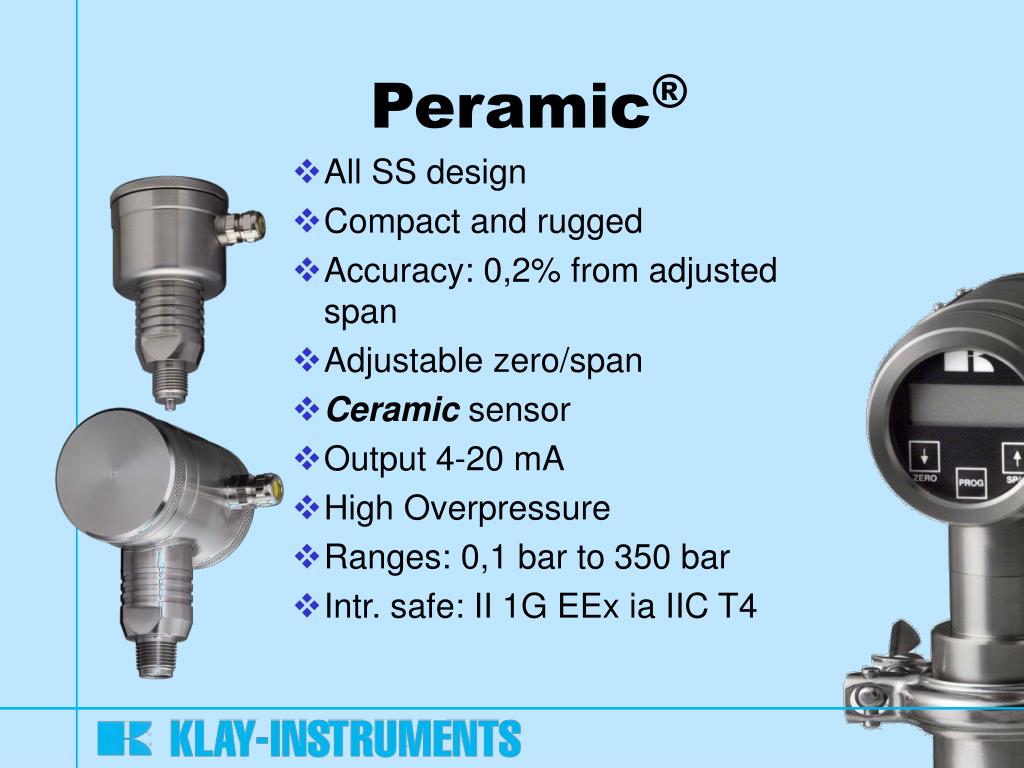

  9. Peramic® • All SS design • Compact and rugged • Accuracy: 0,2% from adjusted span • Adjustable zero/span • Ceramic sensor • Output 4-20 mA • High Overpressure • Ranges: 0,1 bar to 350 bar • Intr. safe: II 1G EEx ia IIC T4

  10. 8000-SAN • All SS design • Adjustable zero/span • Compact and rugged • Accuracy: 0,2% from adjusted span • 60 Different process connections • Output 4-20 mA • High Overpressure • Ranges: 0,1 bar to 80 bar • Intr. Safe: II 1 G EEx ia IIC T4

  11. HYDROBARSUBMERSIBLE LEVELTRANSMITTERS • All SS design • Cable or Tube extension • Accuracy: 0,2% from adjusted span • Adjustable zero/span • Strong Diaphragms • Output 4-20 mA • Intr. Safe: II 1 G EEx ia IIC T4 • Local Indicator available (option) • Perfect long term stability

  12. SERIES 2000 (SAN) • Calibration without test pressure by 3 pushbuttons • All SS Electronics housing • Accuracy 0,1% • 4-20 mA and HART® protocol • Profibus® PA Output • Pressure and Temperature readout on standard local display • Electronic Damping 0-25 sec • Tanklinearisation

  13. CERTIFICATES • Intr. safe acc. To ATEX II 1G (or D) EEx ia IIC T4 • HART® protocol • Profibus® PA • 3A (US Sanitary Standard) • Marine / Shipbuilding: • Lloyds • Germanischer Lloyds • DNV • Bureau Veritas
