Slide1 l.jpg

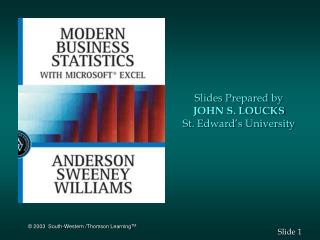

Slides Prepared by

JOHN S. LOUCKS

St. Edward’s University


Chapter 2 descriptive statistics tabular and graphical methods l.jpg
Chapter 2Descriptive Statistics:Tabular and Graphical Methods

  • Summarizing Qualitative Data

  • Summarizing Quantitative Data

  • Exploratory Data Analysis

  • Crosstabulations

    and Scatter Diagrams


Summarizing qualitative data l.jpg
Summarizing Qualitative Data

  • Frequency Distribution

  • Relative Frequency

  • Percent Frequency Distribution

  • Bar Graphs and Pie Charts


Frequency distribution l.jpg
Frequency Distribution

  • A frequency distribution is a tabular summary of data showing the frequency (or number) of items in each of several nonoverlapping classes.

  • The objective is to provide insights about the data that cannot be quickly obtained by looking only at the original data.


Example marada inn l.jpg
Example: Marada Inn

Guests staying at Marada Inn were asked to rate the

quality of their accommodations as being excellent,

above average, average, below average, or poor. The

ratings provided by a sample of 20 quests are shown

below.

Below Average Average Above Average

Above Average Above Average Above Average Above Average Below Average Below Average Average Poor Poor

Above Average Excellent Above Average

Average Above Average Average

Above Average Average


Example marada inn6 l.jpg
Example: Marada Inn

  • Frequency Distribution

    RatingFrequency

    Poor 2

    Below Average 3

    Average 5

    Above Average 9

    Excellent 1

    Total 20


Using excel s countif function to construct a frequency distribution l.jpg
Using Excel’s COUNTIF Functionto Construct a Frequency Distribution

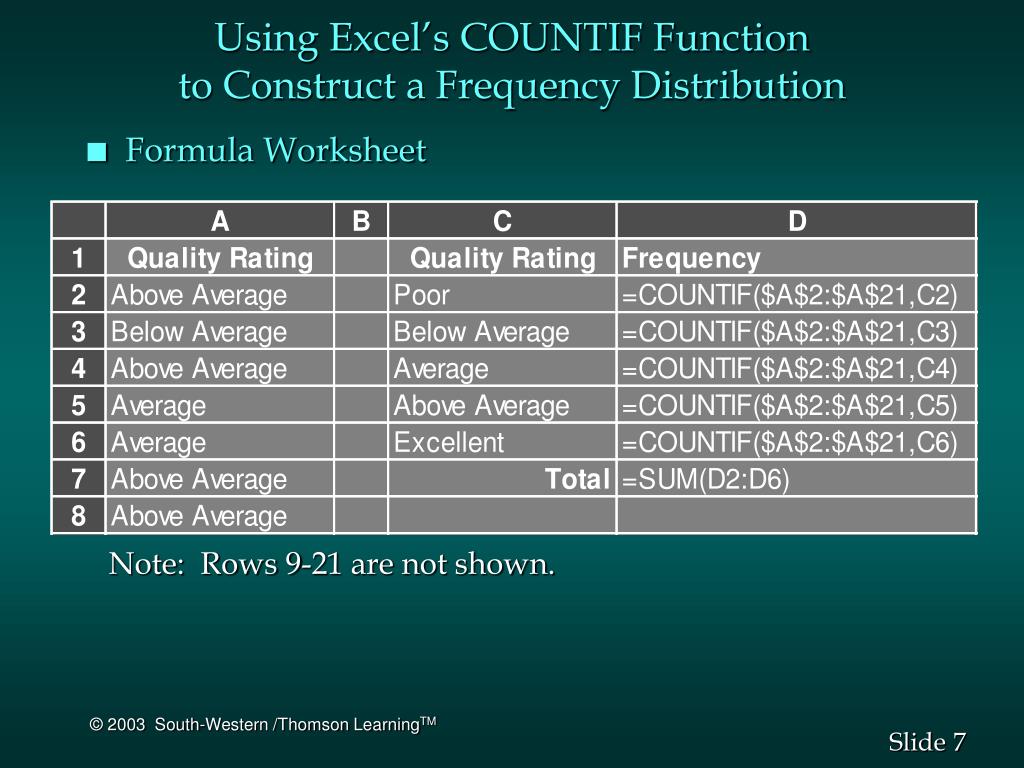

  • Formula Worksheet

Note: Rows 9-21 are not shown.


Using excel s countif function to construct a frequency distribution8 l.jpg
Using Excel’s COUNTIF Functionto Construct a Frequency Distribution

  • Value Worksheet

Note: Rows 9-21 are not shown.


Relative frequency distribution l.jpg
Relative Frequency Distribution

  • The relative frequency of a class is the fraction or proportion of the total number of data items belonging to the class.

  • A relative frequency distribution is a tabular summary of a set of data showing the relative frequency for each class.


Percent frequency distribution l.jpg
Percent Frequency Distribution

  • The percent frequency of a class is the relative frequency multiplied by 100.

  • Apercent frequency distribution is a tabular summary of a set of data showing the percent frequency for each class.


Example marada inn11 l.jpg
Example: Marada Inn

  • Relative Frequency and Percent Frequency Distributions

    RelativePercent

    RatingFrequencyFrequency

    Poor .10 10

    Below Average .15 15

    Average .25 25

    Above Average .45 45

    Excellent .05 5

    Total 1.00 100


Using excel to construct relative frequency and percent frequency distributions l.jpg
Using Excel to Construct Relative Frequency and Percent Frequency Distributions

  • Formula Worksheet

Note: Columns A-B and rows 9-21 and are not shown.


Using excel to construct relative frequency and percent frequency distributions13 l.jpg
Using Excel to Construct Relative Frequency and Percent Frequency Distributions

  • Value Worksheet

Note: Columns A-B and rows 9-21 and are not shown.


Bar graph l.jpg
Bar Graph Frequency Distributions

  • A bar graph is a graphical device for depicting qualitative data that have been summarized in a frequency, relative frequency, or percent frequency distribution.

  • On the horizontal axis we specify the labels that are used for each of the classes.

  • A frequency, relative frequency, or percent frequency scale can be used for the vertical axis.

  • Using a bar of fixed width drawn above each class label, we extend the height appropriately.

  • The bars are separated to emphasize the fact that each class is a separate category.


Example marada inn15 l.jpg

9 Frequency Distributions

8

7

6

Frequency

5

4

3

2

1

Rating

Above

Average

Excellent

Poor

Below

Average

Average

Example: Marada Inn

  • Bar Graph


Using excel s chart wizard to construct bar graphs l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Bar Graphs

Step 1 Select cells C1:D6

Step 2 Select the Chart Wizard button

Step 3 When the Chart Type dialog box appears:

Choose Column in the Chart type list

Choose Clustered Column from the Chart

sub-type display

Select Next >

Step 4 When the Chart Source Data dialog box appears

Select Next >

… continued


Using excel s chart wizard to construct bar graphs17 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Bar Graphs

Step 5 When the Chart Options dialog box appears:

Select the Titles tab and then

Type Customers’ Quality Ratings in the

Chart title box

Enter QualityRating in the Value (X) axis box

Enter Frequency in the Value (Y) axis box

Select the Legend tab and then

Remove the check in the Show Legend box

Select Next >

… continued


Using excel s chart wizard to construct bar graphs18 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Bar Graphs

Step 6 When the Chart Location dialog box appears:

Specify the location for the new chart

Select Finish to display the bar graph


Using excel s chart wizard to construct bar graphs19 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Bar Graphs


Pie chart l.jpg
Pie Chart Frequency Distributions

  • The pie chart is a commonly used graphical device for presenting relative frequency distributions for qualitative data.

  • First draw a circle; then use the relative frequencies to subdivide the circle into sectors that correspond to the relative frequency for each class.

  • Since there are 360 degrees in a circle, a class with a relative frequency of .25 would consume .25(360) =

    90 degrees of the circle.


Example marada inn21 l.jpg

Exc. Frequency Distributions

5%

Poor

10%

Below

Average

15%

Above

Average

45%

Average

25%

Quality Ratings

Example: Marada Inn

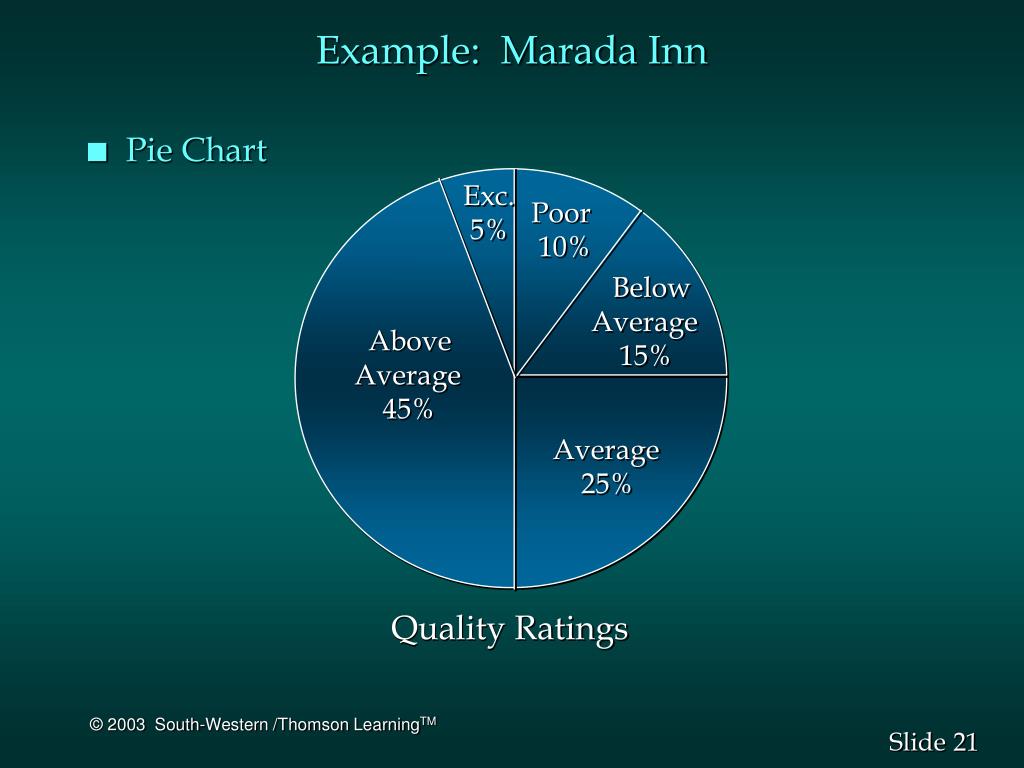

  • Pie Chart


Using excel s chart wizard to construct pie charts l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Pie Charts

Step 1 Select cells C2:C6 and F2:F6

Step 2 Select the Chart Wizard button

Step 3 When the Chart Type dialog box appears:

Choose Pie in the Chart type list

Choose Pie from the Chart sub-type display

Select Next >

Step 4 When the Chart Source Data dialog box appears

Select Next >

… continued


Using excel s chart wizard to construct pie charts23 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Pie Charts

Step 5 When the Chart Options dialog box appears:

Select the Titles tab and then

Type Customers’ Quality Ratingsat Marada in the Chart title box

Select the Legend tab and then

Remove the check in the Show Legend box

Select the Data Labels tab and then

Select Show Label and percent

Select Show leader lines

Select Next >

… continued


Using excel s chart wizard to construct pie charts24 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Pie Charts

Step 6 When the Chart Location dialog box appears:

Specify the location for the new chart

Select Finish to display the pie chart


Using excel s chart wizard to construct pie charts25 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct Pie Charts


Example marada inn26 l.jpg
Example: Marada Inn Frequency Distributions

  • Insights Gained from the Preceding Pie Chart

    • One-half of the customers surveyed gave Marada a quality rating of “above average” or “excellent” (looking at the left side of the pie). This might please the manager.

    • For each customer who gave an “excellent” rating, there were two customers who gave a “poor” rating (looking at the top of the pie). This should displease the manager.


Summarizing quantitative data l.jpg
Summarizing Quantitative Data Frequency Distributions

  • Frequency Distribution

  • Relative Frequency and Percent Frequency Distributions

  • Dot Plot

  • Histogram

  • Cumulative Distributions

  • Ogive


Example hudson auto repair l.jpg
Example: Hudson Auto Repair Frequency Distributions

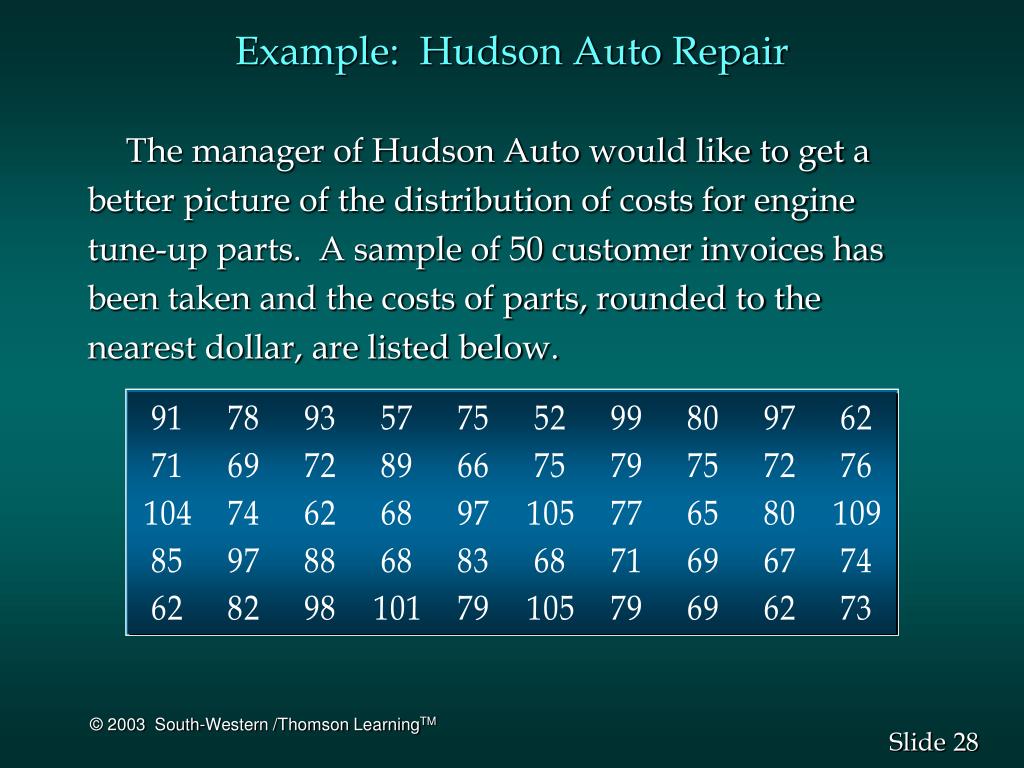

The manager of Hudson Auto would like to get a

better picture of the distribution of costs for engine

tune-up parts. A sample of 50 customer invoices has

been taken and the costs of parts, rounded to the

nearest dollar, are listed below.


Frequency distribution29 l.jpg
Frequency Distribution Frequency Distributions

  • Guidelines for Selecting Number of Classes

    • Use between 5 and 20 classes.

    • Data sets with a larger number of elements usually require a larger number of classes.

    • Smaller data sets usually require fewer classes.


Frequency distribution30 l.jpg
Frequency Distribution Frequency Distributions

  • Guidelines for Selecting Width of Classes

    • Use classes of equal width.

    • Approximate Class Width =


Example hudson auto repair31 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Frequency Distribution

    If we choose six classes:

    Approximate Class Width = (109 - 52)/6 = 9.5 10

    Cost ($)Frequency

    50-59 2

    60-69 13

    70-79 16

    80-89 7

    90-99 7

    100-109 5

    Total 50


Using excel s frequency function to construct a frequency distribution l.jpg
Using Excel’s FREQUENCY Function Frequency Distributionsto Construct a Frequency Distribution

  • Formula Worksheet (showing data entered)

Note: Rows 9-51 are not shown.


Using excel s frequency function to construct a frequency distribution33 l.jpg
Using Excel’s FREQUENCY Function Frequency Distributionsto Construct a Frequency Distribution

  • The FREQUENCY function is not a “simple” Excel function.

  • FREQUENCY is capable of providing multiple values.

  • In Excel, a formula that can return multiple values is called an array formula.

  • An array formula must be entered in a special way.


Using excel s frequency function to construct a frequency distribution34 l.jpg
Using Excel’s FREQUENCY Function Frequency Distributionsto Construct a Frequency Distribution

  • Entering the Necessary Array Formula

    Step 1 Select D2:D7 (where the frequencies will

    appear)

    Step 2 Type the following formula:

    =FREQUENCY(A2:A51,{59,69,79,89,99,109})

    Step 3 Hold down CTRL and SHIFT keys while pressing ENTER key

    (Array formula will be entered in D2:D7)


Using excel s frequency function to construct a frequency distribution35 l.jpg
Using Excel’s FREQUENCY Function Frequency Distributionsto Construct a Frequency Distribution

  • Value Worksheet

Note: Rows 9-51 are not shown.


Example hudson auto repair36 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Relative Frequency and Percent Frequency Distributions

    Relative Percent

    Cost ($)FrequencyFrequency

    50-59 .04 4

    60-69 .26 26

    70-79 .32 32

    80-89 .14 14

    90-99 .14 14

    100-109 .1010

    Total 1.00 100


Example hudson auto repair37 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Insights Gained from the Percent Frequency Distribution

    • Only 4% of the parts costs are in the $50-59 class.

    • 30% of the parts costs are under $70.

    • The greatest percentage (32% or almost one-third) of the parts costs are in the $70-79 class.

    • 10% of the parts costs are $100 or more.


Histogram l.jpg

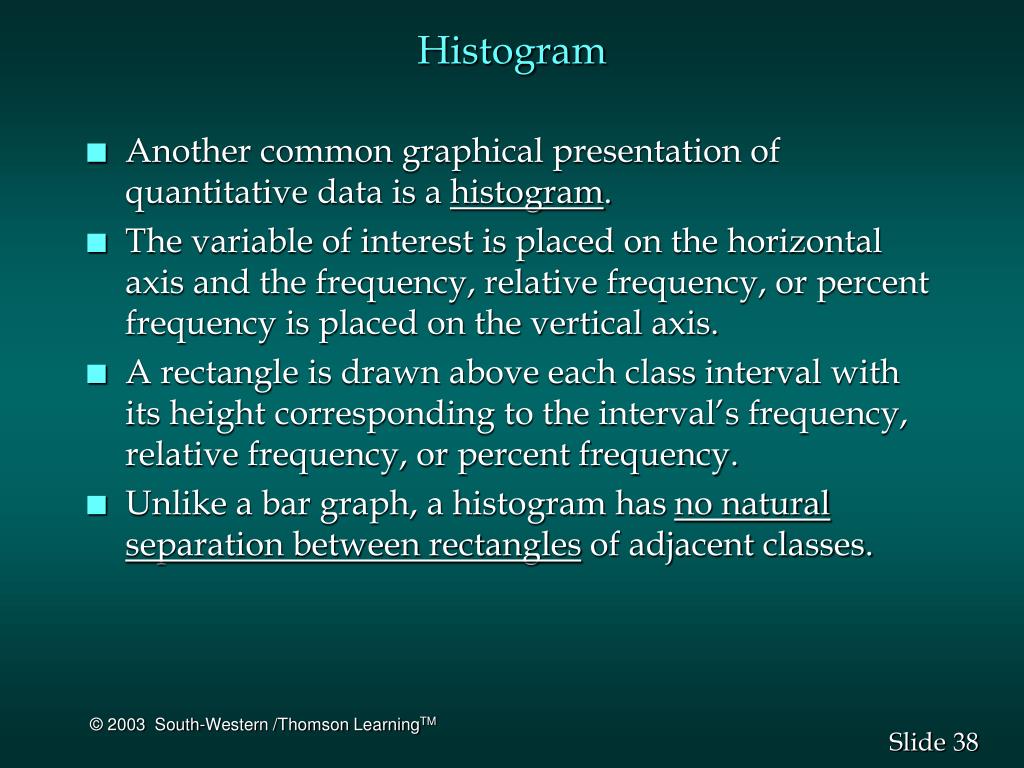

Histogram Frequency Distributions

  • Another common graphical presentation of quantitative data is a histogram.

  • The variable of interest is placed on the horizontal axis and the frequency, relative frequency, or percent frequency is placed on the vertical axis.

  • A rectangle is drawn above each class interval with its height corresponding to the interval’s frequency, relative frequency, or percent frequency.

  • Unlike a bar graph, a histogram has no natural separation between rectangles of adjacent classes.


Example hudson auto repair39 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Histogram

18

16

14

12

Frequency

10

8

6

4

2

Parts

Cost ($)

50 60 70 80 90 100 110


Using excel s chart wizard to construct a histogram l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Histogram

Step 1 Select cells C1:D7

Step 2 Select the Chart Wizard button

Step 3 When the Chart Type dialog box appears:

Choose Column in the Chart type list

Choose Clustered Column from the Chart

sub-type display

Select Next >

Step 4 When the Chart Source Data dialog box appears

Select Next >

… continued


Using excel s chart wizard to construct a histogram41 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Histogram

Step 5 When the Chart Options dialog box appears:

Select the Titles tab and then

Type Histogram for Parts Cost Data in the

Chart title box

Enter Parts Cost ($) in the Value (X) axis box

Enter Frequency in the Value (Y) axis box

Select the Legend tab and then

Remove the check in the Show Legend box

Select Next >

… continued


Using excel s chart wizard to construct a histogram42 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Histogram

Step 6 When the Chart Location dialog box appears:

Specify the location for the new chart

Select Finish to display the histogram


Using excel s chart wizard to construct a histogram43 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Histogram


Using excel s chart wizard to construct a histogram44 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Histogram

  • Eliminating Gaps Between Rectangles

    Step 1 Right click on any rectangle in the column chart

    Step 2 Select the Format Data Series option

    Step 3 When the Format Data Series Option dialog box appears:

    Select the Options tab and then

    Enter 0 in the Gap width box

    Click OK


Using excel s chart wizard to construct a histogram45 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Histogram


Cumulative distribution l.jpg
Cumulative Distribution Frequency Distributions

  • The cumulative frequency distribution shows the number of items with values less than or equal to the upper limit of each class.

  • The cumulative relative frequency distribution shows the proportion of items with values less than or equal to the upper limit of each class.

  • The cumulative percent frequency distribution shows the percentage of items with values less than or equal to the upper limit of each class.

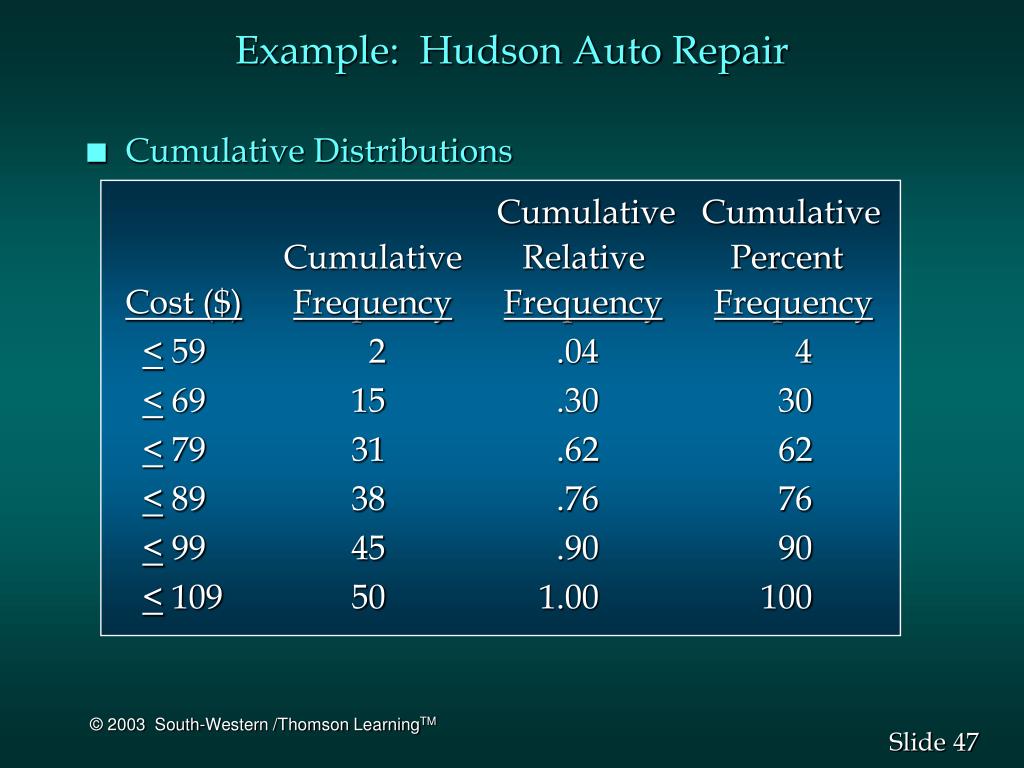

Example hudson auto repair47 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Cumulative Distributions

    Cumulative Cumulative

    Cumulative Relative Percent

    Cost ($)FrequencyFrequencyFrequency

    < 59 2 .04 4

    < 69 15 .30 30

    < 79 31 .62 62

    < 89 38 .76 76

    < 99 45 .90 90

    < 109 50 1.00 100


Ogive l.jpg
Ogive Frequency Distributions

  • An ogive is a graph of a cumulative distribution.

  • The data values are shown on the horizontal axis.

  • Shown on the vertical axis are the:

    • cumulative frequencies, or

    • cumulative relative frequencies, or

    • cumulative percent frequencies

  • The frequency (one of the above) of each class is plotted as a point.

  • The plotted points are connected by straight lines.


Example hudson auto repair49 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Ogive

    • Because the class limits for the parts-cost data are 50-59, 60-69, and so on, there appear to be one-unit gaps from 59 to 60, 69 to 70, and so on.

    • These gaps are eliminated by plotting points halfway between the class limits.

    • Thus, 59.5 is used for the 50-59 class, 69.5 is used for the 60-69 class, and so on.


Example hudson auto repair50 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Ogive with Cumulative Percent Frequencies

100

80

60

Cumulative Percent Frequency

40

20

Parts

Cost ($)

50 60 70 80 90 100 110


Exploratory data analysis l.jpg
Exploratory Data Analysis Frequency Distributions

  • The techniques of exploratory data analysis consist of simple arithmetic and easy-to-draw pictures that can be used to summarize data quickly.

  • One such technique is the stem-and-leaf display.


Stem and leaf display l.jpg
Stem-and-Leaf Display Frequency Distributions

  • A stem-and-leaf display shows both the rank order and shape of the distribution of the data.

  • It is similar to a histogram on its side, but it has the advantage of showing the actual data values.

  • The first digits of each data item are arranged to the left of a vertical line.

  • To the right of the vertical line we record the last digit for each item in rank order.

  • Each line in the display is referred to as a stem.

  • Each digit on a stem is a leaf.


Example hudson auto repair53 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Stem-and-Leaf Display

    5 2 7

    6 2 2 2 2 5 6 7 8 8 8 9 9 9

    7 1 1 2 2 3 4 4 5 5 5 6 7 8 9 9 9

    8 0 0 2 3 5 8 9

    9 1 3 7 7 7 8 9

    10 1 4 5 5 9


Stretched stem and leaf display l.jpg
Stretched Stem-and-Leaf Display Frequency Distributions

  • If we believe the original stem-and-leaf display has condensed the data too much, we can stretch the display by using two more stems for each leading digit(s).

  • Whenever a stem value is stated twice, the first value corresponds to leaf values of 0-4, and the second values corresponds to values of 5-9.


Example hudson auto repair55 l.jpg
Example: Hudson Auto Repair Frequency Distributions

  • Stretched Stem-and-Leaf Display

    5 2

    5 7

    6 2 2 2 2

    6 5 6 7 8 8 8 9 9 9

    7 1 1 2 2 3 4 4

    7 5 5 5 6 7 8 9 9 9

    8 0 0 2 3

    8 5 8 9

    9 1 3

    9 7 7 7 8 9

    10 1 4

    10 5 5 9


Stem and leaf display56 l.jpg
Stem-and-Leaf Display Frequency Distributions

  • Leaf Units

    • A single digit is used to define each leaf.

    • In the preceding example, the leaf unit was 1.

    • Leaf units may be 100, 10, 1, 0.1, and so on.

    • Where the leaf unit is not shown, it is assumed to equal 1.


Example leaf unit 0 1 l.jpg
Example: Leaf Unit = 0.1 Frequency Distributions

If we have data with values such as

8.6 11.7 9.4 9.1 10.2 11.0 8.8

a stem-and-leaf display of these data will be

Leaf Unit = 0.1

8 6 8

9 1 4

10 2

11 0 7


Example leaf unit 10 l.jpg
Example: Leaf Unit = 10 Frequency Distributions

If we have data with values such as

1806 1717 1974 1791 1682 1910 1838

a stem-and-leaf display of these data will be

Leaf Unit = 10

16 8

17 1 9

18 0 3

19 1 7


Crosstabulations and scatter diagrams l.jpg
Crosstabulations and Scatter Diagrams Frequency Distributions

  • Thus far we have focused on methods that are used to summarize the data for one variable at a time.

  • Often a manager is interested in tabular and graphical methods that will help understand the relationship between two variables.

  • Crosstabulation and a scatter diagram are two methods for summarizing the data for two (or more) variables simultaneously.


Crosstabulation l.jpg
Crosstabulation Frequency Distributions

  • Crosstabulation is a tabular method for summarizing the data for two variables simultaneously.

  • Crosstabulation can be used when:

    • One variable is qualitative and the other is quantitative

    • Both variables are qualitative

    • Both variables are quantitative

  • The left and top margin labels define the classes for the two variables.


Example finger lakes homes l.jpg
Example: Finger Lakes Homes Frequency Distributions

  • Crosstabulation

    The number of Finger Lakes homes sold for each style and price for the past two years is shown below.

    PriceHome Style

    RangeColonial Ranch Split A-Frame Total

    < $99,000 18 6 19 12 55

    > $99,000 12 14 16 3 45

    Total30 20 35 15 100


Using excel s pivottable report to construct a crosstabulation l.jpg
Using Excel’s PivotTable Report Frequency Distributionsto Construct a Crosstabulation

  • Formula Worksheet (showing data entered)

Note: Rows 10-101 are not shown.


Using excel s pivottable report to construct a crosstabulation63 l.jpg
Using Excel’s PivotTable Report Frequency Distributionsto Construct a Crosstabulation

  • Changing the Default Order for the PivotTable Report

    Step 1 Select the Tools pull-down menu

    Step 2 Choose Options

    Step 3 When the Options dialog box appears:

    Select the Custom lists tab

    In the List entries: box, type <= 99K and press Enter, and type > 99K Select Add

    Click OK


Using excel s pivottable report to construct a crosstabulation64 l.jpg
Using Excel’s PivotTable Report Frequency Distributionsto Construct a Crosstabulation

  • Using the PivotTable Report

    Step 1 Select the Data pull-down menu

    Step 2 Choose the PivotTable and PivotChart Report

    Step 3 When the PivotTable and PivotChart Wizard Step 1 of 3 dialog box appears:

    Choose Microsoft Excel list or database

    Choose PivotTable

    Select Next >

    Step 4 When the PivotTable and PivotChart Wizard Step 2 of 3 dialog box appears:

    Enter A1:C101 in the Range box

    Select Next >


Using excel s pivottable report to construct a crosstabulation65 l.jpg
Using Excel’s PivotTable Report Frequency Distributionsto Construct a Crosstabulation

  • Using the PivotTable Report

    Step 5 When the PivotTable and PivotChart Wizard Step 3 of 3 dialog box appears:

    Select New Worksheet

    Click on the Layout button

    When the PivotTable and PivotChart Wizard – Layout diagram appears:

    Drag the Price ($) field button to the ROW section of the diagram

    Drag the Style field button to the COLUMN section of the diagram


Using excel s pivottable report to construct a crosstabulation66 l.jpg
Using Excel’s PivotTable Report Frequency Distributionsto Construct a Crosstabulation

  • Using the PivotTable Report (Step 5 continued)

    Drag the Home field button to the DATA section of the diagram

    Double click the Sum of Home field button in the data section

    When the PivotTable Field dialog box appears:

    Choose Count under Summarized by:

    Click OK

    Click OK

    When the PivotTable and PivotChart Wizard Step 3 of 3 dialog box reappears:

    Select Finish >


Using excel s pivottable report to construct a crosstabulation67 l.jpg
Using Excel’s PivotTable Report Frequency Distributionsto Construct a Crosstabulation

  • Value Worksheet


Example finger lakes homes68 l.jpg
Example: Finger Lakes Homes Frequency Distributions

  • Insights Gained from the Preceding Crosstabulation

    • The greatest number of homes in the sample (19) are a split-level style and priced at less than or equal to $99,000.

    • Only three homes in the sample are an A-Frame style and priced at more than $99,000.


Crosstabulation row or column percentages l.jpg
Crosstabulation: Row or Column Percentages Frequency Distributions

  • Converting the entries in the table into row percentages or column percentages can provide additional insight about the relationship between the two variables.


Example finger lakes homes70 l.jpg
Example: Finger Lakes Homes Frequency Distributions

  • Row Percentages

    PriceHome Style

    RangeColonial Ranch Split A-Frame Total

    < $99,000 32.73 10.91 34.55 21.82 100

    > $99,000 26.67 31.11 35.56 6.67 100

    Note: Row totals are actually 100.01 due to rounding.


Example finger lakes homes71 l.jpg
Example: Finger Lakes Homes Frequency Distributions

  • Column Percentages

    PriceHome Style

    RangeColonial Ranch Split A-Frame

    < $99,000 60.00 30.00 54.29 80.00

    > $99,000 40.00 70.00 45.71 20.00

    Total 100 100 100 100


Scatter diagram l.jpg
Scatter Diagram Frequency Distributions

  • A scatter diagram is a graphical presentation of the relationship between two quantitative variables.

  • One variable is shown on the horizontal axis and the other variable is shown on the vertical axis.

  • The general pattern of the plotted points suggests the overall relationship between the variables.


Scatter diagram73 l.jpg

y Frequency Distributions

x

Scatter Diagram

  • A Positive Relationship


Scatter diagram74 l.jpg

y Frequency Distributions

x

Scatter Diagram

  • A Negative Relationship


Scatter diagram75 l.jpg

y Frequency Distributions

x

Scatter Diagram

  • No Apparent Relationship


Example panthers football team l.jpg
Example: Panthers Football Team Frequency Distributions

  • Scatter Diagram

    The Panthers football team is interested in investigating the relationship, if any, between interceptions made and points scored.

    x = Number of y = Number of

    InterceptionsPoints Scored

    1 14

    3 24

    2 18

    1 17

    3 27


Example panthers football team77 l.jpg
Example: Panthers Football Team Frequency Distributions

  • Scatter Diagram

y

30

25

20

Number of Points Scored

15

10

5

x

0

1

0

2

3

Number of Interceptions


Example panthers football team78 l.jpg
Example: Panthers Football Team Frequency Distributions

  • The preceding scatter diagram indicates a positive relationship between the number of interceptions and the number of points scored.

  • Higher points scored are associated with a higher number of interceptions.

  • The relationship is not perfect; all plotted points in the scatter diagram are not on a straight line.


Using excel s chart wizard to construct a scatter diagram l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Scatter Diagram

  • Formula Worksheet (showing data entered)


Using excel s chart wizard to construct a scatter diagram80 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Scatter Diagram

  • Producing a Scatter Diagram

    Step 1 Select cells A1:B6

    Step 2 Select the Chart Wizard

    Step 3 When the Chart Type dialog box appears:

    Choose XY (Scatter) in the Chart type list

    Choose Scatter from the Chart sub-type display

    Select Next >

    Step 4 When the Chart Source Data dialog box appears

    Select Next >

    … continued


Using excel s chart wizard to construct a scatter diagram81 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Scatter Diagram

  • Producing a Scatter Diagram

    Step 5 When the Chart Options dialog box appears:

    Select the Titles tab and then

    Delete Number of Points Scored in the Chart title box

    Enter Number of Interceptions in the Value (X) axis box

    Enter Number of Points Scored in the Value (Y) axis box

    Select the Legend tab and then

    Remove the check in the Show Legend box

    Select Next >

    … continued


Using excel s chart wizard to construct a scatter diagram82 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Scatter Diagram

  • Producing a Scatter Diagram

    Step 6 When the Chart Location dialog box appears:

    Specify the location for the new chart

    Select Finish to display the scatter diagram


Using excel s chart wizard to construct a scatter diagram83 l.jpg
Using Excel’s Chart Wizard Frequency Distributionsto Construct a Scatter Diagram

  • Value Worksheet


Tabular and graphical procedures l.jpg
Tabular and Graphical Procedures Frequency Distributions

Data

Qualitative Data

Quantitative Data

Tabular

Methods

Graphical

Methods

Tabular

Methods

Graphical

Methods

  • Frequency

  • Distribution

  • Rel. Freq. Dist.

  • % Freq. Dist.

  • Crosstabulation

  • Bar Graph

  • Pie Chart

  • Dot Plot

  • Histogram

  • Ogive

  • Scatter

  • Diagram

  • Frequency

  • Distribution

  • Rel. Freq. Dist.

  • Cum. Freq. Dist.

  • Cum. Rel. Freq.

  • Distribution

  • Stem-and-Leaf

  • Display

  • Crosstabulation


End of chapter 2 l.jpg
End of Chapter 2 Frequency Distributions


ad
