Presentation Transcript
edge enhancement
Edge Enhancement
  • High contrast and edge definition
    • Lose fine detail on the edges of high contrast areas
cr ghost images

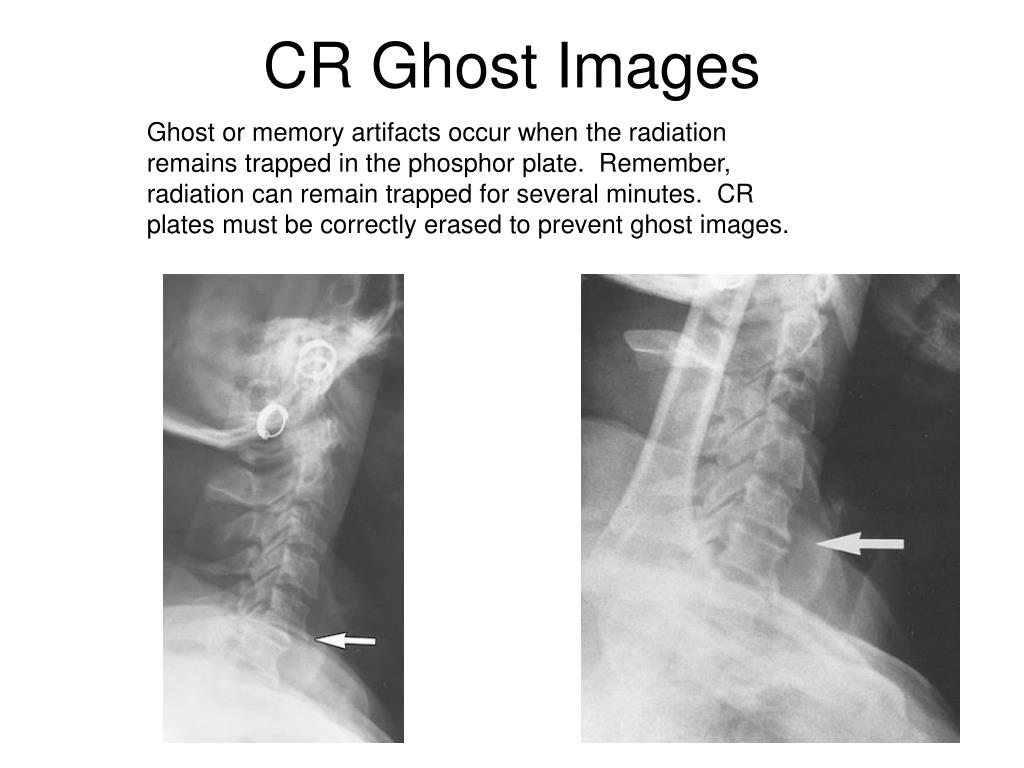

CR Ghost Images

Ghost or memory artifacts occur when the radiation remains trapped in the phosphor plate. Remember, radiation can remain trapped for several minutes. CR plates must be correctly erased to prevent ghost images.

key advantages of envision s cmos line array technology

Main Menu

Key Advantages of Envision’s CMOS Line Array Technology

The "fill factor" of a detector is the percentage of the surface area that is actually active, that is, capable of detecting photons. For example, where Envision\'s CMOS detector arrays have a fill factor in excess of 90%, the amorphous silicon detectors have a fill factor of only about 63%.  The higher the fill factor, the more sensitive the detector is.

6. Fill Factor

dead pixels

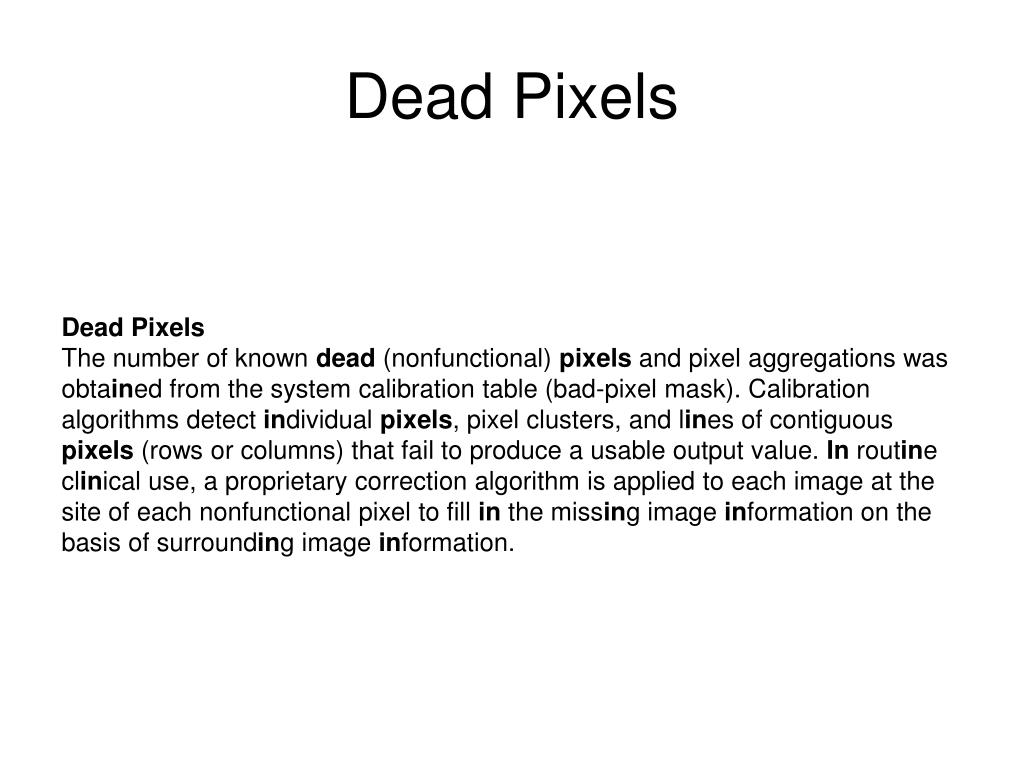

Dead Pixels

Dead PixelsThe number of known dead (nonfunctional) pixels and pixel aggregations was obtained from the system calibration table (bad-pixel mask). Calibration algorithms detect individual pixels, pixel clusters, and lines of contiguous pixels (rows or columns) that fail to produce a usable output value. In routine clinical use, a proprietary correction algorithm is applied to each image at the site of each nonfunctional pixel to fill in the missing image information on the basis of surrounding image information.

printer distortion
Printer Distortion
  • Occurs when the image size and the printed size are not equal.
moire pattern
Moire Pattern

Grid lines run in the same direction as the laser in the CR reader.

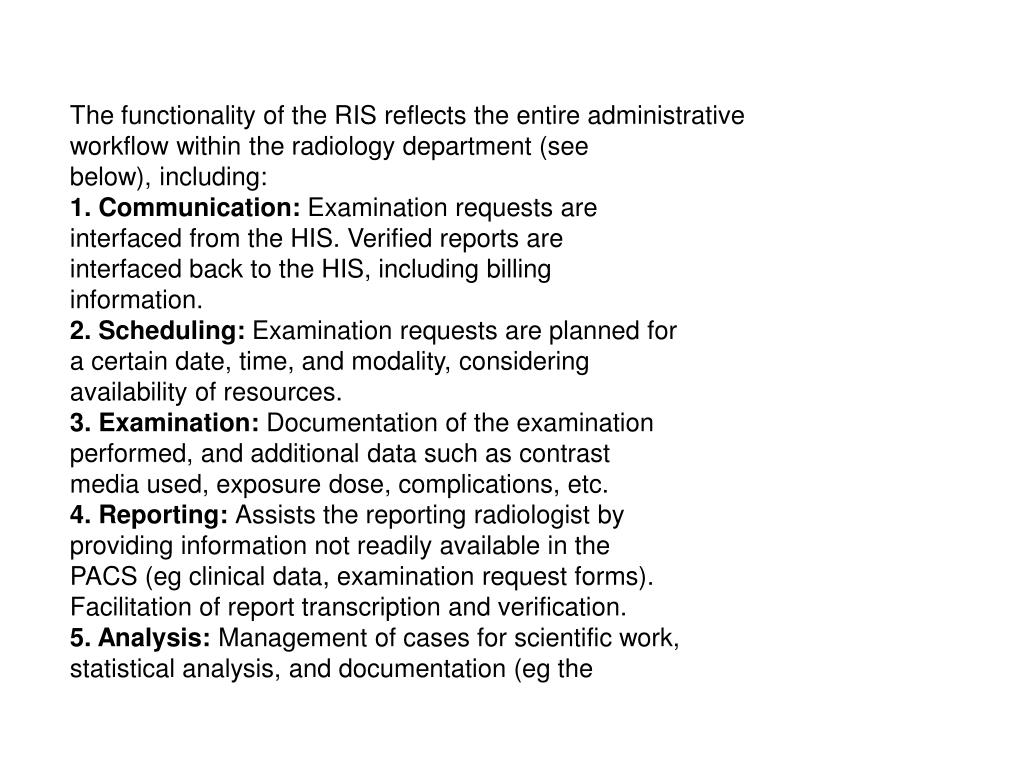

slide20

The functionality of the RIS reflects the entire administrative

workflow within the radiology department (see

below), including:

1. Communication: Examination requests are

interfaced from the HIS. Verified reports are

interfaced back to the HIS, including billing

information.

2. Scheduling: Examination requests are planned for

a certain date, time, and modality, considering

availability of resources.

3. Examination: Documentation of the examination

performed, and additional data such as contrast

media used, exposure dose, complications, etc.

4. Reporting: Assists the reporting radiologist by

providing information not readily available in the

PACS (eg clinical data, examination request forms).

Facilitation of report transcription and verification.

5. Analysis: Management of cases for scientific work,

statistical analysis, and documentation (eg the

ad
