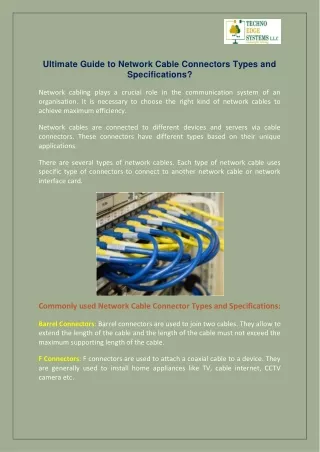

  1. Ultimate Guide to Network Cable Connectors Types and Specifications? Network cabling plays a crucial role in the communication system of an organisation. It is necessary to choose the right kind of network cables to achieve maximum efficiency. Network cables are connected to different devices and servers via cable connectors. These connectors have different types based on their unique applications. There are several types of network cables. Each type of network cable uses specific type of connectors to connect to another network cable or network interface card. Commonly used Network Cable Connector Types and Specifications: Barrel Connectors: Barrel connectors are used to join two cables. They allow to extend the length of the cable and the length of the cable must not exceed the maximum supporting length of the cable. F Connectors: F connectors are used to attach a coaxial cable to a device. They are generally used to install home appliances like TV, cable internet, CCTV camera etc.

  2. Terminator connectors: When a device places signals on the coaxial cable, the signals travel along the end of the cable. If another device is connected to the other end of the cable, the device will receive the signal. But if the other end of the cable is open, the signals will bounce and return in the same direction they came from. To stop signals from bouncing back, all endpoints must be terminated. A terminator connector is used to terminate the endpoint of a coaxial cable. T type connectors: A T connector creates a connection point on the coaxial cable that is used to connect a device to the cable. RJ-11 connectors: These are 4-pin connectors used for telephone connections. RJ-45 connectors: These are 8-pin connectors used for computer networks. DB-9 connectors: It is a 9-pin connector used to connect a device over a serial port. Universal serial bus connectors: These are the most popular connectors used to connect various external devices like keyboard, pen drive, mice, printer, and scanner to a computer. MTRJ connectors: An MTRJ connector connects to a terminating device by pushing the connector into the terminating device, and it can be removed by pulling the connector from the terminating device. Techno Edge Systems LLC is a pioneer in providing the most advanced and quality Network Cabling in Dubai. Our ever-increasing clientele is a testimony to our dedicated and professional services in the field of Network Cabling installations. Feel free to call us at +971-547914851 or Visit www.structurecabling.ae for further information regarding network cabling in Dubai.
