Presentation Transcript
Ziolib parallel i o library l.jpg

ZioLib, Parallel I/O Library

Woo-Sun Yang and Chris Ding

Computational Research Division

Lawrence Berkeley National Laboratory

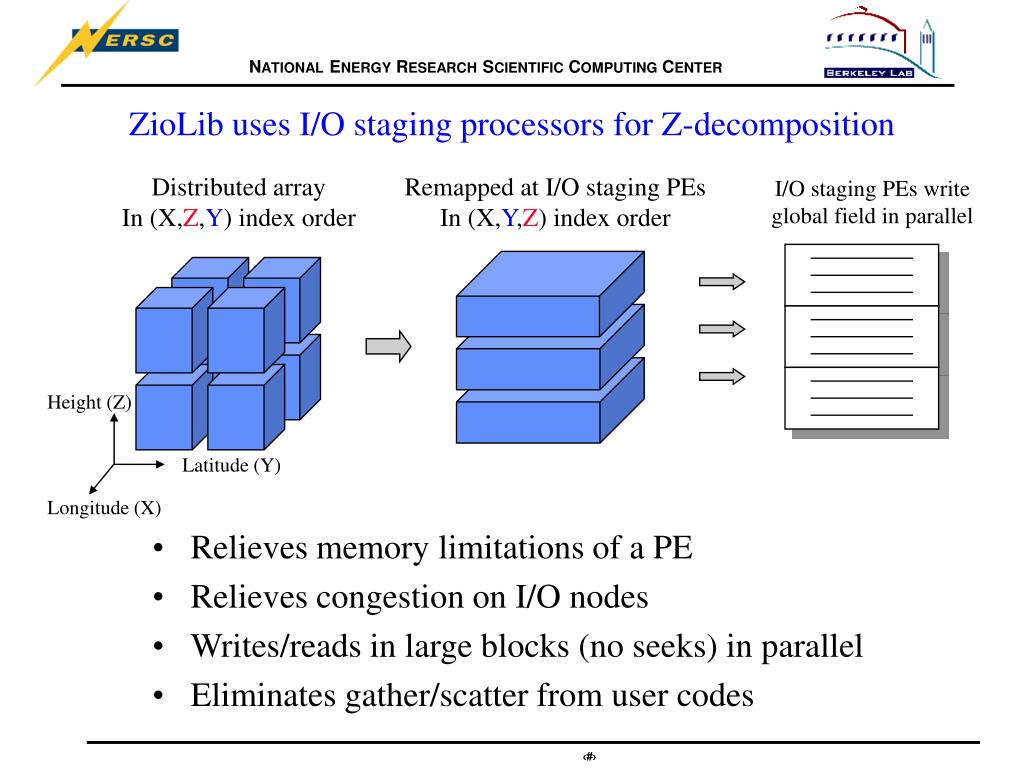

Ziolib uses i o staging processors for z decomposition l.jpg

Height (Z)

Latitude (Y)

Longitude (X)

ZioLib uses I/O staging processors for Z-decomposition

Distributed array

In (X,Z,Y) index order

Remapped at I/O staging PEs

In (X,Y,Z) index order

I/O staging PEs write

global field in parallel

  • Relieves memory limitations of a PE

  • Relieves congestion on I/O nodes

  • Writes/reads in large blocks (no seeks) in parallel

  • Eliminates gather/scatter from user codes


Current status of ziolib l.jpg
Current status of ZioLib

  • A set of Fortran 90 modules supporting

    • netCDF I/O (serial and parallel)

    • direct-access unformatted I/O (serial and parallel)

    • sequential-access unformatted I/O (serial)

  • Works for arrays of any number of dimensions of integer*4, real*4 and real*8

  • Reads or writes in any array index order

  • Works with any parallel decomposition

  • Can handle ghost nodes

  • Uses MPI-1 routines only – can still work for serial I/O on machines without a parallel file system, a parallel netCDF library or MPI-2


Direct access write 256 256 256 x z y to x y z l.jpg
Direct-access write (256256256; XZY to XYZ)

transpose

global array

total

remap


Direct access write 256 256 256 xzy to xyz speed up w r t existing mpi single pe i o l.jpg
Direct-access write (256256256; XZY to XYZ)Speed-up w.r.t. existing MPI + single-PE I/O

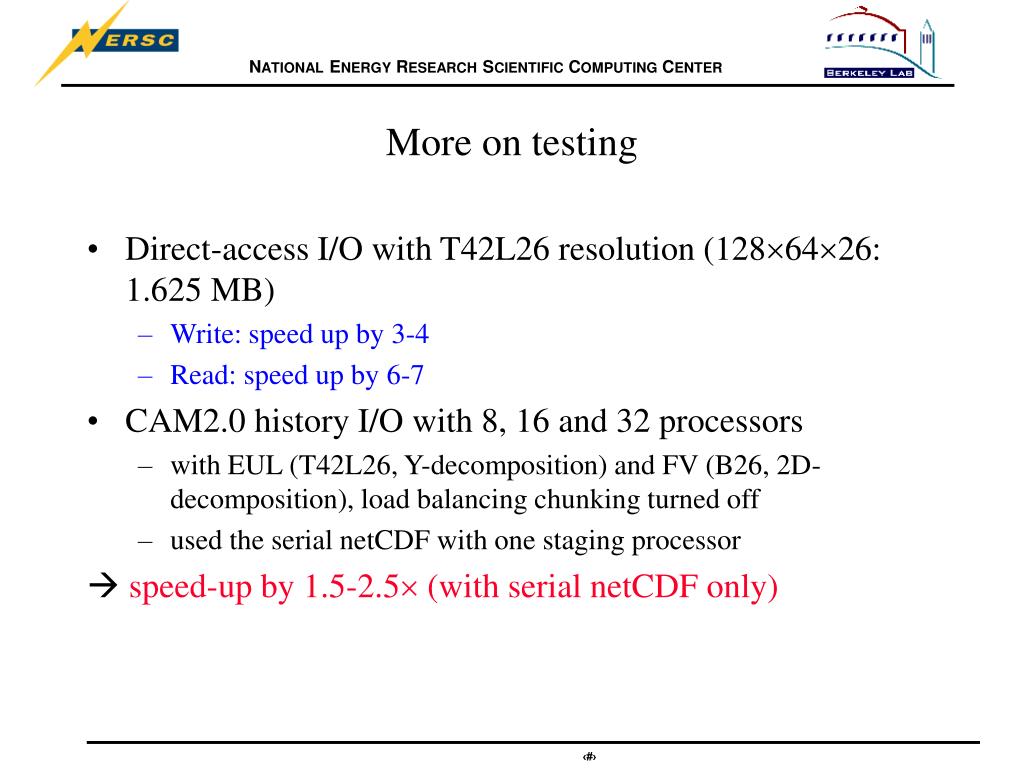

More on testing l.jpg
More on testing

  • Direct-access I/O with T42L26 resolution (1286426: 1.625 MB)

    • Write: speed up by 3-4

    • Read: speed up by 6-7

  • CAM2.0 history I/O with 8, 16 and 32 processors

    • with EUL (T42L26, Y-decomposition) and FV (B26, 2D-decomposition), load balancing chunking turned off

    • used the serial netCDF with one staging processor

      speed-up by 1.5-2.5 (with serial netCDF only)
