Presentation Transcript


Modeling renal hemodynamics e bruce pitman buffalo l.jpg

Modeling Renal HemodynamicsE. Bruce Pitman (Buffalo)

Harold Layton (Duke)

Leon Moore (Stony Brook)


The human kidneys l.jpg

The Human Kidneys:

  • are two bean-shaped organs, one on each side of the backbone

  • represent about 0.5% of the total weight of the body

  • but receive 20-25% of the total arterial blood pumped by the heart

  • Each contains from one to two million nephrons


In 24 hours the kidneys reclaim l.jpg

In 24 hours the kidneys reclaim:

  • ~1,300 g of NaCl (~97% of Cl)

  • ~400 g NaHCO3 (100%)

  • ~180 g glucose (100%)

  • almost all of the180 liters of water that entered the tubules (excrete ~0.5 l)


Anatomy approximate l.jpg

Anatomy (approximate)


Water secretion l.jpg

Water secretion

  • Release of ADH is regulated by osmotic pressure of the blood.

  • Dehydration increases the osmotic pressure of the blood, which turns on the ADH -> aquaporin pathway.

    • The concentration of salts in the urine can be as much as four times that of blood.

  • If the blood should become too dilute, ADH secretion is inhibited

    • A large volume of watery urine is formed, having a salt concentration ~ one-fourth of that of blood


Experiment pressure from a normotensive rat l.jpg

Experimentpressure from a normotensive rat


Experiment pressure spectra from normotensive rats l.jpg

Experimentpressure spectra from normotensive rats


Anatomy approximate8 l.jpg

Anatomy (approximate)


Basics of modeling l.jpg

Basics of modeling

In all tubules and interstitium, balance laws for

  • chloride

  • sodium

  • potassium

  • urea

  • water

  • others


Basics of modeling ii l.jpg

Basics of modeling II

Simplifying assumptions

  • infinite interstitial bath

  • infinitely high permeabilities

  • chloride as principal solute driver


Basics of modeling iii l.jpg

Basics of modeling III

  • Macula Densa samples fluid as it passes

  • Feedback relation noted at steady-state

  • We assume the same form in a dynamic model


Basics of modeling iv l.jpg

Basics of modeling IV

  • Single PDE for chloride

  • Empirical velocity relationship: apply steady-state relation to dynamic setting

Flow rate

*

[Cl]


Basics of modeling v l.jpg

Basics of modeling V


Basics of modeling vi l.jpg

Basics of modeling VI


Model l.jpg

Model

  • Steady-state solution exists

  • Idea: Linearize about this steady solution

  • Look for exponential solutions


Aside on delay equations l.jpg

Aside on delay equations


Basic analysis l.jpg

Basic Analysis


Basic analysis18 l.jpg

Basic Analysis

  • If the real part of λ>0, perturbation grows in time. If Imaginary part of λ≠0, oscillations. [unstable]

  • If the real part of λ<0, perturbation decays in time. [stable]


Bifurcation results l.jpg

Bifurcation results


Bifurcation results ii l.jpg

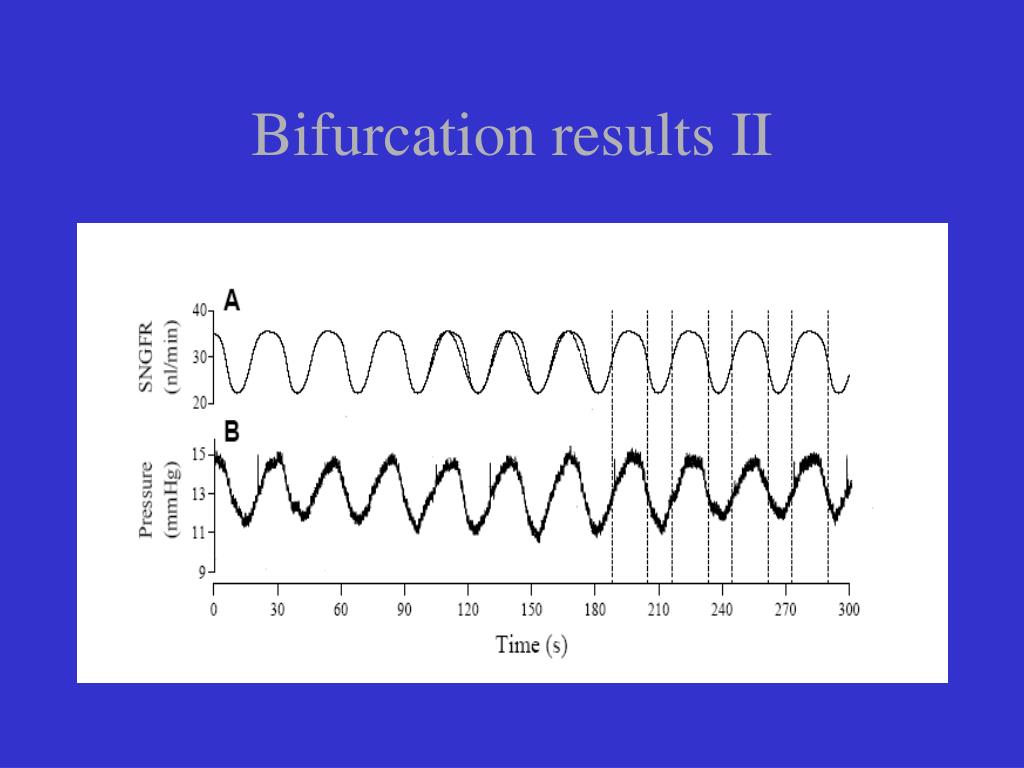

Bifurcation results II


Bifurcation results iii l.jpg

Bifurcation results III


To be done l.jpg

To Be Done

  • Complex perhaps chaotic behavior at high gain

  • Have 2 coupled nephrons. Need full examination of bifurcation

  • Need many coupled nephrons (O(1000))

  • Reduced model


2 nephron model l.jpg

2-nephron model

  • as many as 50% of the nephrons in the late CRA are pairs or triples

  • some evidence of whole organ signal at TGF frequency
