Presentation Transcript
concept note for asset management system under mahatma gandhi nrega using gis gps remote sensing

Concept Note for Asset Management Systemunder Mahatma Gandhi NREGAusingGIS, GPS & Remote Sensing

Panchayati Raj Department, Government of Orissa.

objective
Objective

For effective planning and monitoring of following works under

MGNREGA using GIS, GPS & Remote Sensing Technologies.

  • Water conservation and water harvesting,
  • Drought proofing including afforestation and tree plantation
  • Irrigation canals including micro and macro irrigation works
  • Land Development
  • Rural Connectivity to provide all weather access
  • Flood control & protection works, incl. drainage in water-logged areas
  • Renovation of traditional water bodies including de-silting of tanks etc.
definition
Definition
  • Geographic Information System (GIS)
    • that captures, stores, analyzes, manages, and presents data that are linked to location.
  • Global Positioning System (GPS)
    • provides reliable positioning, navigation, and timing services to worldwide users on a continuous basis in all weather, day and night, anywhere on or near the Earth
  • Remote Sensing (RS)
    • small or large-scale acquisition of information of an object or phenomenon, by the use of either recording or real-time sensing device(s) that are wireless, or not in physical or intimate contact with the object (such as by way of aircraft, spacecraft, satellite, buoy, or ship).
proposed solution
Proposed Solution

Under MGNREGA labour budget and preparation of

annual action plan for coming financial year is to be

completed by end of Dec of the current year basing

upon the performance of current year.

  • Using GPS, the longitude and lat itude of each project can be taken and can also be incorporated in the GIS.
  • Topographical data collected through RS technology of each village is to be incorporated in the GIS
  • Feasibility of proposed project can be ascertained basing on the above information and field surveyed data.
slide5

(Indicative)

Not to Scale

slide6

(Indicative)

Not to Scale

mgnrega project e stimate

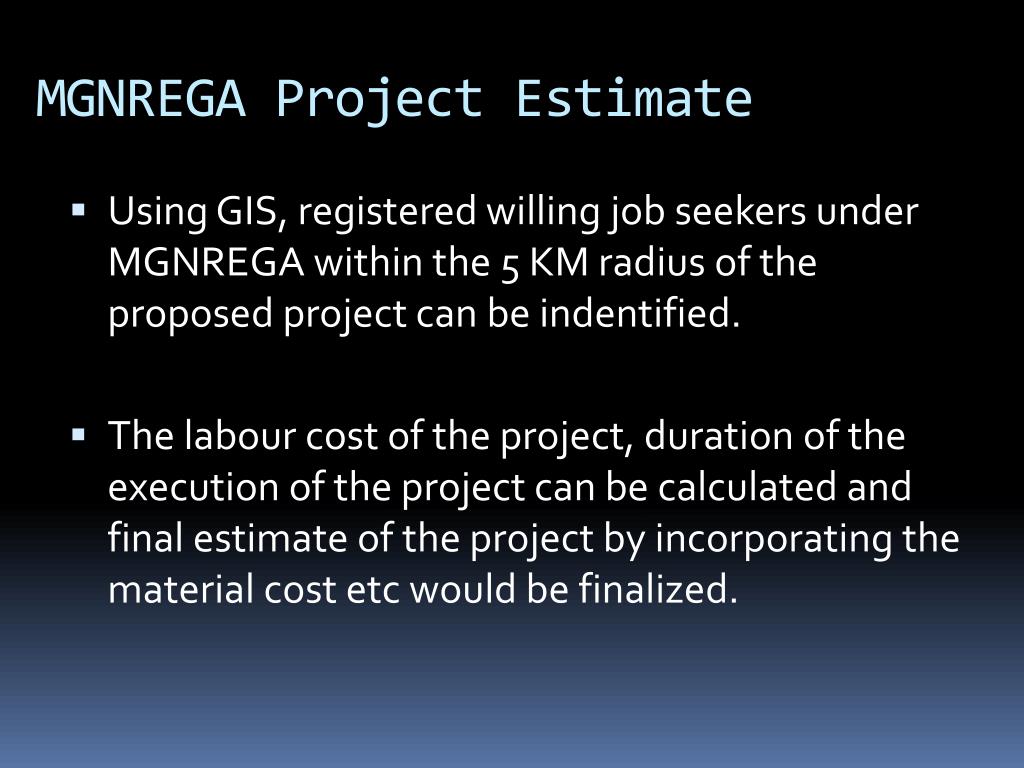

MGNREGA Project Estimate

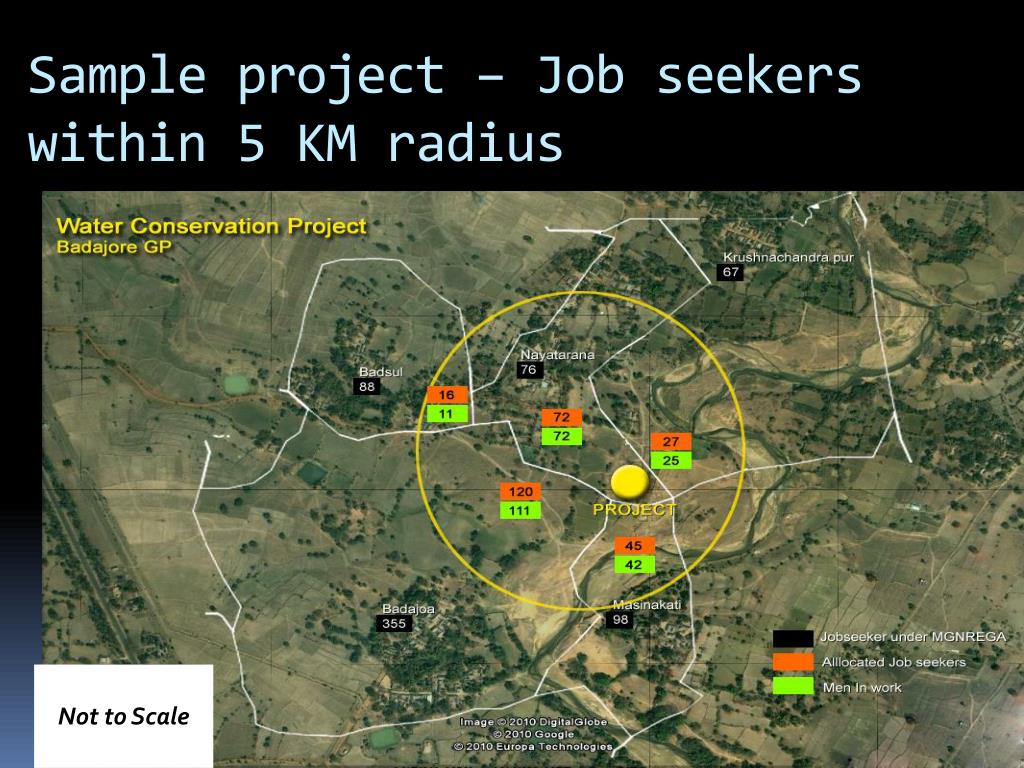

  • Using GIS, registered willing job seekers under MGNREGA within the 5 KM radius of the proposed project can be indentified.
  • The labour cost of the project, duration of the execution of the project can be calculated and final estimate of the project by incorporating the material cost etc would be finalized.
project execution
Project Execution
  • Seasonal work allocation will be done basing on the willing of job seeker can be show in GIS map.
  • Attendance of job seeker at the work site will be captured using GPS enabled Biometric Handheld device and also be incorporated in GIS. (This concept is proven and being used in ICT Pilot Project, Orissa, and it’s available in Google Map)
  • Preparation of Muster Roll , wage list and Payment thru BC Model can be extended as it’s done in existing ICT project. It can be integrated with GIS map.
i mpact analysis
Impact Analysis
  • Change in various topographical parameters can be studied using RS / GIS.
  • Usability of the project can be mapped in GIS.
  • Study in Agricultural / Pisciculture etc. can be ascertained as per the nature of the project.
  • Existing Assets created under MGNREGA can be layered in GIS Map for decision support.
process architecture

NREGA Soft

  • Villages
  • List of Job Seekers
  • List Of Projects

Satellite, Cadastral and Remote Sensing Data

Field Data

Process Architecture

The existing database of NREGASoft is required to be used from start of the concept by use of following technologies.

  • Web Services
  • XML
  • SFTP
  • SMS

GIS Application

ICT Pilot Project

Processed data

NREGA Soft

Panchayati Raj Deptt . Website

schedule of activities pert chart
Schedule of Activities (PERT Chart)
  • Hardware like Server, Desktop, Printer, GPS Enabled Handheld Device with Thermal Printer & GPRS Enabled Mobile of ICT Pilot Project can also be used for this project.
  • Only GIS software is the additional requirement.
