Presentation Transcript
Code reuse l.jpg
Code reuse

  • Using someone else's classes

  • Aggregation and Composition

  • Inheritance

  • The briefest of Unified Modeling Language (UML)

  • Choosing between composition and inheritance

  • "Casting" from one type to another

ME 135 - Spring 2005 - Java object/syntax intro - 1


Packages l.jpg
Packages

  • Package is a Java construct for sharing code

  • A single package is typically a body of related code

  • Allow use of the objects in a package from your own .java file by using the Java keyword "import".

ME 135 - Spring 2005 - Java object/syntax intro - 2


Code slide l.jpg
Code slide

import java.io.*; // Makes all of java.io available

public class ConsoleIO {

public static void main(String[] args) {

BufferedReader input;

input = new BufferedReader(new

InputStreamReader(System.in));

while(true){

try

{

String s = input.readLine();

System.out.println("Input: " + s);

} catch(Exception e){}

}

}

}

ME 135 - Spring 2005 - Java object/syntax intro - 3


Exception handling brief l.jpg
Exception handling (brief)

  • An exception is "thrown" when an exceptional condition (usually an error condition) is detected

  • When you write code using a method from a library that throws an exception, you must "catch" the exception (or your code won't compile).

ME 135 - Spring 2005 - Java object/syntax intro - 4


Exception handling example l.jpg
Exception handling example

public class Except {

public static double rnd() throws Exception {

double d = java.lang.Math.random(); // Alt. to import

if(d < 0.01)throw new Exception();

return d;

}

public static void main(String[] args) {

int notcaught = 0;

int caught = 0;

while(true){

try{

rnd();

notcaught++;

}

catch(Exception e){

caught++;

System.out.println((float)caught/notcaught);

}

}

}

}

ME 135 - Spring 2005 - Java object/syntax intro - 5


Aggregation l.jpg
Aggregation

  • Aggregation is relevant when someone else has developed a class that, as it is, does something useful for you

  • One class "uses" another

  • If the "using" class goes away, the "used" class does not go away; that is, the lifetime of the used class does not depend on the lifetime of the using class

ME 135 - Spring 2005 - Java object/syntax intro - 6


Aggregation example l.jpg
Aggregation example

class Professor {

Professor(short i){id = i;}

short id;

}

class Student {

Student(int i, Professor a){advisor = a; id = i;};

Professor advisor;

int id;

}

public class Aggregation {

public static Professor p;

public static void main(String[] args) {

p = new Professor((short)123);

func();

System.out.println("Professor: " + p);

// Professor still exists here!

}

private static void func(){

Student s1 = new Student(23456, p);

Student s2 = new Student(54321, p);

}

}

ME 135 - Spring 2005 - Java object/syntax intro - 7


Composition l.jpg
Composition

  • One class "has" another

  • Distinct from aggregation because the lifetime of the two classes are the same.

ME 135 - Spring 2005 - Java object/syntax intro - 8


Composition example l.jpg
Composition example

class Heart{

Heart(double m){mass = m;}

private double mass;

}

class Head {

Head(double m){mass = m;}

private double mass;

}

class HumanBody {

HumanBody(double headmass, double heartmass){

head = new Head(headmass);

heart = new Heart(heartmass);

}

private Head head;

private Heart heart;

}

// Continued next page…….

ME 135 - Spring 2005 - Java object/syntax intro - 9


Composition example10 l.jpg
Composition example

public class Composition {

public static void main(String[] args) {

func();

// Human body, including heart and head, is gone.

}

private static void func()

{

HumanBody body = new HumanBody(2.0, 1.0);

System.out.println("Head: " + body.head.mass +

", heart: " + body.heart.mass);

}

}

ME 135 - Spring 2005 - Java object/syntax intro - 10


Inheritance l.jpg
Inheritance

  • Inheritance is relevant when someone has developed a class that is a generalized version of what you need

  • When one class "inherits" from another, the inheriting class is said to have an "is-a" relationship with the inherited class

  • The inheriting class is often called a subclass of the inherited class

  • The inherited class is often called the superclass of the inheriting class.

ME 135 - Spring 2005 - Java object/syntax intro - 11


Inheritance example l.jpg
Inheritance example

class Bike {

int rearGear;

int frontGear;

double gearRatio(){return (double)frontGear / rearGear;}

}

class MountainBike extends Bike

{

// Additional behavior for triple chainrings in front.

}

class TandemBike extends Bike

{

// Additional behavior for dual seats and pedals.

}

public class Inheritance {

public static void main(String[] args) {

MountainBike mb = new MountainBike();

// Subclass uses the superclass method.

System.out.println("Gear ratio: " + mb.gearRatio());

}

}

ME 135 - Spring 2005 - Java object/syntax intro - 12


Another inheritance example l.jpg
Another inheritance example

See this Java file....

ME 135 - Spring 2005 - Java object/syntax intro - 13


Uml very briefly l.jpg
UML very briefly

  • What is UML, and what is it used for?

  • We will use the static diagram and state diagrams

  • We will use the static diagram to show inheritance, composition, aggregation

  • See pages 4, 5, 6, 7 of Introduction to the UML

ME 135 - Spring 2005 - Java object/syntax intro - 14

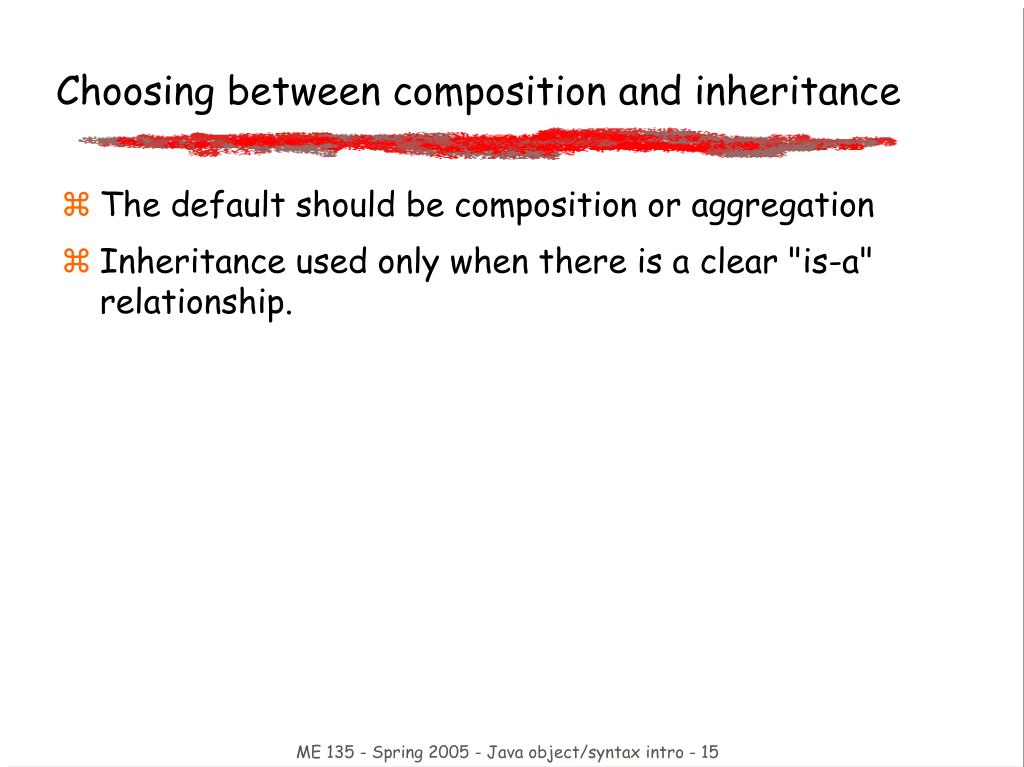

Choosing between composition and inheritance l.jpg
Choosing between composition and inheritance

  • The default should be composition or aggregation

  • Inheritance used only when there is a clear "is-a" relationship.

ME 135 - Spring 2005 - Java object/syntax intro - 15
