CMOS VLSIDesignLecture 13: Design for Low Power

11/27/2007, UTPA

(adopted from Harris’ lecture notes)


Outline l.jpg

Outline

  • Why low power design?

  • Power and Energy

  • Dynamic Power

  • Static Power

  • Low Power Design

13: Design for Low Power


Needs for low power vlsi chips l.jpg

Needs for Low Power VLSI Chips

  • Power dissipation was neglected due to

    • Low device density

    • Low operating frequency

  • Now it is important issue due to

    • High device density

    • High operating frequency

    • Proliferation of portable consumer electronics

    • Concerns on Environments and energy sources

13: Design for Low Power


Moore s law l.jpg

Moore’s Law

  • In 1965, Gordon Moore noted that the number of transistors on a chip doubled every 18 to 24 months.

  • He made a prediction that semiconductor technology will double its effectiveness every 18 months

13: Design for Low Power


Moore s law5 l.jpg

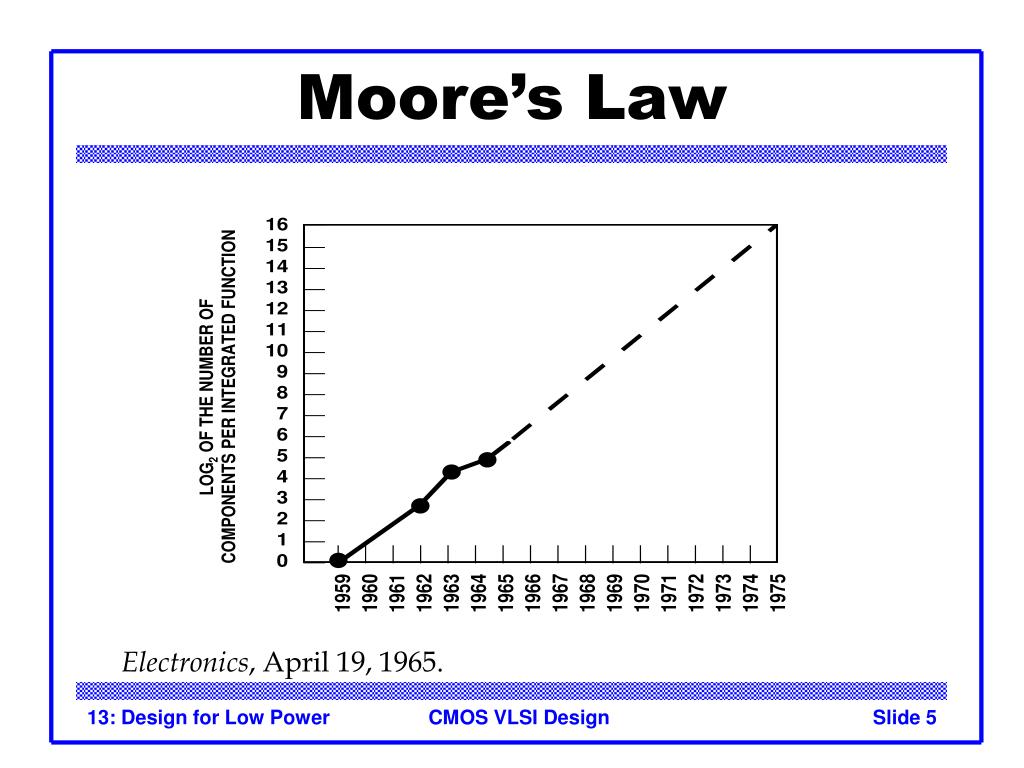

Moore’s Law

Electronics, April 19, 1965.

13: Design for Low Power


Evolution in complexity l.jpg

Evolution in Complexity

13: Design for Low Power


Transistor counts l.jpg

Transistor Counts

1 Billion Transistors

K

1,000,000

100,000

Pentium® III

10,000

Pentium® II

Pentium® Pro

1,000

Pentium®

i486

i386

100

80286

8086

10

Source: Intel

1

1975

1980

1985

1990

1995

2000

2005

2010

Projected

13: Design for Low Power

Courtesy, Intel


Moore s law in microprocessors l.jpg

Moore’s law in Microprocessors

1000

2X growth in 1.96 years!

100

10

P6

Pentium® proc

Transistors (MT)

486

1

386

0.1

286

8086

8085

0.01

8080

8008

4004

0.001

1970

1980

1990

2000

2010

Year

Transistors on Lead Microprocessors double every 2 years

13: Design for Low Power

Courtesy, Intel


Die size growth l.jpg

Die Size Growth

100

P6

Pentium ® proc

486

Die size (mm)

10

386

286

8080

8086

~7% growth per year

8085

8008

~2X growth in 10 years

4004

1

1970

1980

1990

2000

2010

Year

Die size grows by 14% to satisfy Moore’s Law

13: Design for Low Power

Courtesy, Intel


Frequency l.jpg

Frequency

10000

Doubles every2 years

1000

P6

100

Pentium ® proc

Frequency (Mhz)

486

386

10

8085

286

8086

8080

1

8008

4004

0.1

1970

1980

1990

2000

2010

Year

Lead Microprocessors frequency doubles every 2 years

13: Design for Low Power

Courtesy, Intel


Power dissipation l.jpg

Power Dissipation

100

P6

Pentium ® proc

10

486

286

8086

Power (Watts)

386

8085

1

8080

8008

4004

0.1

1971

1974

1978

1985

1992

2000

Year

Lead Microprocessors power continues to increase

13: Design for Low Power

Courtesy, Intel


Power will be a major problem l.jpg

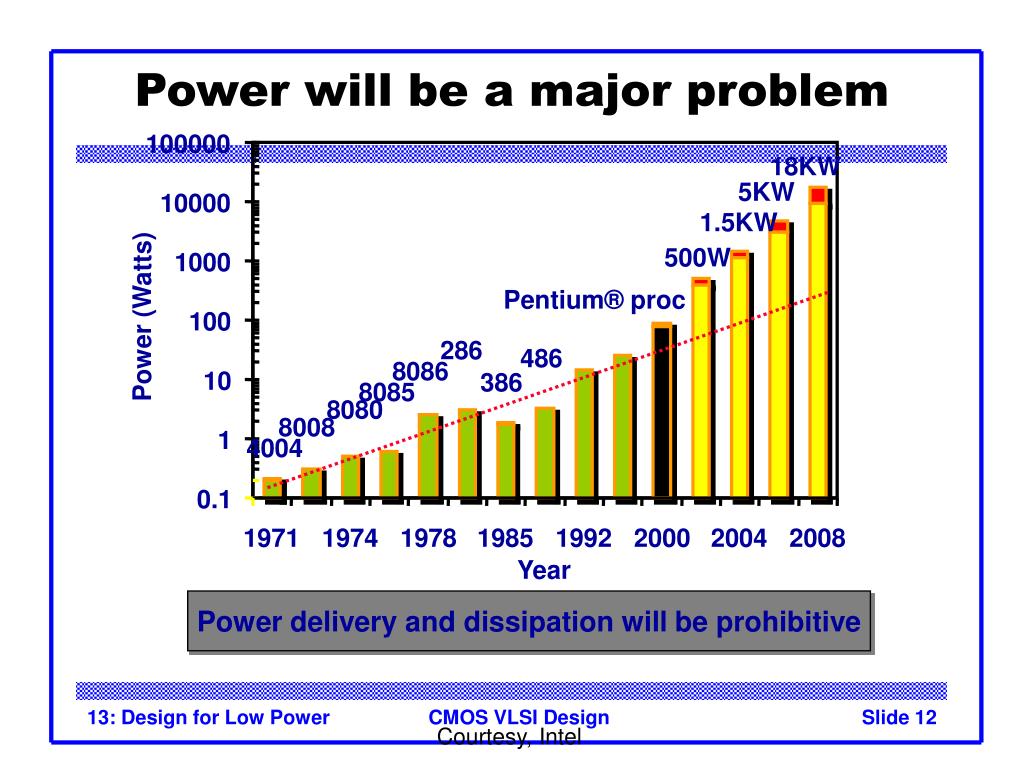

Power will be a major problem

100000

18KW

5KW

10000

1.5KW

500W

1000

Pentium® proc

Power (Watts)

100

286

486

8086

10

386

8085

8080

8008

1

4004

0.1

1971

1974

1978

1985

1992

2000

2004

2008

Year

Power delivery and dissipation will be prohibitive

13: Design for Low Power

Courtesy, Intel


Power density l.jpg

Rocket

Nozzle

Nuclear

Reactor

Hot Plate

Power density

Sun Surface

10000

1000

Power Density (W/cm2)

100

8086

10

4004

P6

8008

Pentium® proc

8085

386

286

486

8080

1

1970

1980

1990

2000

2010

Year

Power density too high to keep junctions at low temp

13: Design for Low Power

Courtesy, Intel


Not only microprocessors l.jpg

Small

Signal RF

Power

RF

Power

Management

1996 1997 1998 1999 2000

Units48M 86M 162M 260M 435M

Analog

Baseband

Digital Baseband

(DSP + MCU)

Not Only Microprocessors

CellPhone

Digital Cellular Market

(Phones Shipped)

(data from Texas Instruments)

13: Design for Low Power


Battery l.jpg

Battery

  • Portable consumer electronics powered by battery

  • Battery is heavy and big

  • Energy density barely doubles in several years

  • Safety concern: the energy density is approaching

    that of explosive chemicals.

The battery technology alone will not solve the low power problem

13: Design for Low Power


Reliability and cooling costs l.jpg

Reliability and Cooling Costs

  • High power dissipation  high temperature  malfunction

  • High performance microprocessors: ~50 Watts (a hand-held soldering iron)

  • Packaging cost and cooling cost: fans

  • Power supply rails: high transient current (e.g. 3A).

13: Design for Low Power


Environmental concerns l.jpg

Environmental Concerns

  • Office automation equipment

    • 5% of total US commercial energy in 1993

    • 10% of total US commercial energy in 2000

  • Electricity generation air pollution and consumption of energy sources

13: Design for Low Power


Power and energy l.jpg

Power and Energy

  • Power is drawn from a voltage source attached to the VDD pin(s) of a chip.

  • Instantaneous Power:

  • Energy:

  • Average Power:

13: Design for Low Power


Dynamic power l.jpg

Dynamic Power

  • Dynamic power is required to charge and discharge load capacitances when transistors switch.

  • One cycle involves a rising and falling output.

  • On rising output, charge Q = CVDD is required

  • On falling output, charge is dumped to GND

  • This repeats Tfsw times

    over an interval of T

13: Design for Low Power


Dynamic power cont l.jpg

Dynamic Power Cont.

13: Design for Low Power


Dynamic power cont21 l.jpg

Dynamic Power Cont.

13: Design for Low Power


Activity factor l.jpg

Activity Factor

  • Suppose the system clock frequency = f

  • Let fsw = af, where a = activity factor

    • If the signal is a clock, a = 1

    • If the signal switches once per cycle, a = ½

    • Dynamic gates:

      • Switch either 0 or 2 times per cycle, a = ½

    • Static gates:

      • Depends on design, but typically a = 0.1

  • Dynamic power:

13: Design for Low Power


Short circuit current l.jpg

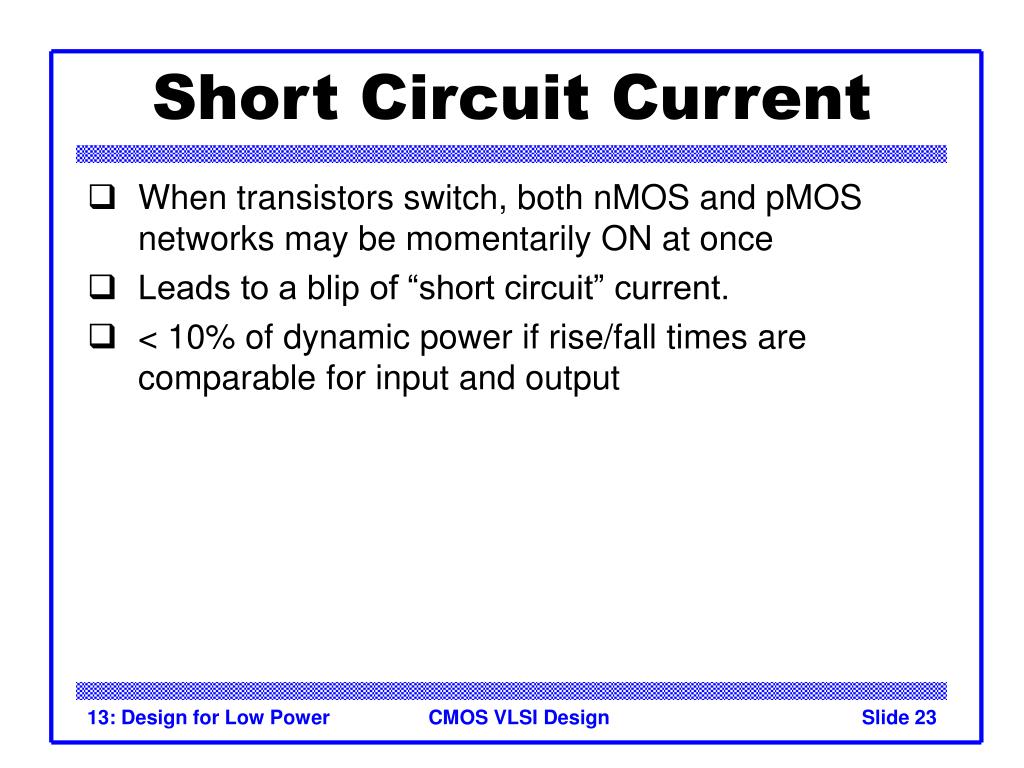

Short Circuit Current

  • When transistors switch, both nMOS and pMOS networks may be momentarily ON at once

  • Leads to a blip of “short circuit” current.

  • < 10% of dynamic power if rise/fall times are comparable for input and output

13: Design for Low Power


Example l.jpg

Example

  • 200 Mtransistor chip

    • 20M logic transistors

      • Average width: 12 l

    • 180M memory transistors

      • Average width: 4 l

    • 1.2 V 100 nm process

    • Cg = 2 fF/mm

13: Design for Low Power


Dynamic example l.jpg

Dynamic Example

  • Static CMOS logic gates: activity factor = 0.1

  • Memory arrays: activity factor = 0.05 (many banks!)

  • Estimate dynamic power consumption per MHz. Neglect wire capacitance and short-circuit current.

13: Design for Low Power


Dynamic example26 l.jpg

Dynamic Example

  • Static CMOS logic gates: activity factor = 0.1

  • Memory arrays: activity factor = 0.05 (many banks!)

  • Estimate dynamic power consumption per MHz. Neglect wire capacitance.

13: Design for Low Power


Static power l.jpg

Static Power

  • Static power is consumed even when chip is quiescent.

    • Ratioed circuits burn power in fight between ON transistors

    • Leakage draws power from nominally OFF devices

13: Design for Low Power


Leakage example l.jpg

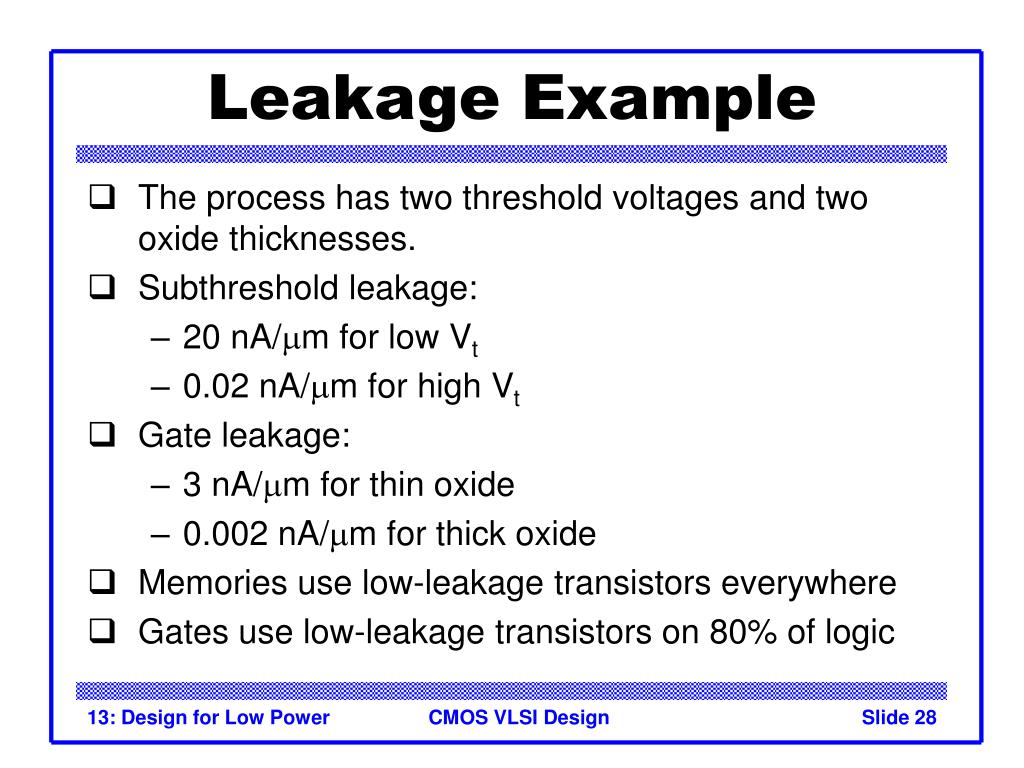

Leakage Example

  • The process has two threshold voltages and two oxide thicknesses.

  • Subthreshold leakage:

    • 20 nA/mm for low Vt

    • 0.02 nA/mm for high Vt

  • Gate leakage:

    • 3 nA/mm for thin oxide

    • 0.002 nA/mm for thick oxide

  • Memories use low-leakage transistors everywhere

  • Gates use low-leakage transistors on 80% of logic

13: Design for Low Power


Leakage example cont l.jpg

Leakage Example Cont.

  • Estimate static power:

13: Design for Low Power


Leakage example cont30 l.jpg

Leakage Example Cont.

  • Estimate static power:

    • High leakage:

    • Low leakage:

13: Design for Low Power


Leakage example cont31 l.jpg

Leakage Example Cont.

  • Estimate static power:

    • High leakage:

    • Low leakage:

  • If no low leakage devices, Pstatic = 749 mW (!)

13: Design for Low Power


Low power design l.jpg

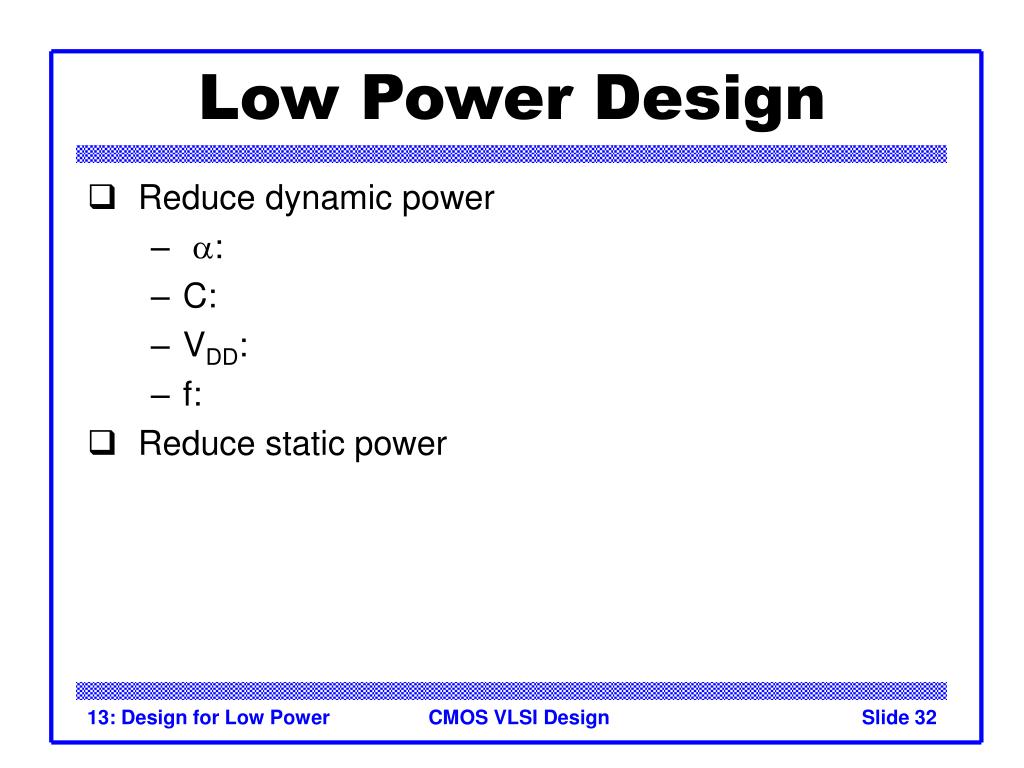

Low Power Design

  • Reduce dynamic power

    • a:

    • C:

    • VDD:

    • f:

  • Reduce static power

13: Design for Low Power


Low power design33 l.jpg

Low Power Design

  • Reduce dynamic power

    • a: clock gating, sleep mode

    • C:

    • VDD:

    • f:

  • Reduce static power

13: Design for Low Power


Low power design34 l.jpg

Low Power Design

  • Reduce dynamic power

    • a: clock gating, sleep mode

    • C: small transistors (esp. on clock), short wires

    • VDD:

    • f:

  • Reduce static power

13: Design for Low Power


Low power design35 l.jpg

Low Power Design

  • Reduce dynamic power

    • a: clock gating, sleep mode

    • C: small transistors (esp. on clock), short wires

    • VDD: lowest suitable voltage

    • f:

  • Reduce static power

13: Design for Low Power


Low power design36 l.jpg

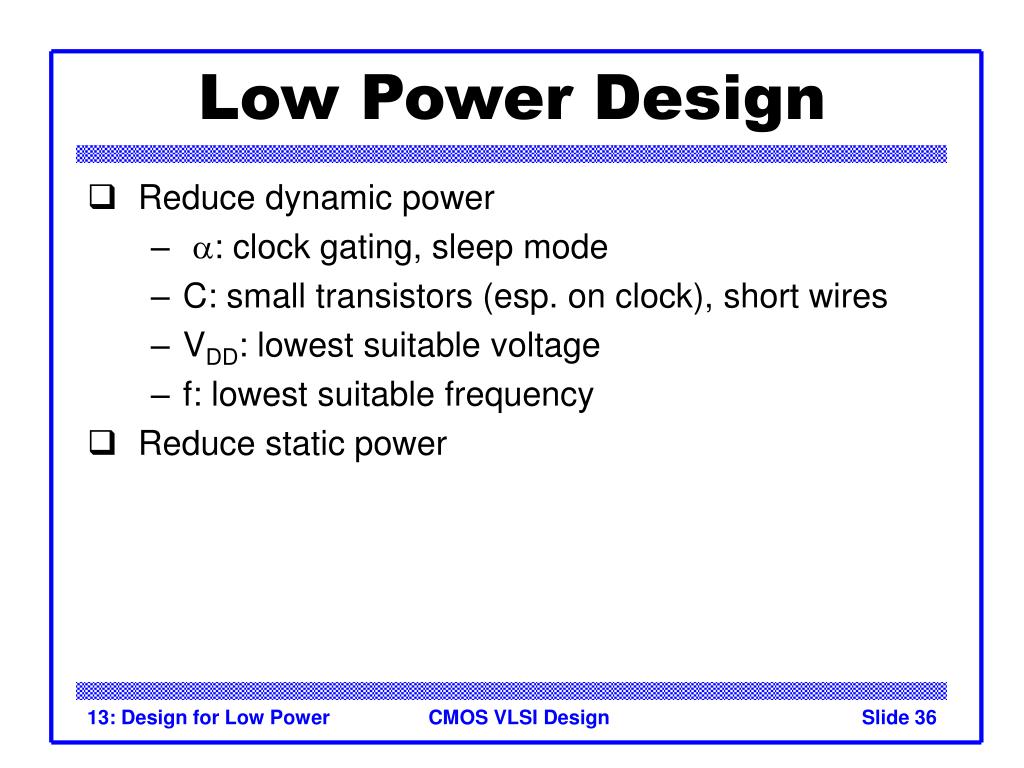

Low Power Design

  • Reduce dynamic power

    • a: clock gating, sleep mode

    • C: small transistors (esp. on clock), short wires

    • VDD: lowest suitable voltage

    • f: lowest suitable frequency

  • Reduce static power

13: Design for Low Power


Low power design37 l.jpg

Low Power Design

  • Reduce dynamic power

    • a: clock gating, sleep mode

    • C: small transistors (esp. on clock), short wires

    • VDD: lowest suitable voltage

    • f: lowest suitable frequency

  • Reduce static power

    • Selectively use ratioed circuits

    • Selectively use low Vt devices

    • Leakage reduction:

      stacked devices, body bias, low temperature

13: Design for Low Power
