Carlos castillo chavez joaquin bustoz jr professor arizona state university l.jpg

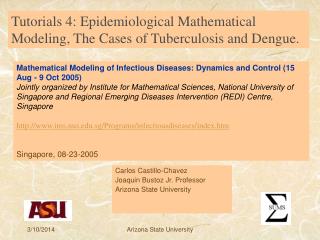

Tutorials 4: Epidemiological Mathematical Modeling, The Cases of Tuberculosis and Dengue.

Mathematical Modeling of Infectious Diseases: Dynamics and Control (15 Aug - 9 Oct 2005)

Jointly organized by Institute for Mathematical Sciences, National University of Singapore and Regional Emerging Diseases Intervention (REDI) Centre, Singapore

http://www.ims.nus.edu.sg/Programs/infectiousdiseases/index.htm

Singapore, 08-23-2005

Carlos Castillo-Chavez

Joaquin Bustoz Jr. Professor

Arizona State University

Arizona State University


A tb model with age structure castillo chavez and feng math biosci 1998 l.jpg
A TB model with age-structure Cases of Tuberculosis and Dengue.(Castillo-Chavez and Feng. Math. Biosci., 1998)

Arizona State University


Slide3 l.jpg

Arizona State University Cases of Tuberculosis and Dengue.


Slide4 l.jpg

Arizona State University Cases of Tuberculosis and Dengue.


Slide5 l.jpg

Arizona State University Cases of Tuberculosis and Dengue.


Slide6 l.jpg

SIR Model with Age Structure Cases of Tuberculosis and Dengue.

  • s(t,a) : Density of susceptible individuals with age a at time t.

  • i(t,a) : Density of infectious individuals with age a at time t.

  • r(t,a) : Density of recovered individuals with age a at time t.

# of susceptible individuals with ages in (a1 , a2)

at time t

# of infectious individuals with ages

in (a1 , a2) at time t

# of recovered individuals with ages in (a1 , a2)

at time t

Arizona State University


Slide7 l.jpg

Parameters Cases of Tuberculosis and Dengue.

  • : recruitment/birth rate.

  • (a): age-specific probability of becoming infected.

  • c(a): age-specific per-capita contact rate.

  • (a): age-specific per-capita mortality rate.

  • (a): age-specific per-capita recovery rate.

Arizona State University


Slide8 l.jpg

Mixing Cases of Tuberculosis and Dengue.

p(t,a,a`): probability that an individual of age a has

contact with an individual of age a` given that it has

a contact with a member of the population .

Arizona State University


Slide9 l.jpg

Mixing Rules Cases of Tuberculosis and Dengue.

  • p(t,a,a`) ≥ 0

  • Proportionate mixing:

Arizona State University


Slide10 l.jpg

Equations Cases of Tuberculosis and Dengue.

Arizona State University


Slide11 l.jpg

Demographic Steady State Cases of Tuberculosis and Dengue.

n(t,a): density of individual with age a at time t

n(t,a) satisfies the Mackendrick Equation

We assume that the total population density has reached

this demographic steady state.

Arizona State University


Slide12 l.jpg

Parameters Cases of Tuberculosis and Dengue.

  • : recruitment rate.

  • (a): age-specific probability of becoming infected.

  • c(a): age-specific per-capita contact rate.

  • (a); age-specific per-capita mortality rate.

  • k: progression rate from infected to infectious.

  • r: treatment rate.

  • : reduction proportion due to prior exposure to TB.

  • : reduction proportion due to vaccination.

Arizona State University


Slide13 l.jpg

Age Structure Model with vaccination Cases of Tuberculosis and Dengue.

Arizona State University


Age dependent optimal vaccination strategies feng castillo chavez math biosci 1998 l.jpg

Vaccinated Cases of Tuberculosis and Dengue.

Age-dependent optimal vaccination strategies(Feng, Castillo-Chavez, Math. Biosci., 1998)

Arizona State University


Slide15 l.jpg

Basic reproductive Number Cases of Tuberculosis and Dengue.

(by next generation operator)

Arizona State University


Slide16 l.jpg

Stability Cases of Tuberculosis and Dengue.

There exists an endemic steady state whenever R0()>1.

The infection-free steady state is globally asymptotically stable when R0= R0(0)<1.

Arizona State University


Slide17 l.jpg

Optimal Vaccination Strategies Cases of Tuberculosis and Dengue.

Two optimization problems:

If the goal is to bring R0() to pre-assigned value then find the vaccination strategy (a) that minimizes the total cost associated with this goal (reduced prevalence to a target level).

If the budget is fixed (cost) find a vaccination strategy (a) that minimizes R0(), that is, that minimizes the prevalence.

Arizona State University


Reproductive numbers l.jpg

R Cases of Tuberculosis and Dengue.(y) < R*

Reproductive numbers

Two optimization problems:

Arizona State University


One age and two age vaccination strategies l.jpg
One-age and two-age vaccination strategies Cases of Tuberculosis and Dengue.

Arizona State University


Slide20 l.jpg

Optimal Strategies Cases of Tuberculosis and Dengue.

One–age strategy: vaccinate the susceptible population at exactly age A.

Two–age strategy: vaccinate part of the susceptible population at exactly age A1and the remaining susceptibles at a later age A2.

. Selected optimal strategy depends on cost function (data).

Arizona State University


Generalized household model l.jpg
Generalized Household Model Cases of Tuberculosis and Dengue.

  • Incorporates contact type (close vs. casual) and focus on close and prolonged contacts.

  • Generalized households become the basic epidemiological unit rather than individuals.

  • Use epidemiological time-scales in model development and analysis.

Arizona State University


Transmission diagram l.jpg
Transmission Diagram Cases of Tuberculosis and Dengue.

Arizona State University


Key features l.jpg
Key Features Cases of Tuberculosis and Dengue.

  • Basic epidemiological unit: cluster (generalized household)

  • Movement of kE2 to I class brings nkE2 to N1population, where by assumptions nkE2(S2 /N2) go to S1 and nkE2(E2/N2) go to E1

  • Conversely, recovery of I infectious bring nI back to N2 population, where nI (S1 /N1)=  S1 go to S2 and nI (E1 /N1)=  E1 go to E2

Arizona State University


Basic cluster model l.jpg
Basic Cluster Model Cases of Tuberculosis and Dengue.

Arizona State University


Basic reproductive number l.jpg
Basic Reproductive Number Cases of Tuberculosis and Dengue.

Where:

is the expected number of infections produced by one infectious individual within his/her cluster.

denotes the fraction that survives over the latency period.

Arizona State University


Diagram of extended cluster model l.jpg
Diagram of Extended Cluster Model Cases of Tuberculosis and Dengue.

Arizona State University


Slide27 l.jpg
Cases of Tuberculosis and Dengue.(n)

Both close casual contacts are included in the extended model. The risk of infection per susceptible,  , is assumed to be a nonlinear function of the average cluster size n. The constant p measuresproportion of time of an “individual spanned within a cluster.

Arizona State University


Slide28 l.jpg

Arizona State University Cases of Tuberculosis and Dengue.


Slide29 l.jpg

Arizona State University Cases of Tuberculosis and Dengue.


Role of cluster size general model l.jpg
Role of Cluster Size (General Model Cases of Tuberculosis and Dengue.)

E(n) denotes the ratio of within cluster to between cluster transmission. E(n) increases and reaches its maximum value at

The cluster size n* is optimal as it maximizes the relative impact of within to between cluster transmission.

Arizona State University


Hoppensteadt s theorem 1973 l.jpg

Full system Cases of Tuberculosis and Dengue.

Hoppensteadt’s Theorem (1973)

Reduced system

where x Rm, y Rn and  is a positive real parameter near zero (small parameter). Five conditions must be satisfied (not listed here). If the reduced system has a globally asymptotically stable equilibrium, then the full system has a g.a.s. equilibrium whenever 0<  <<1.

Arizona State University


Bifurcation diagram l.jpg

1 Cases of Tuberculosis and Dengue.

Bifurcation Diagram

Global bifurcation diagram when 0<<<1 where  denotes

the ratio between rate of progression to active TB and the

average life-span of the host (approximately).

Arizona State University


Numerical simulations l.jpg
Numerical Simulations Cases of Tuberculosis and Dengue.

Arizona State University


Concluding remarks on cluster models l.jpg
Concluding Remarks on Cluster Models Cases of Tuberculosis and Dengue.

  • A global forward bifurcation is obtained when  << 1

  • E(n) measures the relative impact of close versus casual contacts can be defined. It defines optimal cluster size (size that maximizes transmission).

  • Method can be used to study other transmission diseases with distinct time scales such as influenza

Arizona State University


Tb in the us 1953 1999 l.jpg
TB in the US (1953-1999) Cases of Tuberculosis and Dengue.

Arizona State University


Slide36 l.jpg

Arizona State University Cases of Tuberculosis and Dengue.


Slide37 l.jpg

TB control in the U.S. Cases of Tuberculosis and Dengue.

CDC’s goal

3.5 cases per 100,000 by 2000

One case per million by 2010.

Can CDC meet this goal?

Arizona State University


Model construction l.jpg
Model Construction Cases of Tuberculosis and Dengue.

Since d has been approximately equal to zero over the past 50 years in the US, we only consider

Hence, N can be computed independently of TB.

Arizona State University


Non autonomous model permanent latent class of tb introduced l.jpg
Non-autonomous model Cases of Tuberculosis and Dengue.(permanent latent class of TB introduced)

Arizona State University


Slide40 l.jpg

Effect of HIV Cases of Tuberculosis and Dengue.

Arizona State University


Slide41 l.jpg

Parameter estimation and simulation setup Cases of Tuberculosis and Dengue.

Arizona State University


N t from census data l.jpg
N(t) from census data Cases of Tuberculosis and Dengue.

N(t) is from census data and population projection

Arizona State University


Results l.jpg
Results Cases of Tuberculosis and Dengue.

Arizona State University


Results44 l.jpg
Results Cases of Tuberculosis and Dengue.

  • Left: New case of TB and data (dots)

  • Right: 10% error bound of new cases and data

Arizona State University


Regression approach l.jpg
Regression approach Cases of Tuberculosis and Dengue.

Arizona State University

A Markov chain model supports the same result


Slide46 l.jpg

CONCLUSIONS Cases of Tuberculosis and Dengue.

Arizona State University


Conclusions l.jpg
Conclusions Cases of Tuberculosis and Dengue.

Arizona State University


Cdc s goal delayed l.jpg
CDC’s Goal Delayed Cases of Tuberculosis and Dengue.

Impact of HIV.

  • Lower curve does not include HIV impact;

  • Upper curve represents the case rate when HIV is included;

  • Both are the same before 1983. Dots represent real data.

Arizona State University


Our work on tb l.jpg
Our work on TB Cases of Tuberculosis and Dengue.

  • Aparicio, J., A. Capurro and C. Castillo-Chavez, “On the long-term dynamics and re-emergence of tuberculosis.” In: Mathematical Approaches for Emerging and Reemerging Infectious Diseases: An Introduction, IMA Volume 125, 351-360, Springer-Veralg, Berlin-Heidelberg-New York. Edited by Carlos Castillo-Chavez with Pauline van den Driessche, Denise Kirschner and Abdul-Aziz Yakubu, 2002

  • Aparicio J., A. Capurro and C. Castillo-Chavez, “Transmission and Dynamics of Tuberculosis on Generalized Households”Journal of Theoretical Biology 206, 327-341, 2000

  • Aparicio, J., A. Capurro and C. Castillo-Chavez, Markers of disease evolution: the case of tuberculosis, Journal of Theoretical Biology, 215: 227-237, March 2002.

  • Aparicio, J., A. Capurro and C. Castillo-Chavez, “Frequency Dependent Risk of Infection and the Spread of Infectious Diseases.” In: Mathematical Approaches for Emerging and Reemerging Infectious Diseases: An Introduction, IMA Volume 125, 341-350, Springer-Veralg, Berlin-Heidelberg-New York. Edited by Carlos Castillo-Chavez with Pauline van den Driessche, Denise Kirschner and Abdul-Aziz Yakubu, 2002

  • Berezovsky, F., G. Karev, B. Song, and C. Castillo-Chavez, Simple Models with Surprised Dynamics, Journal of Mathematical Biosciences and Engineering, 2(1): 133-152, 2004.

  • Castillo-Chavez, C. and Feng, Z. (1997), To treat or not to treat: the case of tuberculosis, J. Math. Biol.

Arizona State University


Our work on tb50 l.jpg
Our work on TB Cases of Tuberculosis and Dengue.

  • Castillo-Chavez, C., A. Capurro, M. Zellner and J. X. Velasco-Hernandez, “El transporte publico y la dinamica de la tuberculosis a nivel poblacional,” Aportaciones Matematicas, Serie Comunicaciones, 22: 209-225, 1998

  • Castillo-Chavez, C. and Z. Feng, “Mathematical Models for the Disease Dynamics of Tuberculosis,” Advances In Mathematical Population Dynamics - Molecules, Cells, and Man (O. , D. Axelrod, M. Kimmel, (eds), World Scientific Press, 629-656, 1998.

  • Castillo-Chavez,C and B. Song: Dynamical Models of Tuberculosis and applications, Journal of Mathematical Biosciences and Engineering, 1(2): 361-404, 2004.

  • Feng, Z. and C. Castillo-Chavez, “Global stability of an age-structure model for TB and its applications to optimal vaccination strategies,” Mathematical Biosciences, 151,135-154, 1998

  • Feng, Z., Castillo-Chavez, C. and Capurro, A.(2000), A model for TB with exogenous reinfection, Theoretical Population Biology

  • Feng, Z., Huang, W. and Castillo-Chavez, C.(2001), On the role of variable latent periods in mathematical models for tuberculosis, Journal of Dynamics and Differential Equations .

Arizona State University


Our work on tb51 l.jpg
Our work on TB Cases of Tuberculosis and Dengue.

  • Song, B., C. Castillo-Chavez and J. A. Aparicio, Tuberculosis Models with Fast and Slow Dynamics: The Role of Close and Casual Contacts, Mathematical Biosciences180: 187-205, December 2002

  • Song, B., C. Castillo-Chavez and J. Aparicio, “Global dynamics of tuberculosis models with density dependent demography.” In: Mathematical Approaches for Emerging and Reemerging Infectious Diseases: Models, Methods and Theory, IMA Volume 126, 275-294, Springer-Veralg, Berlin-Heidelberg-New York. Edited by Carlos Castillo-Chavez with Pauline van den Driessche, Denise Kirschner and Abdul-Aziz Yakubu, 2002

Arizona State University


Models of dengue fever and their public health implications l.jpg

Models of Dengue Fever and their Public Health Implications Cases of Tuberculosis and Dengue.

Fabio Sánchez

Ph.D. Candidate

Cornell University

Advisor: Dr. Carlos Castillo-Chavez

Arizona State University


Outline l.jpg
Outline Cases of Tuberculosis and Dengue.

  • Introduction

  • Single strain model

  • Two-strain model with collective behavior change

  • Single outbreak model

  • Conclusions

Arizona State University


Introduction l.jpg
Introduction Cases of Tuberculosis and Dengue.

  • Mosquito transmitted disease

  • 50 to 100 million reported cases every year

  • Nearly 2.5 billion people at risk around the world (mostly in the tropics)

  • Human generated breeding sites are a major problem.

Arizona State University


Slide55 l.jpg

Arizona State University


Slide56 l.jpg

Arizona State University



Slide58 l.jpg

  • There is geographic strain variability. and DEN-4)

  • Each region with strain i, does not have all the variants of strain i.

  • Geographic spread of new variants of existing local strains poses new challenges in a globally connected society.

Arizona State University


Slide59 l.jpg

  • Aedes aegypti and DEN-4)(principal vector)

    • viable eggs can survive without water for a long time (approximately one year)

    • adults can live 20 to 30 days on average.

    • only females take blood meals

    • latency period of approximately 10 days later (on the average).

  • Aedes albopictus a.k.a. the Asian tiger mosquito

- can also transmit dengue

Arizona State University


Transmission cycle l.jpg
Transmission Cycle and DEN-4)

Arizona State University


Slide61 l.jpg

The Model and DEN-4)

  • Coupled nonlinear ode system

  • Includes the immature (egg/larvae) vector stage

  • Incorporates a general recruitment function for the immature stage of the vector

  • SIR model for the host (human) system--following Ross’s approach (1911)

  • Model incorporates multiple vector densities via its recruitment function

Arizona State University


Slide62 l.jpg

State Variables and DEN-4)

Vector State Variables

  • E viable eggs (were used as the larvae/egg stage)

  • V adult mosquitoes

  • J infected adult mosquitoes

    Host State Variables (Humans)

  • S susceptible hosts

  • I infected hosts

  • R recovered hosts

Arizona State University


Slide63 l.jpg

Caricature of the Model and DEN-4)

Arizona State University


Epidemic basic reproductive number r 0 l.jpg
Epidemic basic reproductive number, and DEN-4)R0

The average number of secondary cases of a disease caused by a “typical” infectious individual.

Arizona State University


Multiple steady states backward bifurcation l.jpg
Multiple steady states (backward bifurcation) and DEN-4)

With control measures

Arizona State University


Change in host behavior and its impact on the co evolution of dengue l.jpg
Change in Host Behavior and its Impact on the Co and DEN-4)-evolution of Dengue

Arizona State University


Slide67 l.jpg

Introduction to the Model and DEN-4)

Host System

Vector System

  • Our model expands on the work of Esteva and Vargas, by incorporating a behavioral change class in the host system and a latent stage in the vector system.

Arizona State University


Slide68 l.jpg

Basic Reproductive Number, R and DEN-4)0

  • The Basic Reproductive number represents the number of secondary infections caused by a “typical” infectious individual

  • Calculated using the Next Generation Operator approach

Where,

- represents the proportion of mosquitoes that make it from the latent stage to the infectious stage

- represents the average time of the host spent in the infectious stage

- represents the average life-span of the mosquito

Arizona State University


Slide69 l.jpg

Regions of Stability of Endemic Equilibria and DEN-4)

From the stability analysis of the endemic equilibria, the following necessary condition arose

which defines the regions illustrated above.

Arizona State University


Slide70 l.jpg

Conclusions and DEN-4)

  • A model for the transmission dynamics of two strains of dengue was formulated and analyzed with the incorporation of a behavioral change class.

  • Behavioral change impacts the disease dynamics.

  • Results support the necessity of the behavioral change class to model the transmission dynamics of dengue.

Arizona State University


A comparison study of the 2001 and 2004 dengue fever outbreaks in singapore l.jpg

A Comparison Study of the 2001 and 2004 Dengue Fever Outbreaks in Singapore

Arizona State University


Outline72 l.jpg
Outline Outbreaks in Singapore

  • Data and the Singapore health system

  • Single outbreak model

  • Results

  • Conclusions

Arizona State University


Aedes aegypti l.jpg
Aedes aegypti Outbreaks in Singapore

  • Has adapted well to humans

  • Mostly found in urban areas

  • Eggs can last up to a year in dry land

Arizona State University


Singapore health system and data l.jpg
Singapore Health System and Data Outbreaks in Singapore

Arizona State University


Singapore health system and data75 l.jpg
Singapore Health System and Data Outbreaks in Singapore

  • Prevention and Control

    • The National Environment Agency carries out entomological investigation around the residence and/or workplace of notified cases, particularly if these cases form a cluster where they are within 200 meters of each other. They also carry out epidemic vector control measures in outbreak areas and areas of high Aedes breeding habitats.

Arizona State University


Preventive measures l.jpg
Preventive Measures Outbreaks in Singapore

  • Clustering of cases by place and time

    • Intensified control actions are implemented in these cluster areas

  • Surveillance control programs

    • Vector control

      • Larval source reduction (search-and-destroy)

    • Health education

      • House to house visits by health officers

      • “Dengue Prevention Volunteer Groups” (National Environment Agency)

    • Law enforcement

      • Large fines for repeat offenders

Arizona State University


Reported cases from 2001 up to date l.jpg
Reported cases from 2001-up to date Outbreaks in Singapore

Arizona State University


Single outbreak model l.jpg
Single Outbreak Model Outbreaks in Singapore

VLJ - vectors (mosquitoes)

SEIR - host (humans)

M=V+L+J

N=S+E+I+R

Arizona State University


2001 outbreak l.jpg
2001 Outbreak Outbreaks in Singapore

Arizona State University


2001 outbreak80 l.jpg
2001 Outbreak Outbreaks in Singapore

Arizona State University


2004 outbreak l.jpg
2004 Outbreak Outbreaks in Singapore

Arizona State University


2004 outbreak82 l.jpg
2004 Outbreak Outbreaks in Singapore

Arizona State University


Conclusions83 l.jpg
Conclusions Outbreaks in Singapore

  • Monitoring of particular strains may help prevent future outbreaks

  • Elimination of breeding sites is an important factor, however low mosquito densities are capable of producing large outbreaks

  • Having a well-structured public health system helps but other approaches of prevention are needed

  • Transient (tourists) populations could possibly trigger large outbreaks

    • By introduction of a new strain

    • Large pool of susceptible increases the probability of transmission

Arizona State University


Acknowledgements l.jpg
Acknowledgements Outbreaks in Singapore

Collaborators:

Chad Gonsalez (ASU)

David Murillo (ASU)

Karen Hurman (N.C. State)

Gerardo Chowell-Puente (LANL)

Ministry of Health of Singapore

Prof. Laura Harrington (Cornell)

Advisor: Dr. Carlos Castillo-Chavez

Arizona State University


ad
