Presentation Transcript

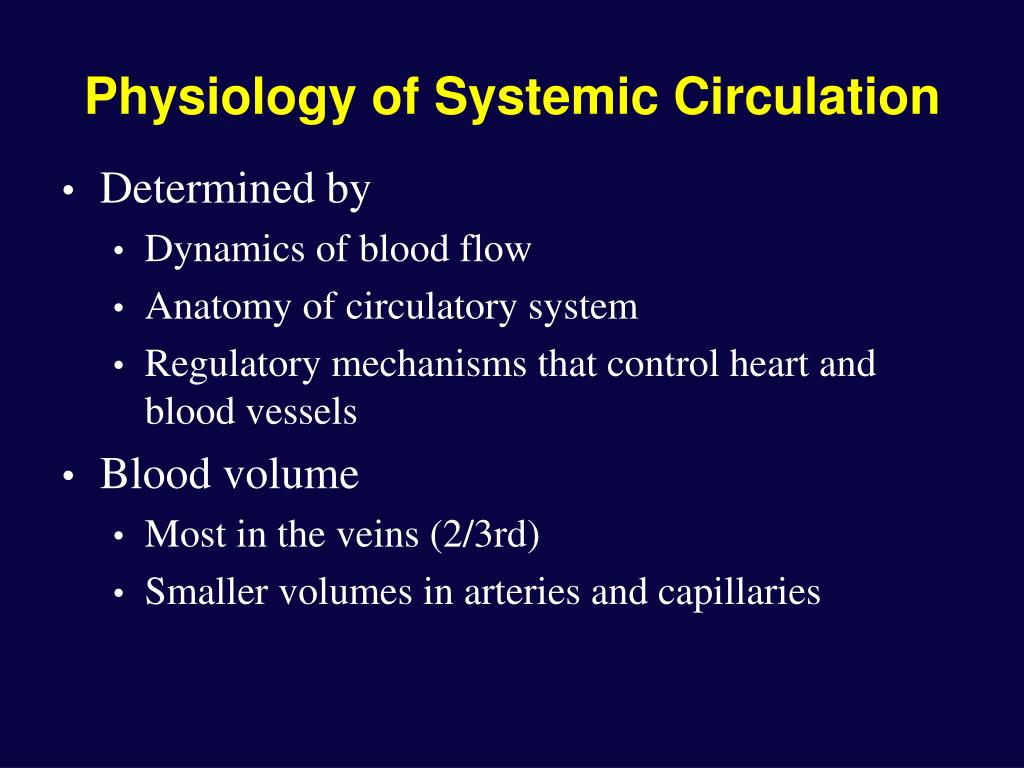

Physiology of systemic circulation l.jpg
Physiology of Systemic Circulation

  • Determined by

    • Dynamics of blood flow

    • Anatomy of circulatory system

    • Regulatory mechanisms that control heart and blood vessels

  • Blood volume

    • Most in the veins (2/3rd)

    • Smaller volumes in arteries and capillaries


Dynamics of blood circulation l.jpg
Dynamics of Blood Circulation

  • Interrelationships between

    • Pressure

    • Flow

    • Resistance

    • Control mechanisms that regulate blood pressure

    • Blood flow through vessels


Blood flow l.jpg
Blood Flow

  • Actual volume of blood flowing through a vessel, an organ, or the entire circulation in a given period:

    • Is measured in ml per min.

    • Is equivalent to cardiac output (CO), considering the entire vascular system

    • Is relatively constant when at rest

    • Varies widely through individual organs, according to immediate needs



Blood pressure bp l.jpg
Blood Pressure (BP)

  • Measure of force exerted by blood against the wall

  • Force per unit area exerted on the wall of a blood vessel by its contained blood

    • Expressed in millimeters of mercury (mm Hg)

    • Measured in reference to systemic arterial BP in large arteries near the heart

  • Blood moves through vessels because of blood pressure

  • The differences in BP within the vascular system provide the driving force that keeps blood moving from higher to lower pressure areas


Blood flow blood pressure l.jpg
Blood Flow & Blood Pressure

  • Blood flow (F) is directly proportional to the difference in blood pressure (P) between two points in the circulation


Blood flow pressure changes l.jpg
Blood Flow: Pressure Changes

  • Flows down a pressure gradient

  • Force of heart contraction

  • Highest at the heart (driving P), decreases over distance

  • Compliance (distensibility) of vessel

  • Decreases 90% from aorta to vena cava


Blood flow9 l.jpg
Blood Flow

  • Flow rate through a vessel (volume of blood passing through per unit of time) is directly proportional to the pressure gradient and inversely proportional to vascular resistance

    F = ΔP

    R

    F = flow rate of blood through a vessel

    ΔP = pressure gradient

    R = resistance of blood vessels


Blood flow10 l.jpg
Blood Flow

  • Pressure gradient is pressure difference between beginning and end of a vessel

    • Blood flows from area of higher pressure to area of lower pressure

  • Resistance – opposition to flow

    • Measure of the amount of friction blood encounters as it passes through vessels

    • Referred to as peripheral resistance (PR)

  • Blood flow is inversely proportional to resistance (R)

    • If R increases, blood flow decreases

  • R is more important than P in influencing local blood pressure

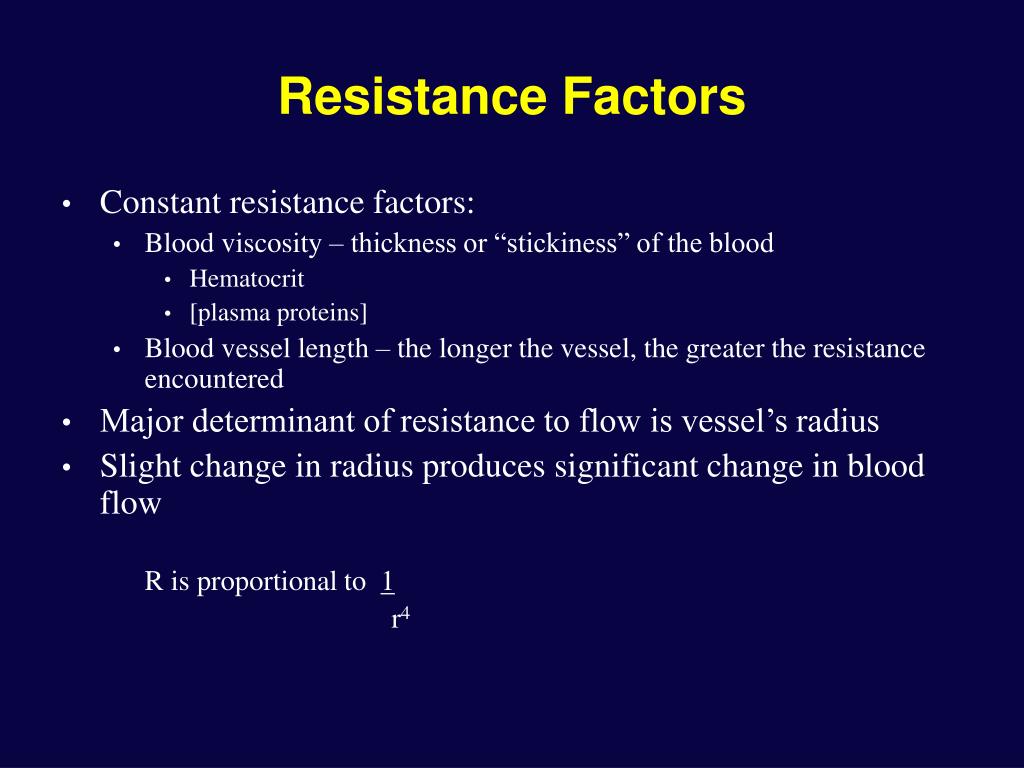

Resistance factors l.jpg
Resistance Factors

  • Constant resistance factors:

    • Blood viscosity – thickness or “stickiness” of the blood

      • Hematocrit

      • [plasma proteins]

    • Blood vessel length – the longer the vessel, the greater the resistance encountered

  • Major determinant of resistance to flow is vessel’s radius

  • Slight change in radius produces significant change in blood flow

    R is proportional to 1

    r4

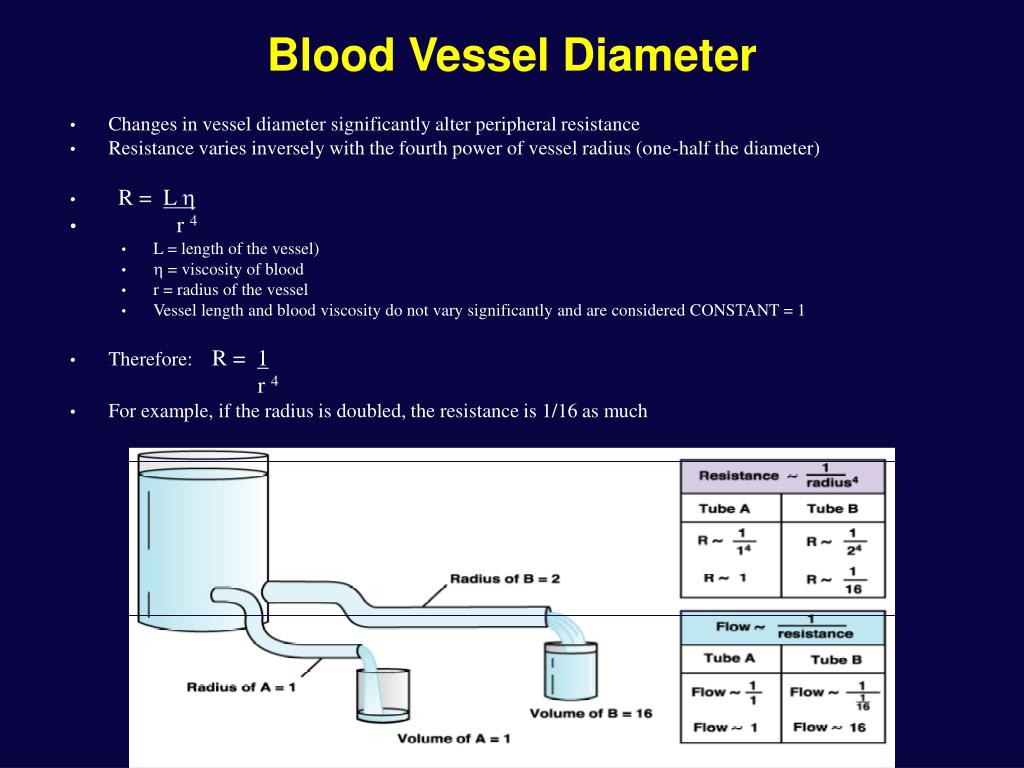

Blood vessel diameter l.jpg
Blood Vessel Diameter

  • Changes in vessel diameter significantly alter peripheral resistance

  • Resistance varies inversely with the fourth power of vessel radius (one-half the diameter)

  • R = L 

  • r 4

    • L = length of the vessel)

    •  = viscosity of blood

    • r = radius of the vessel

    • Vessel length and blood viscosity do not vary significantly and are considered CONSTANT = 1

  • Therefore: R = 1

    r 4

  • For example, if the radius is doubled, the resistance is 1/16 as much


Blood flow vessel diameter and velocity l.jpg
Blood Flow, Vessel Diameter and Velocity

  • As diameter of vessels increases, the total cross-sectional area increases and velocity of blood flow decreases

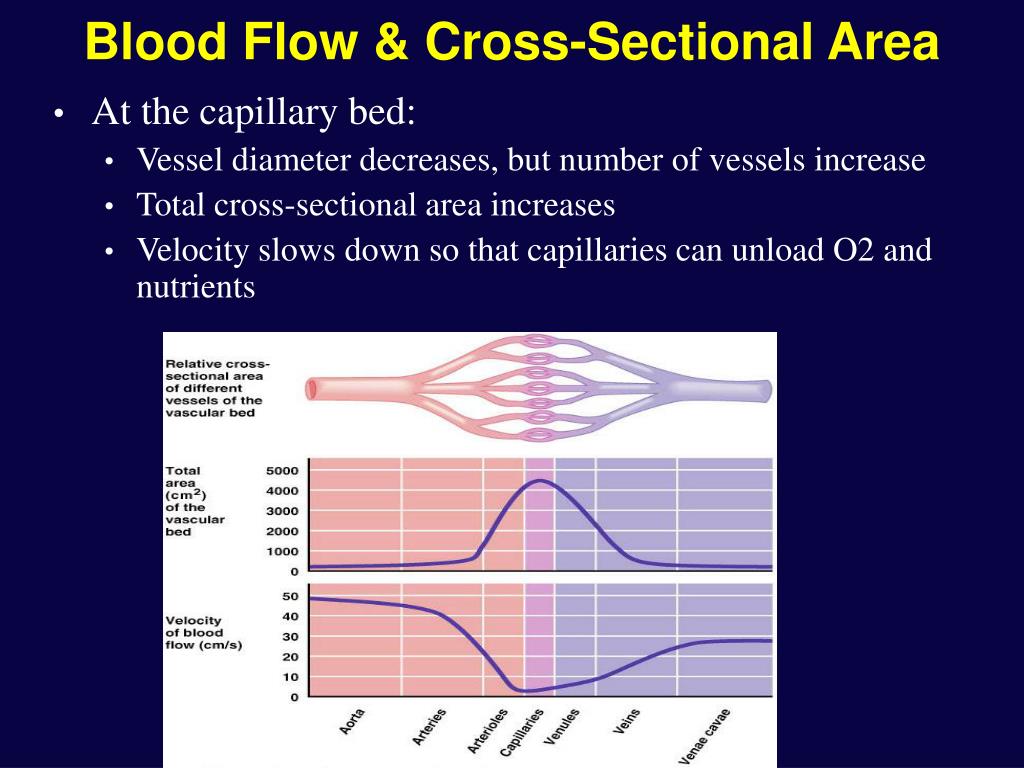

Blood flow cross sectional area l.jpg
Blood Flow & Cross-Sectional Area

  • At the capillary bed:

    • Vessel diameter decreases, but number of vessels increase

    • Total cross-sectional area increases

    • Velocity slows down so that capillaries can unload O2 and nutrients


Vascular tree l.jpg
Vascular Tree

  • Closed system of vessels consists of:

    • Arteries - carry blood away from heart to tissues

    • Arterioles - smaller branches of arteries

    • Capillaries

      • Smaller branches of arterioles

      • Smallest of vessels across which all exchanges are made with surrounding cells

    • Venules

      • Formed when capillaries rejoin

      • Return blood to heart

    • Veins

      • Formed when venules merge

      • Return blood to heart


Structure of blood vessels l.jpg
Structure of Blood Vessels

  • Artery walls are thicker than that of veins and have narrower lumens

    • Walls must withstand high pressures

    • Thick layer of smooth muscle in tunica media controls flow and pressure

  • Arteries and arterioles have more elastic and collagen Fibers

    • Remain open and can spring back in shape

    • Pressure in the arteries fluctuates due to cardiac systole and diastole

  • Veins have larger lumens Vein walls are thinner than arteries, have larger lumens and have valves

    • Thin walls provide compliance - blood volume reservoir

    • Blood pressure is much lower in veins than in arteries

    • Valves prevent backflow of blood

  • Capillaries have verysmall diameters (many are only large enough for only one RBC at a time pass through)

    • Composed only of basal lamina and endothelium

    • Thin walls allow for gas, nutrient, waste exchange between blood and tissue cells.

Figure 21.2


Role of arteries l.jpg
Role of Arteries

  • Elastic or conducting arteries

    • Largest diameters, pressure high and fluctuates

    • Pressure Resevoir

    • Elastic recoil propels blood after systole

  • Muscular or medium arteries

    • Smooth muscle allows vessels to regulate blood supply by constricting or dilating


Role of arterioles l.jpg
Role of Arterioles

  • Transport blood from small arteries to capillaries

  • Controls the amount of resistance

  • Greatest drop in pressure occurs in arterioles which regulate blood flow through tissues

  • No large fluctuations in capillaries and veins


Blood pressure l.jpg
Blood Pressure

  • Force exerted by blood against a vessel wall

    • Depends on

      • Volume of blood forced into the vessel

      • Compliance (distensibility) of vessel walls

  • Systolic pressure

    • Peak pressure exerted by ejected blood against vessel walls during cardiac systole

    • Averages 120 mm Hg

  • Diastolic pressure

    • Minimum pressure in arteries when blood is draining off into vessels downstream

    • Averages 80 mm Hg


Arterial blood pressure l.jpg
Arterial Blood Pressure

  • Blood pressure in elastic arteries near the heart is pulsatile (BP rises and falls)

  • Pulse pressure – the difference between systolic and diastolic pressure

  • Mean arterial pressure (MAP) – pressure that propels the blood to the tissues

  • MAP = diastolic pressure + 1/3 pulse pressure


Blood pressure measurement l.jpg
Blood Pressure Measurement

  • Critical closing pressure

    • Pressure at which a blood vessel collapses and blood flow stops

  • Laplace’s Law

    • Force acting on blood vessel wall is proportional to diameter of the vessel times blood pressure


Measurement of bp l.jpg
Measurement of BP

  • Blood pressure cuff is inflated above systolic pressure, occluding the artery.

  • As cuff pressure is lowered, the blood will flow only when systolic pressure is above cuff pressure, producing the sounds of Korotkoff.

  • Korotkoff sounds will be heard until cuff pressure equals diastolic pressure, causing the sounds to disappear.


Measurement of blood pressure cont l.jpg
Measurement of Blood Pressure (cont.)

  • Different phases in measurement of blood pressure are identified on the basis of the quality of the Korotkoff sounds.

  • Average arterial BP is 120/80 mm Hg.

  • Average pulmonary BP is 22/8 mm Hg.


Pulse pressure l.jpg
Pulse Pressure

  • Difference between systolic and diastolic pressures

  • Increases when stroke volume increases or vascular compliance decreases

  • Pulse pressure can be used to take a pulse to determine heart rate and rhythmicity


Effect of gravity on blood pressure l.jpg
Effect of Gravity on Blood Pressure

  • Effect of Gravity - In a standing position, hydrostatic pressure caused by gravity increases blood pressure below the heart and decreases pressure above the heart


Role of veins l.jpg
Role of Veins

  • Veins have much lower blood pressure and thinner walls than arteries

  • To return blood to the heart, veins have special adaptations

    • Large-diameter lumens, which offer little resistance to flow

    • Valves (resembling semilunar heart valves), which prevent backflow of blood

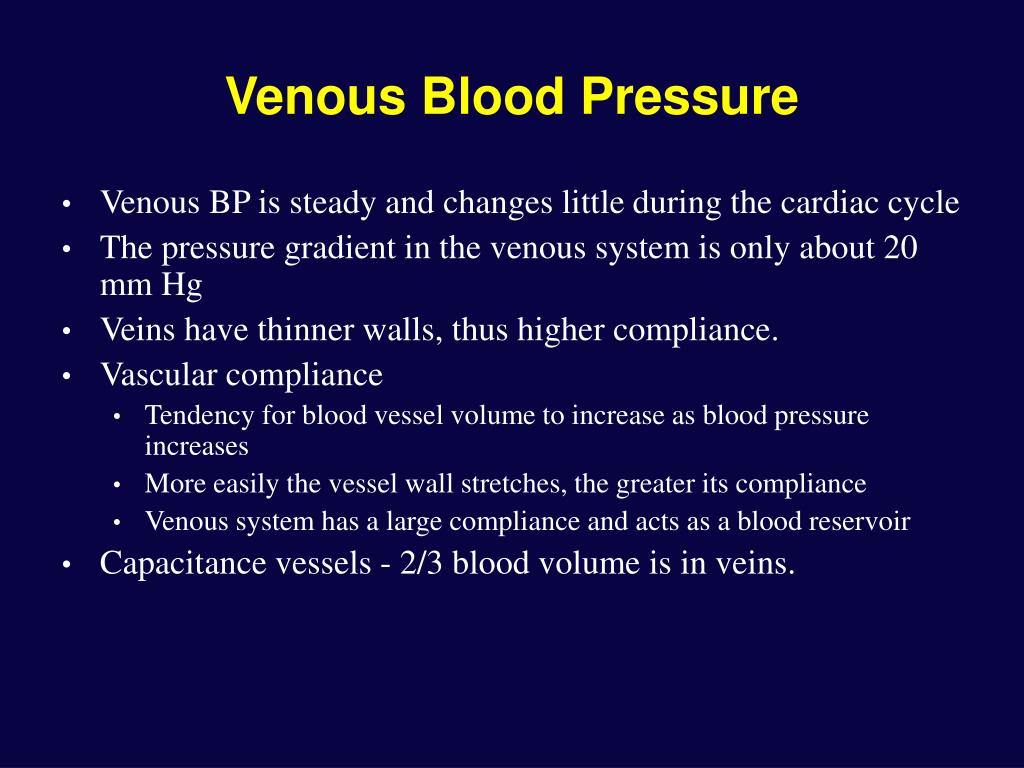

Venous blood pressure l.jpg
Venous Blood Pressure

  • Venous BP is steady and changes little during the cardiac cycle

  • The pressure gradient in the venous system is only about 20 mm Hg

  • Veins have thinner walls, thus higher compliance.

  • Vascular compliance

    • Tendency for blood vessel volume to increase as blood pressure increases

    • More easily the vessel wall stretches, the greater its compliance

    • Venous system has a large compliance and acts as a blood reservoir

  • Capacitance vessels - 2/3 blood volume is in veins.


Venous return l.jpg
Venous Return

  • Venous pressure is driving force for return of blood to the heart.

  • EDV, SV, and CO are controlled by factors which affect venous return


Factors aiding venous return l.jpg
Factors Aiding Venous Return

  • Venous BP alone is too low to promote adequate blood return and is aided by the:

    • Respiratory “pump” – pressure changes created during breathing squeeze local veins

    • Muscular “pump” – contraction of skeletal muscles push blood toward the heart

  • Valves prevent backflow during venous return


Capillary network l.jpg
Capillary Network

  • Blood flows from arterioles through metarterioles, then through capillary network

  • Venules drain network

  • Smooth muscle in arterioles, metarterioles, precapillary sphincters regulates blood flow


Capillaries l.jpg
Capillaries

  • Capillary wall consists mostly of endothelial cells

  • Types classified by diameter/permeability

    • Continuous do not have fenestrae

    • Fenestrated have pores


Organization of a capillary bed l.jpg
Organization of a Capillary Bed

  • True capillaries – exchange vessels

    • Oxygen and nutrients cross to cells

    • Carbon dioxide and metabolic waste products cross into blood

  • Atriovenous anastomosis – vascular shunt, directly connects an arteriole to a venule

Figure 21.5a, b


Capillary exchange and interstitial fluid volume regulation l.jpg
Capillary Exchange andInterstitial Fluid Volume Regulation

  • Blood pressure, capillary permeability, and osmosis affect movement of fluid from capillaries

  • A net movement of fluid occurs from blood plasma into tissues – bulk flow

  • Fluid gained by tissues is removed by lymphatic system


Diffusion at capillary beds l.jpg
Diffusion at Capillary Beds

  • Distribution of ECF between plasma and interstitial compartments

    • Is in state of dynamic equilibrium.

    • Balance between tissue fluid and blood plasma.

  • Hydrostatic pressure:

    • Exerted against the inner capillary wall.

    • Promotes formation of tissue fluid.

    • Net filtration pressure

  • Colloid osmotic pressure:

    • Exerted by plasma proteins.

    • Promotes fluid reabsorption into circulatory system.


Fluid exchange between capillaries tissues bulk flow l.jpg
Fluid Exchange Between Capillaries & Tissues – Bulk Flow

  • Starling force=(Pc + π i) + (Pi + π p)

    • Arterial end

      • Pc = Hydrostatic pressure in the capillary = 33mmHg

      • π i = Colloid osmotic pressure of the interstitial fluid = 20 mmHg

      • Net pressure on arterial side +13mmHg (out of capillary)

    • Venous side

      Pi = Hydrostatic pressure in the the interstitial fluid = 13 mmHg

      • π p = Colloid osmotic pressure of the blood plasma. = -20 mmHg

      • Net pressure on venous side -7mmHg (back into capillary)

  • Starling force = 13mmHg + -7 = 6mmHg


Lymphatic system l.jpg
Lymphatic System

  • Extensive network of one-way vessels

  • Provides accessory route by which fluid can be returned from interstitial to the blood

  • Initial lymphatics

    • Small, blind-ended terminal lymph vessels

    • Permeate almost every tissue of the body

  • Lymph

    • Interstitial fluid that enters a lymphatic vessel

  • Lymph vessels

    • Formed from convergence of initial lymphatics

    • Eventually empty into venous system near where blood enters right atrium

    • One way valves spaced at intervals direct flow of lymph toward venous outlet in chest


Lymphatic system37 l.jpg
Lymphatic System

  • Functions

    • Return of excess filtered fluid – 3L/day

    • Defense against disease

      • Lymph nodes have phagocytes which destroy bacteria filtered from interstitial fluid

    • Transport of absorbed fat

    • Return of filtered protein


Regulation of blood flow l.jpg
Regulation of Blood Flow

  • Intrinsic - local autoregulation

    • In most tissues blood flow is proportional to metabolic needs of tissues

  • Extrinsic

    • Nervous System - responsible for routing blood flow and maintaining blood pressure

    • Hormonal Control - sympathetic action potentials stimulate epinephrine and norepinephrine


Intrinsic regulation of blood flow autoregulation l.jpg
Intrinsic Regulation of Blood Flow (Autoregulation)

  • Blood flow can increase 7-8 times as a result of vasodilation of metarterioles and precapillary sphincters

    • Response to increased rate of metabolism

    • Intrinsic receptors sense chemical changes in environment

    • Vasodilator substances produced as metabolism increases

      • Decreased 02:

      • Increased C02:

      • Decreased pH - Lactic acid.

      • Increased adenosine/K+ from tissue cells


Intrinsic local regulation autoregulation of blood flow l.jpg
Intrinsic local Regulation (Autoregulation) of Blood Flow

  • Myogenic control mechanism:

    • Occurs because of the stretch of the vascular smooth muscle - maintains adequate flow.

      • A decrease in systemic arterial pressure causes vessels to dilate.

      • A increase in systemic arterial pressure causes vessels to contract


Intrinsic regulation of blood flow autoregulation41 l.jpg
Intrinsic Regulation of Blood Flow (Autoregulation)

  • Endothelium secretions:

    • Nitric Oxide - Vasodilation

      • NO diffuses into smooth muscle:

      • Activates cGMP (2nd messenger).

    • Endothelin-1 – vasoconstriction

  • Histamine release

  • Heat/cold application



Extrinsic regulation of blood flow l.jpg
Extrinsic Regulation of Blood Flow

  • Sympathoadrenal

    • Increase cardiac output

    • Increase TPR: Alpha-adrenergic stimulation - vasoconstriction of arteries in skin and viscera

  • Parasympathetic

    • Parasympathetic innervation limited, less important than sympathetic nervous system in control of TPR.

    • Parasympathetic endings in arterioles promote vasodilation to the digestive tract, external genitalia, and salivary glands


Blood pressure bp regulation l.jpg
Blood Pressure (BP) Regulation

  • Pressure of arterial blood is regulated by blood volume, TPR, and cardiac rate.

    • MAP=CO  TPR

  • Arteriole resistance is greatest because they have the smallest diameter.

  • Capillary BP is reduced because of the total cross-sectional area.

  • 3 most important variables are HR, SV, and TPR.

    • Increase in each of these will result in an increase in BP.

  • BP can be regulated by:

    • Kidney and sympathoadrenal system


Short term regulation of blood pressure l.jpg
Short-Term Regulation ofBlood Pressure

  • Baroreceptor reflexes

    • Change peripheral resistance, heart rate, and stroke volume in response to changes in blood pressure

  • Chemoreceptor reflexes

    • Sensory receptors sensitive to oxygen, carbon dioxide, and pH levels of blood

  • Central nervous system ischemic response

    • Results from high carbon dioxide or low pH levels in medulla and increases peripheral resistance

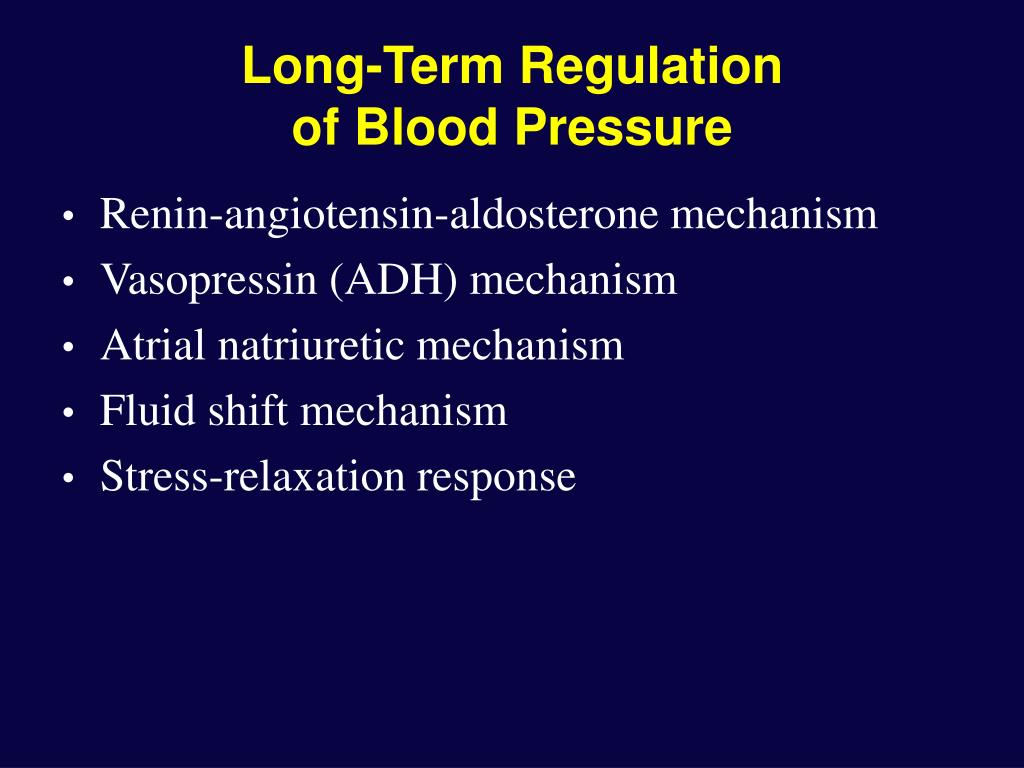

Long term regulation of blood pressure l.jpg
Long-Term Regulation of Blood Pressure

  • Renin-angiotensin-aldosterone mechanism

  • Vasopressin (ADH) mechanism

  • Atrial natriuretic mechanism

  • Fluid shift mechanism

  • Stress-relaxation response




Regulation by adh vasopressin l.jpg
Regulation by ADH (Vasopressin)

  • Released by posterior pituitary when osmoreceptors detect an increase in plasma osmolality.

  • Dehydration or excess salt intake:

    • Produces sensation of thirst.

    • Stimulates H20 reabsorption from urine.



Atrial natriuretic peptide anp l.jpg
Atrial Natriuretic Peptide (ANP)

  • Produced by the atria of the heart.

  • Stretch of atria stimulates production of ANP.

    • Antagonistic to aldosterone and angiotensin II.

    • Promotes Na+ and H20 excretion in the urine by the kidney.

    • Promotes vasodilation.


Cerebral circulation l.jpg
Cerebral Circulation

  • Cerebral blood flow is not normally influenced by sympathetic nerve activity.

  • Normal range of arterial pressures:

    • Cerebral blood flow regulated almost exclusively by intrinsic mechanisms:

      • Myogenic:

        • Dilate in response to decreased pressure.

        • Cerebral arteries also sensitive to [C02].

          • Dilate due to decreased pH of cerebrospinal fluid.

      • Metabolic:

        • Sensitive to changes in metabolic activity.

          • Areas of brain with high metabolic activity receive most blood.

          • May be caused by [K+].


ad
