Teaching Soaring Weather. Soaring Safety Foundation FIRC Rich Carlson. Basic Principles. Obtain the basic weather data Know how the atmosphere works Use some simple calculations to see if soaring is possible Graphs and pictures improve student understanding

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Teaching Soaring Weather' - Solomon


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Teaching soaring weather l.jpg

Teaching Soaring Weather

Soaring Safety Foundation

FIRC

Rich Carlson


Basic principles l.jpg

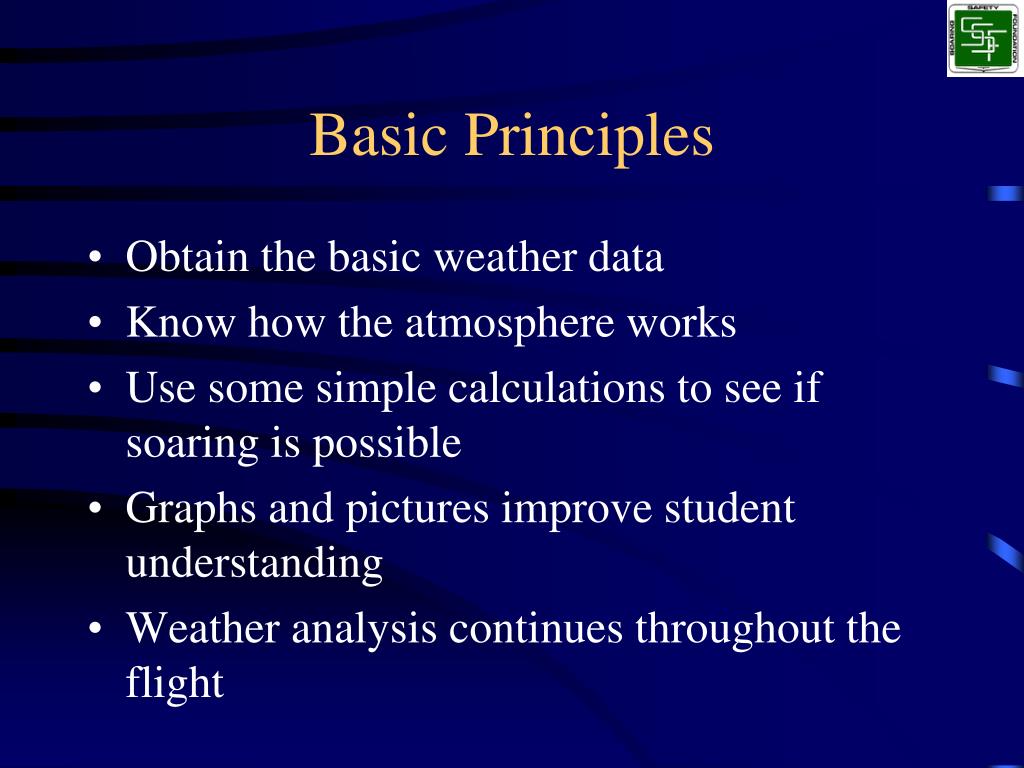

Basic Principles

  • Obtain the basic weather data

  • Know how the atmosphere works

  • Use some simple calculations to see if soaring is possible

  • Graphs and pictures improve student understanding

  • Weather analysis continues throughout the flight


Obtaining weather data l.jpg
Obtaining Weather Data

  • Look Outside

  • Local sounding

  • Flight Service Station (1-800-WXBrief)

  • National Weather Service

  • Duat

  • 3rd party service provider

  • Internet (email and Web)


Atmospheric assumptions l.jpg
Atmospheric Assumptions

  • Pressure lapse rate 1” hg/1000 ft

  • Dry adiabatic lapse rate 5.4o (3c)/1000 ft

  • Wet adiabatic lapse rate less than dry

  • Dew point decreases 1o / 1000 ft


Soaring calculations l.jpg
Soaring Calculations

  • Thermal Index (TI)

    • measured - adiabatic (minus is better)

  • Cloud base

    • (max surface - dewpoint)/4 (in 1000’s of ft)


Obtaining a weather briefing l.jpg
Obtaining a Weather Briefing

  • FSS call 1-800-992-7433 (WXBrief)

    • Identify yourself as a glider pilot

    • Give Aircraft ‘N’ number

    • Say type of flight and location

    • Ask for standard briefing

    • Ask for surface reports

    • Ask for winds aloft forecast

    • Ask for Soaring forecast

    • Ask for other pertinent data (Notams, TFR’s)


Pseudo adiabatic plot l.jpg
Pseudo-Adiabatic plot

Src: Soaring Flight Manual


Typical fss soaring forecast l.jpg
Typical FSS Soaring Forecast

  • T.I. at 5000 ft -5

  • T.I. at 10,000 ft +2

  • Height of -3 7200

  • Top of Lift 8500

  • Max Expected Temp 89

  • Morning Low* 50





Internet sources l.jpg
Internet Sources

  • Kevin Ford - http://www.soarforecast.com

  • NOAA-FSL, Forecast Systems Laboratory - http://www-frd.fsl.noaa.gov/mab/soundings/java/

  • Aviation Digital Data Service - http://adds.aviationweather.noaa.gov

  • Dr Jack BLIPMAP - http://www.drjack.info/BLIP/index.html


Kevin ford plots l.jpg
Kevin Ford Plots

  • === Interpolations (temps in deg. F, altitudes in feet MSL) ===

  • MSL *TI* [email protected] trig VirT 1.2 degrees/division ("`": Dry Adiabatic)

  • ----- ---- -------- ---- . ---- -----------------------------------------

  • 10000 12.4 40 | -9.8 ` :

  • 9500 11.6 39 | -8.6 ` :

  • 9000 10.7 280 27 37 | -7.5 ` :

  • 8500 9.8 35 | -6.5 ` :

  • 8000 8.8 290 25 34 | -5.5 ` :

  • 7500 7.9 32 | -4.5 ` :

  • 7000 6.9 295 24 30 | -3.5 ` :

  • 6500 6.0 29 | -2.6 ` :

  • 6000 3.7 300 27 25 | -4.0 ` :

  • 5500 3.6 24 | -1.5 ` :

  • 5000 3.5 24 | 0.9 ` :

  • 4500 3.3 24 | 3.3 ` :

  • 4000 2.1 22 | 3.7 ` :

  • 3500 0.8 19 | 4.1 `:

  • 3000 -0.5 18 | 4.4 :`

  • 2500 -1.8 16 | 4.8 : `

  • 2000 -2.1 15 | 7.0 : `

  • 1500 -2.1 15 | 9.7 : `

  • 1000 -2.1 15 | 12.3 : `





Local factors l.jpg
Local factors

  • Terrain features

    • Ridges

    • Mountains

    • Rivers

    • Lakes

    • Towns


Local factors18 l.jpg
Local factors

  • Ridge conditions

    • Calculations

    • Predictions

      • 90O +/- 30O to ridge line

      • 10 - 15 kts

    • Ridges

      • Lift extends 2 – 3 times the ridge height

      • Ridge length should be several miles



Local factors20 l.jpg
Local factors

  • Wave conditions

    • Calculations

    • Predictions

      • Wind at peak

        • 15 – 20 kts

      • Wind 2000 m above peak

        • Same direction

        • 20 – 25 kts higher






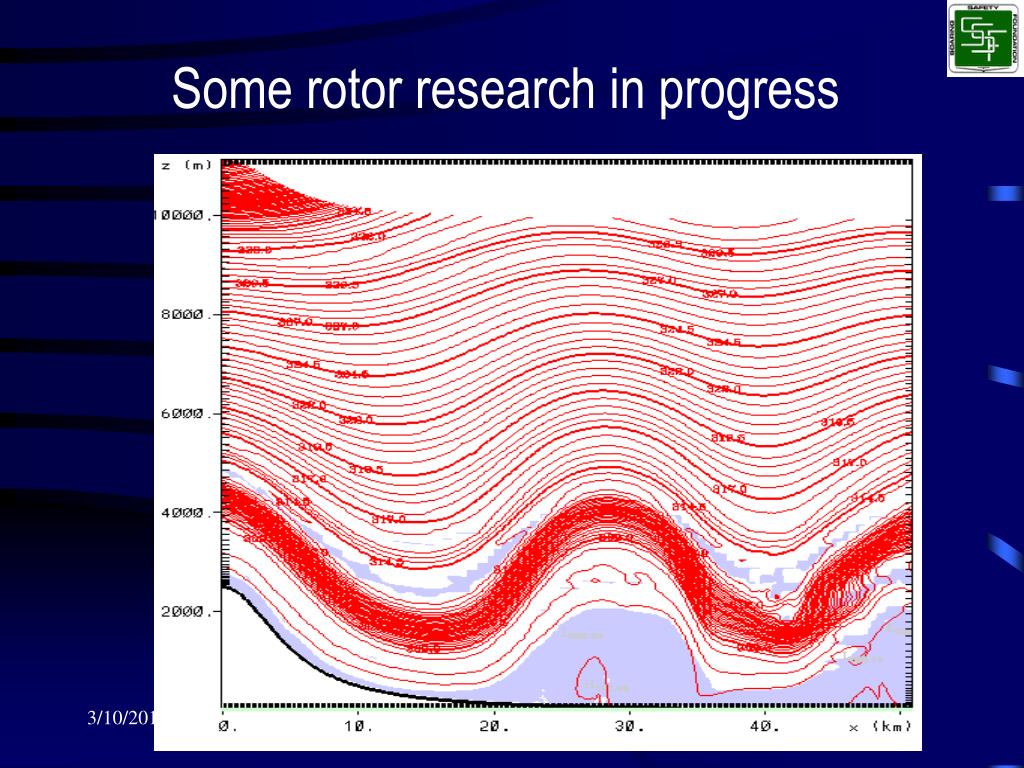

Thermal predictors indicators l.jpg
Thermal Predictors/Indicators

  • Negative Thermal Index values at alt.

  • Forecast plots

  • Clouds

  • Birds/Gliders circling

  • Dirt, crops, houses, animals rising before your eyes


Go no go decision making l.jpg
Go/No-Go Decision Making

  • Use realistic scenarios

    • Storms forecast for later in the day/evening

    • Effect of strong x-wind

    • Local vs X-C flight

    • Pilot experience level


Continuing weather analysis l.jpg
Continuing Weather Analysis

  • Obtaining enroute weather data

    • Flight Watch (122.0 Mhz)

    • Airport automated weather services

  • Obtaining end-of-flight weather data

    • Wind direction for landing

    • Current Altimeter setting


En route flight advisory service flight watch l.jpg
En Route Flight Advisory Service (Flight Watch)

  • AIM section 7-1-5

  • Real-time weather advisories

  • National coverage above 5000 ft on 122.0

  • Available 6:00 am to 10:00 pm

  • State ARTCC facility, N number, & nearest VOR name


Types of fronts l.jpg

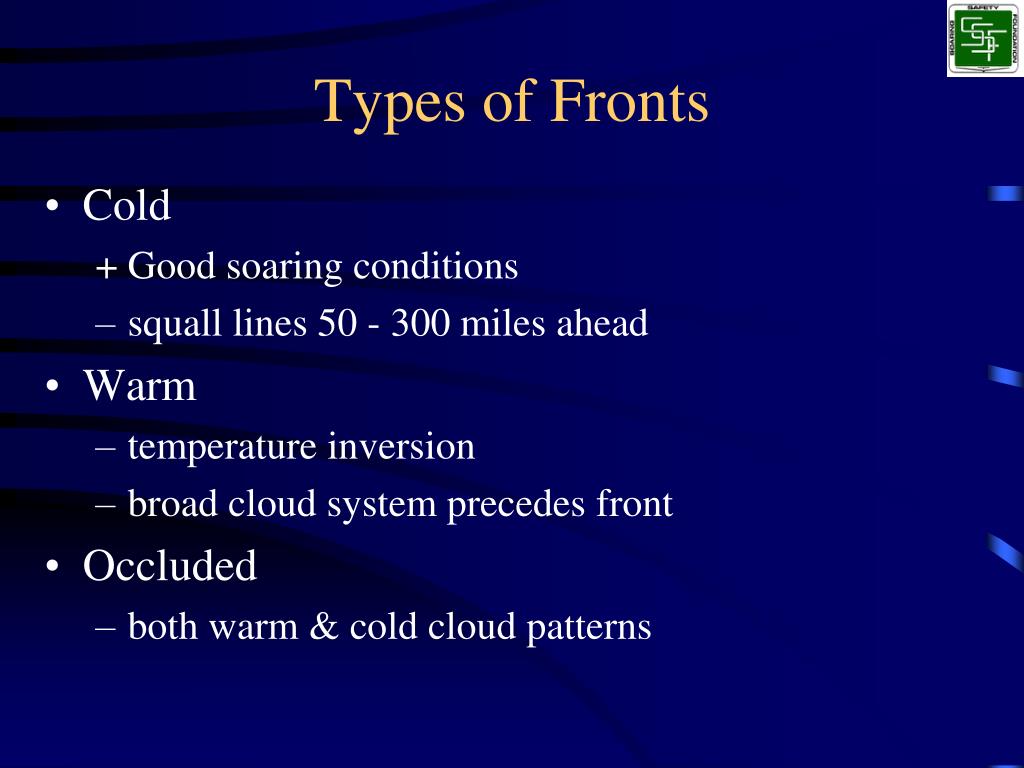

Types of Fronts

  • Cold

    • Good soaring conditions

    • squall lines 50 - 300 miles ahead

  • Warm

    • temperature inversion

    • broad cloud system precedes front

  • Occluded

    • both warm & cold cloud patterns


Cold front l.jpg

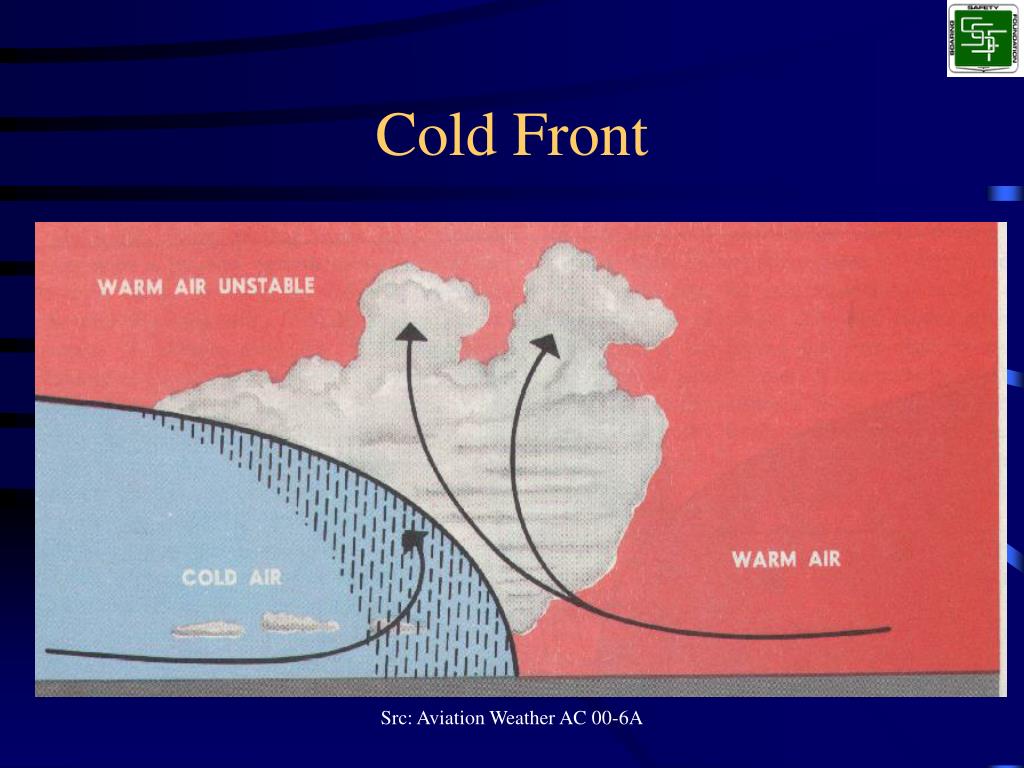

Cold Front

Src: Aviation Weather AC 00-6A


Warm front l.jpg
Warm Front

Src: Aviation Weather AC 00-6A


Cold occlusion front l.jpg
Cold-Occlusion Front

Src: Aviation Weather AC 00-6A


Warm occlusion front l.jpg

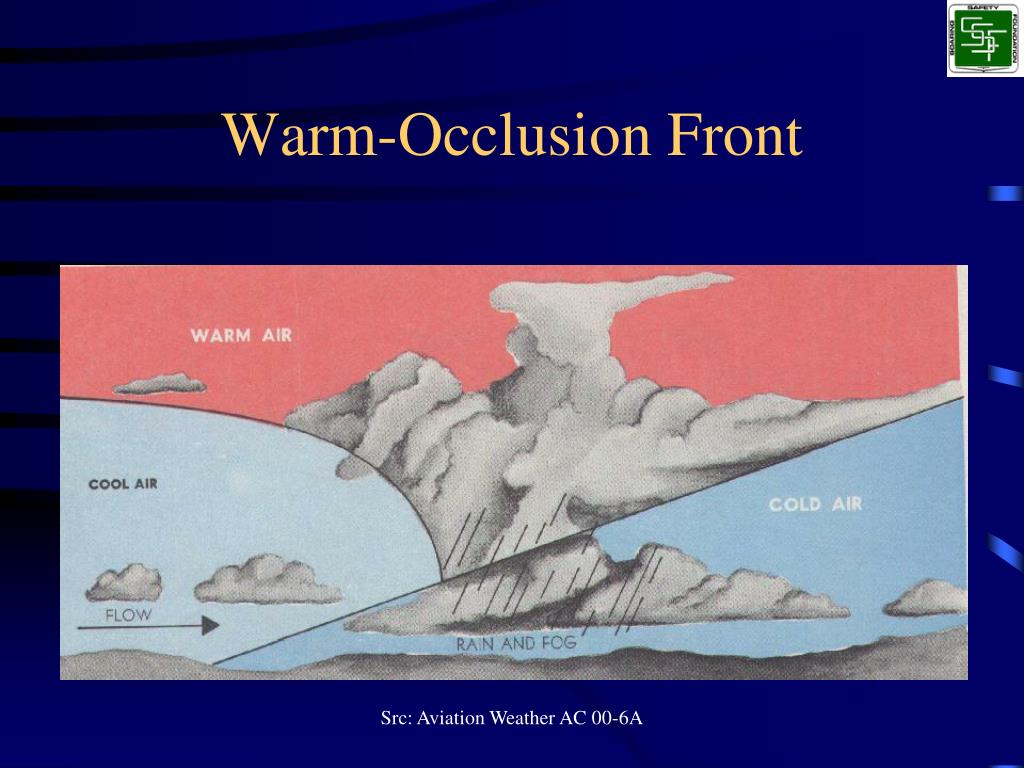

Warm-Occlusion Front

Src: Aviation Weather AC 00-6A


Seasonal weather operations l.jpg
Seasonal Weather Operations

  • Density Altitude

  • Thunderstorms

  • Frost, Snow Ice

  • Temperature extremes

  • Wind shear

  • Microbursts


Determining when to land l.jpg
Determining When to Land

  • What effect does the wind have on landing?


Effect of 20 kt wind l.jpg

27

9

Effect of 20 Kt wind

Time on Downwind: More, Less, no Change?

Altitude loss: More, Less, no Change?

20 Kts


Effect of 20 kt wind41 l.jpg

27

9

Effect of 20 Kt wind

Time on base: More, Less, no Change?

Altitude loss: More, Less, no Change?

20 Kts


Effect of 20 kt wind42 l.jpg

27

9

Effect of 20 Kt wind

Time on Final: More, Less, no Change?

Altitude loss: More, Less, no Change?

20 Kts


Effect of 20 kt wind43 l.jpg

27

9

Effect of 20 Kt wind

Which path is your student likely to fly?

Which path do you want them to fly?

4

20 Kts

3

1

2


Final approach no wind l.jpg
Final Approach(No wind)

60 kts @ 500 ft/m decent rate

12:1 glide slope

24 seconds

200

2400


Final approach 20 kt head wind l.jpg
Final Approach(20 Kt Head Wind)

60 kts @ 500 ft/m decent rate

8:1 glide slope

24 seconds

200

2400

1600


Final approach 20 kt wind shear l.jpg
Final Approach(20 kt wind shear)

60 kts @ 500 ft/m decent rate

Maintain constant speed during approach

How much time remains?

200

20 kts

0 kts

X

Y

2400

1600


Decision time l.jpg
Decision Time

  • With a 20 kt shear, are you likely to

    • overshoot (into area Y)

    • undershoot (into area X)

  • Said another way, what actions do you need to take to reach your intended touchdown point

    • close the spoilers to extend (undershooting)

    • open the spoilers to sink faster (overshooting)

  • Another variation, what will the aim spot do?

    • move up on the canopy (undershooting)

    • move down on the canopy (overshooting)




Transition through wind shear line l.jpg
Transition through Wind Shear Line


Final approach 20 kt wind shear52 l.jpg
Final Approach(20 Kt Wind Shear)

2 seconds for the glider to stabilize at the new sink rate

AOA increases from 0.5o to 5.0o

200

20 kts

0 kts

2400

1600

934


Distance altitude during recovery phase l.jpg
Distance & Altitudeduring recovery phase


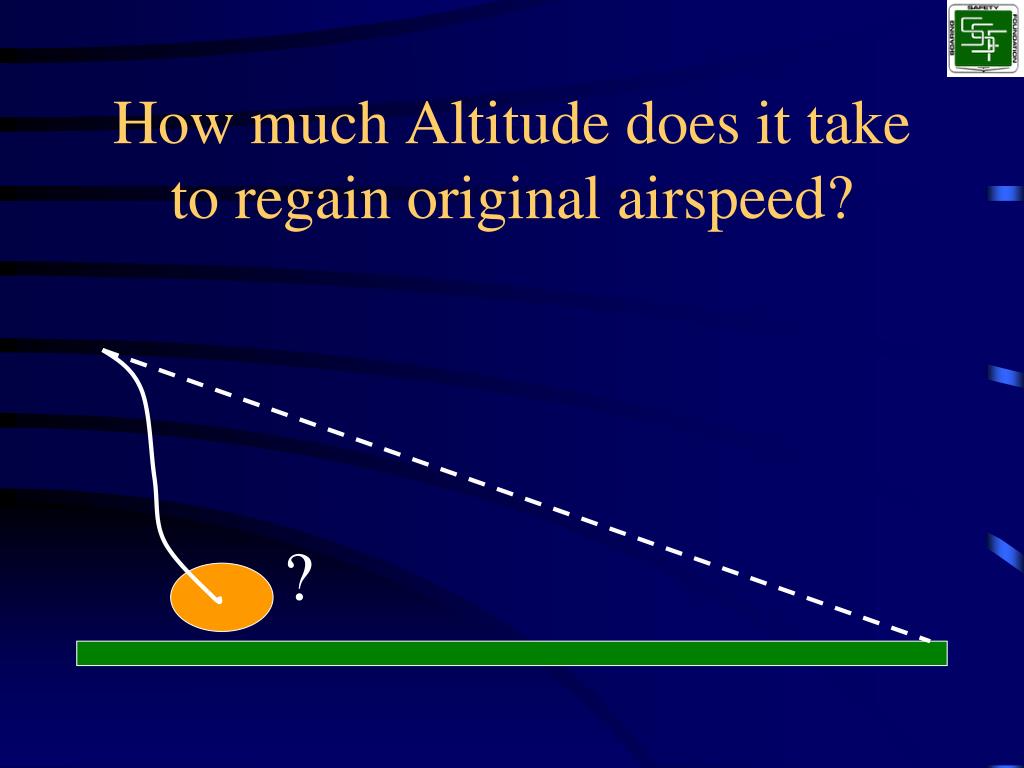

Final approach 20 kt wind shear55 l.jpg
Final Approach(20 Kt Wind Shear)

3 seconds to accelerate back to 60 Kts

Glider nose is 20o below the horizon

200

20 kts

0 kts

1230

2400

1600


Final approach likely outcome in 3 cases l.jpg
Final Approach(Likely outcome in 3 cases?)

No Wind

Constant headwind

20 Kt Wind Shear

200

2400

1230

1600


Shear encounters l.jpg
Shear Encounters

  • When can this happen?

    • Landing in gusty conditions

    • Landing area shielded by obstructions

    • During good thermal conditions


Recommendations l.jpg
Recommendations

  • Plan for this loss of energy

    • Pick an approach speed that will allow for some loss

    • Move base leg closer to runway edge

    • Be higher turning Final

    • Be prepared to close the spoilers

    • Be prepared to pitch forward to maintain/recover airspeed


Conclusions l.jpg
Conclusions

  • Shear line causes loss of Total Energy

  • Large Pitch change required to rapidly recover lost energy

  • Large amount of Time ‘lost’ while total energy changes

  • Immediate action is required to reach original touchdown point!


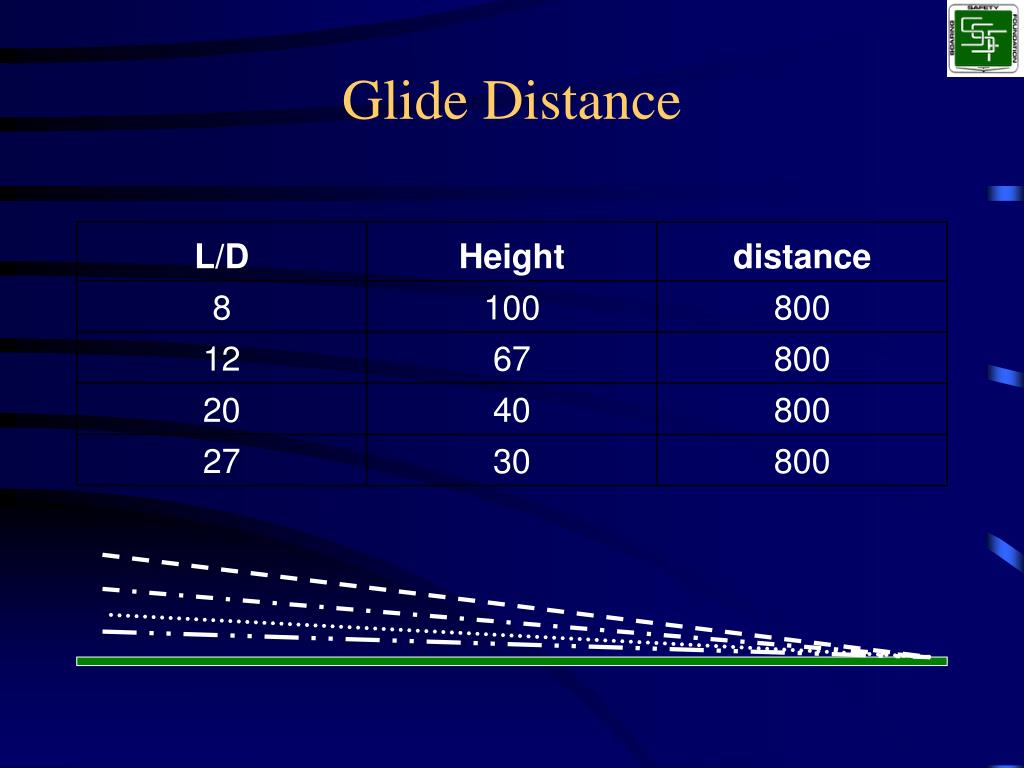

Effects on landing l.jpg
Effects on Landing

  • Steady wind requires more energy

    • 800 feet closer or 100 ft higher for 20 kt wind

  • Changing wind requires more energy

  • Sink requires more energy

  • Ask yourself “Are you more likely to wind up getting low or high on final?”
