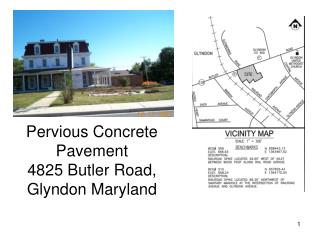

Pervious concrete pavement 4825 butler road glyndon maryland l.jpg
Pervious Concrete Pavement4825 Butler Road, Glyndon Maryland


Demonstration panel october 12 2007 l.jpg
Demonstration PanelOctober 12, 2007

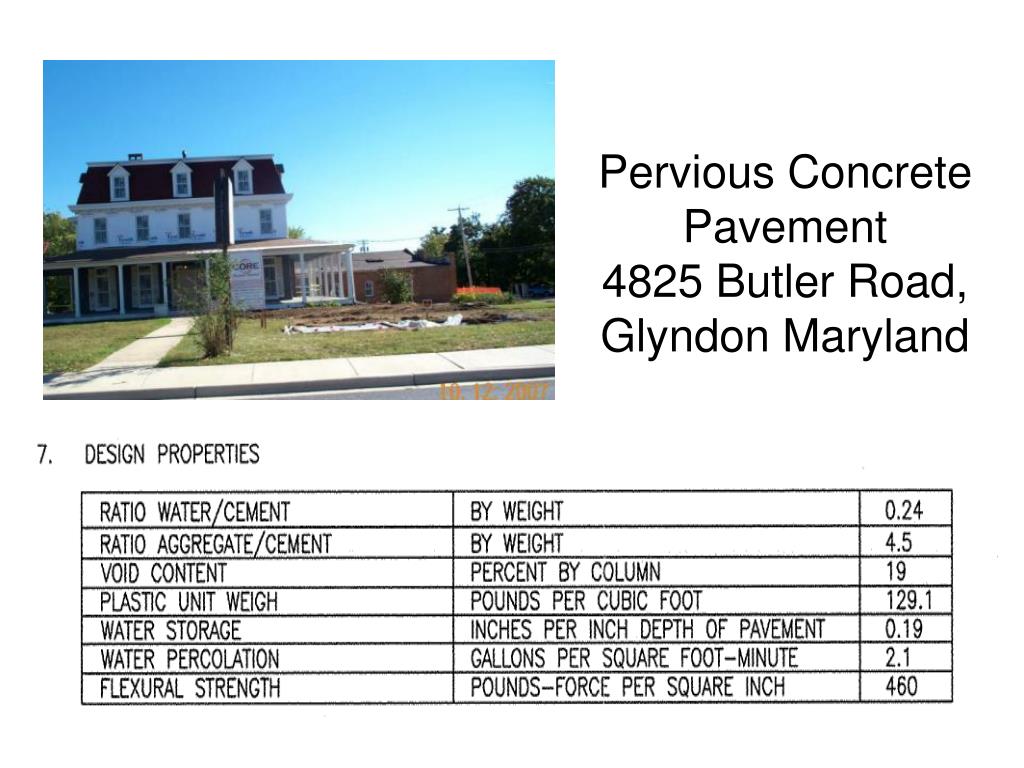

Pervious concrete pavement 4825 butler road glyndon maryland3 l.jpg
Pervious Concrete Pavement4825 Butler Road, Glyndon Maryland


Pervious concrete pavement 4825 butler road glyndon maryland4 l.jpg
Pervious Concrete Pavement4825 Butler Road, Glyndon Maryland






Pervious concrete pavement 4825 butler road glyndon maryland9 l.jpg
Pervious Concrete Pavement4825 Butler Road, Glyndon Maryland

Work

In

Progress


Specifications and testing for pervious concrete l.jpg
Specifications and Testing forPervious Concrete

  • Rod Meyers, P.E., CDT, BASF

  • Matt Cockerham, North Star


Specifications and testing for pervious concrete11 l.jpg
Specifications and Testing forPervious Concrete

  • Desired Plastic Properties

  • Desired In Place Properties

  • Common Specification Provisions


Desired plastic properties batching consistency l.jpg
Desired Plastic PropertiesBatching Consistency

ASTM C 143,

Slump Test,

does not apply


Desired plastic properties stable paste l.jpg
Desired Plastic PropertiesStable Paste

  • Improves

    permeability

  • Improves abrasion resistance

  • Improves cold weather durability


Desired plastic properties workability l.jpg
Desired Plastic PropertiesWorkability

  • Maintains w/cm

  • Permits timely unloading, placement, finishing, and curing

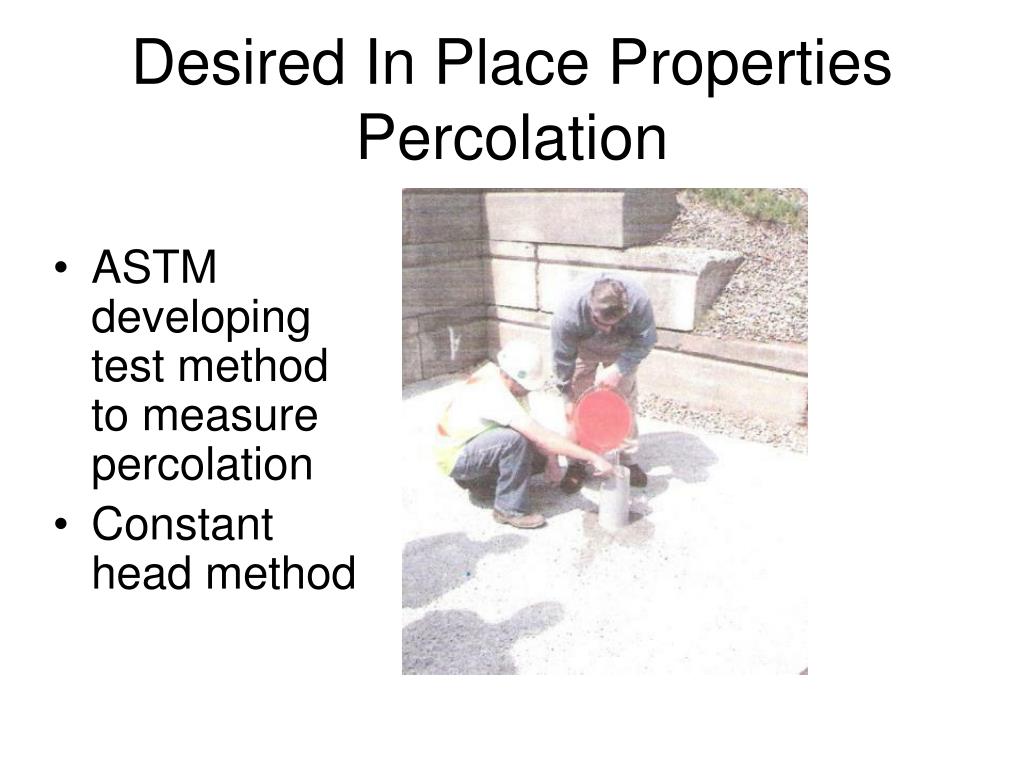

Desired in place properties percolation l.jpg
Desired In Place PropertiesPercolation

3 to 5 gal/ft2/min

= 288 in./hr to

480 in./hr

= 4.8 in./min to

3.2 in/min


Desired in place properties percolation16 l.jpg
Desired In Place PropertiesPercolation

  • ASTM developing test method to measure percolation

  • Constant head method



Measuring voids testing fresh density l.jpg
Measuring VoidsTesting Fresh Density

  • Sample in accordance with ASTM C 172

  • Sample every 100 cubic yards

  • Within +/- 5 lb/ft3 of specified density


Testing fresh density astm c1688 density and void content of freshly mixed pervious concrete l.jpg
Testing Fresh DensityASTM C1688 Density and Void Content of Freshly Mixed Pervious Concrete

  • 0.25 ft3 measure (standard air pot)

  • Standard Proctor Hammer

  • Fill in two lifts

  • Drop hammer 20 times/lift


Testing fresh density alternate methods l.jpg
Testing Fresh DensityAlternate Methods

  • ASTM C29 Jigging Procedure

  • ASTM C138 Rodding Procedure

  • Filling an empty unit weight bucket


Testing fresh density comparing methods l.jpg
Testing Fresh DensityComparing Methods


Usable voids vrs gravimetric voids effective porosity vrs total voids l.jpg
Usable Voids vrs. Gravimetric VoidsEffective Porosity vrs. Total Voids

Usable Voids, % =

0.898 *

(Gravimetric Voids, %)

– 3.1


Usable voids vrs gravimetric voids l.jpg
Usable Voids vrs. Gravimetric Voids

A 4 inch thick pervious pavement with 15% usable

(effective) voids will store 0.60 inches of rainwater

(4” * 0.15 = 0.60”)


Desired in place properties mechanical strength l.jpg
Desired In Place PropertiesMechanical Strength

  • Rigid Pavement

  • Flexural Strength



Flexural strength vrs void content l.jpg
Flexural Strength vrs. Void Content

Flexural Strength, Fmr = 832.8 – 20.3 * (void content, %), psi

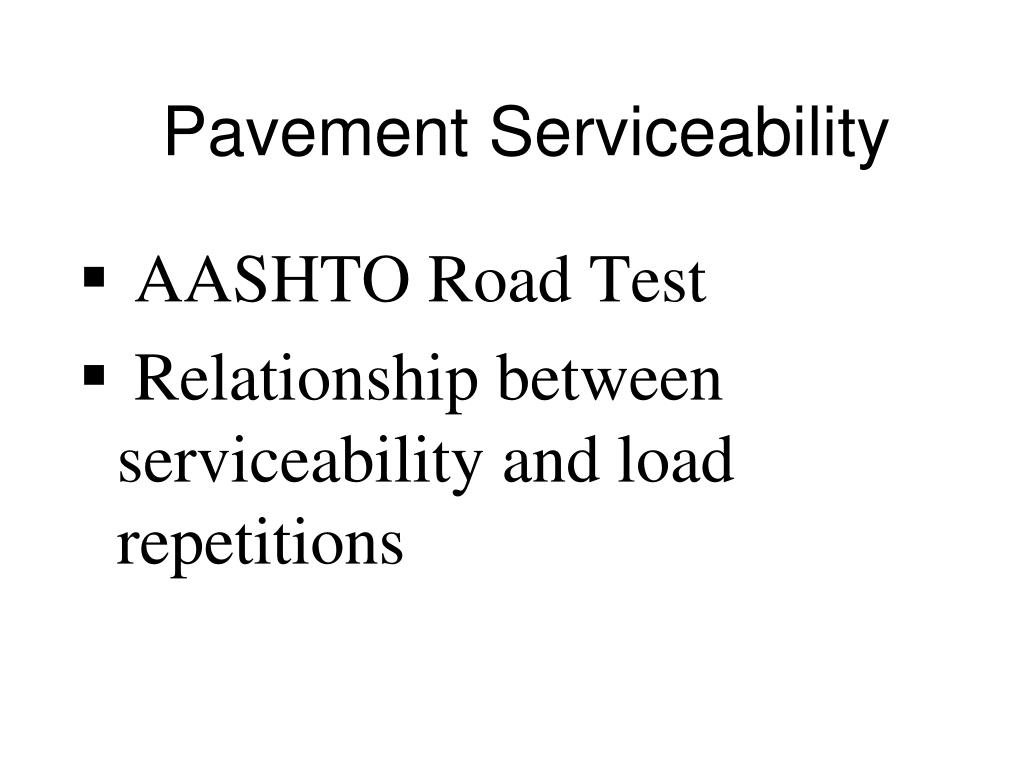

Pavement serviceability l.jpg
Pavement Serviceability

  • AASHTO Road Test

  • Relationship between serviceability and load repetitions

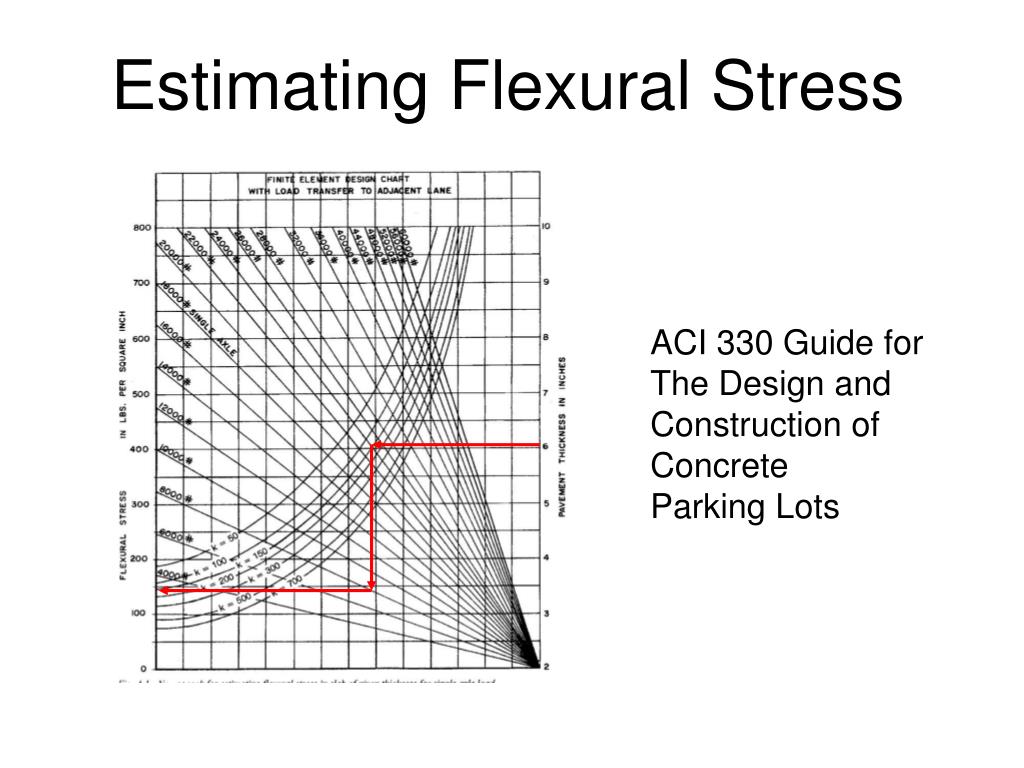

Estimating flexural stress l.jpg
Estimating Flexural Stress

ACI 330 Guide for

The Design and

Construction of

Concrete

Parking Lots


Desired in place properties abrasion resistance l.jpg
Desired In Place PropertiesAbrasion Resistance

  • Strong, dense surface

  • Good curing


Desired in place properties cold weather durability l.jpg
Desired In Place PropertiesCold Weather Durability

  • Freeze-thaw Durability

  • Frost Heave


Frost heave l.jpg
Frost Heave

  • Frost Penetration Depth in MD = 30”

  • FAA recommends 65% of the frost depth contain non-frost-susceptible material

  • For 30” FPD, depth of pervious material (concrete plus base) shall be 20 inches


Cold weather durability l.jpg
Cold Weather Durability

  • ASTM C 666 testing has indicated low durability

  • Field service says otherwise


Slide34 l.jpg

Mix Design Development for Pervious Concrete in Cold WeatherSponsored by:Iowa Department of Transportation National Concrete Technology Pavement Technology CenterIowa Concrete Paving Association


Conclusions l.jpg
Conclusions

  • Failure due to freeze-thaw cycles are the result of aggregate deterioration or cement paste matrix failure

  • Sand, latex and air entrainment admixture improved freeze-thaw durability


Slide36 l.jpg

The Effect of Coarse Aggregate on the Freeze-Thaw Durability of Pervious ConcreteJohn T Kevern, University of Missouri-Kansas CityKejin Wang, Iowa State UniversityVernon R Schaefer, Iowa State University


Conclusion and recommendations l.jpg
Conclusion and Recommendations of Pervious Concrete

Aggregate absorption has the greatest effect on freeze-thaw durability


Review of maryland aggregates l.jpg
Review of Maryland Aggregates of Pervious Concrete


Suggested methods to improve cold weather durability l.jpg
Suggested Methods to Improve Cold Weather Durability of Pervious Concrete

  • Use 8” to 24” of Open Graded Base

  • Use Sound Aggregates

  • Use Air Entraining Admixture

  • Use 5 to 10% Fine Aggregate

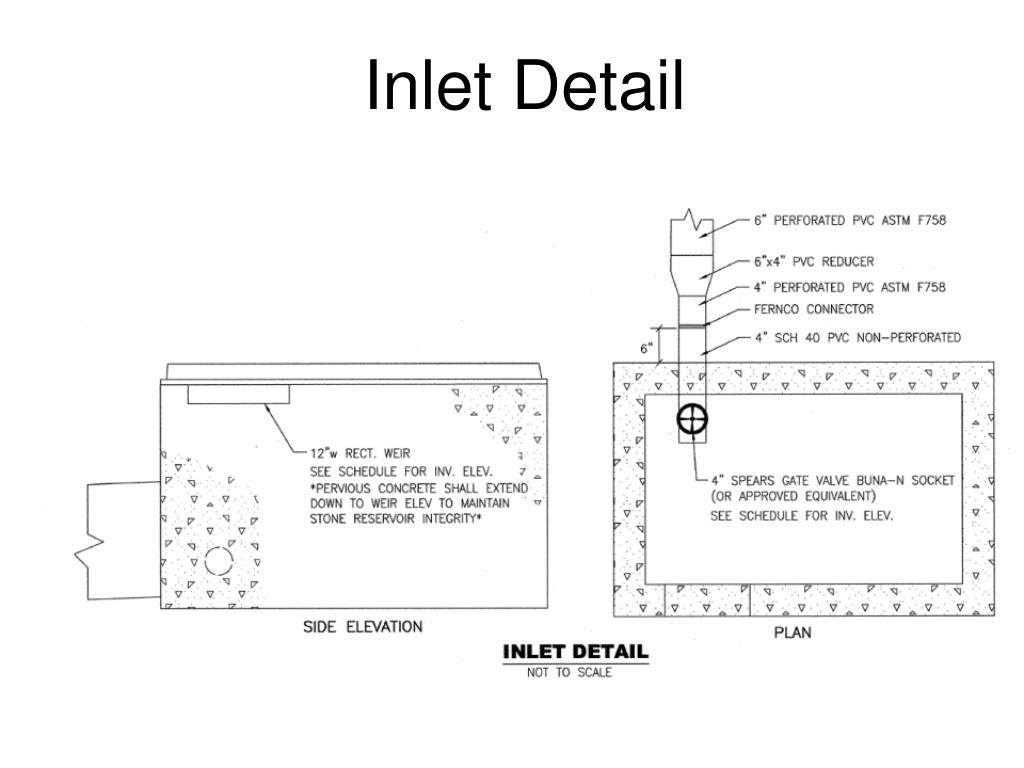

  • Place perforated PVC pipe in base to capture and remove water

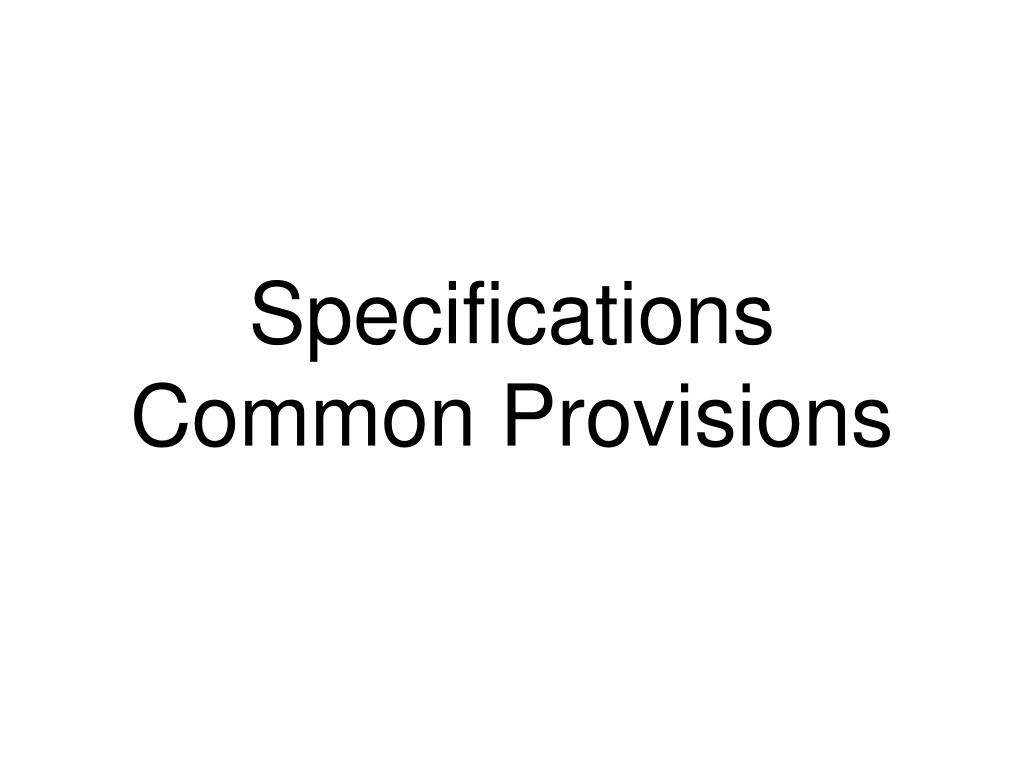

Specifications common provisions l.jpg
Specifications of Pervious ConcreteCommon Provisions


Contractor qualifications options on site l.jpg
Contractor Qualifications of Pervious ConcreteOptions – On Site

  • 1 NRMCA Certified Pervious Concrete Craftsman

  • 3 NRMCA Certified Pervious Concrete Installers

  • 5 NRMCA Certified Pervious Concrete Technicians


Pre paving conference l.jpg
Pre-paving Conference of Pervious Concrete

  • Within two weeks of first placement

  • In attendance:

    Owner’s Representative

    Contractor

    Concrete Supplier

    Concrete Foreman

    Testing Agency


Test panel l.jpg
Test Panel of Pervious Concrete

  • Minimum 225 ft2

  • Use proposed mix design and materials

  • Use proposed placement equipment

  • Include at least one typical joint


Test panel44 l.jpg
Test Panel of Pervious Concrete

  • Fresh density: with +/- 5.0 lb/ft3

  • Three cores: average thickness not more than ¼” less or 1.5” more than specified thickness

  • Single core: not more than ½” less than

    specified thickness


Testing thickness l.jpg
Testing Thickness of Pervious Concrete

  • Average of three cores more than 1-1/2” greater than specified thickness

  • No single core more than ½” less than specified thickness


Testing thickness46 l.jpg
Testing Thickness of Pervious Concrete

  • Three cores per 5,000 ft2

  • Average of three cores not more than ¼” less than specified thickness


Testing in place density l.jpg
Testing In Place Density of Pervious Concrete

  • Three cores per 5,000 ft2

  • Minimum nominal diameter of 4 inches

  • Measure density in accordance with ASTM C140

  • Hardened density shall be within +/- 5% of approved hardened density from test panels

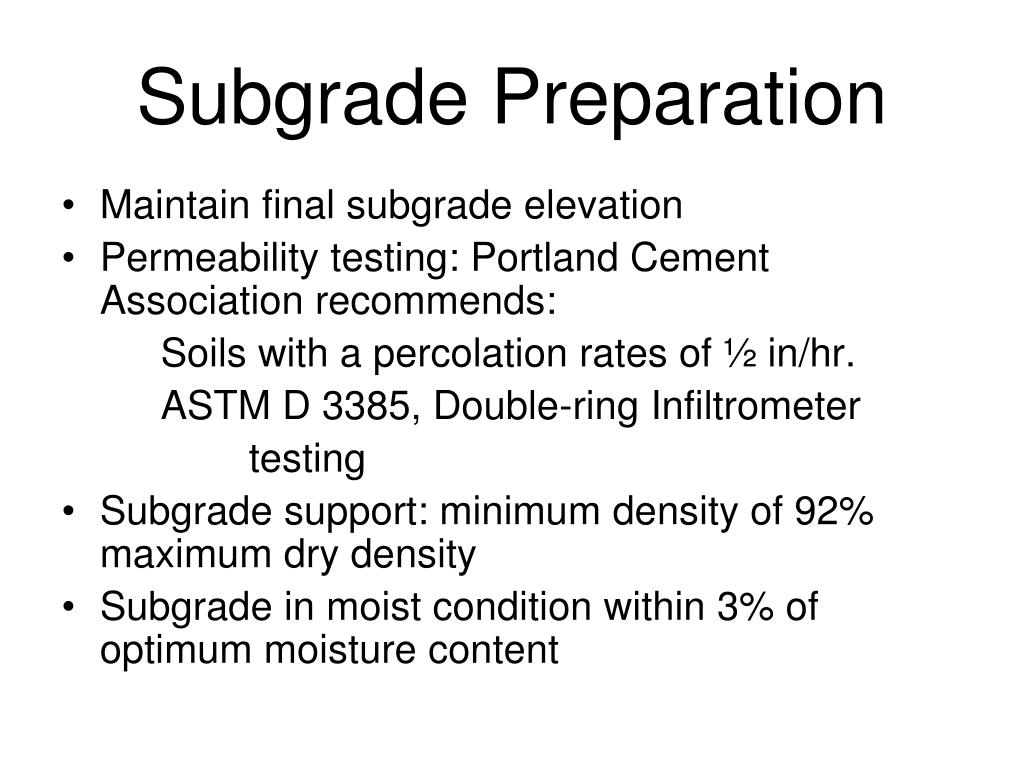

Subgrade preparation l.jpg
Subgrade Preparation of Pervious Concrete

  • Maintain final subgrade elevation

  • Permeability testing: Portland Cement Association recommends:

    Soils with a percolation rates of ½ in/hr.

    ASTM D 3385, Double-ring Infiltrometer

    testing

  • Subgrade support: minimum density of 92% maximum dry density

  • Subgrade in moist condition within 3% of optimum moisture content


Base materials l.jpg
Base Materials of Pervious Concrete

  • Open graded aggregate

  • 30% to 40% void content

  • Elevation of base shall be maintained during placement of concrete.


Concrete materials l.jpg
Concrete Materials of Pervious Concrete

  • Comply with ASTM C 94

  • Aggregates – Max. size 1/3” thickness

  • Aggregates – Use 3/8” maximum size

  • Admixtures for controlling hydration may be used and facilitate handling of plastic concrete


Isolation joint materials l.jpg
Isolation Joint Materials of Pervious Concrete

  • ASTM D994, D1751, D1752


Curing material l.jpg
Curing Material of Pervious Concrete

  • Clear 6 mil or thicker polyethylene

  • Not acceptable:

    Woven materials,

    such as burlap

    and geotextile

    fabric

    Wax-based curing

    compounds


Forms l.jpg
Forms of Pervious Concrete

  • Height equal to the thickness of the pavement

  • Held in place by stakes and braced to prohibit movement from pressure of concrete and thrust of machinery


Setting formwork l.jpg
Setting Formwork of Pervious Concrete

  • Utilize form release agent

  • May use previously placed pavement

  • Limit placement width to 20 feet


Batching and mixing l.jpg
Batching and Mixing of Pervious Concrete

  • Comply with ASTM C 94

  • Discharge completed within 60 minutes of introduction of water to cement.


Placing and finishing l.jpg
Placing and Finishing of Pervious Concrete

  • Deposit concrete on prewetted material

  • Spread using come-along, square-ended tools, rakes.

  • Water may be added to obtain required consistency. Minimum 30 mixer revolutions.


Placing and finishing57 l.jpg
Placing and Finishing of Pervious Concrete

Strike off with vibrating screed.


Placing and finishing58 l.jpg
Placing and Finishing of Pervious Concrete

Strike off with paving machine


Placing and finishing59 l.jpg
Placing and Finishing of Pervious Concrete

  • Compactive effort: 10 psi, minimum

  • Do not use steel trowels, power finishing equipment


Final surface texture l.jpg
Final Surface Texture of Pervious Concrete

Cross-roll to compact concrete to dense, pervious surface


Final surface texture61 l.jpg
Final Surface Texture of Pervious Concrete

  • Compact slab edges with hand tools

  • Compact concrete to dense, pervious surface

  • Edging – radius of not less than 1/4 “


Tolerances l.jpg
Tolerances of Pervious Concrete

  • Elevation: +3/4”, -0”

  • Thickness: + 1-1/2” , - ¼”

  • Contraction joint depth: +1/4”, - 0”


Contraction joints l.jpg
Contraction Joints of Pervious Concrete

  • Joints as shown on plans or as approved

  • ¼ to 1/3 pavement thickness

  • Early-entry dry-cut saw: 1” minimum


Contraction joints64 l.jpg
Contraction Joints of Pervious Concrete

  • Spacing not exceed 20 feet

  • Aspect ratio: 125% maximum


Contraction joints65 l.jpg
Contraction Joints of Pervious Concrete

  • Angle at intersections: 80o to 100o

  • Intersect free edges at 90o, 1.5’ lap


Contraction joints66 l.jpg
Contraction Joints of Pervious Concrete

  • Align with curb joints within ¼”


Curing l.jpg
Curing of Pervious Concrete

  • Begin curing with 20 minutes of concrete discharge

  • Cover surface with 6 mil minimum polyethylene

  • Cover exposed edges

  • Cure for uninterrupted 7 days minimum


Good references l.jpg
Good References of Pervious Concrete

  • ACI 522.1-08 Specification for Pervious Concrete Pavement

  • County of Fairfax, Letter 08-01

  • Ohio Ready Mixed Concrete Association

  • Carolinas Ready Mixed Concrete Association

  • Tennessee Ready Mixed Concrete Association

  • Georgia Concrete Promotion Association


Thank you l.jpg
Thank you of Pervious Concrete


ad
