  1. Lokotrack ST352 Lokotrack ST352Presentation Product Launch, Manchester, January 2005

  2. Lokotrack ST352 Introduction

  3. Lokotrack ST352 Machine specification

  4. Lokotrack ST352 Machine specification

  5. Lokotrack ST352 Chassis & Track Layout Twist Lock

  6. Lokotrack ST352 Grid Layout

  7. Lokotrack ST352 Hopper Layout

  8. Lokotrack ST352 Feeder Conveyor specification

  9. Lokotrack ST352 Feeder Conveyor Layout

  10. Lokotrack ST352 Main Conveyor specification

  11. Lokotrack ST352 Main Conveyor Layout

  12. Lokotrack ST352 Side Conveyor specification

  13. Lokotrack ST352 Side Conveyor Layout

  14. Lokotrack ST352 Product Conveyor specification

  15. Lokotrack ST352 Product Conveyor Layout

  16. Lokotrack ST352 Screen specification

  17. Lokotrack ST352 Screen Layout 3 8 4 9 1 5 12 7

  18. Lokotrack ST352 Screen Tension Layout

  19. Lokotrack ST352 ST352 EMREngine management & control system

  20. Lokotrack ST352 Work lights Display Process ON Key switch Hand valves Radio key Signal horn Fuel pump Process OFF Drive lights Emergency stop Safety switch for conveyors ST352 PLC SmartScreen™ Technology

  21. Lokotrack ST352 ST351PLC SmartScreen™ Technology via the IC300 PLC SmartScreen™ IC300 INTELLIGENT CONTROLLER TOTAL PLANT CONTROL SYSTEM. ALLOWS DEFAULT SETTINGS FOR DIFFERENT APPLICATIONS. SCREEN SPEED SENSOR ENSURES SCREEN OPERATES AT OPTIMUM RPM PROVIDING MORE RELIABLILITY, CONTINUOUS PRODUCTION & OPTIMUM SCREENING EFFICIENCY. MAIN CONVEYOR LOAD SENSOR. PROVIDES ACCURATE LOAD SENSE PRESSURE WHICH ENABLES PRECISE FEED RATES OF MATERIAL TO THE SCREEN VIA FEEDER CONVEYOR & MAIN CONVEYOR. DIAGNOSTIC FEATURE. EXCELLENT TOOL FOR SERVICE PERSONELL & OPERATORS. COMPATABLE WITH IC500 (LT INTELLIGENT CONTROLLER). SYSTEM IS SIMILAR TO EXISTING LT CONTROLLER AND CAN BE CONNECTED TO OTHER METSO (LT) PRODUCTS VIA A CABLE. BOTH PLANTS COMMUNICATE ENSURING OPTIMUM EFFICIENCY & PRODUCTION ONE TOUCH BUTTON TO START / STOP PROCESS EASY OPERATIONAL SYSTEM. NO NEED FOR MANUAL CONTROLS.

  22. Lokotrack ST352 ST352 PLC SmartScreen™ Technology via the IC300 CONTROL SYSTEM 1. Engine rotation speed 2. Screen pressure 3. Screen running speed 4. Radio control / Drive box symbol 5. N/A 6. Fuel amount 7. Window number 8. Time 9. Screen track image ST348 10. Message field 11. Unit information (=F1) 12. Help (=F2) 13. Process options (=F3) 14. Settings (=F4) 15. Diagnostics (=F5)

  23. Lokotrack ST352 + F3 ST351 PLC SmartScreen™ Technology via the IC300 MANUAL CONTROL OPTIONS Highlight the manual control symbol in the process options window and confirm your selection with F3 window. You will get to the manual control window. 1. Grid up 2. Grid down 3. Screen on / off 4. Product & Wings conveyors off / on 5. Feeder & Main conveyor off/on 6. Engine speed adjustment 7. Manual control of the devices - more 8. Tracks movement Note: This control method should only be used if: -the system is not able to run the process normally or -the unit is under a service

  24. Lokotrack ST352 Value Parameter number F4 F5 ST352 PLC SmartScreen™ Technology via the IC300 USER EDITABLE PARAMETERS From the parameter/service window you will get to system parameters. First, use arrow keys F4 or F5 to move to the symbol you want to adjust. The symbol will be highlighted. After this, press F3 to get to the parameter setting window of the device in question. When parameter setting window is opened, the parameter number box (on the left) is highlighted. The middle view shows the parameter description, default value and range. The box on the right indicates the value of the parameter. With F4 and F5 you can scroll from one parameter to another. Press F3 to highlight the value box. F4 becomes a – button and F5 becomes + button. With – and + buttons you are able to change the parameter value. Press F3 and the data will be saved. F4 and F5 will turn back to arrow buttons.

  25. Lokotrack ST352 ST351 PLC SmartScreen™ Technology via the IC300 DETAILED INPUT / OUTPUT TEST - 19 If you select ECM XM1 connector of the modules shown in window 12, this window (number 19) is opened. The window shows all pins in the selected connector. Otherwise the actual value and the unit are shown. Return to the previous window by pressing F1.

  26. Lokotrack ST352 ST352 Remote control stations Cable remote (Dog lead) CABLE REMOTE FOR TRACKING ON & OFF OF TRANSPORT, MANOUVERING AROUND THE JOB SITE AND OPERATING VARIOUS FUNCTIONS OF THE PLANT. AVAILABLE FUNCTIONS INCLUDE: ENGINE SHUTDOWN, ENGINE INCREASE / DECREASE RPM & TRACKING. PLUG SOCKETS LOCATED AT THE PLC, REAR & FRONT OF THE UNIT ENSURING TOTAL VISION FOR THE OPERATOR DURING TRACKING Wireless remote control. As per ST171 & ST348 WIRELESS REMOTE FOR TRACKING ON & OFF OF TRANSPORT, MANOUVERING AROUND THE JOB SITE AND OPERATING VARIOUS FUNCTIONS OF THE PLANT FROM THE LOADING SHOVEL / EXCAVATOR. AVAILABLE FUNCTIONS INCLUDE: GRID TIP SEQUENCE, ENABLE PROCESS, ENGINE SHUTDOWN, ENGINE INCREASE / DECREASE RPM & TRACKING. THE REMOTE SET IS FITTED WITH A SUPPORT STRAP SO THAT IT CAN BE EASILY FITTED OVER THE OPERATORS SHOULDERS WHEN IN USE. BATTERY CHARGER LOCATED NEXT TO PLC MOUNTED IN THE POWERPACK.

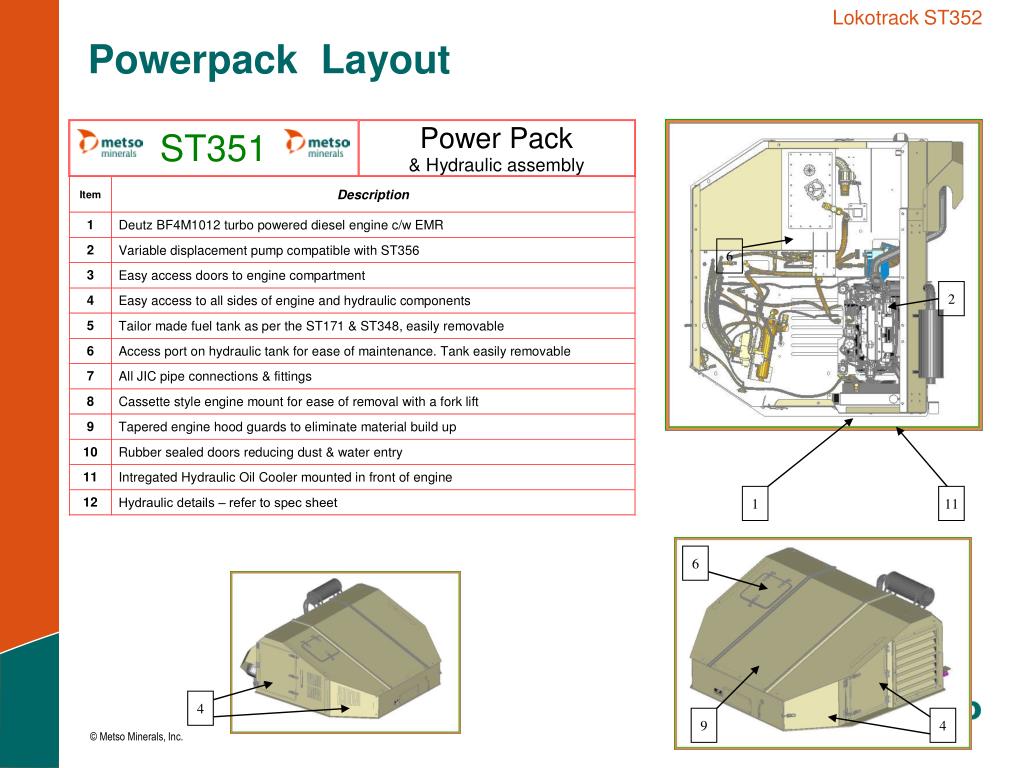

  27. Lokotrack ST352 Powerpack Layout 6 2 1 11 6 4 9 4

  28. Lokotrack ST352 Powerpack Layout

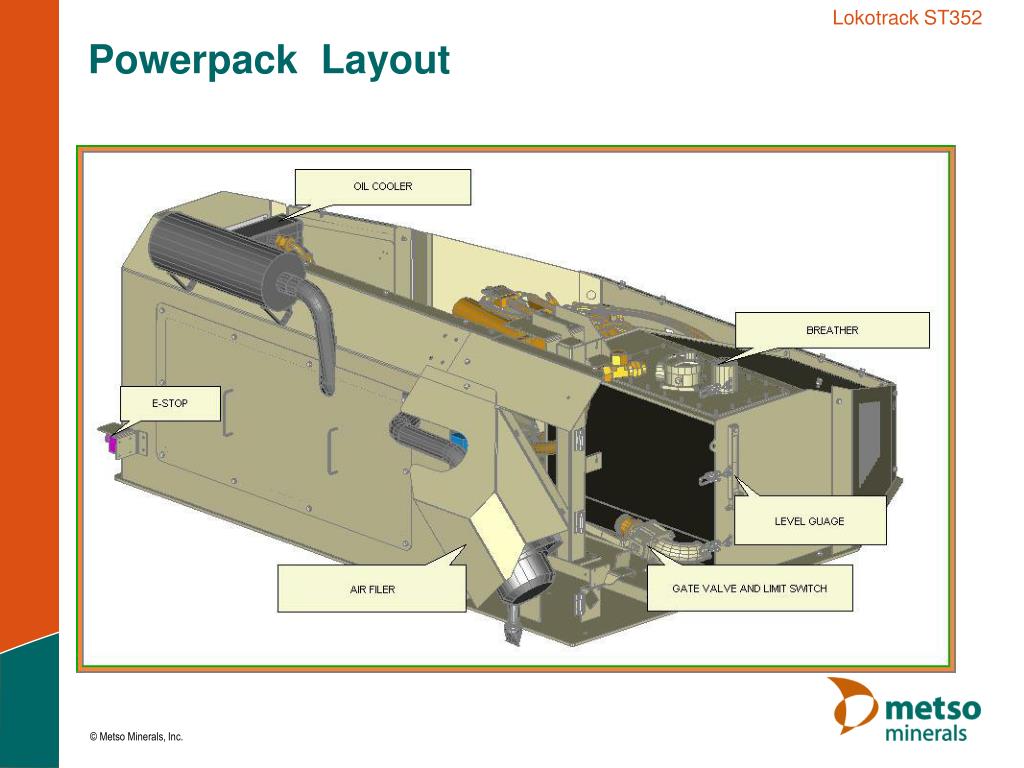

  29. Lokotrack ST352 Powerpack Layout
