Presentation Transcript
Lcd music display and graphic equalizer l.jpg

LCD Music Display and Graphic Equalizer

Adam Krzesinski

andCristina Vasco


Introduction l.jpg
Introduction

  • Purpose

    • Graphical display of frequency components present in audio signal

    • Visual representation of audio levels to aid in setting EQ parameters

    • Real time equalization of audio signal

    • EQ frequency bands correspond to displayed bands


Features lcd display l.jpg
Features – LCD Display

  • HD44780 display controller

  • 4 channels monitored

  • Amplitude resolution - 16 levels

  • Highly responsive with imperceptible delay (< 30ms)


Features equalizer l.jpg
Features – Equalizer

  • Four modification bands that correlate to display

  • FFT Convolution method equivalent to 500-tap FIR filter

  • User input through faders


Filterbank original design l.jpg
Filterbank – Original Design

  • 8 hardware oscillator filters – LCR filter design

  • Output reflects energy of input signal in different frequency ranges

  • Constant Q over 8 octaves

  • 1 lowpass, 1 highpass, 6 bandpass


Filterbank problems l.jpg
Filterbank - Problems

  • Impractical L and C values for low-frequency filters eg. 4.4mH

  • Large component values would produce unresponsive display

  • Large physical size of inductors and capacitors leading to expensive or inaccurate component values

  • 4.4mH => 878 turns with largest AL available (core T68-2)


Filterbank dsp implementation l.jpg
Filterbank – DSP Implementation

  • Reduced to 4 bands

  • Operates on averaging FFT energy in each band

  • Each channel corresponds to trace of FFT in one of four frequency ranges

  • PIC interprets instantaneous DC values for display as magnitude of bar


Filterbank dsp implementation8 l.jpg
Filterbank – DSP Implementation

  • Response of 4 filters to log chirp stimulus


Filterbank dsp implementation9 l.jpg
Filterbank – DSP Implementation

  • Frequency bands chosen to cover equal space in log-frequency

  • Each band should also cover ranges with similar human hearing sensitivity


Filterbank dsp implementation10 l.jpg
Filterbank – DSP Implementation

  • FFT energy ≠ loudness

  • Capture above shows most energy is focused in low frequencies

  • Display should parallel perceptual loudness of each frequency band

  • Solution – amplify higher bands before display


Dsp equalizer fft convolution l.jpg
DSP Equalizer – FFT Convolution

  • Manipulation of FFT samples – frequency domain

  • Equivalent to convolution – time domain operation

  • Speed advantage when implementing higher-order filters

    ( > 60 taps)

  • Algorithm explanation at http://www.dspguide.com/CH18.PDF


Dsp equalizer fft convolution12 l.jpg
DSP Equalizer – FFT Convolution

Figure 18-2 from http://www.dspguide.com/CH18.PDF - The Scientist and Engineer's Guide to Digital Signal Processing by Steven W. Smith, Ph.D.

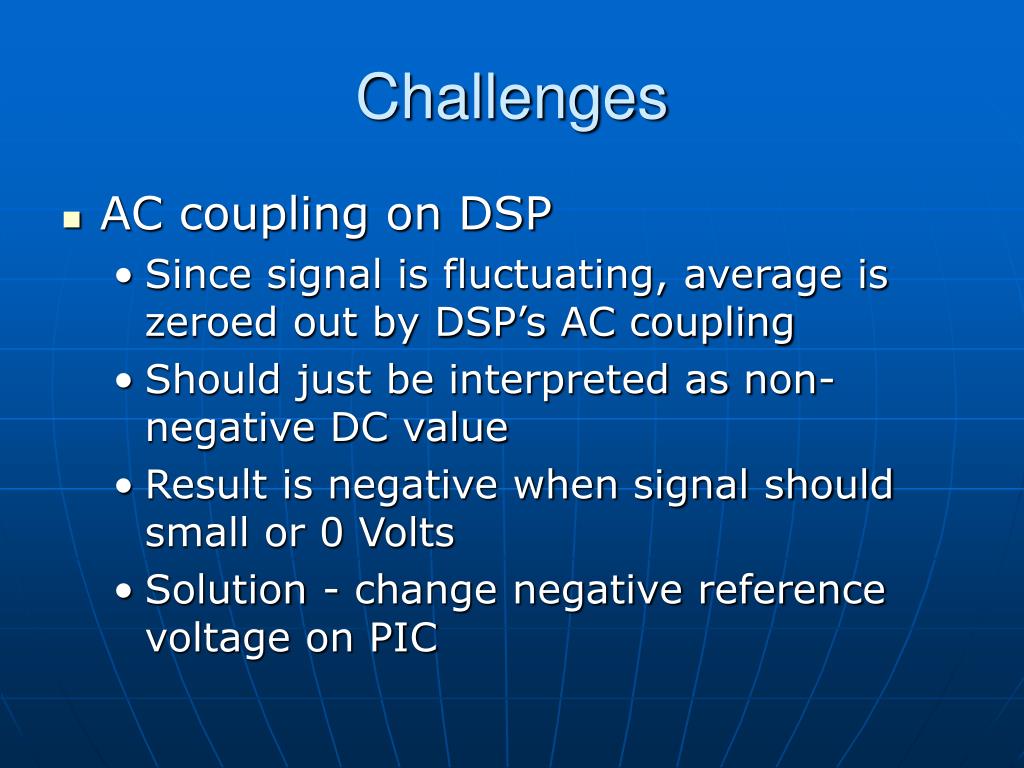

Challenges l.jpg
Challenges

  • AC coupling on DSP

    • Since signal is fluctuating, average is zeroed out by DSP’s AC coupling

    • Should just be interpreted as non-negative DC value

    • Result is negative when signal should small or 0 Volts

    • Solution - change negative reference voltage on PIC

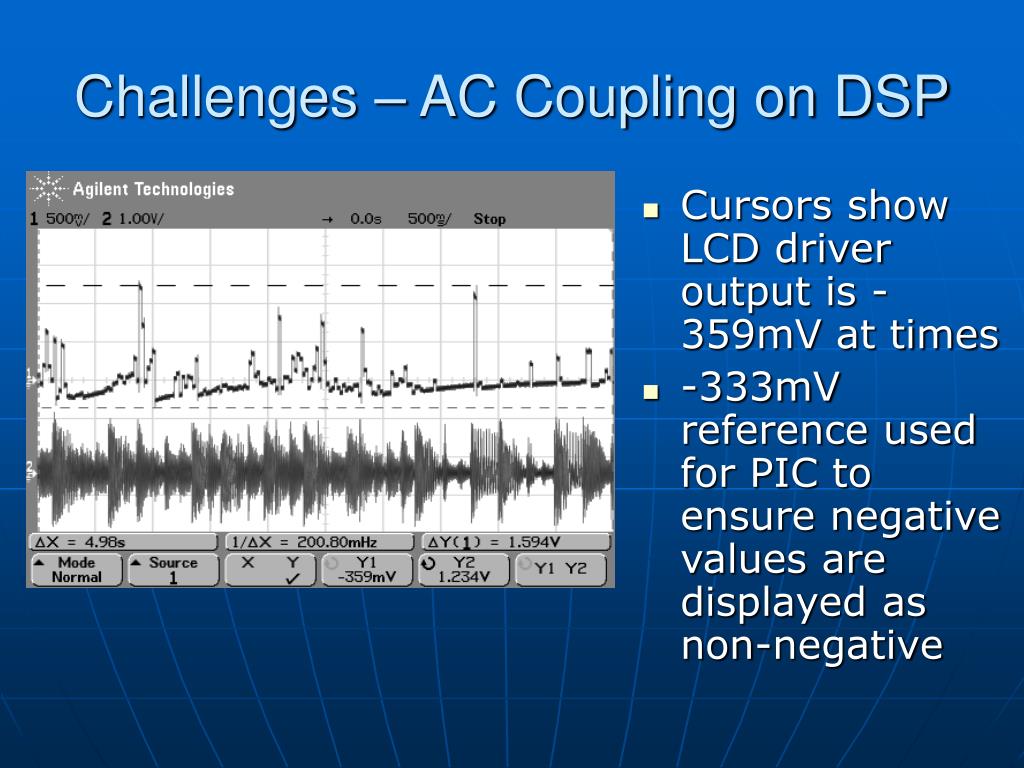

Challenges ac coupling on dsp l.jpg
Challenges – AC Coupling on DSP

  • Cursors show LCD driver output is -359mV at times

  • -333mV reference used for PIC to ensure negative values are displayed as non-negative



Challenges16 l.jpg
Challenges

  • LCD Speed

    • Original PIC program was written to accommodate worst case timing for LCD display (anticipated 10ms draw time)

    • Sluggish performance with original code

    • PIC program had to be optimized to exit display interrupt as quickly as possible

    • Solution is to poll busy flag generated by LCD

    • Result is high frame rates and overall responsiveness of LCD


Challenges17 l.jpg
Challenges

  • DSP Fixed-point arithmetic

    • FFT scales outputs by 0.5 after each stage to avoid overflow

    • Radix-2 1024-pt FFT => 10 stages => loss of 10 bits of precision of 16 bits possible

    • Magnitude scaled by 1/20

    • Output is barely audible and pervaded by quantization noise, evident after amplification

    • FFT Convolution algorithm works well in Matlab where environment is floating-point


Challenges18 l.jpg
Challenges

  • Graphic LCD

    • Higher resolution and more flexible for applications with complex graphics

    • Insufficient documentation

    • Manufacturer’s site lacked a quality datasheet

  • Solution:

    • HD44780 character display

    • Very well documented with many examples

    • Suitable for our application


Challenges19 l.jpg
Challenges

  • Serial Communication

    • Did not fully implement PIC to DSP serial communication

    • PIC was able to generate a stream of serial bits but DSP code incorrectly interpreted them


Successes l.jpg
Successes

  • Equal log-spaced filters as desired

  • Filters cover entire audible range

  • Responsive LCD Display

  • High quality equalizer results in Matlab

  • PIC able to output information serially


Recommendations l.jpg
Recommendations

  • Implement both display and EQ with embedded system

    • More channels of display and control

    • Larger memory capacity than DSP board for more accurate FFTs, more channel buffers

    • Floating-point CPU for preserving information when manipulating audio through FFT


Thank you l.jpg
Thank You

  • Questions?
