Presentation Transcript


Biotechnology status and uses l.jpg

Biotechnology: Status and Uses

Animal Science 434

John J. Parrish


Reproductive biotechnology s l.jpg

Reproductive Biotechnology's

  • Artificial insemination

  • In vitro embryo production

  • In vivo embryo production

  • Embryo transfer

  • Gender selection

  • Stem Cells

  • Genetic engineering

  • Cloning


In vitro production of embryos l.jpg

In Vitro Production of Embryos

  • Oocyte isolation and maturation

  • Sperm preparation

  • Sperm capacitation

  • Fertilization

  • Embryo Development


In vivo embryo production l.jpg

In Vivo Embryo Production

  • Normal cycling female

    • horses

  • Superovulated female

    • Cattle

    • Sheep

    • Goats

    • Deer

    • Humans

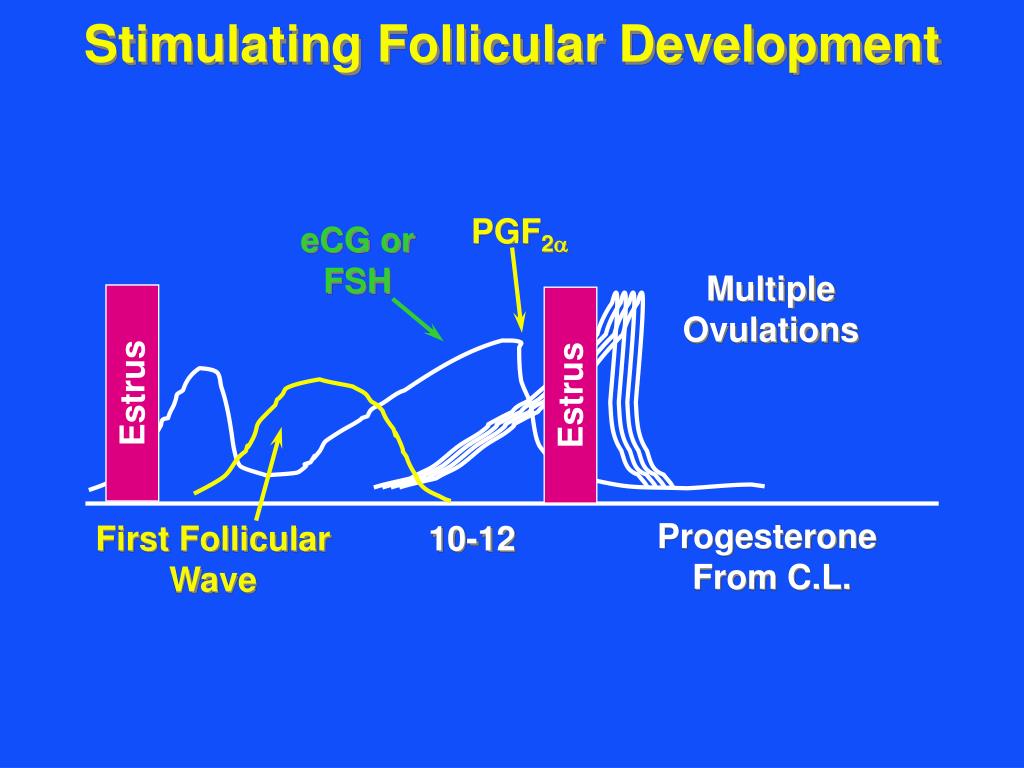

Stimulating follicular development l.jpg

PGF2a

eCG orFSH

Multiple

Ovulations

Estrus

Estrus

Progesterone

From C.L.

First Follicular

Wave

10-12

Stimulating Follicular Development


Non surgical embryo flush l.jpg

Non-Surgical Embryo Flush

Day 6 or 7


Stage of embryo at recovery l.jpg

Stage of Embryo at Recovery

Tight Morula (day 5 - 7)

Early Blastocyst (day 7 - 8)

Blastocyst (day 7 - 9)


Et scheme l.jpg

ET - Scheme


Embryo sexing l.jpg

Embryo Sexing

  • Hy Antigen

    • Associated with male cells

  • PCR and Detection of Y and X DNA


Hy antigen l.jpg

Hy-Antigen


Slide11 l.jpg

Octopus Springs - Yellowstone National Park

Home of Thermus aquaticus - Taq Polymerase

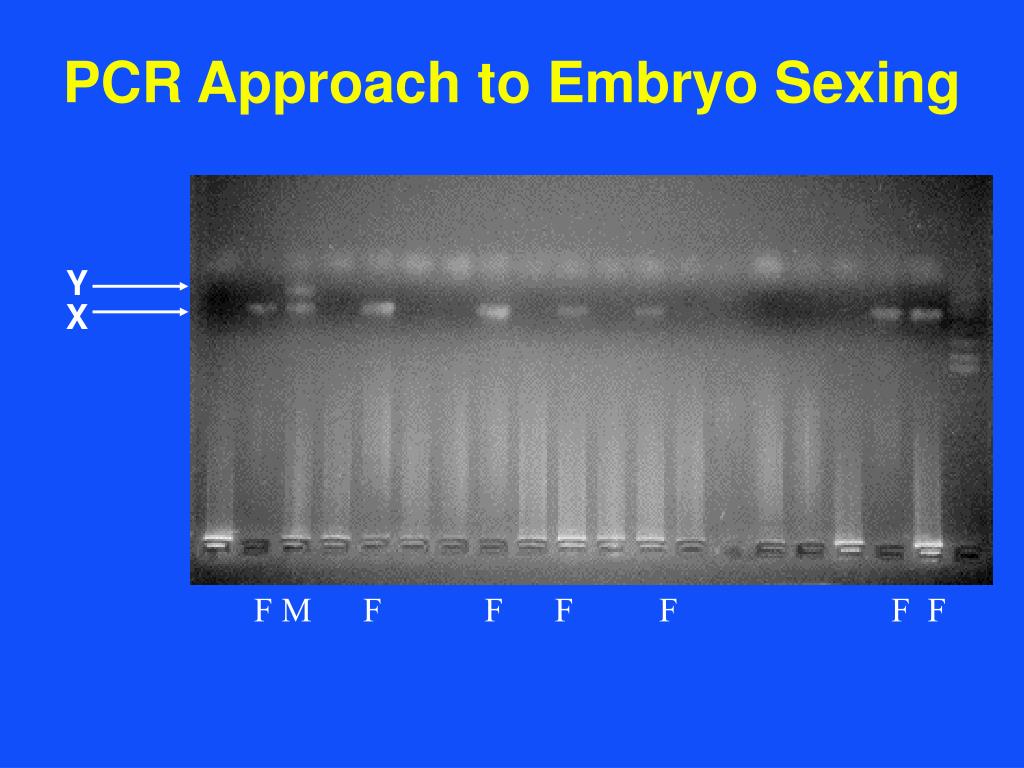

Pcr approach to embryo sexing l.jpg

PCR Approach to Embryo Sexing

Y

X

F M F F F F F F


Sperm gender selection l.jpg

Sperm Gender Selection

Selection of X or Y sperm


Percent dna differences between x and y chromosome l.jpg

PERCENT DNA DIFFERENCES BETWEEN X and Y CHROMOSOME

Human 2.9

Cattle 3.8

Chinchilla 7.5

Turkey 0

X Chromosome has more DNA!!!


Slide15 l.jpg

Flow Cytometer Separation of X and Y Sperm

Sperm

Stained

With DNA

Sensitive

Fluorescent

Dye

9

L

A

S

E

R

-

+

+

-

Y

s

o

r

t

X

s

o

r

t

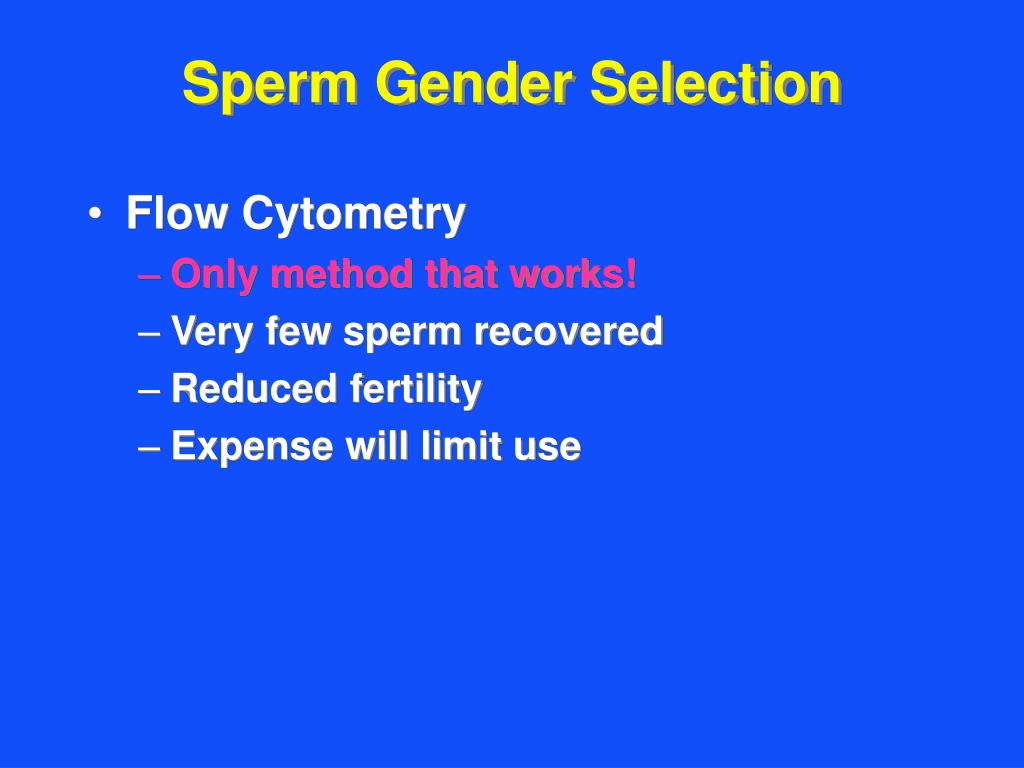

Sperm gender selection16 l.jpg

Sperm Gender Selection

  • Flow Cytometry

    • Only method that works!

    • Very few sperm recovered

    • Reduced fertility

    • Expense will limit use


Fetal sexing l.jpg

Fetal Sexing

OR

Ultrasound Evaluation

  • Day 55 - 65


Cloning l.jpg

Cloning

Split morula


Cloning by nuclear transfer l.jpg

Cloning by Nuclear Transfer

Cycles are limited

Only 3 - 4 cycles


Nuclear cloning to produce stem cells l.jpg

Nuclear Cloning to Produce Stem Cells

Cells of InterestGrown in Culture

Dish

Mature Oocyte enucleated and cell of interest fused

Embyro??

Develops

  • Potential Tissue:

  • Neural

  • Adipose

  • Connective

  • Heart

Differentiate

Inner Cell Mass Cells isolated and grown in culture


Stem cells grown in culture and allowed to differentiate l.jpg

Stem Cells Grown in Culture and Allowed to Differentiate

http://www.ansci.wisc.edu/jjp1/as434/powerpoint/fa07/stem_cells.mov


Benefits of stem cell research l.jpg

Benefits of Stem Cell Research

  • Regenerative medicine and tissue engineeringIn vitro systems: drug discovery, toxicology, diagnostic assays and cell culture reagentsBiomedical research: unravel mechanisms of disease and human development


Genetic manipulation l.jpg

Genetic Manipulation


Transgenic for growth hormone l.jpg

Transgenic for Growth Hormone


Gene transfer using micro injection of pronuclei l.jpg

Gene Transfer Using Micro-Injection of Pronuclei

Less than 1% efficiency


Gene transfer using viral transfection l.jpg

Gene Transfer Using Viral Transfection

Better success but left with potential for viral replication
