A Guide to Seven Important Electrical Connectors and their Uses

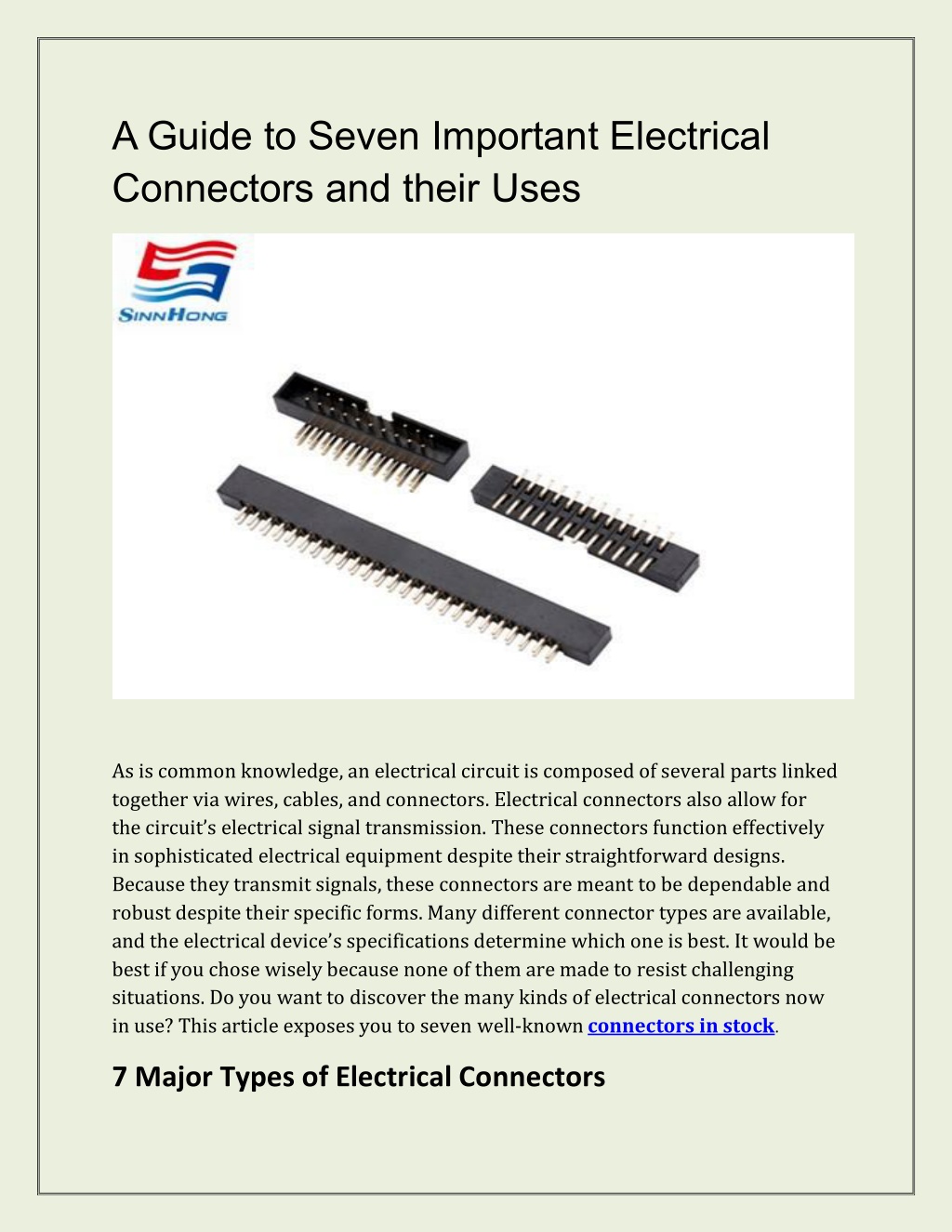

1. A Guide to Seven Important Electrical Connectors and their Uses As is common knowledge, an electrical circuit is composed of several parts linked together via wires, cables, and connectors. Electrical connectors also allow for the circuit’s electrical signal transmission. These connectors function effectively in sophisticated electrical equipment despite their straightforward designs. Because they transmit signals, these connectors are meant to be dependable and robust despite their specific forms. Many different connector types are available, and the electrical device’s specifications determine which one is best. It would be best if you chose wisely because none of them are made to resist challenging situations. Do you want to discover the many kinds of electrical connectors now in use? This article exposes you to seven well-knownconnectors in stock. 7 Major Types of Electrical Connectors

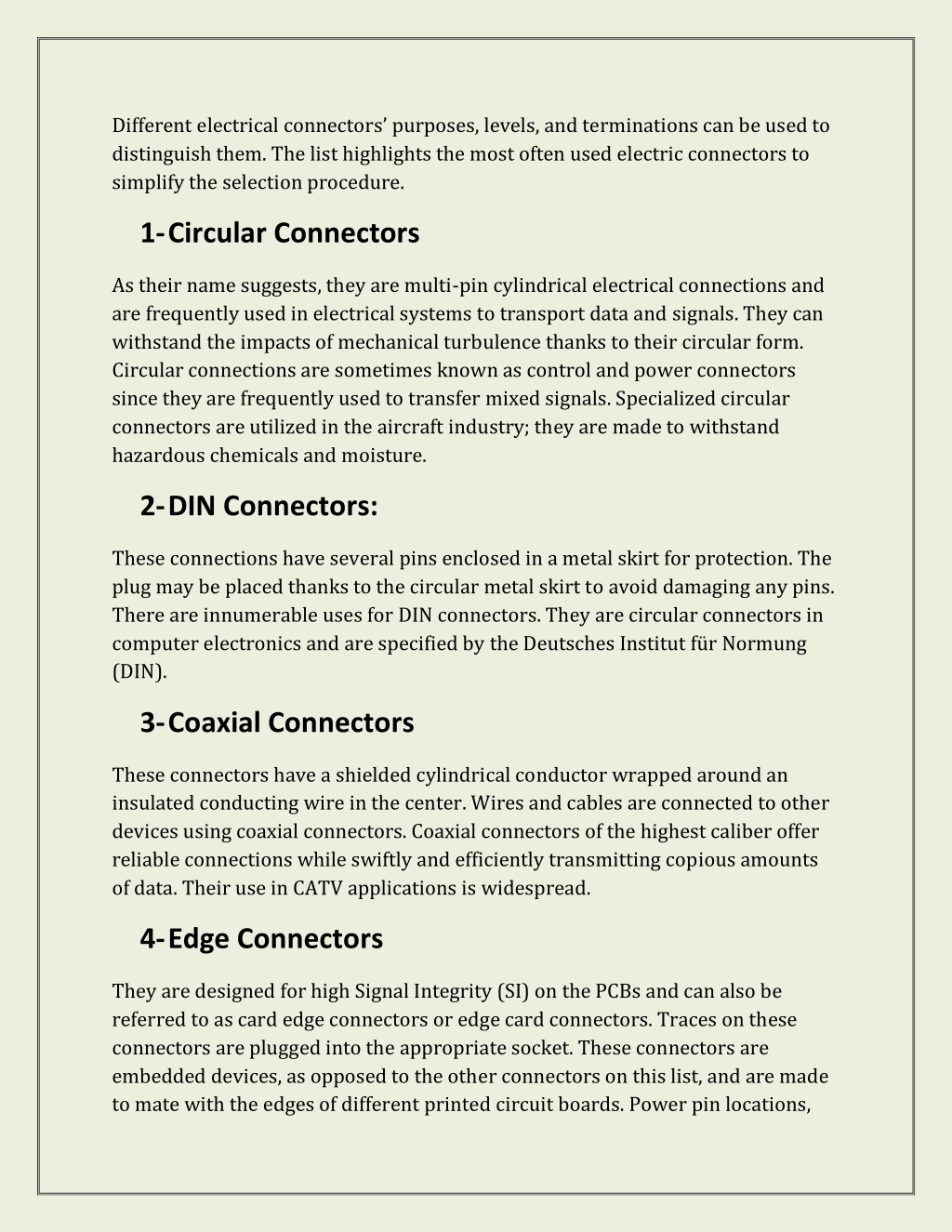

2. Different electrical connectors’ purposes, levels, and terminations can be used to distinguish them. The list highlights the most often used electric connectors to simplify the selection procedure. 1-Circular Connectors As their name suggests, they are multi-pin cylindrical electrical connections and are frequently used in electrical systems to transport data and signals. They can withstand the impacts of mechanical turbulence thanks to their circular form. Circular connections are sometimes known as control and power connectors since they are frequently used to transfer mixed signals. Specialized circular connectors are utilized in the aircraft industry; they are made to withstand hazardous chemicals and moisture. 2-DIN Connectors: These connections have several pins enclosed in a metal skirt for protection. The plug may be placed thanks to the circular metal skirt to avoid damaging any pins. There are innumerable uses for DIN connectors. They are circular connectors in computer electronics and are specified by the Deutsches Institut für Normung (DIN). 3-Coaxial Connectors These connectors have a shielded cylindrical conductor wrapped around an insulated conducting wire in the center. Wires and cables are connected to other devices using coaxial connectors. Coaxial connectors of the highest caliber offer reliable connections while swiftly and efficiently transmitting copious amounts of data. Their use in CATV applications is widespread. 4-Edge Connectors They are designed for high Signal Integrity (SI) on the PCBs and can also be referred to as card edge connectors or edge card connectors. Traces on these connectors are plugged into the appropriate socket. These connectors are embedded devices, as opposed to the other connectors on this list, and are made to mate with the edges of different printed circuit boards. Power pin locations,

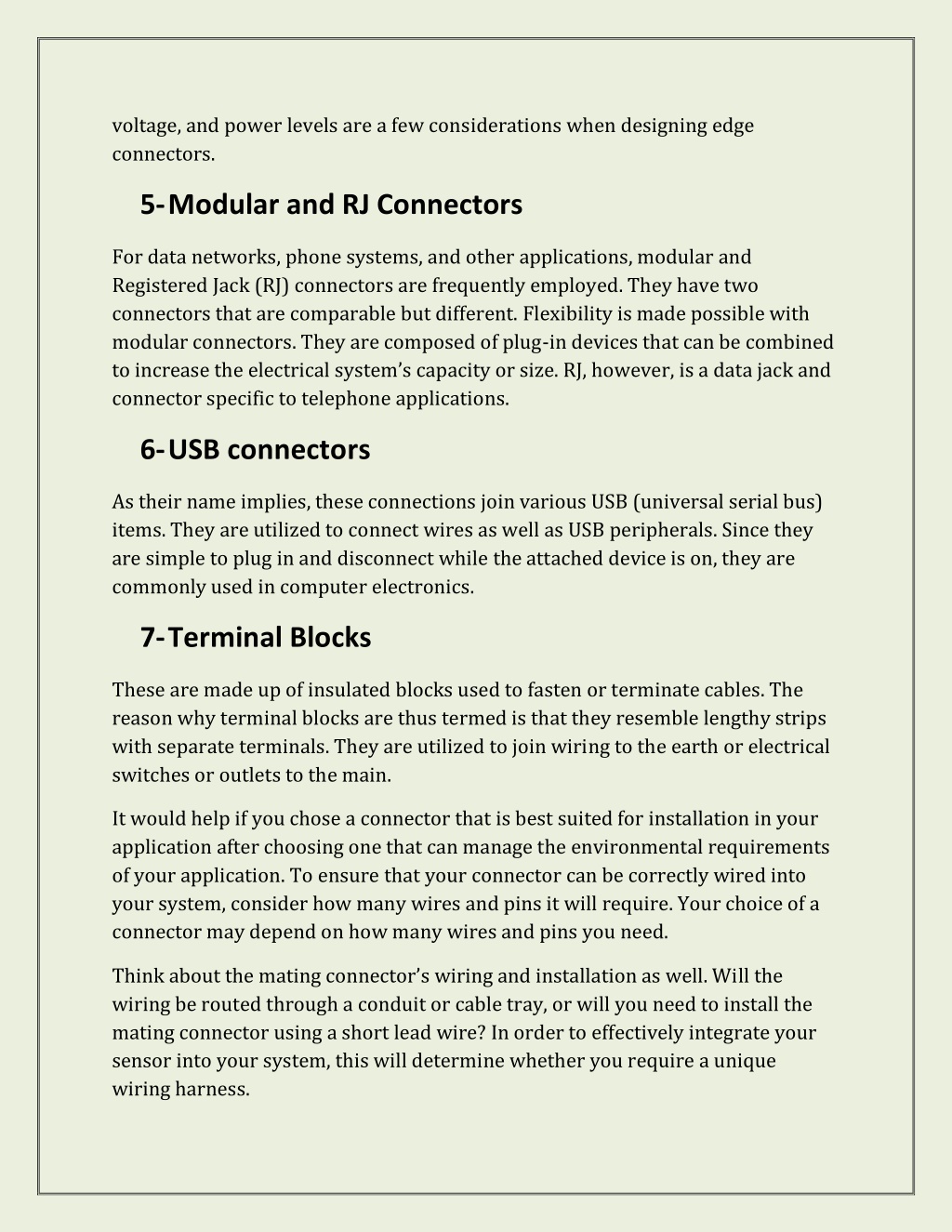

3. voltage, and power levels are a few considerations when designing edge connectors. 5-Modular and RJ Connectors For data networks, phone systems, and other applications, modular and Registered Jack (RJ) connectors are frequently employed. They have two connectors that are comparable but different. Flexibility is made possible with modular connectors. They are composed of plug-in devices that can be combined to increase the electrical system’s capacity or size. RJ, however, is a data jack and connector specific to telephone applications. 6-USB connectors As their name implies, these connections join various USB (universal serial bus) items. They are utilized to connect wires as well as USB peripherals. Since they are simple to plug in and disconnect while the attached device is on, they are commonly used in computer electronics. 7-Terminal Blocks These are made up of insulated blocks used to fasten or terminate cables. The reason why terminal blocks are thus termed is that they resemble lengthy strips with separate terminals. They are utilized to join wiring to the earth or electrical switches or outlets to the main. It would help if you chose a connector that is best suited for installation in your application after choosing one that can manage the environmental requirements of your application. To ensure that your connector can be correctly wired into your system, consider how many wires and pins it will require. Your choice of a connector may depend on how many wires and pins you need. Think about the mating connector’s wiring and installation as well. Will the wiring be routed through a conduit or cable tray, or will you need to install the mating connector using a short lead wire? In order to effectively integrate your sensor into your system, this will determine whether you require a unique wiring harness.

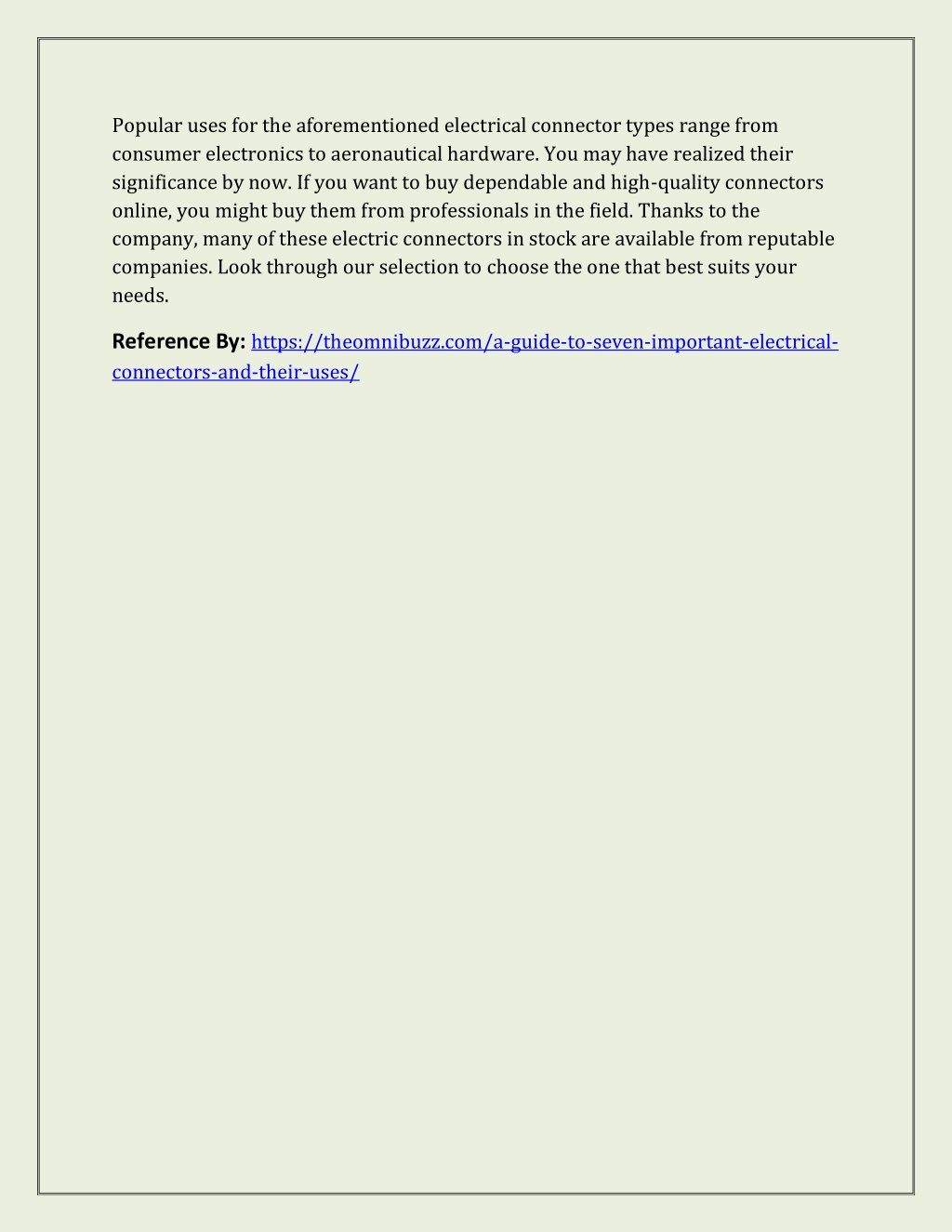

4. Popular uses for the aforementioned electrical connector types range from consumer electronics to aeronautical hardware. You may have realized their significance by now. If you want to buy dependable and high-quality connectors online, you might buy them from professionals in the field. Thanks to the company, many of these electric connectors in stock are available from reputable companies. Look through our selection to choose the one that best suits your needs. Reference By: https://theomnibuzz.com/a-guide-to-seven-important-electrical- connectors-and-their-uses/
