Presentation Transcript
Goes multi channel sea surface temperature processing at the naval oceanographic office l.jpg

GOES Multi-Channel Sea Surface Temperature Processing at the Naval Oceanographic Office

Bruce McKenzie

NAVOCEANO


Goes mcsst l.jpg
GOES MCSST Naval Oceanographic Office

  • Process into SST every GOES sector with the exception of PACUS, CONUS, and Rapid Scan

  • Retrievals per day

    • 2.7 million from GOES East

    • 2.3 million from GOES West

  • Regional warmest SST composites


Slide3 l.jpg

GOES West Naval Oceanographic Office

HR-250 Receiver

GOES East

HR-250 Receiver

Sun Enterprise 250

GVAR ingest/preprocess

Sun Enterprise 250

GVAR ingest/preprocess

Satellite Processing System

Day/Night determination, Satellite Zenith Angle check

Land/Sea test, Cloud tests, Field test

Regional 24 hour

warmest SST composite

SST retrievals

placed in database

MCSST sector files

transmitted to customers

Regional graphics

for fleet support/Web

Daily regional extractions

for analyses/modeling


Gvar ingest and preprocess l.jpg

1) PGS_GVARIN Naval Oceanographic Office

2) SUBSET

gvar_ch1

gvar_ch2

gvar_ch4

gvar_ch5

3) ANGLES

latitude

longitude

sat_zenith

sun_zenith

rel_azimuth

4) TDFTOHDF

GVAR Ingest and preprocess


Daytime goes mcsst tests l.jpg

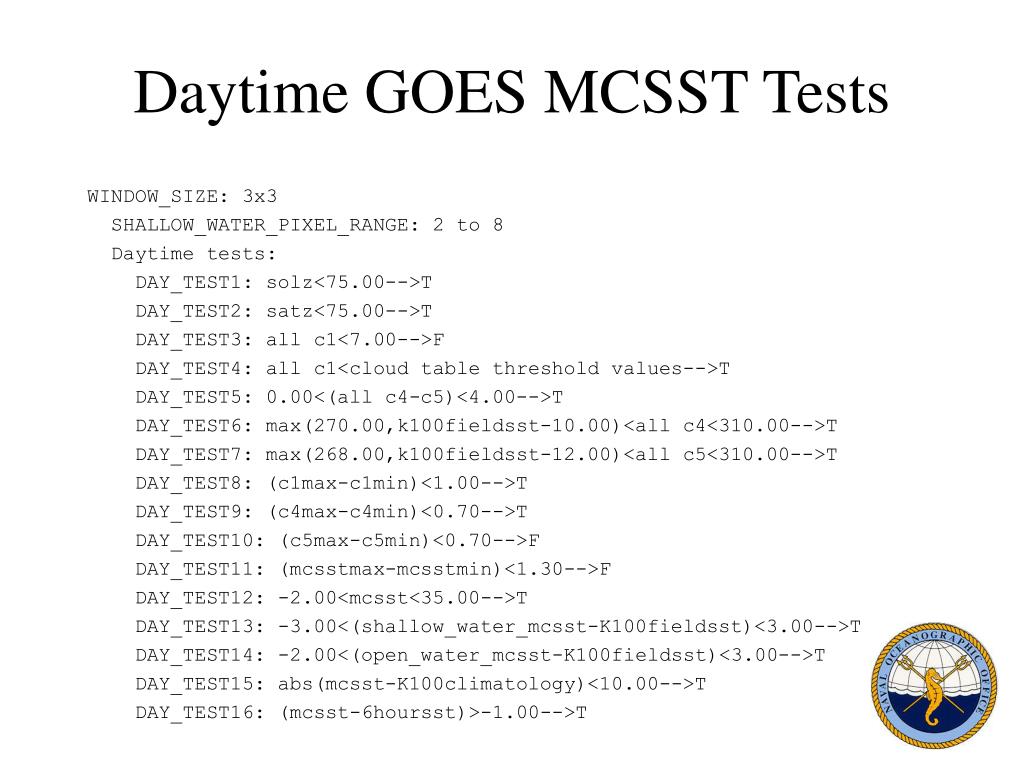

Daytime GOES MCSST Tests Naval Oceanographic Office

WINDOW_SIZE: 3x3

SHALLOW_WATER_PIXEL_RANGE: 2 to 8

Daytime tests:

DAY_TEST1: solz<75.00-->T

DAY_TEST2: satz<75.00-->T

DAY_TEST3: all c1<7.00-->F

DAY_TEST4: all c1<cloud table threshold values-->T

DAY_TEST5: 0.00<(all c4-c5)<4.00-->T

DAY_TEST6: max(270.00,k100fieldsst-10.00)<all c4<310.00-->T

DAY_TEST7: max(268.00,k100fieldsst-12.00)<all c5<310.00-->T

DAY_TEST8: (c1max-c1min)<1.00-->T

DAY_TEST9: (c4max-c4min)<0.70-->T

DAY_TEST10: (c5max-c5min)<0.70-->F

DAY_TEST11: (mcsstmax-mcsstmin)<1.30-->F

DAY_TEST12: -2.00<mcsst<35.00-->T

DAY_TEST13: -3.00<(shallow_water_mcsst-K100fieldsst)<3.00-->T

DAY_TEST14: -2.00<(open_water_mcsst-K100fieldsst)<3.00-->T

DAY_TEST15: abs(mcsst-K100climatology)<10.00-->T

DAY_TEST16: (mcsst-6hoursst)>-1.00-->T


Daily goes mcsst coverage l.jpg
Daily GOES MCSST Coverage Naval Oceanographic Office


Slide7 l.jpg

GOES retrievals per day Naval Oceanographic Office


Goes mcsst buoy statistics l.jpg

G-8 (February 02) Naval Oceanographic Office

Daytime

3571 Matches

0.06 Bias

0.69 RMSD

Nighttime

4478 Matches

0.02 Bias

0.64 RMSD

GOES MCSST - Buoy Statistics

G-10 (February 02)

  • Daytime

    • 3380 Matches

    • -0.49 Bias

    • 0.78 RMSD

  • Nighttime

    • 5024 Matches

    • -0.02 Bias

    • 0.56 RMSD


Goes warmest sst composite l.jpg
GOES Warmest SST Composite Naval Oceanographic Office


Regional file creation l.jpg

Create area of interest in TeraMaster Naval Oceanographic Office

TeraPGS used to extract gvar_ch4 and ch5

Angles

TDFtoHDF

Regional file creation


Slide11 l.jpg

Loop of warmest SST composite for Gulf of Mexico Naval Oceanographic Office

16 January - 14 March 2002

Cloud contaminated composites removed


Slide33 l.jpg

Loop of warmest SST composite for Gulf of Mexico Naval Oceanographic Office

16 January - 14 March 2002

Cloud contaminated composites removed


Future pursuits l.jpg
Future Pursuits Naval Oceanographic Office

  • MSG-1

    • warmest SST composite

    • MCSST retrievals

  • MTSat-1R

    • warmest SST composite

    • MCSST retrievals


Contact info l.jpg
Contact Info Naval Oceanographic Office

Bruce McKenzie

[email protected]

228-688-4586

DSN 828-4586
