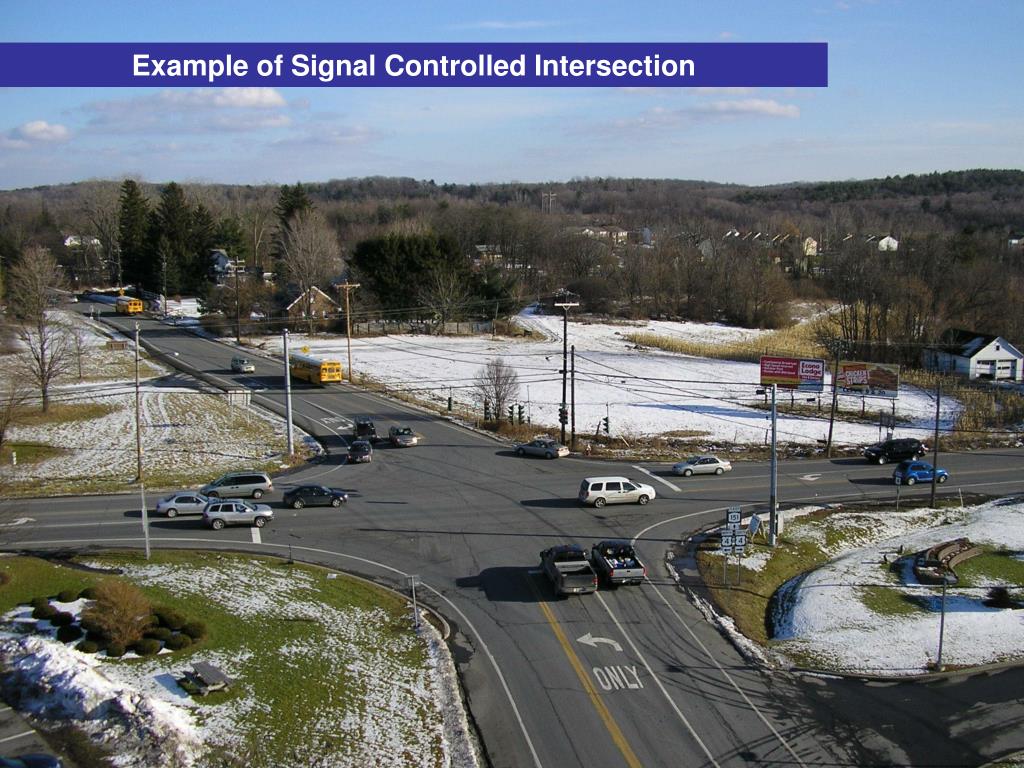

NEW YORK STATE DEPARTMENT OF TRANSPORTATION. General Roundabout Overview. What is a Roundabout? It is a type of intersection control, just as signals and stop signs are examples of intersection control. Example of Signal Controlled Intersection.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'general roundabout overview' - Sharon_Dale


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
General roundabout overview l.jpg

NEW YORK STATE DEPARTMENT OF TRANSPORTATION

General Roundabout Overview


Slide2 l.jpg

What is a Roundabout? TRANSPORTATIONIt is a type of intersection control, just as signals and stopsigns are examples of intersection control.



Slide4 l.jpg

Roundabouts are circular intersections designed so that: TRANSPORTATION

1. Entering traffic must yield to circulating;

2. Entering vehicles are deflected by splitter islands,

creating a low / similar speed environment;

3. Circulating vehicles must travel around a

non-mountable center island.


Slide5 l.jpg

Leading Roundabout States TRANSPORTATION

Colorado > 240

Washington > 150

Utah > 110

Maryland > 100

North Carolina > 90

Oregon > 75

Florida > 50

Kansas & Missouri > 45 each

California & Nevada > 30 each

Arizona >25

New York at least 54, with > 90 in design throughout the state


Slide6 l.jpg

New York Roundabouts – Single TRANSPORTATIONLaners

North Haven (01) single laner that was to be 1 of 2

Rochester (03) single laner on RIT campus

Great Neck (03) single laner that replaced signalized circle

Voorheesville (03) single laner that replaced yield “Y”

Greenwich (04) single laner that replaced signalized “T”

Ithaca (04) single laner off state system

Plattsburgh (04) single laner that replaced signalized 4-way

Liberty (2) (06) single laners off Exit 100, I-86

Cortlandt Manor(06) single laner that replaced signal

Huntington (02) single laner used for traffic calming

Rochester (05) single laner with raised pedestrian crossing


Slide7 l.jpg

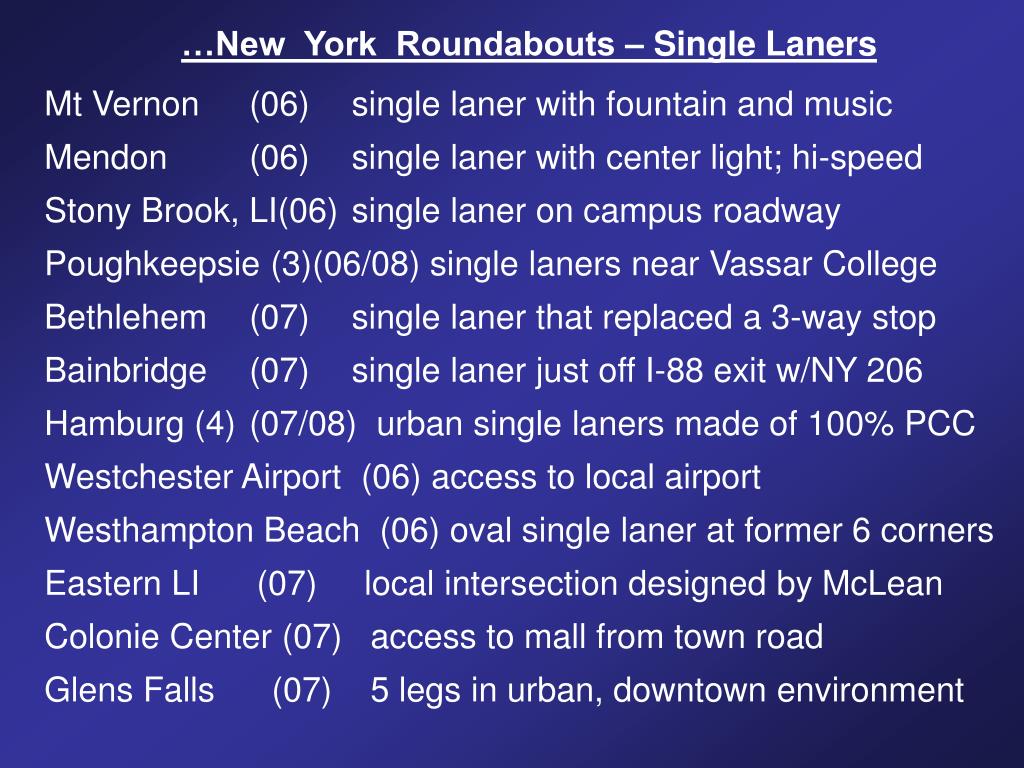

…New York Roundabouts – Single Laners TRANSPORTATION

Mt Vernon (06) single laner with fountain and music

Mendon (06) single laner with center light; hi-speed

Stony Brook, LI(06) single laner on campus roadway

Poughkeepsie (3)(06/08) single laners near Vassar College

Bethlehem (07) single laner that replaced a 3-way stop

Bainbridge (07) single laner just off I-88 exit w/NY 206

Hamburg (4) (07/08) urban single laners made of 100% PCC

Westchester Airport (06) access to local airport

Westhampton Beach (06) oval single laner at former 6 corners

Eastern LI (07) local intersection designed by McLean

Colonie Center (07) access to mall from town road

Glens Falls (07) 5 legs in urban, downtown environment


Slide8 l.jpg

…New York Roundabouts – Single Laners TRANSPORTATION

Malta (08) single laner for Round Lake Bypass

Cohoes (08) single laner at 3 corners

Niagara Falls (07) single laner on Rainbow Boulevard

Malta (2) (08) single laners on Dunning St. for Tech Parks

Buffalo (2) (08) single laners that are only 100’ apart

Caledonia (05) resigned & restriped traffic circle


Slide9 l.jpg

…New York Roundabouts – Major/Minors TRANSPORTATION

Kinderhook (05) 2 laner for SB direction only, 5 legs

Buffalo (08) Harlem/Cleveland Road

Corning (2) (03) access permits for R & D plant

Latham (02) resigned & restriped traffic circle

Griffiss (02) major-minor done in old air force base


Slide10 l.jpg

New York Roundabouts – Two Laners TRANSPORTATION

Kingston (00) 2 laner that replaced traffic circle

Malta (5) (06) 5 total in a ¾ mile corridor

Johnson City (05) 2 laner & flyover that replaced traffic circle

Slingerlands (4) (07) 4 total in a 1.5 mile section of new hwy


Slide11 l.jpg

…New York Roundabouts – In Construction TRANSPORTATION

Round Lake major-minor @ Rt 9/67

Rotterdam single laner @ 7/146

Batavia single laner @ 33/98

Irondequoit (4) single laners at end of 590

Buffalo major-minor on Outer Harbor project

Aurora resigned and restriped single lane circle


Slide12 l.jpg

…New York Roundabouts – In Final Design TRANSPORTATION

Latham Old Wolf @ Old Nisky

Malta (2) a single & major-minor for AMD

Monticello single laner @ 104 off 17B

Mayfield major-minor @ 29 & 30

East Greenbush Route 4 @ 151


Slide13 l.jpg

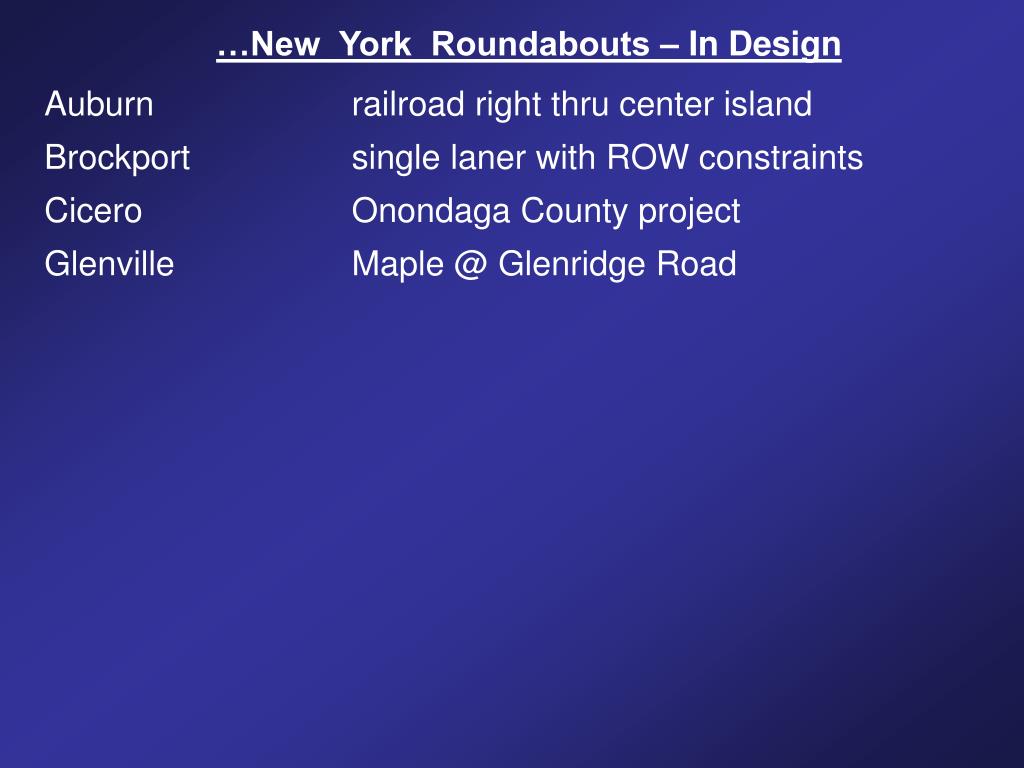

…New York Roundabouts – In Design TRANSPORTATION

Auburn railroad right thru center island

Brockport single laner with ROW constraints

Cicero Onondaga County project

Glenville Maple @ Glenridge Road


Slide14 l.jpg

Why are Roundabouts Being Considered? TRANSPORTATION

  • Safest Intersection

  • High Capacity / Low Delay

  • Good for All Modes of Traffic

  • Geometric Flexibility

  • Aesthetics


Slide16 l.jpg

2004 Safety Data from Maryland DOT TRANSPORTATION

  • Reduction of Total Crashes by 68%

  • Reduction of Property Damage Only Crashes by 41%

  • Reduction of Injury Crashes by 86%

  • Reduction of Fatal / Incapacitating Crashes by 100%

  • This resulted in a B/C analysis that indicated for every dollar spent on these projects, considering the 15-year service life of the roundabouts, there is a return of approximately $15.00 to be realized through accident reduction.












Pedestrians bikes safety summary l.jpg

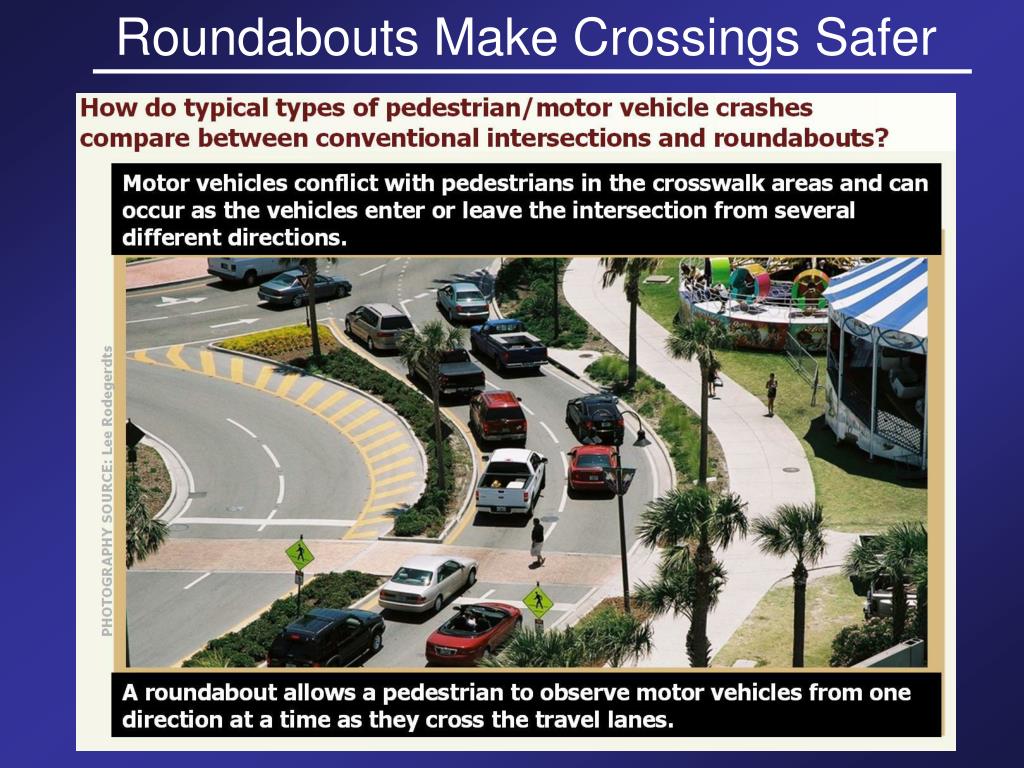

Pedestrians / Bikes Safety Summary Pedestrian Phase

  • Zero SEVERE Injury or Fatal Ped/Bike Crashes at any U.S. High Capacity Multi-Lane or Single-Lane Roundabout

  • Approximately 13 non-injury since 1993 (8 cyclists, 5 pedestrians)



Slide30 l.jpg

Adding a Signal Doesn’t Always = Safety Pedestrian PhaseThe Leader Herald – April 22nd, 2005


Slide31 l.jpg

Red Light Running Cameras Pedestrian Phase



A european perspective l.jpg

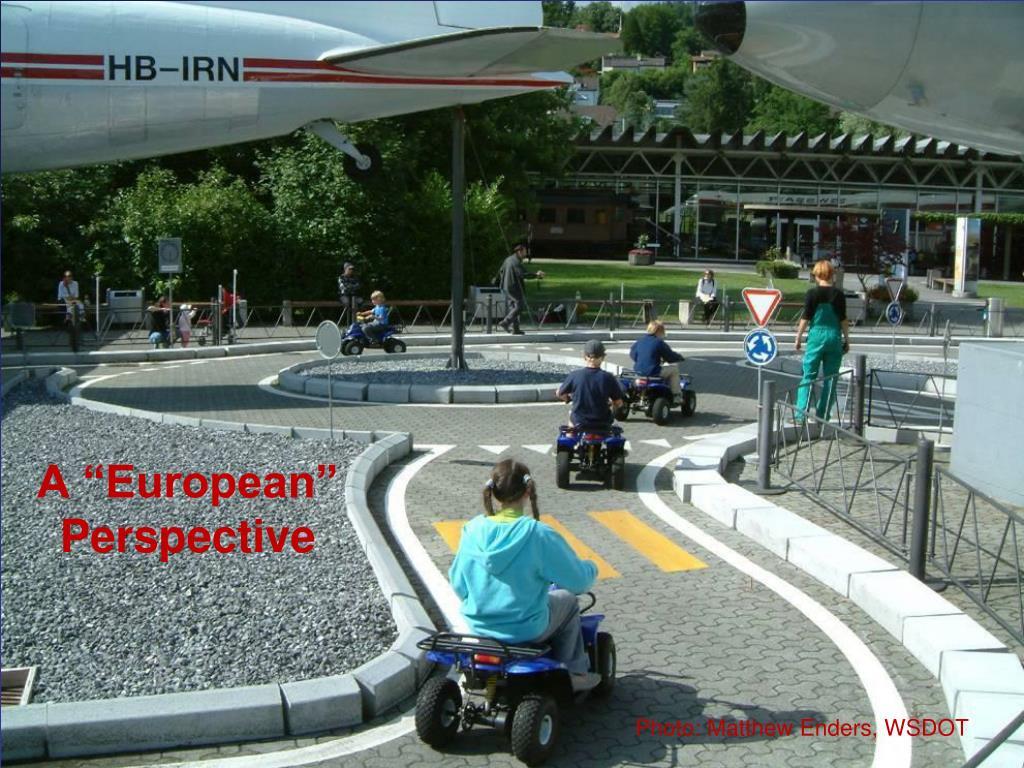

A “European” Pedestrian PhasePerspective

Photo: Matthew Enders, WSDOT


Slide34 l.jpg

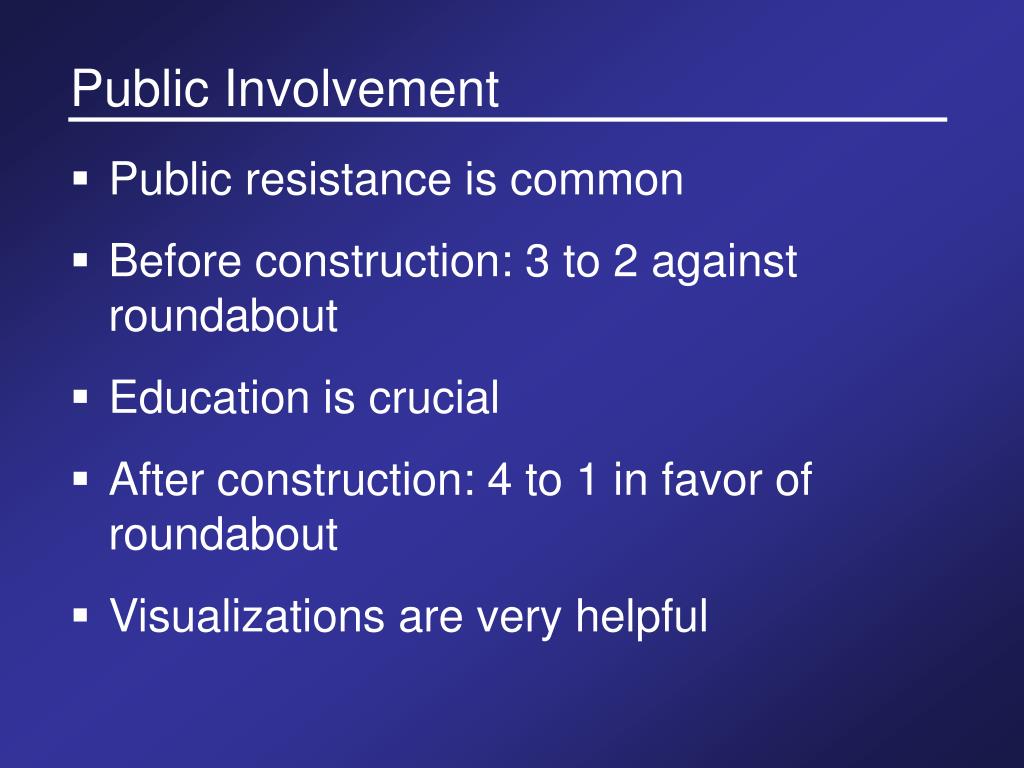

Public Involvement Pedestrian Phase

  • Public resistance is common

  • Before construction: 3 to 2 against roundabout

  • Education is crucial

  • After construction: 4 to 1 in favor of roundabout

  • Visualizations are very helpful


Slide35 l.jpg

Common Objections – Snow Removal Pedestrian PhaseGreenwich, NY Roundabout


Slide36 l.jpg

Common Objections – Large Trucks Pedestrian Phase75’x13’ Modular Home Takes Left at Greenwich, NY Roundabout


Slide37 l.jpg

Common Objections – School Area Pedestrian Phase Valatie Roundabout

Sherrill Phillips, Supervisor of Transportation for the Ichabod

Crane School District (28 buses) "Very pleased with the roundabout –

there are no problems reported from any of their bus drivers."

"Red light running was common before with the signal,

especially from Rt 9 South."

"Students crossing from the school (south of roundabout)

have a safer crossing due to the traffic calming effect."


Public opinion will change l.jpg
Public Opinion WILL Change Pedestrian Phase

The director of the Charles R. Wood Theater

said she was skeptical when the

Greenwich roundabout was first talked about.

"I'm not an expert on traffic, but I was convinced it wasn't going to work out," she said.

Now, she describes driving through the circular intersection as an "awesome“ experience.

"I guess sometimes you just have to trust the opinions of traffic experts," she said.


Slide39 l.jpg

Roundabout Solutions Pedestrian Phase

Glen & Bay Streets, Glens Falls - 5 leg urban


Slide40 l.jpg

Roundabout Solutions Pedestrian Phase

The Batavia roundabout in 20 years


Slide41 l.jpg
The NYSDOT Pedestrian PhaseRoundabout Design Unit would like to thank everyone for their attendance this beautiful evening…Questions? Comments?


Nysdot roundabout design unit contact information l.jpg
NYSDOT Roundabout Design Unit Pedestrian PhaseContact Information

Richard Schell, PE

Howard McCulloch,

and Tom Kligerman, PE

Roundabout Design Unit

50 Wolf Road, POD 24

Albany, New York 12232

Tel: (518) 485-7503

Fax: (518) 457-2916

E-mail: [email protected]
