Presentation Transcript


Slide1 l.jpg

ENGS 4 - Lecture 4 Technology of Cyberspace Winter 2004Thayer School of EngineeringDartmouth College

Instructor: George Cybenko, x6-3843

gvc@dartmouth.edu

Assistant: Sharon Cooper (“Shay”), x6-3546

Course webpage: www.whoopis.com/engs4

ENGS4 2004 Lecture 4


Today s class l.jpg

Today’s Class

  • Discussion of Morgridge’s talk

  • Assignment (due Jan 20)

  • Web page and HTML status

  • Basics of search technologies

  • Break

  • Phillip’s presentation

  • Chad’s presentation

  • Rule-based and expert systems

ENGS4 2004 Lecture 4


Cisco technology and culture l.jpg

Cisco – Technology and Culture

  • What were your reactions?

  • What were his main points?

  • Was it an effective presentation?

  • How could it have been improved?

  • What are Cisco’s strengths?

  • What are Cisco’s weaknesses?

  • Would you invest in Cisco?

  • Would you want to work for Cisco?

ENGS4 2004 Lecture 4


Homework 1 due jan 20 l.jpg

Homework 1 – Due Jan 20

  • Estimate the number of bytes in the ORC (2003-2004 edition, printed)

  • How much time would downloading it require on a 56 kbps modem line?

  • How much time would downloading it require on a 10 mbps ethernet?

  • How much time would downloading it require on a 100 mbps ethernet?

  • What is the bandwidth and latency of the NASA Mars Rover to earth channel?

  • Create a web page with the answers to these questions on the webpage.

ENGS4 2004 Lecture 4


Homework 1 due jan 205 l.jpg

Homework 1 – Due Jan 20

Create a web page with the answers to these questions on the webpage.

ENGS4 2004 Lecture 4


Web pages and basic html l.jpg

Web pages and basic HTML

  • Questions?

  • Have you tested your web account?

  • Try something simple first and build up from that – simple page with “hello”, upload and test it, add text, add graphics, etc.

  • Read about more advanced HTML and try to use advanced constructs

  • Try to copy interesting/clever constructs you have seen on other pages

ENGS4 2004 Lecture 4


Basic web search technology l.jpg

Basic web search technology

  • Visit

    www.google.com

    www.excite.com

  • What are some differences?

  • How does the basic technology work?

ENGS4 2004 Lecture 4


Vector space model in information retrieval l.jpg

Vector Space Model in Information Retrieval

  • List all words in your “dictionary”

    • eg aardvark, aaron, able, act, advertise, bad, …

  • A “stop list” consists of words too common to be useful for retrieval – eg, the, is, a, up

  • Process a document to obtain a “vector” of word frequencies:

    • “Aaron the acting aardvark was able to join the Aardvark Society of Actors.”

    • becomes (2, 1, 1, 0, 0, 1, …)

    • this is a document word-frequency representation

    • no syntax, grammar, semantics…just words

ENGS4 2004 Lecture 4


Comparing two word frequency vectors l.jpg

Comparing two word-frequency vectors

aardvark, aaron, able, act, advertise, bad, …

  • Another document:

    • “An aardvark would be a bad actor.”

    • becomes (1, 0, 0, 0, 0, 1,...)

    • “Aaron the acting aardvark was able to join the Aardvark Society of Actors.”

    • was (2, 1, 1, 0, 0, 1, …)

  • The score between the two documents is obtained by multiplying coordinates and adding.

ENGS4 2004 Lecture 4


Comparing two word frequency vectors10 l.jpg

Comparing two word-frequency vectors

  • “An aardvark would be a bad actor.”

  • is (1, 0, 0, 0, 0, 0)

  • “Aaron the acting aardvark was able to join the Aardvark Society of Actors.”

  • is (2, 1, 1, 0, 0, 1, …)

  • The score between the two documents is obtained by multiplying coordinates and adding.

  • 1*2 + 0*1 + 0*1 + … = 2

  • Stemming: reduce words to roots (ie actor, actors, acting, etc have “act” as root.

  • Score becomes larger. IE, 4.

  • ENGS4 2004 Lecture 4


    First generation web search l.jpg

    First generation web search

    • Each web page is represented as a word-frequency vector after stemming and other normalizations

    • a user search is made into another word-frequency vector

    • the search vector is compared against web page vectors that have been indexed

    • pages with the highest scores are listed as results for that search

    ENGS4 2004 Lecture 4


    Embellishments l.jpg

    Embellishments

    • Adding searches to retailers and others who pay for their pages to be ranked highly (Seems like Excite does that…how does Google handle this revenue opportunity?)

    • Taking the highest ranking pages and doing some more advanced processing to determine the “hubs” and “authorities” (Google does something like this)

    • Mini-lecture topic – economics of search engines, revenue models, etc

    ENGS4 2004 Lecture 4


    Hubs and authorities l.jpg

    Hubs and authorities

    page

    page

    page

    page

    page

    page

    page

    page

    page

    page

    page

    page

    page

    page

    page

    hub

    Google ranks hubs and

    authorities differently than

    other pages

    page

    authority

    ENGS4 2004 Lecture 4

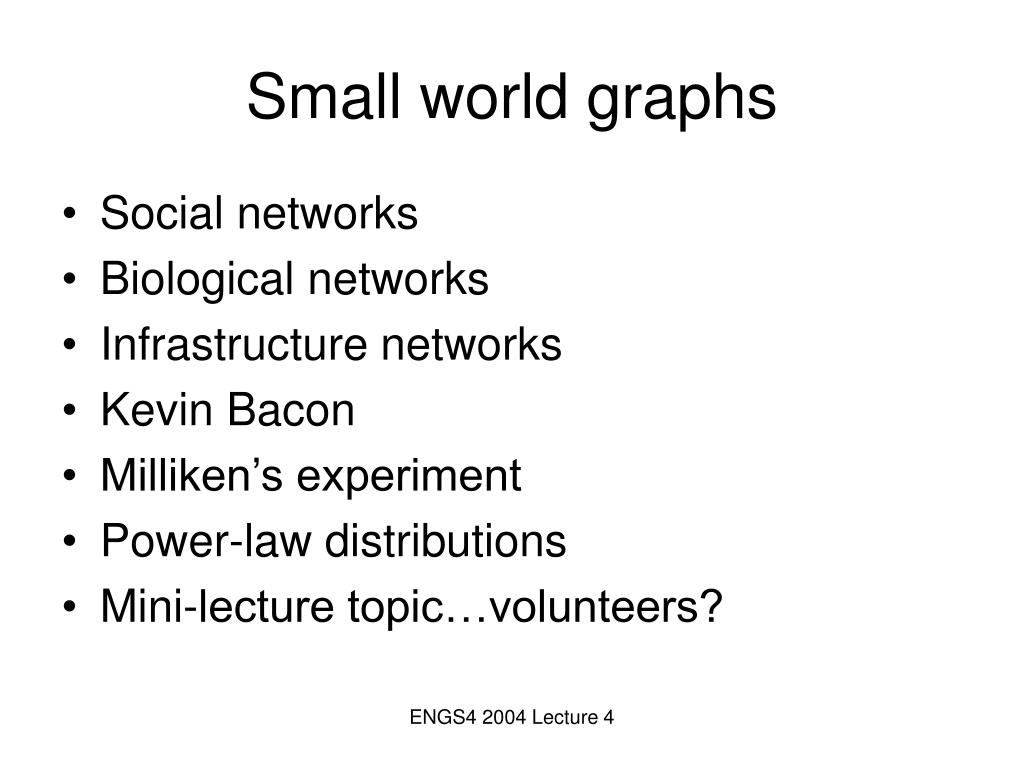

    Small world graphs l.jpg

    Small world graphs

    • Social networks

    • Biological networks

    • Infrastructure networks

    • Kevin Bacon

    • Milliken’s experiment

    • Power-law distributions

    • Mini-lecture topic…volunteers?

    ENGS4 2004 Lecture 4


    Break l.jpg

    Break

    ENGS4 2004 Lecture 4


    Phillip s mini lecture l.jpg

    Phillip’s Mini-lecture

    ENGS4 2004 Lecture 4


    Chad s mini lecture l.jpg

    Chad’s Mini-lecture

    ENGS4 2004 Lecture 4


    Rule based systems l.jpg

    Rule-based systems

    • Visit advanced search in Google

    • User constructs a “Boolean query”

    • EG.

      • must include – dartmouth, hockey

      • may include – women female

      • does not include – men

    • Boolean expression is: “dartmouth and hockey and (women or female) and (not men)”

    ENGS4 2004 Lecture 4


    Aristotelian logic l.jpg

    Aristotelian logic

    • predicates: A, B, C, etc.

    • Basic operators:

      • and : A and Btrue when both true

      • or:A or Btrue when either true

      • not:not Atrue when A false

    • Derived operators: if A then B

      • true providing B is true whenever A is true

      • only false when A is true but B is false

      • (if A then B) is equivalent to: not (A and not B)

    ENGS4 2004 Lecture 4


    Aristotelian logic at work l.jpg

    Aristotelian Logic at work

    • Set of “rules”

      • eg All humans are mortal.

      • logical form: “if (x is human) then (x is mortal).”

      • (x is human) is a predicate with variable x

    • Set of “axioms”: statements known to be true

      • eg (Aristotle is human).

    • Combine them to get: Aristotle is mortal.

    ENGS4 2004 Lecture 4

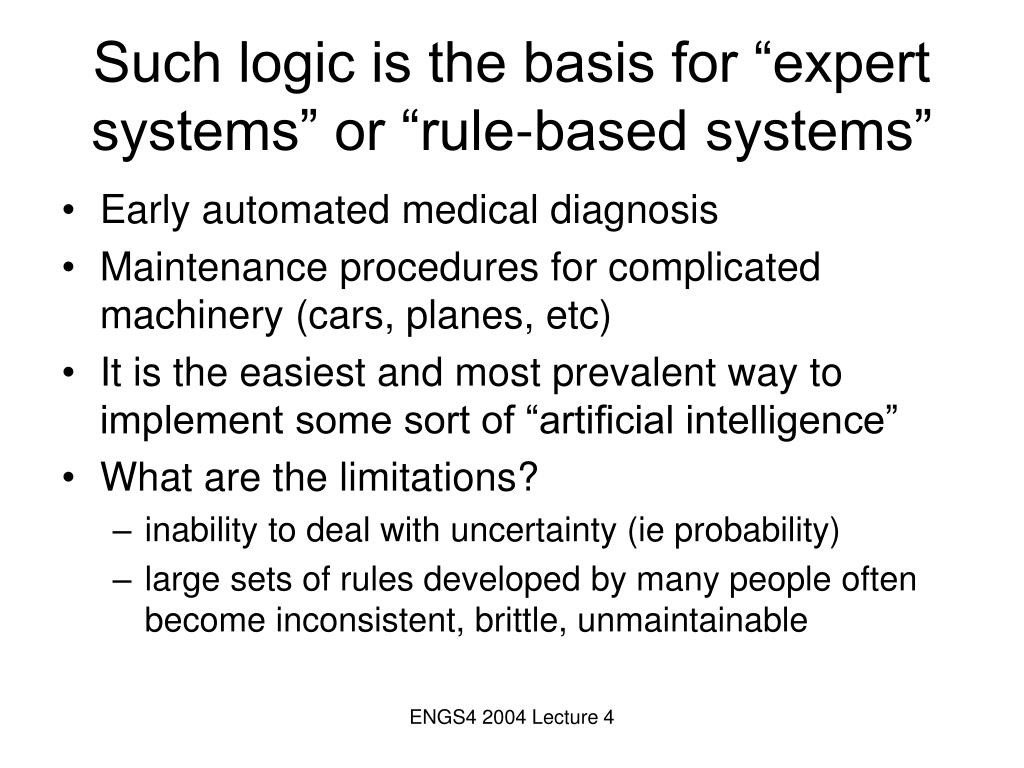

    Such logic is the basis for expert systems or rule based systems l.jpg

    Such logic is the basis for “expert systems” or “rule-based systems”

    • Early automated medical diagnosis

    • Maintenance procedures for complicated machinery (cars, planes, etc)

    • It is the easiest and most prevalent way to implement some sort of “artificial intelligence”

    • What are the limitations?

      • inability to deal with uncertainty (ie probability)

      • large sets of rules developed by many people often become inconsistent, brittle, unmaintainable

    ENGS4 2004 Lecture 4


    Next lecture l.jpg

    Next lecture

    • Classical uses of rule-based systems to “predict the future” with distributed information

    • Current uses of rule-based systems on the internet

    • Critique

    ENGS4 2004 Lecture 4


    Mini lecture topics l.jpg

    Mini-lecture topics

    • Technology behind recommender systems such as Amazon, Netflix, etc.

    ENGS4 2004 Lecture 4
