Presentation Transcript

Swallowing difficulty pain l.jpg

Swallowing Difficulty & Pain

Tim Farrell, MD

Tom Egan, MD

Assumptions l.jpg


  • Students understand the anatomy, physiology, and pathophysiology of the swallowing mechanism and the esophagogastric junction.

Objectives l.jpg


Students will understand:

  • Differential diagnosis for a patient with dysphagia.

  • Symptoms and treatment of GERD.

  • Pathophysiology and treatment of achalasia and diffuse esophageal spasm.

  • Etiology and treatment of esophageal diverticula.

  • Common symptoms and management of hiatal hernias.

  • Management of adenocarcinoma of the E-G junction.

  • Presenting symptoms, etiology and treatment of esophageal rupture.

Case 1 l.jpg

Case 1

  • An 80-year-old man presents with a trouble swallowing for a year. He regurgitates after meals, has heartburn, but no other pain and is in good health otherwise.

  • He is thin, without neck mass. His chest is clear and his abdomen is soft and without masses.

Case 15 l.jpg

Case 1

  • What is the differential diagnosis?


    Tumor, Stricture, Compression, Foreign Body



    Motility Disorder (achalasia, scleroderma)

    Neurologic (Parkinson’s, bulbar paralysis)


    Globus Hystericus

Case 16 l.jpg

Case 1

  • What test should be done, in what order, and why?

    Anatomic AssessmentFunctional Assessment

    Upper GI Series24-hr pH

    EGDEsophageal Manometry

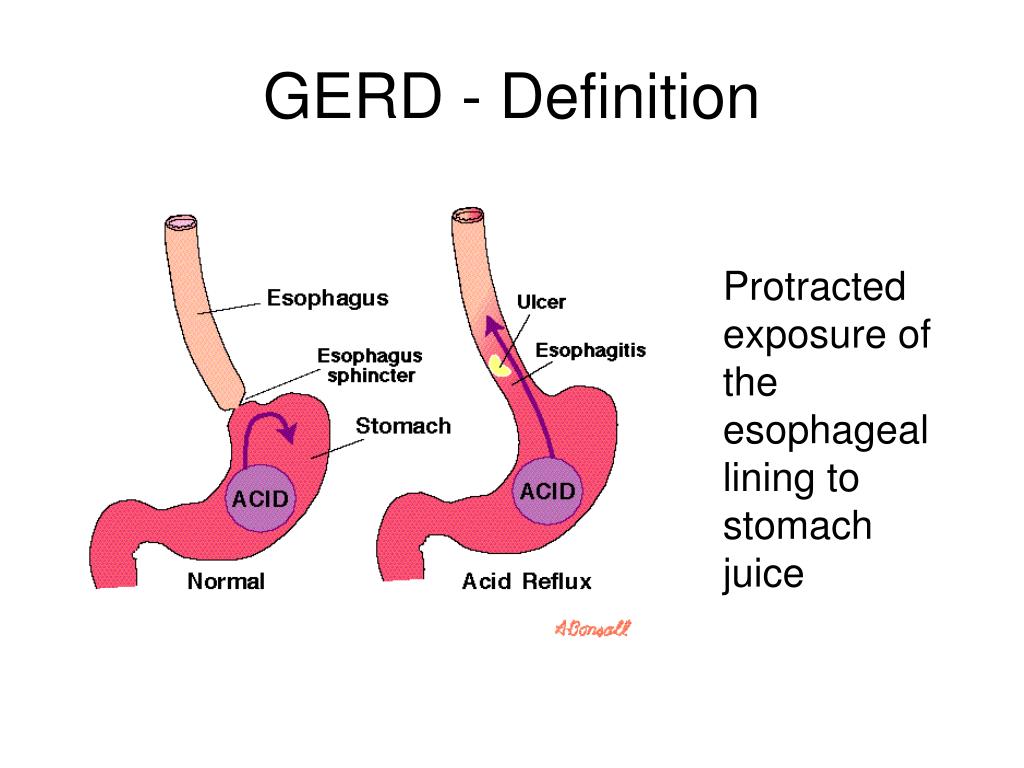

Gerd definition l.jpg

GERD - Definition

Protracted exposure of the esophageal lining to stomach juice

Gerd causes l.jpg

GERD - Causes

  • Lower esophageal sphincter

    • Incompetent valve

    • Inappropriate relaxations

  • Hiatal Hernia

  • Abnormal motility

    • Impaired esophageal clearing

  • Delayed gastric emptying

  • Defective cytoprotection

Gerd symptoms l.jpg

Atypical Symptoms




Chest Pain

Typical Symptoms



Trouble Swallowing

GERD - Symptoms

Gerd complications l.jpg

GERD - Complications

  • Peptic Stricture

  • Esophagitis / Ulcers

  • Barrett's Esophagus

Indications for further dx rx l.jpg

Indications for further Dx-Rx

  • Persistent or frequent symptoms

  • Dysphagia

  • Frequent vomiting

  • Early satiety

  • Weight loss

  • Significant respiratory complaints

  • Age < 45

Gerd diagnosis l.jpg

GERD - Diagnosis

  • Barium Swallow

  • Upper Endoscopy

  • Esophageal Manometry

  • 24-Hour Ambulatory Esophageal pH

  • Gastric Emptying Study

Gerd diagnosis barium swallow l.jpg

GERD - DiagnosisBarium Swallow

Gerd diagnosis upper endoscopy l.jpg

GERD - DiagnosisUpper Endoscopy

Gerd diagnosis manometry l.jpg

GERD - DiagnosisManometry

Gerd treatment l.jpg


Medical - OTC



Medical -Prescription

Proton-Pump Inhibitors




GERD - Treatment

Dietary modifications l.jpg

Dietary Modifications

  • Avoid large meals

  • Limit foods which decrease LES pressure

    • Fatty foods, chocolate, mints, and alcohol

  • Avoid irritating foods and beverages

    • Citrus, tomatoes, pepper, etc.

  • Limit caffeine and carbonated beverages

    • Increases acid production

    • Increased gastric distension

  • Candy or gum to increase saliva

    • Alkaline saliva neutralizes acid

    • Increases motility and clearance

Lifestyle modifications l.jpg

Lifestyle Modifications

  • Weight Loss

  • Avoid smoking

    • Decreases LES pressure

  • Avoid lying down for 2-3 hours after meals

    • Limits supine reflux

  • Sleep with elevated head of bed

    • Improves esophageal clearance

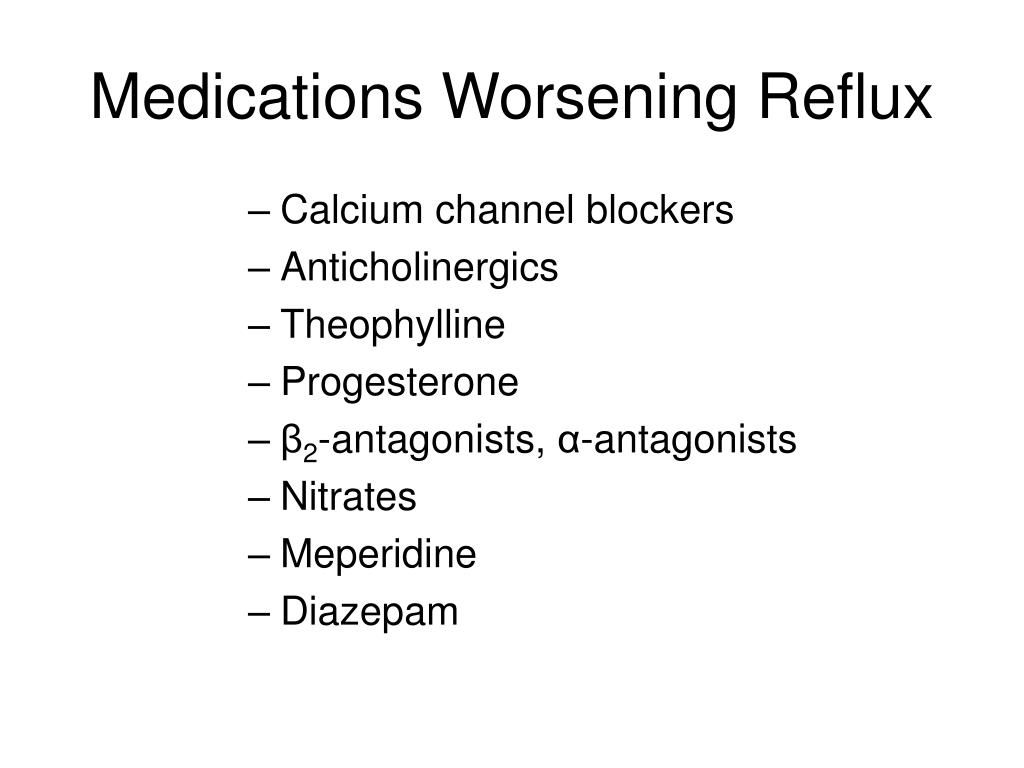

Medications worsening reflux l.jpg

Medications Worsening Reflux

  • Calcium channel blockers

  • Anticholinergics

  • Theophylline

  • Progesterone

  • β2-antagonists, α-antagonists

  • Nitrates

  • Meperidine

  • Diazepam

Gerd medical treatment l.jpg

GERD - Medical Treatment

Medications may be used to:

  • Neutralize acid

  • Increase LES tone

  • Improve gastric emptying

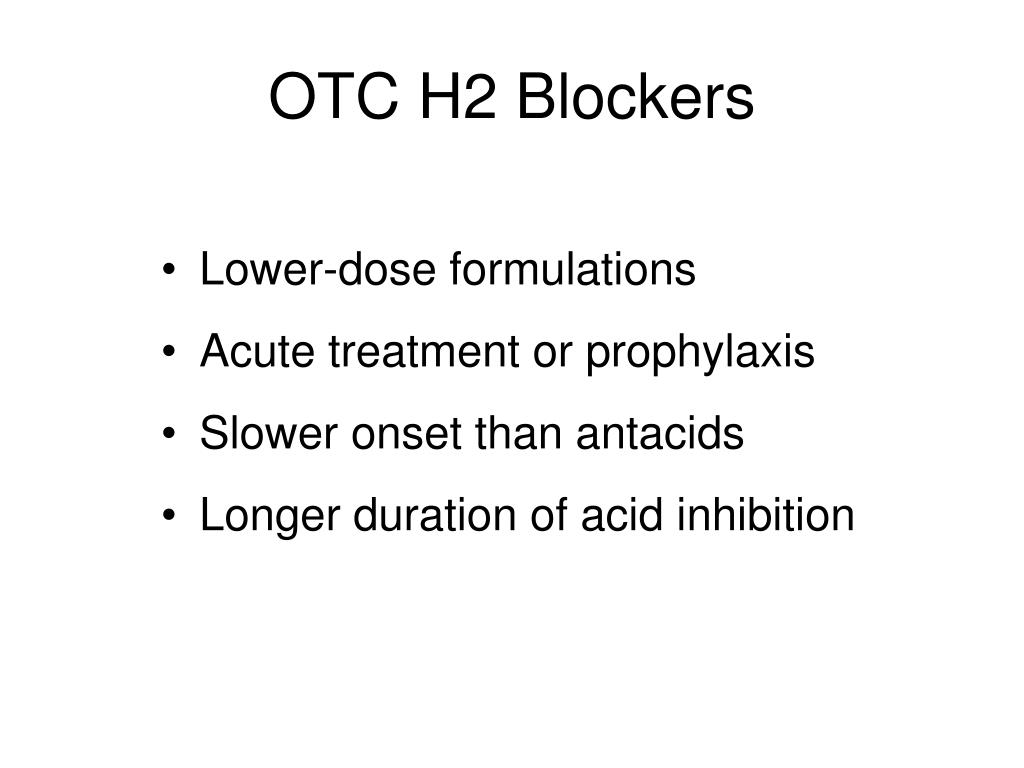

Otc h2 blockers l.jpg

OTC H2 Blockers

  • Lower-dose formulations

  • Acute treatment or prophylaxis

  • Slower onset than antacids

  • Longer duration of acid inhibition

Proton pump inhibitors l.jpg

Proton Pump Inhibitors

Endoscopic treatment modalities thermal stretta l.jpg

Endoscopic Treatment Modalities Thermal (Stretta®)

Thermal energy Mechanical / Neural

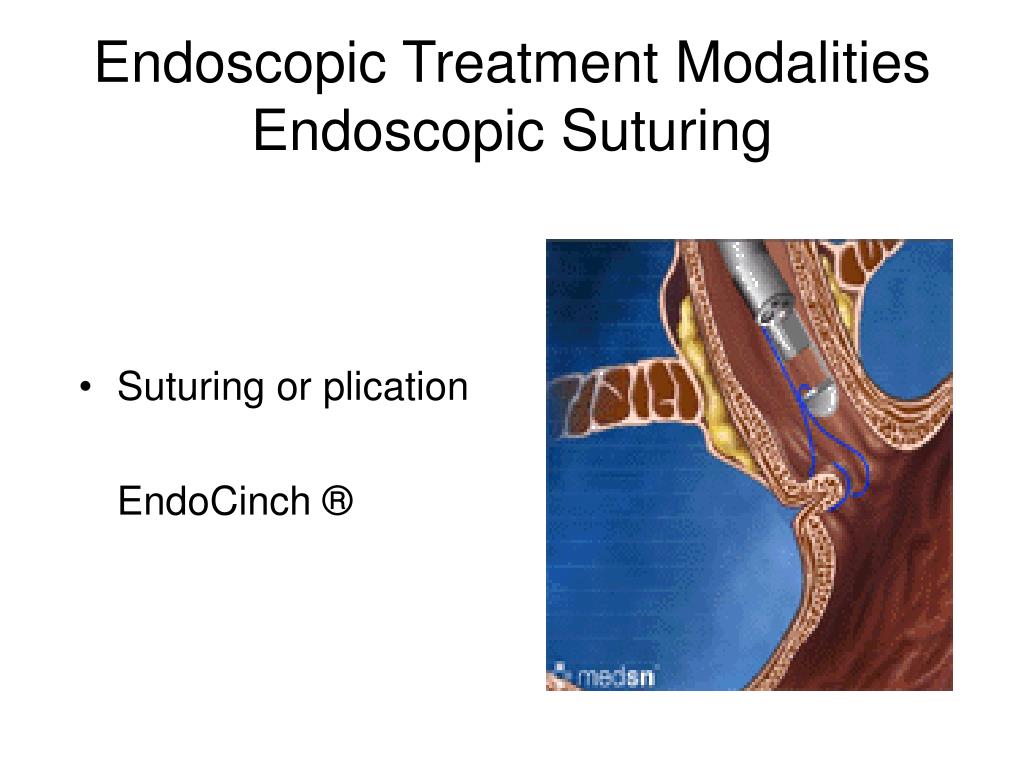

Endoscopic treatment modalities endoscopic suturing l.jpg

Endoscopic Treatment Modalities Endoscopic Suturing

  • Suturing or plication

    EndoCinch ®

Endoscopic treatment modalities biocompatible material l.jpg

Endoscopic Treatment ModalitiesBiocompatible Material

Enteryx ®

Gerd surgical treatment l.jpg

GERD - Surgical Treatment

Gerd surgical treatment27 l.jpg

GERD - Surgical Treatment

Nissen fundoplication technique l.jpg

Nissen FundoplicationTechnique

Nissen fundoplication technique29 l.jpg

Nissen FundoplicationTechnique

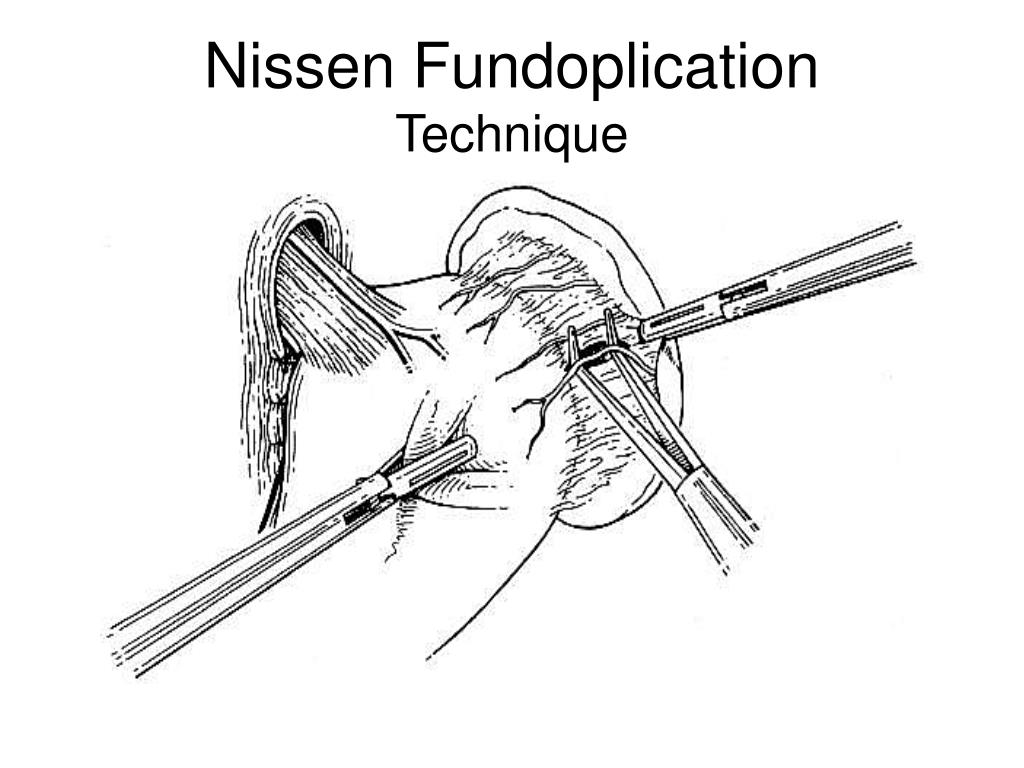

Nissen fundoplication technique30 l.jpg

Nissen FundoplicationTechnique

Nissen fundoplication technique31 l.jpg

Nissen FundoplicationTechnique

Nissen fundoplication technique32 l.jpg

Nissen FundoplicationTechnique

Nissen fundoplication technique33 l.jpg

Nissen FundoplicationTechnique

Nissen fundoplication technique34 l.jpg

Nissen FundoplicationTechnique

Gerd surgical treatment results l.jpg

Procedure - 2 Hours

Hospital - 1-2 Days

Full Activity - 2 weeks

Full Diet - 3 weeks

Need to Open <1%

Need for Blood <1%

Off Medications - 95%

Off Steroids - 50%

Need 2nd Procedure - 5%

GERD - Surgical TreatmentResults

Effects of fundoplication l.jpg

Effects of Fundoplication


  • augments LES resting pressure

  • lessens frequency of transient LES relaxations

  • reestablishes anatomy of the LES and crura

  • may improve esophageal clearance

  • may improve gastric emptying

Case 2 l.jpg

Case 2

  • A 61-year-old man presents with progressive difficulty swallowing. He has history of indigestion and heartburn. Until 12 months ago, food would come up into his throat when he was supine, with a sour taste and sometimes a cough. About 12 months ago, these symptoms improved but he developed progressive dysphagia.

  • He smokes 1 PPD and drinks two beers at dinner.

  • Exam is unremarkable except for barrel chest.

Case 238 l.jpg

Case 2

  • What is the differential diagnosis?


Tumor, Stricture, Compression, Foreign Body



Motility Disorder (achalasia, scleroderma)

Neurologic (Parkinson’s, bulbar paralysis)


Globus Hystericus

Case 239 l.jpg

Case 2

  • How would you evaluate this patient?

    Anatomic AssessmentFunctional Assessment

    Upper GI Series24-hr pH

    EGDEsophageal Manometry


Case 240 l.jpg

Case 2

  • What are the treatment options for benign esophageal stricture?

    • Medications

    • Endoscopic Dilation

    • Surgery

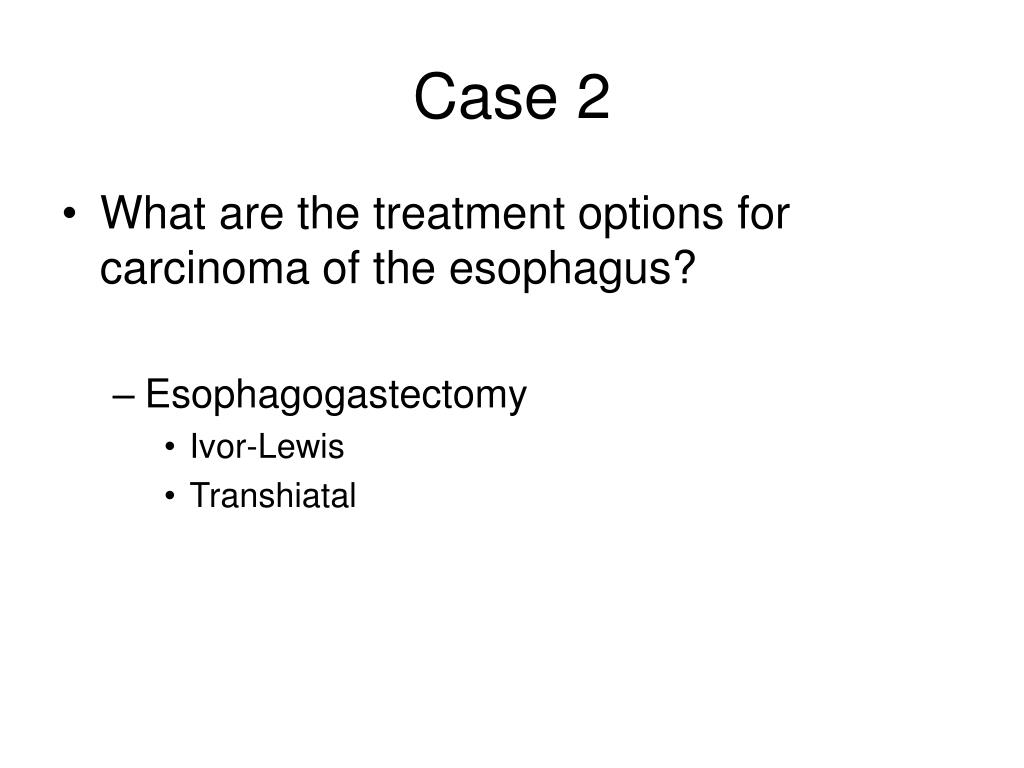

Case 241 l.jpg

Case 2

  • What are the treatment options for carcinoma of the esophagus?

    • Esophagogastectomy

      • Ivor-Lewis

      • Transhiatal

Barrett s esophagus epidemiology l.jpg

Barrett’s EsophagusEpidemiology

  • Affects 10% of patients with severe GER

  • 40-fold increased risk of cancer

  • Patients require endoscopic surveillance

  • Esophagectomy for severe dysplasia/cancer

Barrett s esophagus endoscopic appearance l.jpg

Barrett’s EsophagusEndoscopic Appearance

Barrett s esophagus pathologic diagnosis l.jpg

Barrett’s EsophagusPathologic Diagnosis

  • Normal squamous epithelium transforms to intestinal-type (columnar) epithelium

40x increased cancer risk

No increased cancer risk

Ppi induced regression l.jpg

PPI-Induced Regression?

Peters FT, et al., Gut 1999;45:489-94.

Surgery induced regression l.jpg

  • 56 Barrett’s patients had antireflux surgery

  • Annual flexible endoscopy

  • 24Barrett’s regressed

  • 8 cm 4 cm

  • 9Barrett’s progressed

  • 6 cm 10 cm

  • 23No change

Surgery-Induced Regression?

Sagar: Br J Surg 1995;82:806-10.

Barrett s esophagus development of cancer based on grade l.jpg

Barrett’s EsophagusDevelopment of Cancer Based on Grade

  • No dysplasia 3%

  • Low-grade dysplasia18%

  • High-grade dysplasia28%

Morales and Sampliner, Arch Int Med 1999;159:1411-16.

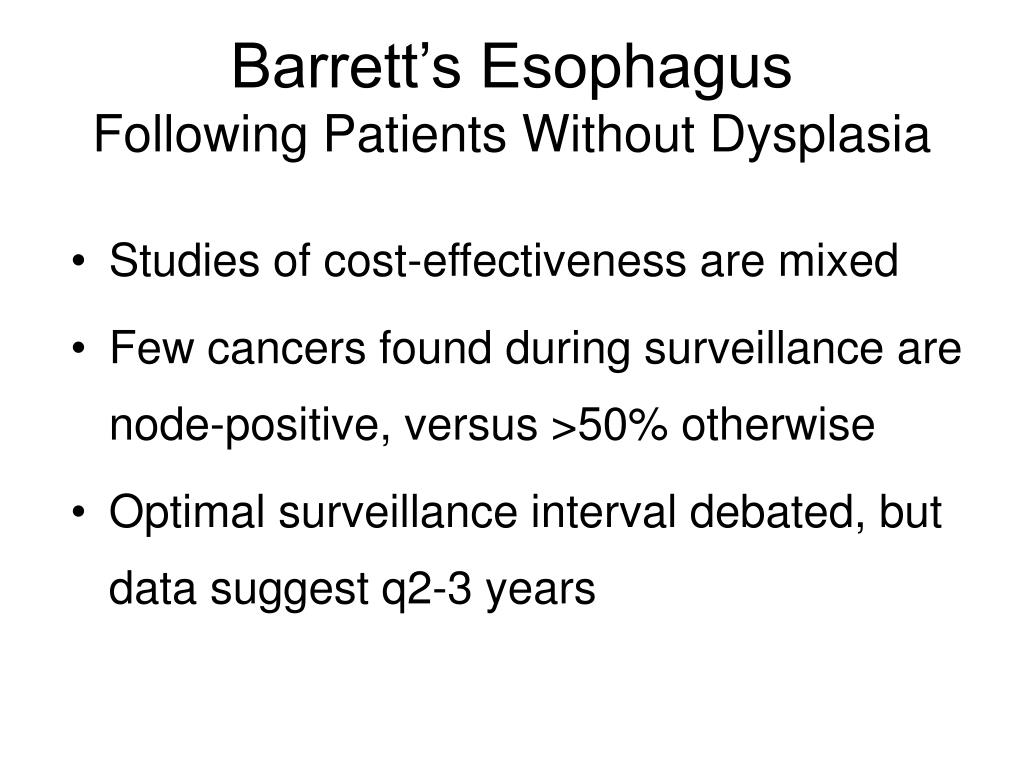

Barrett s esophagus following patients without dysplasia l.jpg

Barrett’s EsophagusFollowing Patients Without Dysplasia

  • Studies of cost-effectiveness are mixed

  • Few cancers found during surveillance are node-positive, versus >50% otherwise

  • Optimal surveillance interval debated, but data suggest q2-3 years

Barrett s esophagus patients with low grade dysplasia l.jpg

Barrett’s EsophagusPatients With Low-Grade Dysplasia

  • Repeat endoscopy to avoid sampling error

  • Surveillance q6 mo. x 1 year then q12 mo.

  • May regress allowing increased interval

Barrett s esophagus patients with high grade dysplasia l.jpg

Barrett’s EsophagusPatients With High-Grade Dysplasia

  • Must confirm the diagnosis

  • Treatment is controversial

  • Some advocate aggressive biopsy protocol

  • Some advocate esophagectomy

Barrett s esophagus patients with high grade dysplasia51 l.jpg

Barrett’s EsophagusPatients With High-Grade Dysplasia

Case for Aggressive Surveillance (q3-6 mos.):

  • Regression may occur (25%)

  • Most patients will not progress to cancer

  • Cancers remain surgically curable

  • Esophagectomy carries morbidity (up to 40%) and mortality (3-6%)

Barrett s esophagus patients with high grade dysplasia52 l.jpg

Barrett’s EsophagusPatients With High-Grade Dysplasia

Case for Esophagectomy:

  • 40% may already have cancer

  • Surveillance delays definitive treatment

  • Risk of esophagectomy low in high-volume centers

Barrett s esophagus specific treatment l.jpg

Barrett’s EsophagusSpecific Treatment

Ablative Techniques

  • laser

  • electrocautery

  • photodynamic therapy (PDT)

    Resective Techniques

  • Endoscopic mucosal resection (EMR)

Barrett s esophagus take home points l.jpg

Barrett’s EsophagusTake-Home Points

  • Barrett’s esophagus is not a contraindication to antireflux operation

  • Medical or surgical therapy does not eliminate need for Barrett’s surveillance

  • Management of high-grade dysplasia is evolving away from esophagectomy

Case 3 l.jpg

Case 3

  • A 53-year-old patient presents with a history of difficulty swallowing for years. More recently she is having increasing trouble swallowing, and has been regurgitating undigested food. Exam is unrevealing, but on chest film there is an air fluid level seen behind the heart in the mid chest.

Case 356 l.jpg

Case 3

  • Describe a differential diagnosis and diagnostic evaluation.

Case 357 l.jpg

Case 3

  • Discuss the management options for a patient with achalasia.

Achalasia incidence l.jpg


  • 0.5 new cases / 100,000 population / year

  • Dysphagia, regurgitation, cough, wheezing, aspiration, pulmonary infections

  • 50% initially misdiagnosed

Achalasia pathophysiology l.jpg


  • Involves degeneration of Auerbach’s plexus and elevated LES resting pressure

  • Poor LES relaxation results in esophageal dilation with progressive loss of peristalsis

Achalasia diagnosis l.jpg


  • Ba swallow:

    • esophageal dilation / narrowing at GE junction

  • EGD:

    • patulous esophagus, retained food, thickening

  • Esophageal manometry:

    • LES resting pressure

    • LES relaxation on swallowing

    • primary peristalsis

Achalasia treatment options l.jpg

AchalasiaTreatment Options

  • Non-Surgical options:

    • Nitrates and Ca++-channel blockers

    • Endoscopic injection of Botox

    • Pneumatic balloon dilatation

  • Surgical options:

    • Heller myotomy (laparoscopic, thoracoscopic)

Heller myotomy technique l.jpg

Heller MyotomyTechnique

Heller myotomy technique63 l.jpg

Heller MyotomyTechnique

Heller myotomy technique64 l.jpg

Heller MyotomyTechnique

Heller myotomy outcomes l.jpg

Heller MyotomyOutcomes

  • 40 laparoscopic Heller myotomies

  • No conversions, mean op time - 180 min

  • Median hospital stay - 2 days

  • One intraop mucosal injuriey repaired

  • Dysphagia alleviated in > 95%

Case 366 l.jpg

Case 3

  • Discuss the management of a patient with paraesophageal hernia.

Epidemiology hiatal hernias l.jpg

EpidemiologyHiatal Hernias

  • Herniation of the stomach through the esophageal hiatus

  • Para-esophageal type - 5%

    • Occurs in elderly patients (~ 65 years)

    • Frequent co-morbid conditions

Slide68 l.jpg

ClassificationHiatal Hernias

  • Classification depends on location of GEJ

    • Type I- “sliding” hiatal hernia

    • Type II- true paraesophageal hernia

    • Type III- “mixed” hernia- sliding hernia and true paraesophageal hernia

    • Type IV- intra-abdominal organ involvement

Sliding hiatal hernia l.jpg

Sliding Hiatal Hernia

  • Type I

  • GE junction “slides” into the mediastinum

  • Most HH

  • May be associated with symptomatic GERD

  • Surgery not indicated

True paraesophageal hernia l.jpg

True Paraesophageal Hernia

  • Type II

  • GEJ in the abdominal cavity, fundus in the mediastinum

  • 5% of all HH

  • Risk of incarceration and strangulation

Mixed paraesophageal hernia l.jpg

Mixed Paraesophageal Hernia

  • Type III

  • GE junction and gastric fundus are located in mediastinum

  • 5% of all HH

  • Risk of incarceration and strangulation

Paraesophageal hernia volvulus l.jpg

Paraesophageal HerniaVolvulus

Mesoaxial Volvulus

Organoaxial Volvulus

Paraesophageal hernia x ray l.jpg

Paraesophageal HerniaX-ray

Paraesophageal hernia upper gi series l.jpg

Paraesophageal HerniaUpper GI series

Type II

Type III

Paraesophageal hernia egd l.jpg

Paraesophageal HerniaEGD

Paraesophageal hernia treatment options l.jpg

Paraesophageal HerniaTreatment Options

  • Observation

  • Medical Therapy

  • Surgery

Paraesophageal hernia observation l.jpg

Paraesophageal HerniaObservation

  • Assumes a low rate of gastric strangulation

  • Allen et al.

    • 23 of 147 patients followed for 12-268 mos (median 78 mos).

    • Only 4 pts had progressive symptoms and 2 had elective repair

    • Estimate prevalence of one gastric strangulation per 245 pts

      J Thorac Cardiovasc Surg 1993;105:253

Paraesophageal hernia medical therapy l.jpg

Paraesophageal HerniaMedical Therapy

  • One-third of patients have heartburn alone

    • Acid inhibition

    • Patient clearly informed of risk of gastric strangulation and consequences

      • Excessive (10-50%) mortality for surgical repair of gastric strangulation

Paraesophageal hernia principles of operative repair l.jpg

Paraesophageal HerniaPrinciples of Operative Repair

  • Hernia Reduction

  • Hernia sac excision

  • Crural repair

  • Gastric fixation

  • Fundoplication controversial

Paraesophageal hernia hernia reduction l.jpg

Paraesophageal HerniaHernia Reduction

  • Entire stomach and at least 2 cm of esophagus must be intra-abdominal

Paraesophageal hernia sac excision l.jpg

Paraesophageal HerniaSac Excision

  • Entire sac must be excised to decrease risk of recurrence

  • Remnants of sac along inferior border of left crus lead to recurrence

Paraesophageal hernia crural repair l.jpg

Paraesophageal HerniaCrural Repair

  • Primary repair alone

  • Primary repair with relaxing incision

  • Mesh repair

Paraesophageal hernia fundoplication l.jpg

Paraesophageal HerniaFundoplication

  • Recent series report high rate of GERD without fundoplication

  • Wrap provides bulk to create “plug” at site of crural repair

Paraesophageal hernia surgical outcomes l.jpg

Paraesophageal HerniaSurgical Outcomes

  • Luketich et al.: 100 pts lap PH repair

    • 12% intraop complications; technically demanding

    • 3 conversions to open procedures

    • 28% postop complication rate; 0% mortality

    • 3% reoperation rate

    • 91% satisfied, 2-day hospital stay

      Ann Surg 2000;232:608

Paraesophageal hernia take home points l.jpg

Paraesophageal HerniaTake-Home Points

  • Uncommon, rarely present with strangulation

  • Repair advised for non-GER symptoms

  • Repair is technically demanding

  • Laparoscopic vs. open remains controversial

  • Prospective study to determine recurrence

Case 4 l.jpg

Case 4

  • A 47-year-old woman has chest pain after eating dinner at home 4 hours following upper GI endoscopy for dilatation of her achalasia.

  • What is the presumed diagnosis?

Case 487 l.jpg

Case 4

  • What is the best means of making the diagnosis?

Case 488 l.jpg

Case 4

  • What is the appropriate management? Under what circumstances might you manage this non-operatively?

  • What might be an appropriate management for a small perforation at the GE junction with minimal soiling?

  • Login
