Presentation Transcript

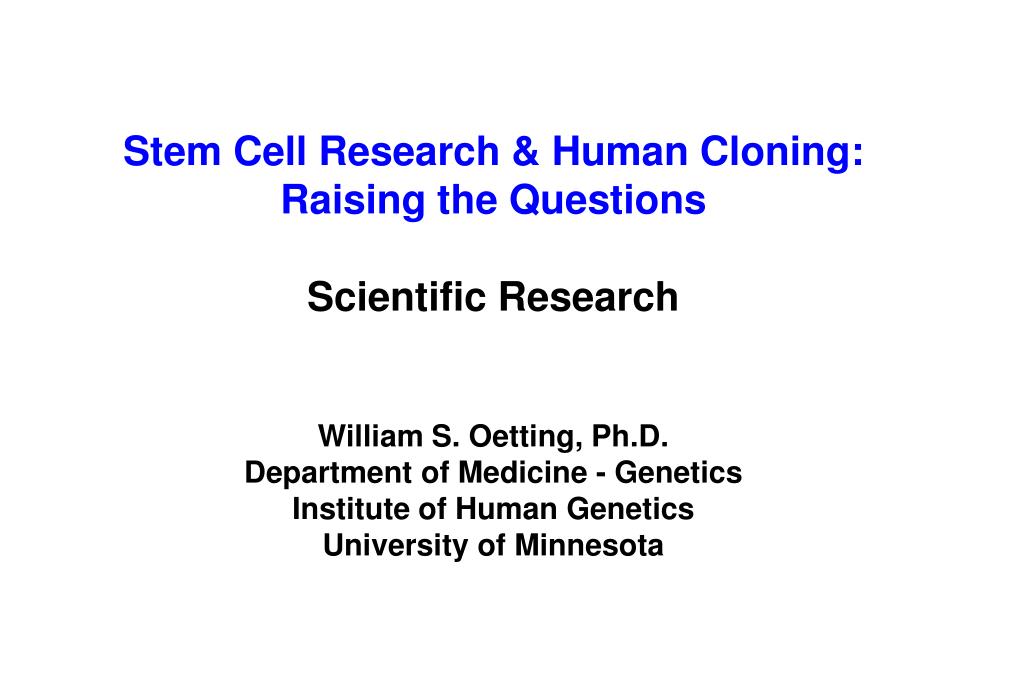

Slide1 l.jpg

Stem Cell Research & Human Cloning:

Raising the Questions

Scientific Research

William S. Oetting, Ph.D.

Department of Medicine - Genetics

Institute of Human Genetics

University of Minnesota


Slide2 l.jpg

Sources of Stem Cells

Embryonic Stem Cells

Inner Cell Mass

Adult Stem Cells

Normally in adult tissue

Adult Derived Embryonic Stem Cells

Inner Cell Mass

Embryonic Germ Cells

Germinal ridge of a 5-10 week fetus


Slide3 l.jpg

~ 4 days

http://www.worldnetdaily.com/images/stemcell1.gif


Stem cell definition l.jpg

Stem cell: definition

Stem cell differentiates

Stem cell self-replicates


Slide5 l.jpg

Stem cells have two important characteristics that distinguish them from other types of cells.

First, they are unspecialized cells that renew themselves for long periods through cell division. Stem cells do not age.

The second is that under certain physiologic or experimental conditions, they can be induced to become cells with special functions such as the beating cells of the heart muscle or the insulin-producing cells of the pancreas.

http://stemcells.nih.gov/infoCenter/stemCellBasics.asp


Different types of stem cells l.jpg

Different Types of Stem Cells

Totipotent stem cells can give rise to all the different types of cells in the body. A fertilized egg is considered totipotent.

Pluripotent stem cells can give rise to any type of cell in the body except those needed to develop a fetus.

Multipotent stem cells can give rise to multiple different cell types.


Different types of stem cells7 l.jpg

Different Types of Stem Cells

http://www.worldnetdaily.com/images/stemcell2.gif

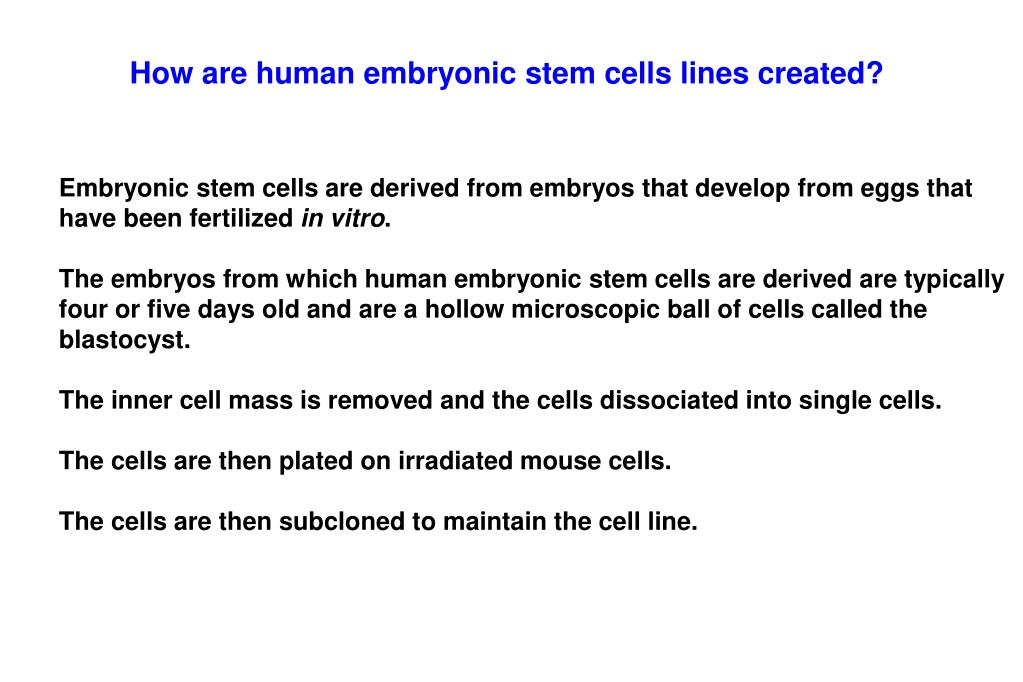

Slide8 l.jpg

How are human embryonic stem cells lines created?

Embryonic stem cells are derived from embryos that develop from eggs that have been fertilized in vitro.

The embryos from which human embryonic stem cells are derived are typically four or five days old and are a hollow microscopic ball of cells called the blastocyst.

The inner cell mass is removed and the cells dissociated into single cells.

The cells are then plated on irradiated mouse cells.

The cells are then subcloned to maintain the cell line.


Slide9 l.jpg

http://www.erin.utoronto.ca/~w3bio380/Lectsked/Lect12/Cleavage.htm#a12


Slide10 l.jpg

The developing fetus itself is the area marked as "ICM" (inner cell mass)

The blastocoel cavity in the center is marked as "C“

The trophectoderm cells that will form the placenta surround the cavity - one is marked with a "T"

http://www.advancedfertility.com/blastocystimages.htm

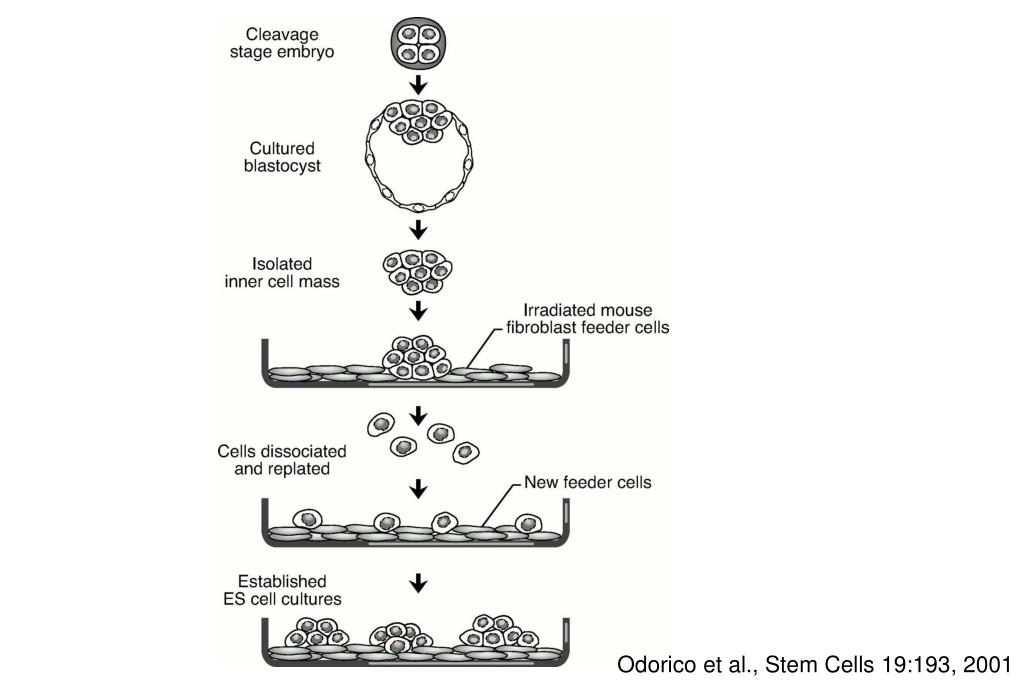

Slide11 l.jpg

Odorico et al., Stem Cells 19:193, 2001


Slide12 l.jpg

Mouse fibroblast

feeder cells

ES cell colony

University of Wisconsin


Slide13 l.jpg

http://users.rcn.com/jkimball.ma.ultranet/BiologyPages/B/Blood.html


Slide14 l.jpg

Hematopoietic colony-forming cells derived from human embryonic stem cells

Dan S. Kaufman*, et al., PNAS, 98:10716-10721, 2001


Human es cell differentiates into multiple tissues in a culture dish l.jpg

ES Cell

BRAIN CELLS

HEART MUSCLE

REUBINOFF BE NAT BIOTECH 19:1134, 2001

ZHANG SC NAT BIOTECH 19:1129, 2001

KEHAT I JCI 108:407, 2001

Human ES cell differentiates into multiple tissues in a culture dish

BLOOD CELLS

  • KAUFMAN DS PNAS 98:10716, 2001


Excitement surrounding es cells l.jpg

Excitement surrounding ES cells

  • Do not age

  • Are pluripotent

  • May be used to treat many (all?) diseases?

  • Used to understand development

  • Testing of new drugs

Controversy surrounding ES cells

  • Allogeneic (from donor, not patient him/her self)

  • Teratomas (benign tumors)

  • Destruction of the blastocyst


Slide17 l.jpg

Adult Stem Cells


Slide18 l.jpg

http://stemcells.nih.gov/infoCenter/stemCellBasics.asp


Slide19 l.jpg

Adult Stem Cells

Adult stem cells typically generate the cell types of the tissue in which they reside.

A blood-forming adult stem cell in the bone marrow, for example, normally gives rise to the many types of blood cells such as red blood cells, white blood cells and platelets.

It was initially thought that a blood-forming cell in the bone marrow — which is called a hematopoietic stem cell — could only give rise to hematopoietic cells.

Recently it has been shown that these cells can give rise to other tissues such as neurons, liver cells that can be made to produce insulin, and hematopoietic stem cells that can develop into heart muscle.


Slide20 l.jpg

http://stemcells.nih.gov/infoCenter/stemCellBasics.asp


Slide21 l.jpg

A number of organ specific stem cells have been identified including hematopoietic, endothelial, muscle, mesenchymal, neural, gastrointestinal, hepatic, and epidermal stem cells. In contrast to ES cells, adult stem cells are derived from adult tissue.

Hematopoietic stem cells have been used for transplantation.

Neural stem cells, present in fetal and adult brain, could be used for treatment of Parkinson's disease, Huntington's disease, Alzheimers disease, multiple sclerosis, and spinal cord injury.

Insulin producing islet cells to treat diabetes mellitus using the patient's own islet stem cells, or using ex vivo generated / expanded islet cells from allogeneic donors.

Endothelial stem cells in the blood and marrow of humans and animals could be used to induce neovascularization, or to prevent tumor angiogenesis.

Mesenchymal stem cells present in bone marrow are capable of generating cartilage and bone, are being tested for their ability to restore bone and cartilage defects


Slide22 l.jpg

http://stemcells.nih.gov/infoCenter/stemCellBasics.asp


Slide24 l.jpg

There are three main approaches to cell therapy in regenerative medicine

Allogeneic embryonic stem cells. While these stem cells are totipotent, they are not compatible with the patient’s DNA, thereby having a high risk of rejection by the patient’s immune system. The word allogeneic literally means “other DNA type”. The companies pursuing this strategy typically intend to address this problem trough administration of immunosuppressant drugs along with the cell therapy.

Autologous adult stem cells. These are stem cells taken from the patient and coaxed into replacement cells for the patients degenerative disease. While the resulting cells are of the patients own DNA, only a limited number of cell types can be created from these stem cells, thereby limiting the usefulness of this approach.

Autologous embryonic stem cells. ACT’s strategy is to use stem cells cloned directly from the patient’s own cells, thereby generating totipotent stem cells that are not rejected by the patient.


Slide25 l.jpg

Human therapeutic cloning. Robert P. Lanza et al. Nature Medicine 5, 975 - 977 (1999)


Slide26 l.jpg

Images of the Somatic Cell Nuclear Transfer Process

Enucleation

The recipient oocyte is held by a glass pipette (left side of each frame), while a glass needle is used to remove the genetic material in the process of enucleation.

Cell Transfer

A cell containing the genetic material from the donor is placed inside the Zona Pellucida.  An electrical pulse is then applied across the two cells, causing their membranes to fuse into one complete cell.

http://www.advancedcell.com/scnt.htm


Slide27 l.jpg

http://www.advancedcell.com/NBT-2002-img.htm

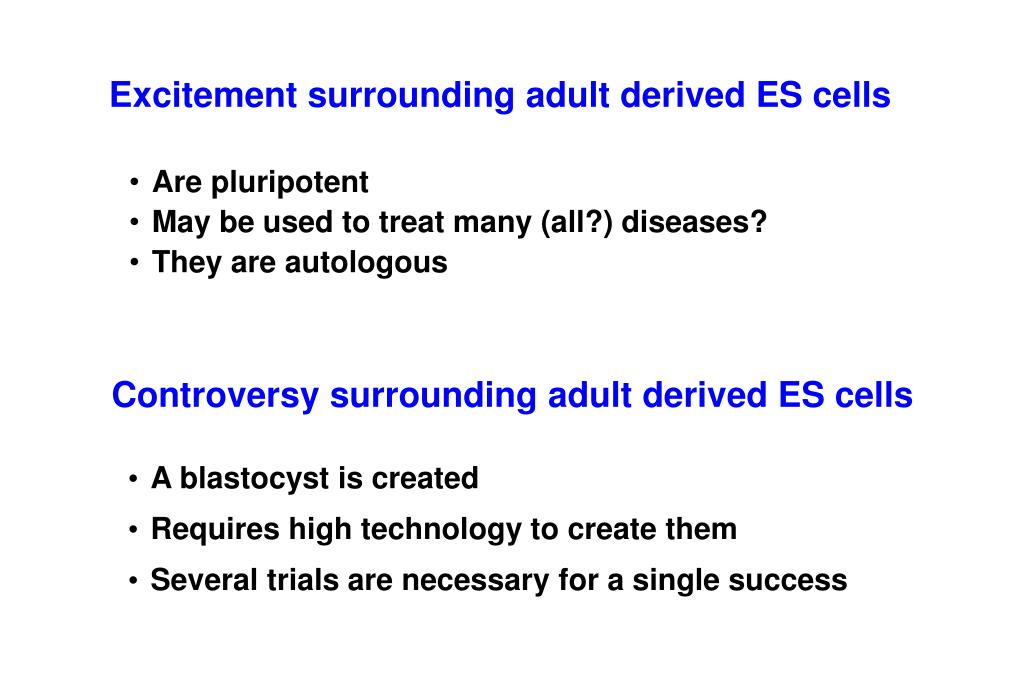

Excitement surrounding adult derived es cells l.jpg

Excitement surrounding adult derived ES cells

  • Are pluripotent

  • May be used to treat many (all?) diseases?

  • They are autologous

Controversy surrounding adult derived ES cells

  • A blastocyst is created

  • Requires high technology to create them

  • Several trials are necessary for a single success
